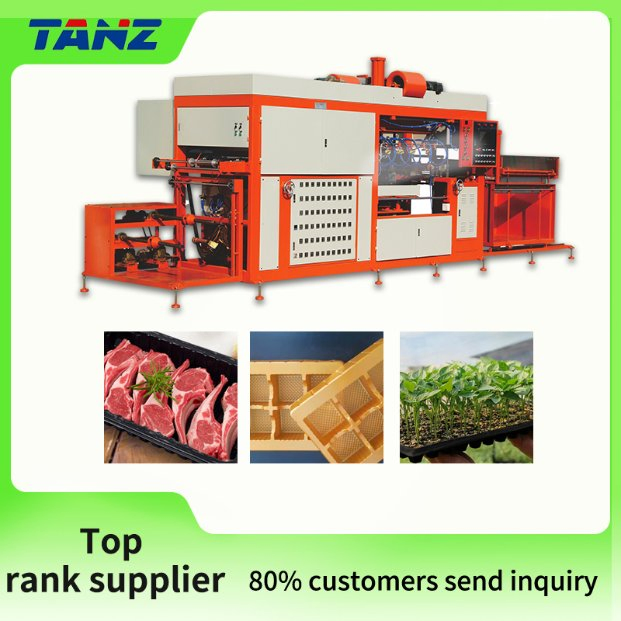

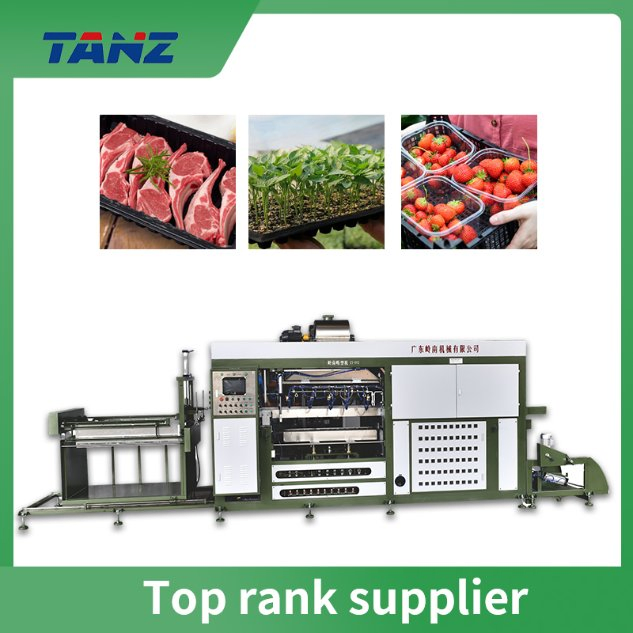

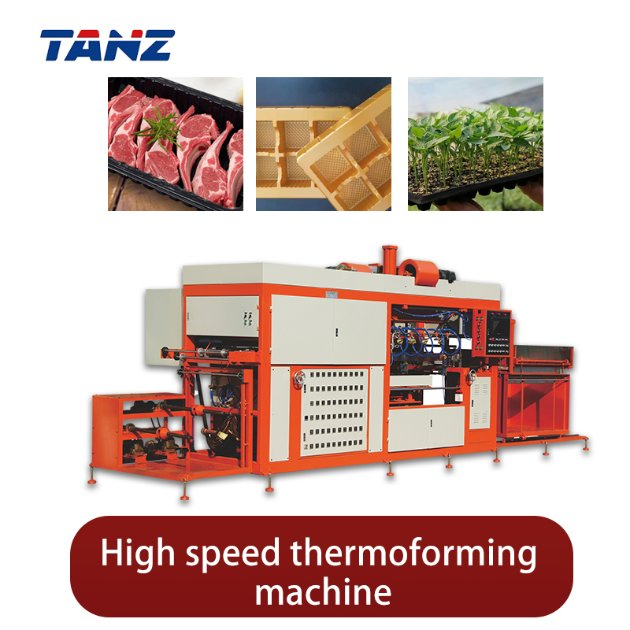

Choosing a suitable thermoforming machine is critical for product quality and production capacity. This high-speed servo thermoforming making machine is designed for plastic food containers, fruit boxes, trays, and seedling trays.
| Technical Parameters | |
|---|---|

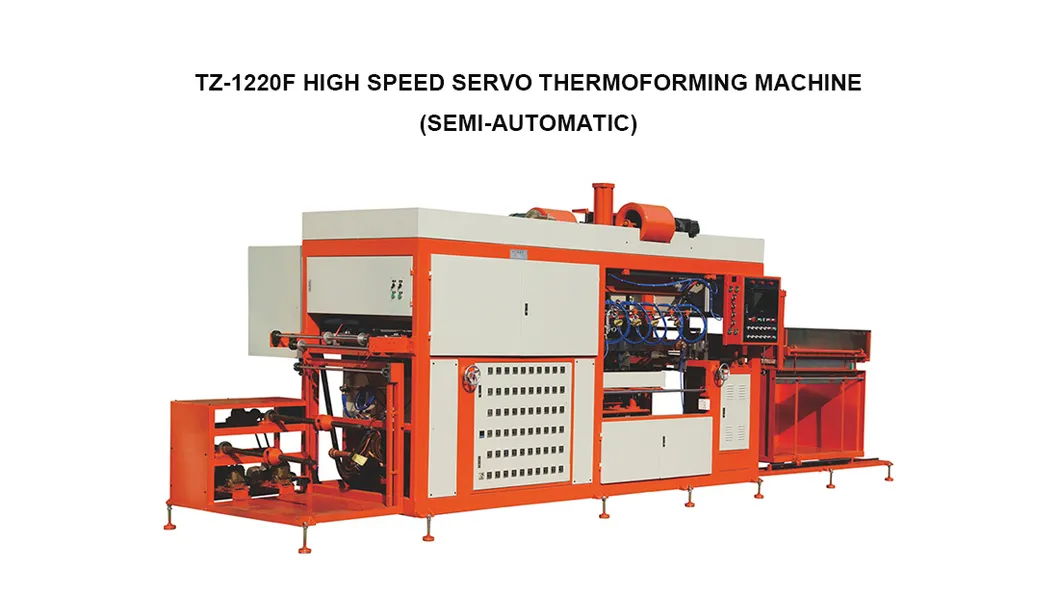

| Model | TZ-1220F |
| Forming Method | Negative pressure forming |
| Mould Size (Max.) | 760*1220mm |
| Forming Depth (Max.) | 180mm |
| Sheet Thickness | 0.16-2.0mm |
| Forming Speed (Max.) | 6-15 times/min |
| Air Pressure | 0.6-0.8mpa |
| Sheet Width (Max.) | 490-750mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA |
| Heating Area | 39KW |
| Rated Power | 55Kw |
| Dimension | L:10.5 x W:2.15 x H:2.8m |
| Main Electrical Components | |
|---|---|
| Touch Screen | KUNLUN TONGTAI |
| PLC | Siemens |
| Servo Motor | Inovance |
| Heater | ELSTEIN (Germany) |
| Temperature Control | Yamatake (Japan) |
| Solenoid Valve | CKD (Japan) |
| Circuit Breaker | Schneider (France) |
Suitable for thermoforming thermoplastic materials with thicknesses of 0.15 to 3.0mm, including PS, HIPS, PVC, PET, PP, PE, PS, KPS, GPET, and ABS. Capable of producing high transparency and high-stretch products in various shapes.

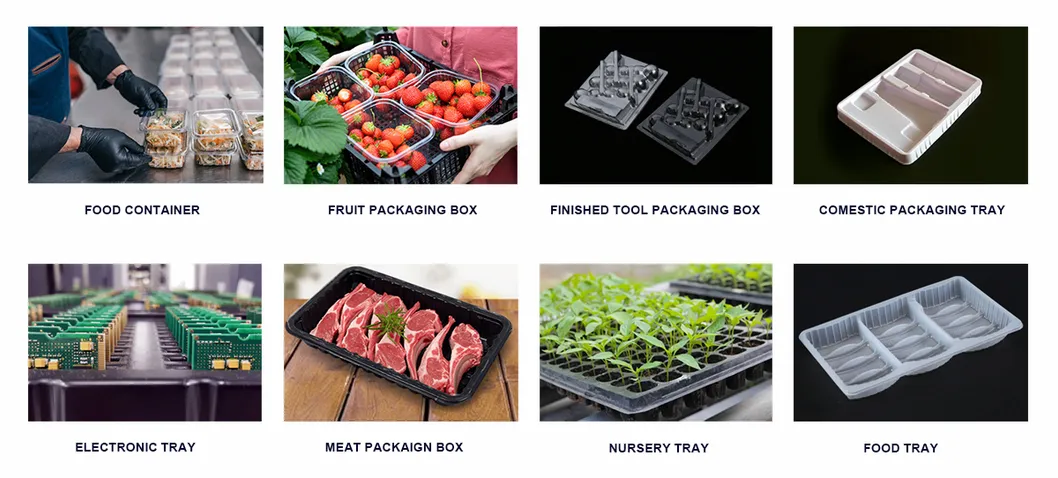

Widely utilized in packaging for toys, hardware, cosmetics, electronics (batteries/components), food (fruit trays, snack boxes, cookie boxes), and pharmaceuticals.

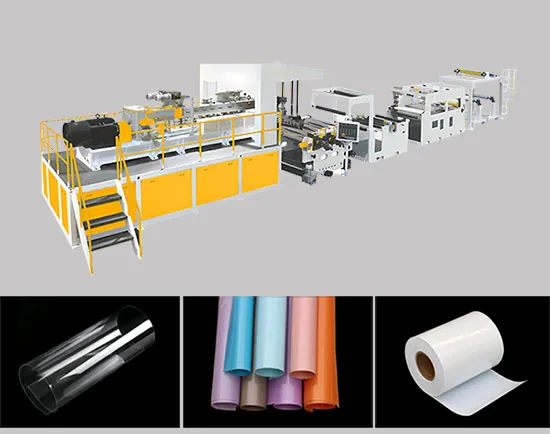

Plastic Sheet Extrusion Machines
Solutions for PET, PP, PE, PS, ABS, PC, PMMA, PLA, etc.

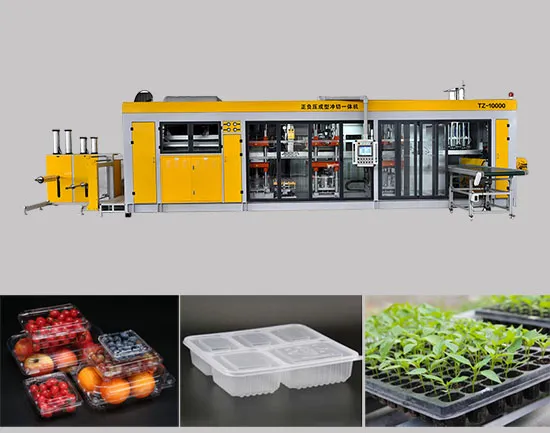

Multi-Station Thermoforming Machines
Suitable for food containers, egg trays, and electronic trays.

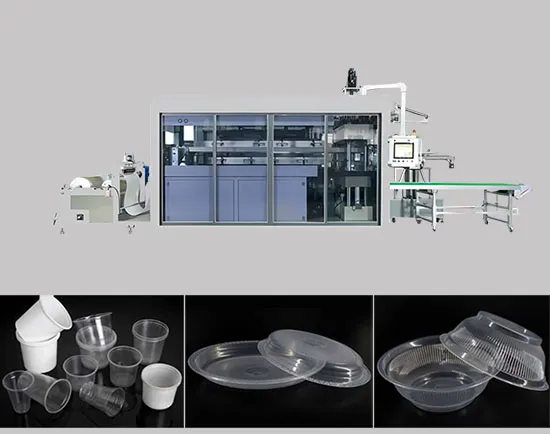

Plastic Cup Making Machines
