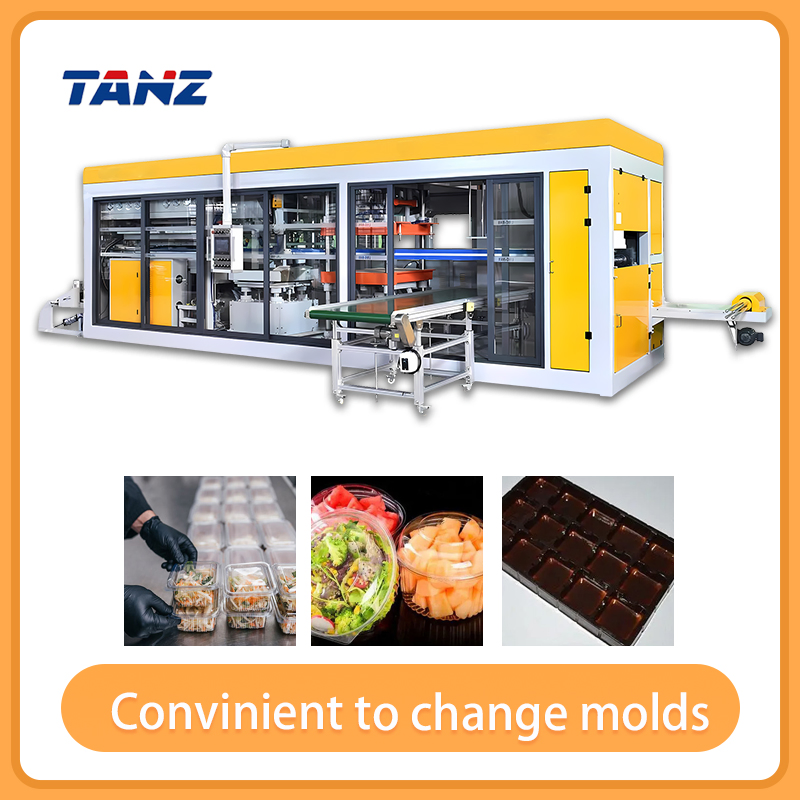

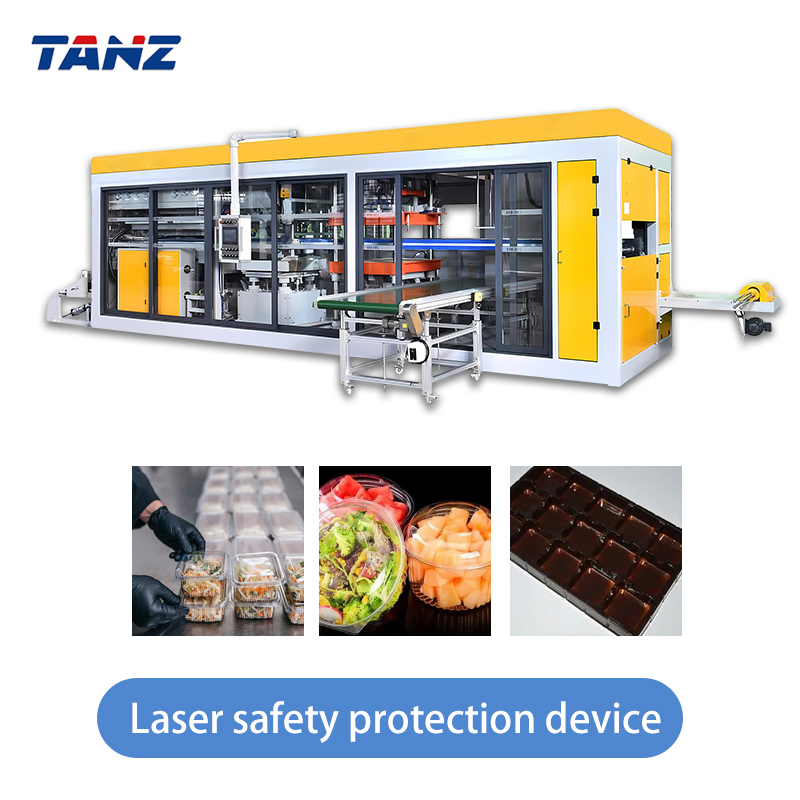

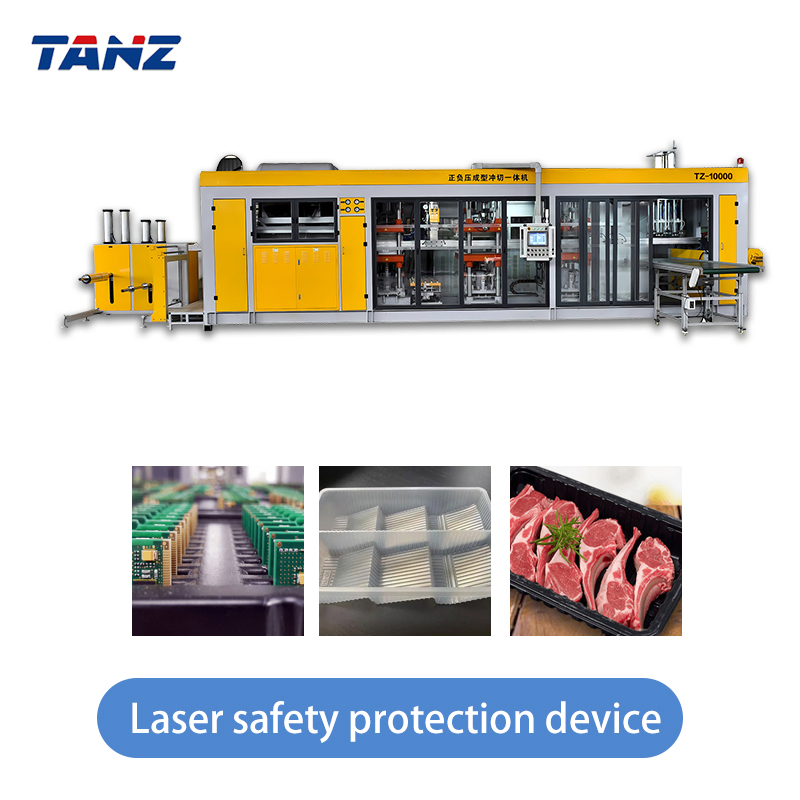

China Factory Automatic Plastic Food Egg Medical Packaging Finished Tool Trays Thermoforming Machine
China Factory Automatic Plastic Food Egg Medical Packaging Finished Tool Trays Thermoforming Machine
China Factory Automatic Plastic Food Egg Medical Packaging Finished Tool Trays Thermoforming Machine
China Factory Automatic Plastic Food Egg Medical Packaging Finished Tool Trays Thermoforming Machine
China Factory Automatic Plastic Food Egg Medical Packaging Finished Tool Trays Thermoforming Machine
1 / 5
China Factory Automatic Plastic Food Egg Medical Packaging Finished Tool Trays Thermoforming Machine
China Factory Automatic Plastic Food Egg Medical Packaging Finished Tool Trays Thermoforming Machine
China Factory Automatic Plastic Food Egg Medical Packaging Finished Tool Trays Thermoforming Machine
China Factory Automatic Plastic Food Egg Medical Packaging Finished Tool Trays Thermoforming Machine
China Factory Automatic Plastic Food Egg Medical Packaging Finished Tool Trays Thermoforming Machine

China Factory Automatic Plastic Food Egg Medical Packaging Finished Tool Trays Thermoforming Machine

Customization: Available
After-sales Service: Lifetime Maintenance (Except Man-Made Damage and N
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Information

Model NO.
TZ-7265
Certification
CE, ISO
Column number
Four Column
Molding Method
Positive and Negative Pressure Forming
Automatic Grade
Automatic
Stations
Forming, Punching, Cutting, Stacking
Forming Size
750*850mm / 750*650mm
Cooling System
3HP Chiller
Control System
PLC + HMI (84 Groups)
Origin
China
⚙️

Product Description

How To Choose A Suitable Thermoforming Machine?
This high-performance automatic plastic thermoforming machine is designed for food, medical, and tool packaging. It integrates mechanical, electrical, and pneumatic systems for seamless production.

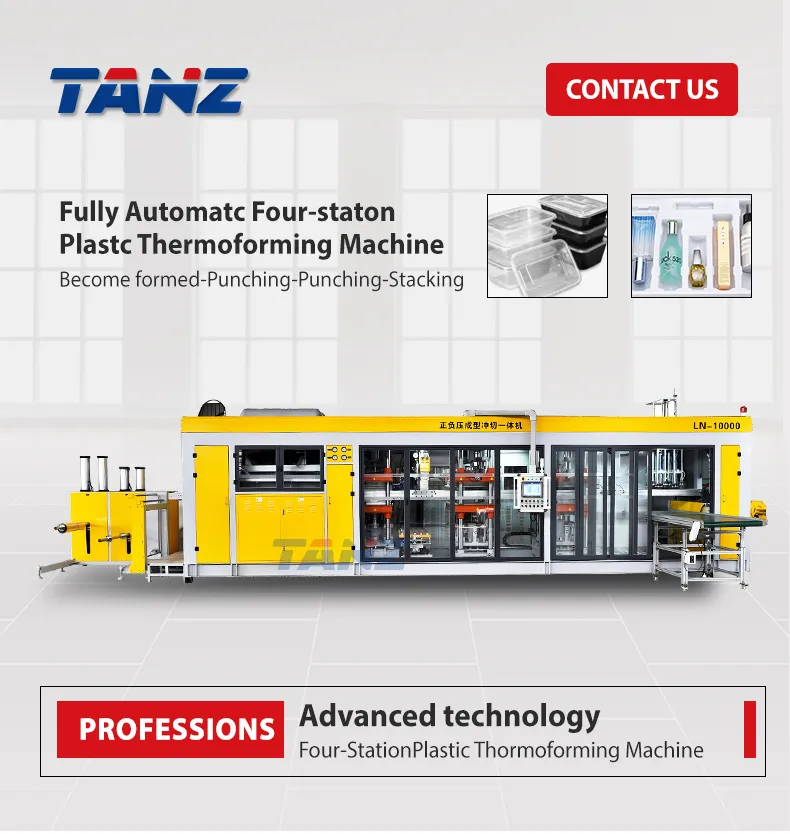

Automatic Thermoforming Machine Product Layout
✔ Fully automatic multi-station vacuum and pressure forming technology.
✔ Intelligent furnace control with 30% energy savings and quick heating (0-400°C in 3 mins).
✔ Servo-driven sheet feeding for high-speed accuracy and stability.

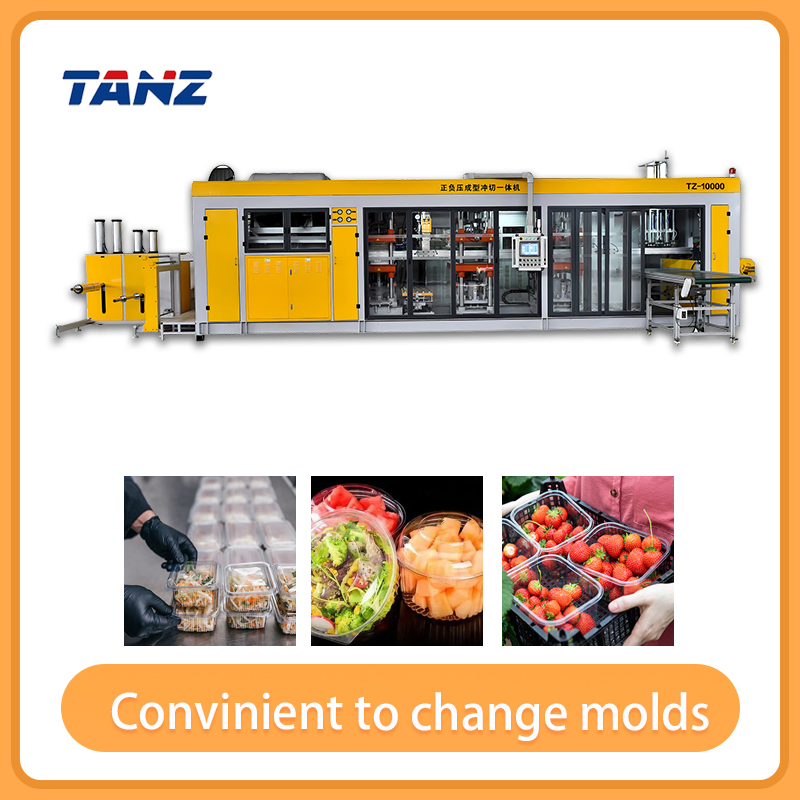

✔ Quick mold change design with T-shaped platforms and safety locks.
✔ Memory function for storing up to 1,000 production data sets.
📊

Technical Parameters

Specifications TZ-7385 TZ-7265
Mould Size (Max.)750*850mm750*650mm
Forming MethodPositive and Negative Pressure
Forming Depth (Max.)140mm120mm
Sheet Thickness0.16-2.0mm
Forming Speed (Max.)40 times/min
Sheet Width410-790mm380-760mm
Heating Power117KW90KW
Main PLCSiemens
🎯

Scope of Application

Suitable for thermoplastic materials (0.15 - 2.0 mm) including PS, HIPS, PVC, PET, PP, PE, KPS, GPET, and ABS. Ideal for producing:

• Food containers & disposable bowls/plates
• Electronic & medical trays
• Tool packaging & seedling trays
• High-transparency and irregular shape products
Application scope
🔄

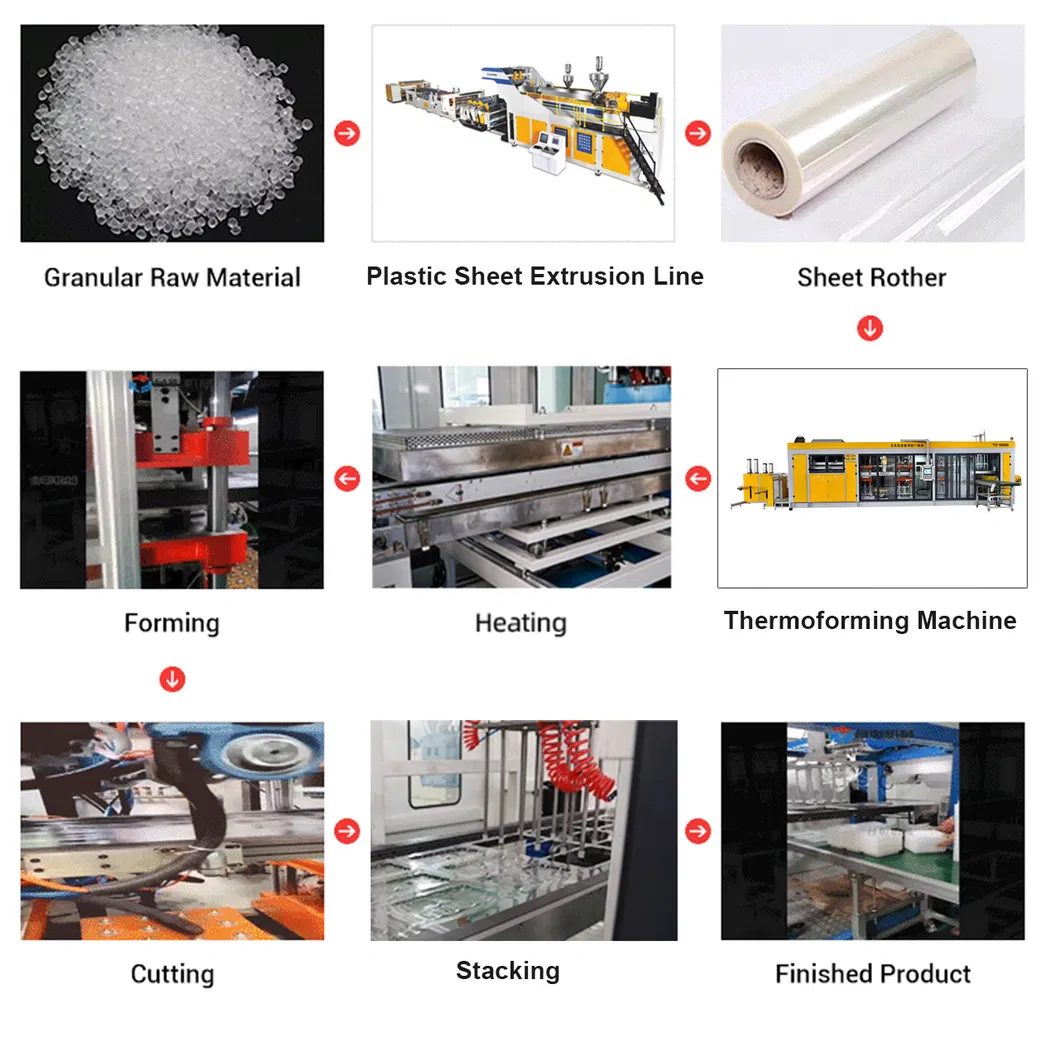

Production Process

Production Process Flow
🛠️

Related Production Equipment

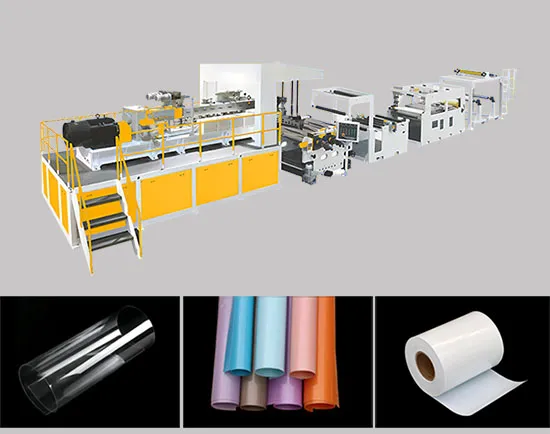

Extrusion Machine

Plastic Sheet Extrusion Machines
Solutions for PET, PP, PS, and PLA sheet production.

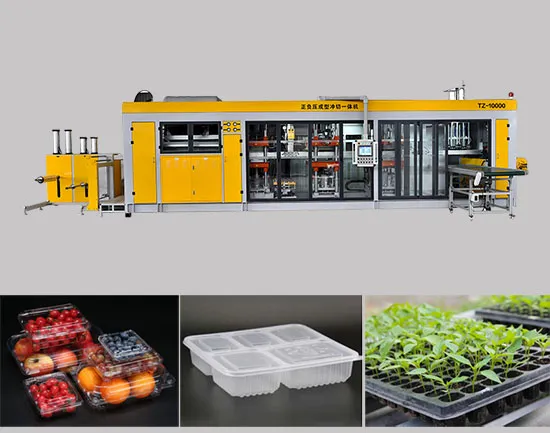

Thermoforming Solutions

Container & Tray Forming
Professional solutions for food and industrial trays.

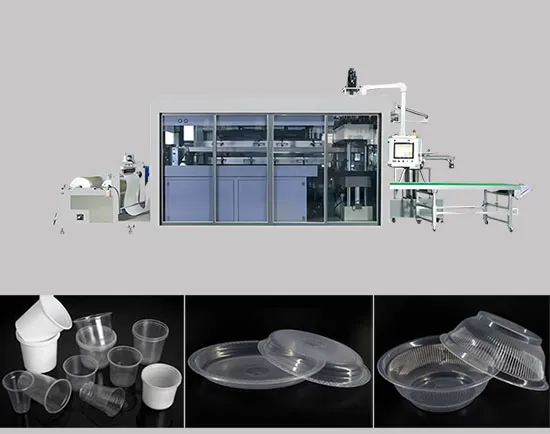

Cup Making Machine

Plastic Cup Making Machines
For disposable tea cups, coffee cups, and lids.

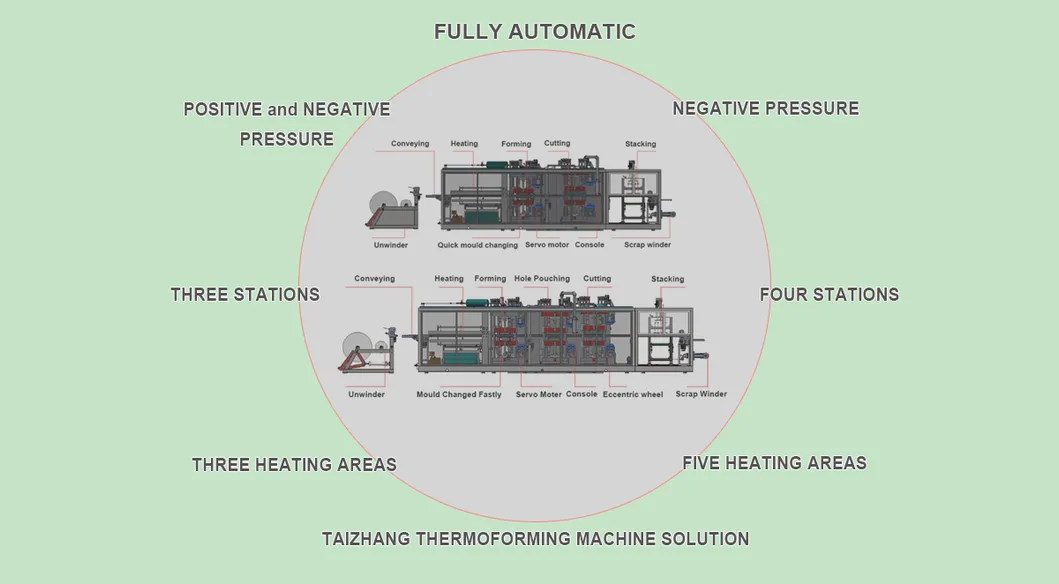

Fast Guide

Operation Guide
Fast setup and maintenance workflow.

📜

Certifications & Quality Control

Certification 1 Certification 2 Certification 3

Frequently Asked Questions

What materials can this machine process?
The machine is compatible with a wide range of thermoplastic sheets including PP, PET, PS, PVC, HIPS, PE, and PLA, with thicknesses ranging from 0.16mm to 2.0mm.
How energy-efficient is the heating system?
It uses an intelligent automatic compensation system that saves approximately 30% of energy. It can heat from 0 to 400 degrees in just 3 minutes.
What are the main stations of the four-station model?
The four-station configuration includes Forming, Hole Punching, Cutting, and Stacking, allowing for fully automated production and reduced labor costs.
Does the machine support custom mold data?
Yes, the system features a memory function that can store up to 1,000 different production data sets for quick retrieval during mold changes.
Is the feeding width adjustable?
Yes, the sheet feeding chain rail width can be adjusted automatically or independently to fit different sheet sizes.
What is the maximum production speed?
The machine can reach a maximum forming speed of 40 times per minute, depending on the material and product complexity.
