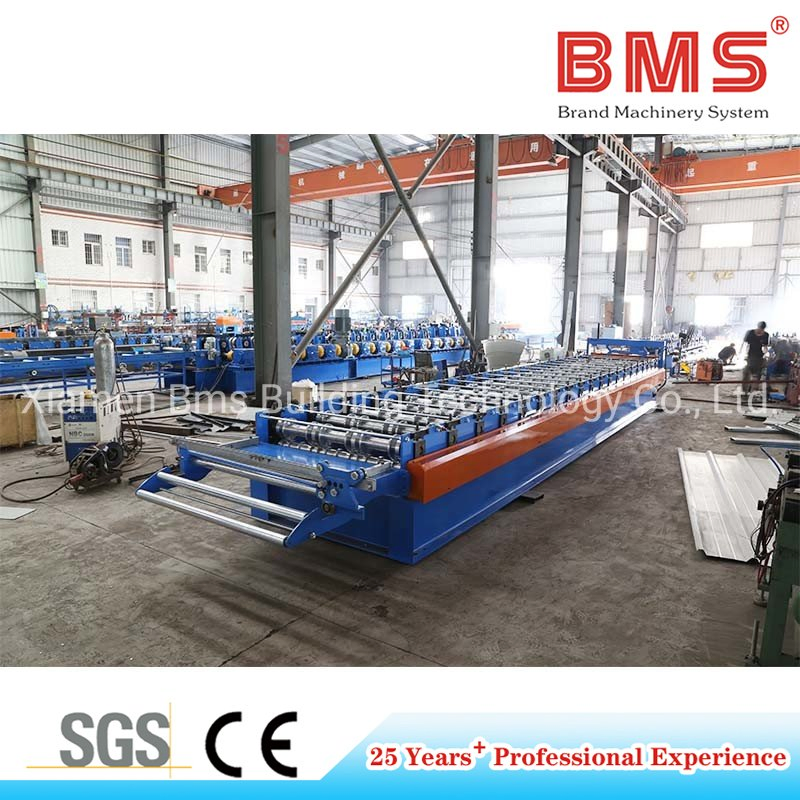

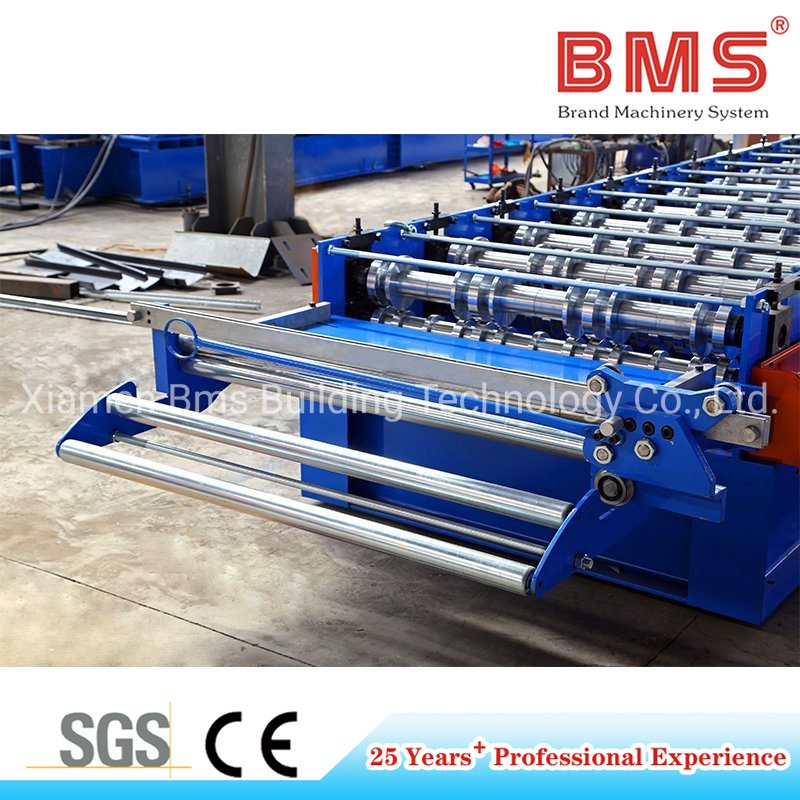

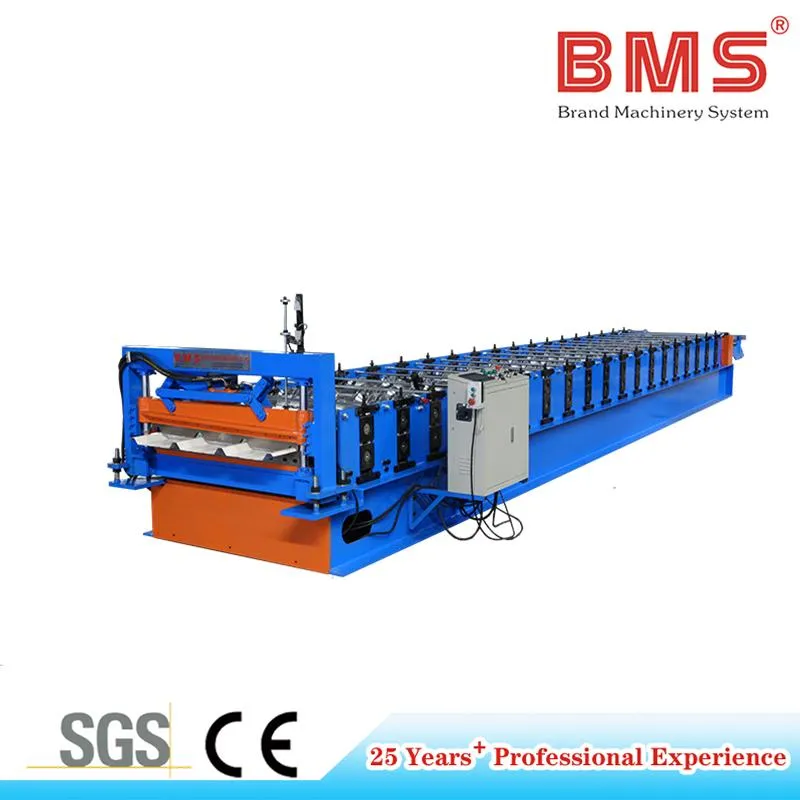

High Quality Hydraulic Pressure Roof Panel Roll Forming Machine
Effective width: 1000 mm
Material Thickness: 0.3-0.8mm
Applicable material: Prepainted galvanized steel(PPGI) with yield strength Q235-Q350Mpa
• Body frame made from H400 type steel by welding
• Side wall thickness: Q235 t18mm

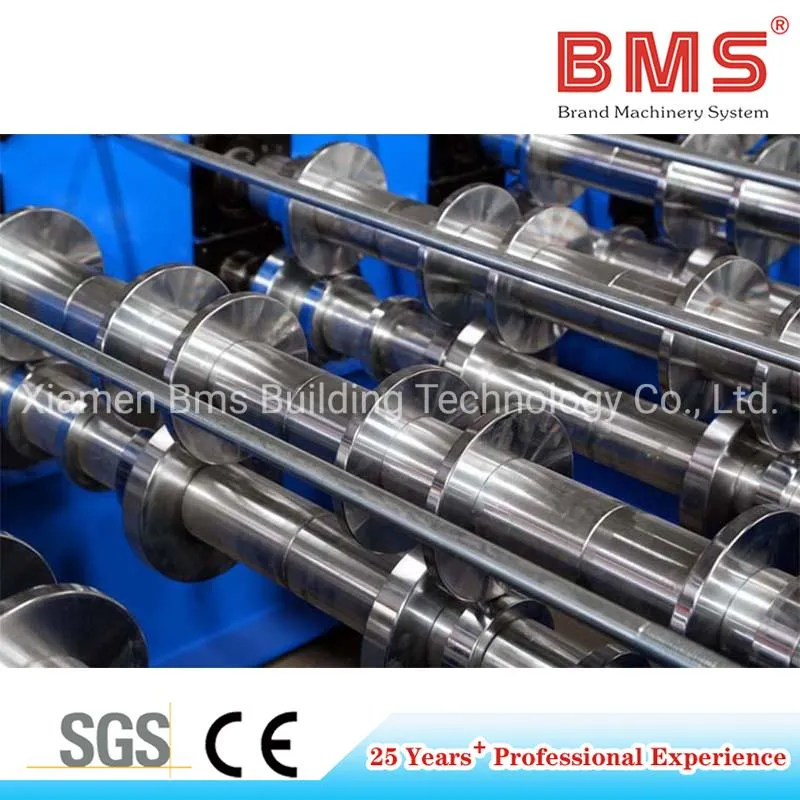

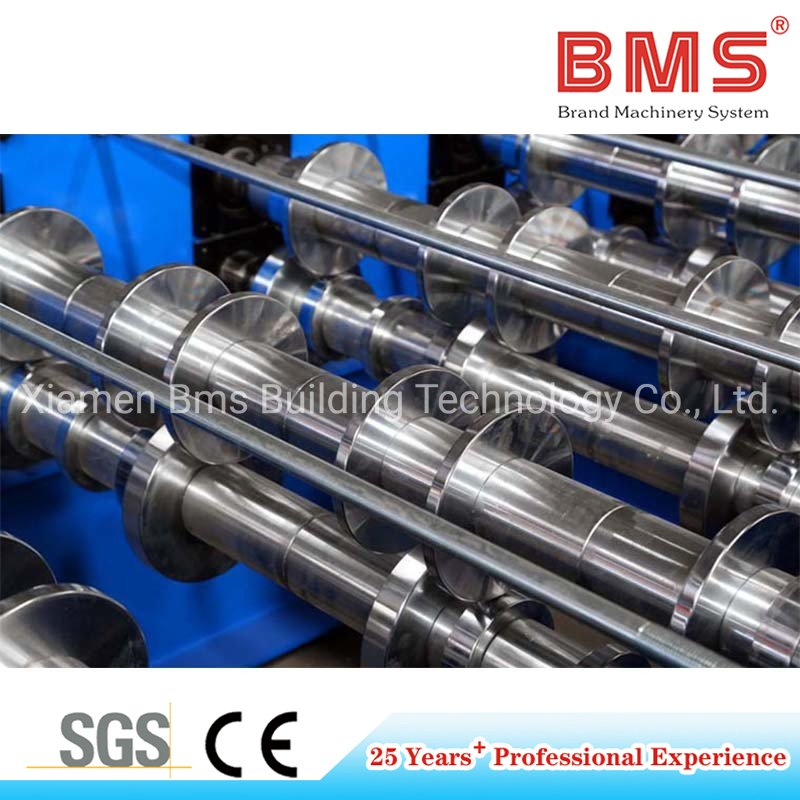

• Rollers: 45# steel, CNC lathes, Heat Treatment, Hard Chrome Coated
• Shafts Diameter: ф80/ф85mm, precision machined
• Gear/Sprocket driving, 18-step forming
• Main Motor (Servo motor): 7.5KW, Frequency speed control
• Real forming speed: 20m/min

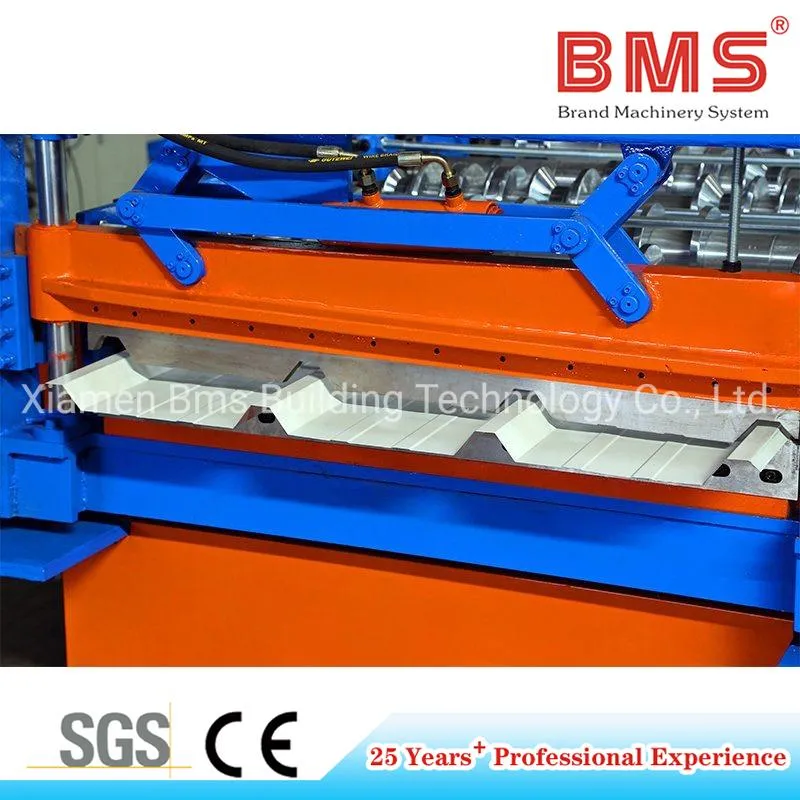

• Post to cut, stop to cutting design
• Two pieces type cutting blade, no blanking
• Hydraulic motor: 4KW
• Cutting tool material: Cr12MoV, Heat treatment to HRC58-62 degree

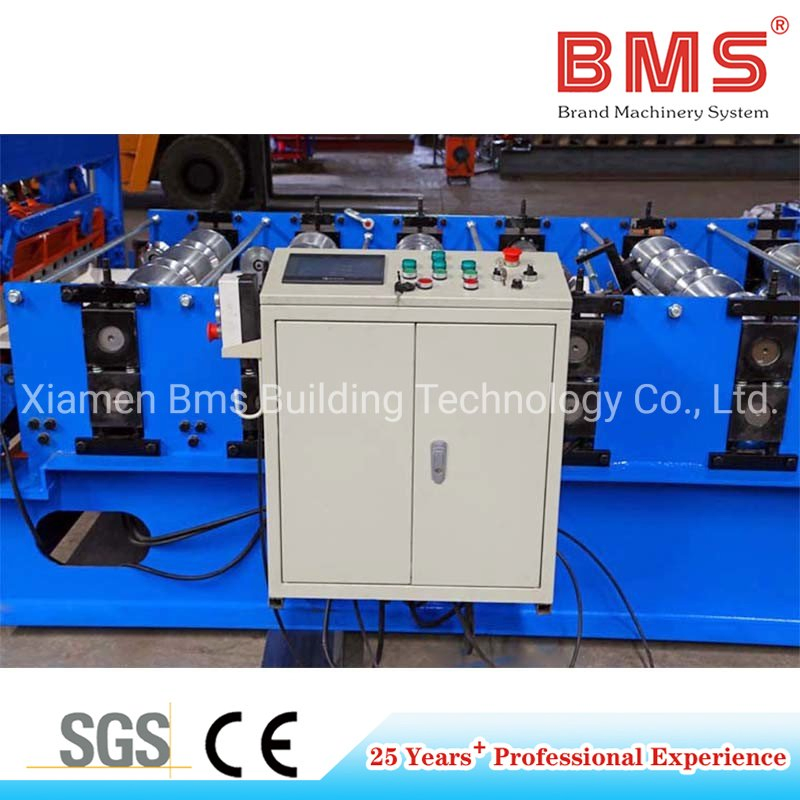

Automatically controls quantity and cutting length. Production data is input via touch screen for fully automated operation.
| Component | Specification |
|---|---|
| PLC / Inverter / Touch Screen | Siemens (German brand) / Schneider (French brand) |
| Encoder | Omron (Japan brand) |
| Thermal Relay | Siemens / Schneider |
| Air Switch | LG-LS (Korea brand) |
| Tolerance | Cut-to-Length Tolerance ≤ ±1 mm |
Service: 24-month warranty after receipt. Free replacement parts within warranty via courier. Lifetime technical support available. Technicians can be dispatched for installation and training.
| MOQ | 1 Set |
| Delivery Time | About 45 workdays |
| Payment Type | T/T or L/C |
| Packing | Main body covered by plastic film, fixed in container with steel rope. |
