Basic Information
Model NO.:140
Motor Type:AC Motor
Condition:New
Warranty:Two Years
Raw Material:Coal, Charcoal, Wood, Sawdust
Working Type:Motor and Diesel
Moulds:1 Set
Cross-Section:20-60mm
Product Description

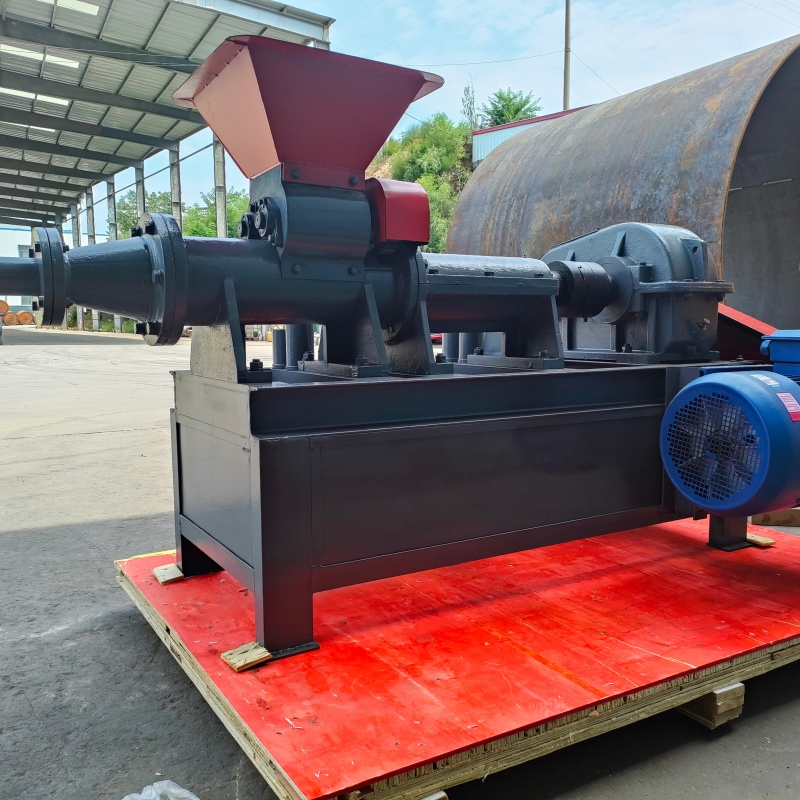

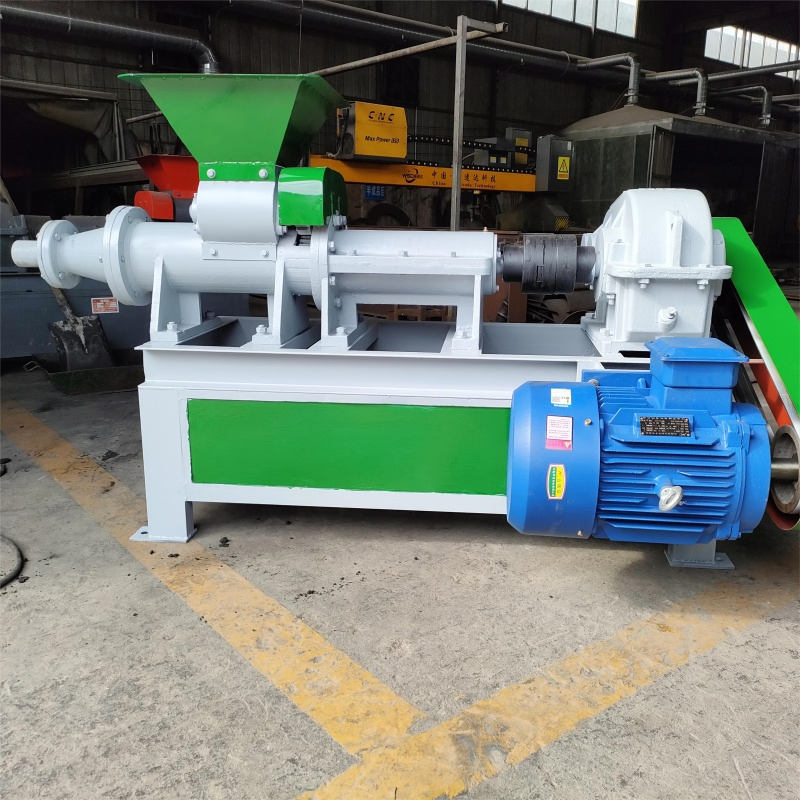

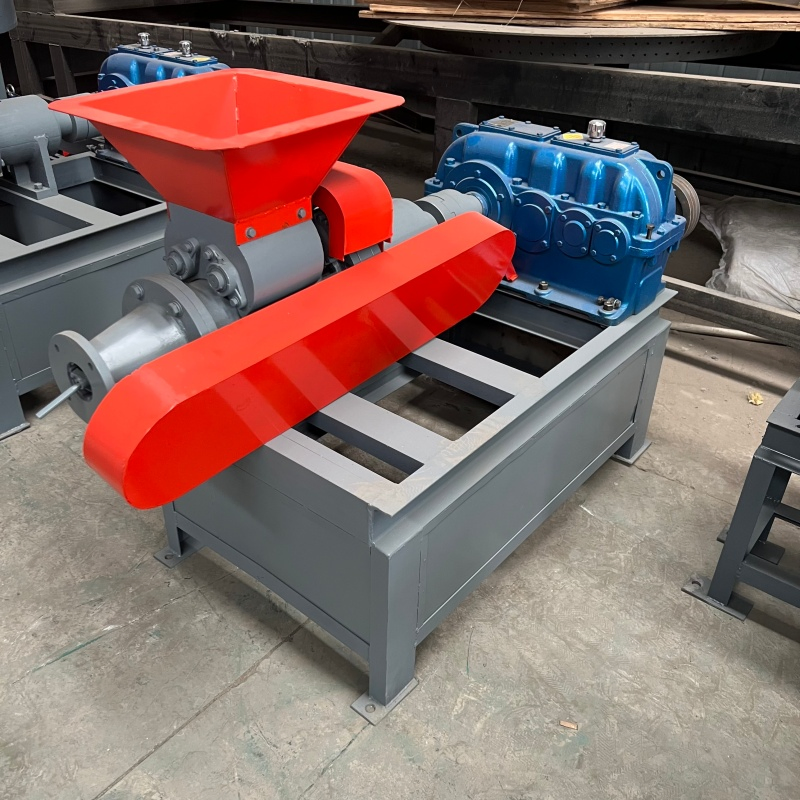

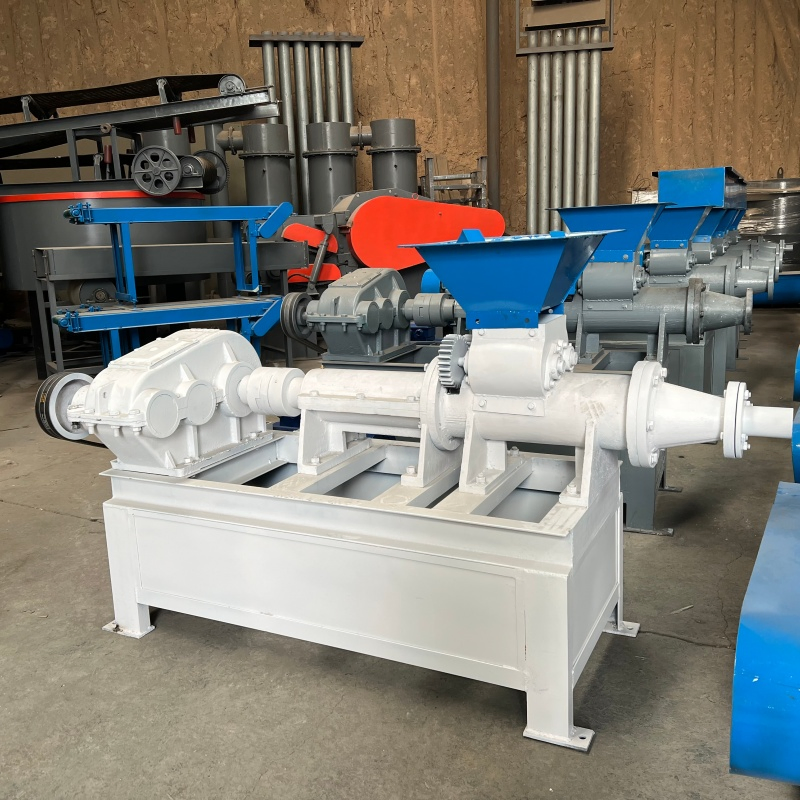

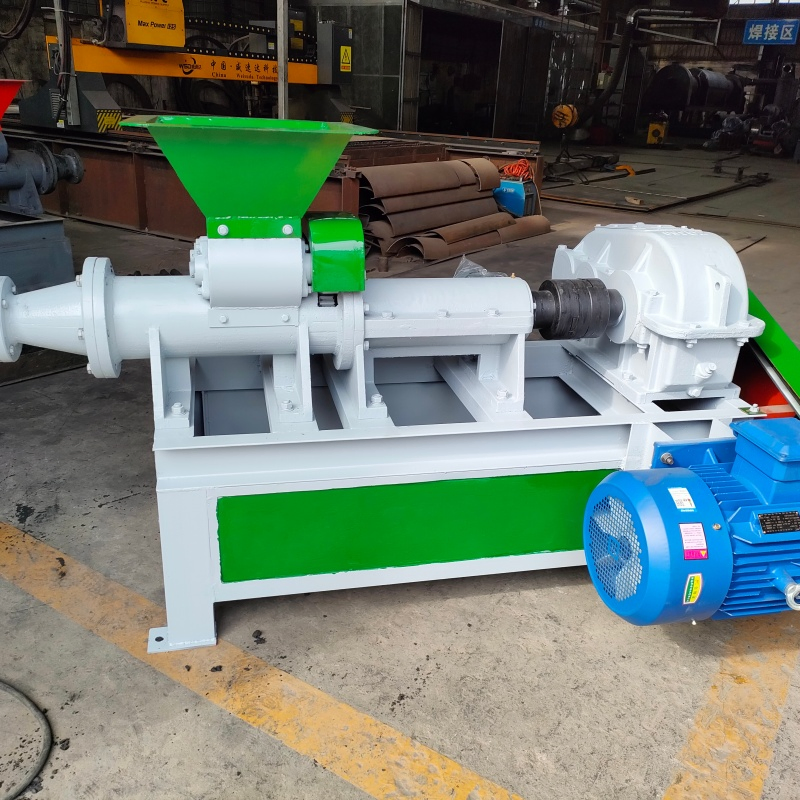

A coal briquette machine, also known as a pulverized coal forming machine, is an indispensable forming equipment in coal plants and urban industrial boiler industries. It utilizes the principle of screw extrusion or piston extrusion to compress prepared pulverized coal (or coal slime, machine-made charcoal powder, biomass charcoal powder) into cylindrical, plum blossom-shaped, hexagonal, or polygonal briquettes with a certain strength.
Product Advantages
♻️
Turn Waste Into Treasure
Processes inexpensive pulverized coal, coal slime, and waste semi-coke powder into high-value gasification feedstock, reducing fuel costs by 30%-50%.
💎
High Strength & Breathability
High-pressure extrusion ensures superior density. Specific cross-sectional shapes increase porosity for uniform ventilation and better gasification efficiency.
⚙️
Customized Production

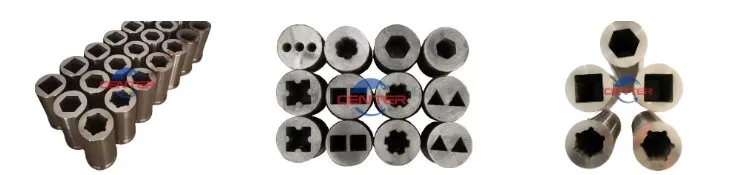

Interchangeable die heads allow for various diameters and shapes to meet different furnace types and process requirements.

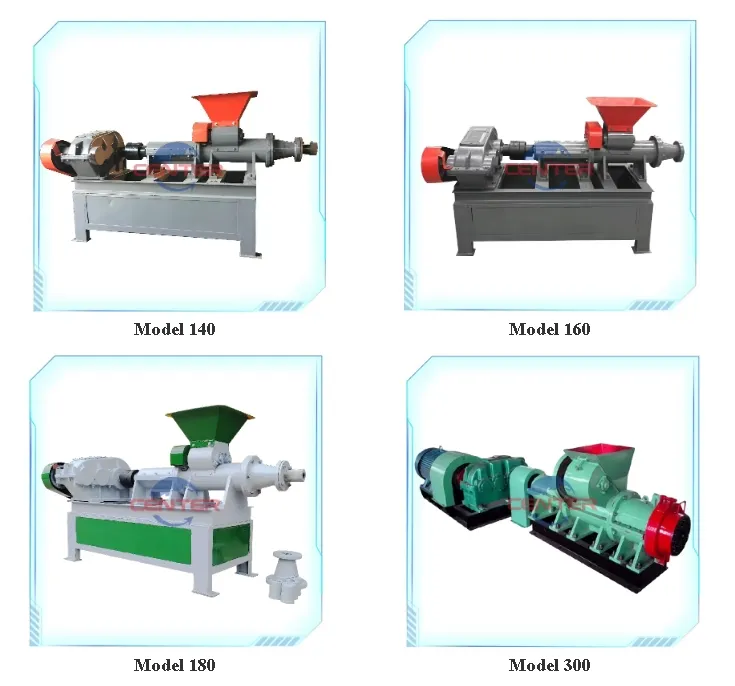

Product Models & Specifications
| Model |
140 |
160 |
180 |
300 |
| Capacity (t/h) |
1-2 |
2-3.5 |
3-4 |
5-6 |
| Propeller Dia (mm) |
140 |
160 |
180 |
280 |
| Power (kw) |
11 |
11 |
30 |
75 |
| Spindle Speed (r/min) |
145 |
145 |
135 |
76 |
Working Principle

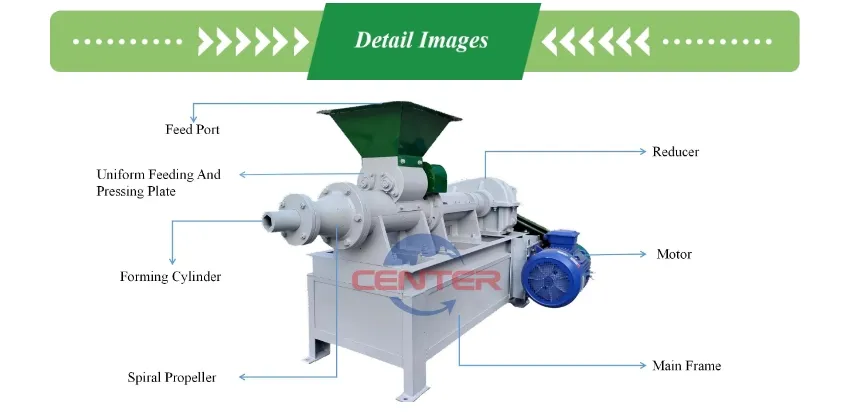

The rotating impeller clamps raw coal from the feeding port and pushes it forward. The coal is gradually compressed, increasing particle density through friction and shear. The heat generated during this process increases the plasticity of the coal, which is then pressed through the mold conical body to form high-strength rods.
Frequently Asked Questions
1. What raw materials can be processed by this machine?
It can process coal dust, charcoal powder, wood charcoal, sawdust, coal slime, and semi-coke powder.
2. What shapes of briquettes can be produced?
By changing the die head, you can produce cylindrical, hexagonal, plum blossom-shaped, or polygonal briquettes.
3. Does the machine support diesel power?
Yes, our machines can be configured to work with either an electric AC motor or a diesel engine.
4. What is the warranty period for the equipment?
We provide a comprehensive two-year warranty and two years of after-sales service support.
5. Can the machine handle different production capacities?
Yes, we offer different models (140 to 300) with capacities ranging from 1 ton per hour up to 6 tons per hour.
6. What is the main benefit of using a briquette machine?
The primary benefit is cost reduction (30-50%) by converting inexpensive coal dust into high-quality fuel rods with better combustion efficiency.
