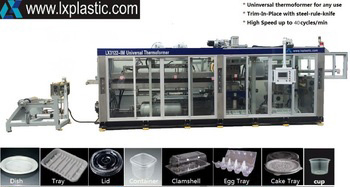

Chinese Cheap Pressure and Vacuum Thermoforming Machine Equipment

1 / 5

Chinese Cheap Pressure and Vacuum Thermoforming Machine Equipment

Customization:	Available
Certification:	CE
Column number:	Four Column

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

LX3122HF-IM-C380

Molding Method

Pressing

Automatic Grade

Automatic

Forming Area

800mm*600mm Max.

Forming Depth

120mm - 180mm Max.

Dry Run Speed

40 cycles/Min Max.

Film Thickness

0.2 - 2mm

Sheet Width

800mm Max.

Suitable Material

PP PS PET PVC BOPS

Air Pressure

0.7MPa

Production Range

Container, Clamshell, Tray and Lid

Automaticity

Forming, Cutting, Stacking and Conveying

🔍 Product Overview

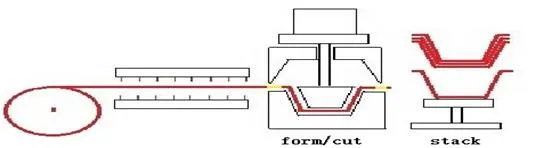

The HF-IM pressure and vacuum forming machine is a high-efficiency trim-in-place type thermoforming solution. It utilizes a specialized mould with rule steel knives to perform forming and cutting within the exact same station, ensuring precision and consistency.

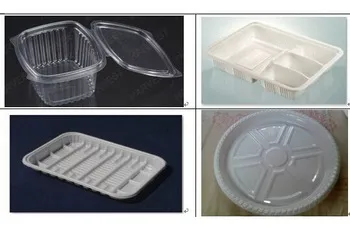

It is perfectly engineered for processing PP, PET, PS, and other materials. This system provides a fully automated production cycle for disposable rectangular, square, or round roll-edged containers and trays, including forming, trimming, stacking, and conveying.

⚙️ Key Design Features

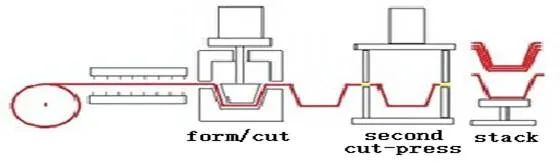

✅ In-Mould Trim: Use Steel-Rule-knife for forming and cutting in the same station.

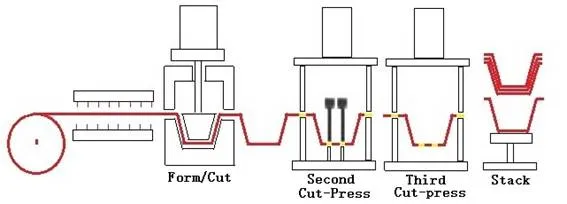

✅ Multi-Station Ready: Second and Third cut-press available for hole punching and post-trim.

✅ High Efficiency: Automatic stacking, counting unit, and conveying system.

✅ Deep Draw: Plug assistant technology for deep forming requirements.

✅ Versatile Tooling: Floating knife and free knife options for films with high shrinkage.

✅ Energy Saving: Extra contact heat plate available to minimize power consumption.

📋 Technical Specifications (LX3122IM)

Specification Item	Data Detail
Mould Area	800*600mm Max
Depth of Draw Under Sheet	120 mm Max
Depth of Draw Above Sheet	30mm Max / 120mm Max
Clamping Force	750KN
Dry Run Speed	45 cycles/min Max
Material Thickness Range	0.2 - 1.5mm
Power Consumption	Approx. 35 kilowatts/hr
Air Consumption	2500 Liters/min
Dimensions (LWH)	9.5m * 2.2m * 2.2m
