| Parameter | Specification |
|---|---|
| Sheet Materials | PP, PET, PVC, PS, PLA |
| Forming Depth Upper Mould | 100mm |
| Total Installed Power | 120kw |
| Air Consumption | 0.5-0.8 bar |
| Machine Weight | 12,000 kg |
| Dimensions | 8500 * 2000 * 2300 mm |
| Component | Origin / Brand |
|---|---|
| Forming Servo Motor | UK TRIO or DELTA |
| Punching Servo Motor | UK TRIO or DELTA |
| Solenoid Valve | SMC / Airtac |
| PLC | UK TRIO or DELTA |
| Vacuum Pump | RUFUS |
| Encoder | Omron |

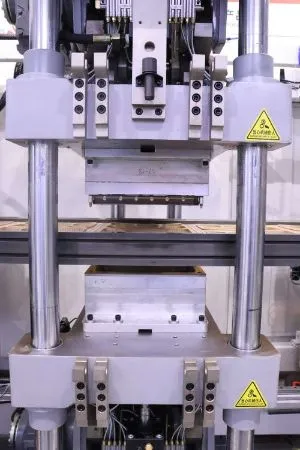

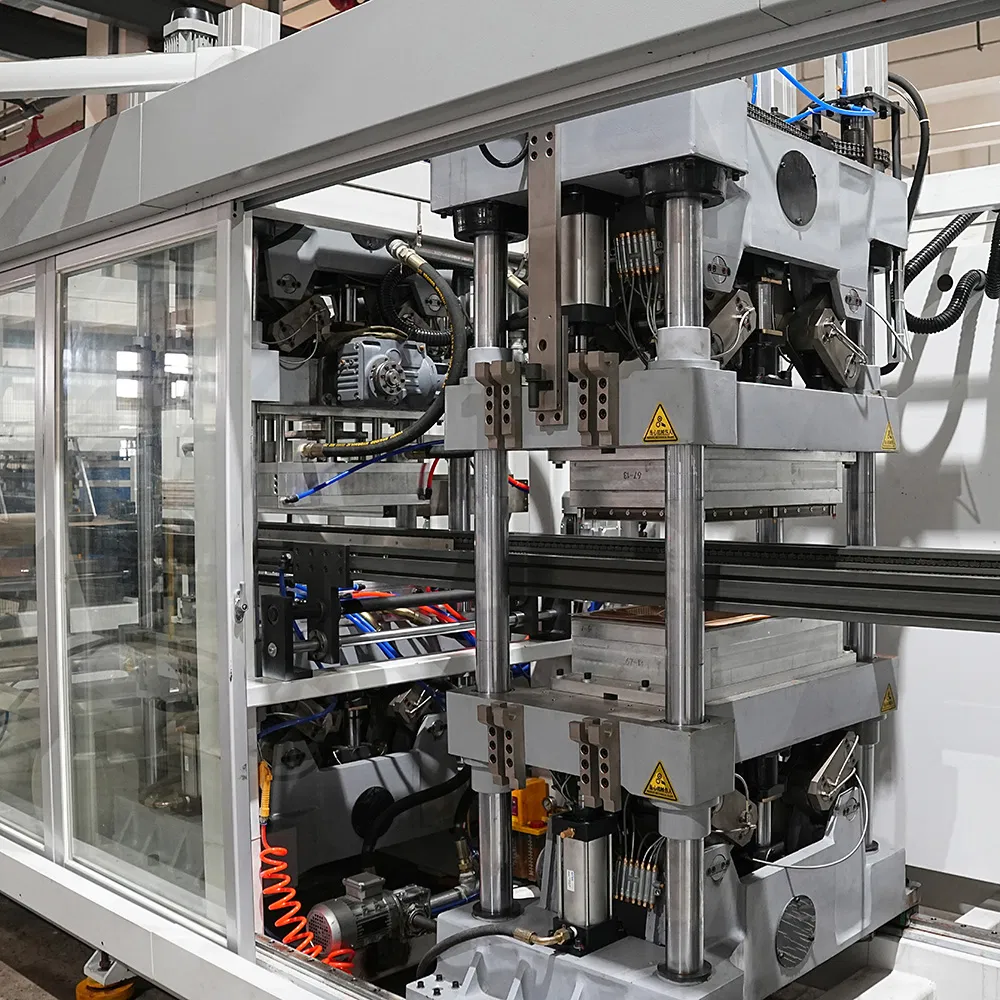

Located immediately after the oven, this station expertly forms the heated sheet into the mold shape using precise stretch and air compression for superior product definition.

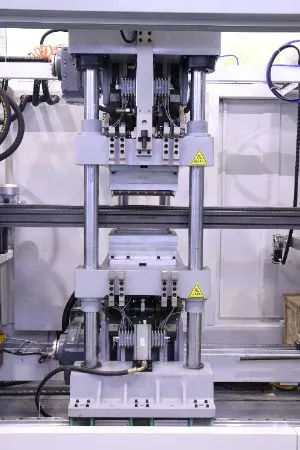

Ensures high accuracy and speed in cutting the molded sheet, enhancing the precision and efficiency of the multi-station thermoforming process for optimal production performance.

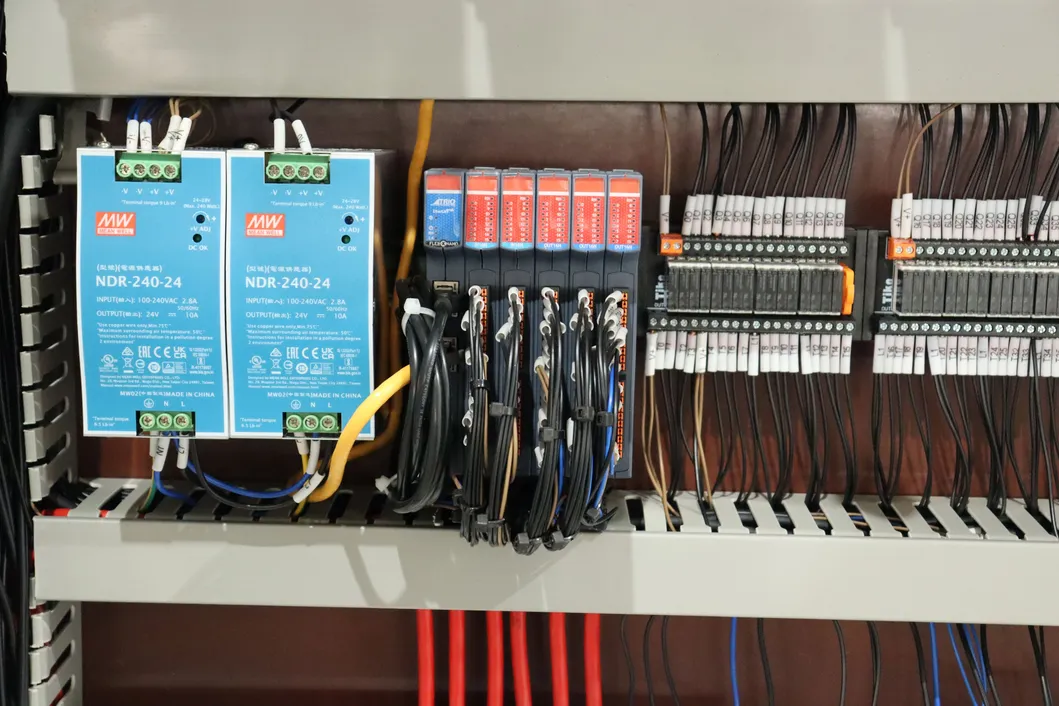

Equipped with high-performance Servo Drives renowned for high accuracy and reliability, ensuring flawless operation and consistent high-quality results over long production cycles.

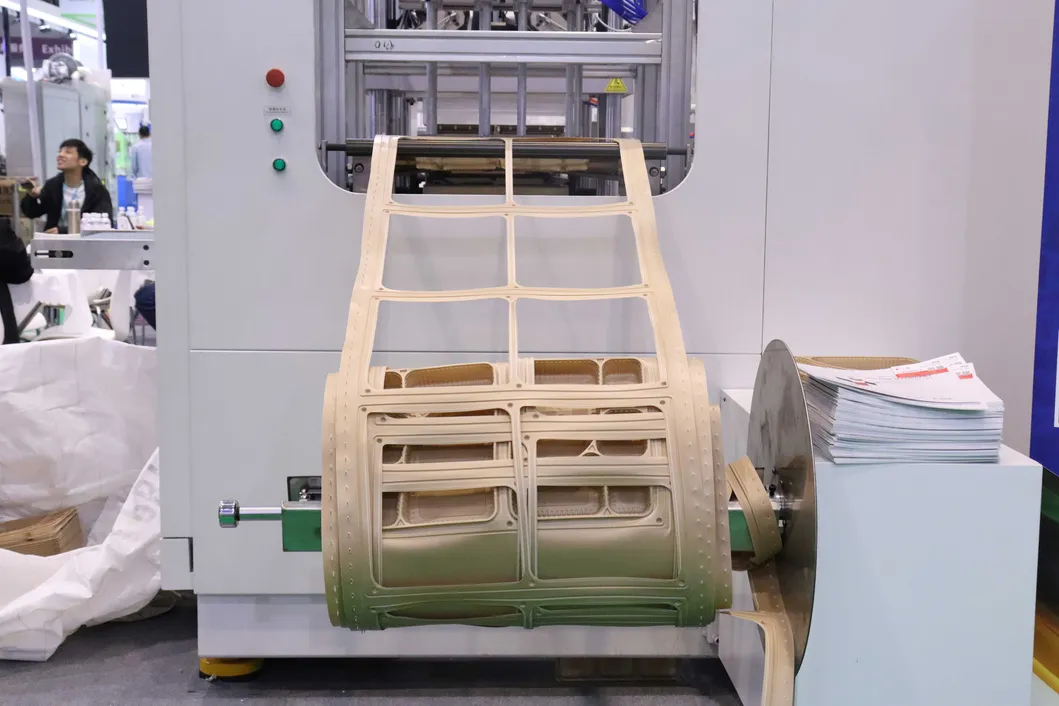

Features a winding unit with a torque motor to efficiently collect waste sheets into rolls, maintaining a clean workspace and enhancing operational sustainability.

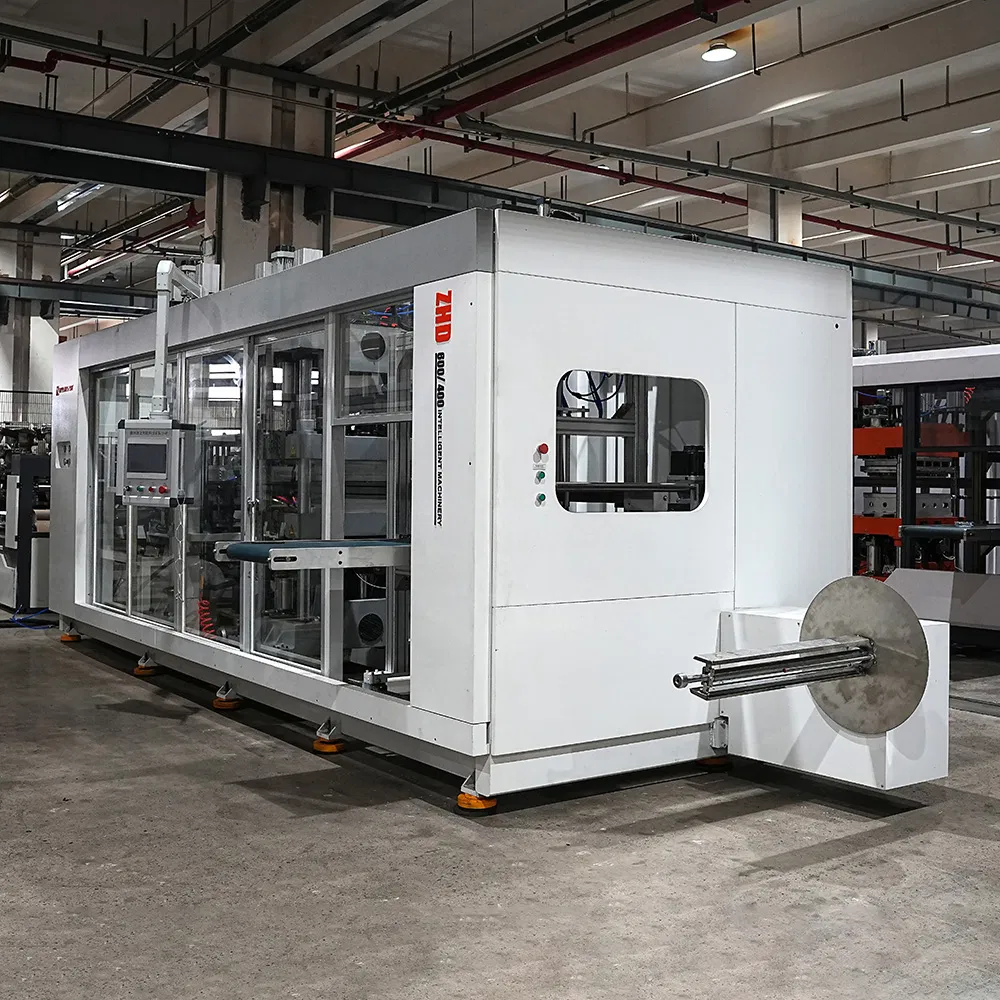

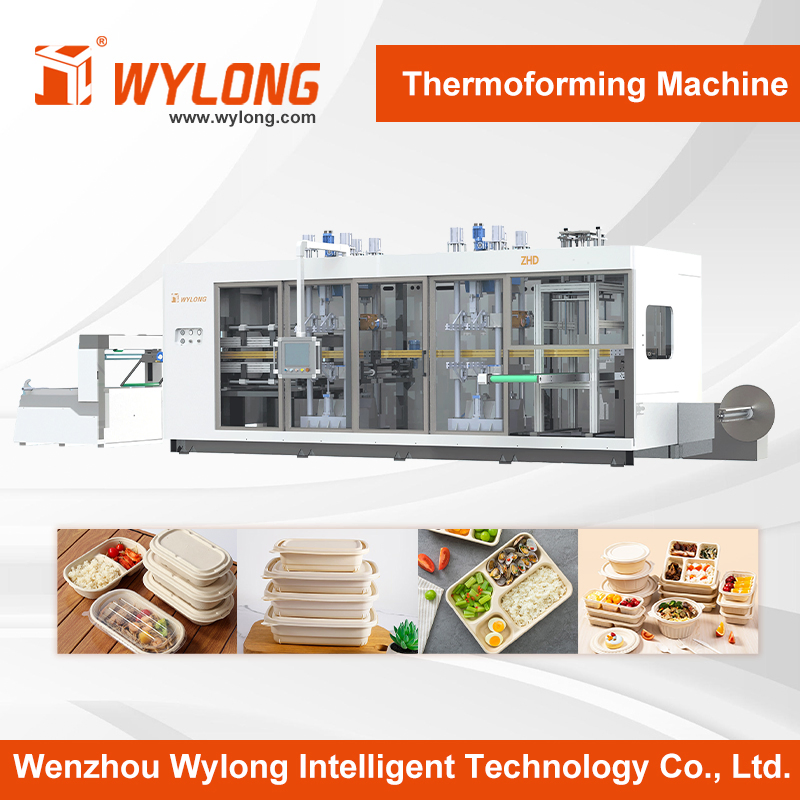

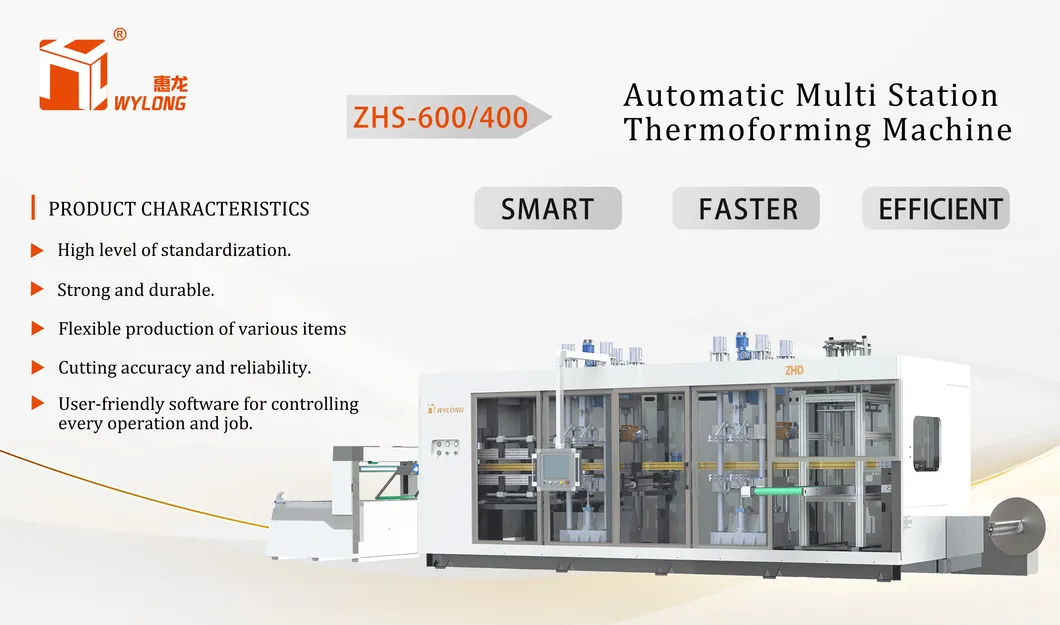

This multi-station thermoforming machine is suitable for handling diverse materials including A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, and PVC. It is ideal for producing trays, lids, fruit/vegetable boxes, flower pots, clamshells, and plates.
It specializes in complex products such as PLA biodegradable items, containers with pre-punched holes, and integrated packing containers like egg trays or hinged fruit boxes.
With 20 years of expertise in plastic sheet extrusion and thermoforming technology, our manufacturing processes are ISO 9001 certified. Our advanced R&D capabilities allow us to serve customers globally with high-efficiency equipment.
