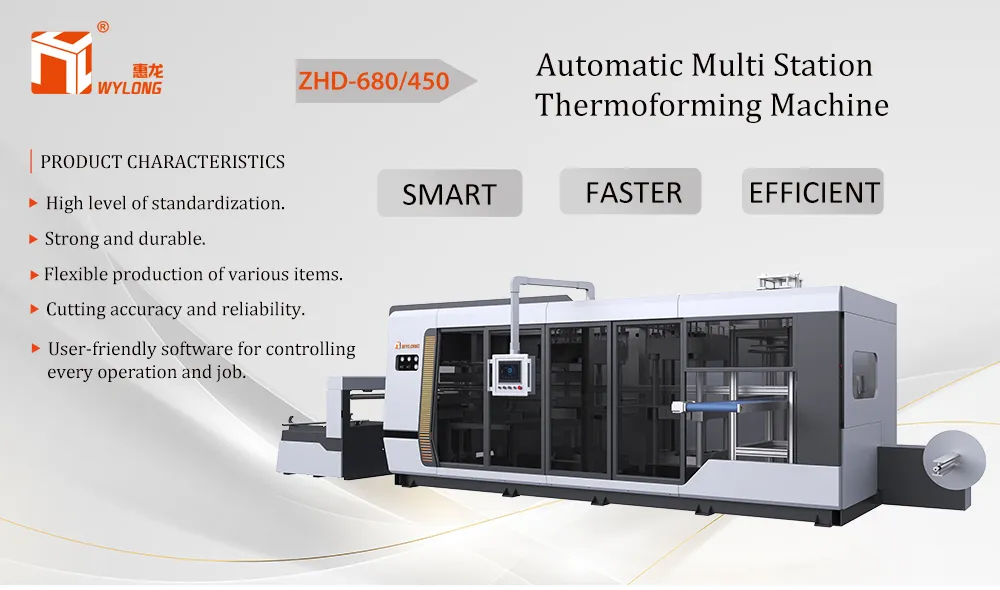

| Model | ZHD-680/450 | ZHD-750/650 | ZHD-750/850 |
|---|---|---|---|
| Applicable Thickness | 0.2-2mm | 0.2-2mm | 0.2-2mm |
| Max Forming Area | 680x450mm | 750x650mm | 750x850mm |
| Sheet Width | 400-620mm | 450-800mm | 500-900mm |
| Speed | 15-30/min | 15-40/min | 15-40/min |
| Heating Power | 80kw | 165kw | 180kw |
| Weight | 9ton | 15ton | 20ton |
| Parts Name | Origin / Brand |
|---|---|
| Forming Servo Motor | Inovance |
| Magnetic Valve (Forming) | Japan (SMC) |
| Cylinder | Airtac |
| PLC | TRIO |
| Touch Screen | Inovance |
| Encoder | Japan (Omron) |
| Contactor / Switch | France Brand |

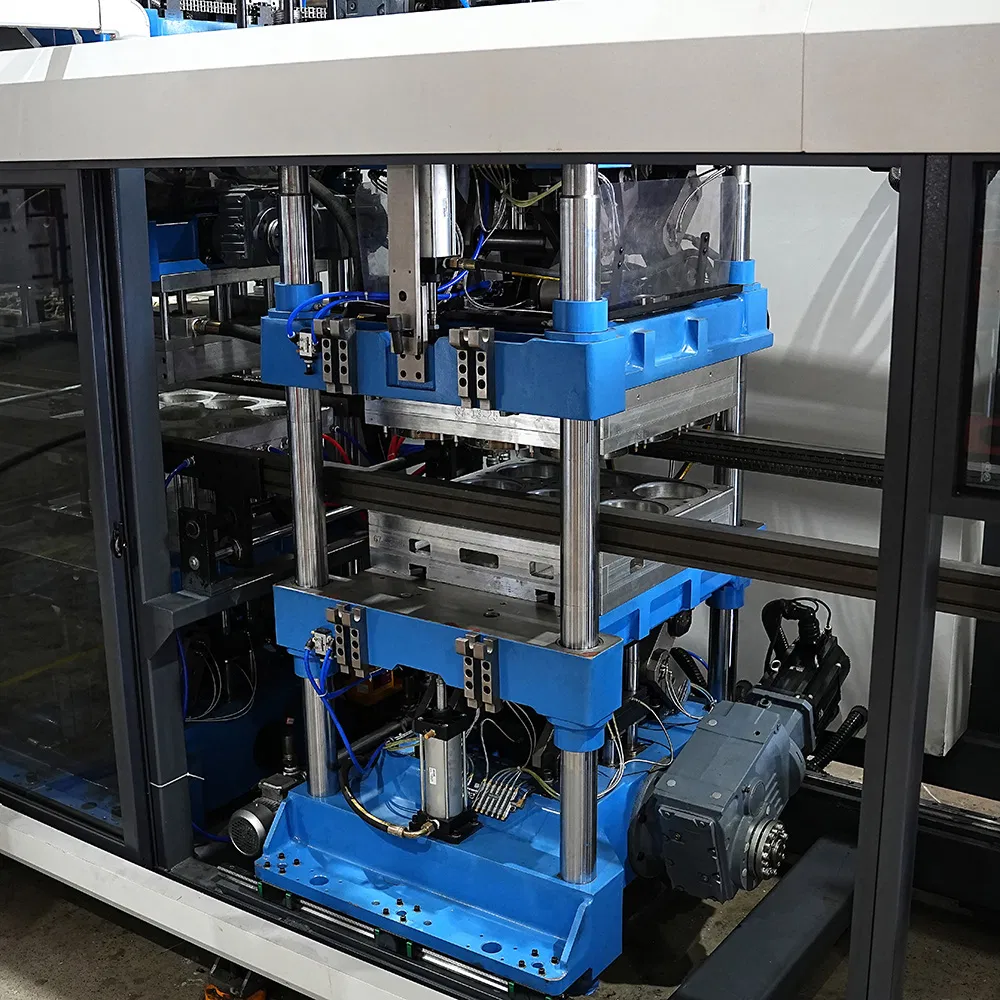

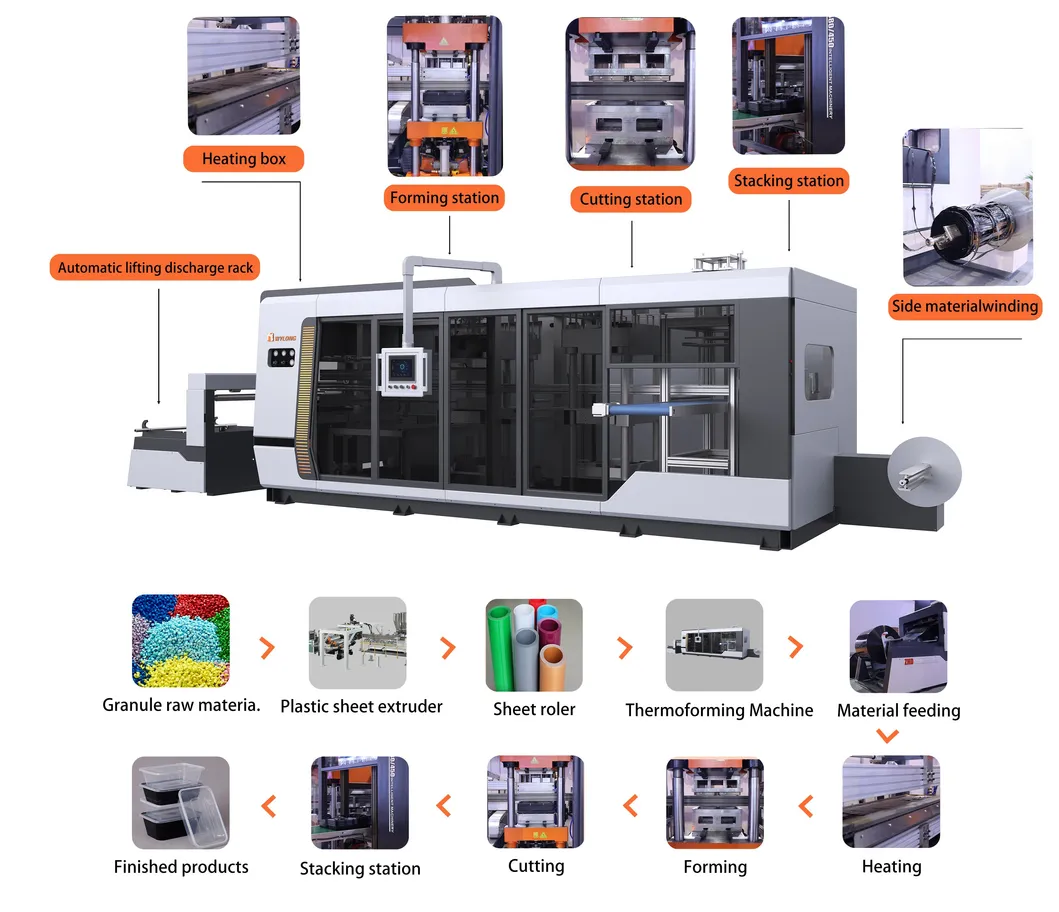

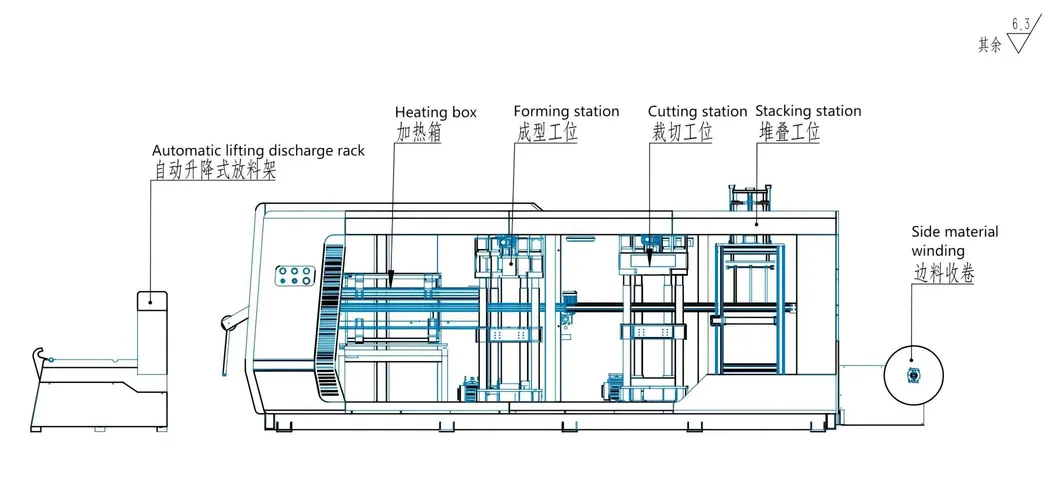

Forming Station: Expertly forms heated sheets into mold impressions using precise stretch and air compression.
Cutting Station: Ensures high accuracy and speed in cutting the molded sheet, enhancing production performance.
Servo Drive: Equipped with Inovance Servo Drives for high accuracy and flawless reliability.
Servo Motors: Industry-proven motors ensuring long-term durability and industrial efficiency.

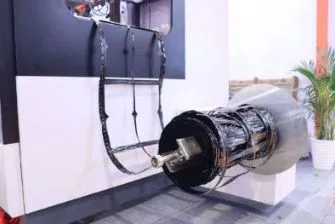

Winding Motor: Features a torque motor to efficiently collect waste sheets into clean, manageable rolls.
This machine can produce specialized items such as PLA products, plastic lids with holes, and connected fruit boxes or egg trays that single-station machines cannot easily handle.
