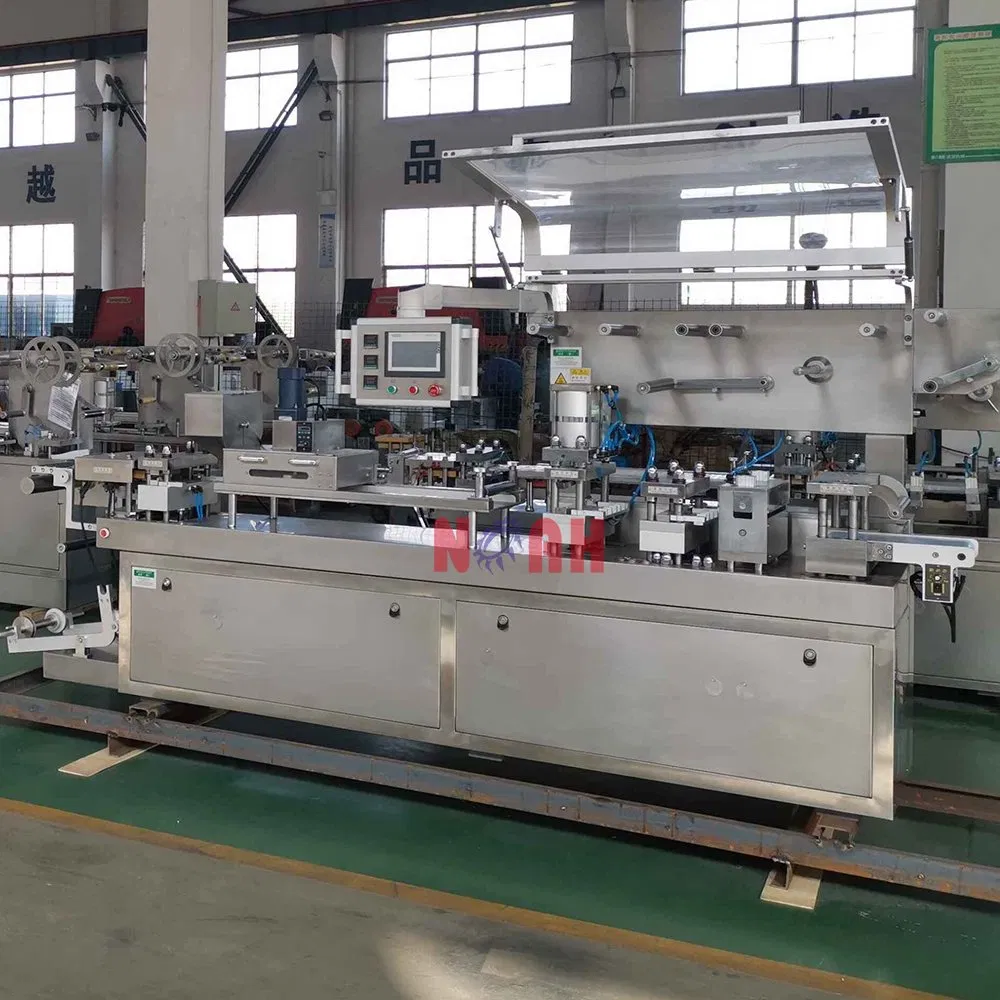

Dpb-Zh Automatic Capsule Softgel Blister Packing Cartoner Line Machine
Dpb-Zh Automatic Capsule Softgel Blister Packing Cartoner Line Machine
Dpb-Zh Automatic Capsule Softgel Blister Packing Cartoner Line Machine
Dpb-Zh Automatic Capsule Softgel Blister Packing Cartoner Line Machine
Dpb-Zh Automatic Capsule Softgel Blister Packing Cartoner Line Machine
1 / 5
Dpb-Zh Automatic Capsule Softgel Blister Packing Cartoner Line Machine
Dpb-Zh Automatic Capsule Softgel Blister Packing Cartoner Line Machine
Dpb-Zh Automatic Capsule Softgel Blister Packing Cartoner Line Machine
Dpb-Zh Automatic Capsule Softgel Blister Packing Cartoner Line Machine
Dpb-Zh Automatic Capsule Softgel Blister Packing Cartoner Line Machine

Dpb-Zh Automatic Capsule Softgel Blister Packing Cartoner Line Machine

Customization: Available
After-sales Service: Video, Engineers
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Dpb-Zh
Usage
Packaging of Goods, Produce Packing Belt
Packaging Material
Paper
Packaging
Cartons
Driven Type
Electric
Product Name
Blister Production Line
Specification
Stainless steel
Transport Package
Plywood Case
⚙️ Product Description

Dpb-Zh Automatic Softgel Blister Packing Line Machine

This product is introduced from the German packaging technology, integrating research and development of domestic demand with improved production. It offers stable, fast, energy-saving, and low-consumption performance. The line consists of a DPB140 Blister Packaging Machine combined with the ZH60 series cartoning machine using independent programmable control.

  • Automated Realization: Handles aluminum plastic, aluminum aluminum, oral liquid, and ampoule bottle forming.
  • Full Cycle Processing: Online detection, heat-sealing, batch loading, cutting, manual folding, and loading.
  • Quality Assurance: Detection picking waste ensures a 100% product qualified rate for customers.
  • Control System: Powered by Siemens PLC programmable control for high scalability and data accuracy.
  • High Flexibility: Uses soft connections for entire line layout, adaptable to actual production space.
  • Safety & Efficiency: Overload alarms and downtime equipment protection reduce labor intensity significantly.
📊 Product Parameters
Output40~80 cartons/min (related with materials)
Finished product rate≥99%
Eliminating rate of waste100%
Working noise≤80dB(A)
Overall Dimensions1700×1060×1600 mm
Weight800kg
Paper carton size (L*W*H)(70~125)×(40~78)×(15~30)mm
Material250~350 g/m2
Manual leaflet size (L*W)Before: (100~250)×(100~150)mm; After: (100~150)×(20~40)mm
Air consumption>0.2 m3/min (0.5~0.8Mp)
Power consumption380V, 50Hz, 1kw
Vacuum sourcedegree of vacuum -0.09Mpa
🖼️ Visual Display

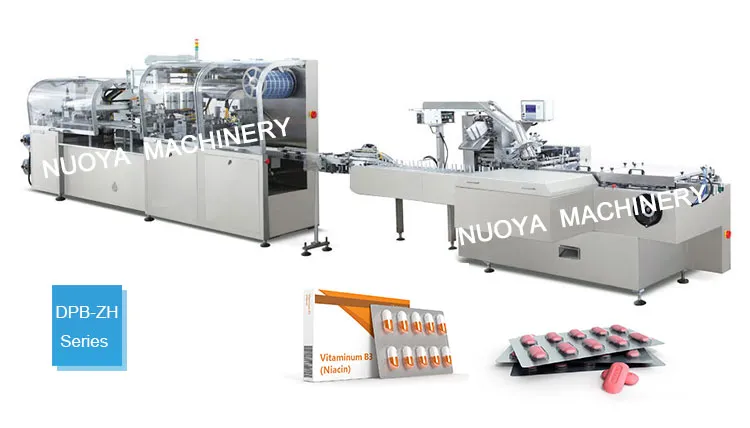

Blister Packing Machine 1
Blister Packing Machine 2

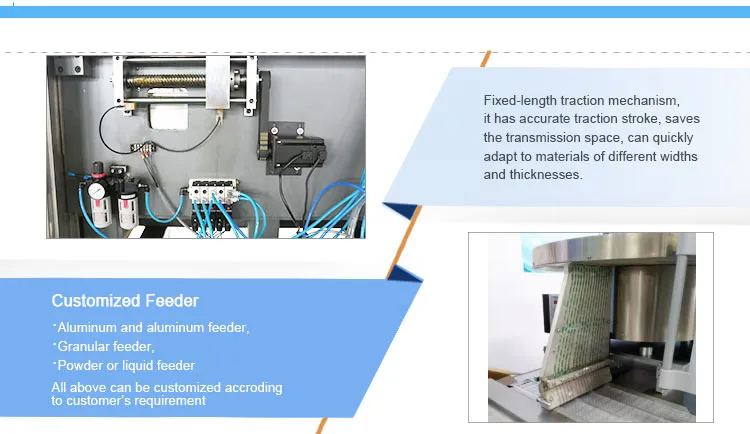

Blister Packing Machine 3

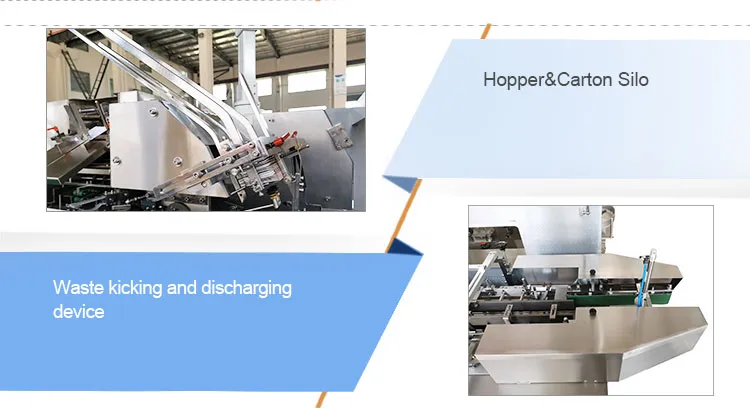

Blister Packing Machine 4

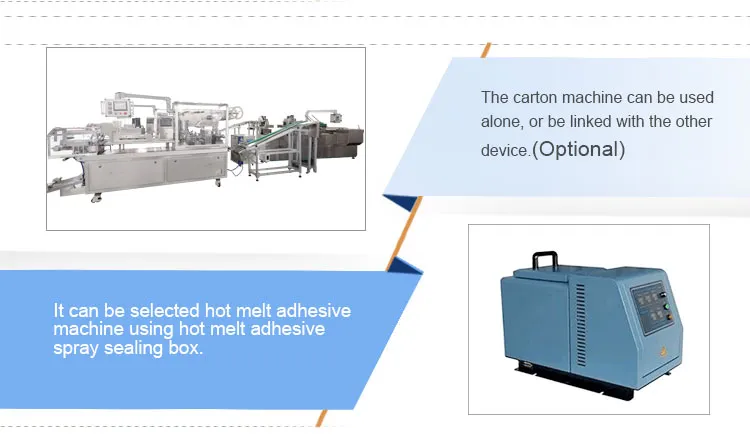

Blister Packing Machine 5

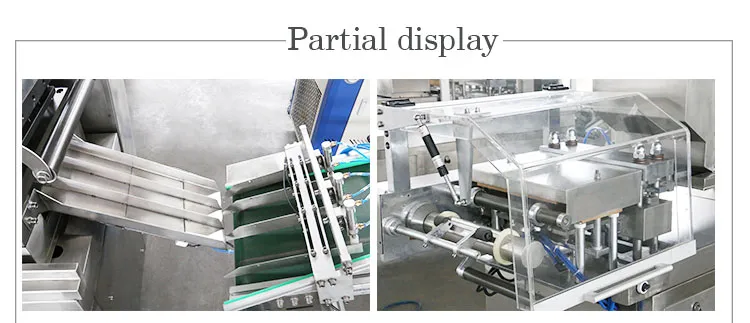

Blister Packing Machine 6

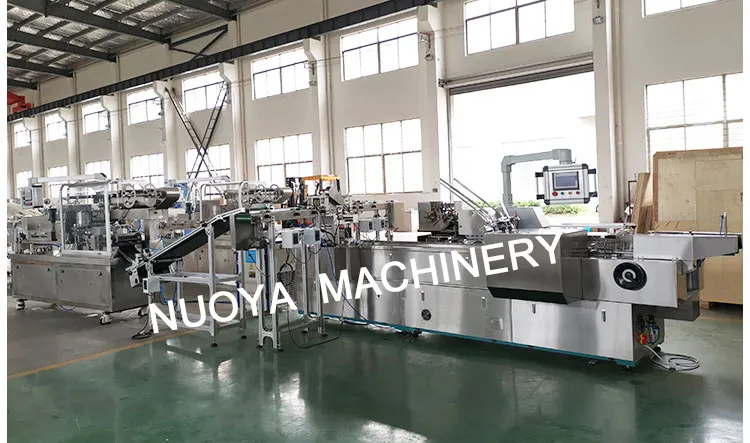

Blister Packing Machine 7
Blister Packing Machine 8

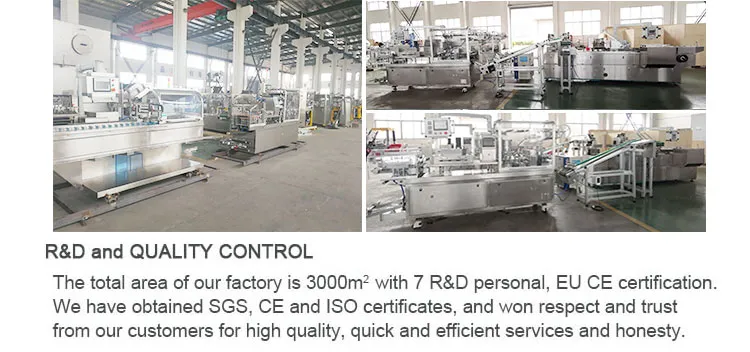

Blister Packing Machine 9
Blister Packing Machine 10
❓ Frequently Asked Questions
Q1: What types of products can this line package? A: The Dpb-Zh line is versatile, handling aluminum plastic or aluminum aluminum blisters for softgels, capsules, oral liquids, and ampoule bottles.
Q2: What is the maximum production speed of the cartoning machine? A: It can produce between 40 to 80 cartons per minute, depending on the specific materials and carton sizes used.
Q3: How does the machine ensure quality control? A: Every station is equipped with sensors and a Siemens PLC detection system that automatically identifies and removes waste to ensure a 100% qualification rate.
Q4: Can the layout be adjusted for small factory spaces? A: Yes, the entire line uses soft connections, allowing for high flexibility in design to fit your specific production floor space.
Q5: What are the requirements for carton and leaflet materials? A: Cartons should be between 250-350 g/m2, and manual leaflets should be 50-70 g/m2 for optimal folding and feeding performance.
Q6: What control system does the machine use? A: The machine utilizes a high-performance Siemens PLC programmable control system for superior data handling and scalability.
