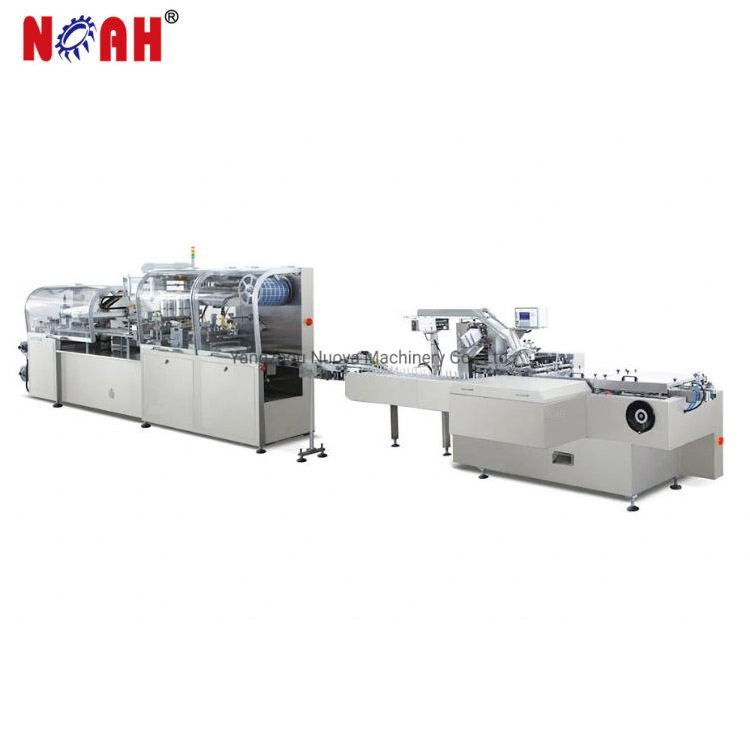

Dpb-Zh Capsule Tablet Softgel Blister Packing Cartoning Packaging Production Line
Dpb-Zh Capsule Tablet Softgel Blister Packing Cartoning Packaging Production Line
Dpb-Zh Capsule Tablet Softgel Blister Packing Cartoning Packaging Production Line
Dpb-Zh Capsule Tablet Softgel Blister Packing Cartoning Packaging Production Line
1 / 4
Dpb-Zh Capsule Tablet Softgel Blister Packing Cartoning Packaging Production Line
Dpb-Zh Capsule Tablet Softgel Blister Packing Cartoning Packaging Production Line
Dpb-Zh Capsule Tablet Softgel Blister Packing Cartoning Packaging Production Line
Dpb-Zh Capsule Tablet Softgel Blister Packing Cartoning Packaging Production Line

Dpb-Zh Capsule Tablet Softgel Blister Packing Cartoning Packaging Production Line

Customization: Available
After-sales Service: Engineers Available to Service Machinery Overseas
Usage: Packaging of Goods
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
DPB-ZH
Packaging Material
Paper / Cartons
Driven Type
Electric
Technology
Moisture Proof Packaging
Application
Cosmetics, Medicine, Food
Package Type
Rigid Package
Output Speed
40~80 Cartons/Min
Dimensions
1700*1060*1600 mm
Condition
New
Certifications
CE, GMP
★

Product Overview

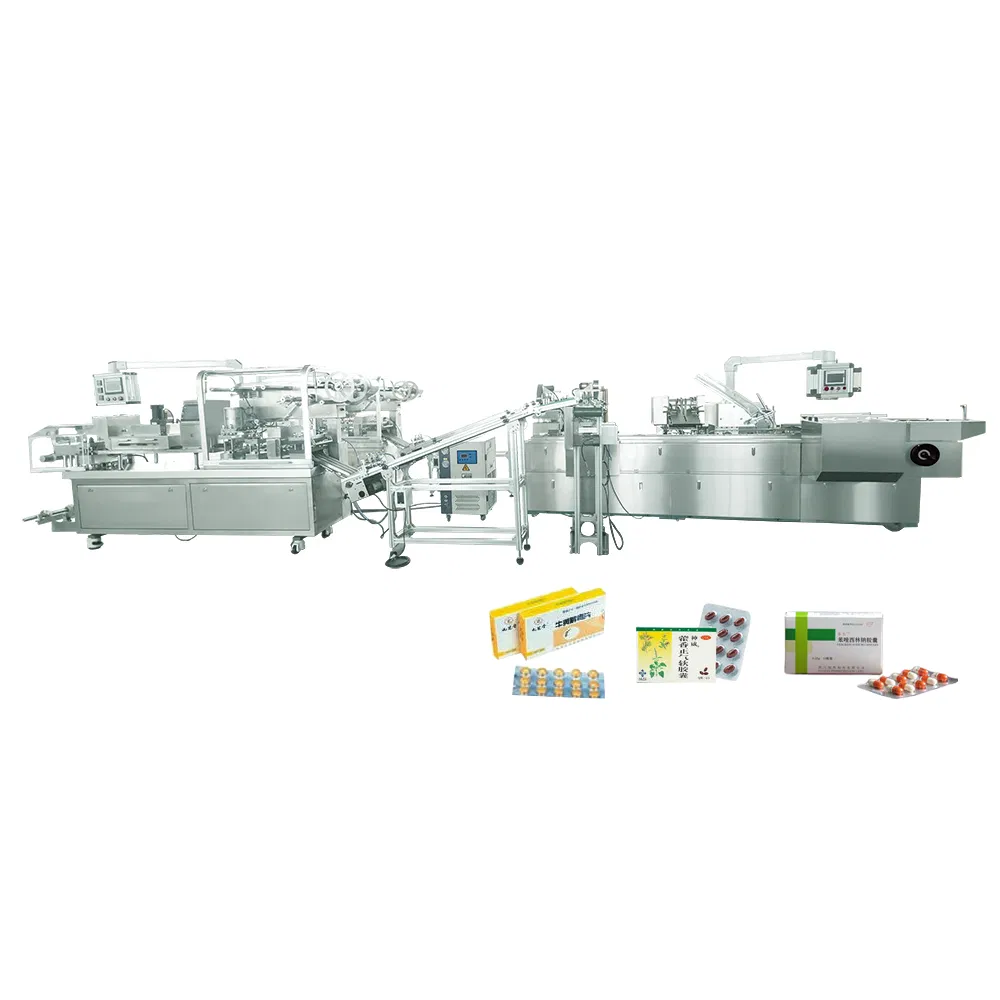

DPB-ZH Capsule Tablet Softgel Blister Packing Cartoning Packaging Production Line

This production line introduces advanced German packaging technology, integrating domestic market research and development for improved production stability, speed, and energy efficiency. The line combines the DPB140 Blister Packaging Machine with the ZH60 series cartoning machine via independent programmable control.

It automatically handles aluminum-plastic, aluminum-aluminum, oral liquids, and ampoule bottle forming. Key features include online detection, heat-sealing, batch loading, manual folding, and waste rejection to ensure a 100% product qualification rate.

Utilizes Siemens PLC programmable control for high scalability.
Equipped with detection stations at every stage to ensure quality.
Flexible soft connections designed for optimal space utilization.
Overload alarm and automated equipment downtime protection.
User-friendly operation with significantly reduced labor intensity.
⚙

Technical Parameters

Output Rate40~80 cartons/min
Finished Product Rate≥99%
Waste Elimination100%
Working Noise≤80dB(A)
Weight800kg
Paper Carton Size (L*W*H)(70~125)×(40~78)×(15~30)mm
Material Specification250~350 g/m2
Manual Leaflet SizeFolded: (100~150)×(20~40)mm
Clean Compressed Air0.5~0.8Mp
Power Consumption380V, 50Hz, 1kw
📷

Visual Display

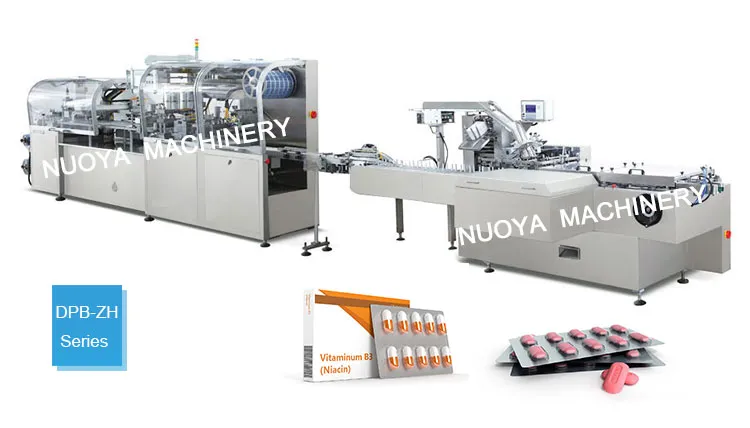

Production Line 1
Production Line 2

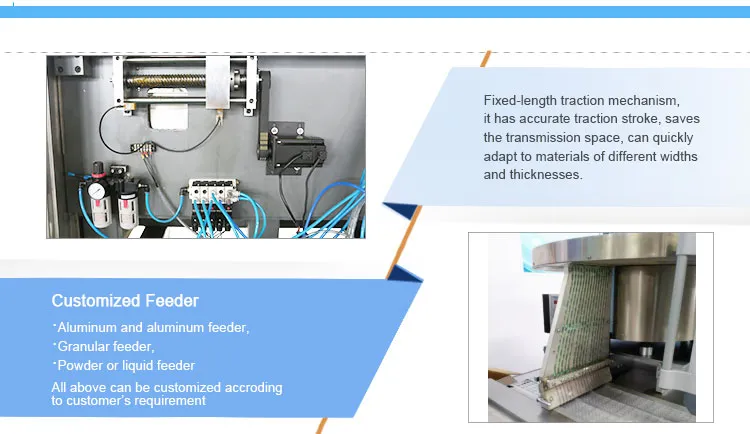

Production Line 3

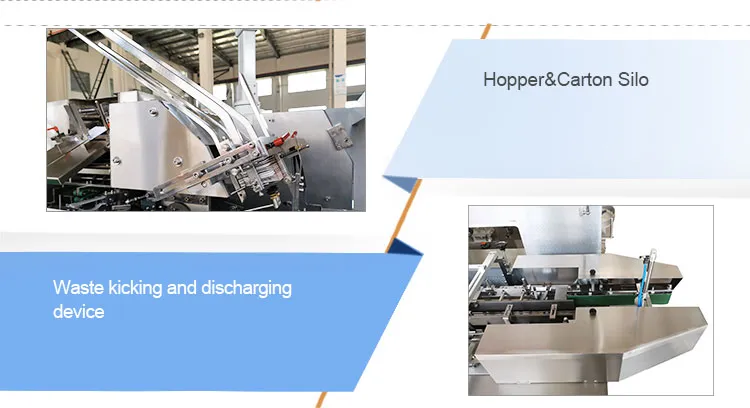

Production Line 4

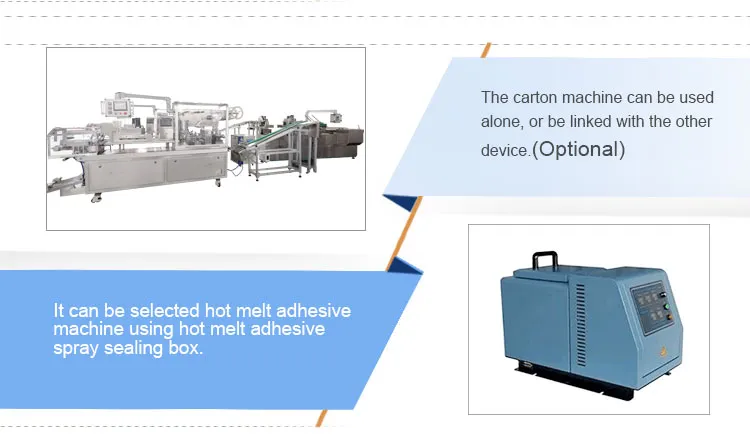

Production Line 5

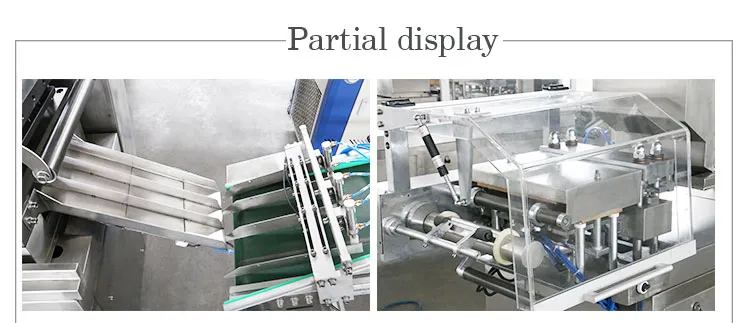

Production Line 6

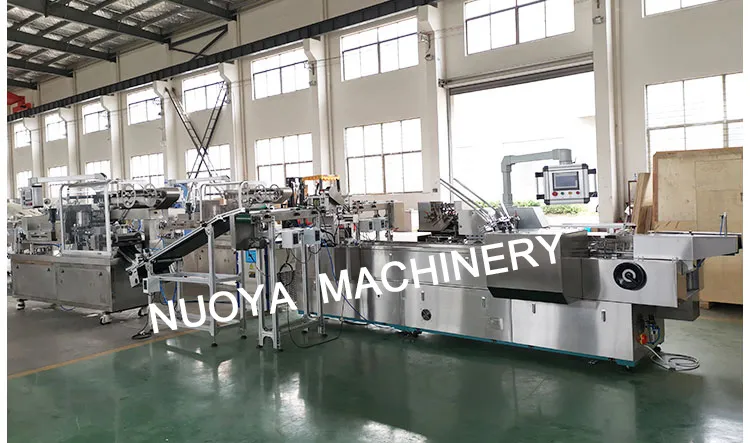

Production Line 7
Production Line 8

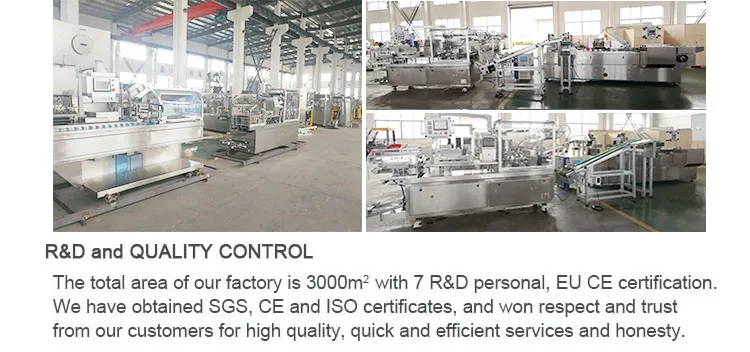

Production Line 9
Production Line 10
?

Frequently Asked Questions

What industries can use this blister packing line? It is primarily designed for the Pharmaceutical, Food, and Chemical industries, suitable for items like capsules, tablets, and softgels.
What is the production capacity of the DPB-ZH model? The output ranges from 40 to 80 cartons per minute, depending on the specific materials and dimensions of the cartons used.
What control system does the machine use? The machine utilizes a high-performance Siemens PLC programmable control system for data management and scalability.
How does the system handle defective products? The line features integrated detection stations and a 100% waste picking system to ensure all final products delivered are qualified.
Does this machine comply with international standards? Yes, this equipment meets CE and GMP specifications, ensuring high-quality production standards for global markets.
What are the power and air requirements? The production line requires a 380V 50Hz power supply with 1kw consumption and clean compressed air at 0.5~0.8Mp.
