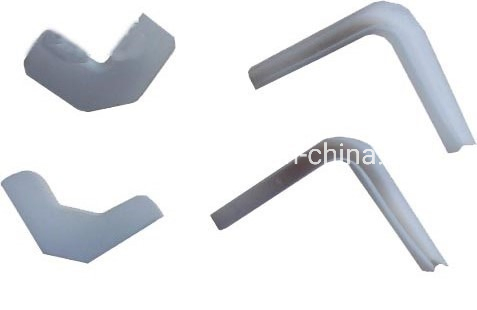

Durable Plastic Protection Angle for Busduct Systems and Components

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Technical Specifications

Model NO.
KDEQ-03-348
Surface Finish
Polishing
Mould Cavity
Multi Cavity
Plastic Material
PA66
Process Type
Single-Process Mode
Application
Busbar Trunking System
Runner
Hot Runner
Design Software
AutoCAD
Installation
Fixed
Certification
ISO
Standard
HASCO
Customized
Available
Usage
Conductor/Mylar Film Protection
Transport Package
Carton
Specification
5mm, 6mm, 7mm
Origin
China
HS Code
8547200000
Production Capacity
500,000 pcs / Month

Product Overview

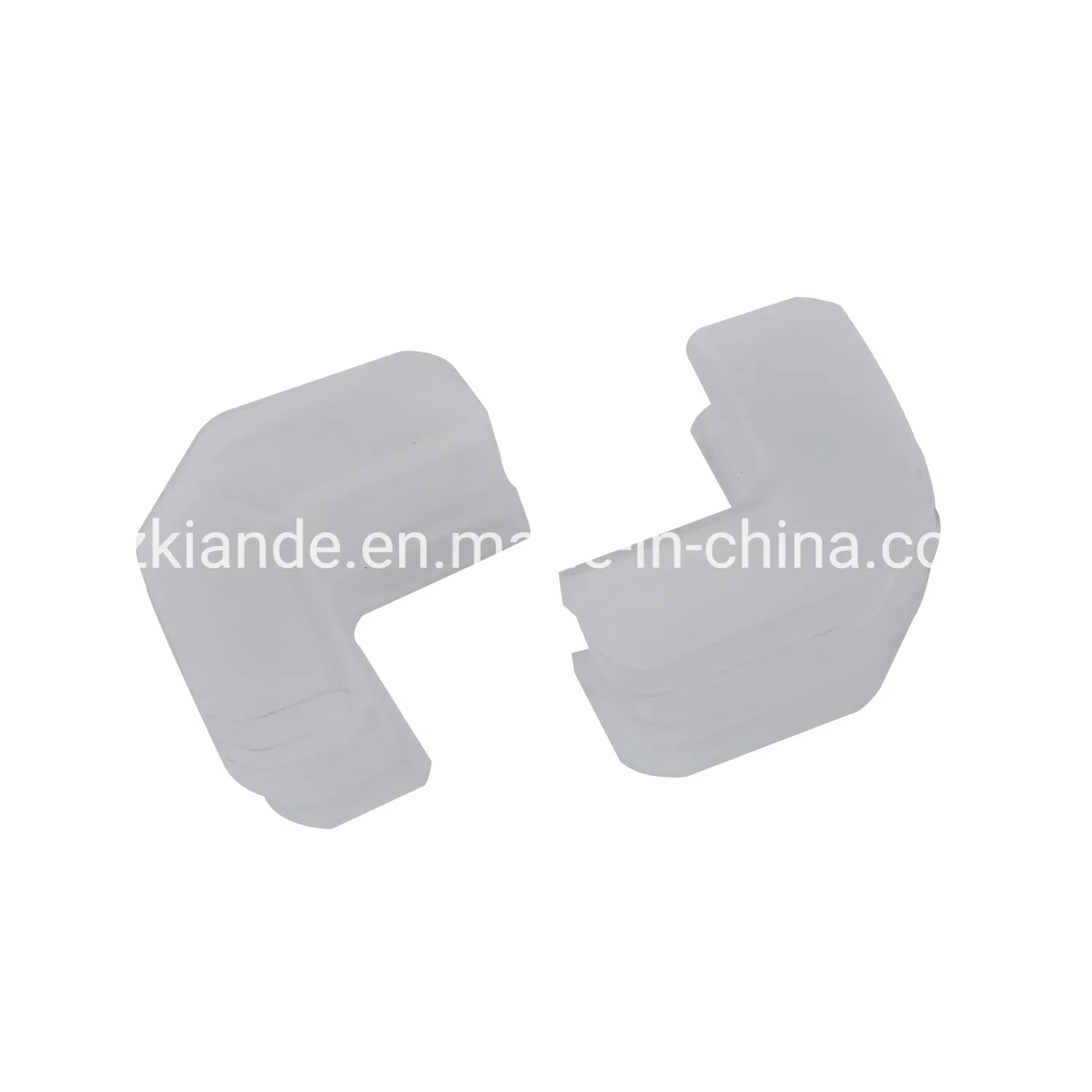

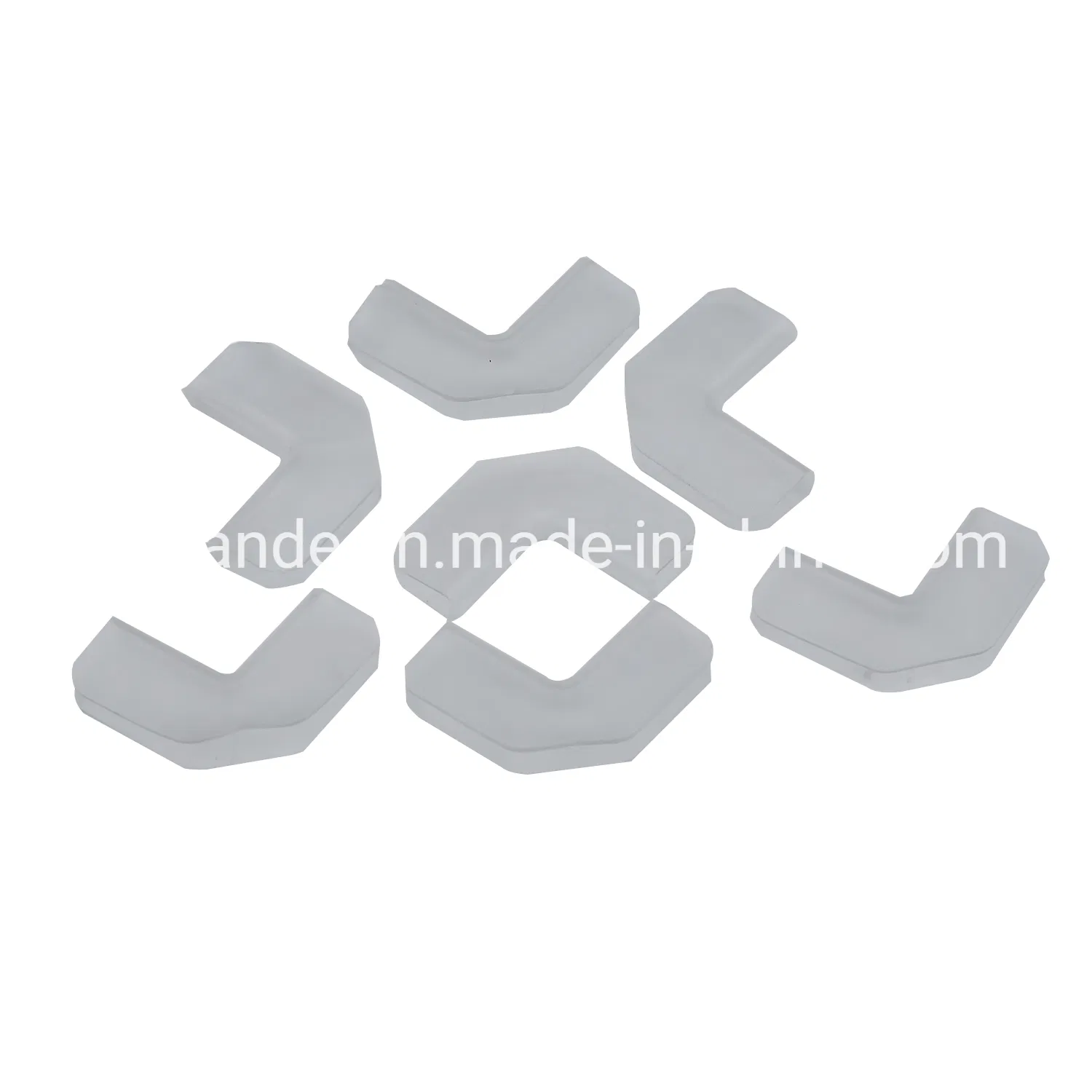

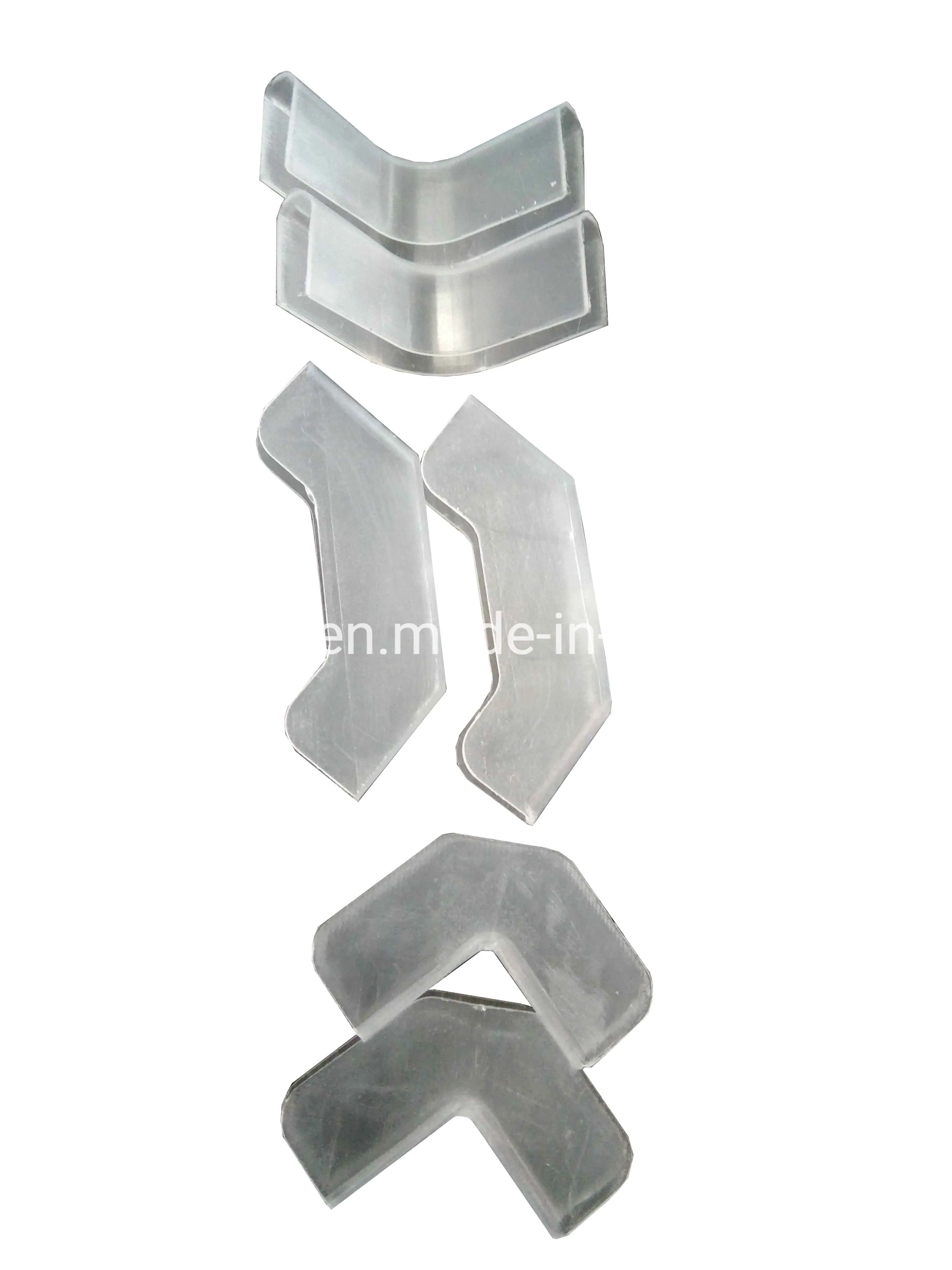

Protection angle for busbar conductor

Key Features:

  • Designed to protect polyester film during the wrapping of copper & aluminum bar conductors.
  • Premium Material: PA66.
  • Superior insulation, flame retardant, and high voltage resistance.

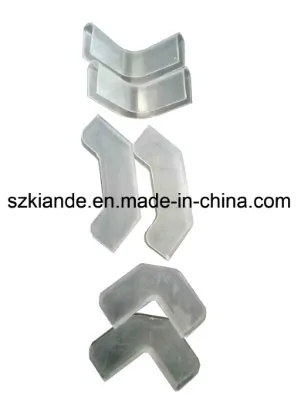

Busbar Protection Angle

Specialized solutions for busbar processing, including mylar sleeve forming, assembly, riveting, testing, and packaging. Below is the referenced process for busbar assembly using specialized machinery.

Step 1 & 2: Component Preparation & Processing

Utilizing high-precision gas-hydraulic copper bar punching machines ensures one-time forming accuracy, maintaining optimal phase distance to prevent short circuits.

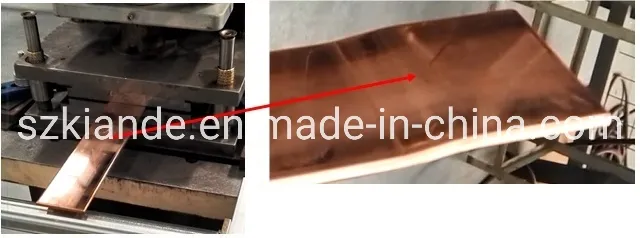

Copper processing
Busbar copper processing

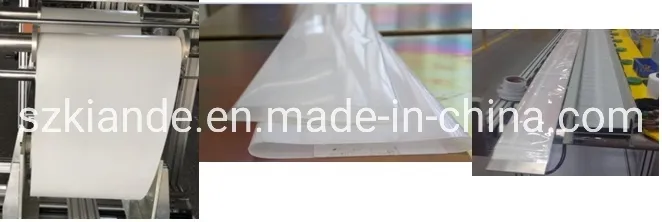

Mylar sleeve processing
Mylar sleeve forming processing
Insulation & Component Assembly

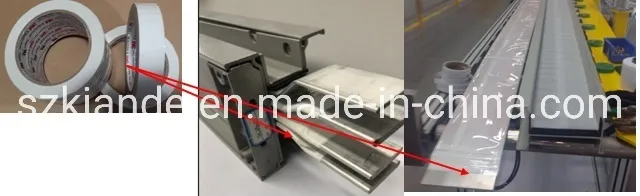

3M insulation film
3M insulation film wrapping

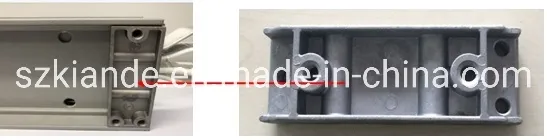

Aluminum profile
Aluminum profile casting end
Structural Strengthening & Inspection

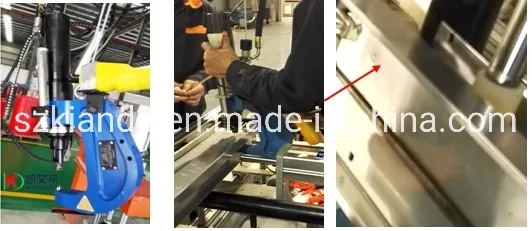

Riveting machine
Busbar riveting process
Inspection machine
Testing & Inspection
Final Packaging & Connection Accessories
Packing machine
Automated Packaging
Rivet accessory
High-stability Rivets
Joint isolator
Busbar Joint Packs
Plug-in Earth Contacts & Clips
Contacts clips
?

Frequently Asked Questions

What material is used for the protection angle?
The protection angle is made of high-quality PA66 plastic, known for its excellent insulation and flame-retardant properties.
What are the primary functions of this product?
It is specifically used on conductors to protect the mylar/polyester film from damage during the busbar trunking system assembly.
Are different sizes available for various busbar thicknesses?
Yes, the standard specifications include thicknesses of 5mm, 6mm, and 7mm to accommodate different conductor sizes.
Is the product compliant with international standards?
Yes, the product is manufactured under ISO certification and follows HASCO standards.
Can these protection angles be customized?
Yes, we offer customization options to meet specific technical requirements for different busduct systems.
What is the monthly production capacity?
We have a robust production capacity of up to 500,000 pieces per month to ensure stable supply for large projects.
