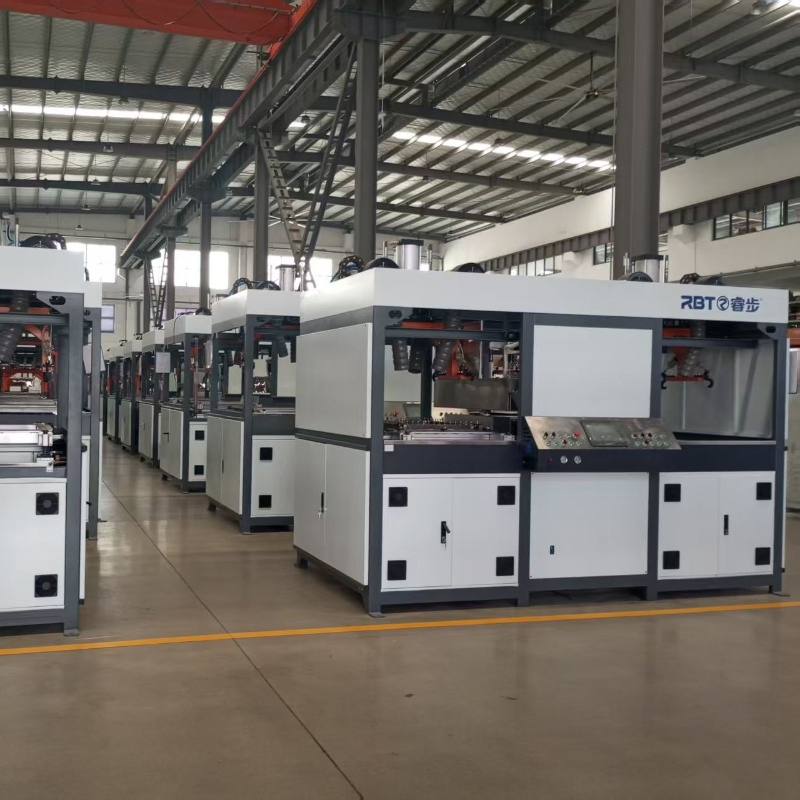

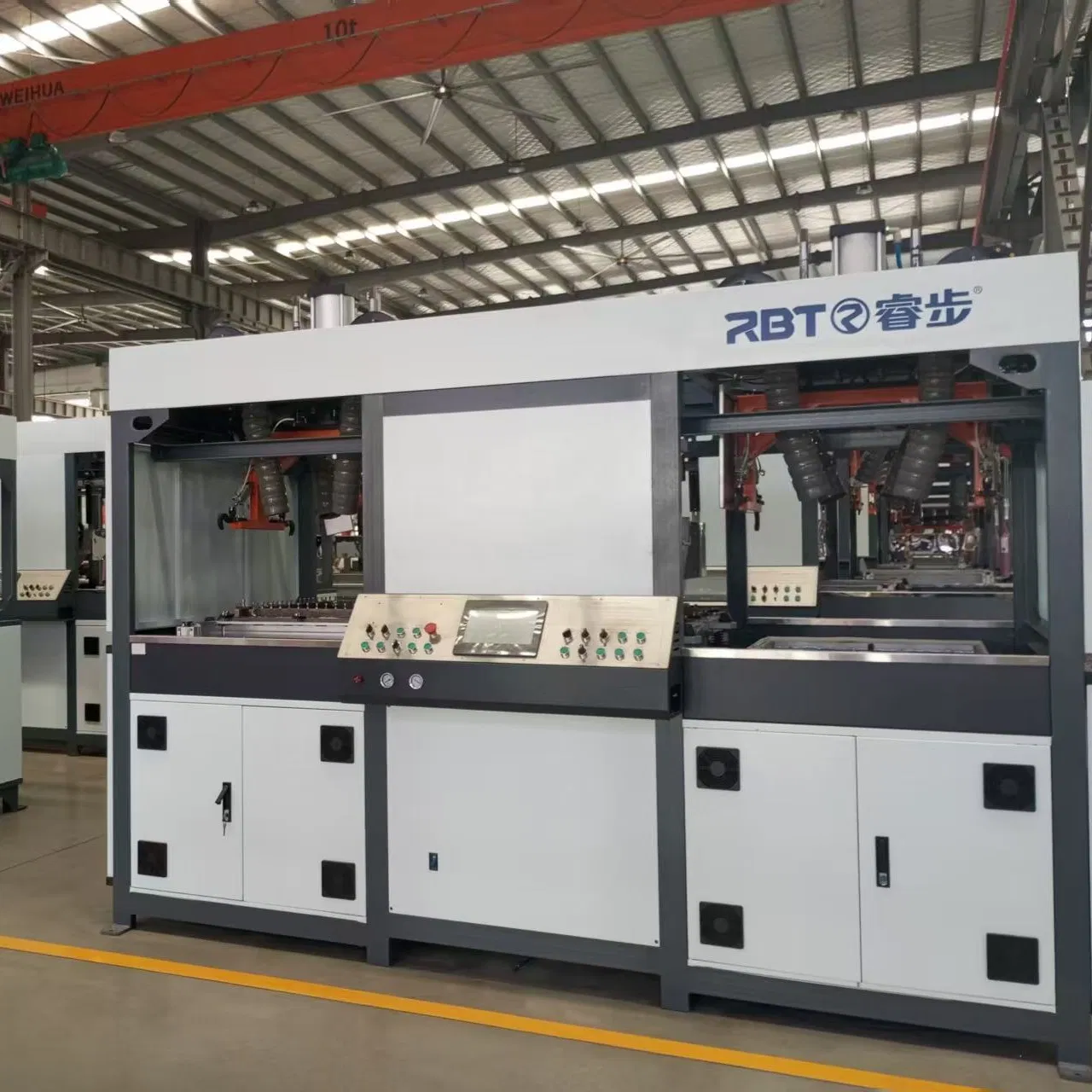

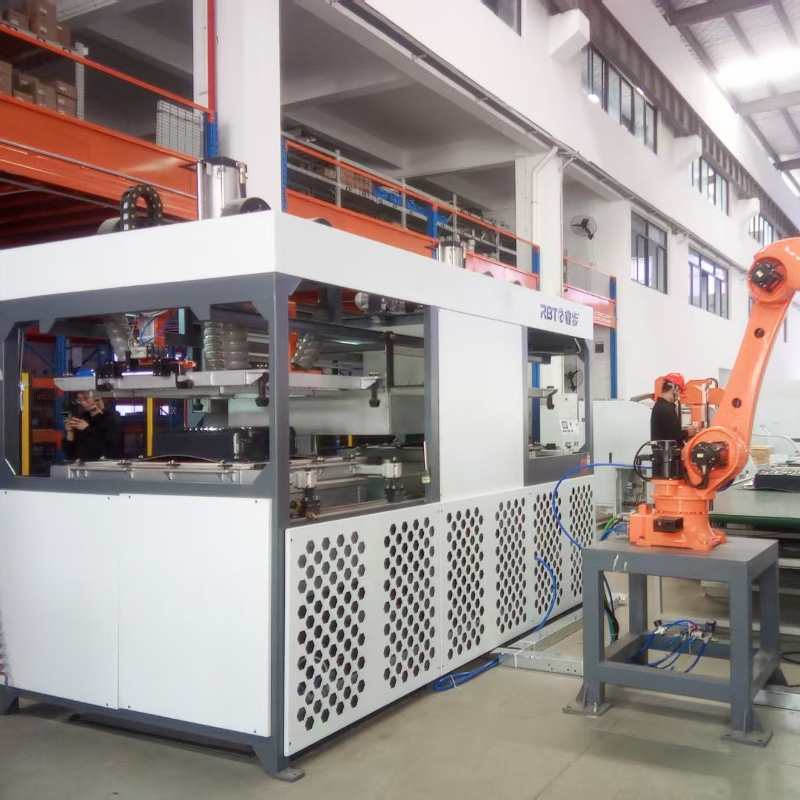

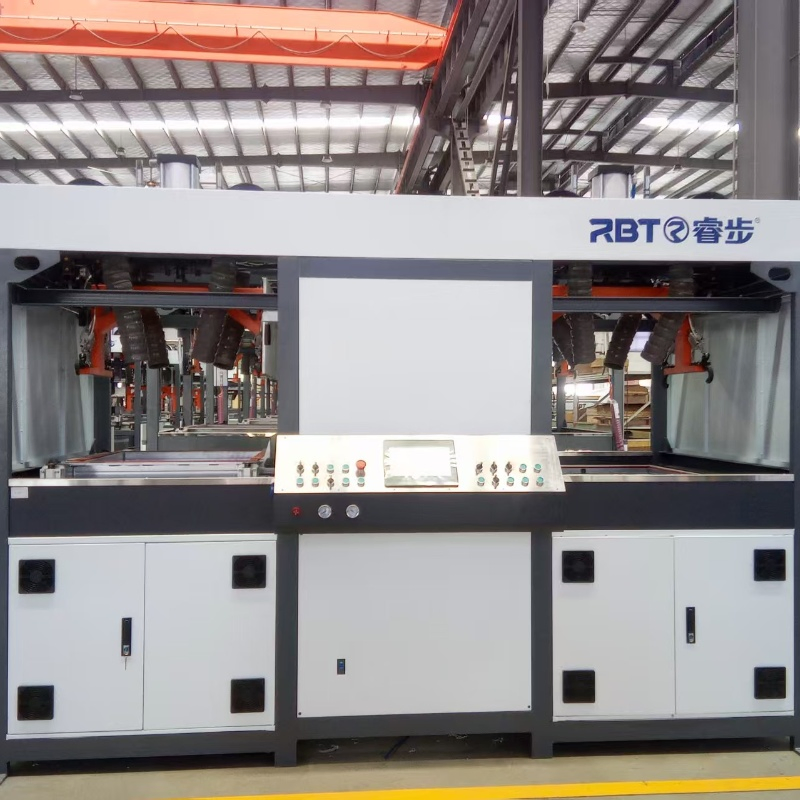

Durable Suitcase Luggage Production Vacuum Forming Machine

Customization:	Available
After-sales Service:	Technical Support, Online Support, Spare Parts
Warranty:	One Year

i

Basic Specifications

Model NO.

RB-A8-1

Certification

CE, ISO

Column number

Four Column

Molding Method

Pressing

Automatic Grade

Automatic

Sheet Thickness

1-4mm

Input Power

380V

Vacuum Pressure

0.07-0.09MPa

Suitable Industry

Luggage Suitcase

Leadtime

15 days

Air Consumption

800L / Min

Production Capacity

20set/Month

★

Industrial Vacuum Forming Press

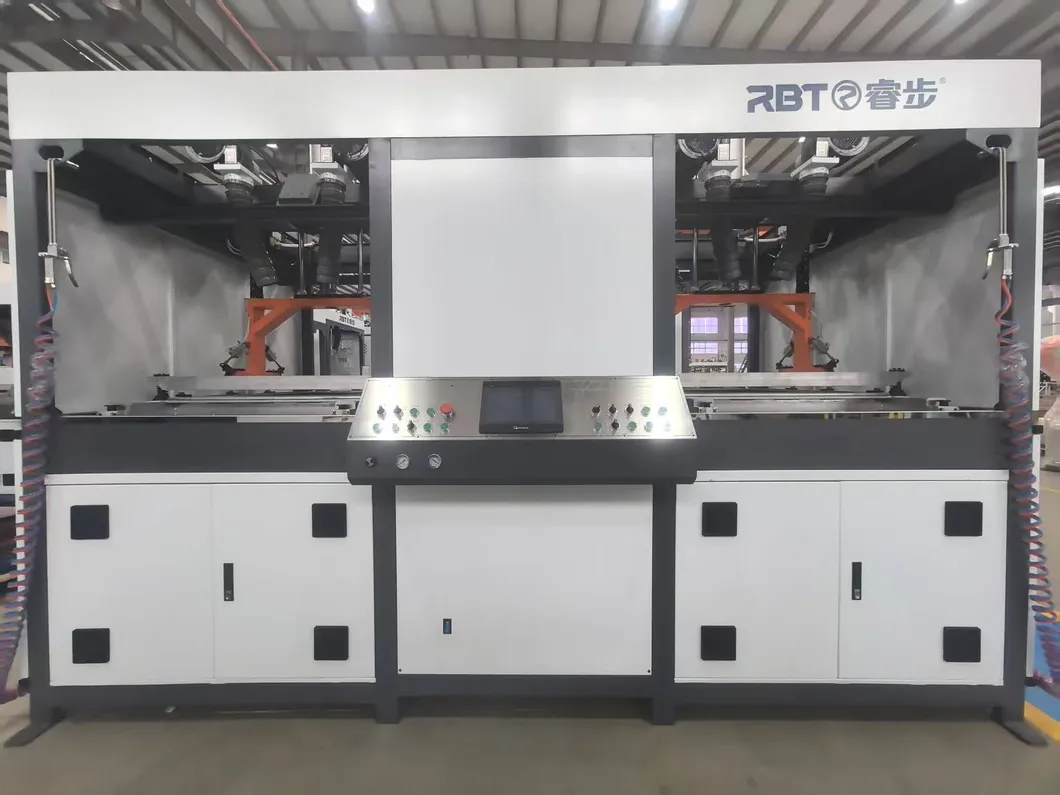

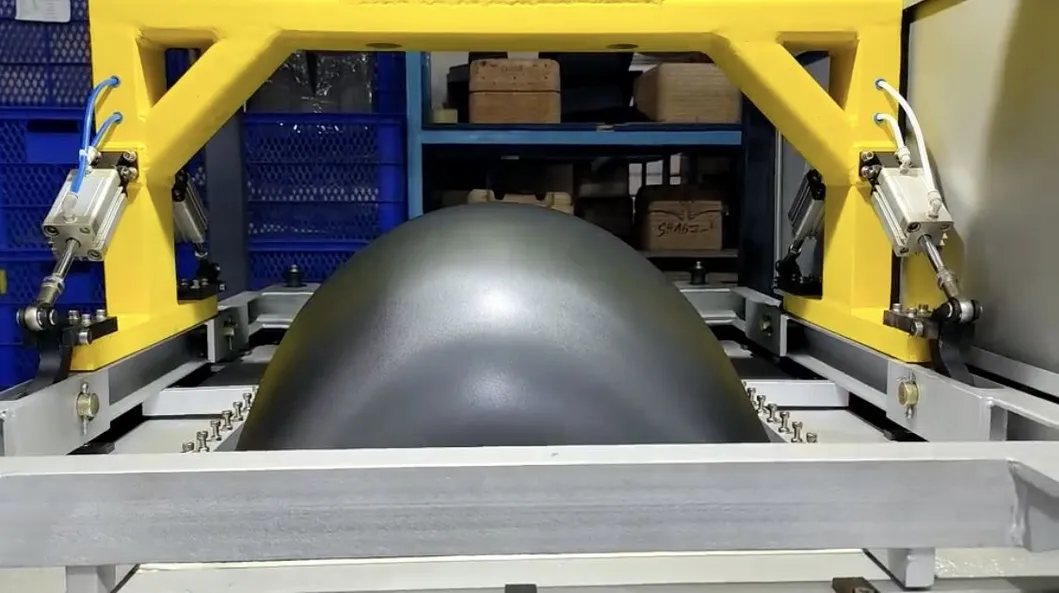

This Luggage Vacuum Forming Machine adopts PLC control and hydraulic drive, equipped with upper and lower heating elements. It significantly enhances the durability and impact resistance of the luggage. Designed for sheet forming of ABS, PC, or recycled materials, this equipment can be customized to specific production requirements.

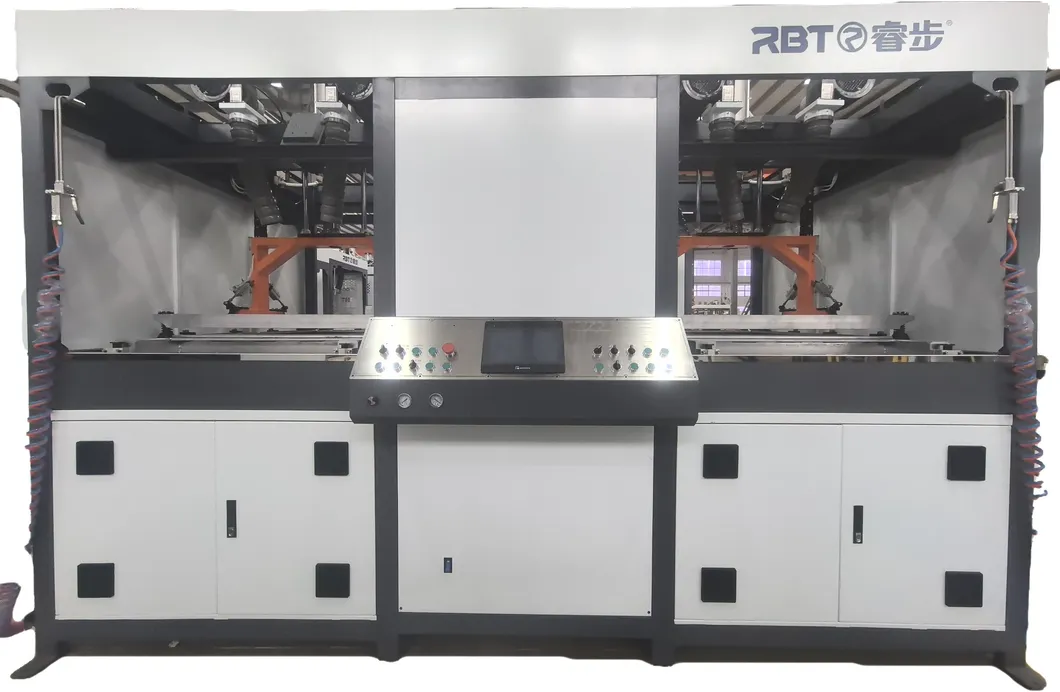

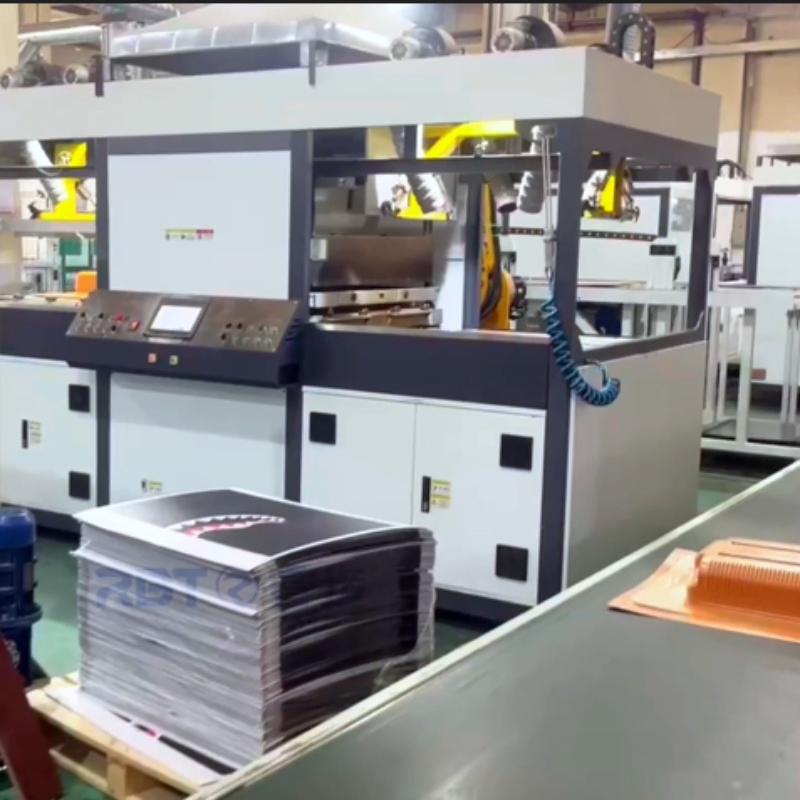

Durable Suitcase Luggage Production Vacuum Forming Machine

⚙

Technical Parameters

Model	RB-A8-20	RB-A8-24	RB-A8-28
Sheet Material/Thickness	ABS, PC etc; 1-4mm
Input Power	380v±10%, 50HZ
Vacuum Capacity	0.2M³	0.3M³	0.35M³
Air Consumption	550L/MIN	650L/MIN	800L/MIN
Total Power (KW)	39.5KW	49KW	55KW
Max Mold Size (mm)	600420200	690510200	780600200
Weight (T)	2.0T	2.0T	2.1T

✔

Core Advantages

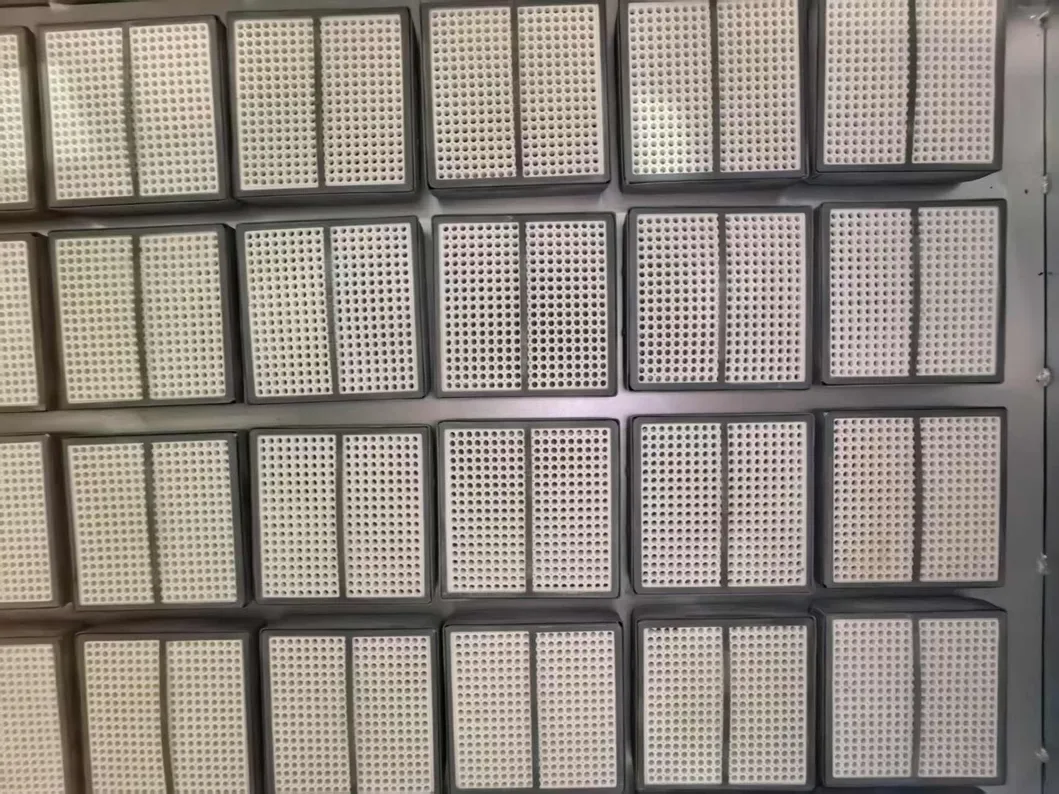

Double-sided heating with matte finish
High safety with anti-pressure settings
Silent technology for low noise levels
Omni-directional cooling fan system

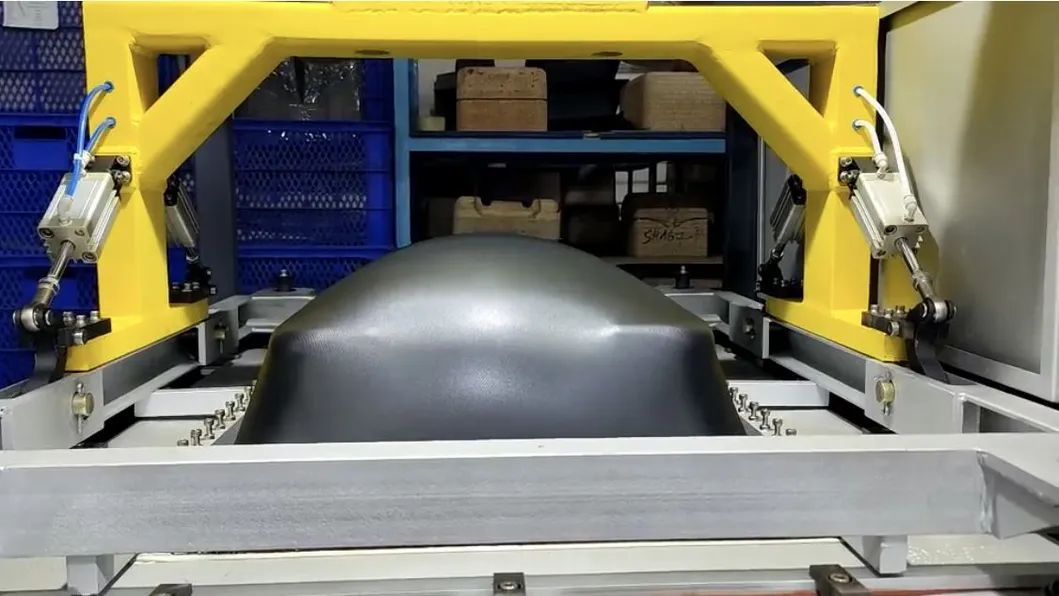

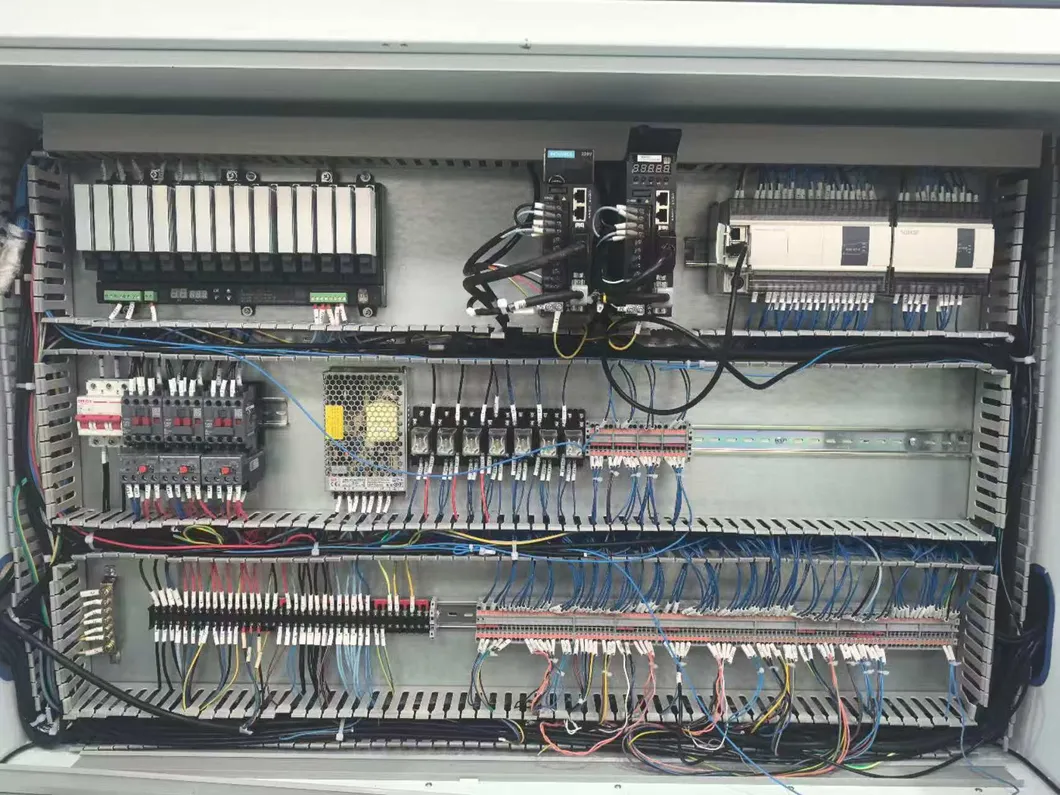

Individual control system & PLC screen
Precision molding for consistent quality
Cost-effective automation reduces labor
Environmentally friendly energy-efficient design

💼

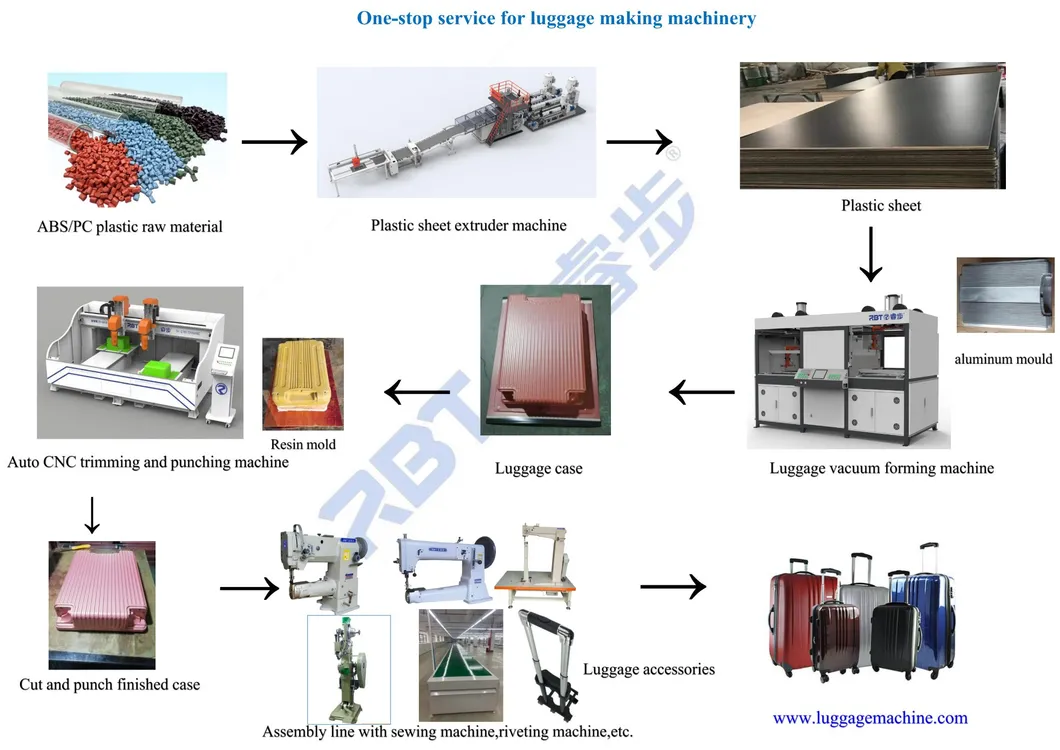

Applications

Perfectly suited for the luggage industry, specifically for vacuum forming trolley cases made of PC, PC/ABS, ABS, and PE. It is a professional solution for processing suitcase and luggage shells with high speed and superior quality.

🛡

Certifications & Quality

✈

Exhibition & Global Reach

📦

Packaging & Shipping

1. Plastic film packaging placed in plywood wooden cases or per customer requirements.
2. Shipping: Container transport.

?

Frequently Asked Questions

What materials can this vacuum forming machine process?

The machine is optimized for ABS, PC, PC/ABS, PE, and other thermoformed plastic materials typically used in luggage production.

What is the thickness range for the plastic sheets?

The machine efficiently processes sheet thicknesses ranging from 1mm to 4mm.

How long is the warranty period for the equipment?

We provide a 12-month quality assurance period from the date of arrival at the destination port, covering non-man-made damages.

Do you provide installation and operation training?

Yes, we provide comprehensive training videos, English manuals, and remote technical guidance via email and messaging apps. On-site training is also available.

What is the production capacity of this machine?

The production capacity is approximately 20 sets per month, and the output per hour ranges from 70 to 110 pieces depending on the case size and material.

Can the machine be customized?

Yes, the machine can be customized according to specific customer requirements regarding mold size, frame dimensions, and power needs.
