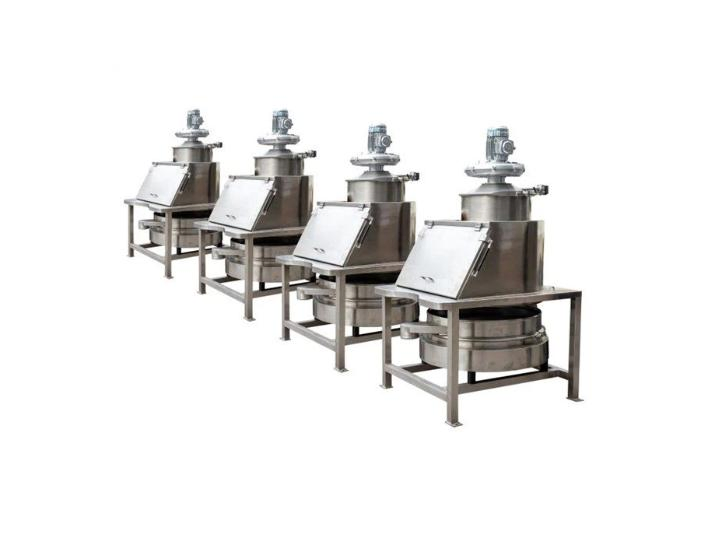

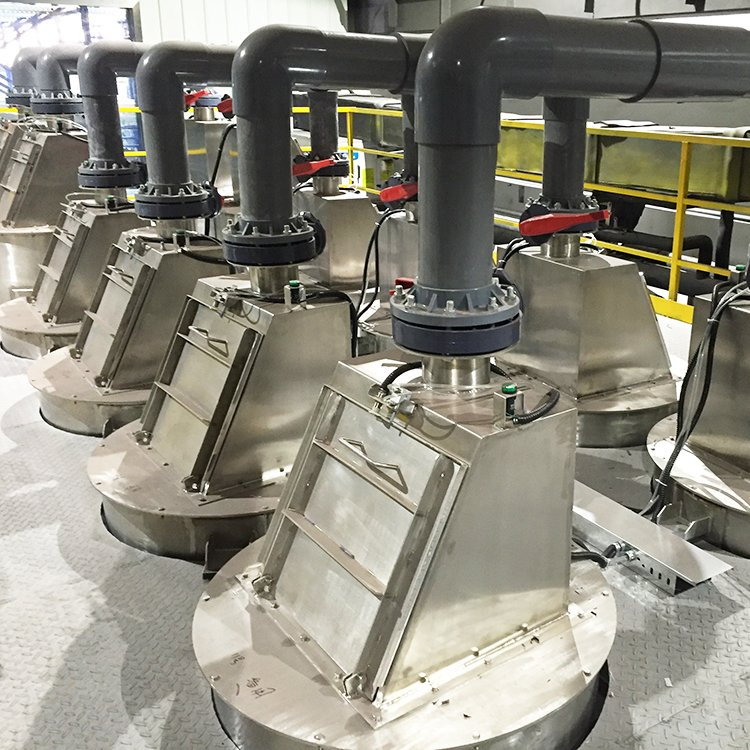

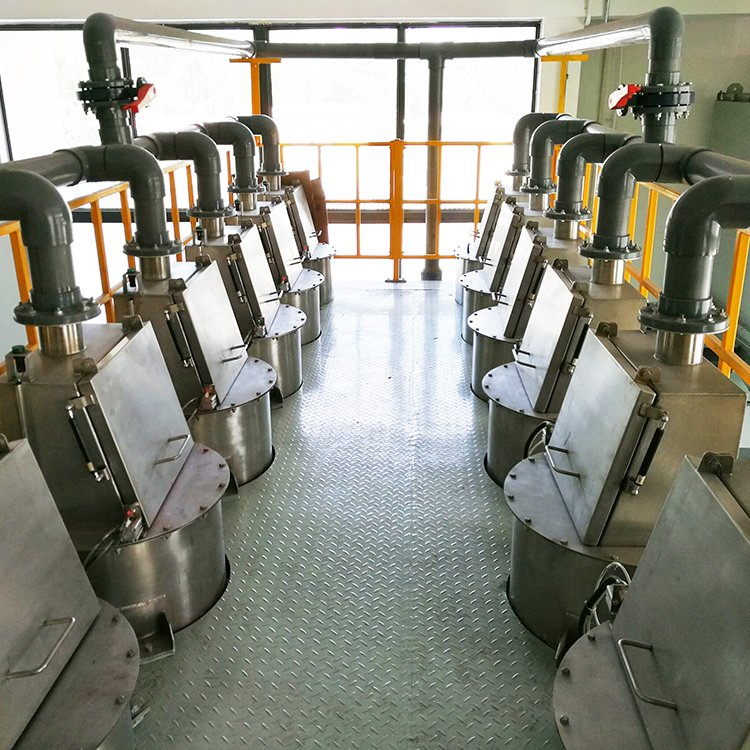

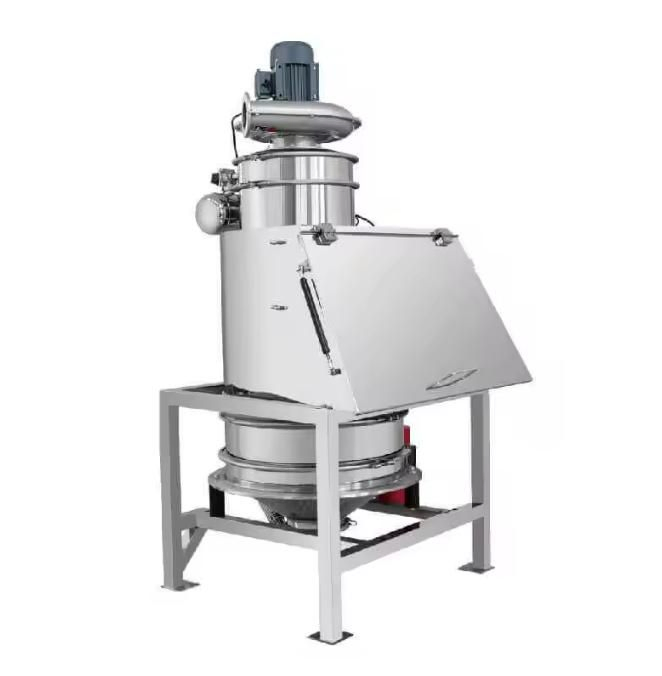

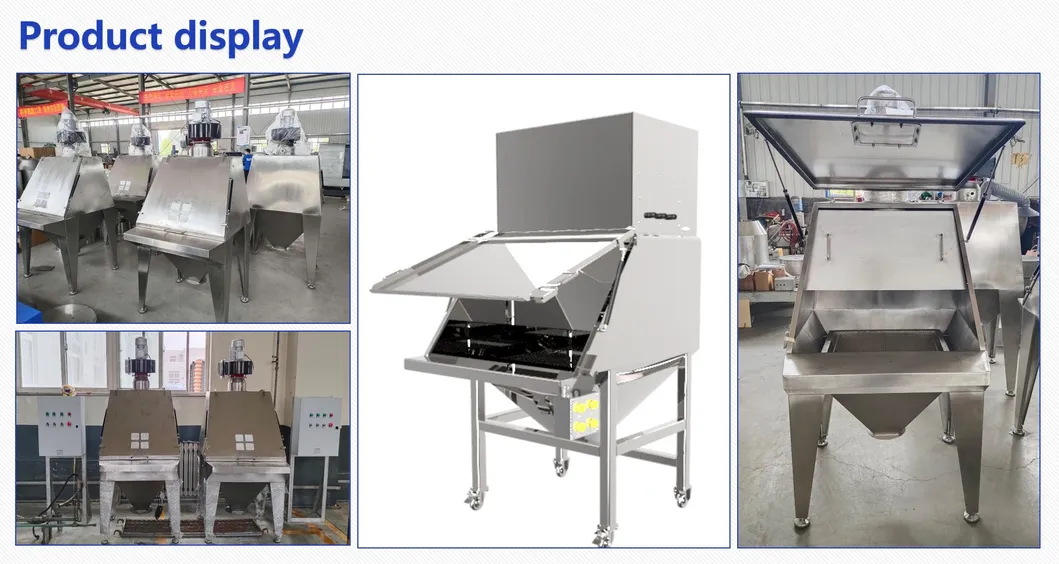

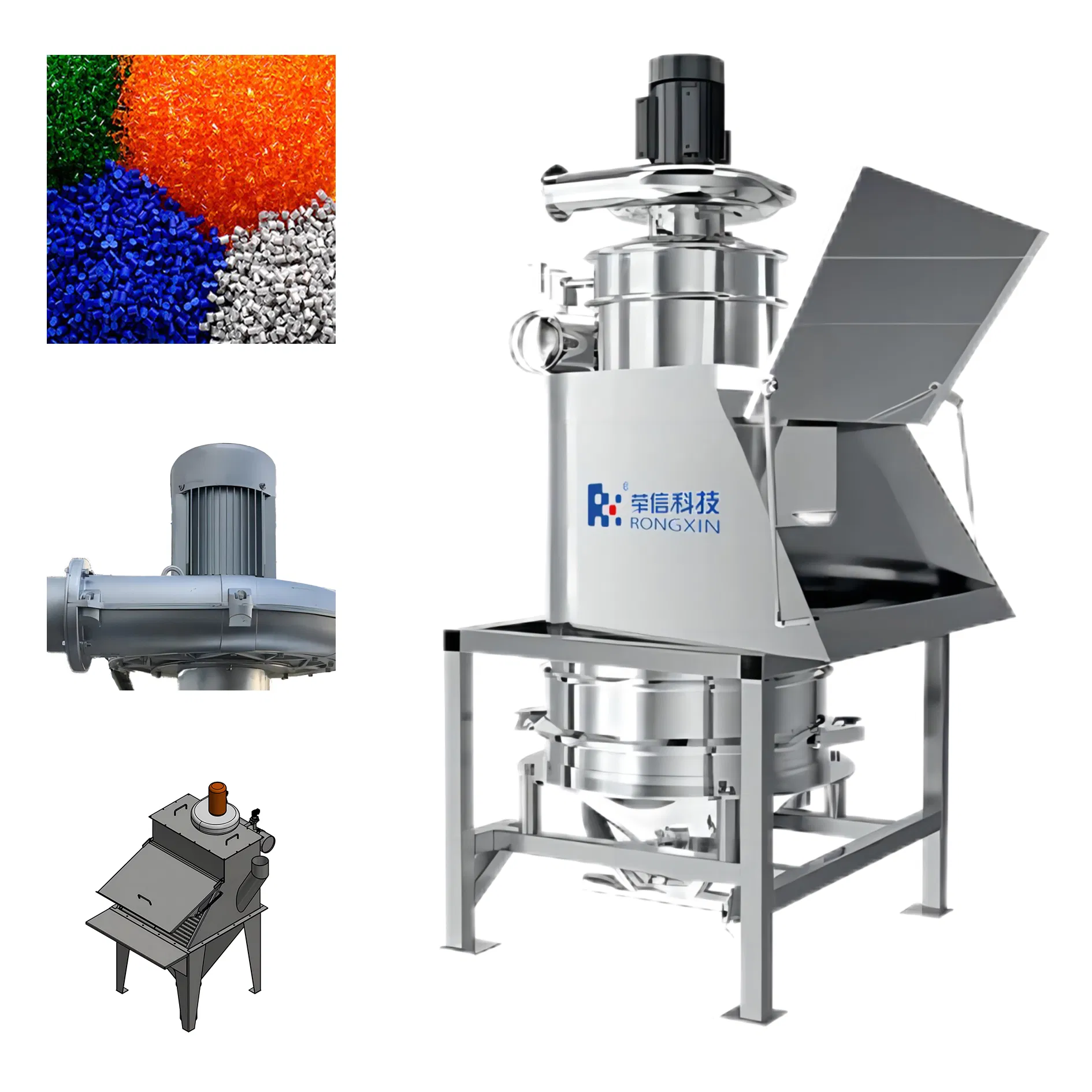

Experience the pinnacle of innovation with our sophisticated feeding station, meticulously engineered to capture and contain dust during the feeding process. Utilizing an advanced centrifugal fan or exhaust pipe to create negative pressure, this system brilliantly separates materials from the air, preventing any dust dispersion. Our cutting-edge technology significantly reduces environmental pollution and promotes a healthier, cleaner workspace for operators.
Additionally, during the filter cleaning process, materials adhering to the filter mesh are expertly redirected back into the hopper, thus minimizing waste and amplifying efficiency. Ideal for unpacking, releasing, and unloading small bag materials, this versatile machine integrates seamlessly with material suction machines, pipe chain conveyors, and equipment entrances.
| Model | WT100 | WT150 |
|---|---|---|
| Volume (L) | 100 | 150 |
| Power (kW) | 0.75 | 1.1 |
| Air Pressure (MPa) | 50 L/min / 0.6 MPa | |
| Discharge Interface | 8-inch quick connector | |
| Fan Interface (Φ) | 100 | 150 |
| Weight (Kg) | 150 | 200 |
| Dimensions (mm) | L:1000, W:900, H:2000 | |
* Power of additional fans not included. Compressed air consumption refers to the backflush device.
