After-sales Service: Field Installation, Commissioning and Training
Warranty: 1 Year
Automatic Grade: Field Installation, Commissioning and Training
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
customized
Application
Drinks, 1 Year
Type
Forming Filling Sealing Machine
Forming Species
Pharmaceutical & Medical
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Liquid
Packaging
Cartons
Packaging Material
Paper
Characteristics
Reliable Sealing, Convenient Use, Beautiful Packing
Transport Package
Wooden Case; Standard Package
Specification
3.2 x2.5 x2.5M
Origin
China
Production Capacity
Customized
P

Product Description

Blister Packaging Line

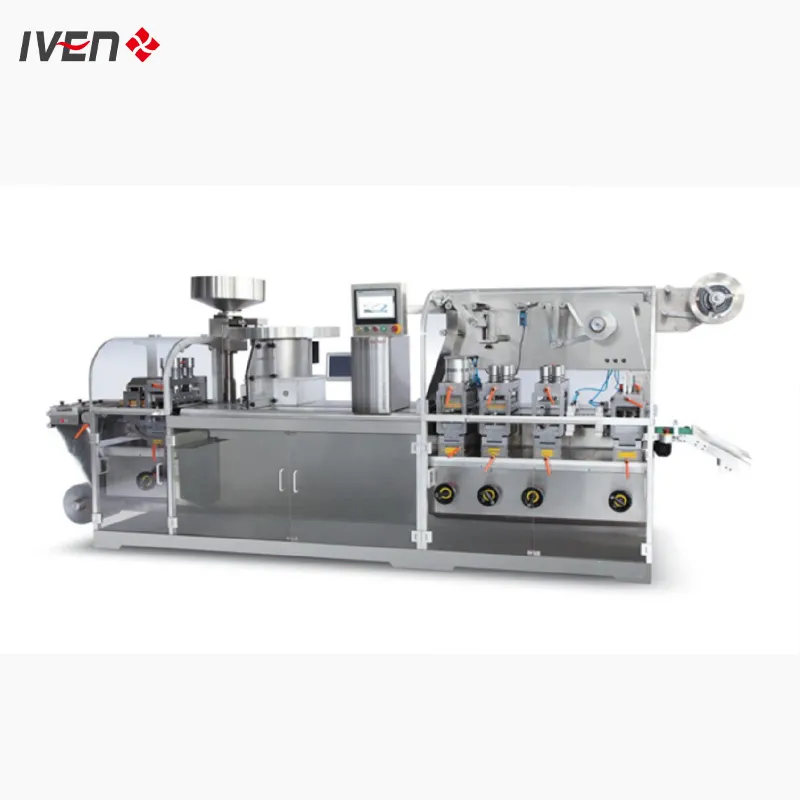

Machine Part

Application:

  • Applied to Alu-Pvc and Alu-Alu packing of medicines (capsules and tablets).
  • Sealed blister packing for syringes, ampoule bottles, and medical products.
  • Suitable for food, electronic parts, and hardware products.
★

Main Features

  • Main drive: Synchronous belt drive located at the back for easy maintenance.
  • Cantilever guide rail: Convenient for cleaning and removing dropped materials.
  • Mould installation: Lathe type guide rail with pinion and rack adjustment.
  • Fast changeover: Tool-free mould changes via manual guide and rocker handles.
  • Air shaft: Faster material roll changes for PVC and aluminum foil.
  • PVC Loading: Roller trace design to prevent material over-stretching.

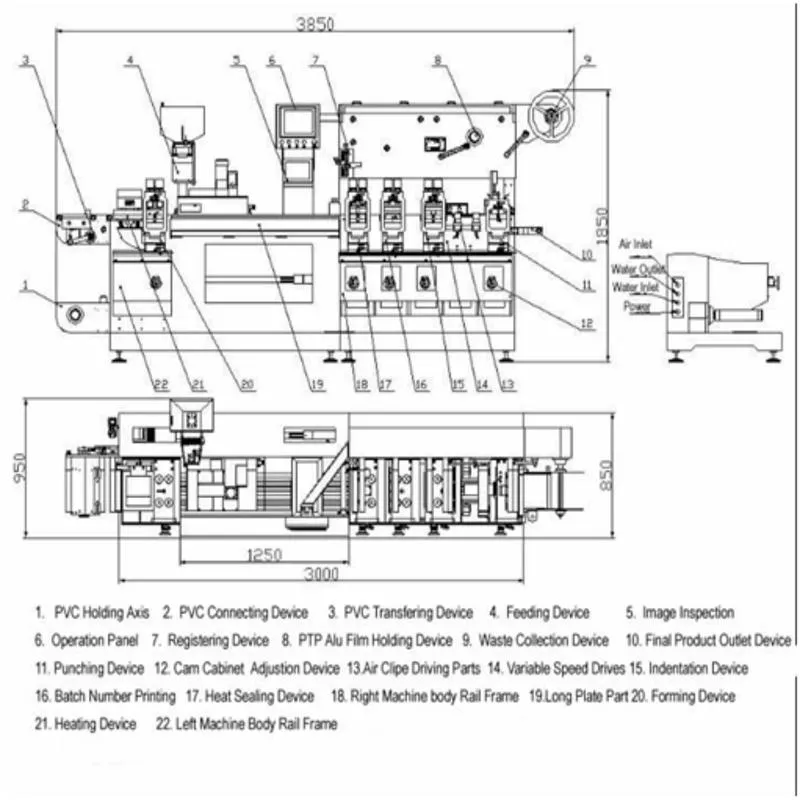

Feature Details

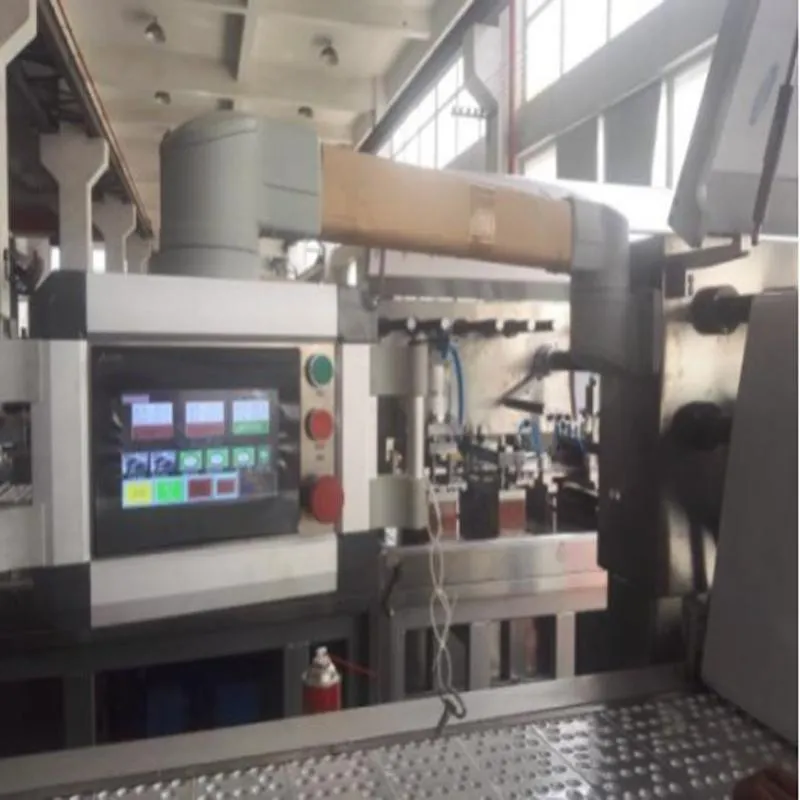

Process 1

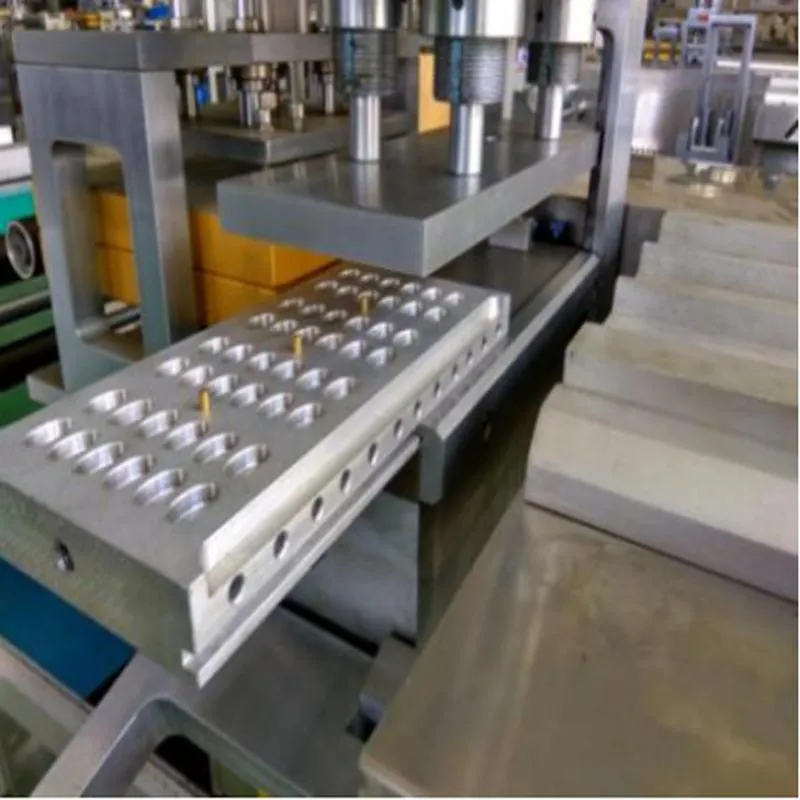

Process 2

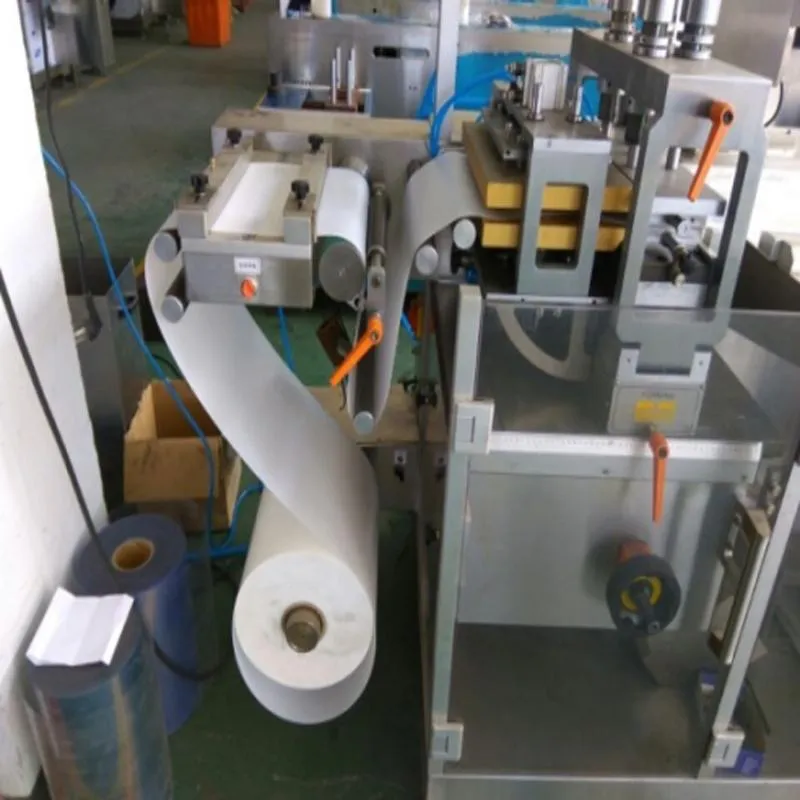

Process 3
T

Technical Parameters

Punch frequency (time/min)40-50
Capacity (blister/h)4200-15000
Max forming area depth (mm)260*120*26
Stroke(mm)20-120
Standard blister (mm)80*57
Air supply0.4-0.8
Total power380/220v 50hz 10kw
Main motor power (kw)2.2
PVC hard pieces (mm)0.15-0.5*270
PTP aluminum foil (mm)0.02-0.35*270
Cold forming aluminum foil (mm)0.14-0.20*270
Dialytic paper (mm)50-100g/m2*270
Mould coolingTap water or recycle water
Overall dimension (mm)4000*850*1700
Weight (kg)2800
S

Engineering Solutions

Integrated engineering solutions for worldwide pharmaceutical and medical factories including clean rooms, monitoring systems, water treatment, filling, and packing systems.

Solution Overview

Turnkey Project Scope:

  • Project Design & Water Treatment
  • IV Solution Production Line & Sterilization
  • Clean Room & HVAC Systems
  • Laboratory Instruments & Stability Chambers
  • Installation, Commissioning & Training
Project Overview
D

Project Display

Display 1
Display 2
Display 3
Display 4
Display 5
Display 6
Display 7
Display 8
Display 9
Footer Banner
?

Frequently Asked Questions

What materials are compatible with this blister packaging machine?
The machine is compatible with Alu-Pvc, Alu-Alu, and various medical-grade papers and plastic films.
How easy is it to change the moulds for different products?
It is very efficient; all moulds (forming, sealing, punching) can be orientation-guided and pushed into position by hand without the need for wrenches or specialized tools.
What is the production capacity of the equipment?
The standard capacity ranges from 4,200 to 15,000 blisters per hour, depending on the specific model and product dimensions.
Is the machine suitable for clean room environments?
Yes, the design uses synchronous belt drives to reduce oil stains and features cantilever rails for easy sanitation, making it ideal for pharmaceutical clean rooms.
Does this system support automated feeding?
Yes, the machine is designed as part of a seamless packaging and cartoning production line, supporting integrated automatic feeding systems.
What kind of maintenance is required for the main drive?
The main motor is located at the back for easy access, and the synchronous belt drive simplifies maintenance while ensuring long-term reliability.
