Efficient Salt Eggs Packaging System

Customization:	Available
After-sales Service:	Free(on Line) and Other Service
Warranty:	12 Months

Basic Info Overview

Model NO.	PZ-420	Application	Electronic Component, Drug, Food, Medicine, Hardware etc.
Power	Electric	Automation	Automatic
Inflatable Device	Without Inflatable Device	Type	Stretch Film Vacuum Packing Machine
Object State	Paste, Powdery, Liquid, Solid, Particle	Condition	New
Available Width of Film	384mm	Voltage	Customization
Weight	About 1800 Kgs	Packing Speed	6-8 Cycles / Min
Packing Capacity	4600-5000 Pieces / Hour	HS Code	8422400000

Product Description

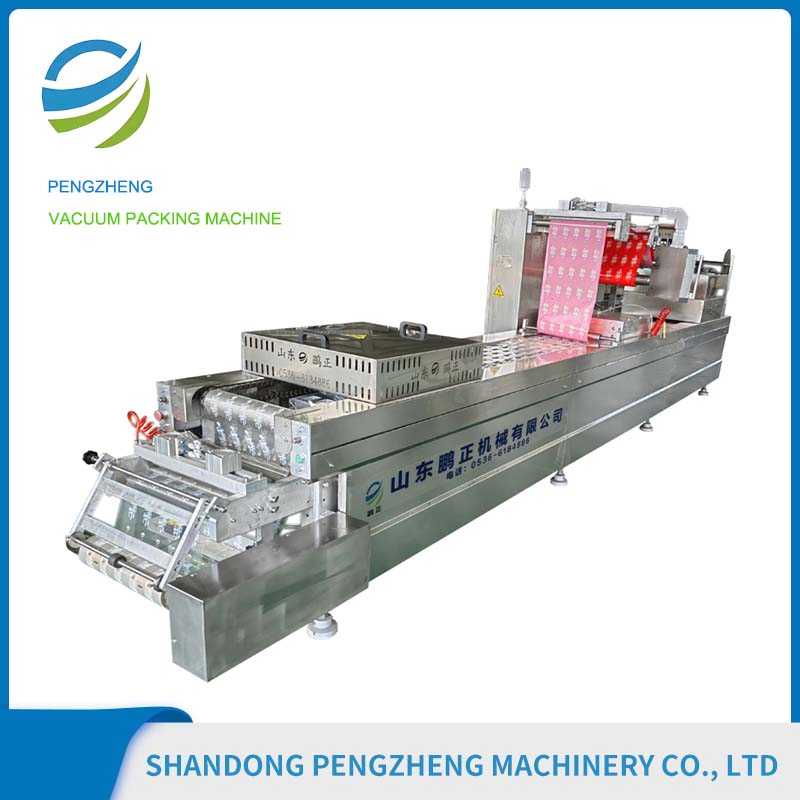

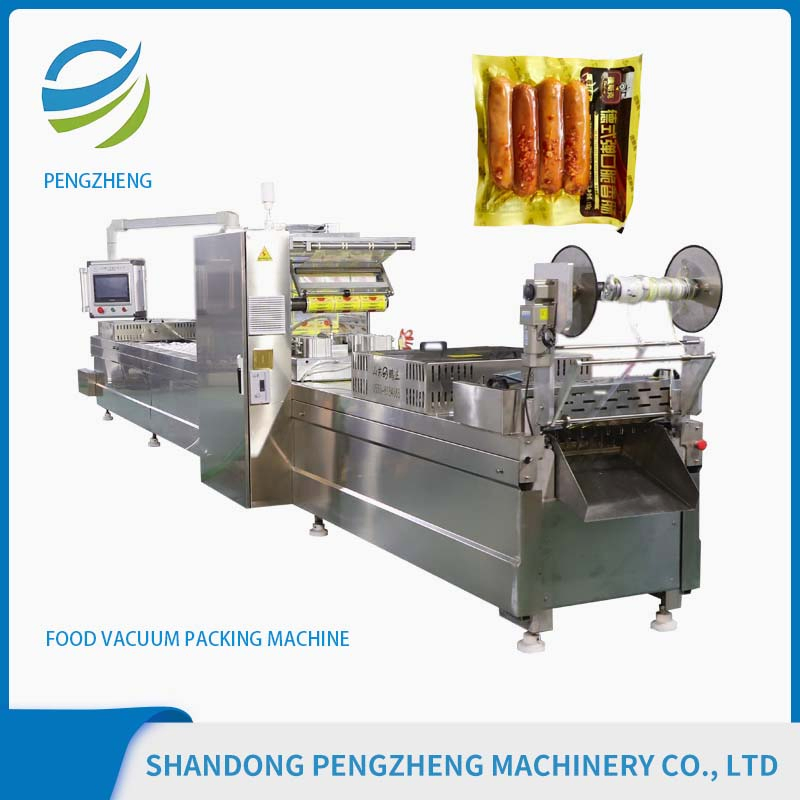

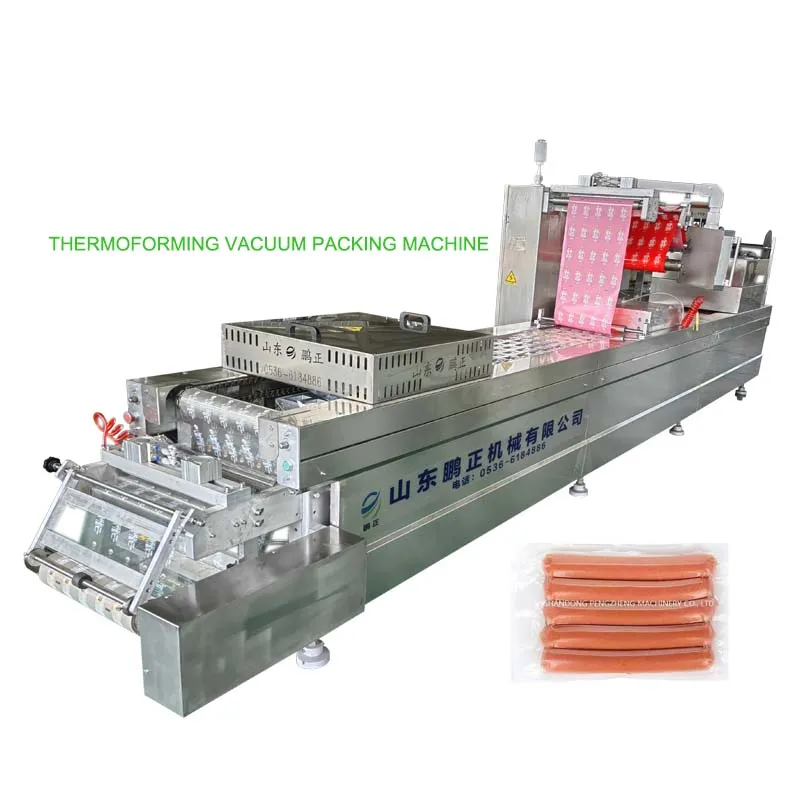

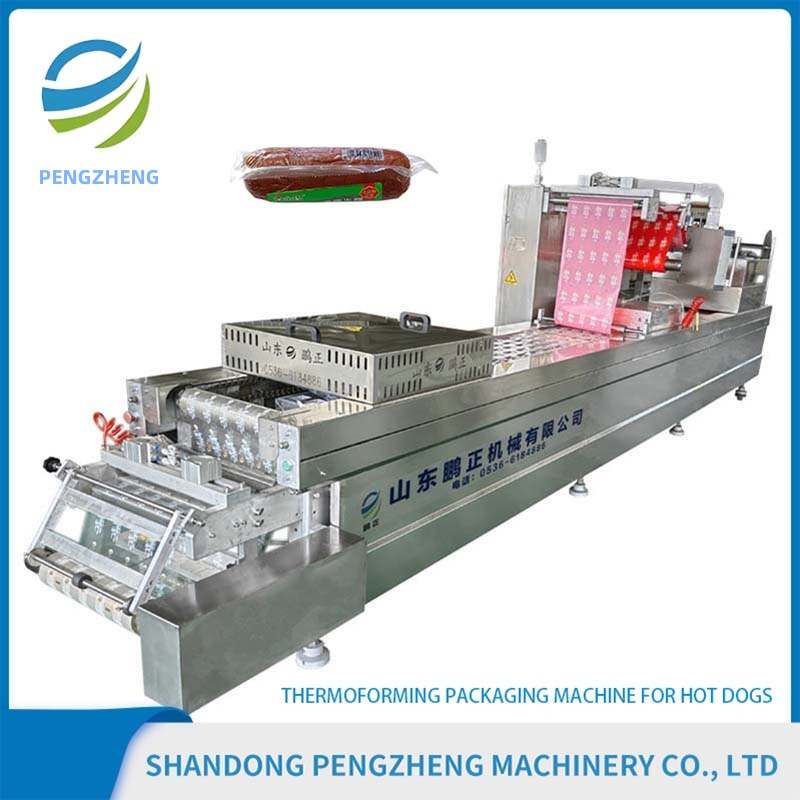

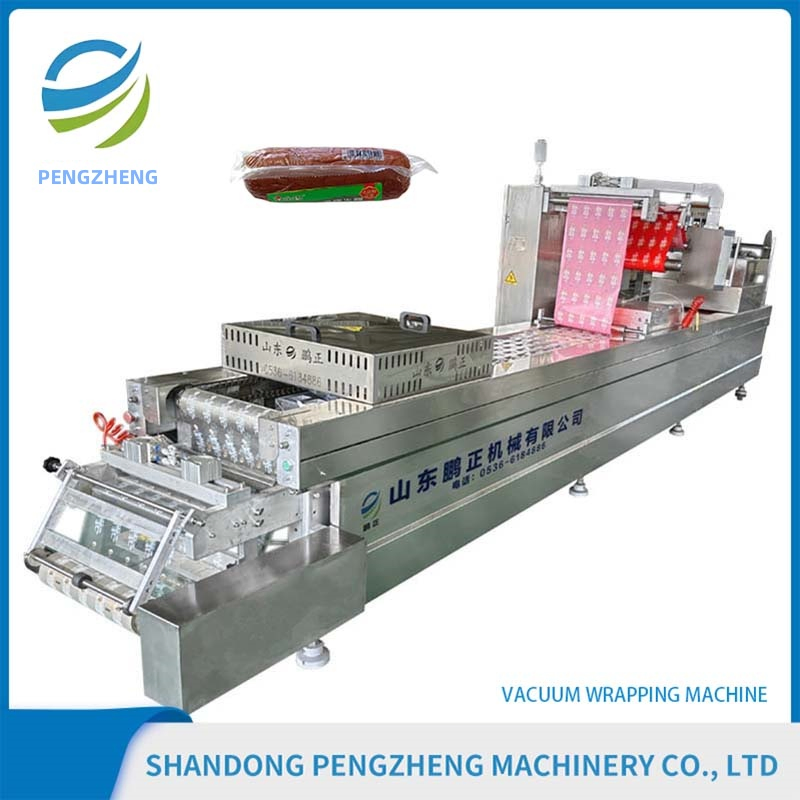

The Innovative Automatic Thermoforming Vacuum Packaging Machine is designed for high-efficiency packaging of various food items including sausages, fish, shrimp, steak, beef jerky, dried bean curd, goat, mutton, and chicken. This state-of-the-art solution is also suitable for toys and industrial components.

Why Choose This System

Professional Customization: Tailored to specific industry needs.
High Efficiency: Operates at 6-8 cycles per minute.
Advanced Technique: Incorporates over 10 design patents.
Stability: Very stable performance during mass production.
Safety: Enhanced operational safety protocols.

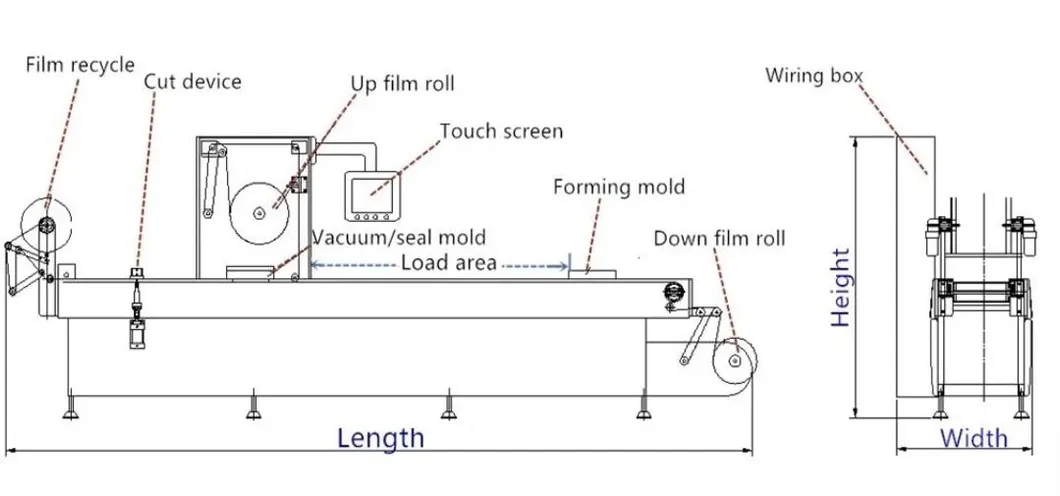

This machine excels in single-side stretching and forming of film. The process involves heating and stretching a bottom film to a mold shape, loading materials, and applying a top film for flawless vacuum sealing. Finally, the materials are cut into individual packaging bags automatically.

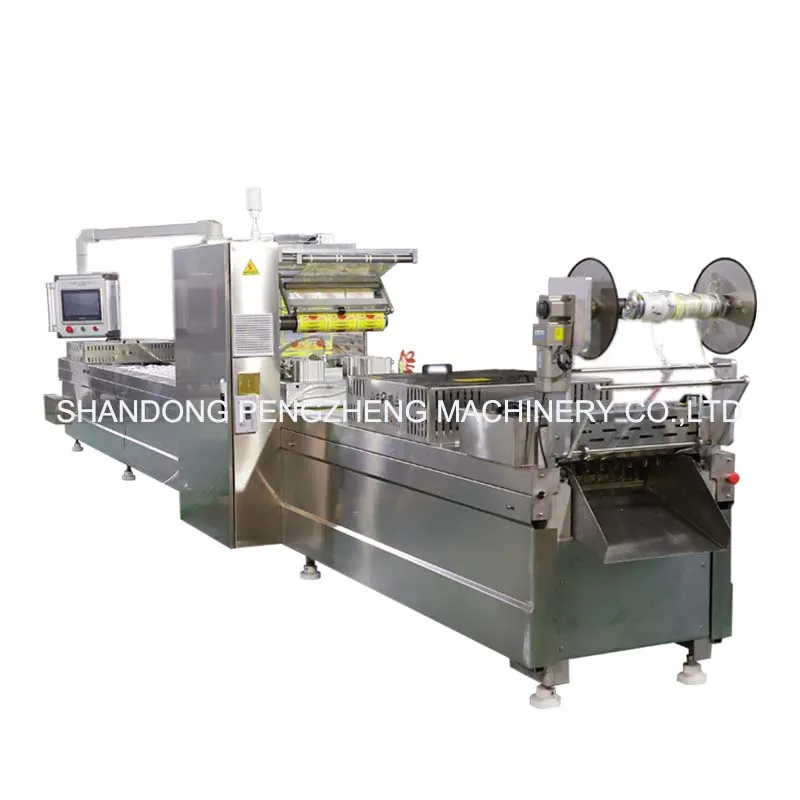

Key Components & Technology

Main Structure: Stainless Steel 304 (6mm thickness)
Electronic Magnetic Preload Device

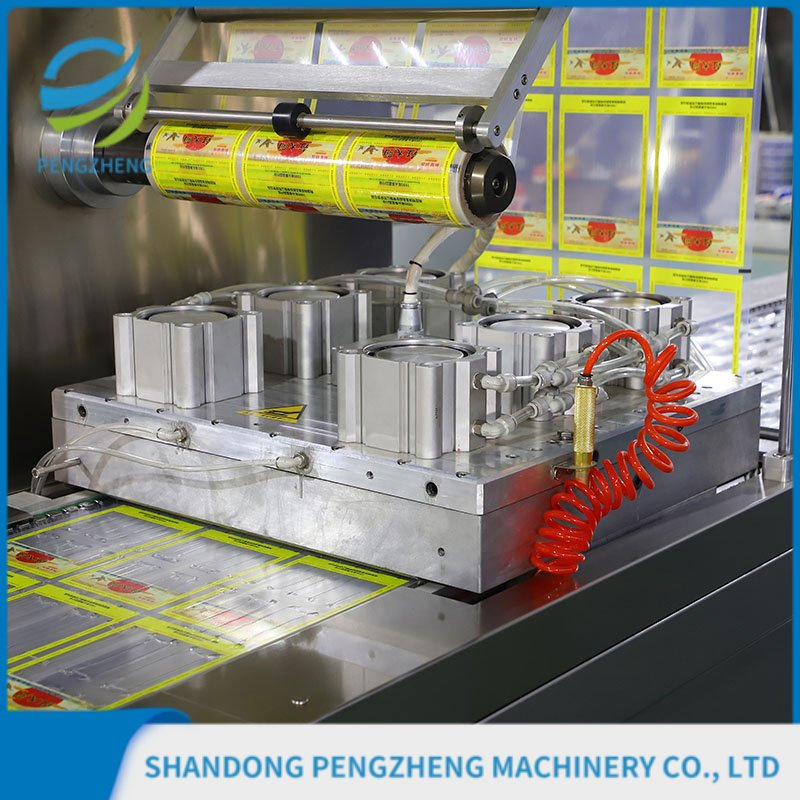

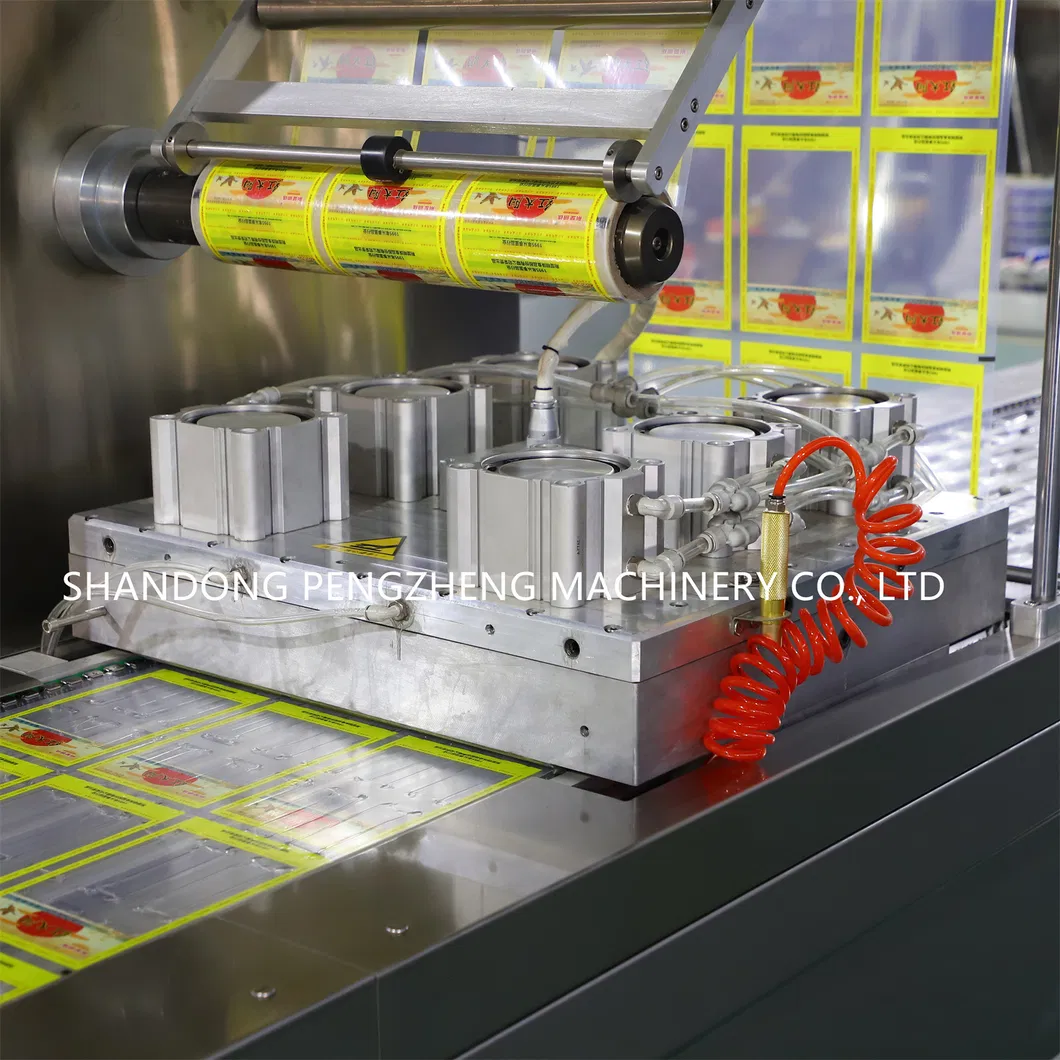

Advanced Forming Device

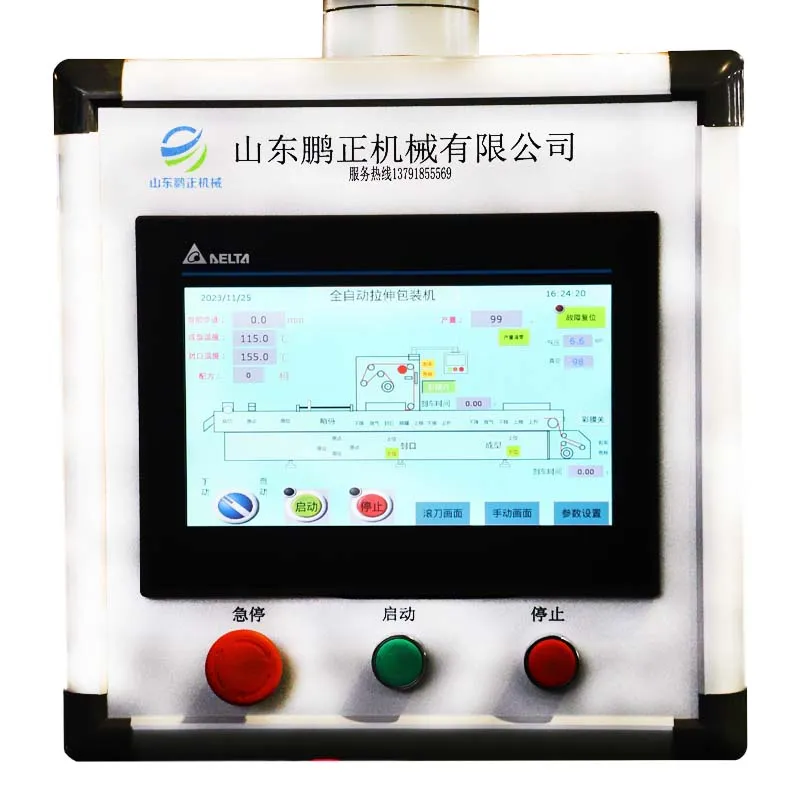

Touch Screen PLC Control
Waste Film Collection Device
Automatic Cutting Device

Detailed Comparisons

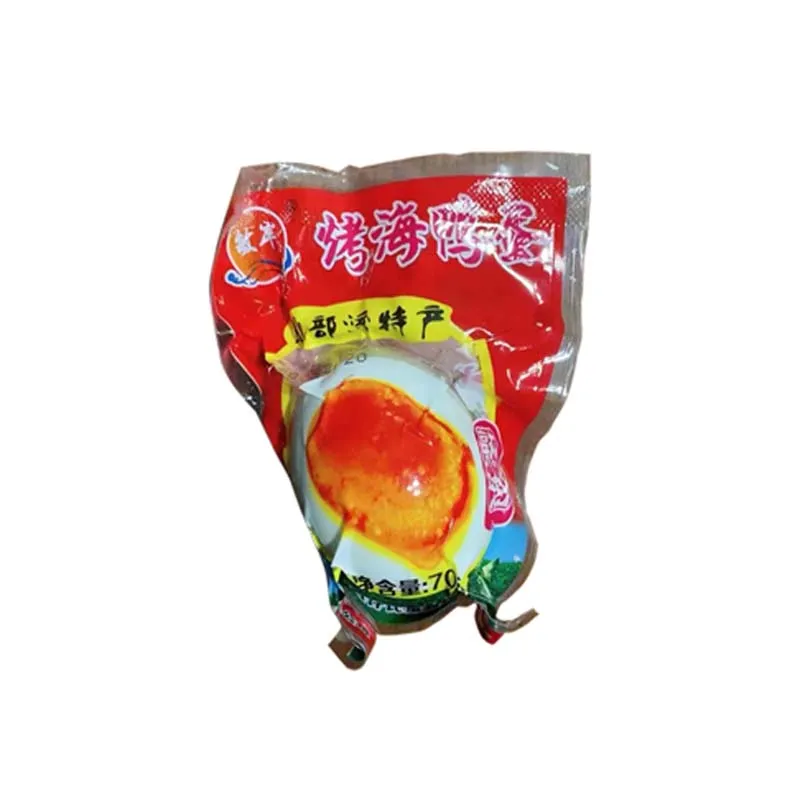

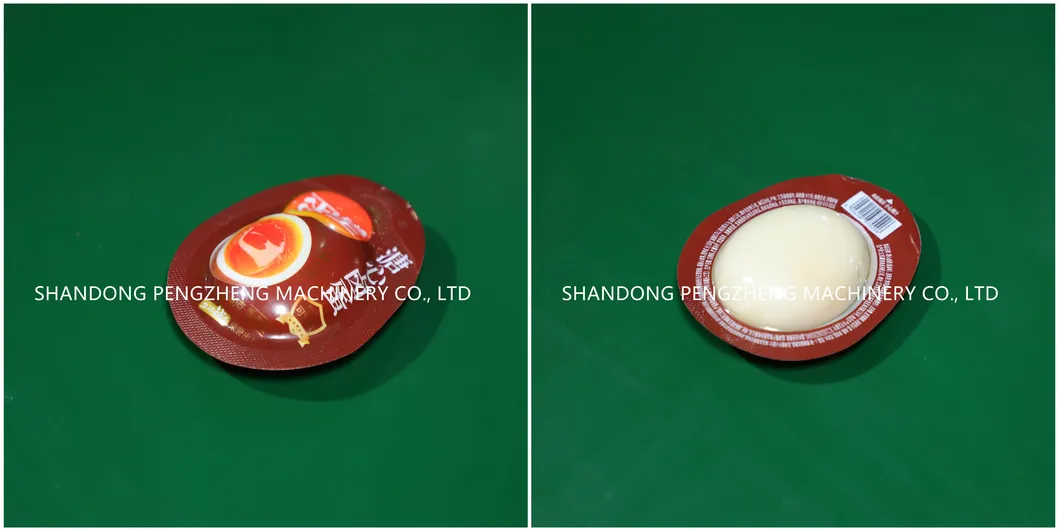

Details	Traditional Bag	Single Side Stretch	Double Side Stretch
Stretch Film Qty	Without	Single Side	Double Side
Forming Depth	Without	Max. 120mm	Max. 120mm*2
Efficiency	Low	High	Middle
Relative Cost	High	Low	Middle

Intelligent Operation

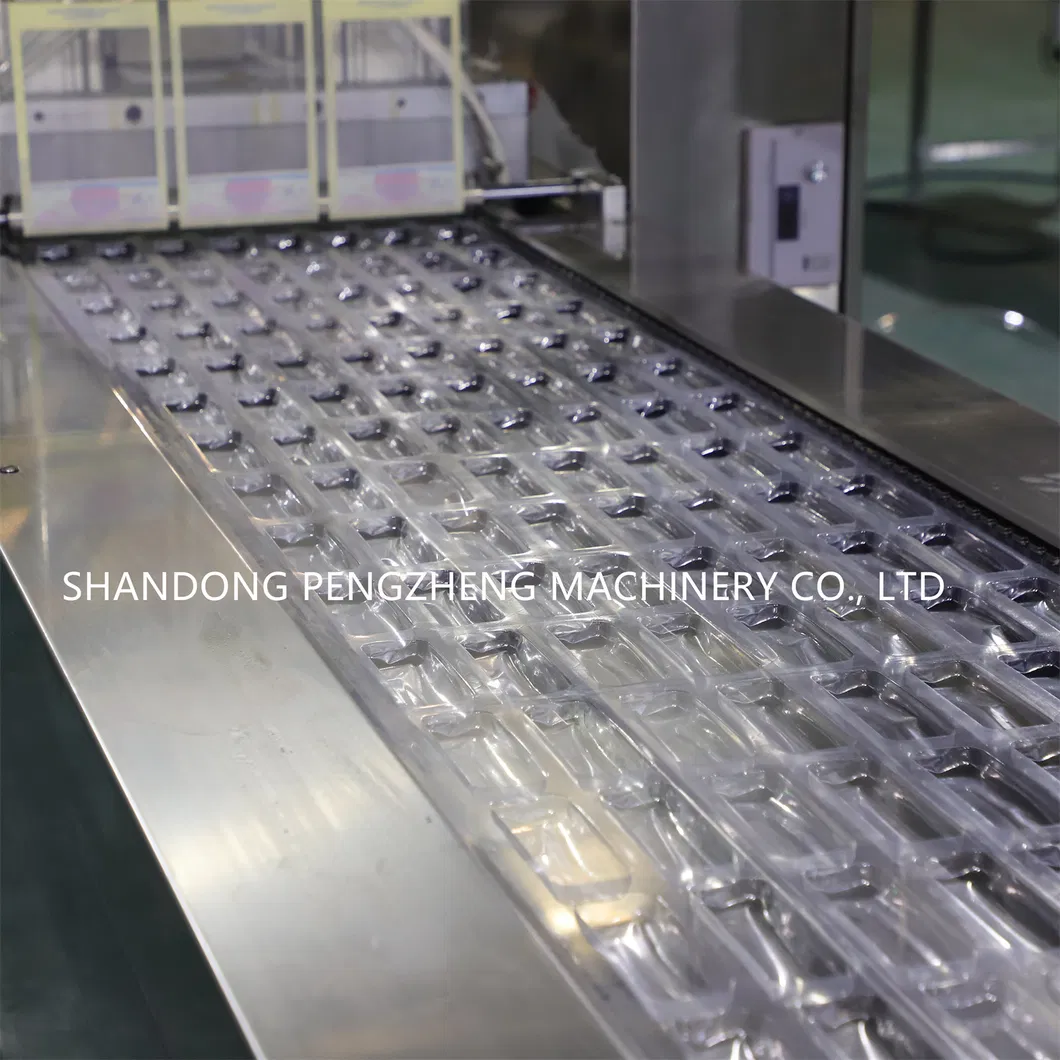

Automatic Correction Device

Equipped with a fully automatic intelligent calibration system including automatic left-right correction and cursor conditioning for both top and bottom films. This ensures precise alignment even with heavy, large-sized films.

Top Tier Safety

Safety sensors are installed under covers and removable parts. The machine auto-stops if a cover is opened. Emergency stop buttons are strategically placed at the front, middle, and back of the unit.

Product Parameters

Main Components
Vacuum Pump	RIETSCHLE (Germany)
Electrical Components	Schneider (France)
Servo Motor	Schneider (France)
Chain	TYC (Taiwan)
Working Parameters
Thermoforming Temperature	70-120 °C
Sealing Temperature	125-150 °C
Vacuum Degree	≤200 Pa
Packing Speed	6-8 cycles / min

Frequently Asked Questions

Q1: What materials can this industrial packaging machine handle?

The machine is versatile and can package electronic components, drugs, food (sausages, steak, eggs), medicine, and hardware in various states like liquid, solid, or paste.

Q2: How long is the delivery time after placing an order?

It typically takes 45 working days: 10 days for technical drawing, 15 days for parts manufacturing, and 20 days for assembly and tuning.

Q3: Does the machine offer automated safety features?

Yes, it includes "No film no working" sensors, automatic shutdown when covers are open, and multiple emergency stop buttons at the front, middle, and back.

Q4: What information is needed for a specific product offer?

We require the dimensions of your packaging and your estimated daily production volume to provide a tailored quote.

Q5: What is the warranty and maintenance policy?

The machine comes with a 12-month warranty. We provide lifelong maintenance and 24-hour technical support via hotline and online channels.

Q6: Is overseas installation support available?

Yes, while we recommend initial online troubleshooting with video guidance, senior engineers can be dispatched for on-site installation and debugging upon request.
