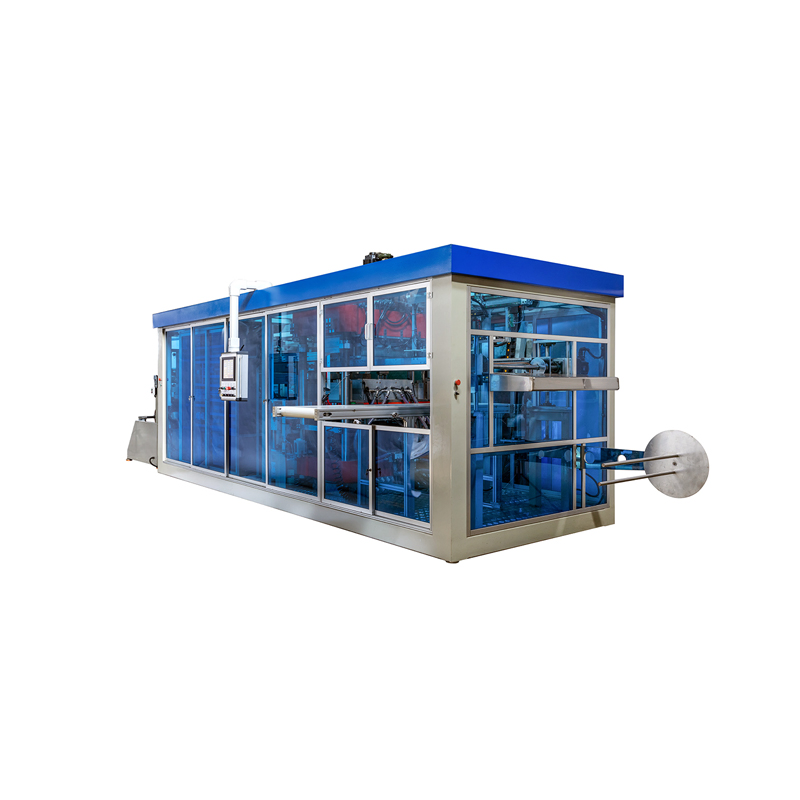

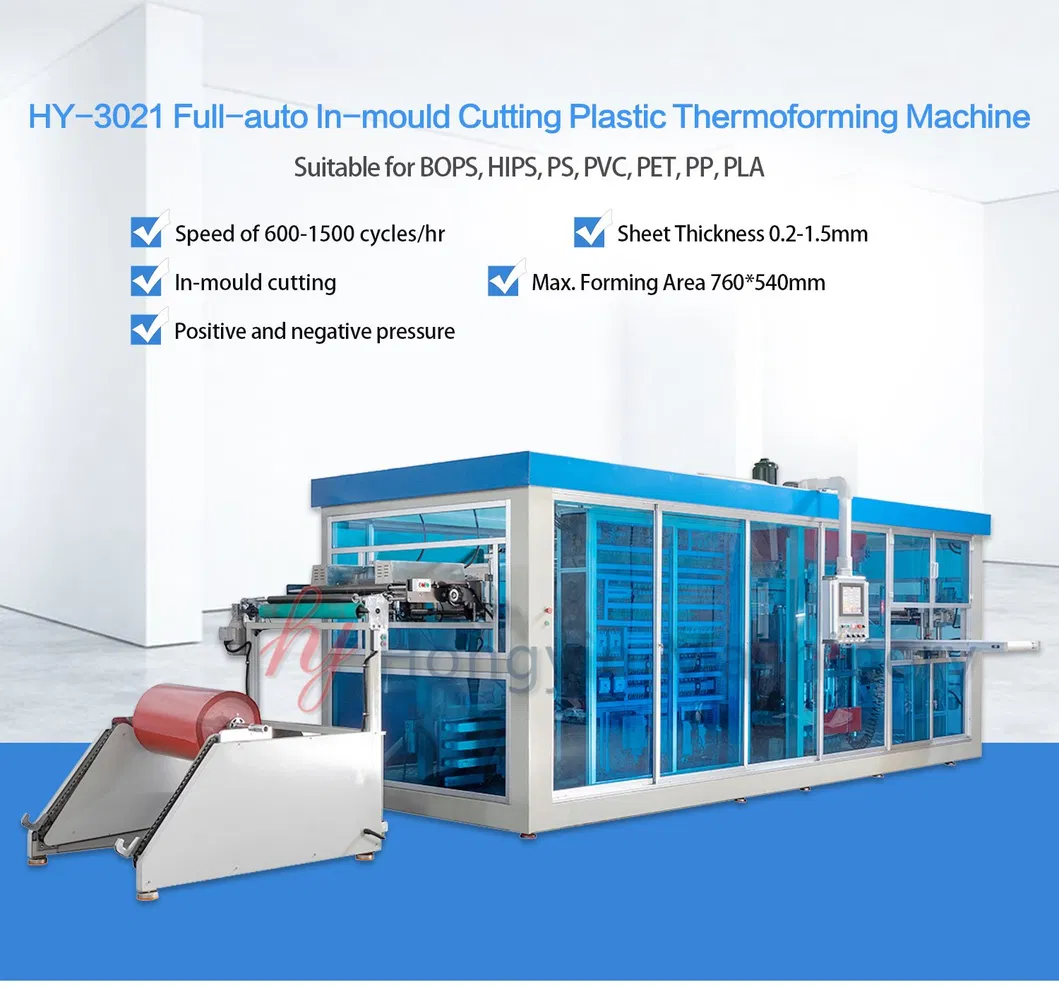

Fast Precise Forming Trimming Yogurt Lid Cover Pressure Thermoforming Machine
Application:

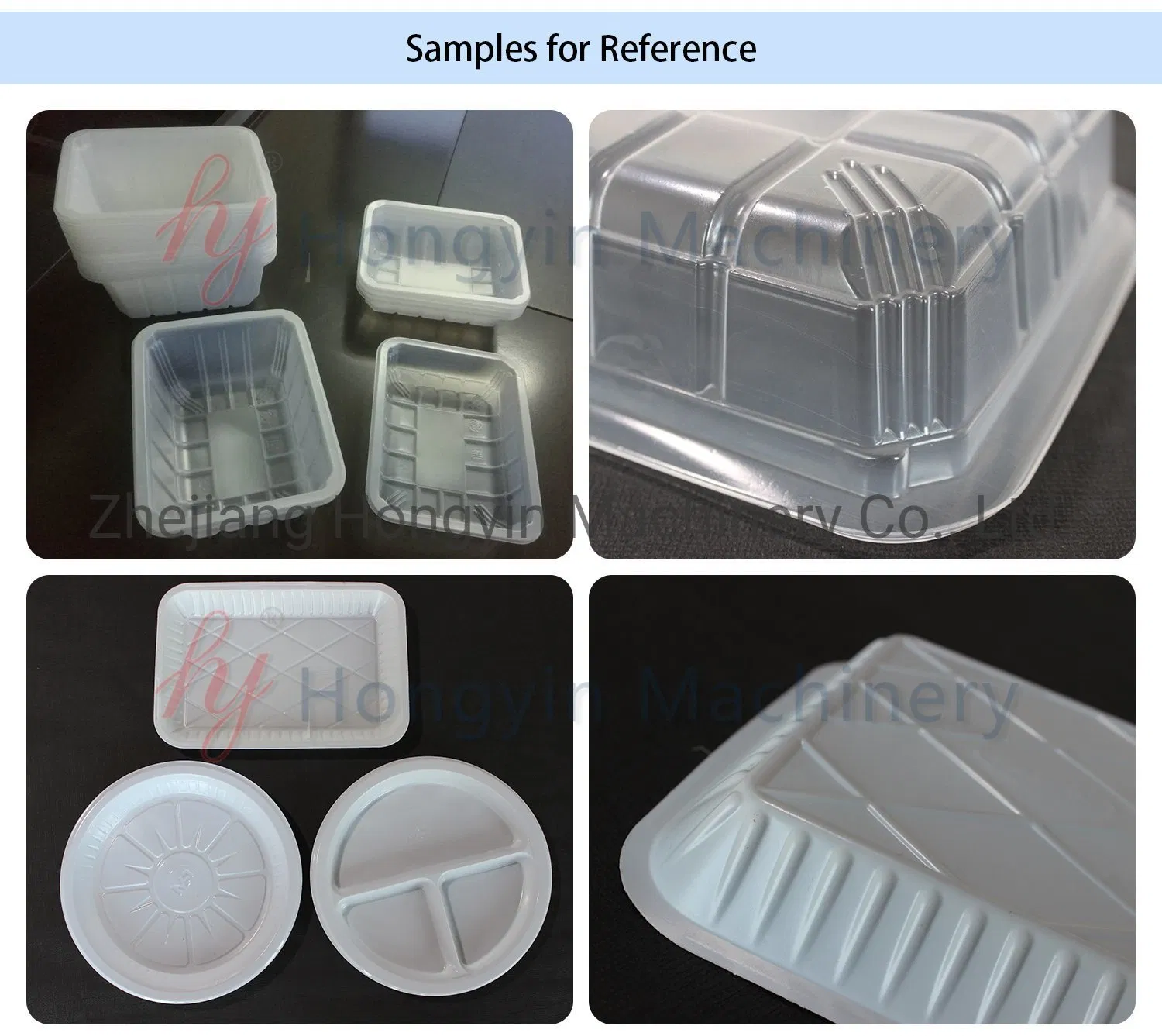

HY-3021 plastic thermoforming machine is mainly used to produce all kinds of high transparent, high tensile turn-up and flat products, such as food box, bowl, plate, lid, tray for daily necessities, medicine and drugs, wine, electrical parts and etc.
Key Features:
| Parameter | Value |
|---|---|
| Model | HY-3021 |

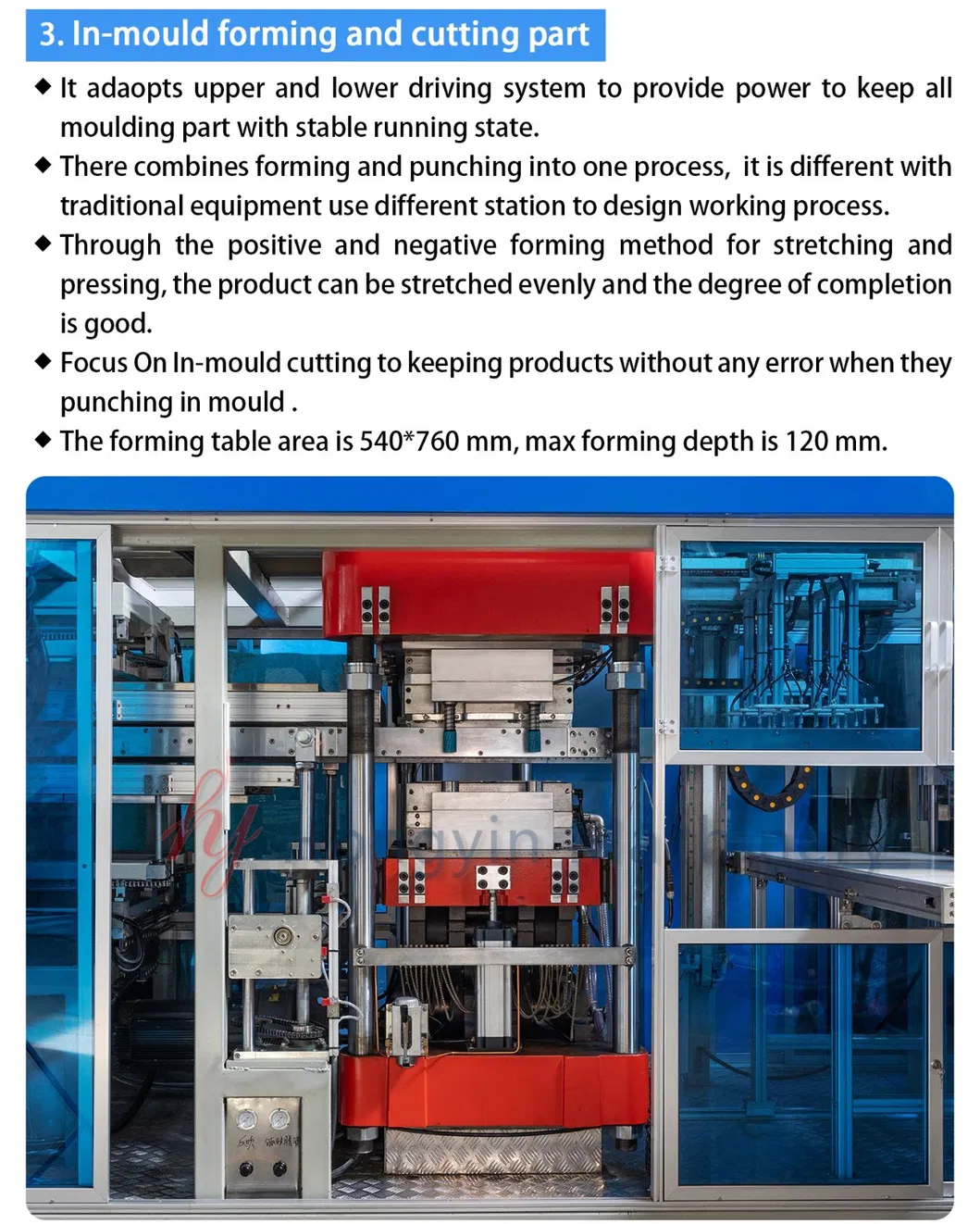

| Max forming area | 760*540mm |
| Max forming depth | 120 mm |
| Sheet thickness range | 0.2-1.5mm |
| Speed | 600-1500 cycles/hr |

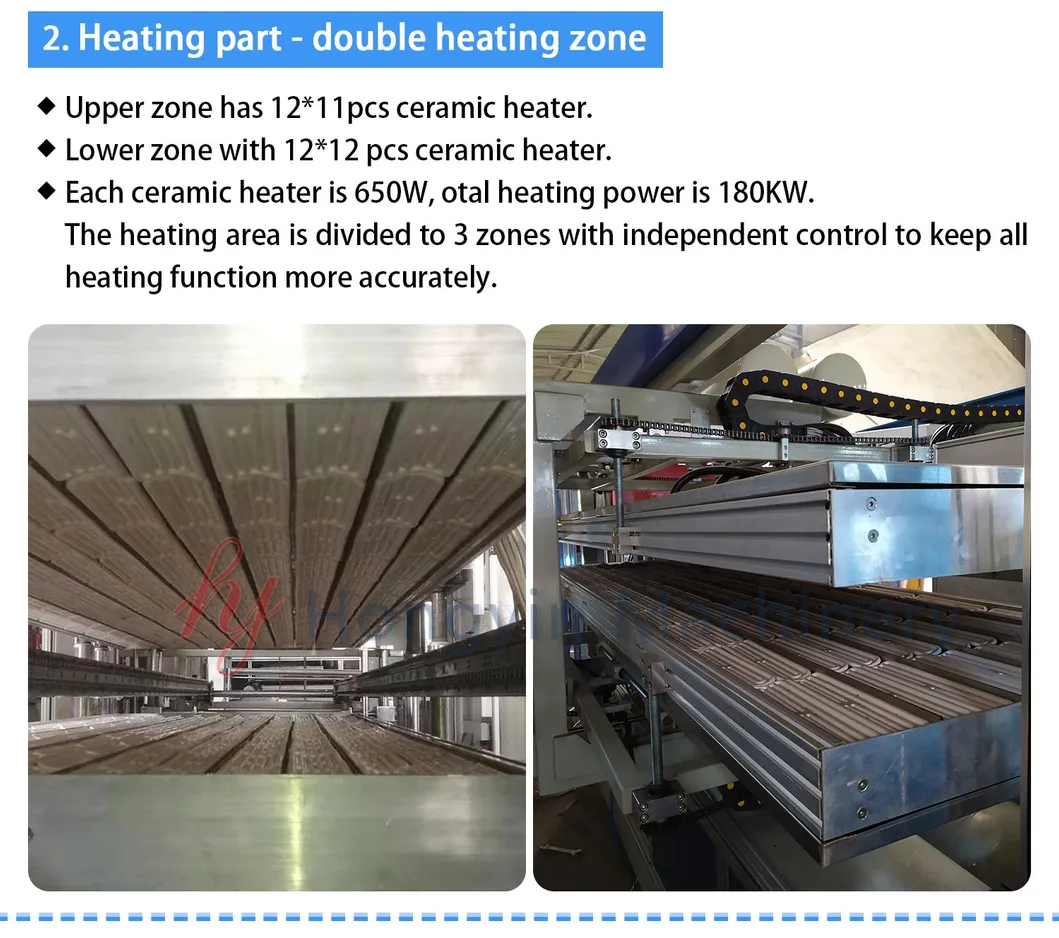

| Heating power | 180KW |
| Motor power | 29KW |
| Air pressure | 0.7Mpa |
| Air consumption | 3500 liter/min |
| Power supply | AC380+15V 50/60HZ |
| Weight | 8500 kg |

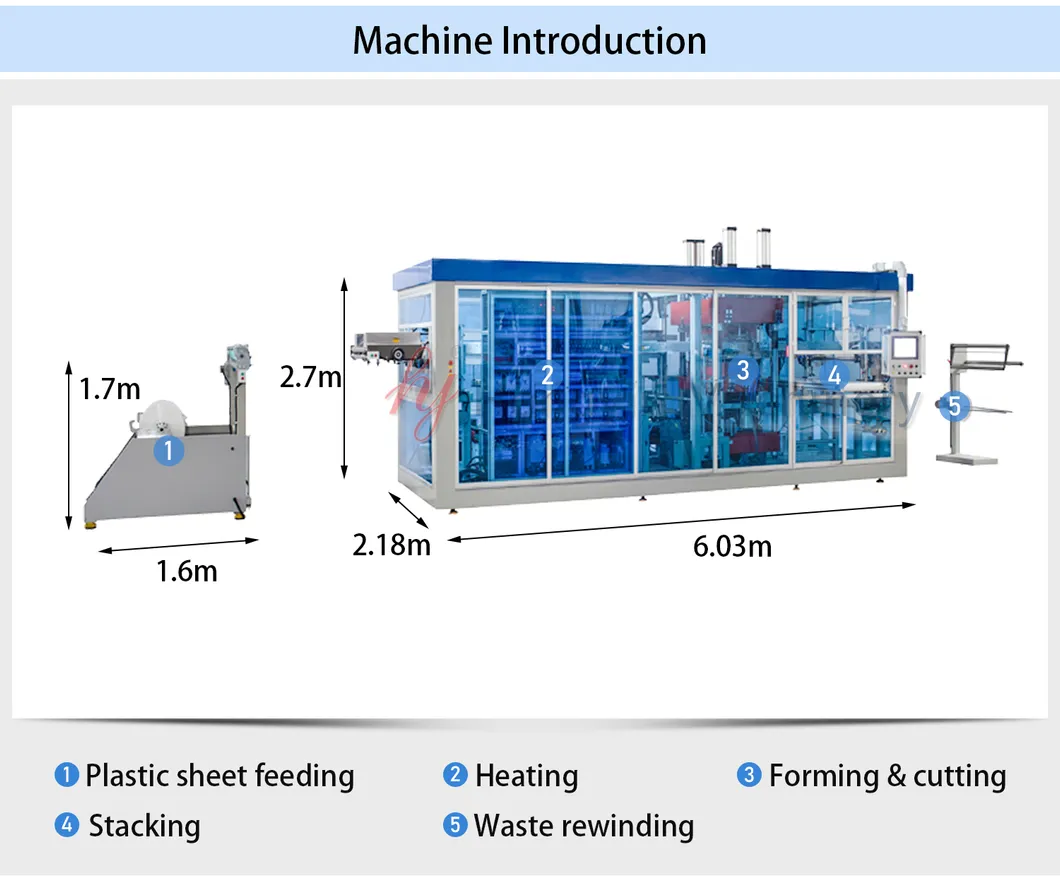

| Main machine Dimension | 6030*2180*2700 mm |
1. Purchase Service
Our specialized and efficient working team provides professional suggestions. If you are new to the printing and packing area, samples of your products will help us provide the best workflow advice.
2. Installation Service
Technicians are assigned to coordinate installation, commissioning, and training. Return flight and accommodation costs are charged along with a daily allowance.
3. Warranty Service
12 months limited warranty starting from the date of arrival (excluding wear parts). Shipping costs for easy-broken parts to be replaced during the warranty period are borne by the customer.
