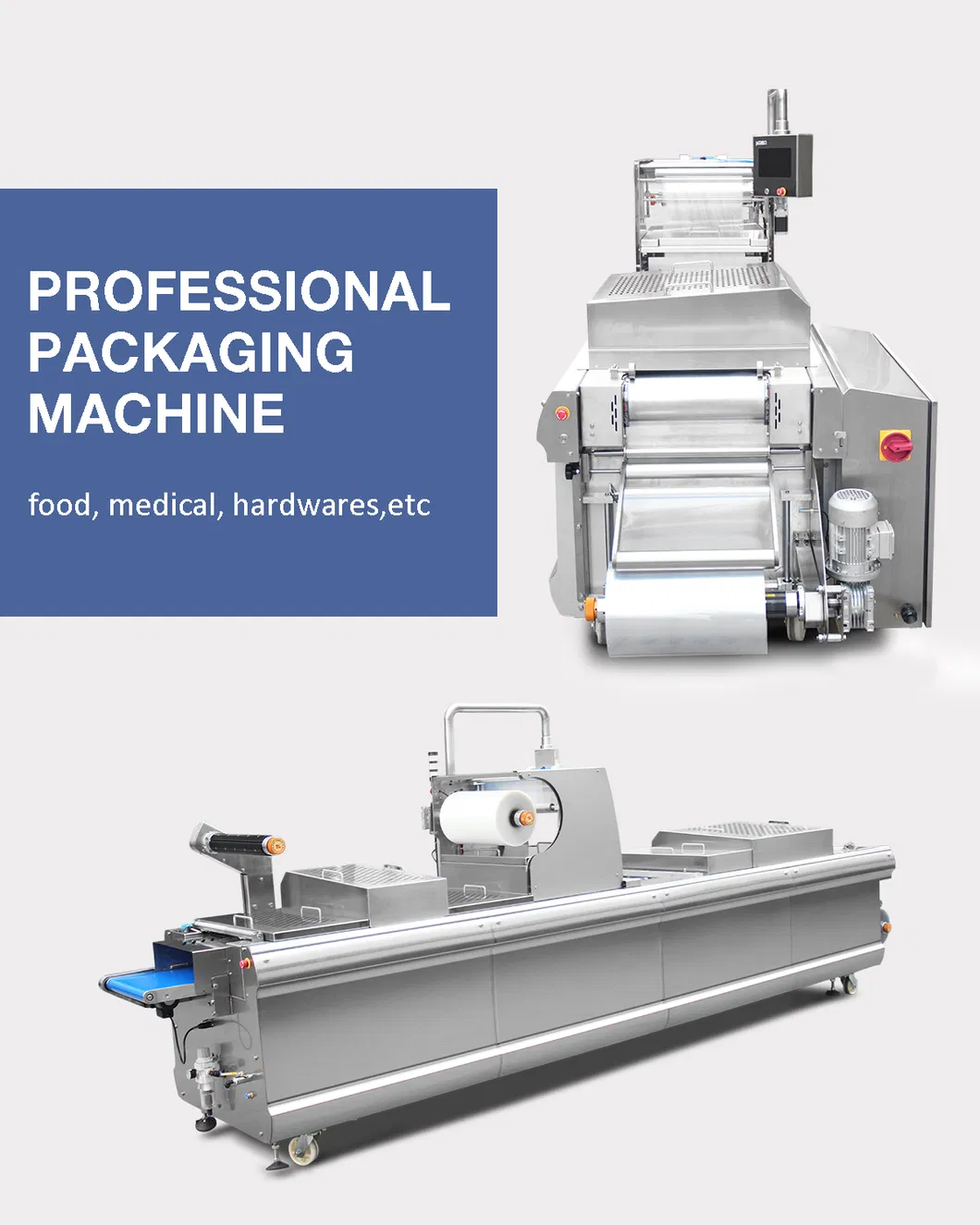

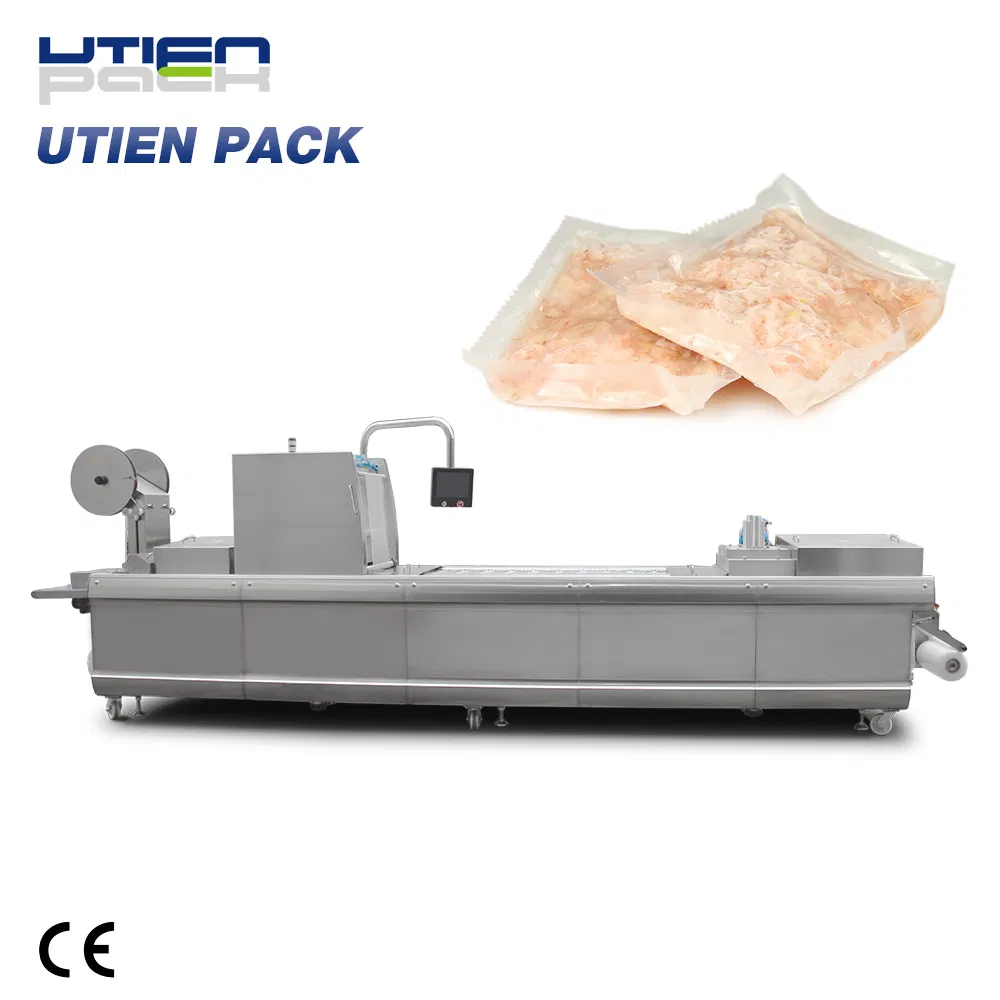

Automatic Food Vacuum Packaging Machine
Currently, vacuum packaging is the most popular for retail sausage, seafood, meat products and so on. It offers an unparalleled combination of freshness and retail presentation, enabling processors and retailers to offer customers the highest quality products available.
Our machine is able to do the whole process from package forming, vacuum-sealing, cutting to final output. With innovative technology, it's helpful to increase your capacity, lower your cost, and make your product more fresh and appealing.
More Applications

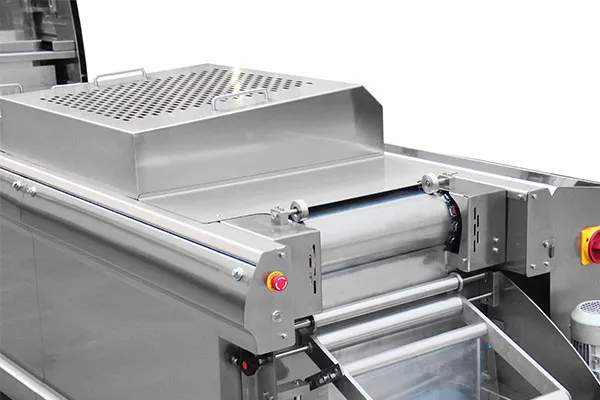

Safety is our top concern. Many sensors are installed under covers and inside doors to ensure auto-stop when removable parts are opened.

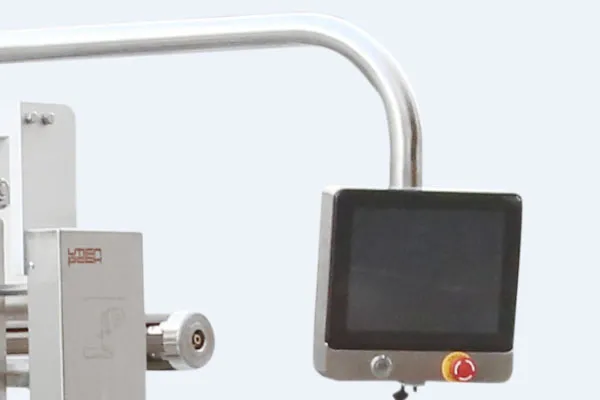

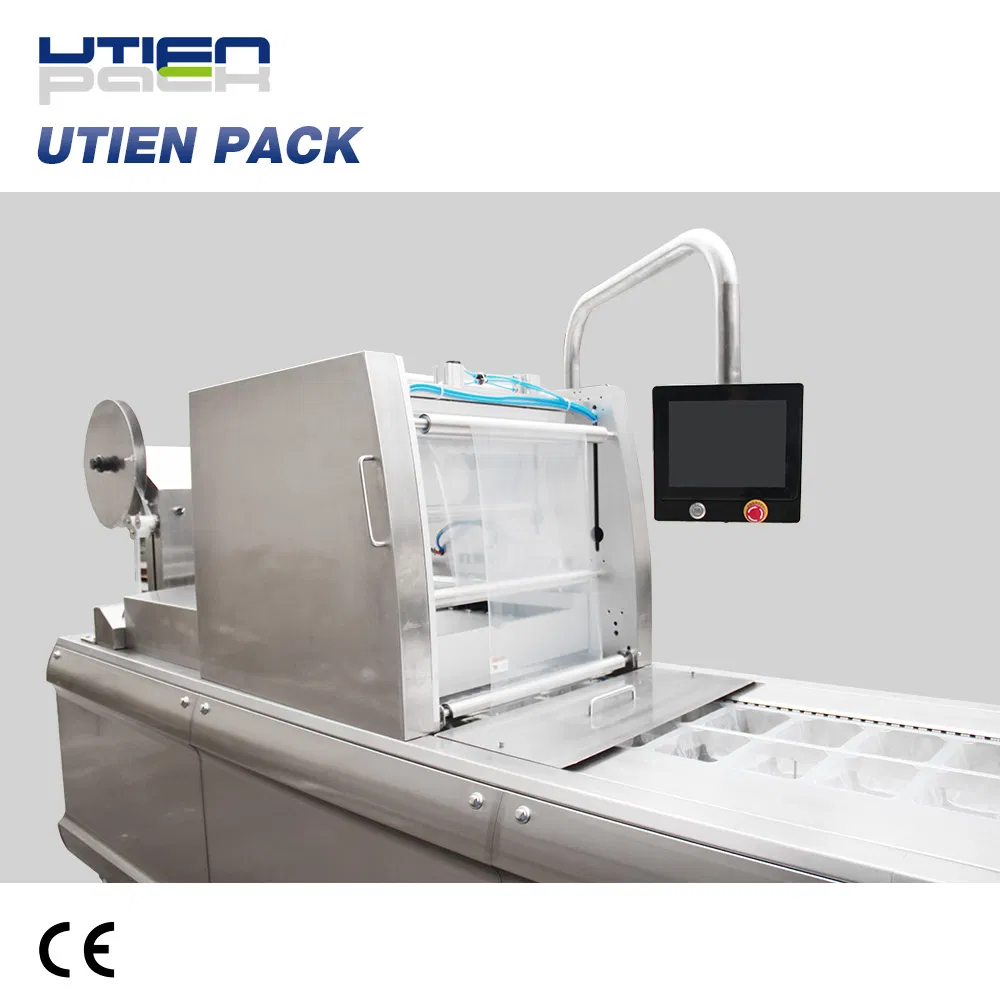

Fully automatic from package forming to product output, controlled by a 10'' PLC touch screen.
| Technical Specifications | |
|---|---|
| Machine Parameters | |
| Speed | 6-8 Cycles/min |
| Forming Depth | ≤120mm |
| Film Widths | ≤520mm |
| Dimensions | 6000mm * 1300mm * 1870mm |
| Film Requirements | |
| Material (Top/Bottom) | Sealable PE/PA Multi-layer Co-extruded Film |
| Bottom Thickness | ≥300um |
| Top Thickness | ≤200um |
| Core Components | |
| Vacuum Pump | BUSCH (Germany) |
| Electrical Components | Schneider (France) |
| Pneumatic Components | SMC (Japan) |
| PLC & Servo Motor | DELTA (Taiwan) |
