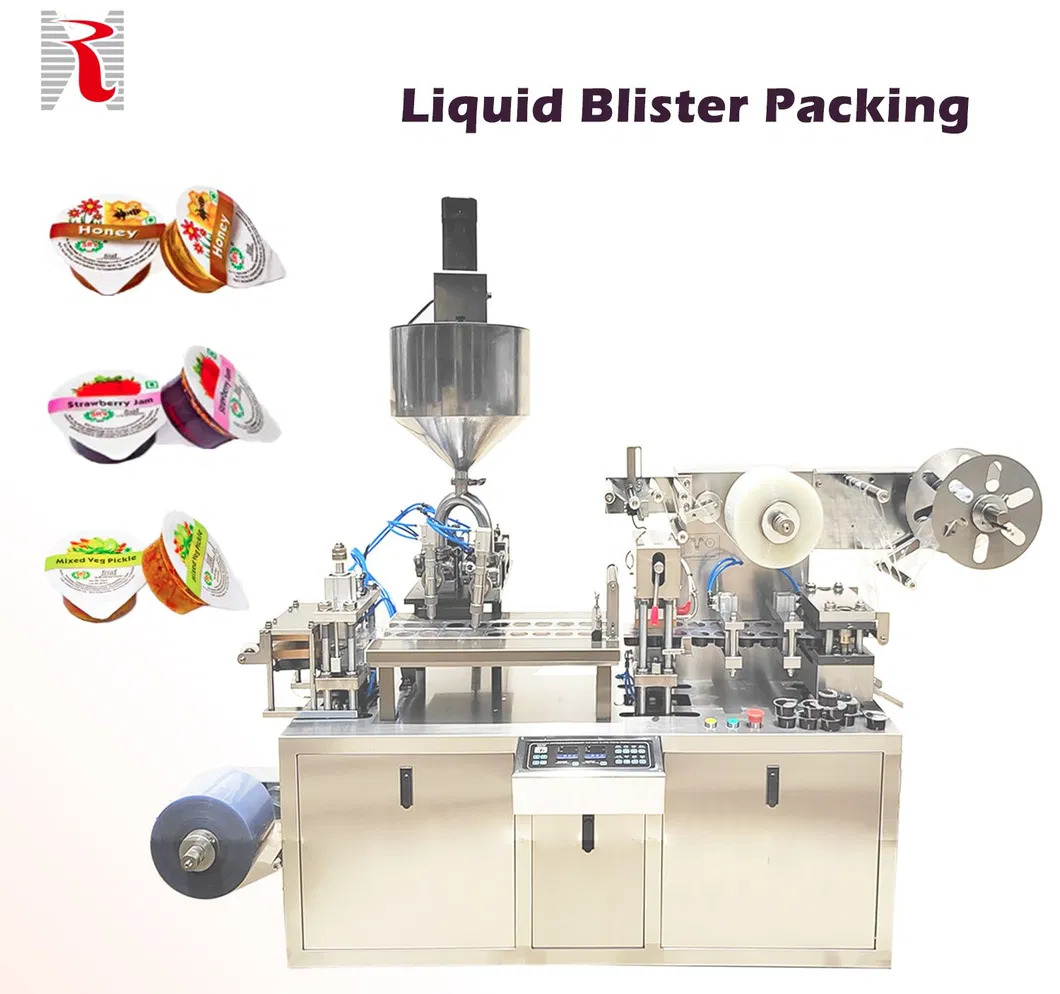

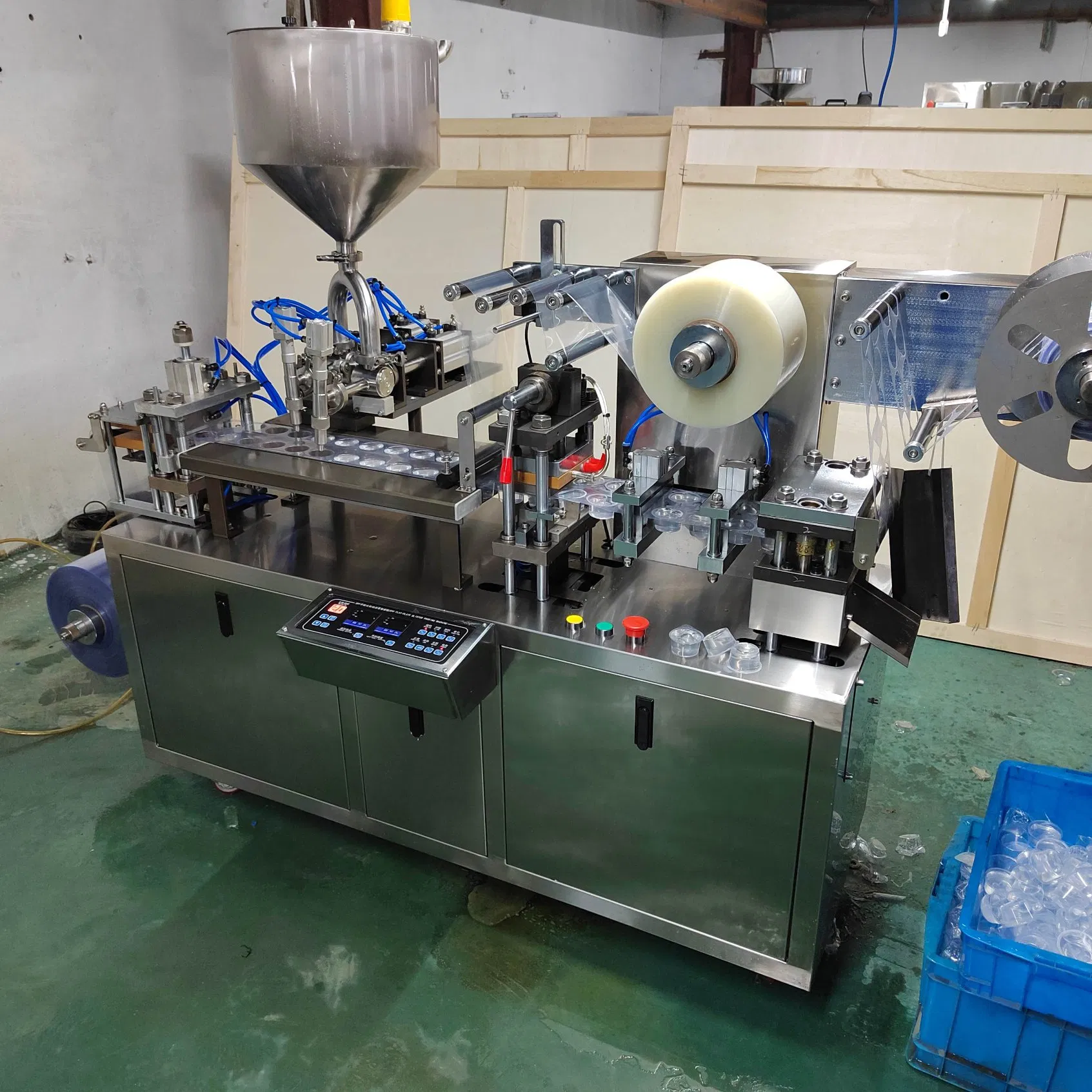

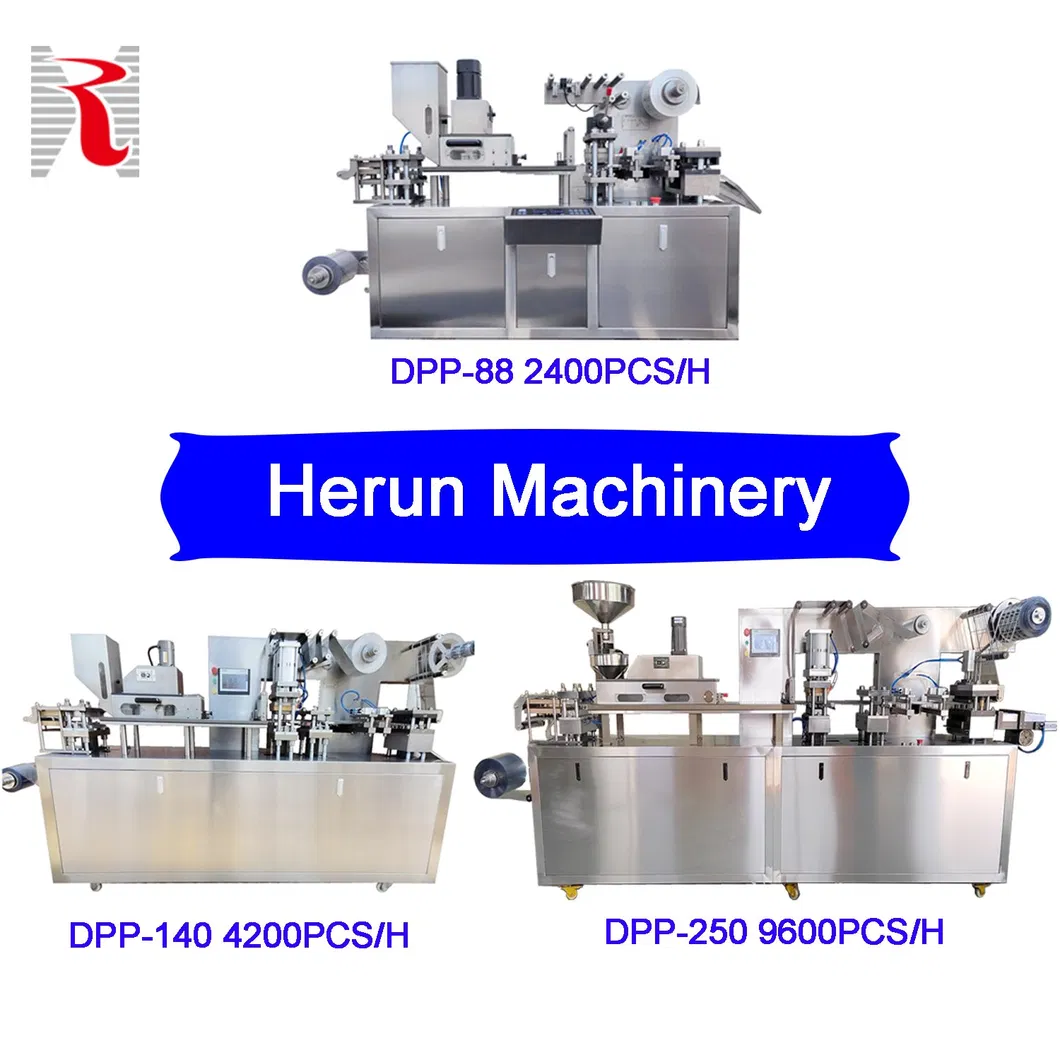

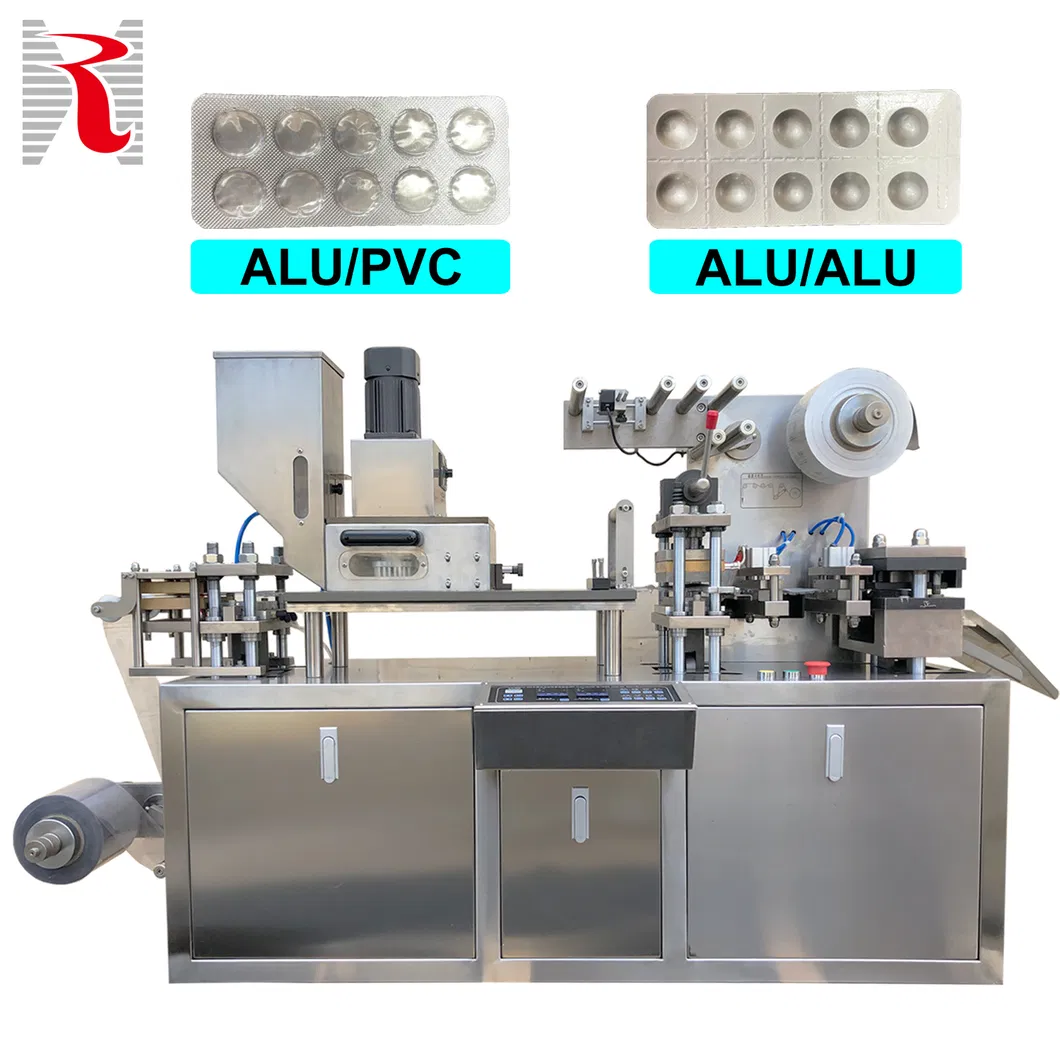

| Model NO. | DPP-88 |
| Application Field | Food, Medical, Commodity, Machinery & Hardware, Beverage, Chemical |
| Driven Type | Electric |
| Automatic Grade | Automatic |
| Punch Frequency | 10-33 Cycles/Min. |
| Capacity | 2400PCS/H |
| Max. Forming Area & Depth | 105*70*25mm |
| Standard Stroke Range | 30-80mm |
| Standard Plate Size | 80*57mm |
| Total Power Supply | 380V/220V 50Hz 2.8kw |
| Main Motor | 0.75kw |
| Specification | 1840*590*1100mm |

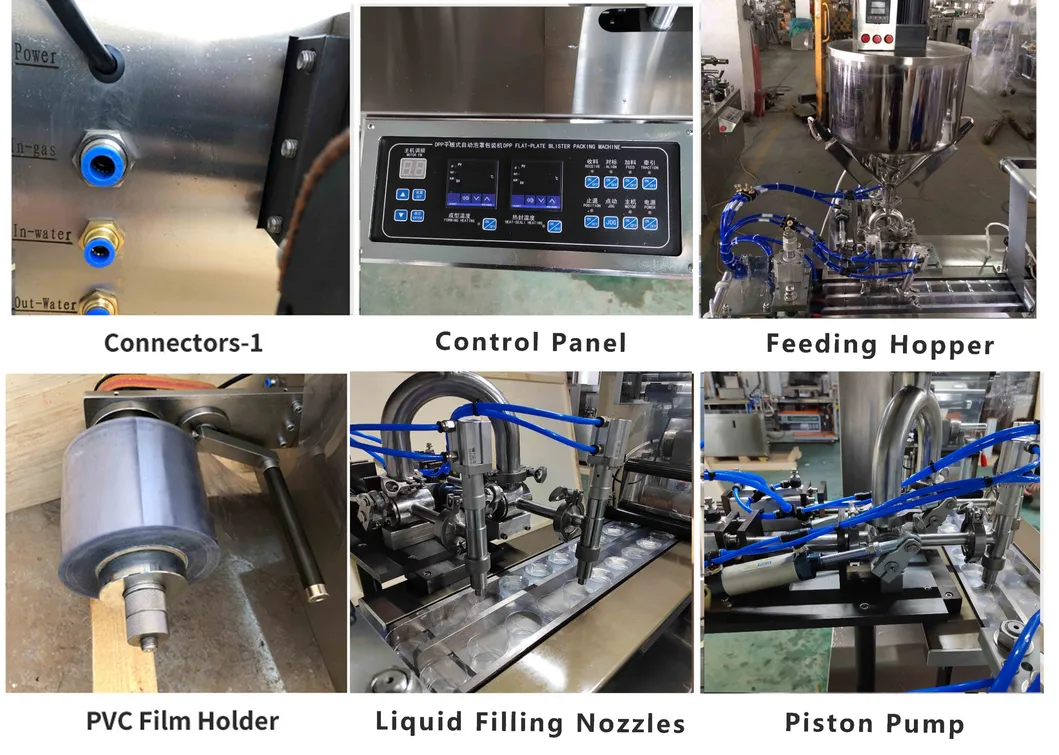

(1) Control System: Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for medicine counting according to requirements.

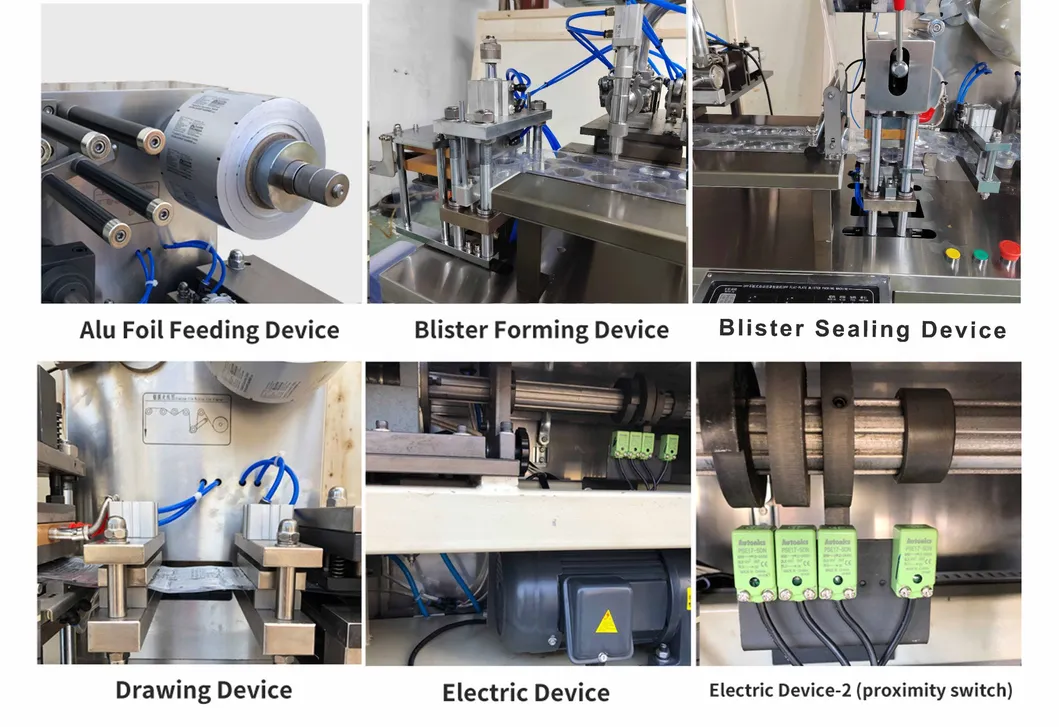

(2) Photoelectrical System: It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically.
(3) Registration: Optional equipped with photocell correction device, imported stepper motor traction and image-character register to optimize packing grade.
(4) Application: The machine is suitable for foodstuff, medicine, medical instruments, hardware, and electronics industries.
| Model | DPP-88 |
| Punching frequency | 10-33 Cycles/min. |
| Production capacity | 2400pcs/h |
| Max. forming area, depth | 105*70*25mm |
| Standard travel range | 30-80mm |
| Air supply | 0.4-0.6Mpa |
| PVC sheet | Thickness(0.15-0.5)*Width 110mm |
| PTP Aluminum | Thickness (0.02-0.035)*110mm |

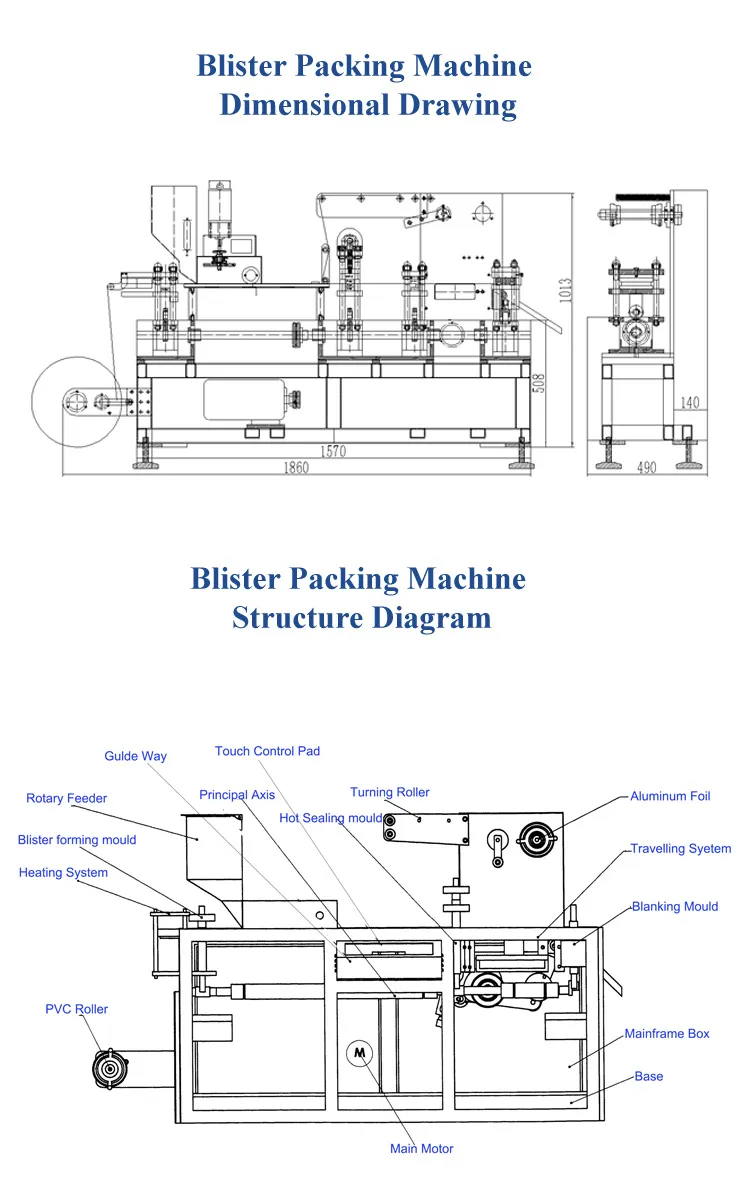

| Overall dimension | 1840*590*1100mm |
| Weight | 450/520Kg |
| Package Size | 191.00cm * 66.00cm * 1200.00cm |
| Package Gross Weight | 550.000kg |
