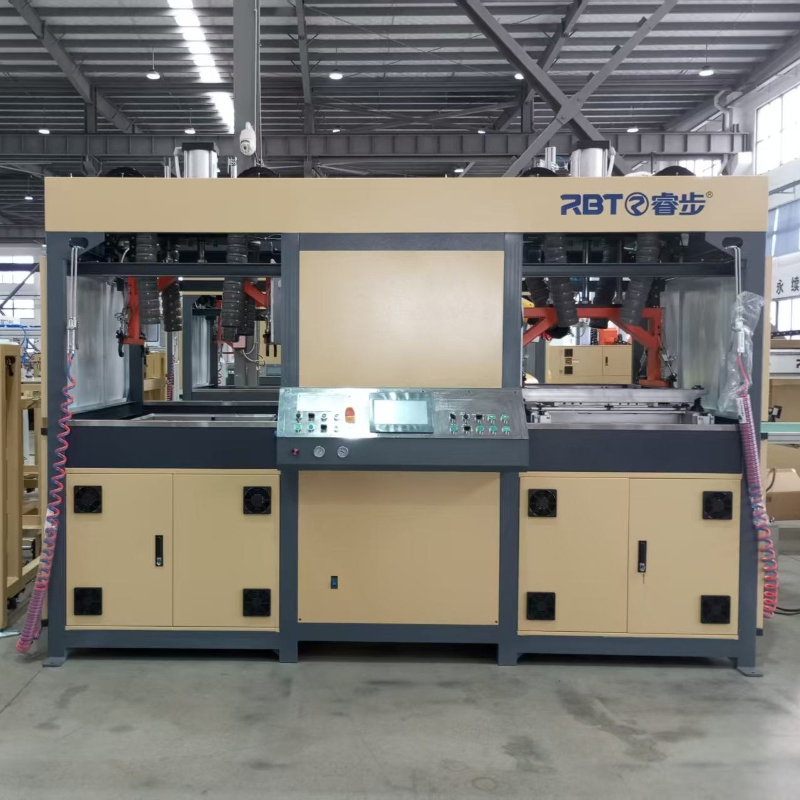

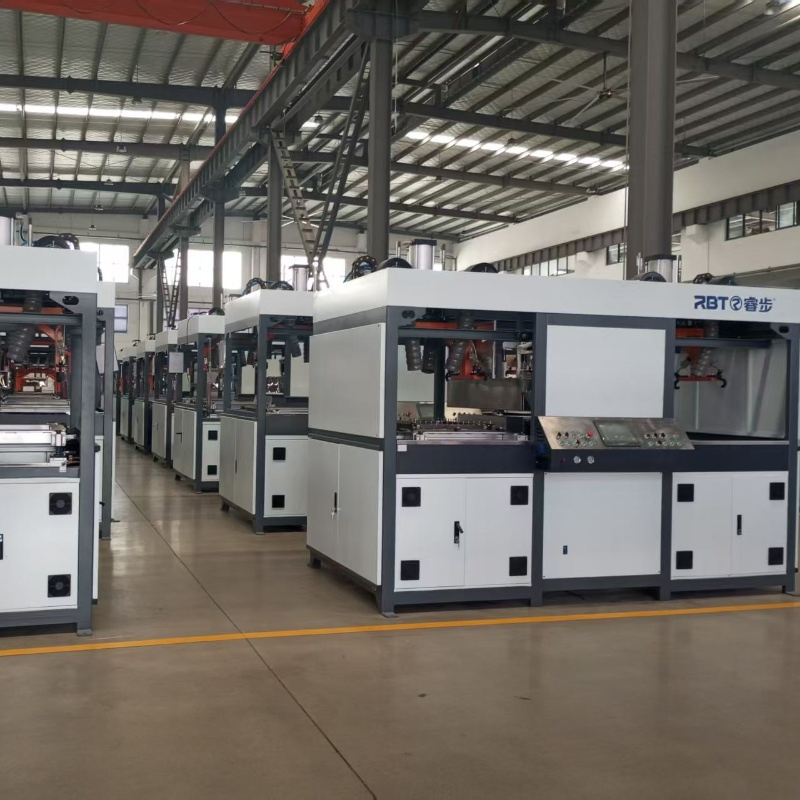

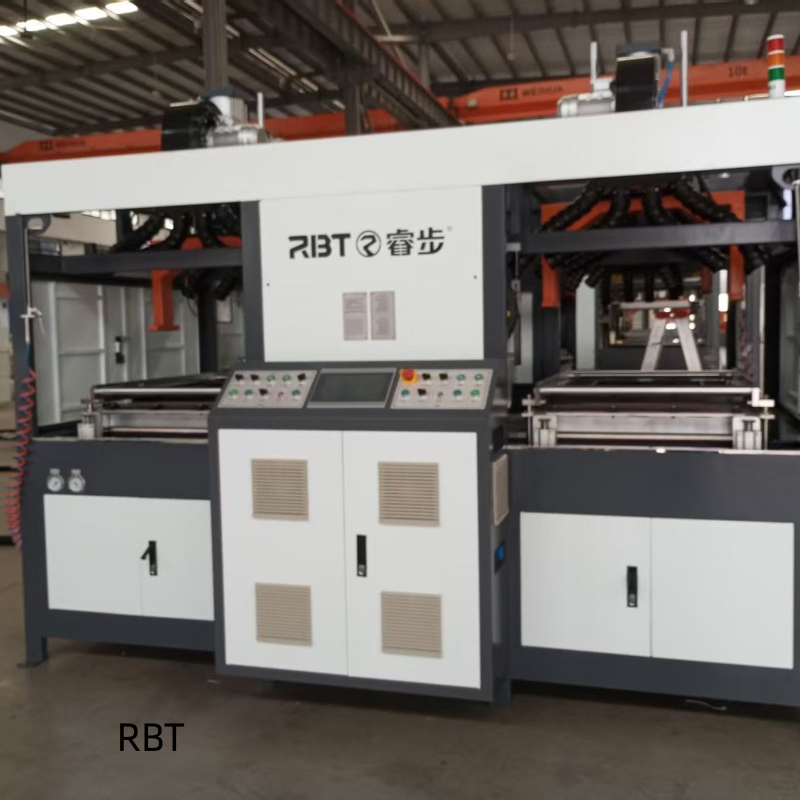

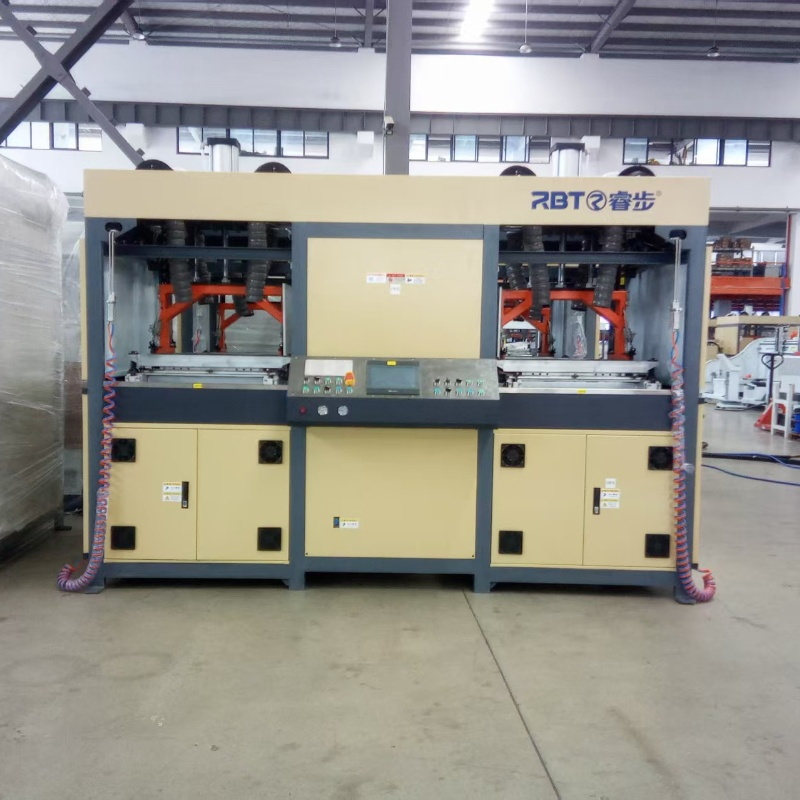

Rbt Hardshell Luggage Suitcase Vacuum Forming Thermoforming Machine

1 / 5

Rbt Hardshell Luggage Suitcase Vacuum Forming Thermoforming Machine

Customization:	Available
After-sales Service:	Technical Support, Online Support, Spare Parts
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

RB-A8-1C

Certification

CE, ISO

Column number

Four Column

Molding Method

Pressing

Automatic Grade

Automatic

Sheet Thickness

1-4mm

Input Power

380V

Vacuum Pressure

0.07-0.09MPa

Suitable Industry

Luggage Suitcase

OEM

Customized Per Required

Leadtime

15 days

Air Consumption

800L / Min

★

Product Description

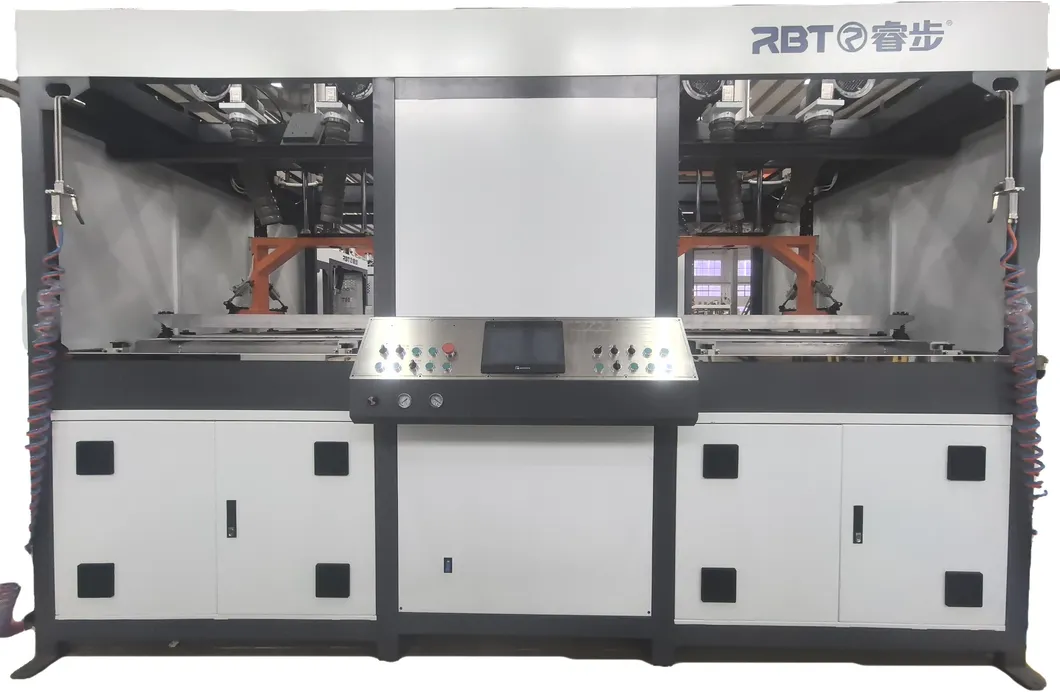

Industrial Vacuum Forming Press for Durable Suitcase & Trunk Production

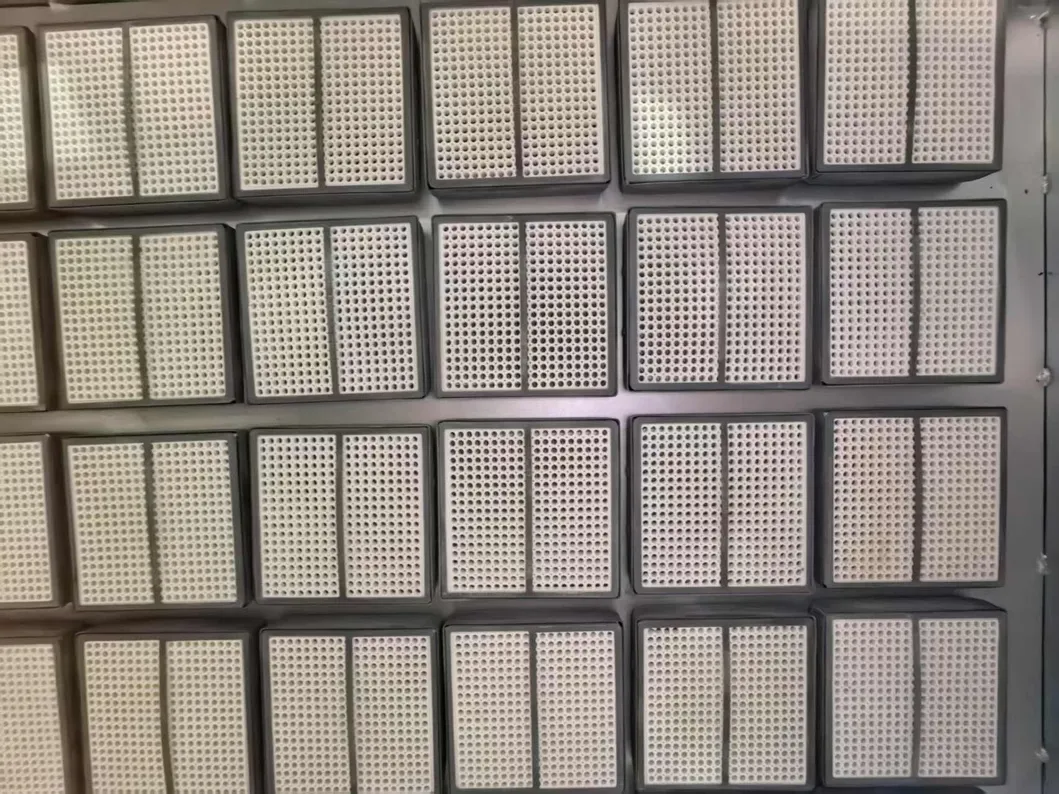

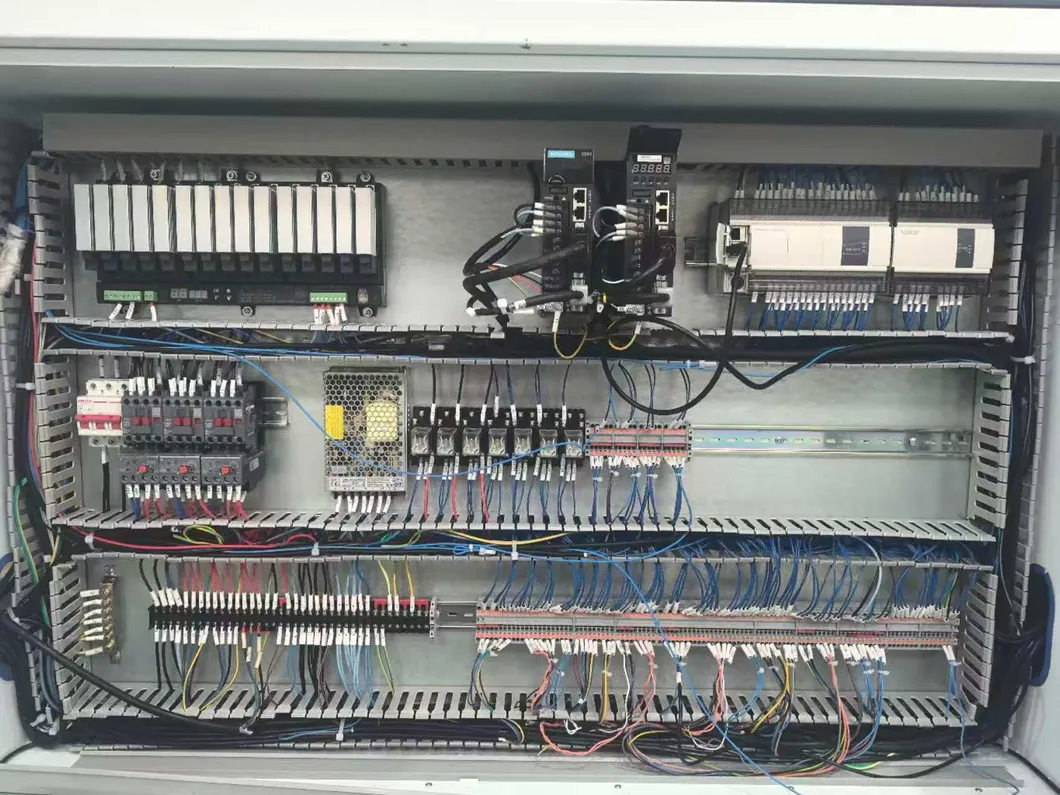

This Luggage Vacuum Forming Machine adopts PLC control, hydraulic drive, and is equipped with upper and lower heating elements, which enhances the durability and impact resistance of the luggage. Suitable for sheet forming of ABS, PC or recycled materials. The machine can be customized according to customer requirements.

⚙

Technical Parameters

Model	RB-A8-20	RB-A8-24	RB-A8-28
Sheet Material/Thickness	ABS, PC etc; 1-4mm
Vacuum capacity (M³)	0.2M³	0.3M³	0.35M³
Air consumption (L/MIN)	550L/MIN	650L/MIN	800L/MIN
Total machine power (KW)	39.5KW	49KW	55KW
Max Case Output (pcs/H)	110 (ABS) / 85 (PC)	105 (ABS) / 80 (PC)	90 (ABS) / 70 (PC)
Maximum mold size (mm)	600420200	690510200	780600200

📷

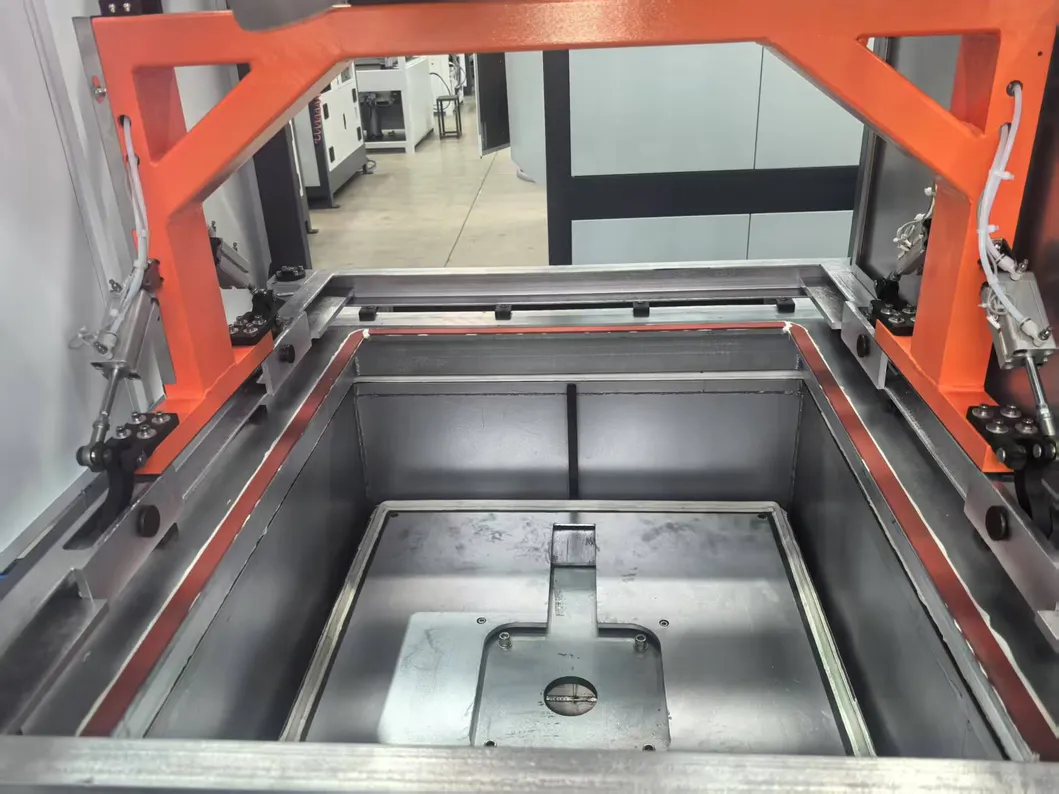

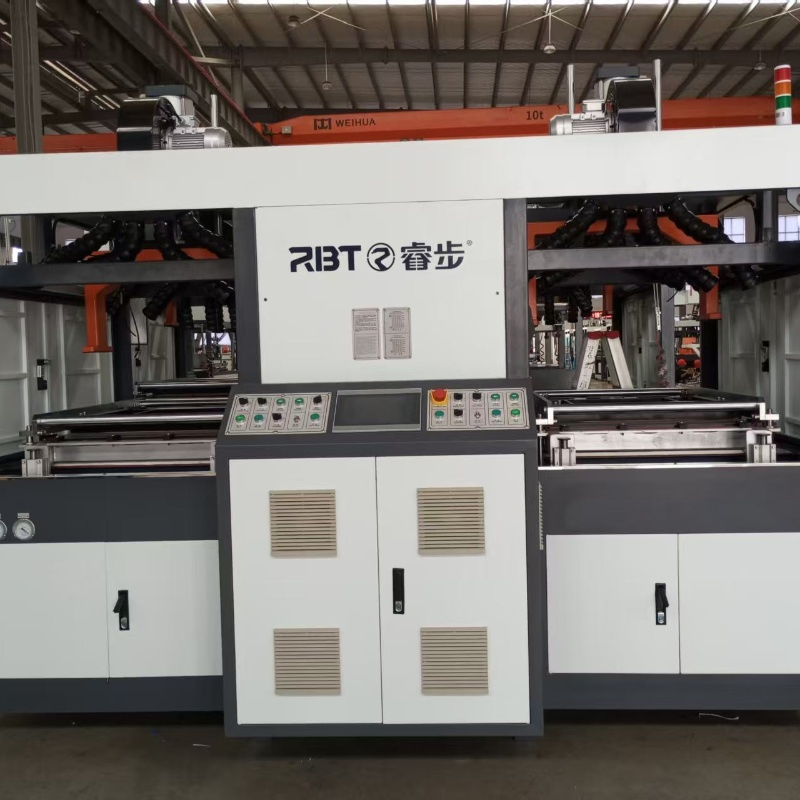

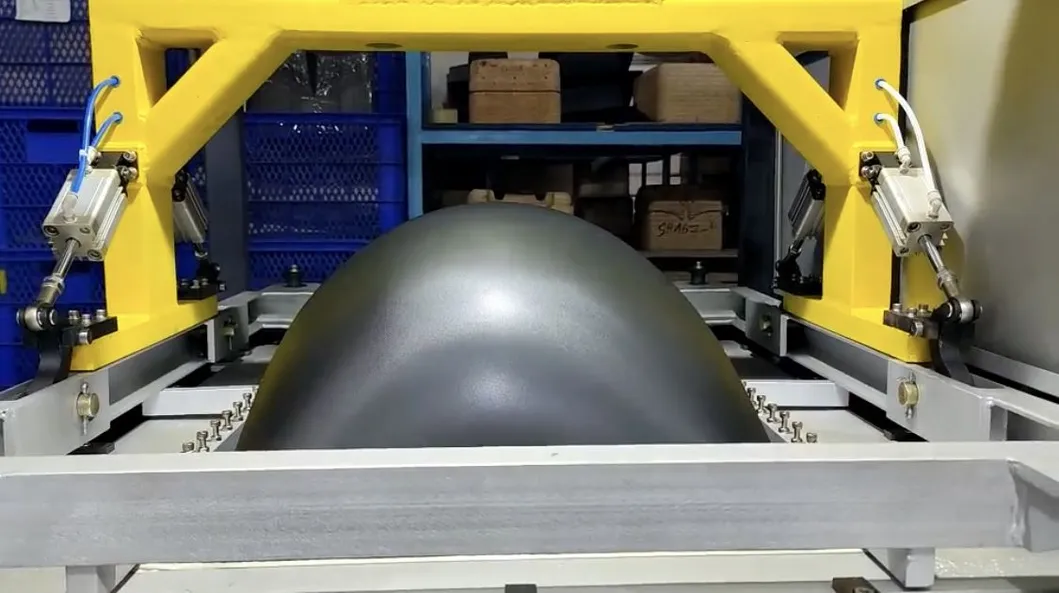

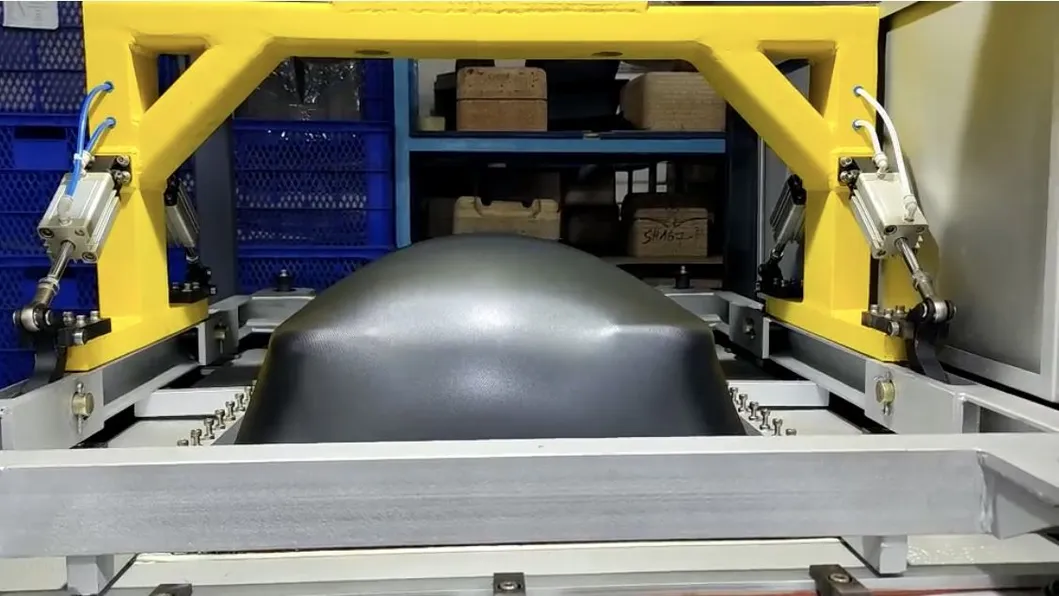

Product Showcase

✔

Key Advantage Features

01. Precision Molding: Consistent shaping for high-quality products.

02. Versatility: Processes ABS, PC, and polypropylene materials.

03. High Efficiency: Streamlined production to increase overall output.

04. Cost-Effective: Reduces material waste and labor through automation.

05. User-Friendly: Advanced control systems for easy adjustments.

06. Durability: Robust engineering for long-lasting reliability.

▲

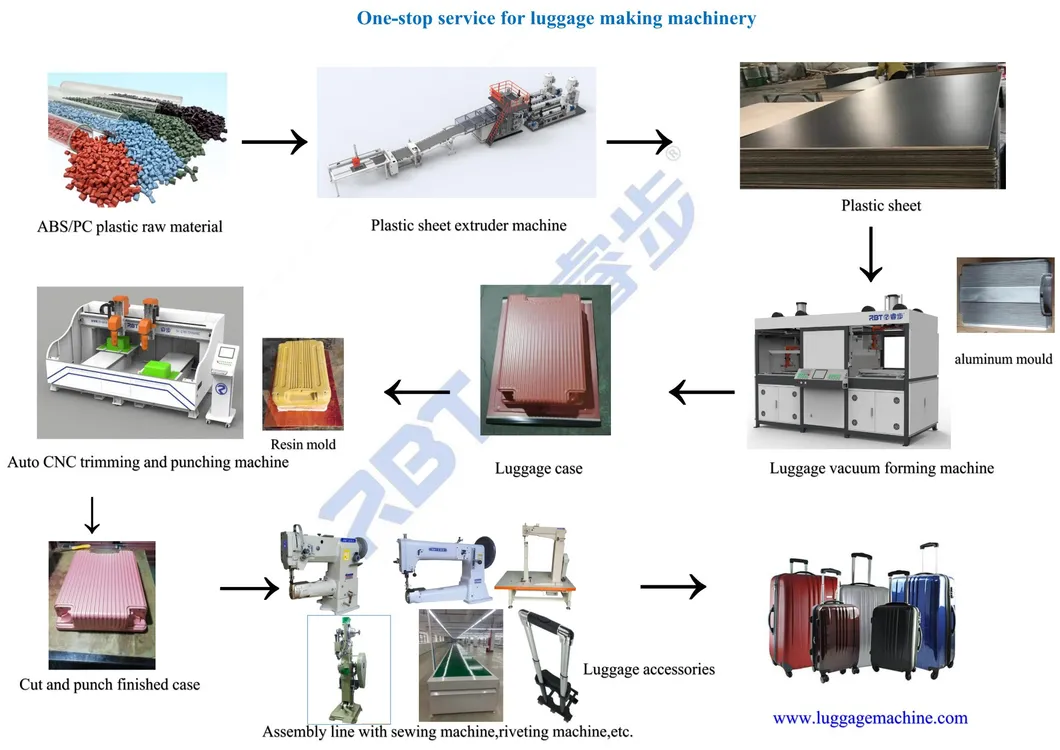

Scope of Application

Specialized for professional processing of Suitcase, Luggage, and Trolley case shells with fast speed and high quality. Suitable for vacuum forming of materials including PC, PC/ABS, ABS, and PE.

🛠

After Sales Service

Installation Training Options:

Remote Support: English installation videos, manuals, and technical guidance via email/WhatsApp.
On-site Training: Factory training in China with provided accommodation.
Expert Dispatch: English-speaking engineers available for global on-site commissioning and training.

📜

Certifications & Shipping

Frequently Asked Questions

What materials can this machine handle?

The machine is specifically designed for ABS, PC, PC/ABS, PE, and other thermoformable composite materials used in the luggage industry.

What is the warranty period for the equipment?

The quality assurance period is 12 months from the date of arrival. We provide replacement accessories free of charge for non-man-made damage during this period.

How do I handle installation and operator training?

We provide comprehensive English manuals and videos. Additionally, we offer on-site training at our facility or can dispatch engineers to your location for commissioning.

Is the machine customizable?

Yes, we provide OEM services. The machine's molding size, frame size, and heating configurations can be customized based on your specific suitcase production requirements.

What is the typical production capacity?

Depending on the model and material, the machine can output between 70 to 110 pieces per hour.

How long is the delivery lead time?

The standard lead time for manufacturing is approximately 15 days after order confirmation.
