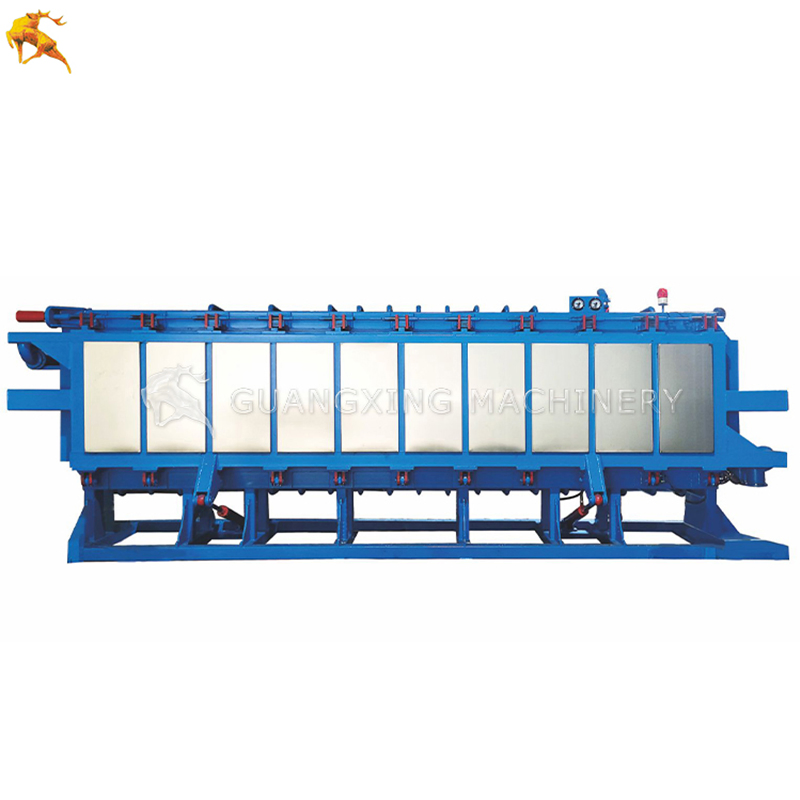

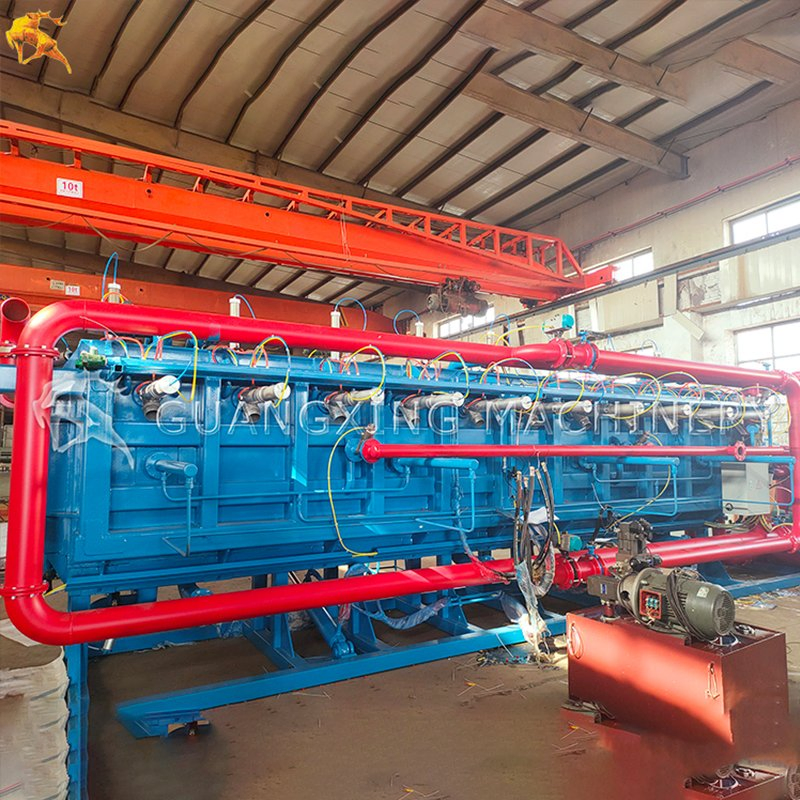

High-Efficiency EPS Block Production System for Global Markets

Customization:	Available
After-sales Service:	2 Years
Warranty:	2 Years

Basic Specifications

Model NO.

PSG80

Product Type

HDF Production Line

Automatic Grade

Automatic

Power Source

Electric

Screw Design

Double-Screw

Certification

ISO

Condition

New

Material

Steel Structure EPS Block Machine

Operation

PLC and Touch Screen

Origin

China

HS Code

8477800000

Product Description

1) Multi-Functional The machine is equipped with Synchronous transmission with wide adjusting range for machine multipurpose application.

2) Best Quality Welded by high quality profile steel with age heating treatment to ensure high strength and zero deformation under expansion force.

3) Easy Operation Adopted PLC Controller and Touch Screen to realize automatic circulation of feeding, heating, cooling, and demoulding.

4) Long-time Used Adopted special aluminum alloy in machine cavity for high thermal conductivity and long service life.

5) Advanced Technology Using overseas advanced through-heat molding techniques and variable pressure blowers for efficient material feeding.

6) Excellent Performance Strong penetrating power leads to good bonding effect with fast forming and low moisture content.

Technical Parameters

Item	Unit	PSB-A600	PSB-A800
Net Internal Size of Mould Chamber	mm	6120x1240x630	8160x1250x630
Adjustable Size of Mould Chamber	mm	6120x980x630	8160x980x630
Volume of Mould Chamber	m³	3.77-4.78	5.0-6.37
Product Density/Specific Weight	Kg/m³	4.5-30	4.5-30
Production Efficiency	Piece/h	6-10	6-10
Steam Pressure	Mpa	0.6-0.8	0.6-0.8
Total Power	Kw	20.5	20.5
Max. External Dimension	mm	7700x2150x3270	9700x2190x3270
Installed Weight	Kg	11000	13000

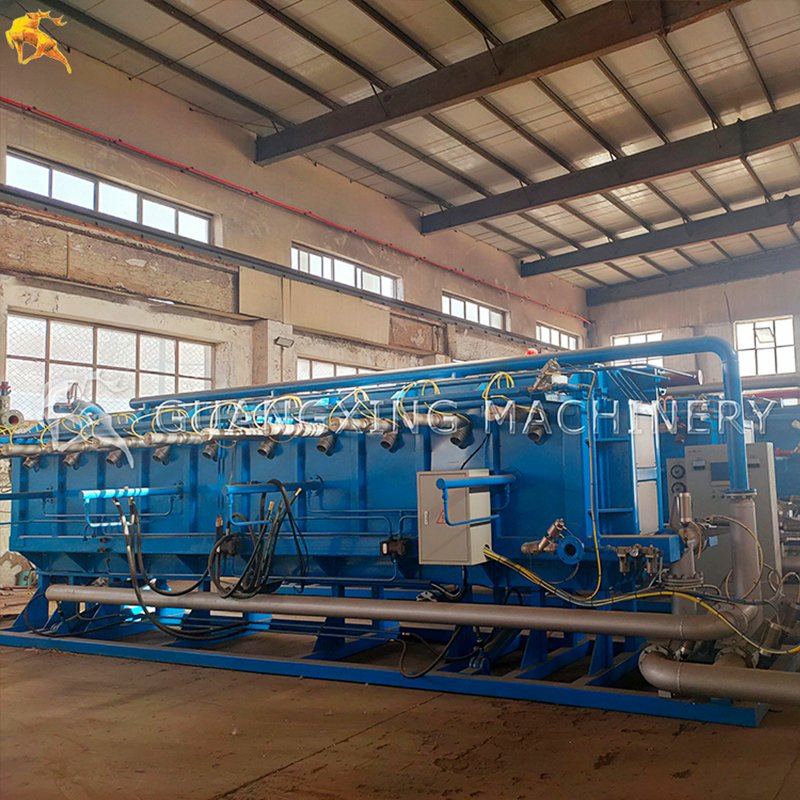

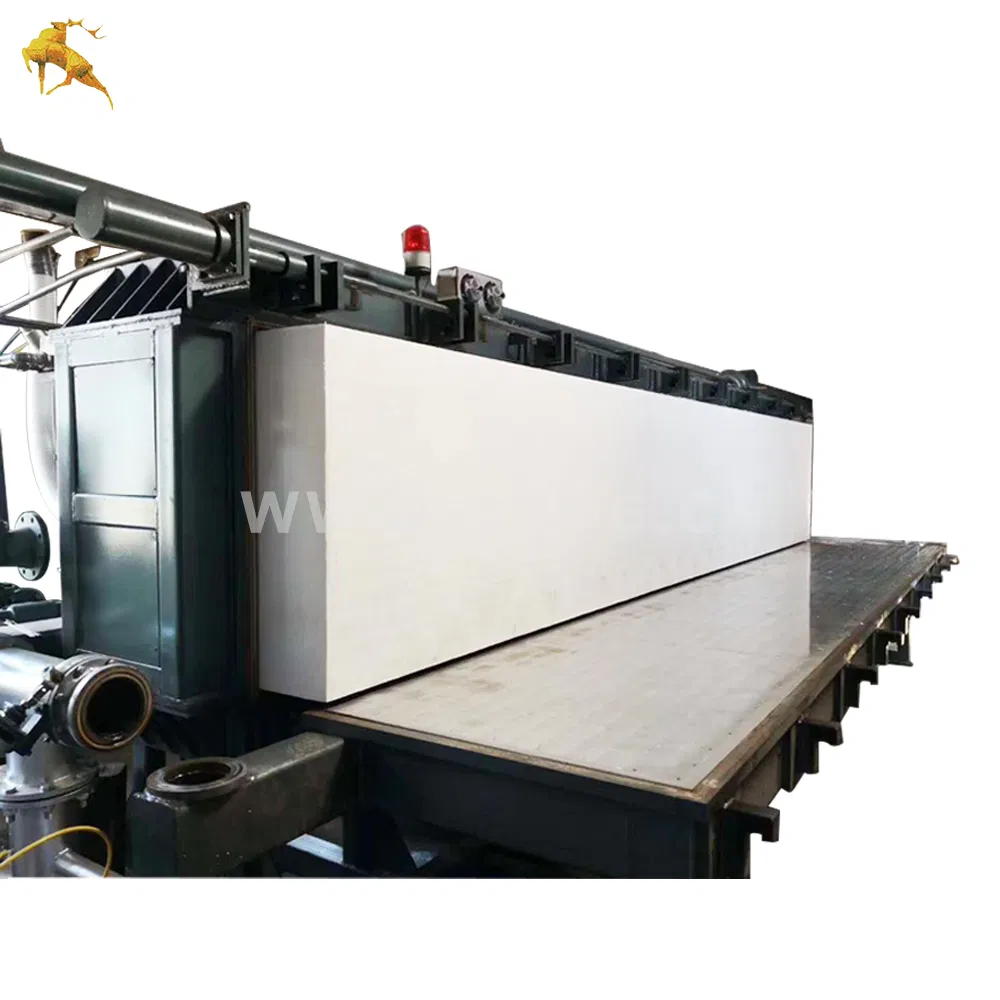

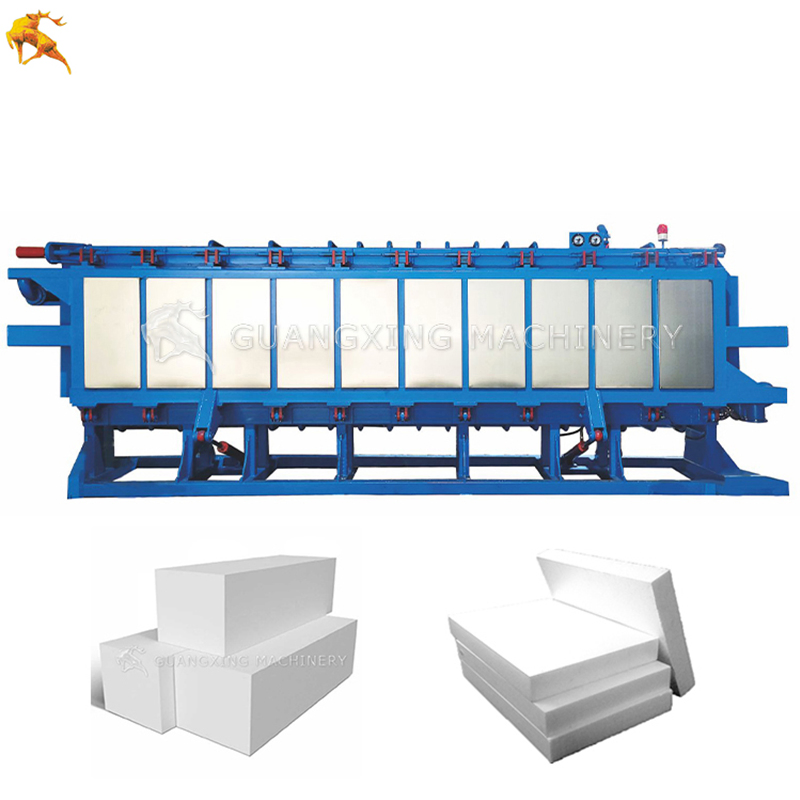

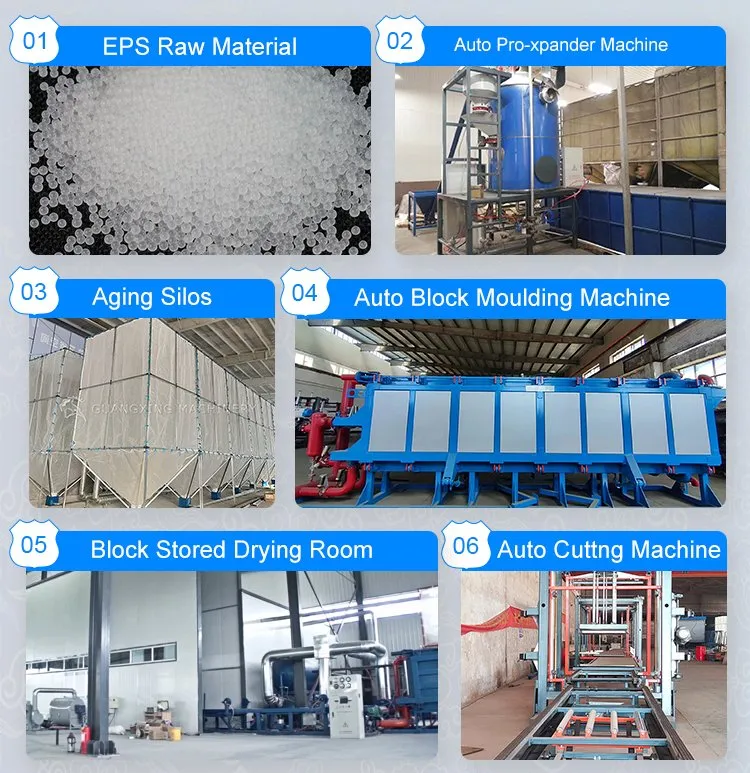

Detailed Gallery

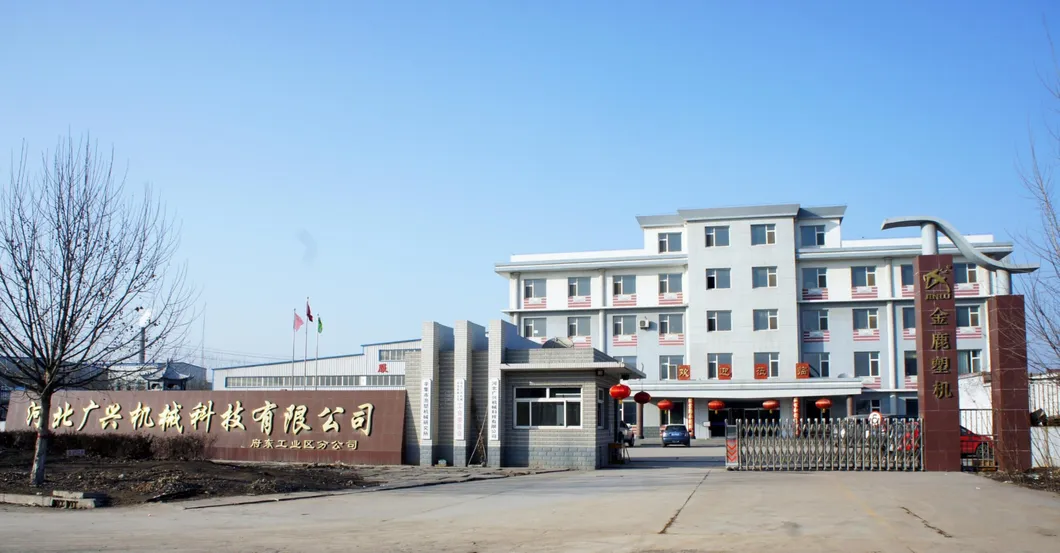

About the Manufacturer

Our company is a professional manufacturer of exterior wall insulation equipment and composite panel equipment. Founded in 1987, it stands as one of the most competitive enterprises in the industry within the region.

The rock wool production line, polyurethane rock wool color steel composite panel production line and EPS phenolic foam production line developed by our company have reached international advanced levels and passed ISO 9001 quality management system certification.

Frequently Asked Questions

Do you accept on-site inspection for the machinery?

Yes. Before shipment, every piece of equipment undergoes trial testing in our factory. We invite all clients to conduct on-site inspections during this phase.

What are your standard payment terms?

We accept T/T, L/C, Western Union, and Cash.

What is the typical delivery time?

If products are in stock, delivery takes 5-10 days. For custom production, the timeline is generally 1-3 months depending on the order quantity.

Do you provide OEM/ODM services?

Yes, we provide custom-made services to meet different global requirements and budget needs.

How is the equipment installed after purchase?

We provide professional installation videos, detailed manuals, and technical support to guide you through the process.

What is the warranty period for your products?

We guarantee our products for one year and provide ongoing after-sales service and technical support.
