Technical Specifications

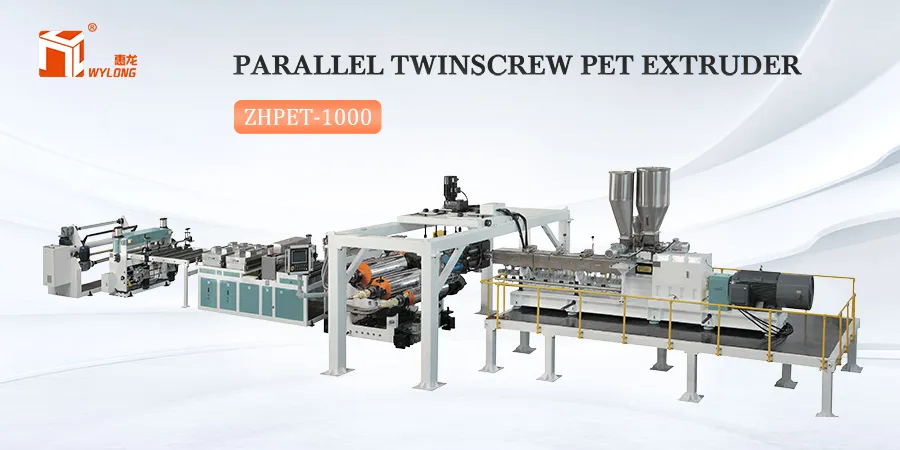

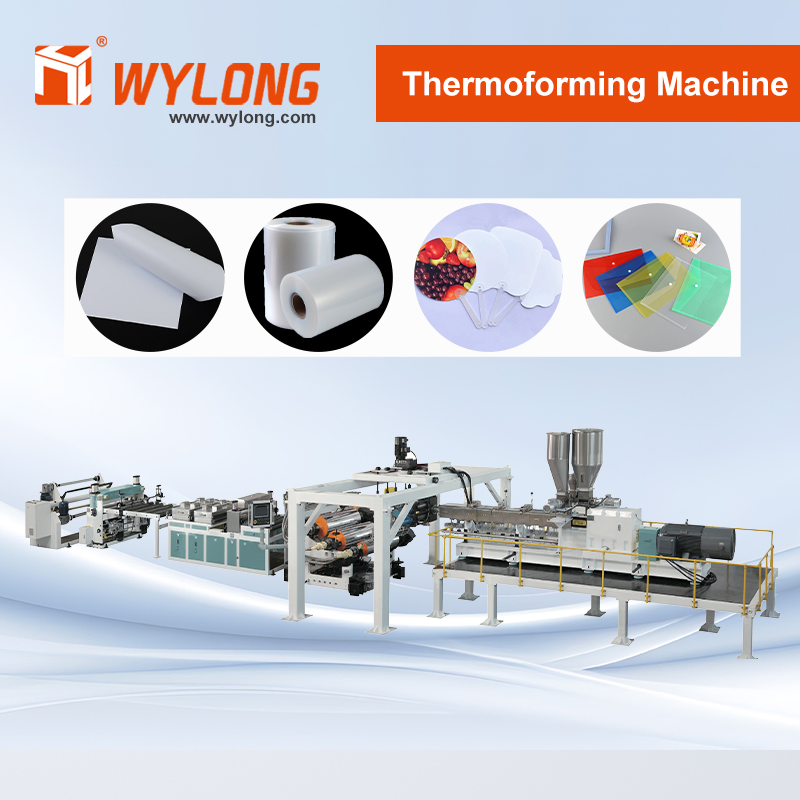

ZHPET-1000 Parallel Twin Screw PET Extruder
The PET twin-screw co-extruded sheet production line adopts a parallel twin-screw mixing extruder. It is designed for high efficiency and stability with specialized features for modern plastic processing.
- Hunger feeding system
- High efficiency mixing
- Deswinging exhaust
- Self-cleaning performance
- Stable extrusion
| Model |
ZHPET-1000/75 |
Heating power |
80kw |
| Product width |
400-850mm |
Line speed |
15-30m/minutes |
| Sheet thickness |
0.15-1.8mm |
Capacity |
350-450kg/h |
| Die Width |
950mm |
Dimensions (L*W*H) |
20*2.5*3.8m |

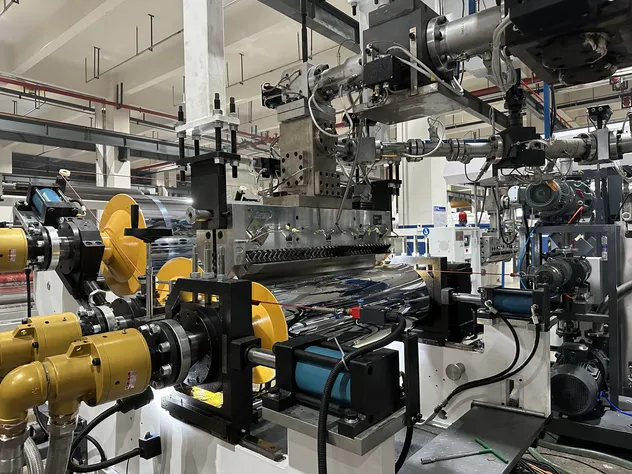

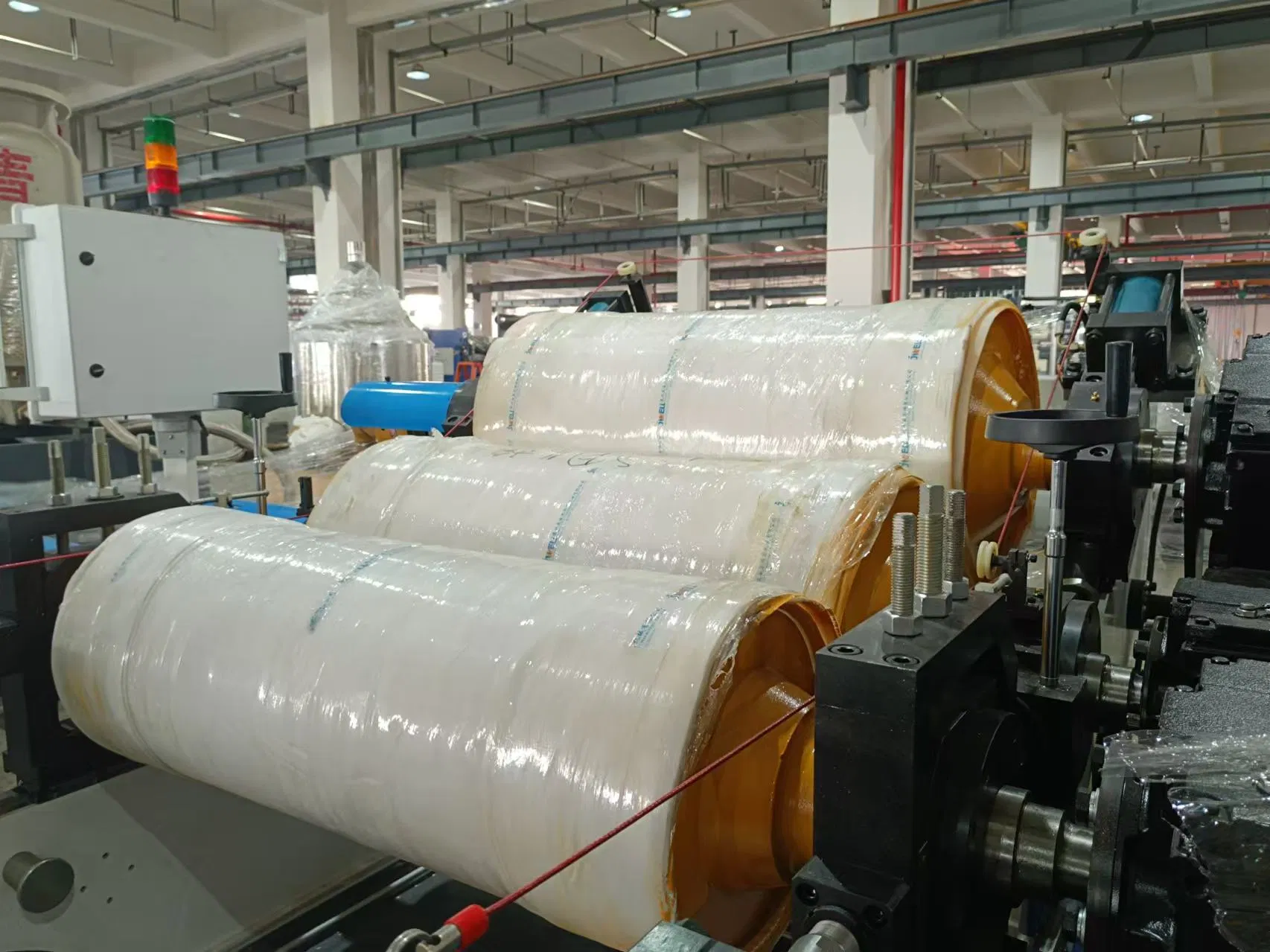

| Roller size |
Φ350-Φ450-Φ450 mm |
Total Weight |
20ton |
| Total power |
220kw |
Screw diameter |
75mm 1:42 |
Frequently Asked Questions
❓ What materials can be processed with this extruder?
This equipment is designed to process PET, PLA, APET, PETG, and CPET raw materials efficiently.
❓ Does the PET material require pre-drying?
Due to the special optimization of the vacuum exhaust system in our parallel twin-screw design, a raw material crystallization drying system is not mandatory, though adding one can further enhance product competitiveness.
❓ What is the production capacity of the ZHPET-1000/75?
The machine offers a maximum output capacity ranging from 350kg/h to 450kg/h depending on the material and settings.
❓ What are the sheet thickness and width specifications?

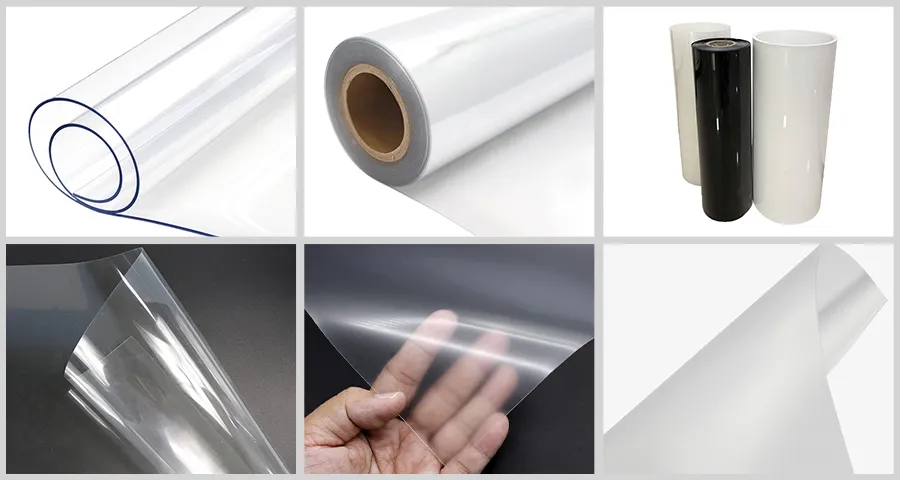

The production line can produce sheets with a thickness of 0.15mm to 1.8mm and a width between 400mm and 850mm.
❓ Is the machine easy to operate and monitor?

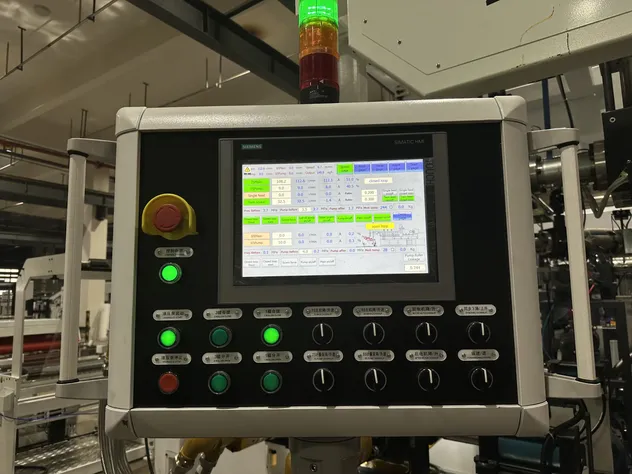

Yes, the system is fully computerized and automatic, featuring an advanced HIM control interface for stable and easy operation.
❓ What are the key advantages of the parallel twin-screw system?
Key advantages include hunger feeding, high efficiency mixing, self-cleaning performance, and superior vacuum exhaust capabilities.
