| Thickness | 0.5-1.5mm |

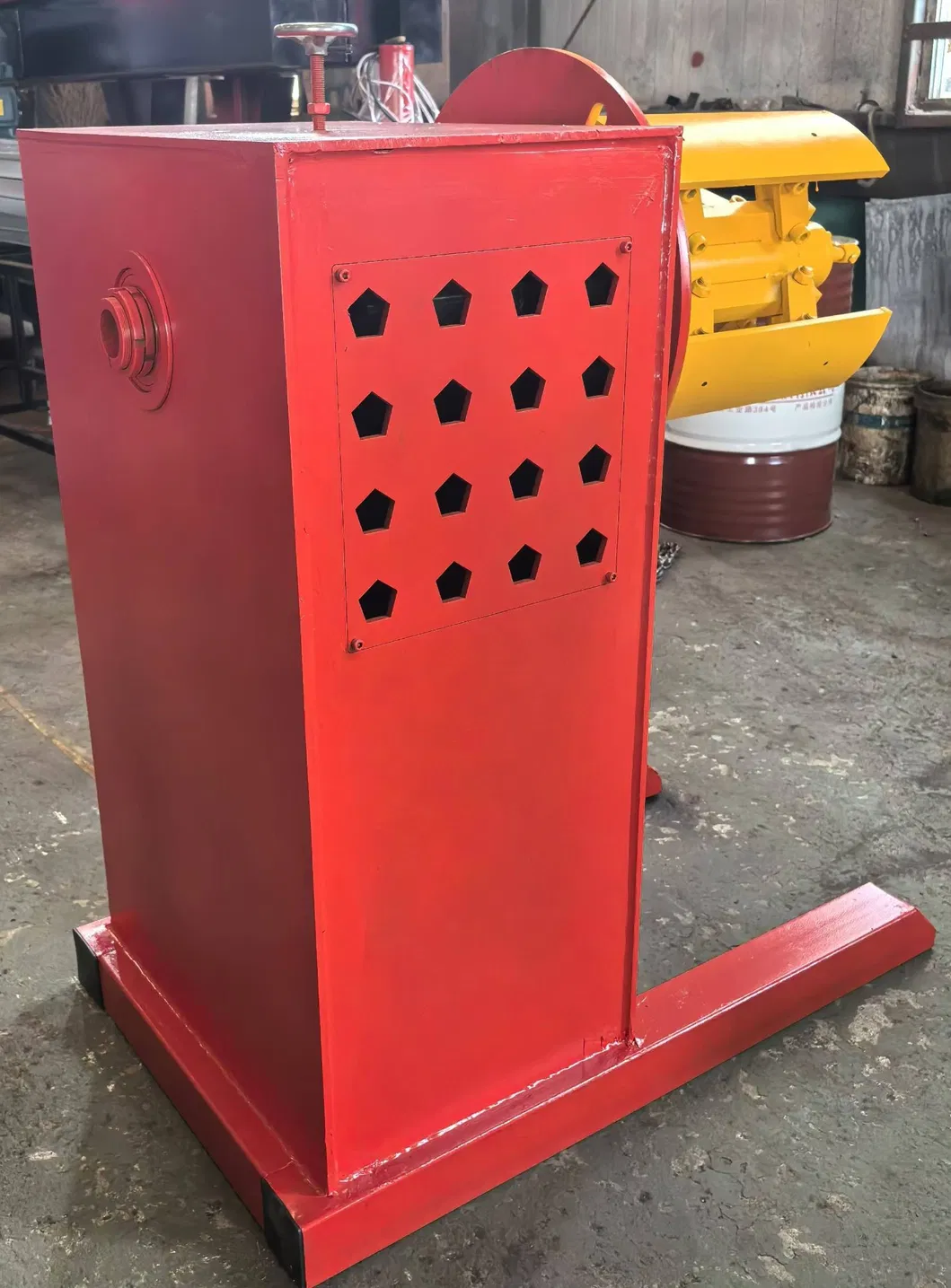

| Decoiler | Electrical |
| Working Material | CRC, HRC, Galvanized Sheet (GI) |
| Roller Material | Cr12 |
| Forming Station | 17 Steps |
| Size Range | 65-360mm |
| Control System | PLC (Delta) |
| Product Speed | 10-15m/Min |
| Main Power | 7.5kw |
| HS Code | 84552210 |

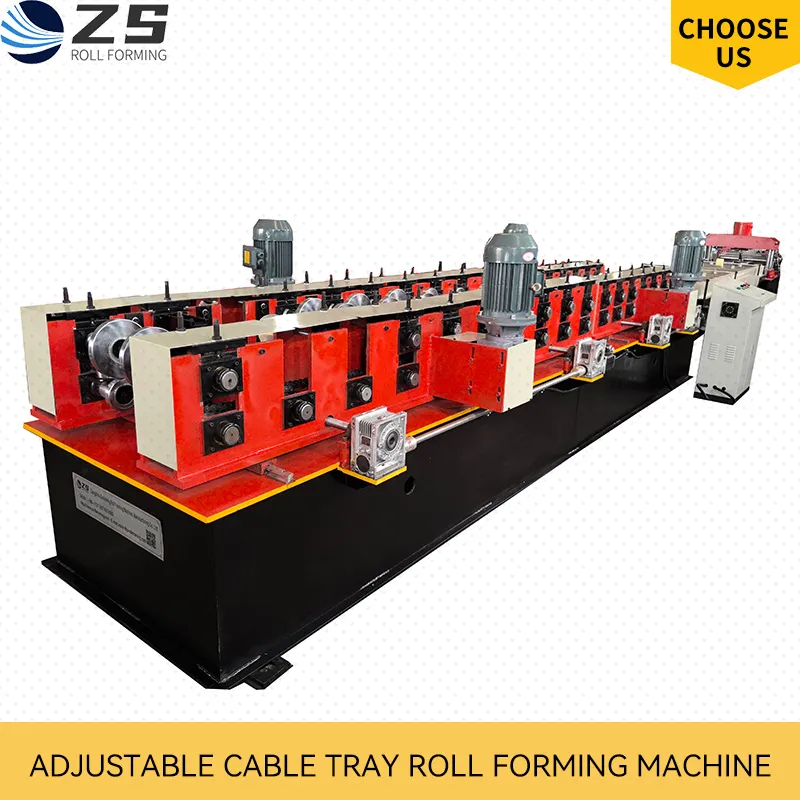

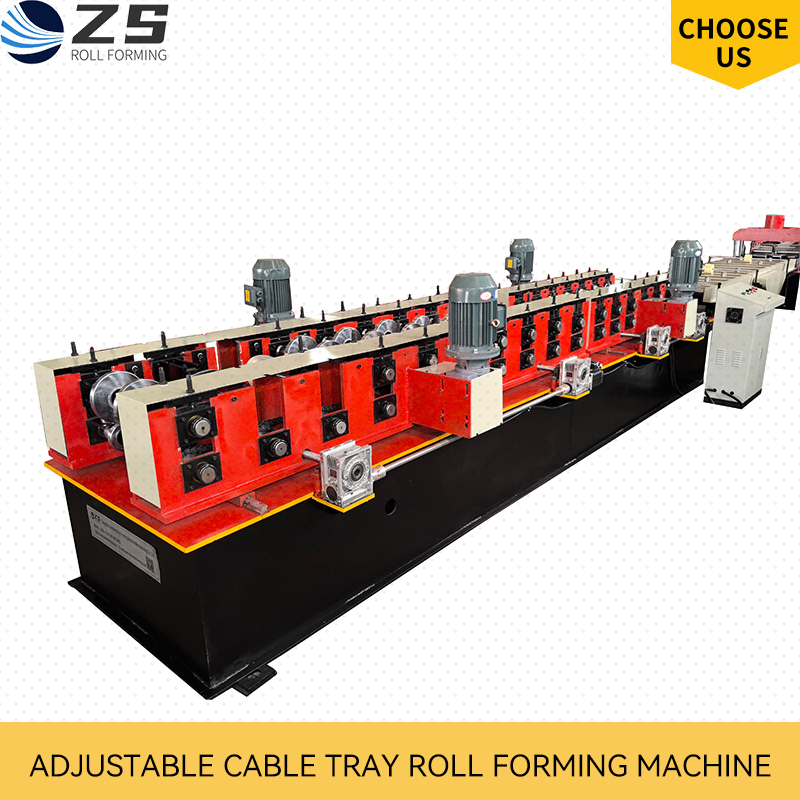

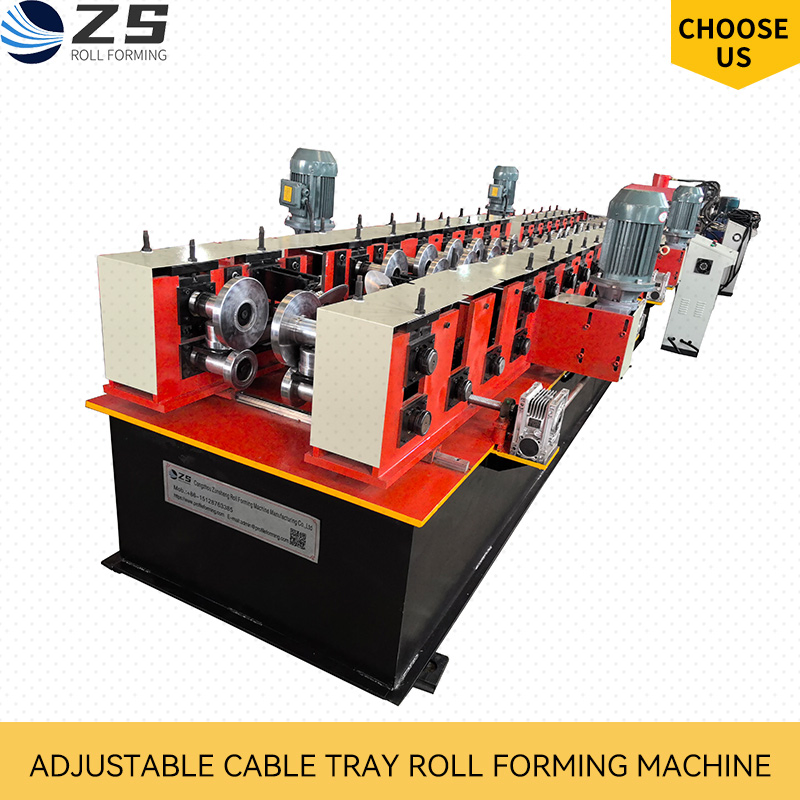

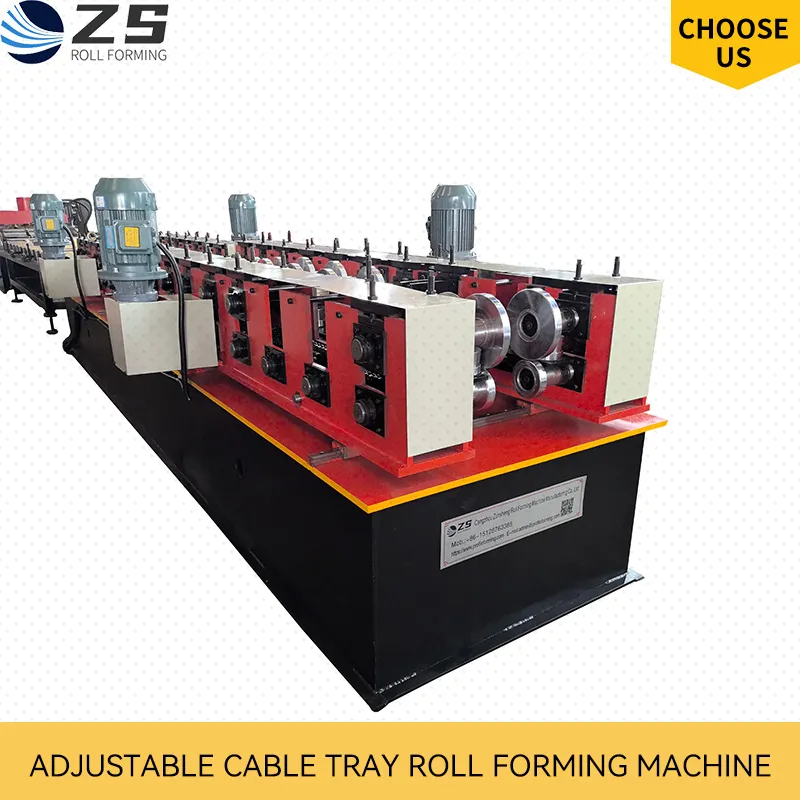

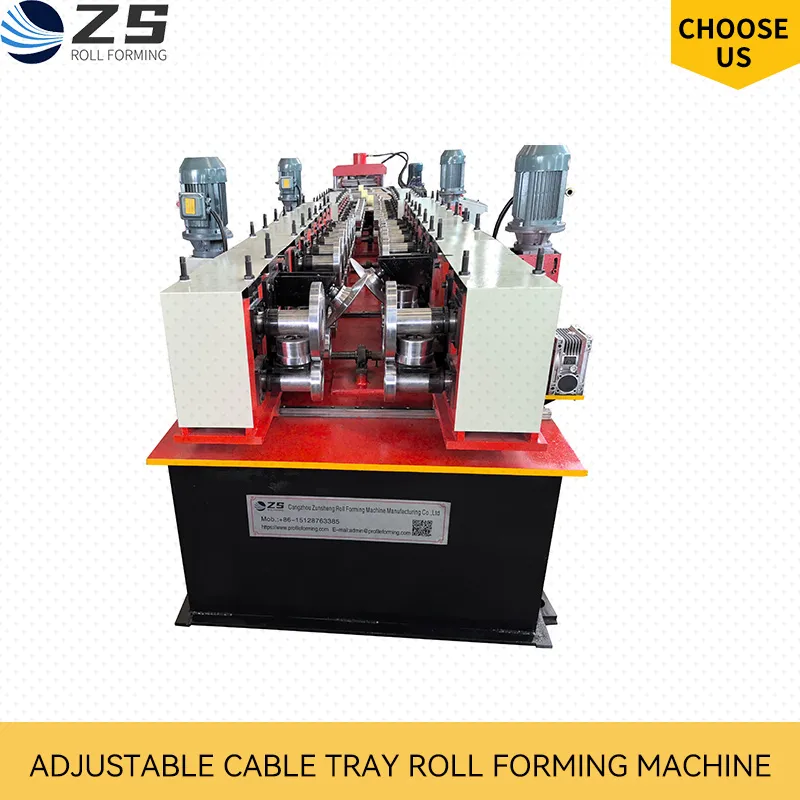

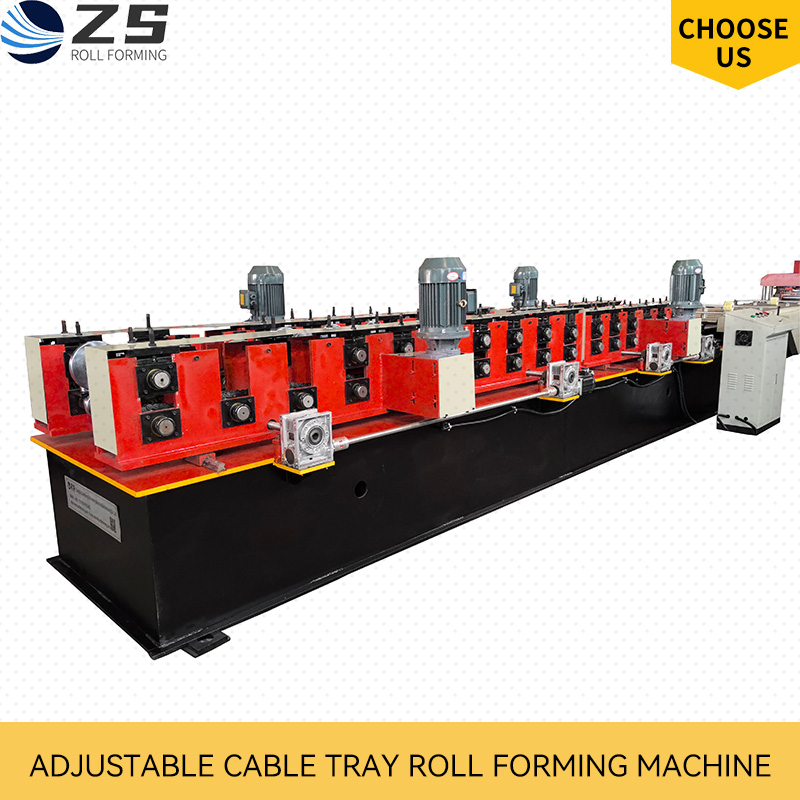

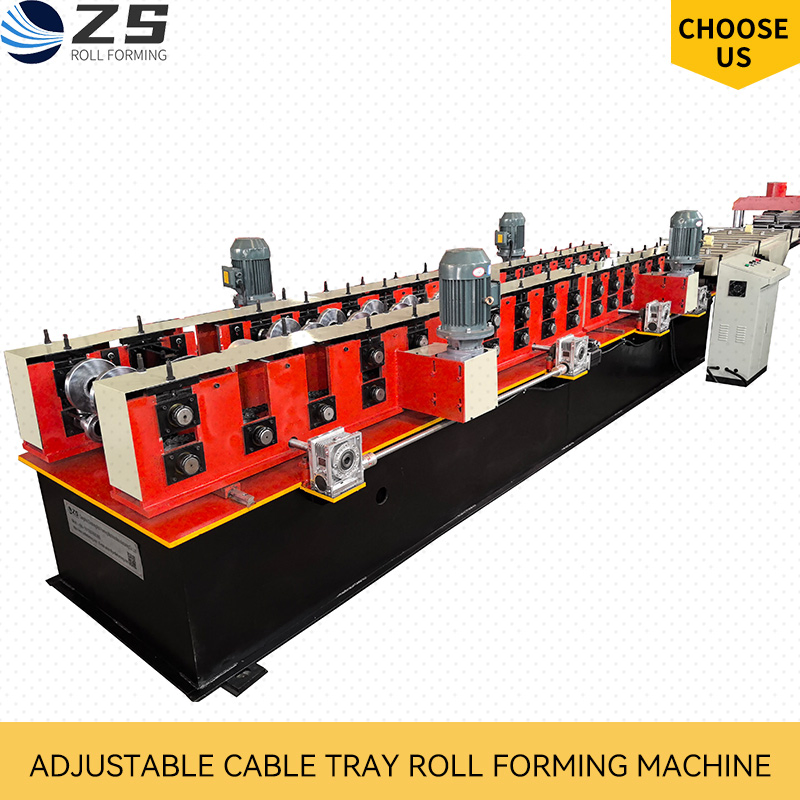

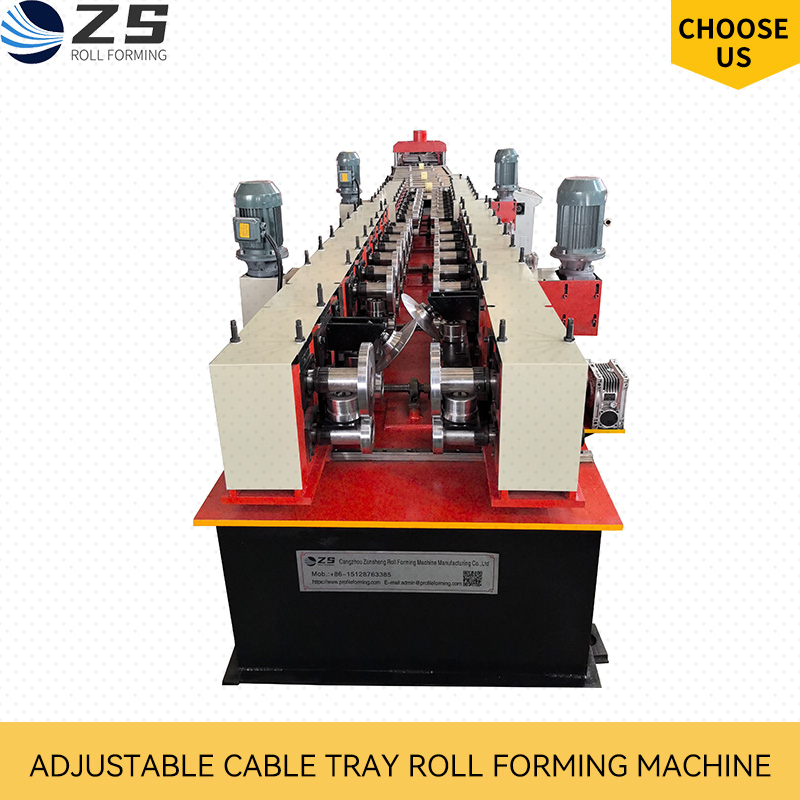

With Holes Auto Changeover Type 65-350mm Cable Tray Roll Forming Machine
This state-of-the-art cable tray production line is expertly crafted as specialized equipment for cable tray roll forming. It seamlessly produces both the trays and their cover plates, making it an indispensable asset for power transmission, machinery manufacturing, and commercial construction. It is widely used in data centers, offices, hospitals, airports, and industrial factories.
Width ranges from 60-350mm with a thickness of 0.5-1.5mm. Customization options are available to ensure a perfect fit for specific project requirements.

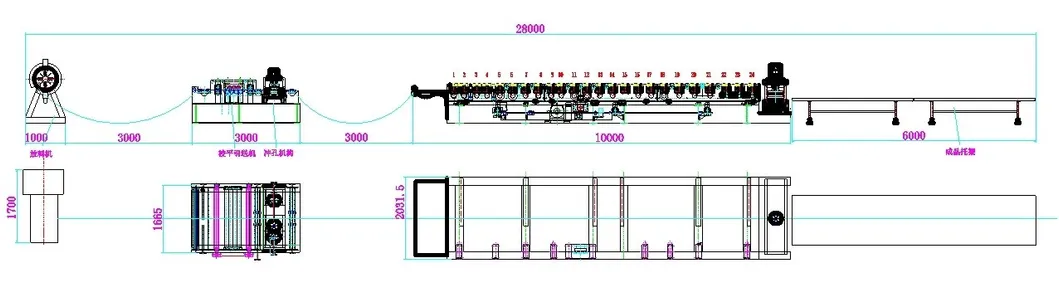

Working Flow:

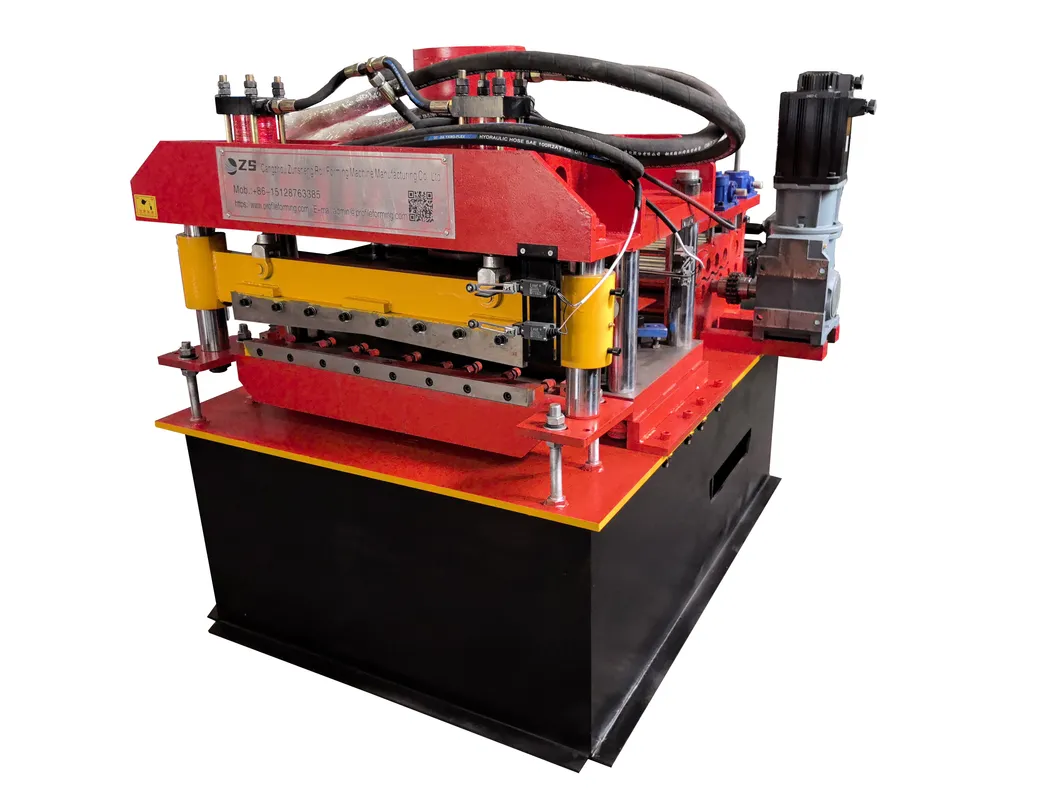

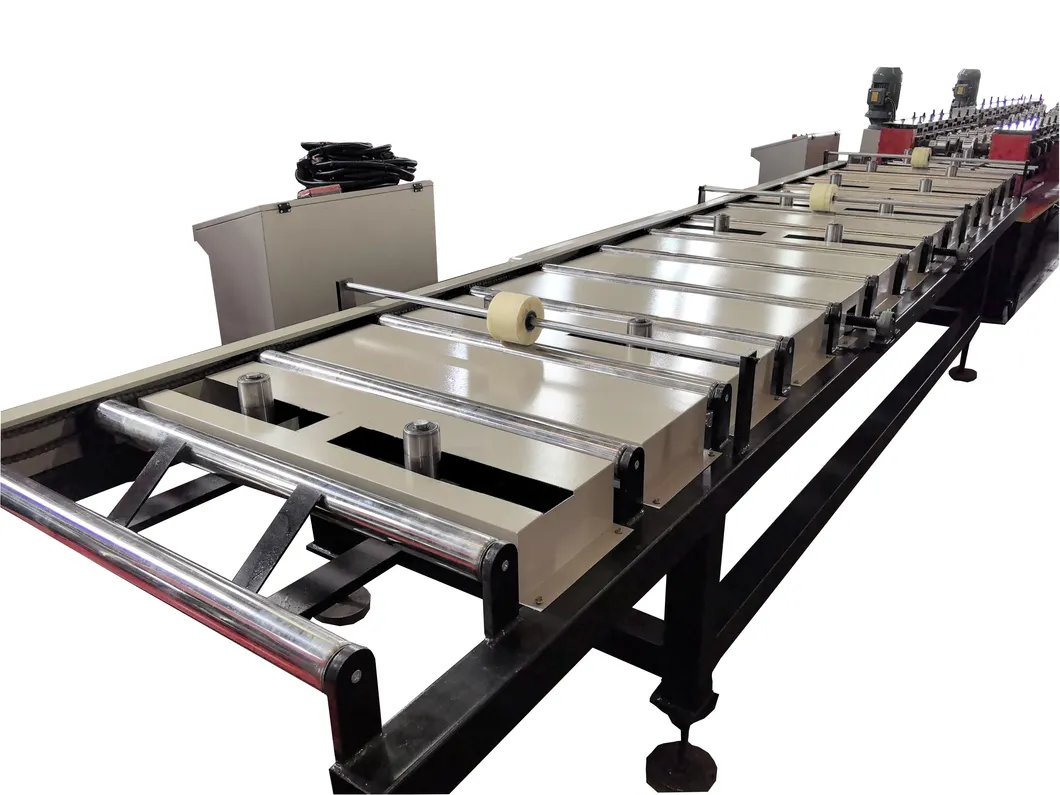

Decoiler ➔ Flattening Machine ➔ Hydraulic Punching and Cutting Machine ➔ 5m Feeder Table ➔ Roll Forming Machine ➔ Production Receive Table.
| Component | Details / Brand |
|---|---|
| PLC / Inverter | Delta (German Brand quality standards) |
| Touch Screen | 7-Inch Color Touch Screen (Delta) |
| Encoder | Omron (Japan Brand) |
| Thermal Relay | Siemens (German Brand) |
| Air Switch | LG-LS (Korea Brand) |
| Tolerance | Cut-to-Length Tolerance ≤±1 mm |
