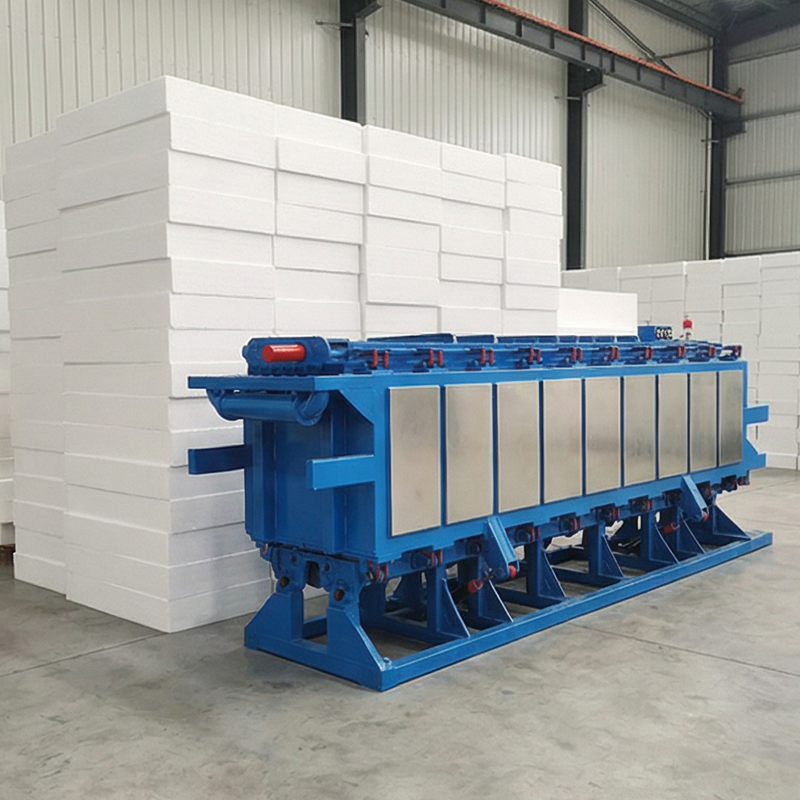

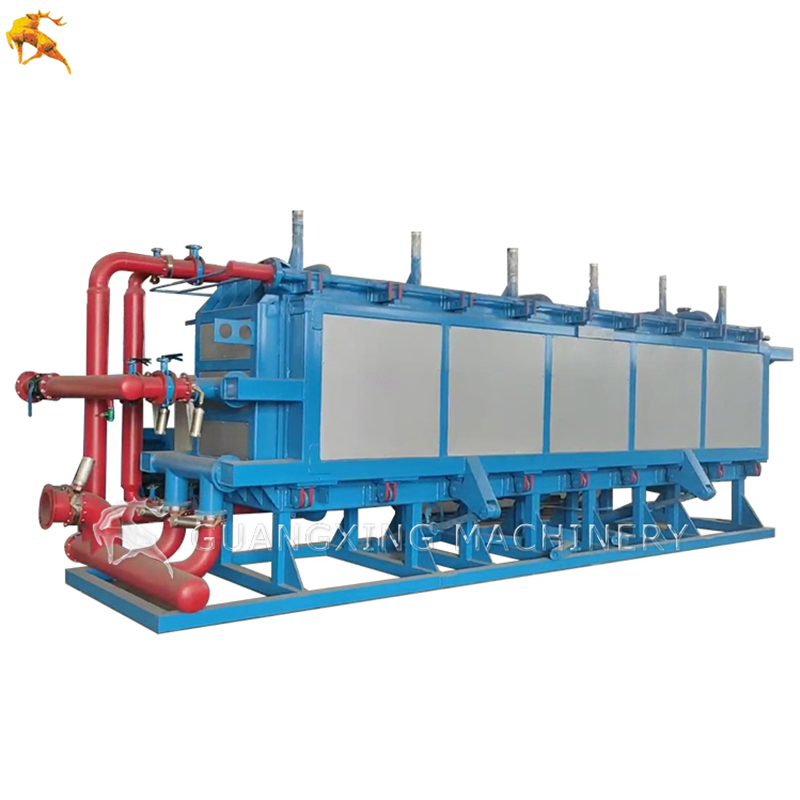

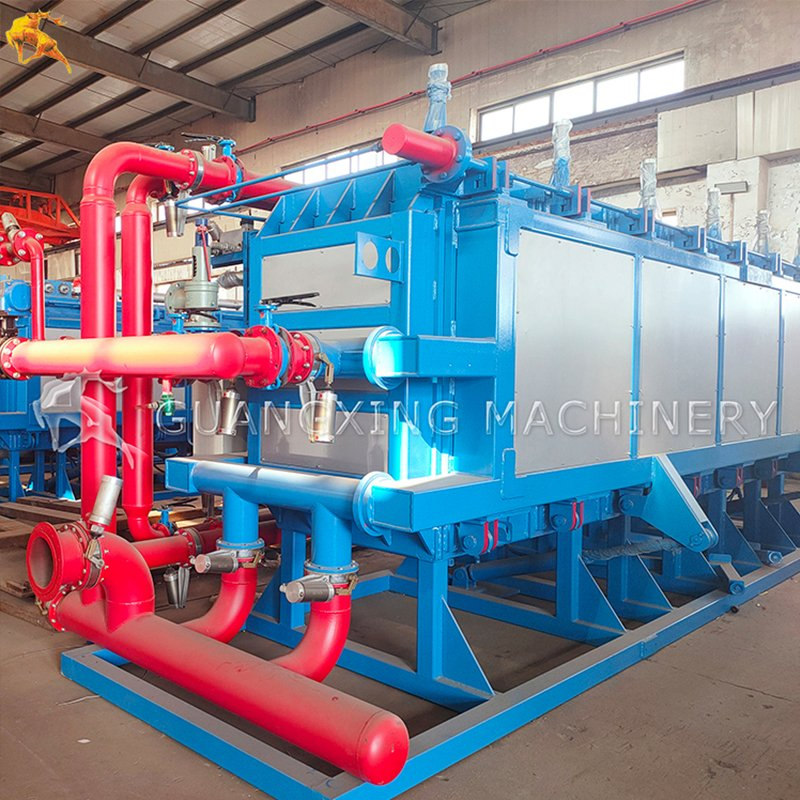

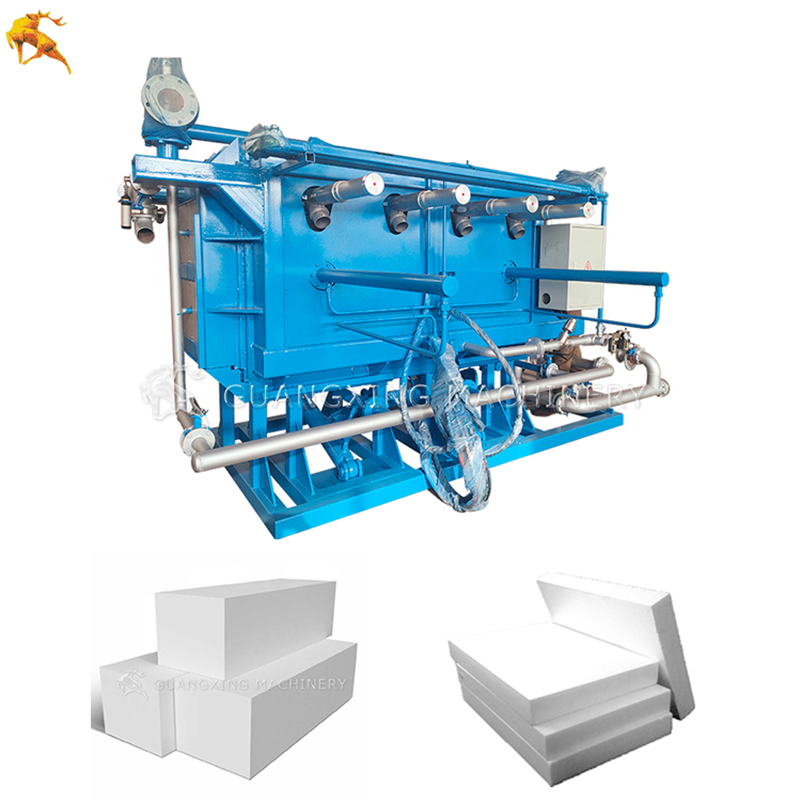

The machine is equipped with synchronous transmission with a wide adjusting range for machine multipurpose application.
Welded by high quality profile steel with age heating treatment to ensure high strength and prevent deformation. It can endure the expansive force of high density products.
Adopted PLC Controller and Touch Screen to realize automatic circulation of mould opening & closing, feeding, heating, heat preservation, air/vacuum cooling, and demoulding.
Adopted special aluminum alloy in machine cavity, providing high thermal conductivity, good extension, and long lifetime.
Using overseas advanced through-heat molding techniques and variable pressure blowers for material feeding and cooling.
Strong penetrating power leads to good bonding effect. EPS blocks feature less steam, fast forming, and low moisture content, ensuring consistency inside and out.

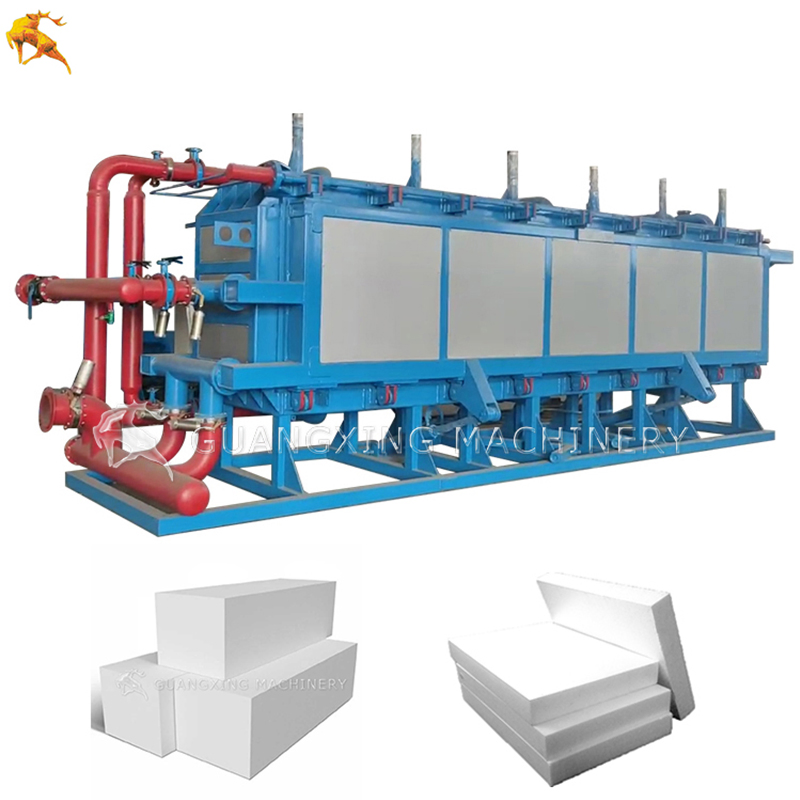

Adjustable to produce different width EPS blocks for panels, sandwich panels, and foam blocks.
| Item | Unit | PSB-A600 | PSB-A800 |
|---|---|---|---|
| Net Internal Size of Mould Chamber | mm | 6120x1240x630 | 8160x1250x630 |
| Adjustable Size of Mould Chamber | mm | 6120x980x630 | 8160x980x630 |
| Volume of Mould Chamber | m³ | 3.77-4.78 | 5.0-6.37 |
| Product Density | Kg/m³ | 4.5-30 | 4.5-30 |
| Production Efficiency | Piece/h | 6-10 | 6-10 |
| Steam Pressure | Mpa | 0.6-0.8 | 0.6-0.8 |
| Compressed Air Inlet Diameter | mm | 65 | 65 |
| Total Power | Kw | 20.5 | 20.5 |
| Installed Weight | Kg | 11000 | 13000 |
| Power Supply | V | 380V or 220V alternated | |
Founded in 1987, the manufacturer is a professional provider of exterior wall insulation equipment and composite panel equipment. It stands as one of the most competitive enterprises in the industry.
Our production lines for rock wool, polyurethane rock wool color steel composite panels, and EPS phenolic foam have reached international advanced levels and passed ISO 9001 quality management system certification. With first-class technology, we provide comprehensive services from product design and R&D to installation training and after-sales support.
