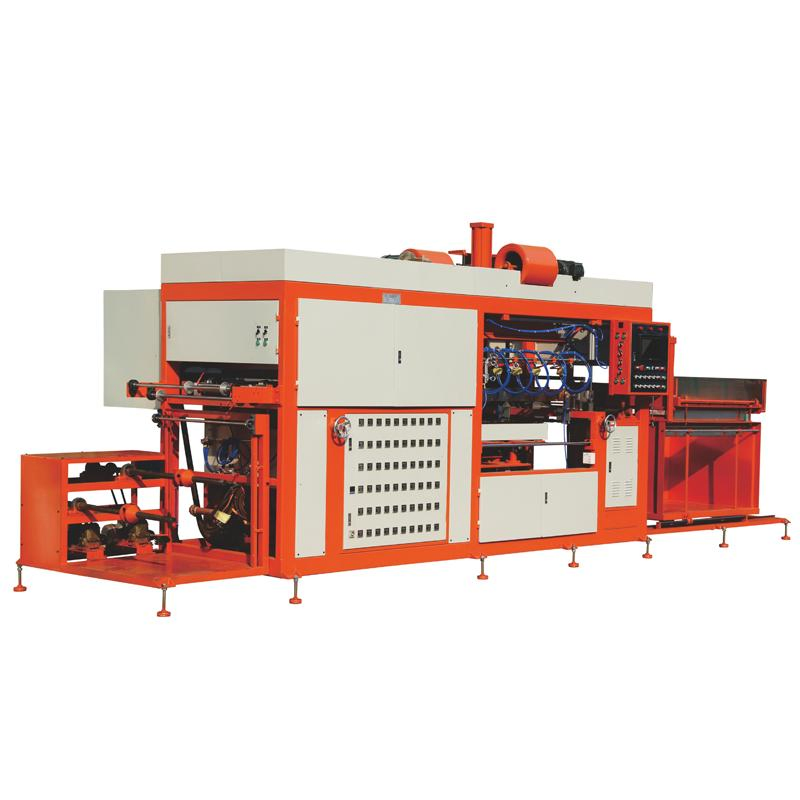

High-Performance Plastic Vacuum Forming System

1 / 5

High-Performance Plastic Vacuum Forming System

Customization:	Available
After-sales Service:	Lifetime Maintenance (Except Man-Made Damage and N
Warranty:	Lifetime Maintenance (Except Man-Made Damage and N

Send Inquiry

Product Description

Basic Info.

Model NO.

TANZ-6

Certification

CE, ISO

Column number

According to Customer Requirements

Molding Method

Pultrusion

Automatic Grade

Automatic

Specification

Standard

Trademark

TANZ

HS Code

8422400000

Production Capacity

300 Sets of Sheet Line Every Year

★

Product Description

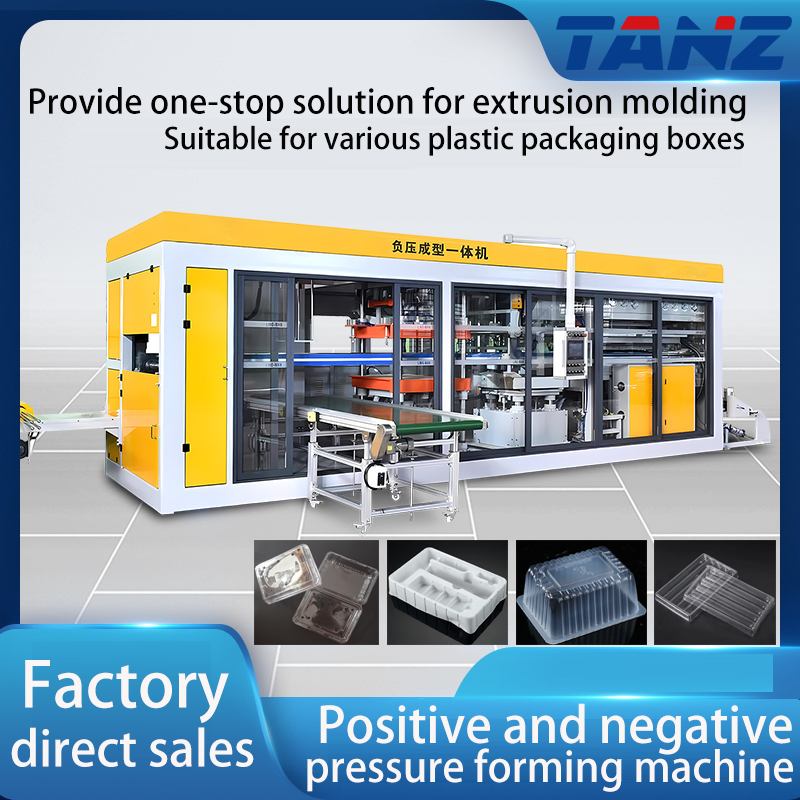

Positive and Negative Pressure Integrated Molding Machine is designed for producing various types of plastic packaging. It features energy-saving capabilities, high output capacity, and labor-saving advantages.

Reasons for Choosing:

High Production Efficiency: This machine operates at a rapid processing speed, allowing for quick production of high-quality plastic products with a short response time and robust production capacity.
Wide Range of Application: Positive and negative pressure blister machines offer unique characteristics and advantages, enabling the production of diverse plastic products such as cups and packaging boxes.
Low Production Cost: Compared to other methods, the positive and negative pressure blister machine provides cost-effectiveness, simplified processing, and reduced labor requirements, ultimately leading to increased profitability.

Finished product width	400-850mm
Forming width	420-720mm
Molding height	0-110mm
Operating voltage	380V 3N 50HZ (three-term, four-wire 50Hz)
Electric furnace rated power	30KW (The Max is 40-50kw)
Production speed	5-20 seconds/mold
Maximum punch pressure	50tons
Maximum pressure to cut	50tons
The machine is under maximum pressure	55tons
Heating area	870*750mm (upper and lower furnaces, 84 heating bricks)
Machine host size	8800mm (main engine, loose material machine.waster roll machine)
Total machine weight	9tons (main engine, loose material machine, waste roll machine)
