High-Quality Vacuum Thermoforming Equipment for Plastic Tray Production

Warranty:	1 Year
Automation:	Automatic
Raw Material:	ABS

📋 Basic Information

Model NO.:PDVF-FY600

Shaping Mode:Die Molding

Driven Type:Electric

Computerized:Computerized

After-sales Service:1 Year

Color:Blue

Output:200PCS/Year

Specification:Forming area: 900mm*710mm

Trademark:PUDI

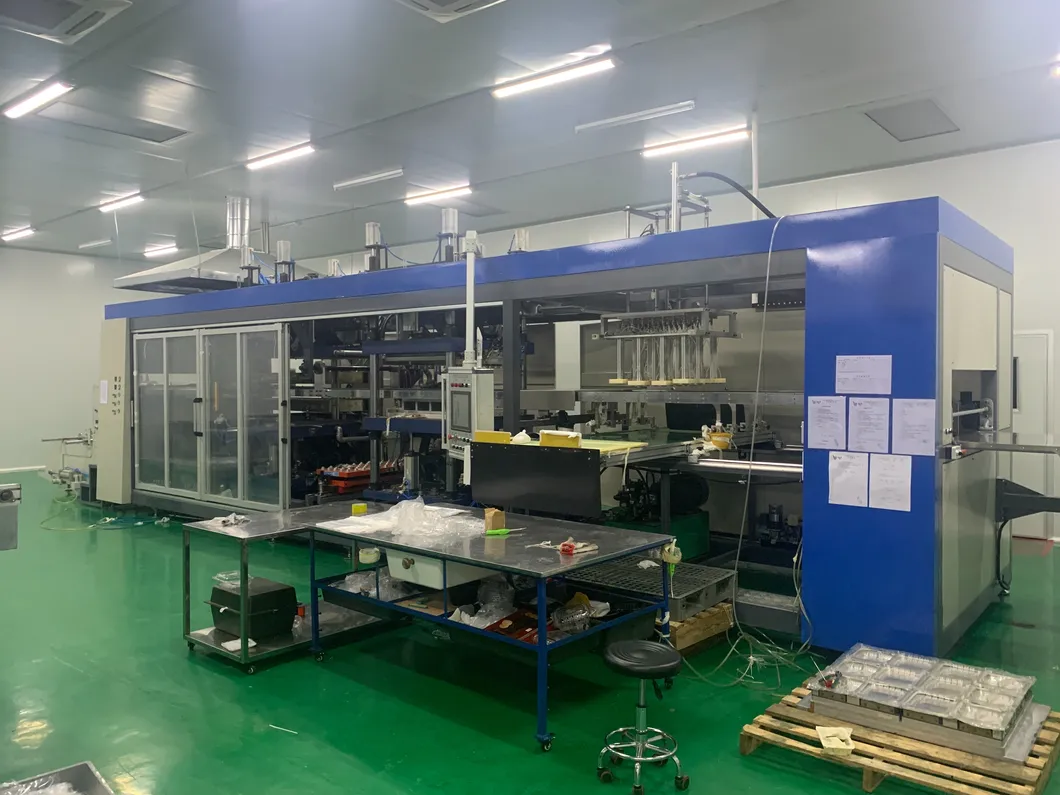

⚙️ PD-FY600 Vacuum Forming Machine Overview

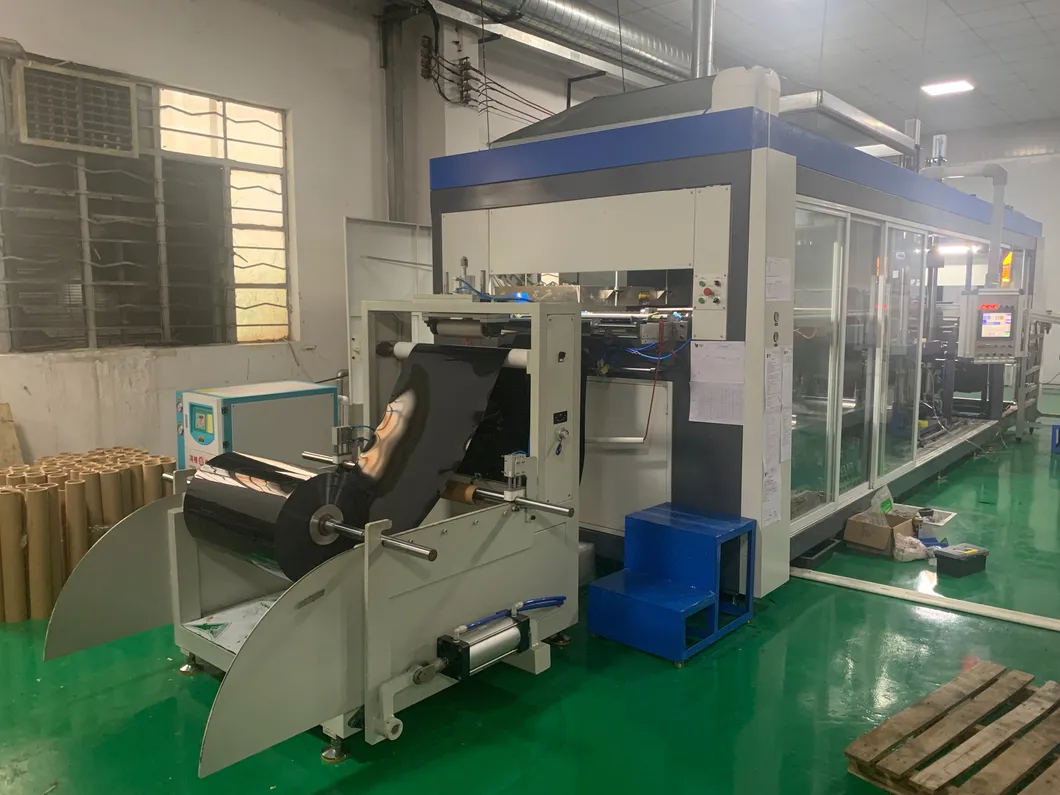

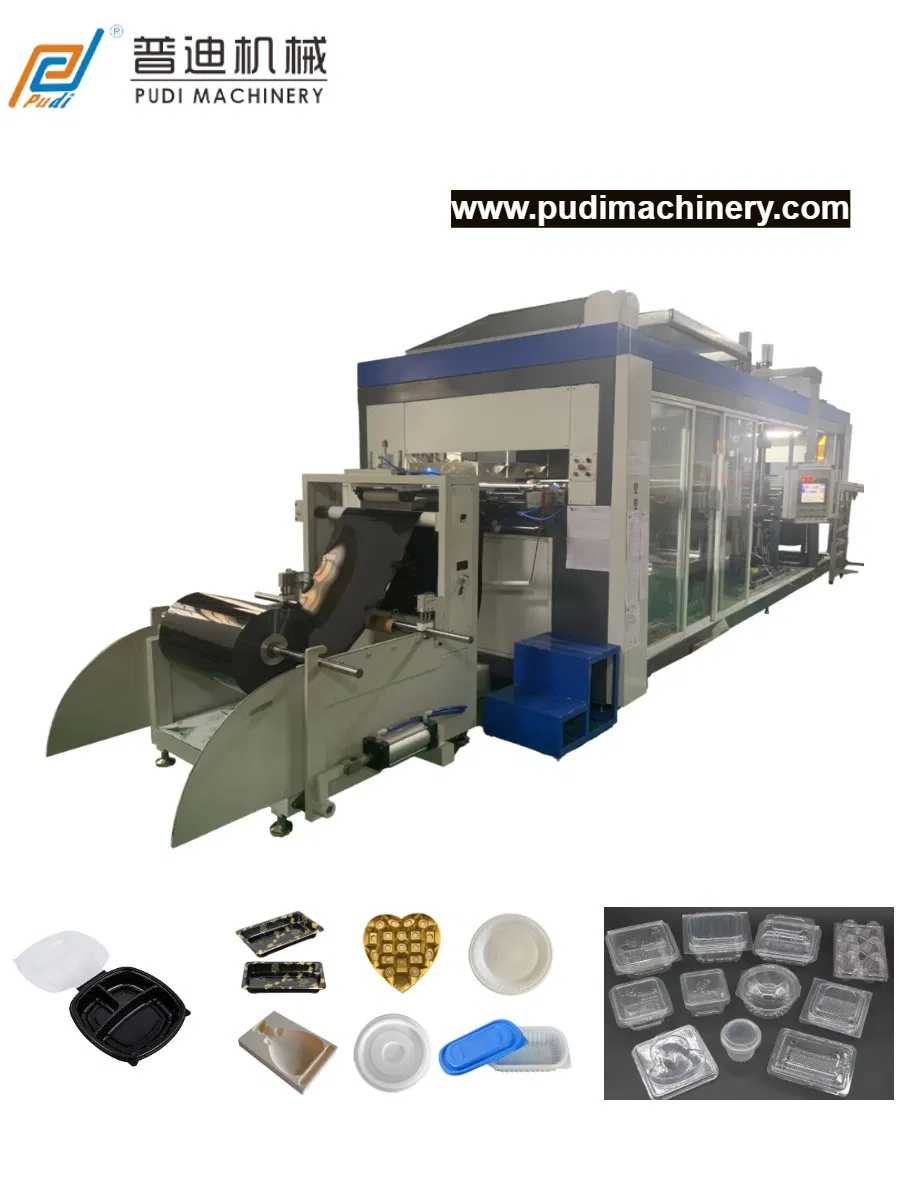

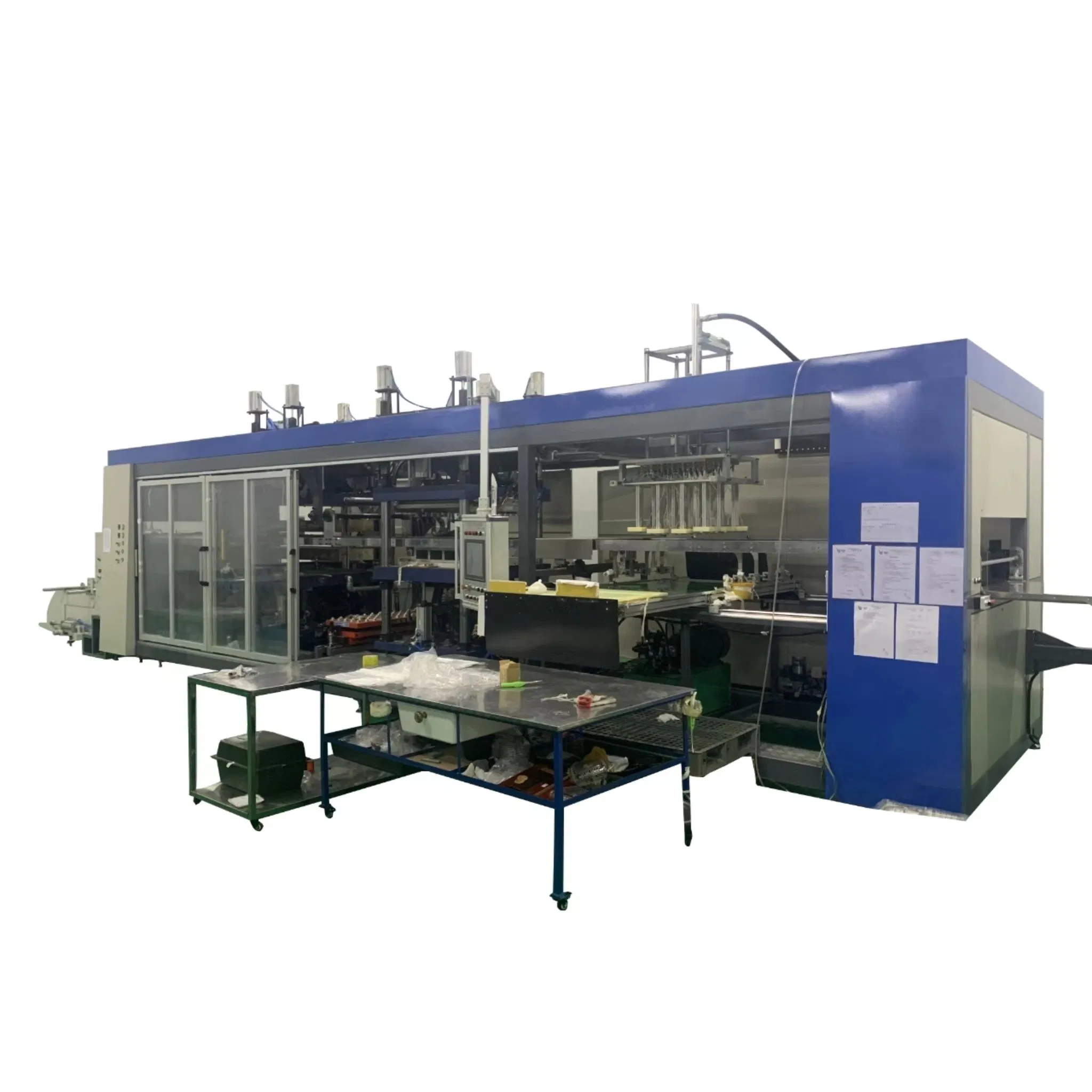

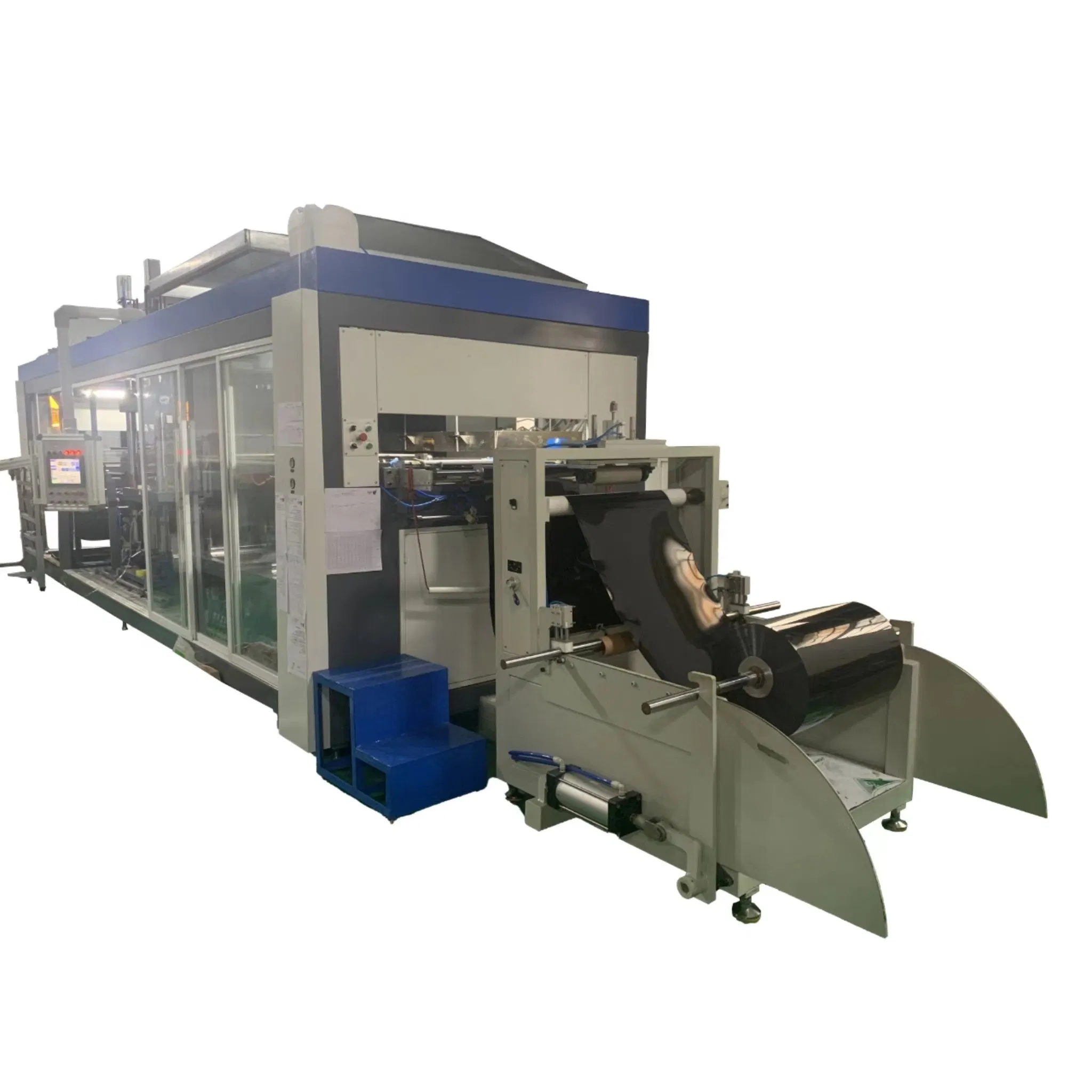

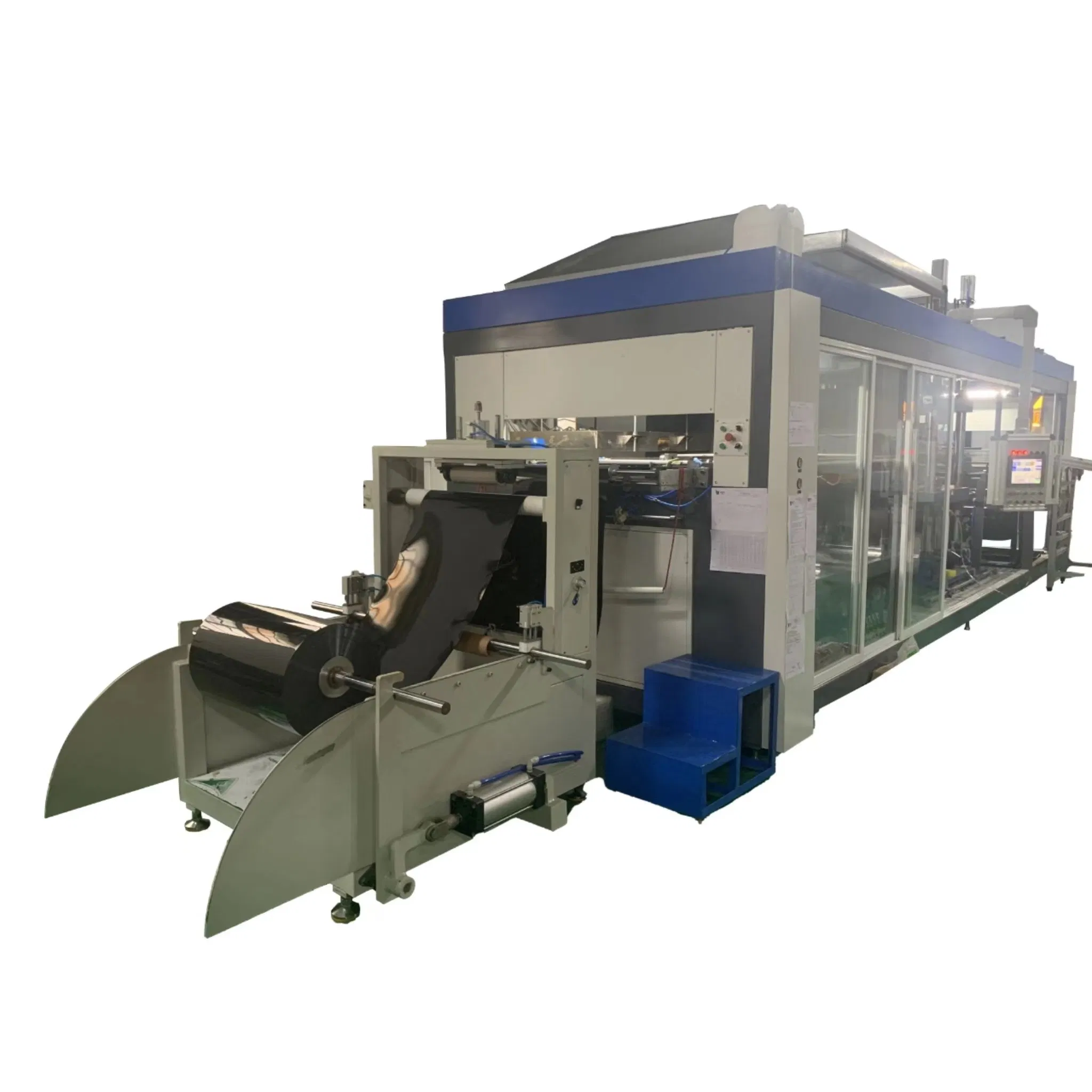

High-Quality Vacuum Thermoforming Equipment

The PDVF-FY600 vacuum forming machine is an efficient and multi-functional plastic forming equipment, specially designed for the production of disposable packaging boxes, coffee cup lids, plastic trays and other products. Advanced vacuum forming technology is used to ensure product quality and consistency.

📊 PD-FY600 Technical Parameters

No.	Technical Specification	Parameters
1	Maximum molding area	900mm×710mm
2	Minimum molding area	450mm×350mm
3	Widest sheet	940mm
4	Narrowest sheet	410mm
5	Molding thickness	0.2-2.0mm
6	Molding height	120mm
7	Length of upper furnace	1000mm
8	Length of lower furnace	1000mm
9	Stacking Height	500mm
10	Maximum cutting force	80T
11	Total power of equipment	80KW (40%-70% for normal use)
12	Machine Size	Approx. 12000 x 2500 x 3200mm

🔧 Main Configurations of PD-FY600

No.	Component Name	Brand & Description
1	Controller (PLC)	Delta (Taiwan)
2	Touchscreen	Kunlun Tongtai 15 inch color touch screen
3	Servo motor for sheet pulling	Delta (Taiwan) 5.5KW
4	Low-voltage electrics	Schneider (France)
5	Relay	OMRON (Japan)
6	Vacuum pumps	Cosmic Star VC160m3/h
7	Heaters	600W Infrared Ceramic Heating Tile
8	Linear guides	ABBA (Taiwan)

💎 Equipment Features & Structure

🏗️ Machine Body

Welded steel structure profiles for mounting molding, heating, and cutting devices. Overall frame has sufficient strength and rigidity with anti-rust treatment.

💻 Control System

Adopts PLC integrated module control and industrial touch panel display (HMI). Manual and automatic modes are available for easy operation and maintenance.

🛡️ Safety Facilities

Equipped with multiple protective measures, emergency stop buttons, and safety door sealing devices to improve the equipment safety factor.

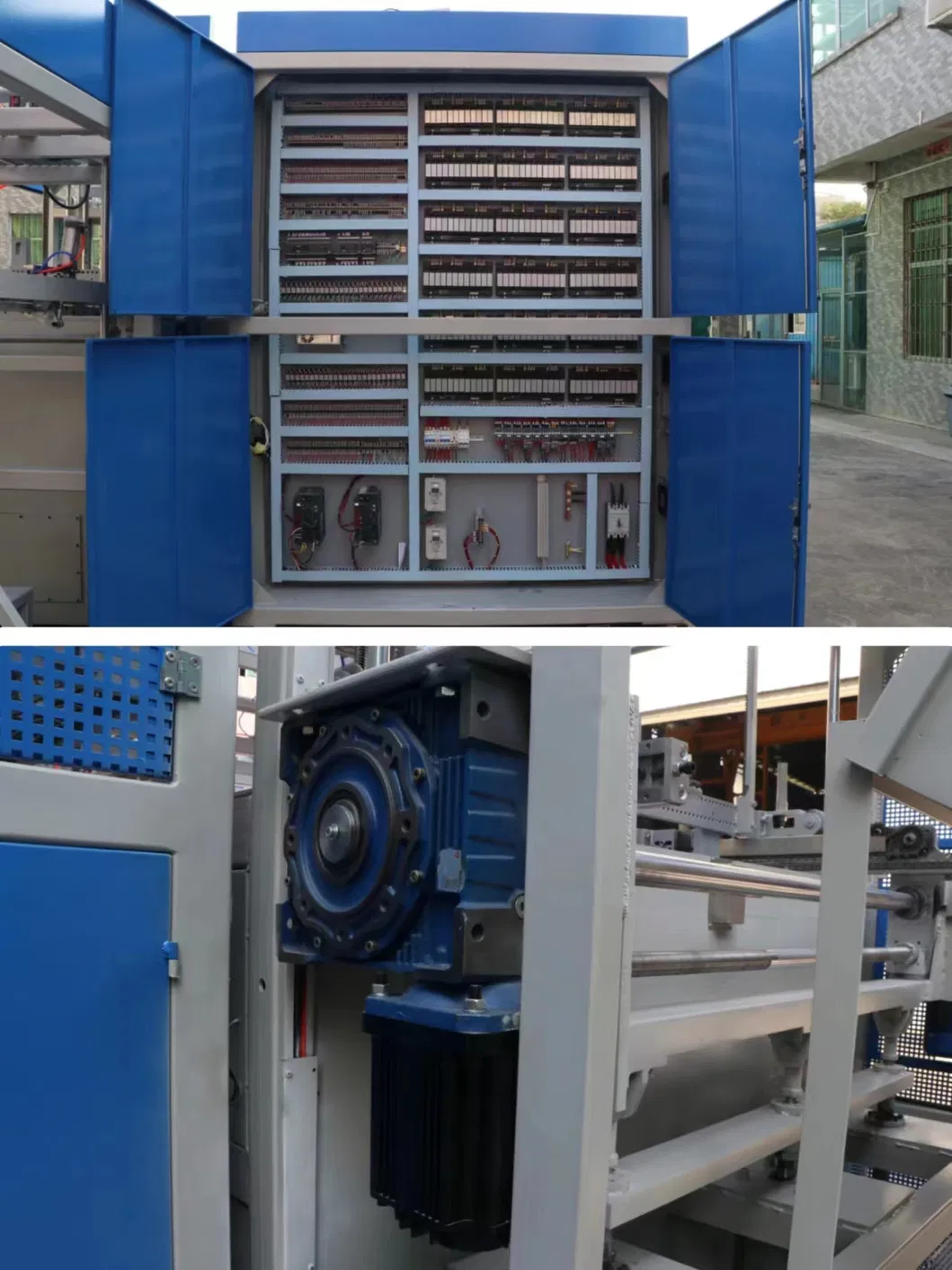

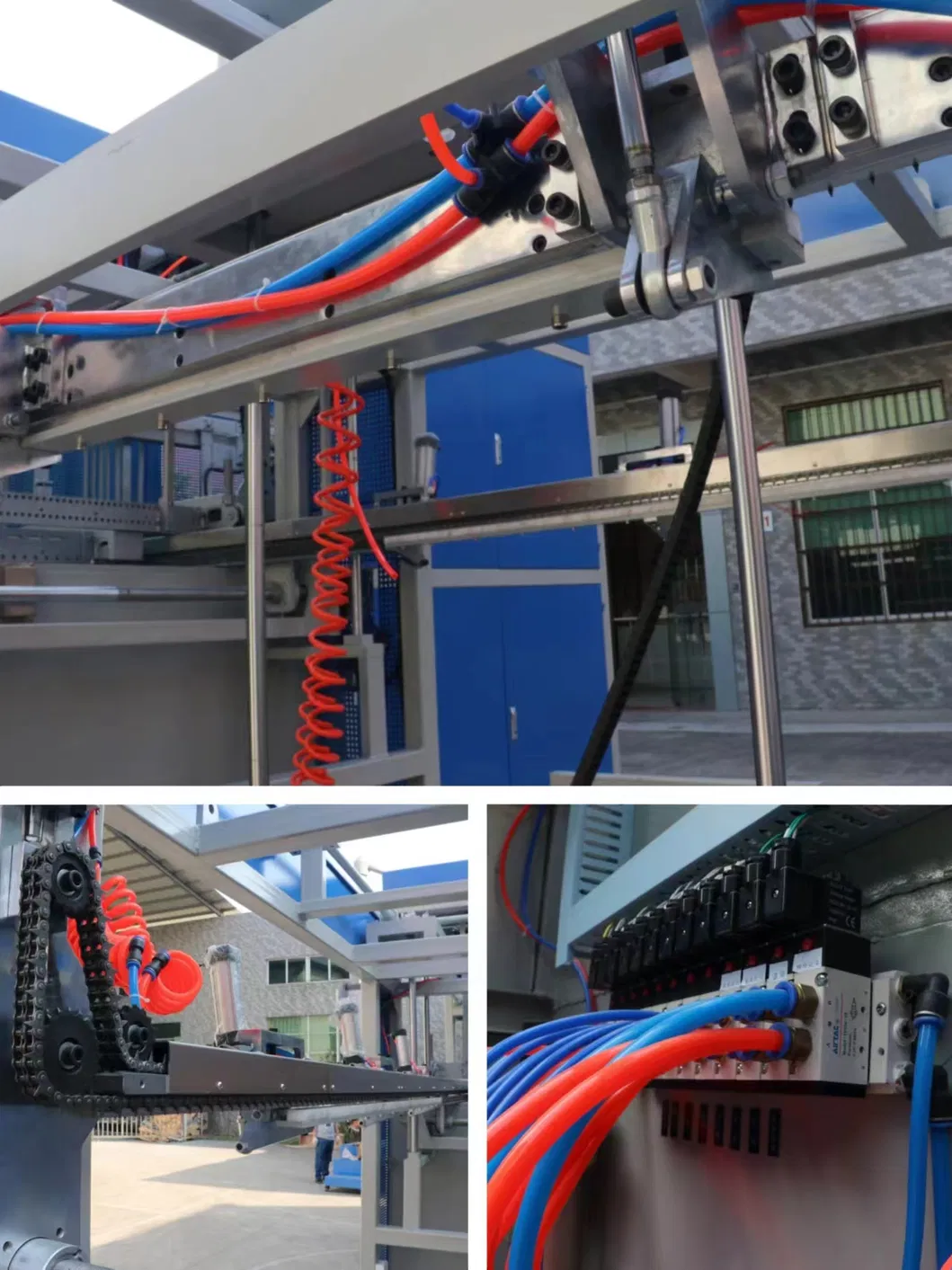

🔍 Detailed Machine Component Views

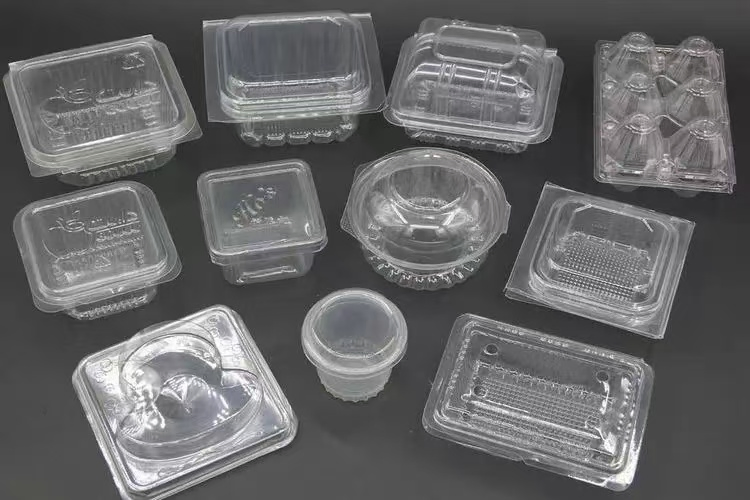

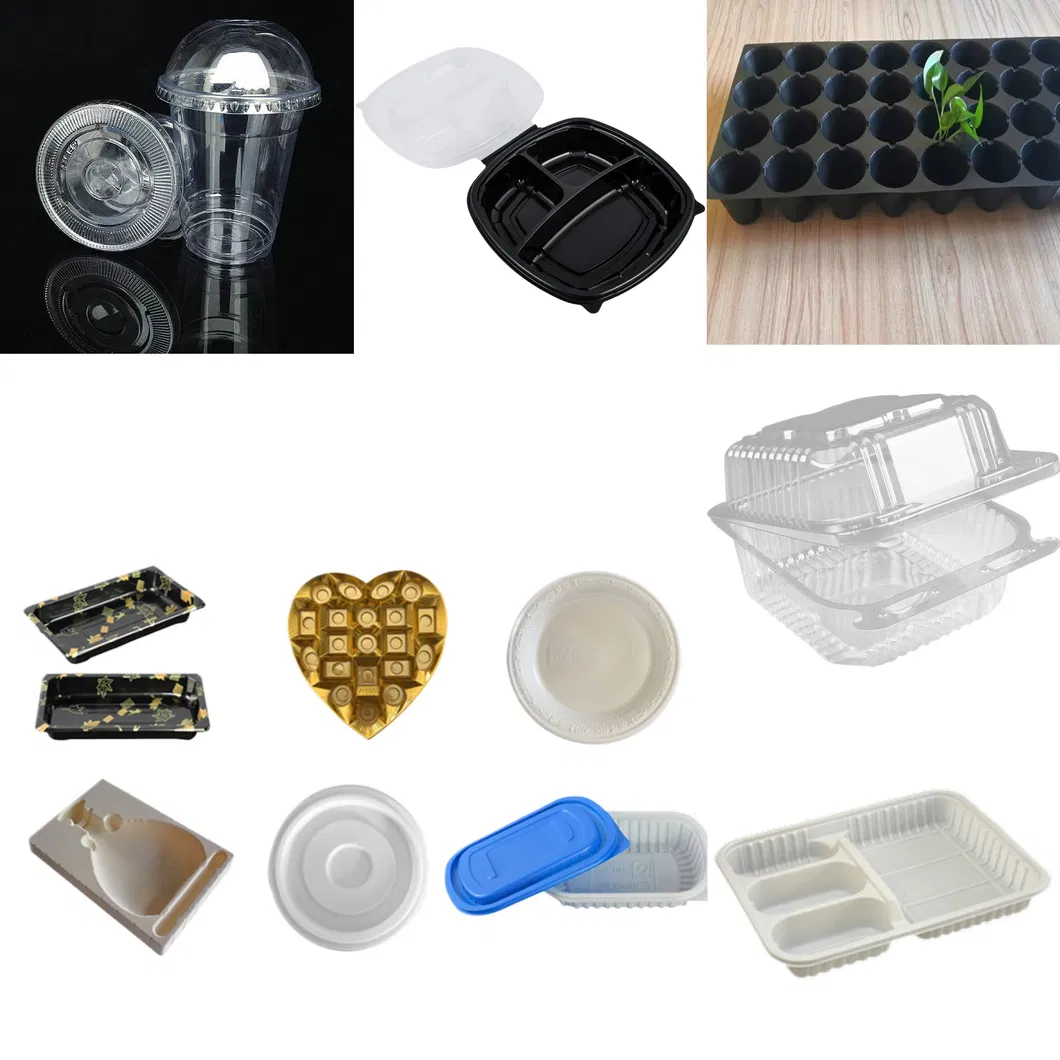

📦 Applications & Final Products

Suitable Materials: HIPS, PS, PP, PVC, PET, ABS and other plastic sheets.

Uses: Processing of highly transparent, high stretch, shallow stretch products such as boxes, plates, trays, bowls, lids, and industrial packaging.

⭐ Our Expertise, Your Advantage

🚀 Professional Technical Team: 20 years of R&D and production experience in vacuum moulding technology.
🛠️ Non-standard Customised Service: One-stop service for excellent complete vacuum forming solutions.
✅ Quality Assurance: All mechanical parts are produced independently by CNC machining centers.
🛠️ Worry-free Service: Integrated installation, commissioning, and training services.

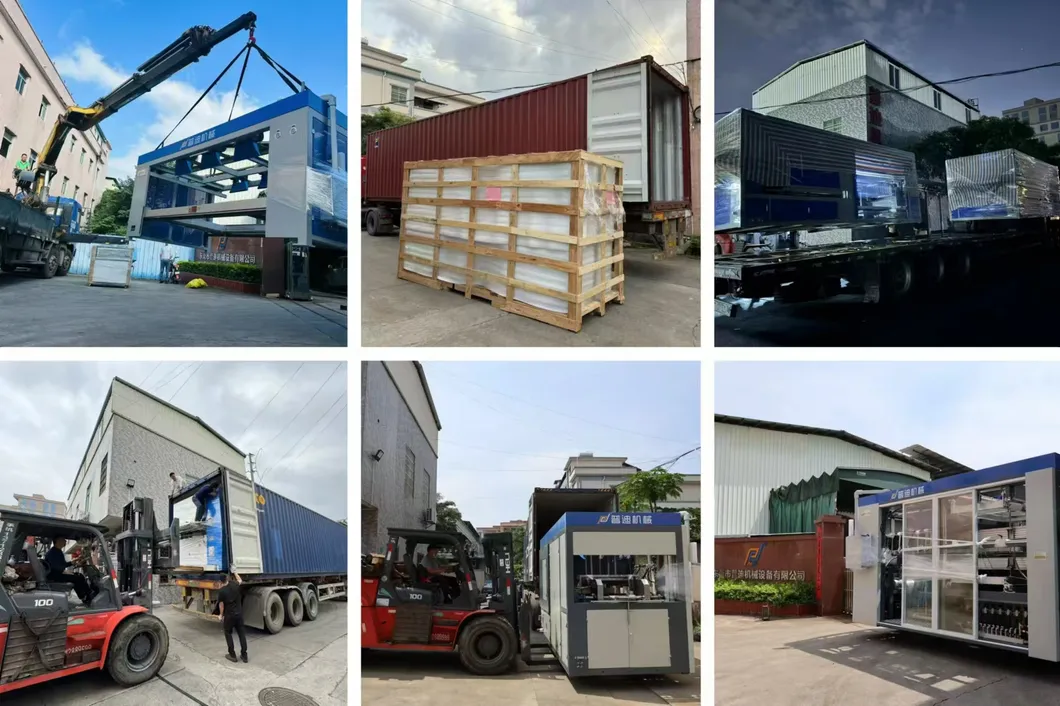

📜 Certificates and Logistics

❓ Frequently Asked Questions

What materials can the PDVF-FY600 machine process?

The machine is compatible with a wide range of plastic sheets including HIPS, PS, PP, PVC, PET, and ABS.

What is the maximum molding area of this equipment?

The maximum molding area is 900mm × 710mm, suitable for various large-scale packaging needs.

What kind of products can be produced with this machine?

It is ideal for producing disposable packaging boxes, coffee cup lids, plastic trays, bowls, and industrial packaging components.

What is the warranty and after-sales service policy?

We provide a one-year warranty for the entire equipment. Parts can be exchanged within the first year (excluding wear parts), and we offer lifetime technical support.

Does the machine support automatic production?

Yes, the machine features an integrated automatic production line including sheet feeding, heating, molding, cooling, cutting, and stacking.

Is on-site installation and training provided?

Yes, after the equipment is completed, our team is responsible for installation, commissioning, and training your operators to ensure smooth production.
