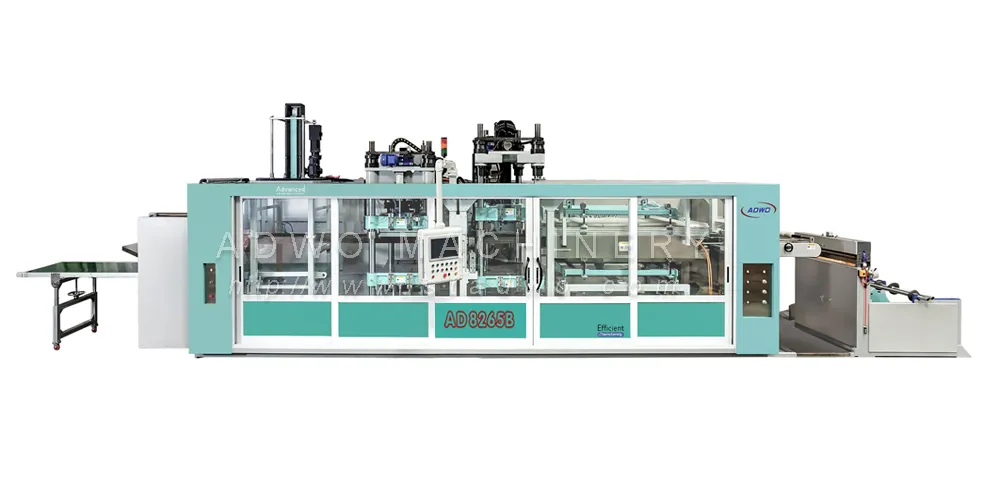

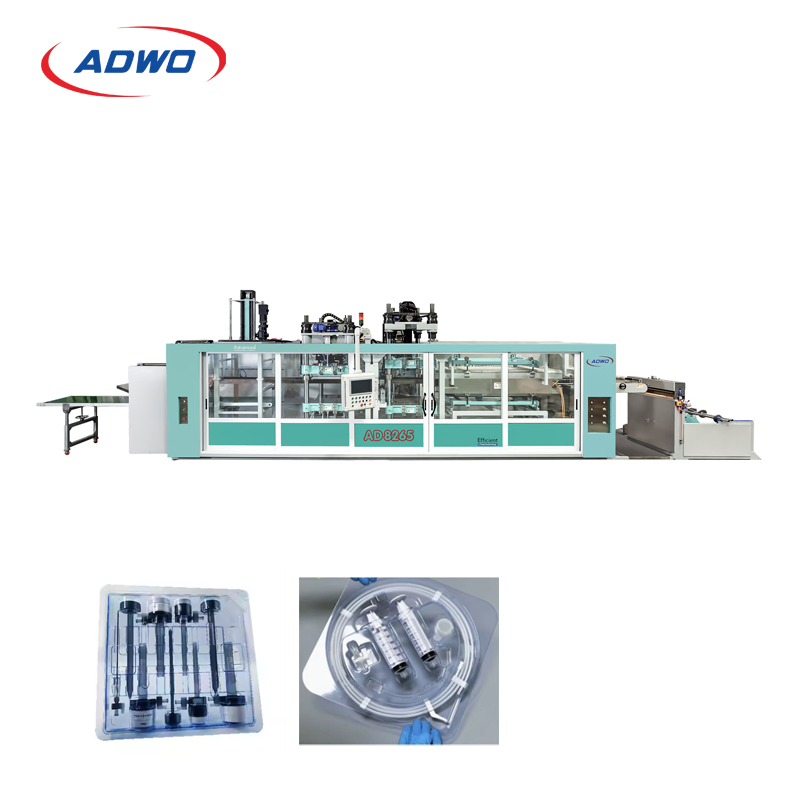

High Speed Automatic 3-station Plastic Medical Box Packaging Vacuum Forming Thermoforming Machine
The AD8265B positive and negative pressure high speed thermoforming machine is developed based on advanced technology. It is widely used in fast food boxes, fruit boxes, bowl lids, medical packaging, and electronic industrial packaging. It features high precision motion control with electronic cam and servo-driven systems for feeding, forming, stretching, cutting, and stacking.

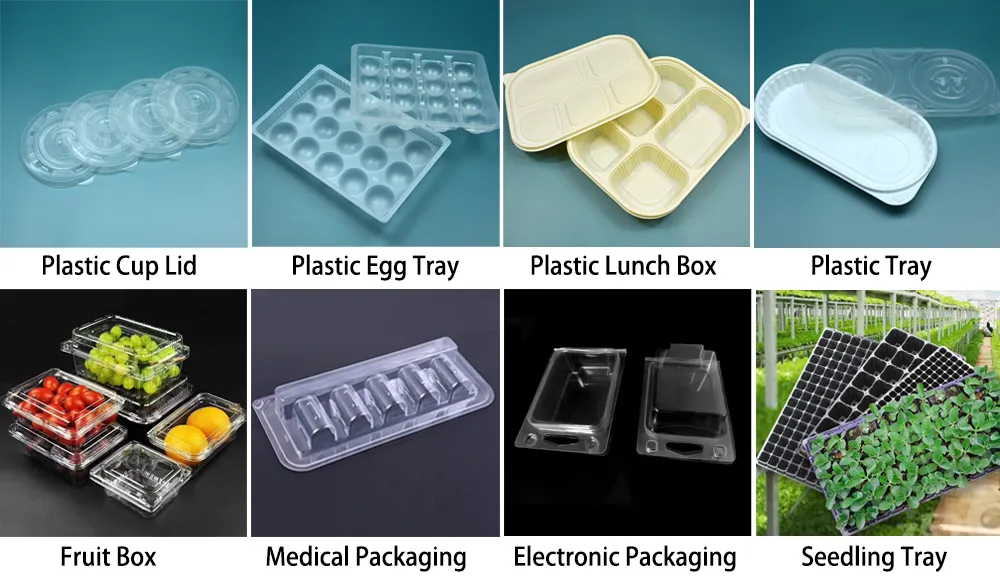

Which Products Could Be Made By This Machine?
| Parameter Item | Specifications (AD8265B) |
|---|---|
| Formed Area (mm) | 820×650 |
| Formed Depth (mm) | ≤ 150 |
| Max Cutting Area (mm) | 800×630 |
| Max Sheet Width (mm) | 860 |
| Sheet Thickness (mm) | 0.12-2 |
| Formed Speed (cycles/min) | ≤ 50 |
| Main Motor Power (kw) | 7.5 |
| Air Pressure (Mpa) | 0.6-0.8 |
| Gas Consumption (L/min) | 5000~6000 |
| Dimension (mm) | 14800x3300x3500 |
Complete functions suitable for diversified production lines, safe and energy-saving.
Adopts 4-section heating method for uniform temperature and high quality results.
Full servo control for feeding, forming, cutting, and stacking ensures stability.
Energy-saving effects can reach 30% - 80% with automated online labeling and stacking.

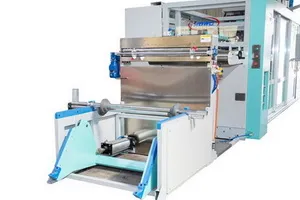

Sheet Unwinder: Infrared sensor controlled, max diameter 1000mm, pneumatic feeding device.
Ceramic Heating Oven: 4-section heating for precise control and energy reduction.

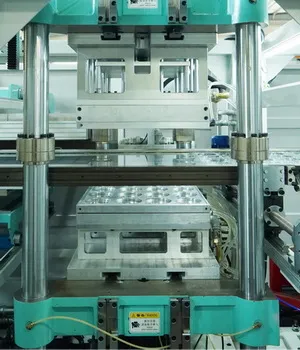

Mold Table: Made of nodular cast iron, high precision, compatible with KIEFEL moulds.

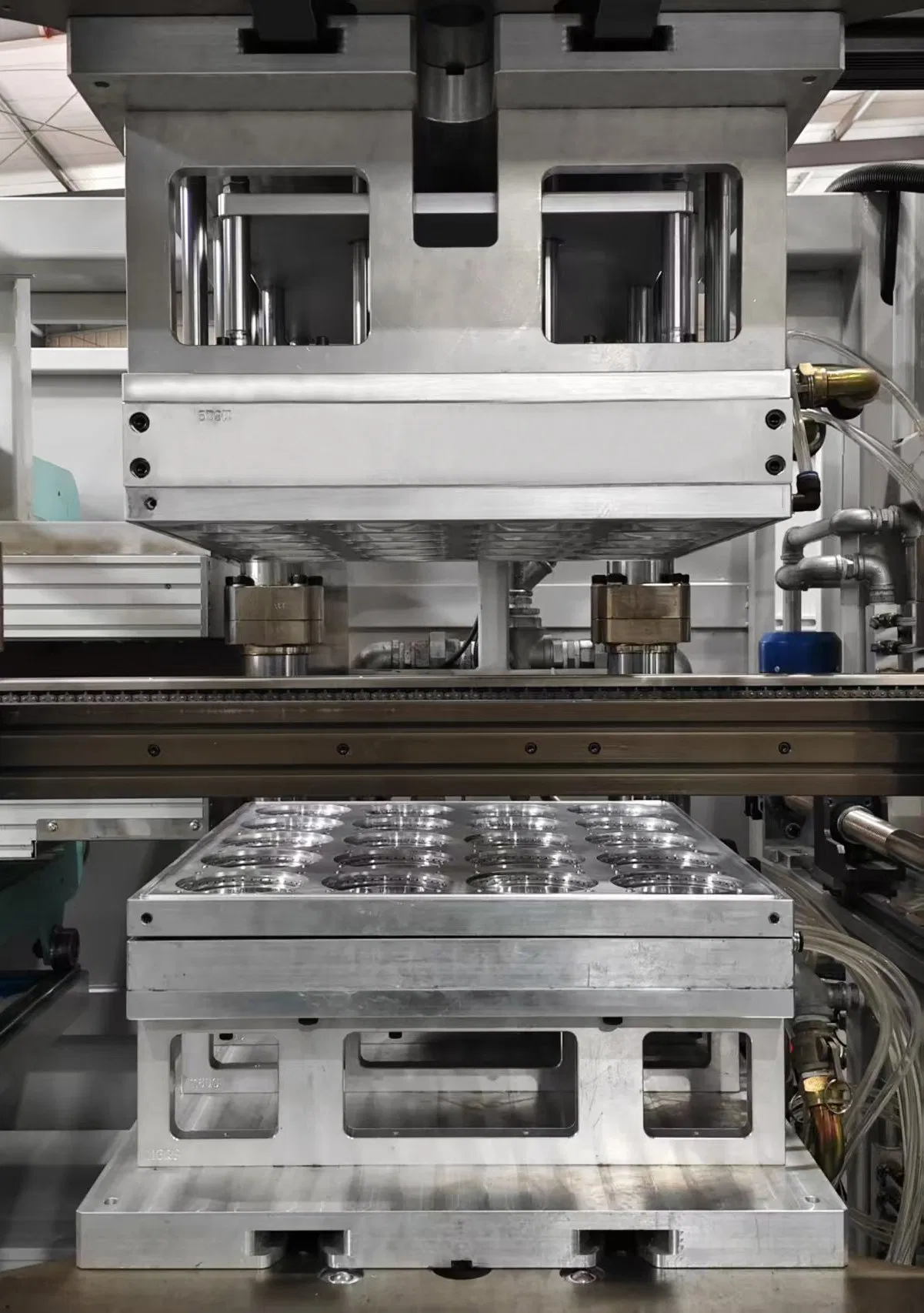

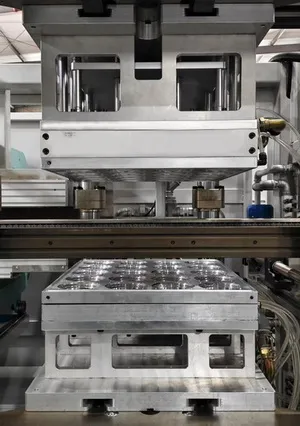

Forming Station: Delta servo drive with quick mold installation mechanism.

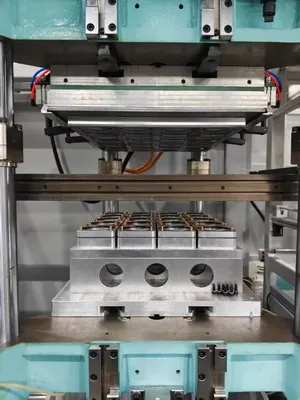

Cutting Station: High-power servo drive with laser blade heating for burr-free slicing.

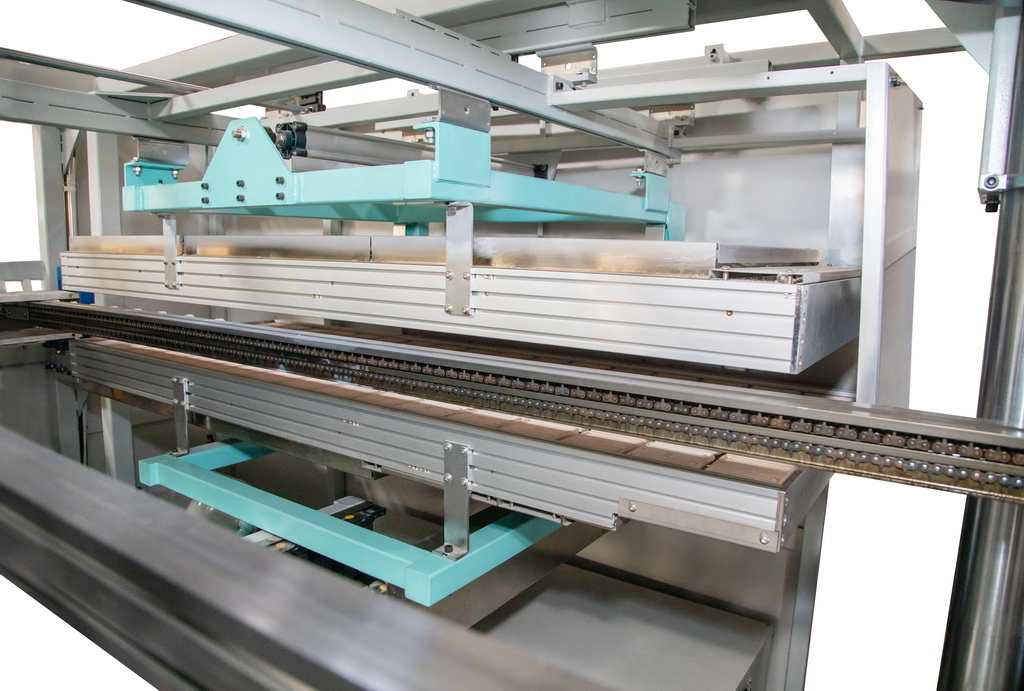

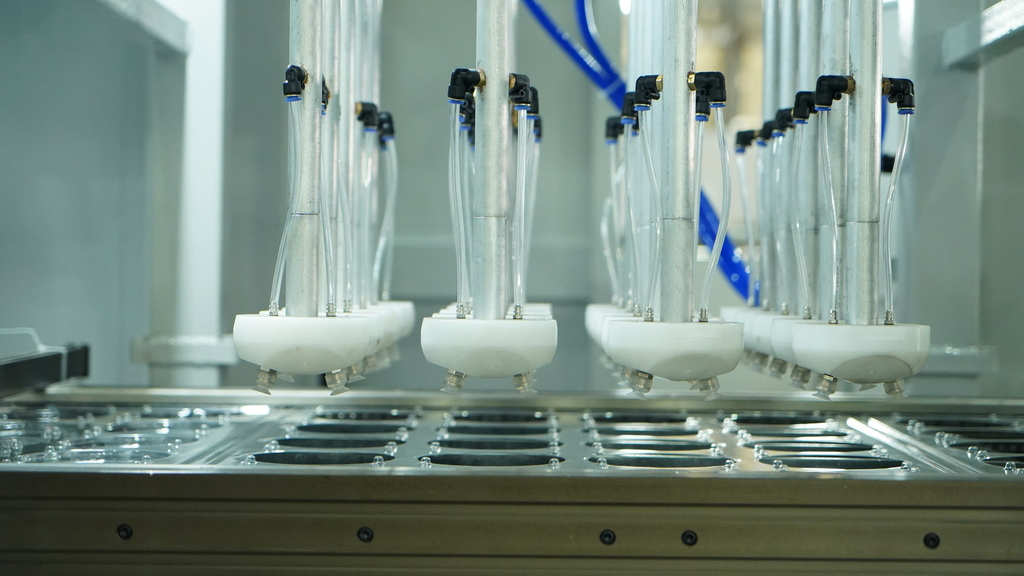

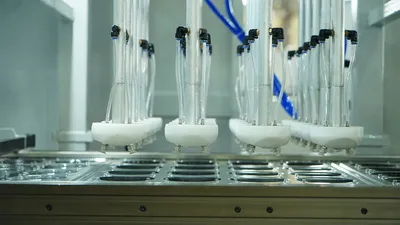

Stacking Station: Automated counting and conveying with ergonomic aluminum rack.

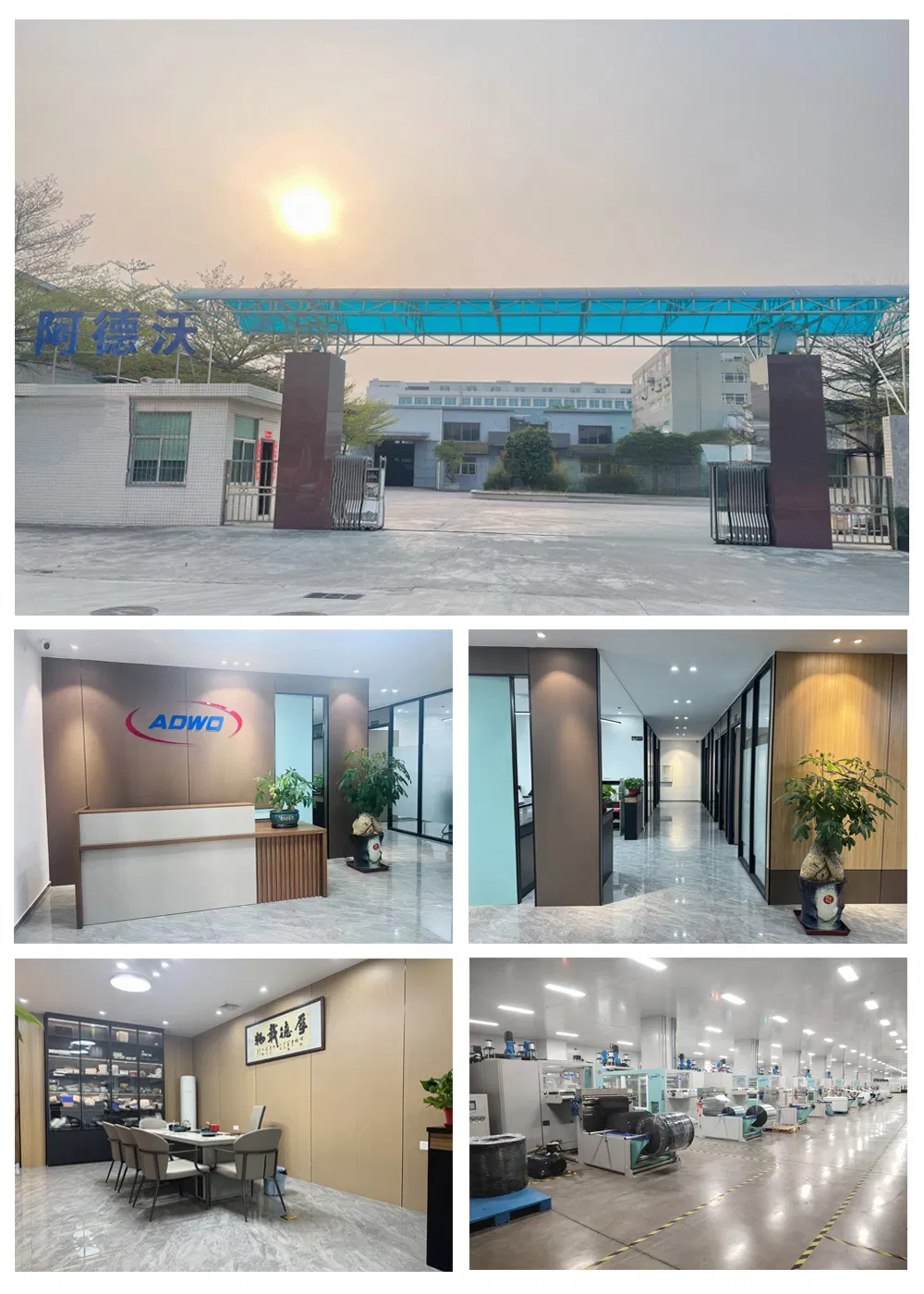

With over 20 years of experience in the thermoforming industry, our team offers complete solutions including technology, equipment, and molds. We prioritize high-standard hardware and mature intelligent control systems to ensure product consistency.
