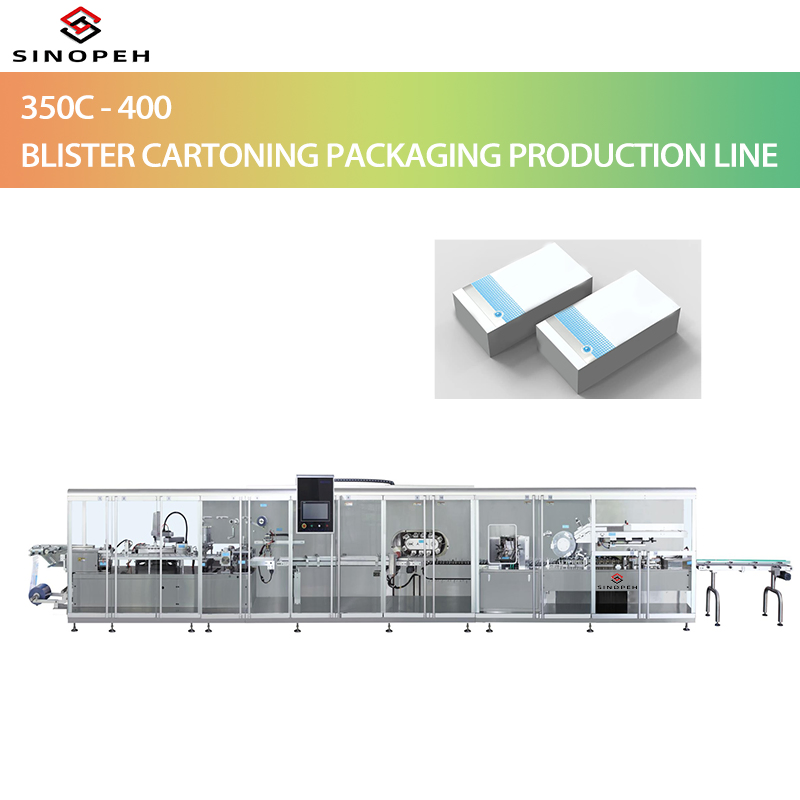

High Speed Automatic Pharmaceutical Blister Cartoning Packaging Production Line
High Speed Automatic Pharmaceutical Blister Cartoning Packaging Production Line
High Speed Automatic Pharmaceutical Blister Cartoning Packaging Production Line
High Speed Automatic Pharmaceutical Blister Cartoning Packaging Production Line
High Speed Automatic Pharmaceutical Blister Cartoning Packaging Production Line
1 / 5
High Speed Automatic Pharmaceutical Blister Cartoning Packaging Production Line
High Speed Automatic Pharmaceutical Blister Cartoning Packaging Production Line
High Speed Automatic Pharmaceutical Blister Cartoning Packaging Production Line
High Speed Automatic Pharmaceutical Blister Cartoning Packaging Production Line
High Speed Automatic Pharmaceutical Blister Cartoning Packaging Production Line

High Speed Automatic Pharmaceutical Blister Cartoning Packaging Production Line

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
350C-400
Application
Cleaning, Detergent, Skin Care, Medical
Driven Type
Electric
Packaging Material
Paper / Cartons
Punching Frequency
16-30 Cycles/Min
Main Motor Power
2.2 Kw
Cartoning Capacity
200 Cartons/Min
Power Supply
380 V, 50 Hz

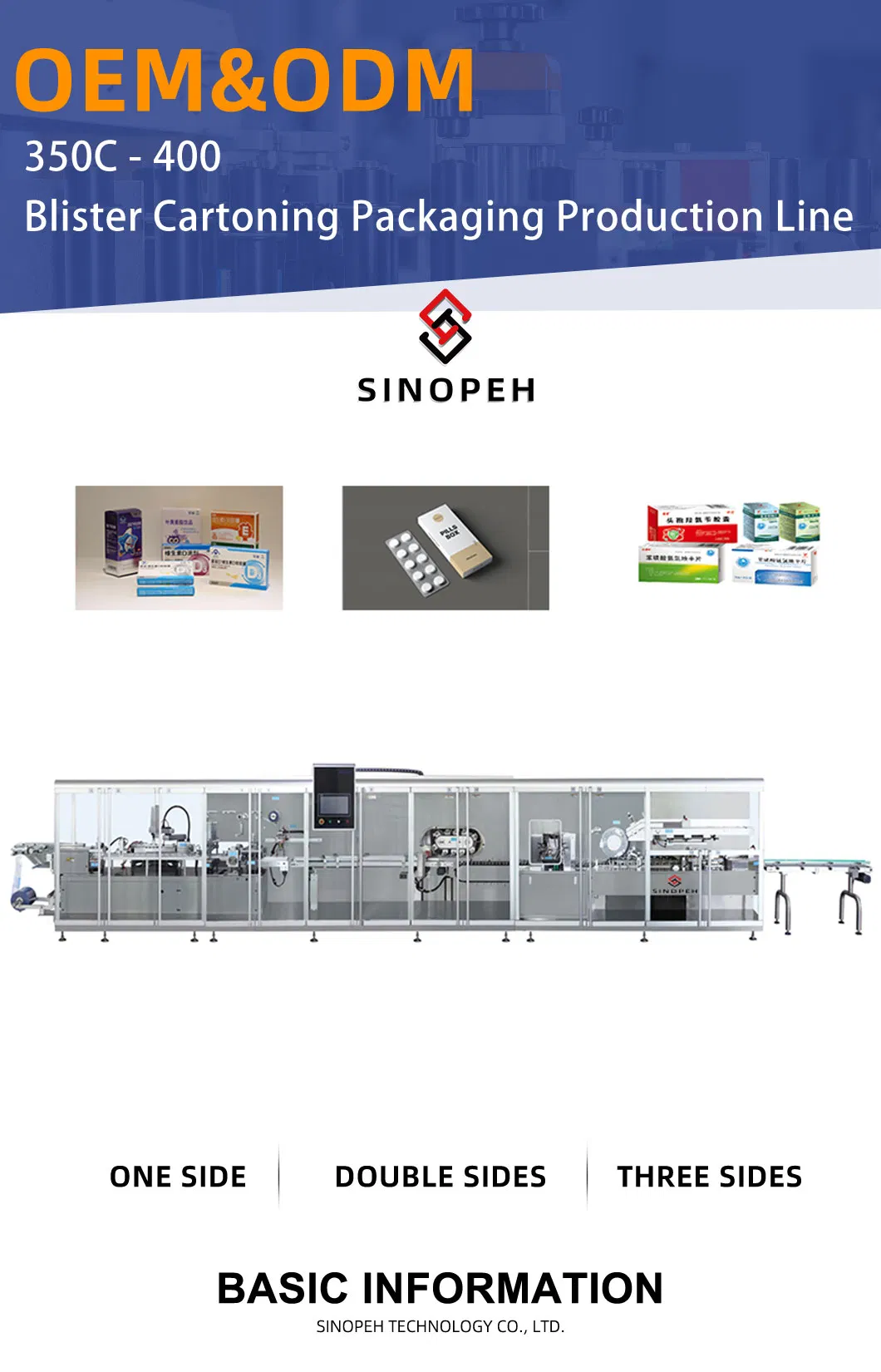

Automatic Pharmaceutical Production Line
Blister Cartoning Machine
T

Technical Parameters

Parameter Item Technical Specifications
Punching frequency16–30 cycles/min
Maximum forming area220×360 mm
Stroke range50–220 mm (servo-controlled)
Packaging materialNon-toxic PVC rigid sheet (0.15–0.5×350 mm)
Electric heating powerPVC preheating plate – 2×4.5 KW
Carton specification (L×W×H)(65–180)×(35–90)×(16–75) mm
Cartoning capacity200 cartons/min
Total machine power24 KW
Air supply pressure0.6–0.8 MPa
Overall dimension13500×2700×2050 mm
D

Product Features & Description

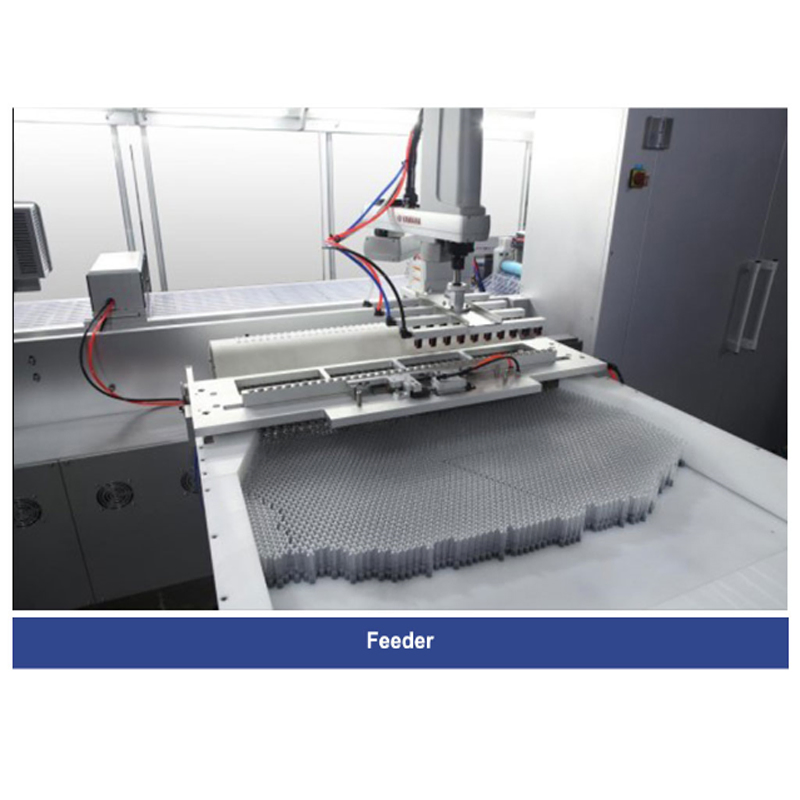

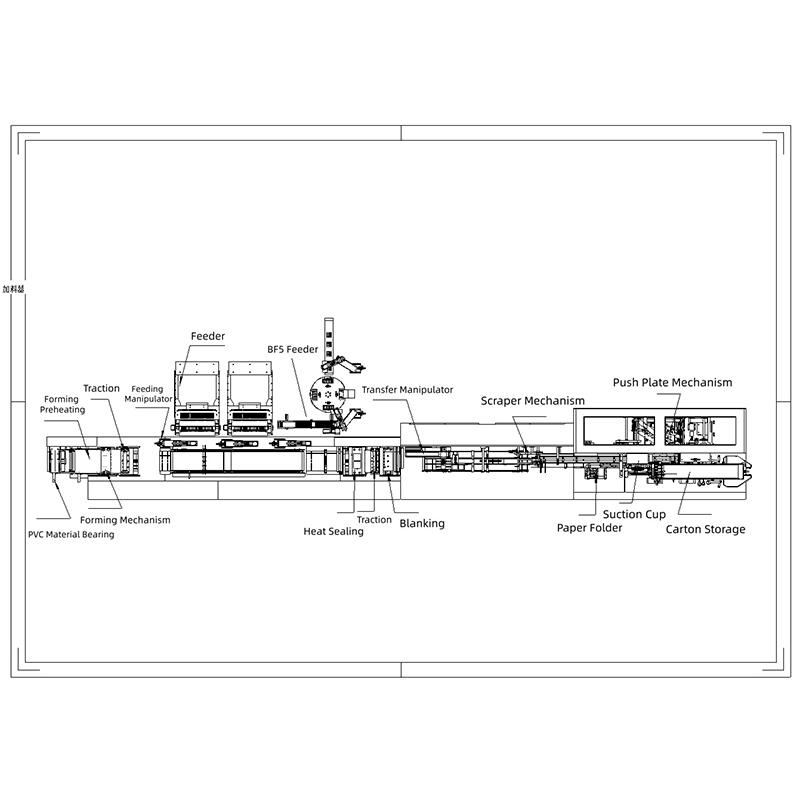

This machine integrates blister packaging and cartoning functions, capable of implementing a complete automated process: bottle feeding → blister forming → blister cutting → automatic loading → carton opening → leaflet folding → cartoning → carton sealing. It is specifically designed for high-speed blister packaging and cartoning of oral liquid bottled pharmaceuticals.

  • Advanced Control: Adopted computer control system for product counting, status statistics, and fault maintenance indexing.
  • Safe Operation: Equipped with alarm devices for all material hoppers and automatic fault shutdown protection.
  • GMP Compliance: The transmission area is completely separated from the packaging area, ensuring no contamination and easy cleaning.
  • High Automation: Full-process automatic monitoring covering PVC forming, blister transfer, leaflet insertion, and sealing.
  • Quality Components: Over 90% of electrical components utilize well-known international brands.
  • Integration: Seamlessly connects with upstream labeling machines for a continuous production flow.
Machine Detail 1

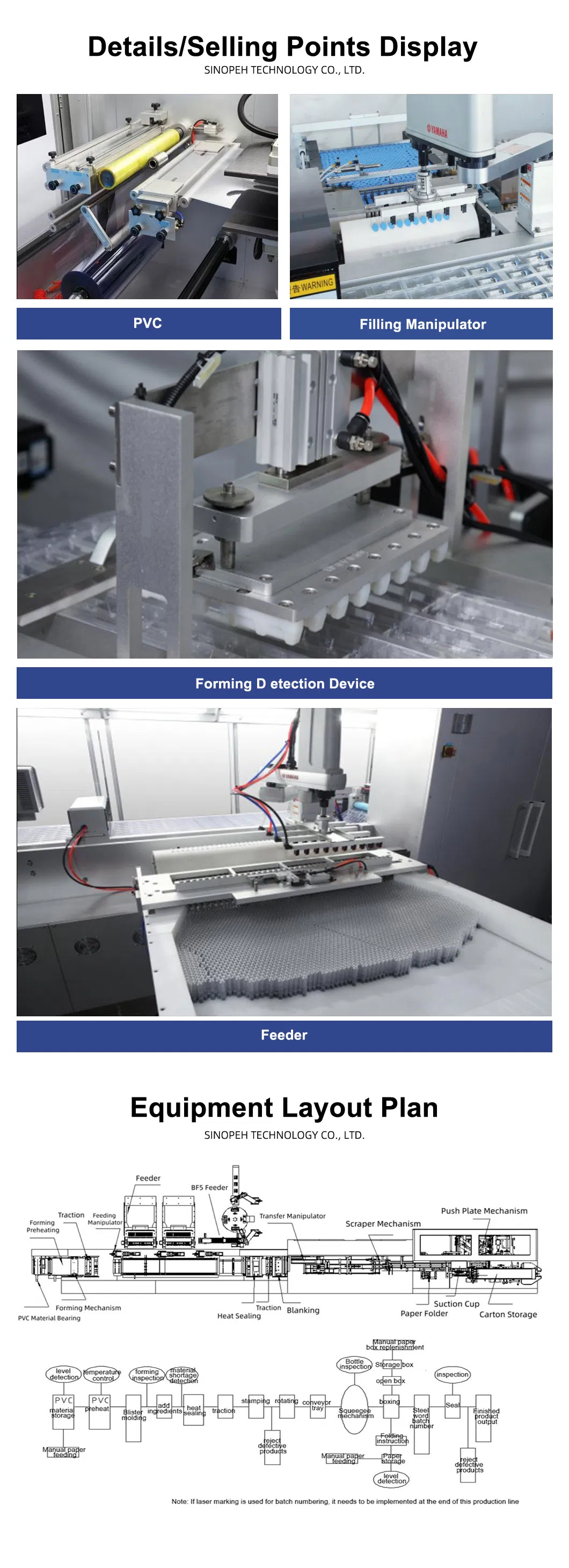

Machine Detail 2
Machine Detail 3
Machine Detail 4
Machine Detail 5
Machine Detail 6
Final Packaging Output
?

Frequently Asked Questions

Q1. Are you a manufacturer? Yes, we are a source manufacturer with extensive experience in pharmaceutical packaging machinery, maintaining professional technology, production, and quality inspection departments.
Q2. What is the warranty period for the machinery? We provide an 18-month warranty period for the whole machine (excluding human factors) and life-long consultation services with 24-hour technical support.
Q3. Can the production line be customized? Yes, customized design is provided. We can customize the molds and machine configurations according to your specific product requirements and samples.
Q4. How do you handle voltage requirements for different countries? Our team confirms the specific voltage requirements with each customer before production to ensure the equipment fits your local power supply.
Q5. How do you ensure machine quality before delivery? Before delivery, we produce the equipment according to agreed requirements and provide detailed installation videos, operation manuals, and testing documents. We also support third-party FAT and SAT inspections.
Q6. What support is provided for installation and debugging? We provide English software, user manuals, and installation/debugging support by experienced technicians to ensure the production line operates smoothly.
