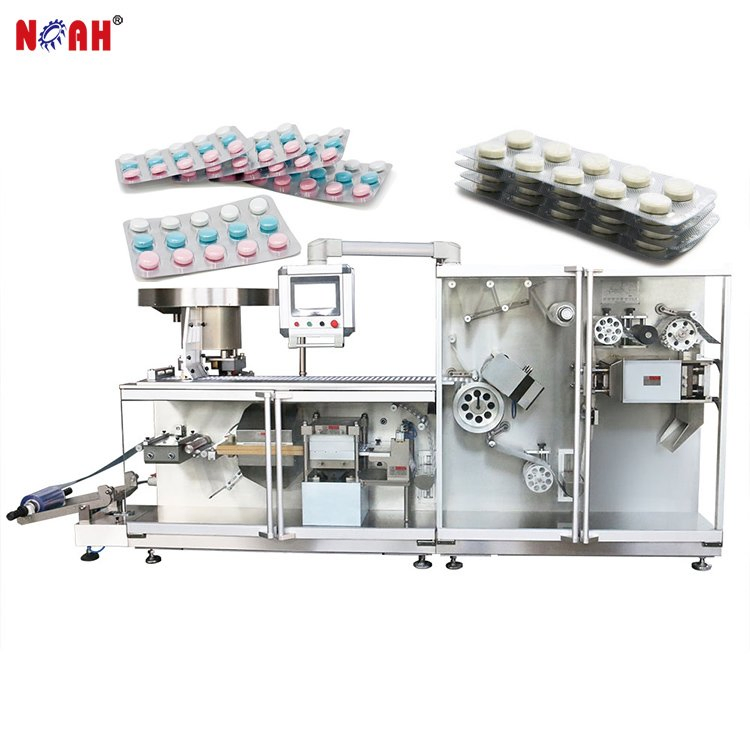

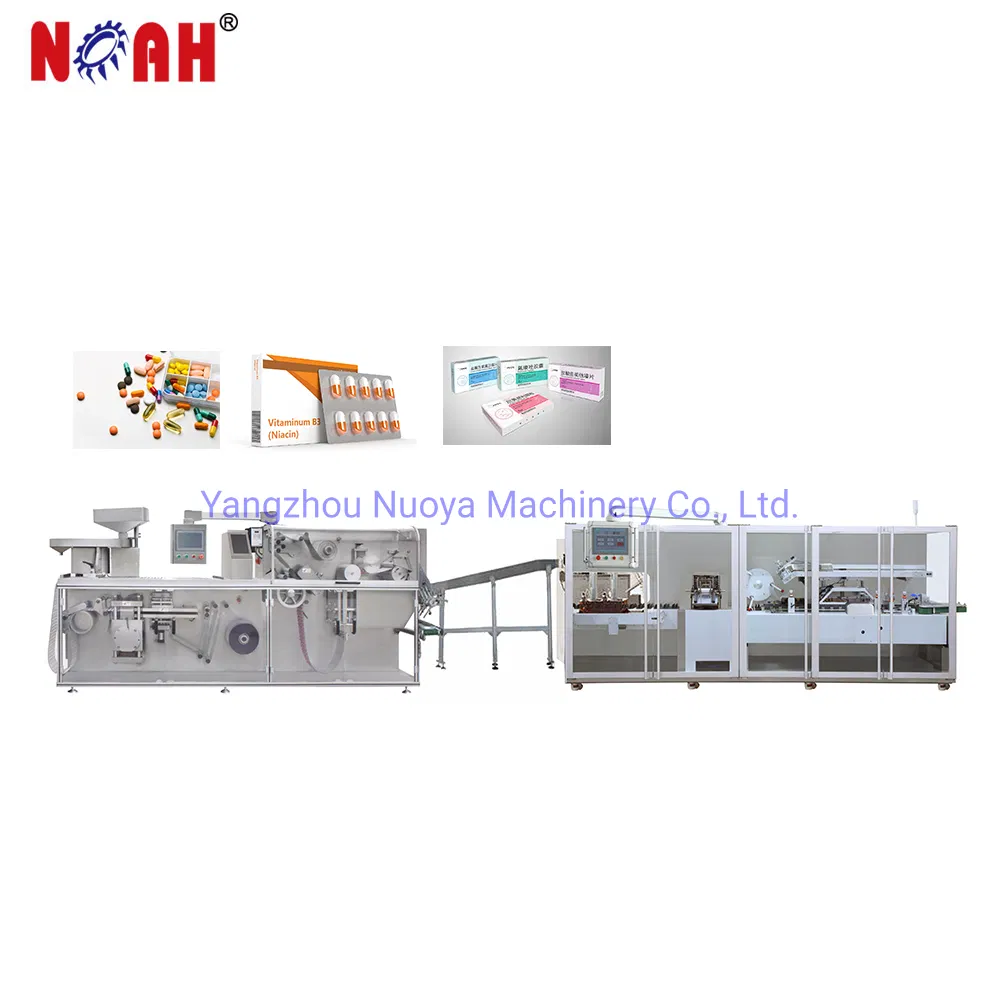

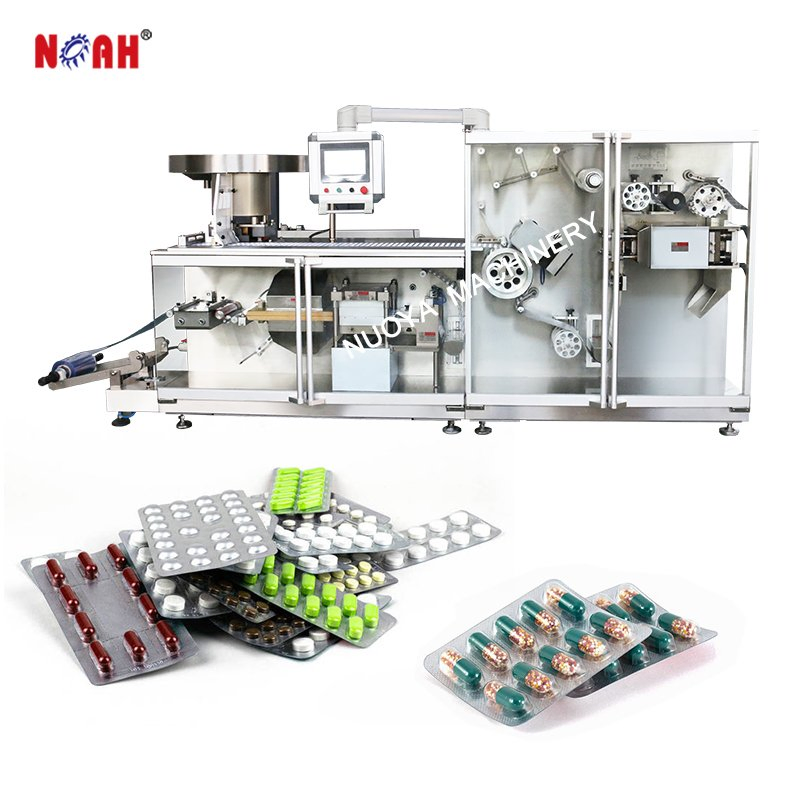

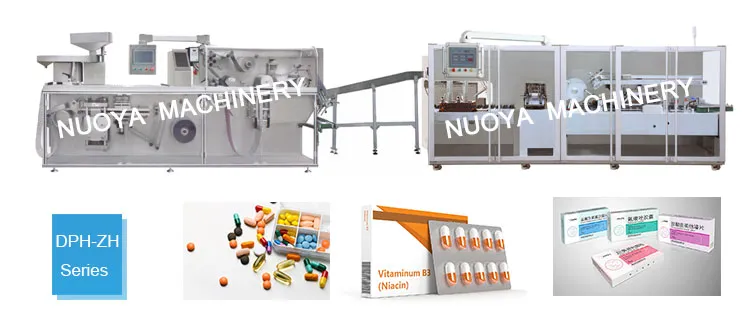

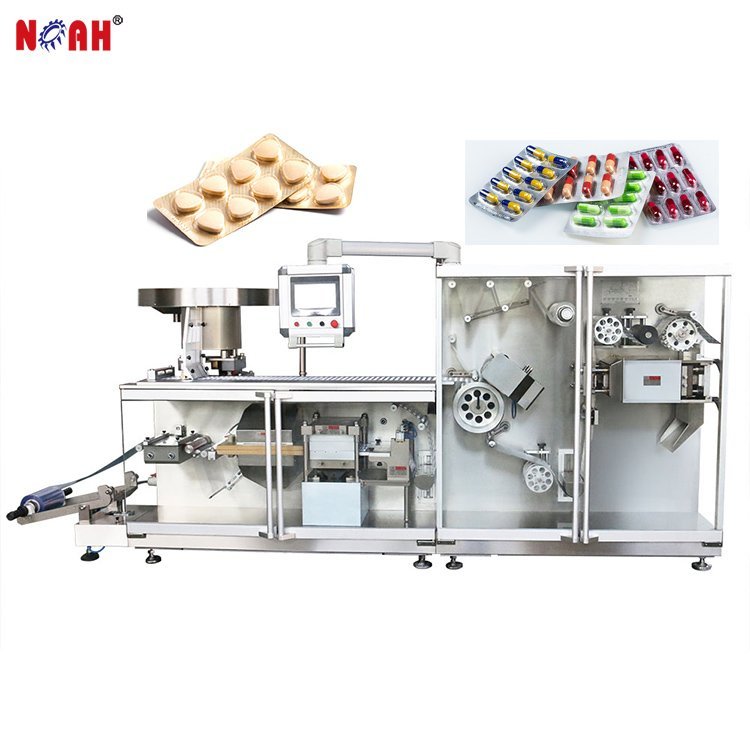

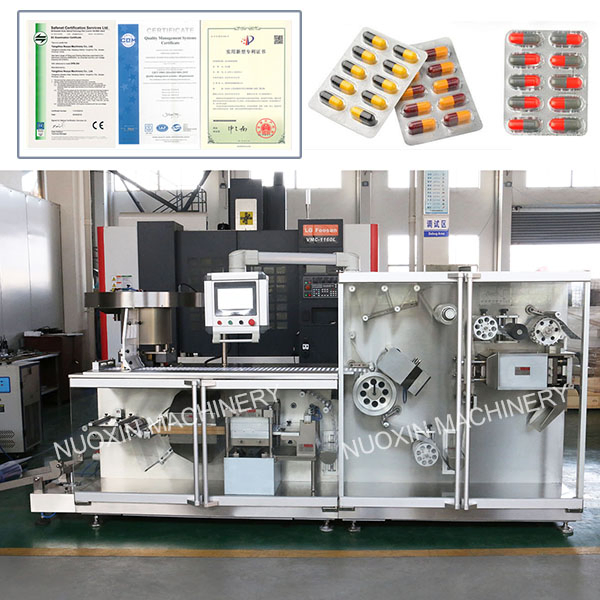

High Speed Blister Package Line: This Blister-Cartoner Line is combined with the DPH260 Blister Machine and ZH220 Cartoner. Through integration of a blister and cartoner module for packaging and cartoning of pharmaceutical tablets, capsules and ampoules, this Blister Packaging Line is innovative response to the need for high efficiency and low-cost operation, flexibility and maximum productivity for mass batch production.
Main Technical Parameters: Maximum Output reaches 150 cartons/min.
| DPH-260 Parameters | Value | ZH-220 Parameters | Value |
|---|---|---|---|
| Max Production Capacity | ≤150 punch/min | Packing Speed | 50-220 boxes/min |
| Max Wire Speed | 20 M/min | Min Plate Size | 50×30×10mm |
| Max Forming Depth | 12mm | Min Bottle Size | Φ25×60 |
| Max Forming Area | 260X230 mm² | Unfolded Leaflet Size | (90-250)x(80-190)mm |
| Max Material Width | 260mm | Main Motor Power | 2.2Kw |
| Gas Source | 0.6 MPa / <12 M³/h | Total Power | 5Kw |
| Water Source | 15-18°C / <0.08 M³/h | Air Pressure | 0.5-0.7Mpa |
