📑 Basic Information
Model NO.UBM-260
ApplicationCommodity, Machinery, Medical, Food
Driven TypeMechanical
Automatic GradeAutomatic
Output260 box/Min
Weight2900 kgs
Power6 kw
Pressure≥0.6MPa
📦 Product Description
⚙️

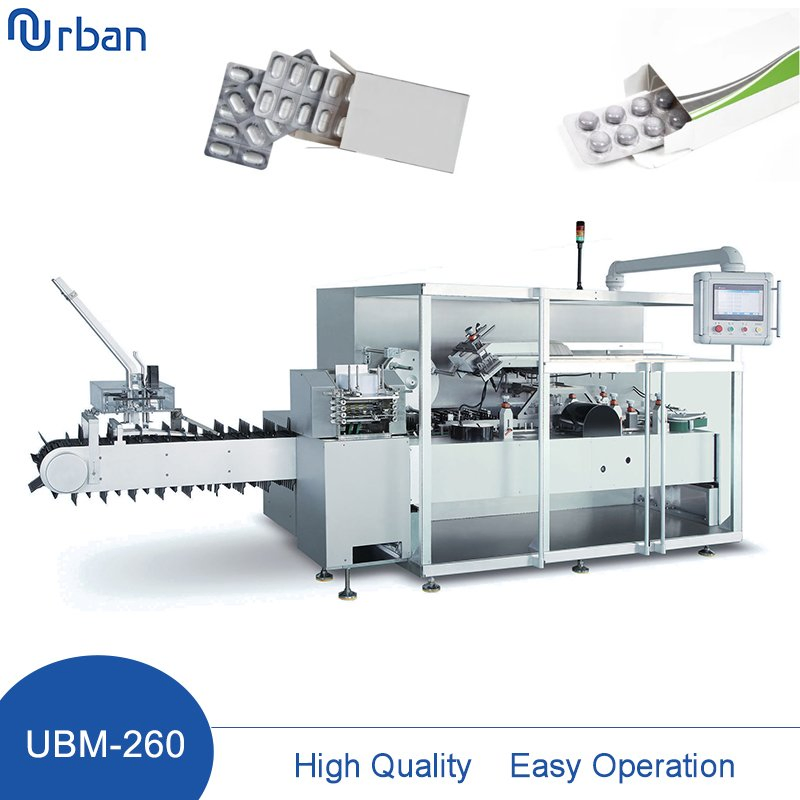

Introduction: The UBM-260 cartoning machine is a high-speed packaging solution specifically designed for blister or pharmaceutical products. It integrates multiple functions including directional folding (1-4 folds), automatic blister feeding, cardboard case forming, batch number printing, and dual-end sealing. The entire process is fully automated and supports the integration of hot-glue systems.
📊 Technical Parameters
| Main Technical Parameters |
UBM-260 |
| Encasing Speed |
260 cartons/min |
| Carton |
Quality Requirement |
250-400g/m² |
| Dimension Range (L*W*H) |
(70-200)*(35-90)*(14-70)mm |
| Leaflet |
Quality Requirement |
60-70g/m² |
| Unfolded Specification |
(80-290)*(60-195)mm |
| Fold Range |
1-4 fold |
| Compressed Air |
Working Pressure |
≥0.6mpa |
| Air Consumption |
160-220L/min |
| Power Supply |
380V 50HZ |
| Machine Dimension (L*W*H) |
4500*1600*1800mm |
🌟 Key Features
- Conforms to cGMP standards & CE Marked.

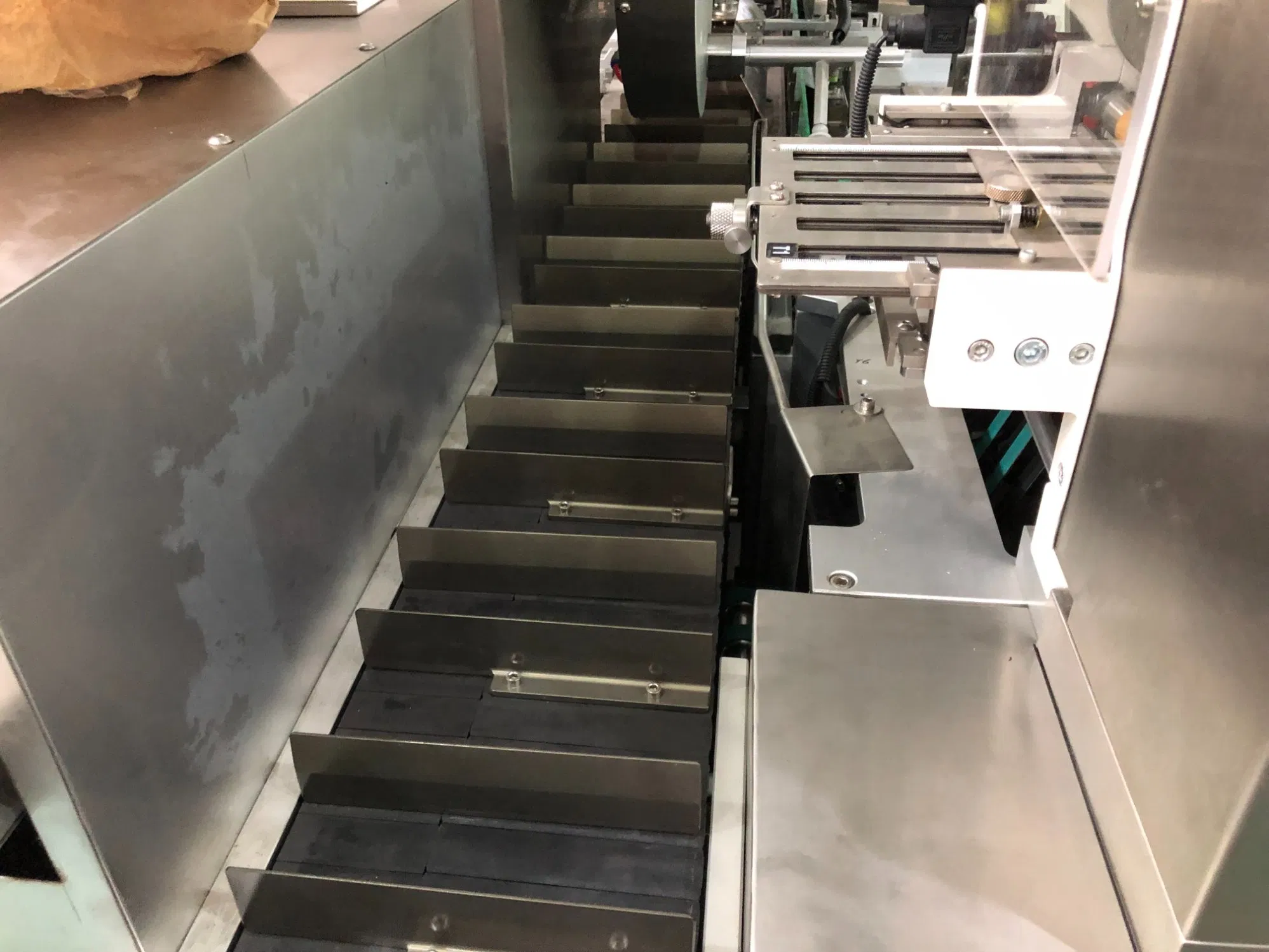

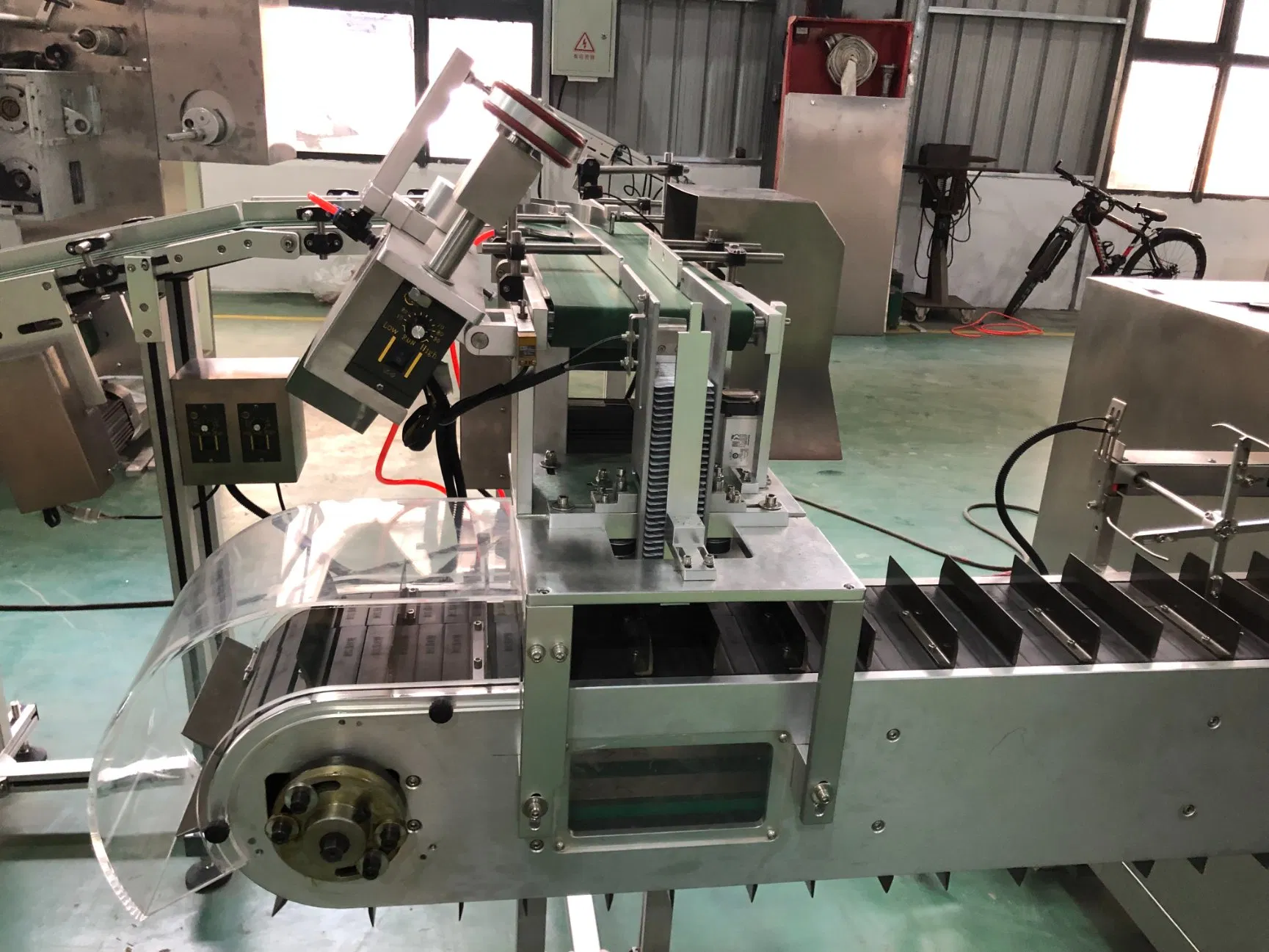

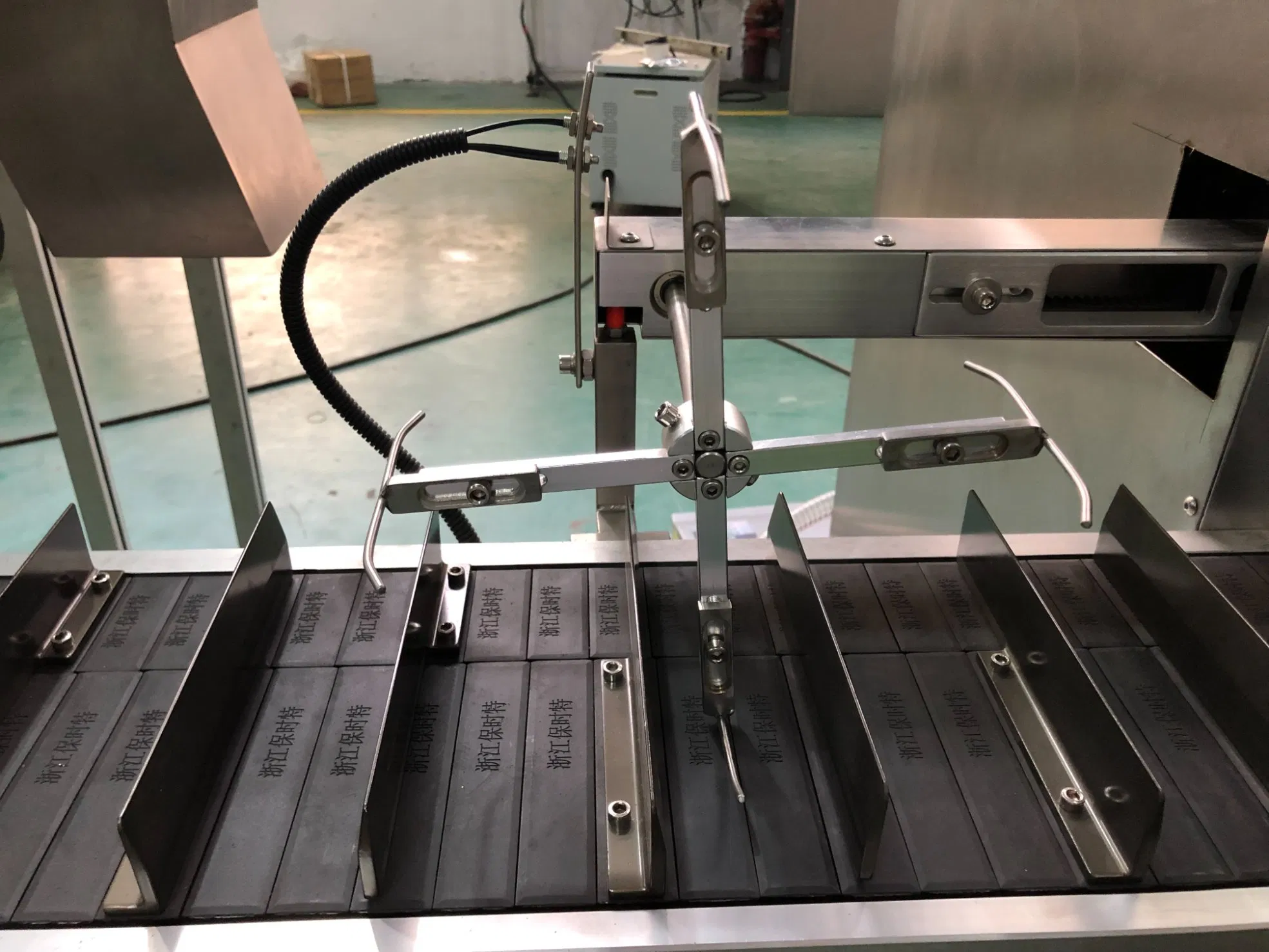

- Equipped with dedicated feeding devices for blisters.

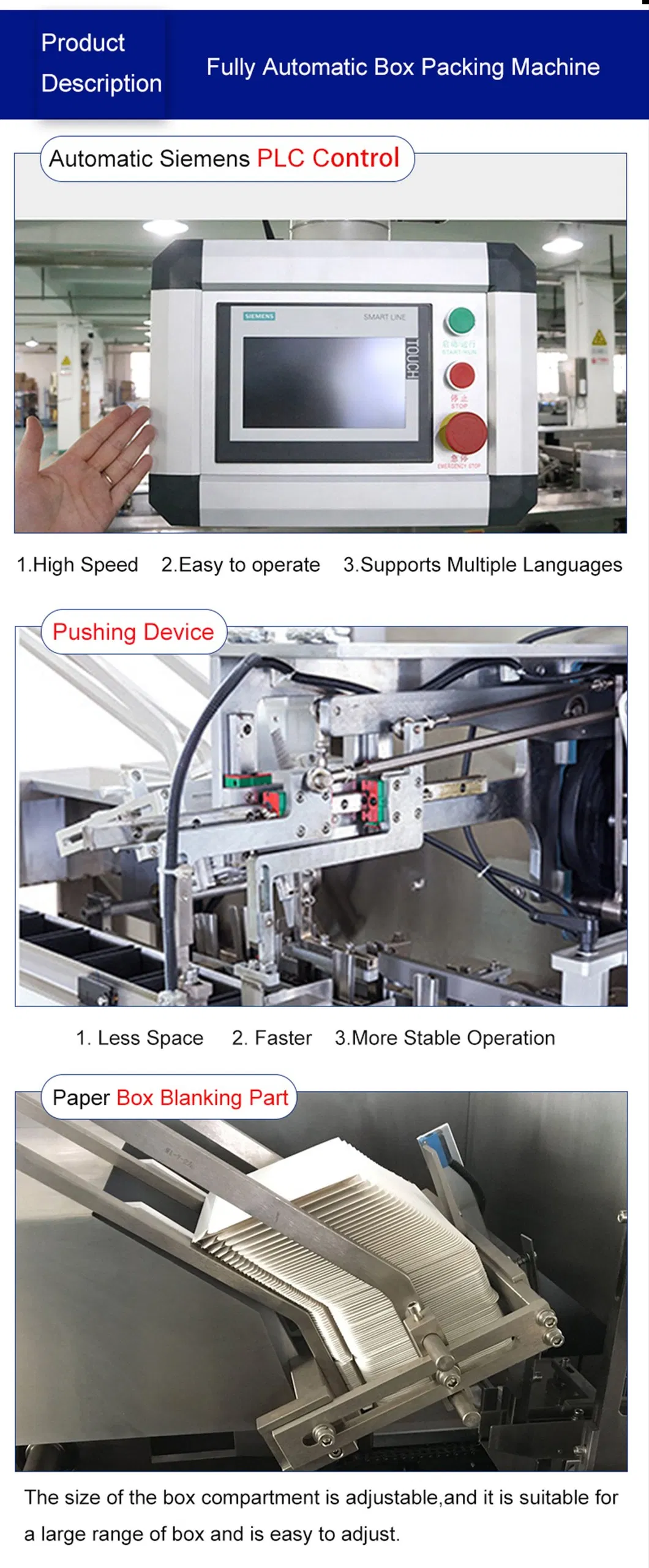

- Uses international brand components (PLC touch screens, frequency inverters).
- Advanced human-machine operation system.
- Automatic overload protection and emergency stop.
- Automatic rejection of products lacking packages or leaflets.
- Real-time trouble display, alarm system, and product counter.
- Fully adjustable size range with digital position indicators.

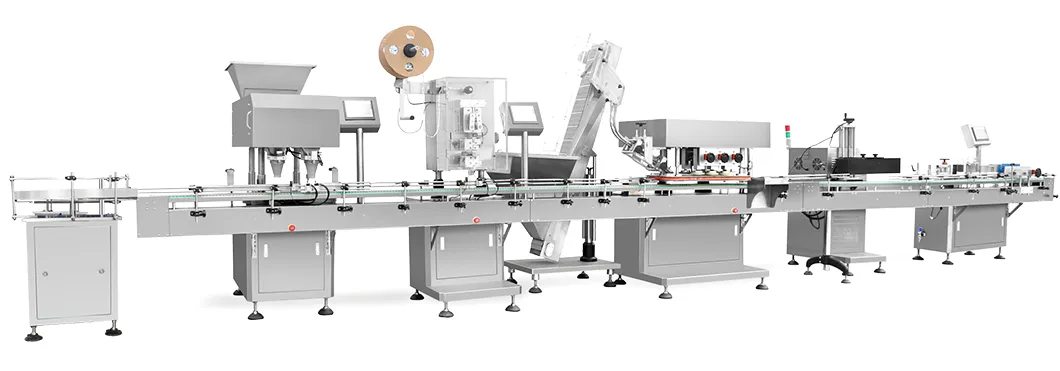

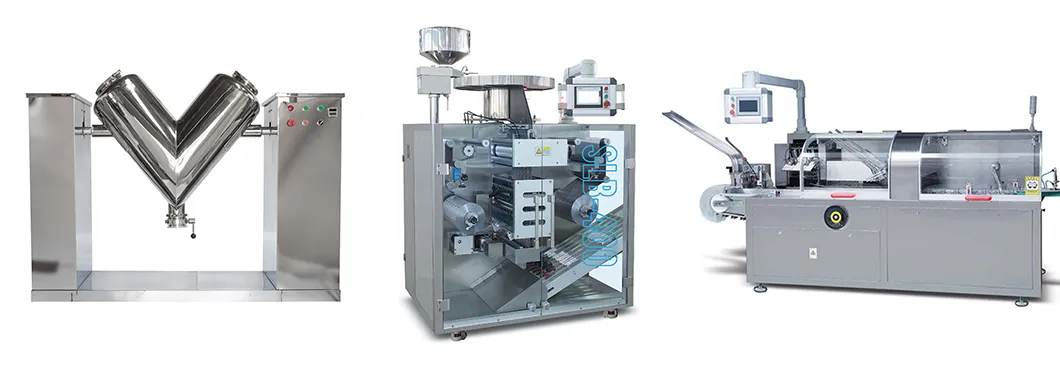

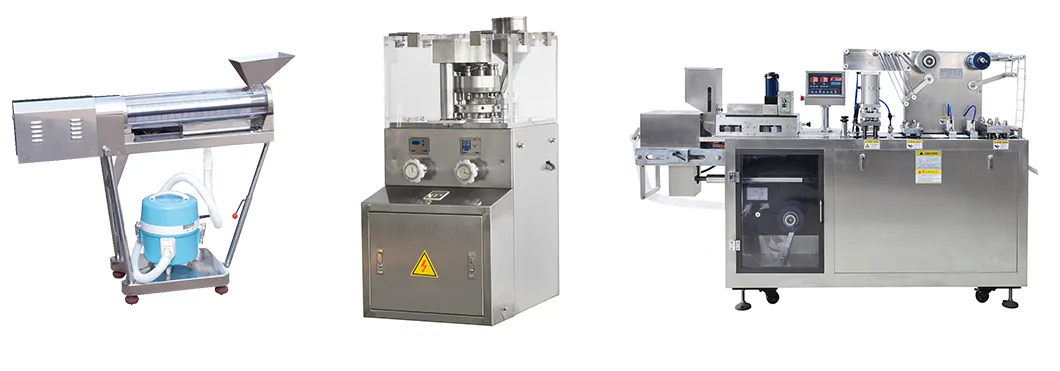

💡 Product Recommendations
🏆 Our Advantages
Pre-sale Service
- Product customization support.
- Sample testing on actual machines.
- Professional packaging solutions & consulting.
- Factory layout design.
After-sales Service
- Detailed manual books and installation videos.
- Online technical support and communications.
- Engineer overseas service availability.
- Warranty part replacement.

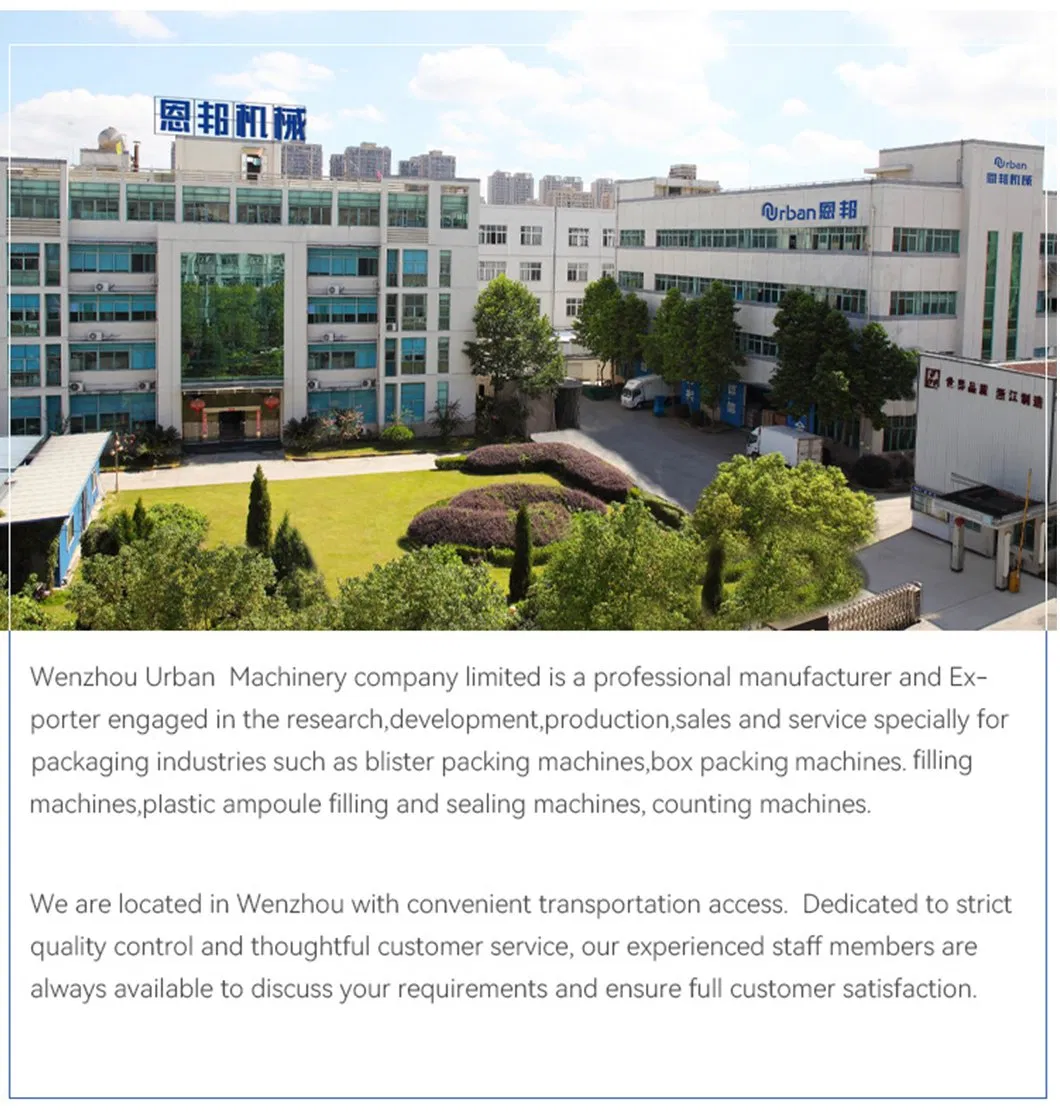

🏢 Enterprise Overview & Logistics
❓ Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer with our own factory and dedicated exporting department.
Q2: What is the typical lead time for the machine?
Normally, the production lead time is approximately 30 to 45 working days.
Q3: What are the available payment terms?
We accept a 30% deposit via TT, with the remaining 70% paid before shipment. We also support L/C and Western Union.
Q4: How difficult is it to install the machine?
Standard small machines are shipped fully assembled; you only need to connect power and compressed air. For larger machines, we provide detailed instructions and videos to ensure easy assembly.
Q5: Can the machine voltage be customized for my country?
Yes, we can customize the power voltage and frequency to meet your specific local factory requirements.
Q6: Can we inspect the machine before placing an order?
Absolutely. You are welcome to visit our factory at any time to check the machines and see them in operation.
