| Model NO. | AD8265B |
| Column number | Four Column |
| Molding Method | Pultrusion |
| Automatic Grade | Automatic |
| Process | Forming-Cutting-Stacking |
| Application | Plastic Medical Blister Box |
| Available Material | PP, Pet, BOPS, HIPS, OPS, PVC, Cpla, Cpet, APET |
| Sheet Thickness | 0.12-2mm |
| Max. Formed Area | 820×650mm |
| Max. Cutting Area | 800X630mm |
| Max Sheet Width | 860mm |
| Max. Formed Depth | 150mm |
| Max Formed Speed | 50cycle/Min |
| Power Supply | 380V/50Hz 3 Phase 4 Line |
| Package Size | 1480.00cm * 330.00cm * 350.00cm |
| Package Gross Weight | 18000.000kg |

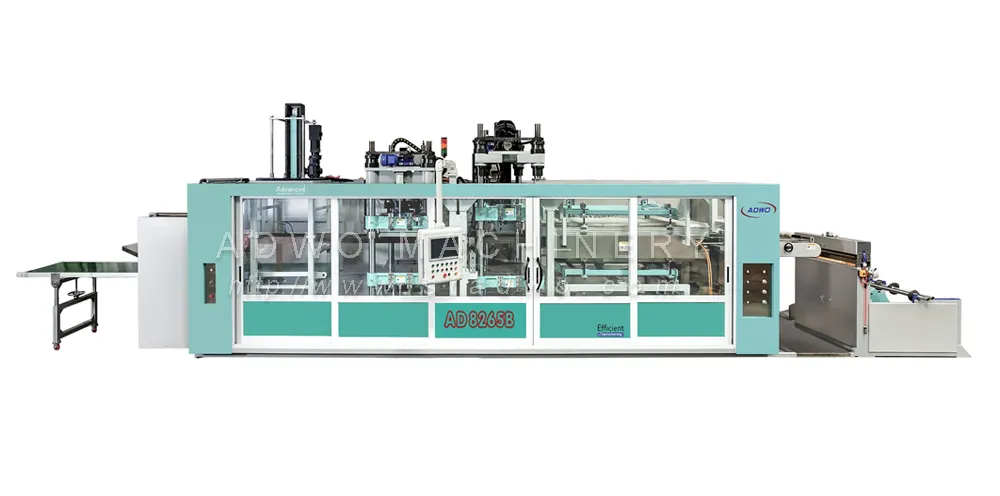

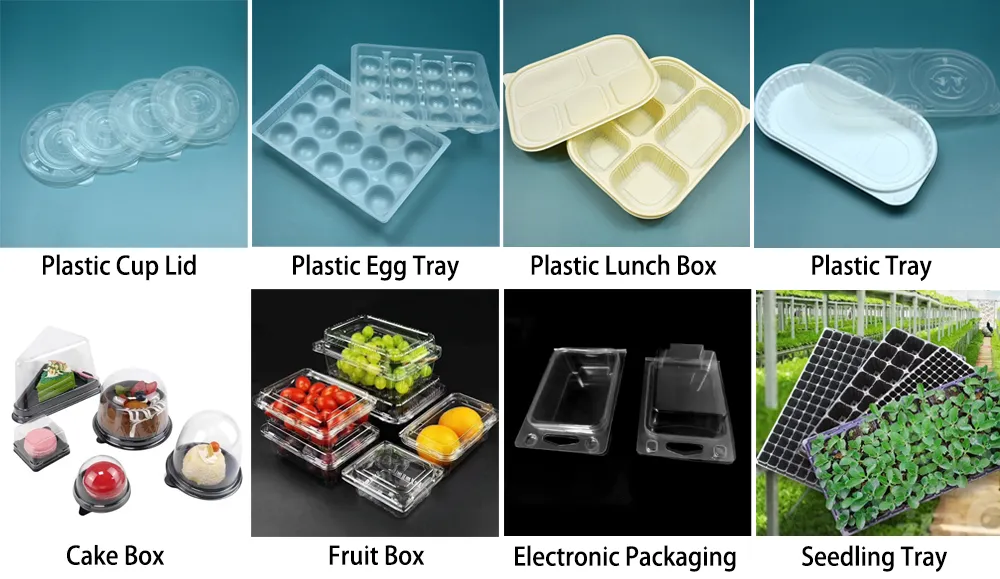

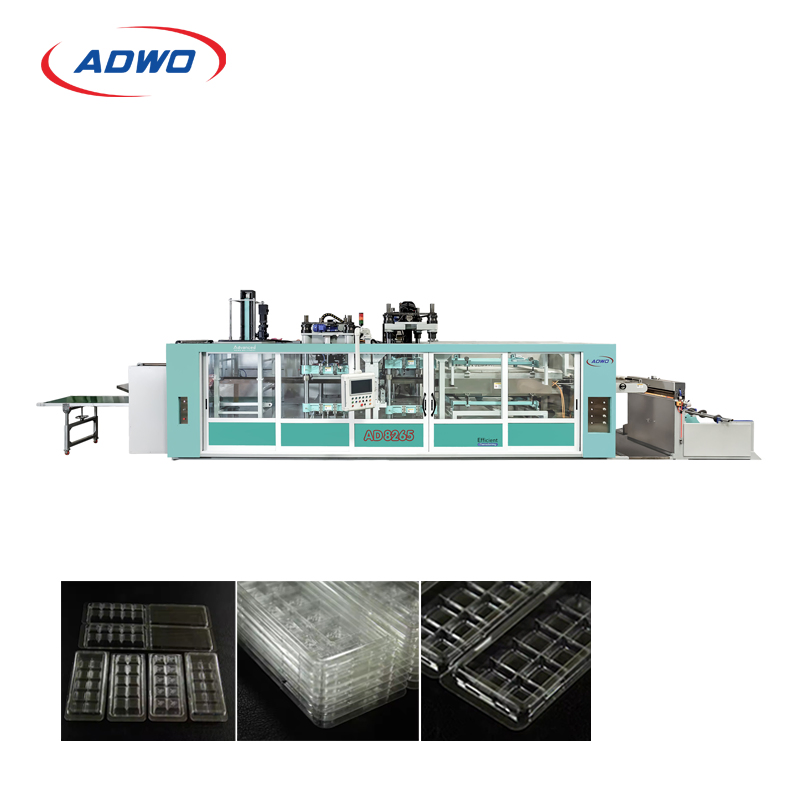

The AD8265B positive and negative pressure high-speed thermoforming machine is an advanced equipment solution suitable for the production of PP, PET, BOPS, HIPS, OPS, PVC, CPLA, CPET, APET, and corn starch plastic products. It is widely used for manufacturing fast food boxes, fruit trays, bowl lids, baking containers, medical packaging, and electronic industrial packaging.
The whole machine adopts motion control with electronic cam and servo-driven systems for sheet feeding, forming, assisted stretching, cutting, stacking, and counting. It features a 15-inch touch screen (industrial PC operating system) and can store up to 9,999 sets of data.

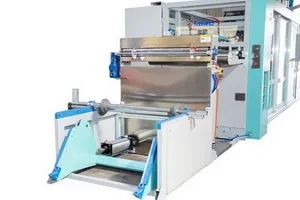

Sheet Unwinder: Driven by reduction motor with infrared sensor control.
Ceramic Heating Oven: 4-section heating for energy efficiency and precision.

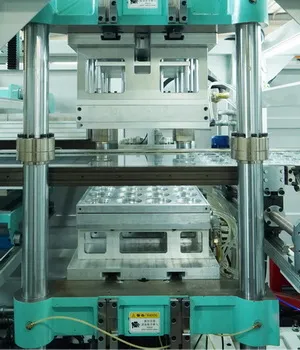

Mold Table: Made of nodular cast iron, compatible with KIEFEL molds.

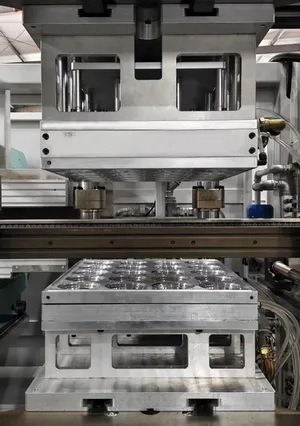

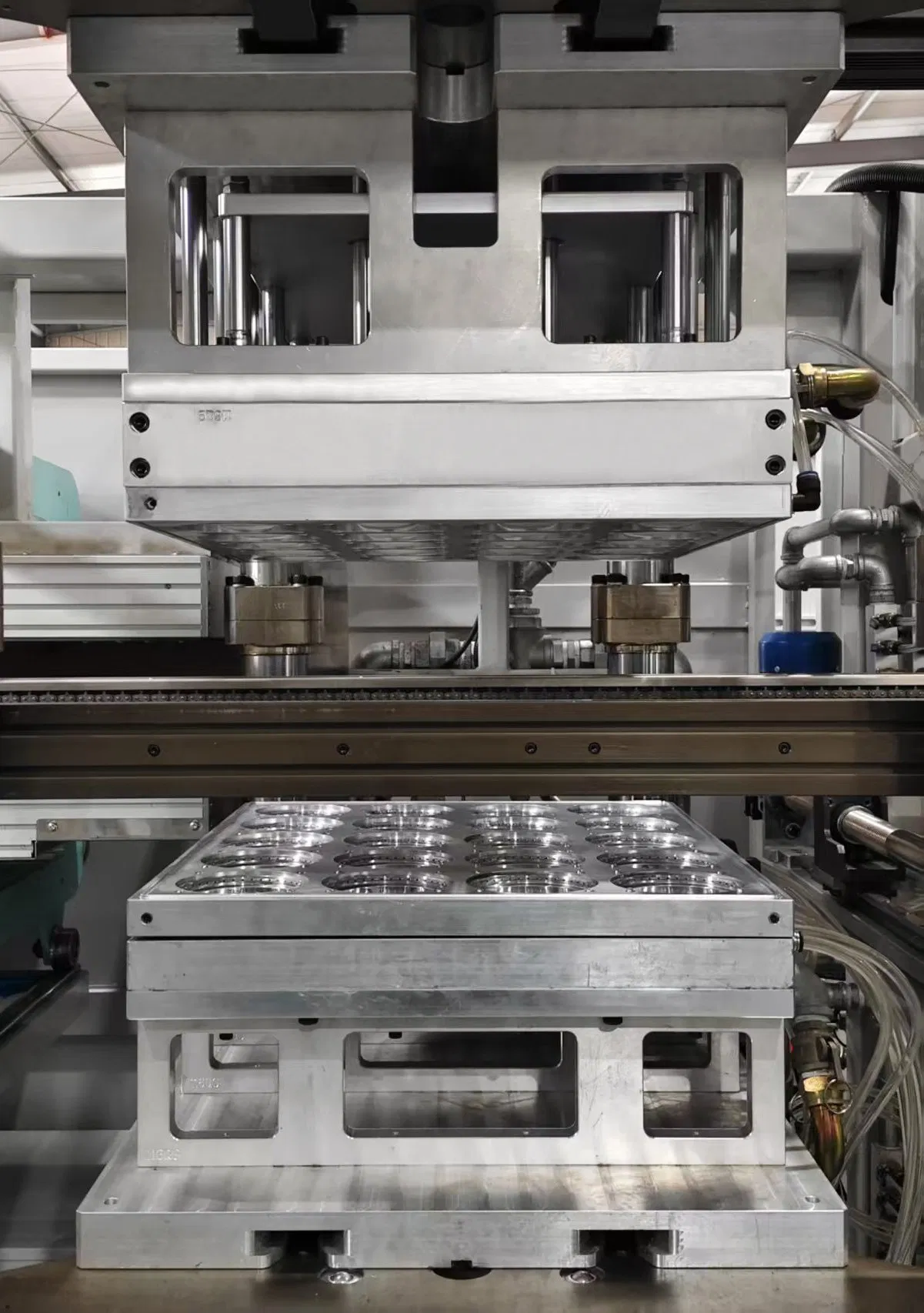

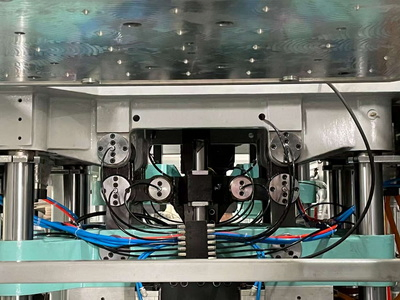

Forming Station: Delta servo drive with auxiliary stretching mechanism.

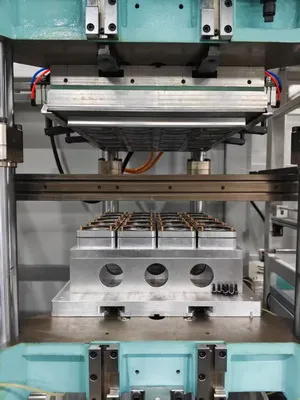

Cutting Station: High-power servo drive with laser blade heating device.

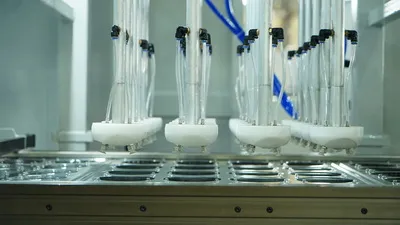

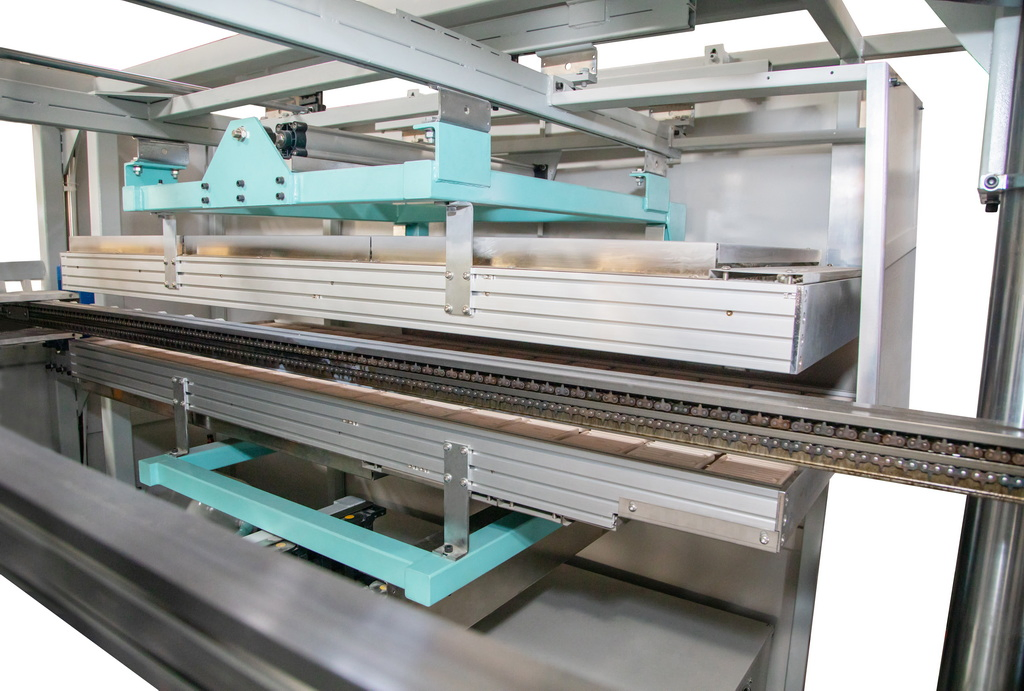

Stacking Station: Aluminum alloy transmission rack with automatic counting.
