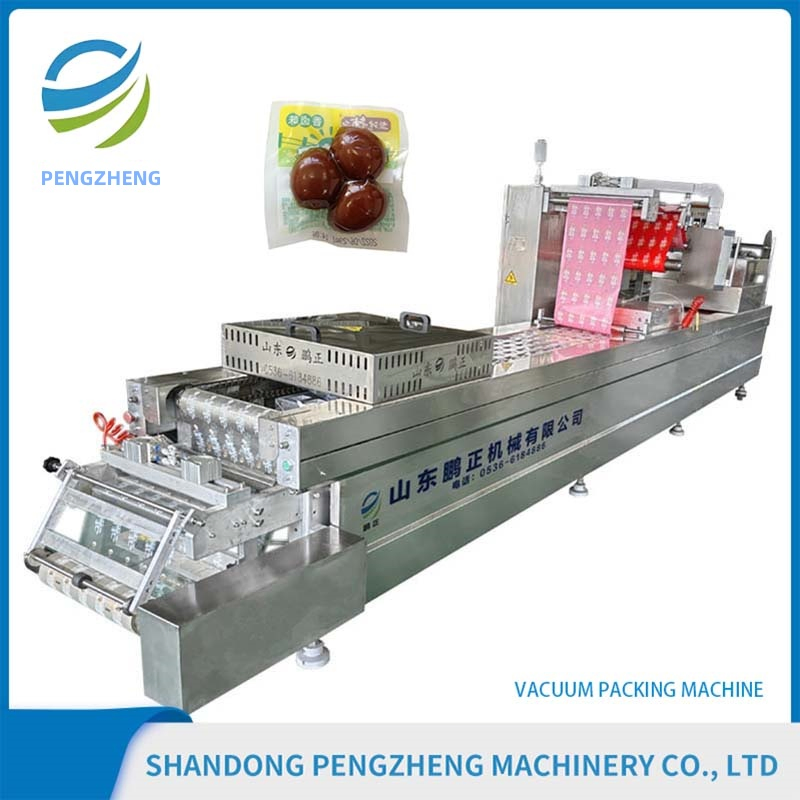

High-Speed Fish Bacon Cheese Vacuum Packaging System

Customization:	Available
After-sales Service:	Free(on Line) and Other Service
Warranty:	12 Months

Basic Information

Model NO.

PZ-420

Application

Electronic Component, Drug, Food, Medicine, Hardware etc.

Power

Electric

Automation

Automatic

Type

Stretch Film Vacuum Packing Machine

Object State

Paste, Powdery, Liquid, Solid, Particle

Condition

New

Packing Speed

6-8 Cycles / Min

Packing Capacity

4600-5000 Pieces / Hour

Weight

About 1800 Kgs

Product Description

🛡️

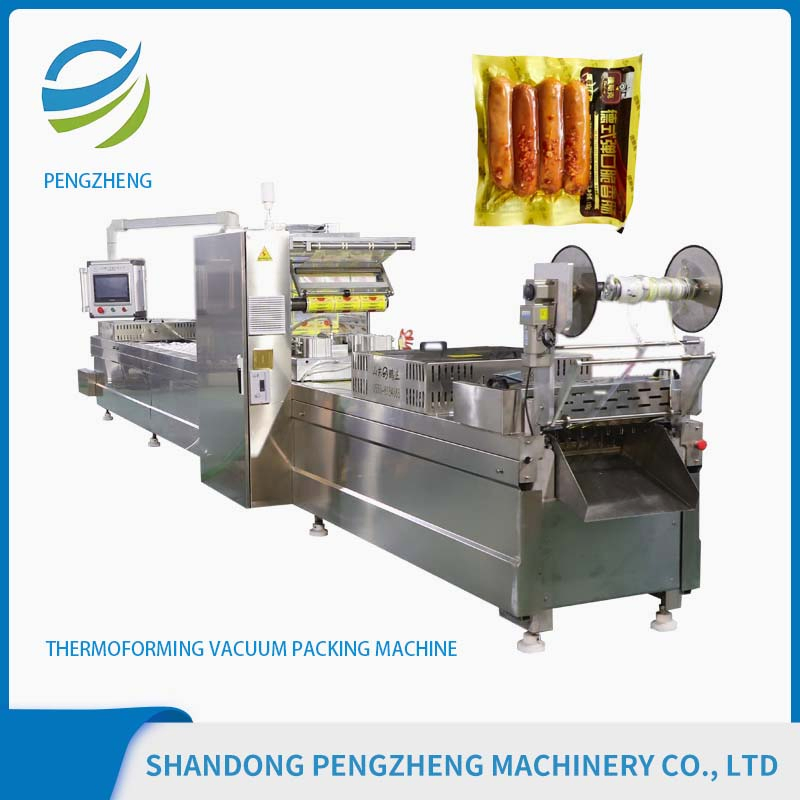

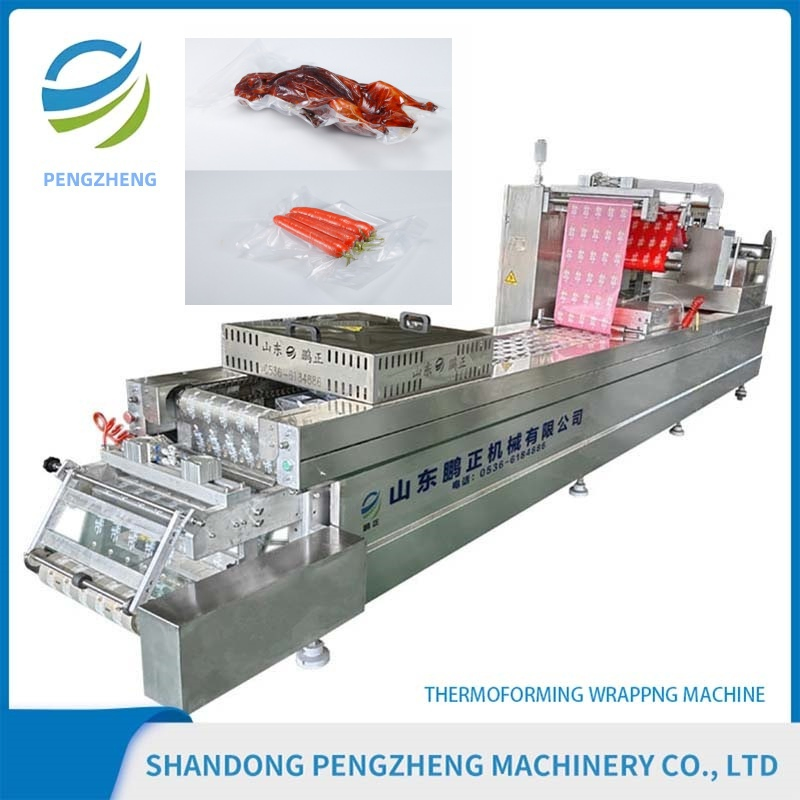

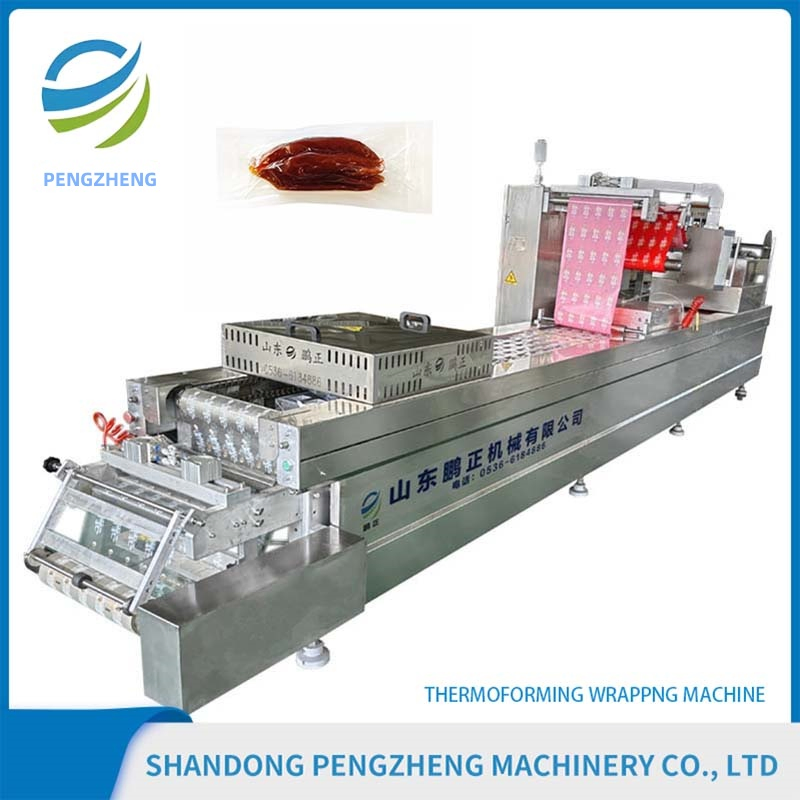

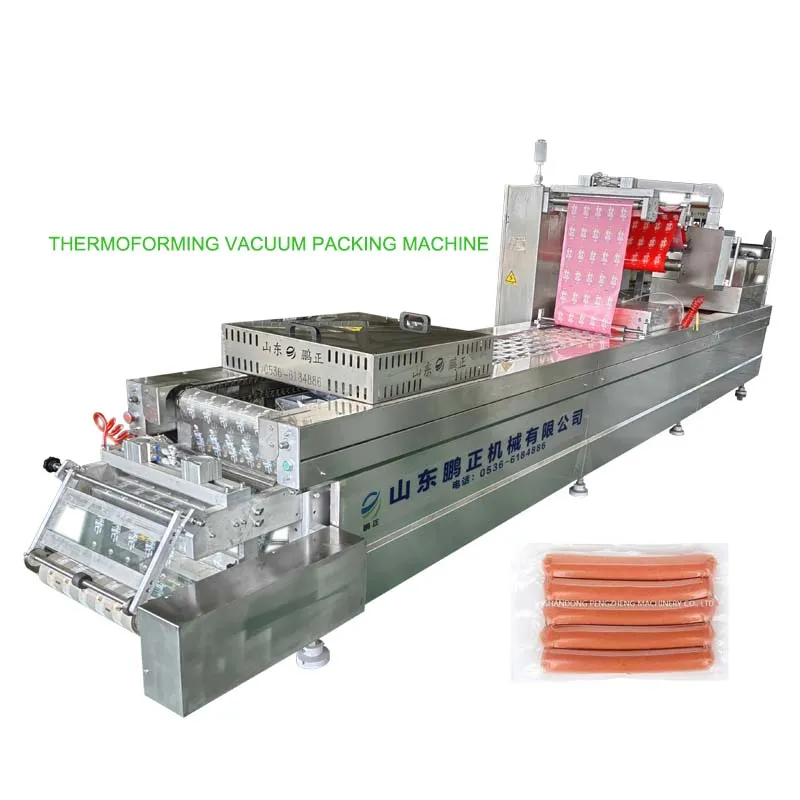

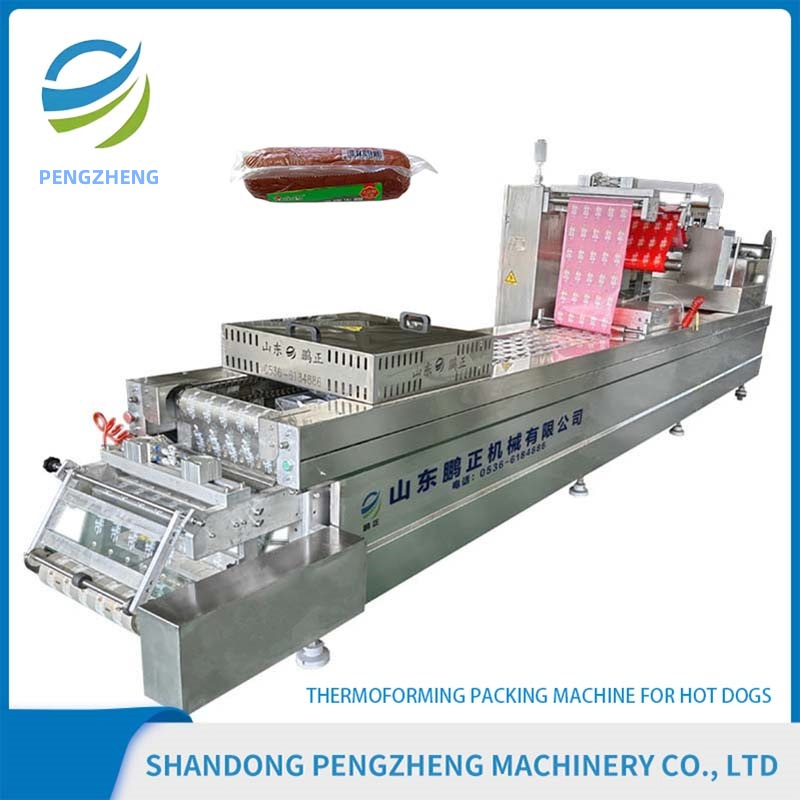

The Innovative Automatic Thermoforming Vacuum Packaging Machine is designed for packaging a variety of items including sausages, fish, shrimp, steak, beef jerky, dried bean curd, mutton, chicken, and even toys. It ensures products are securely sealed and preserved for a longer shelf life.

Why Choose This System

Professional Customization: Tailored to specific product needs.
High Efficiency: 6-8 cycles per minute.
Advanced Technique: Incorporates over 10 design patents.
Production Stability: Very stable during long-term operations.
Operational Safety: Multiple sensors for worker protection.

How It Works

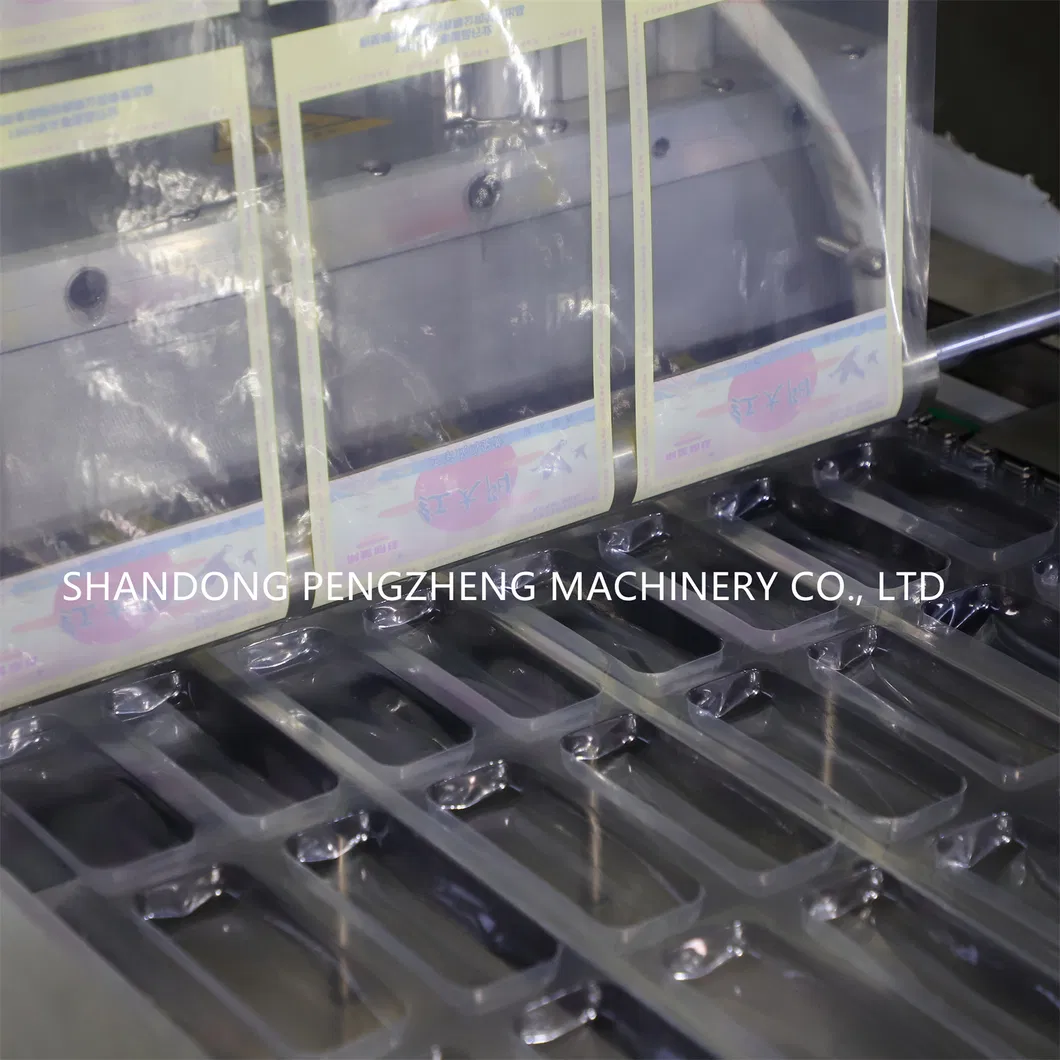

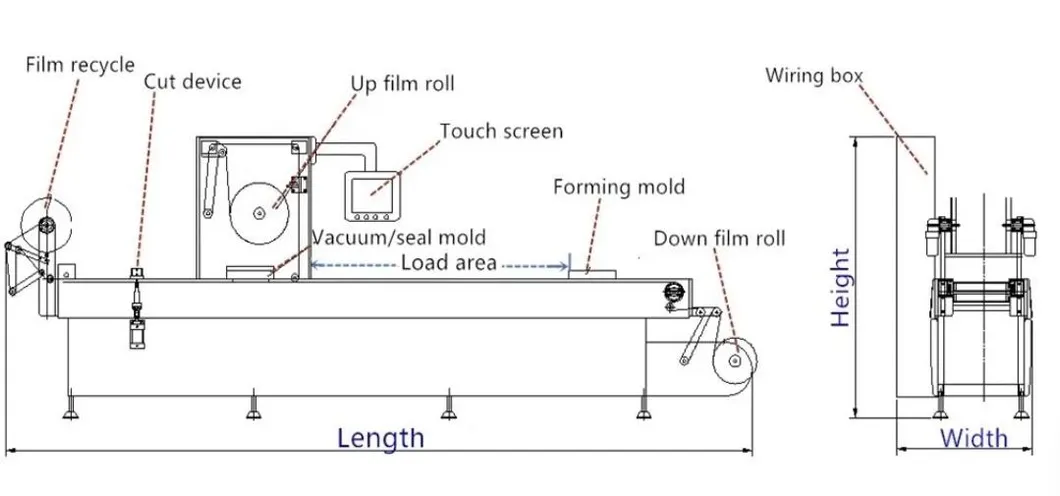

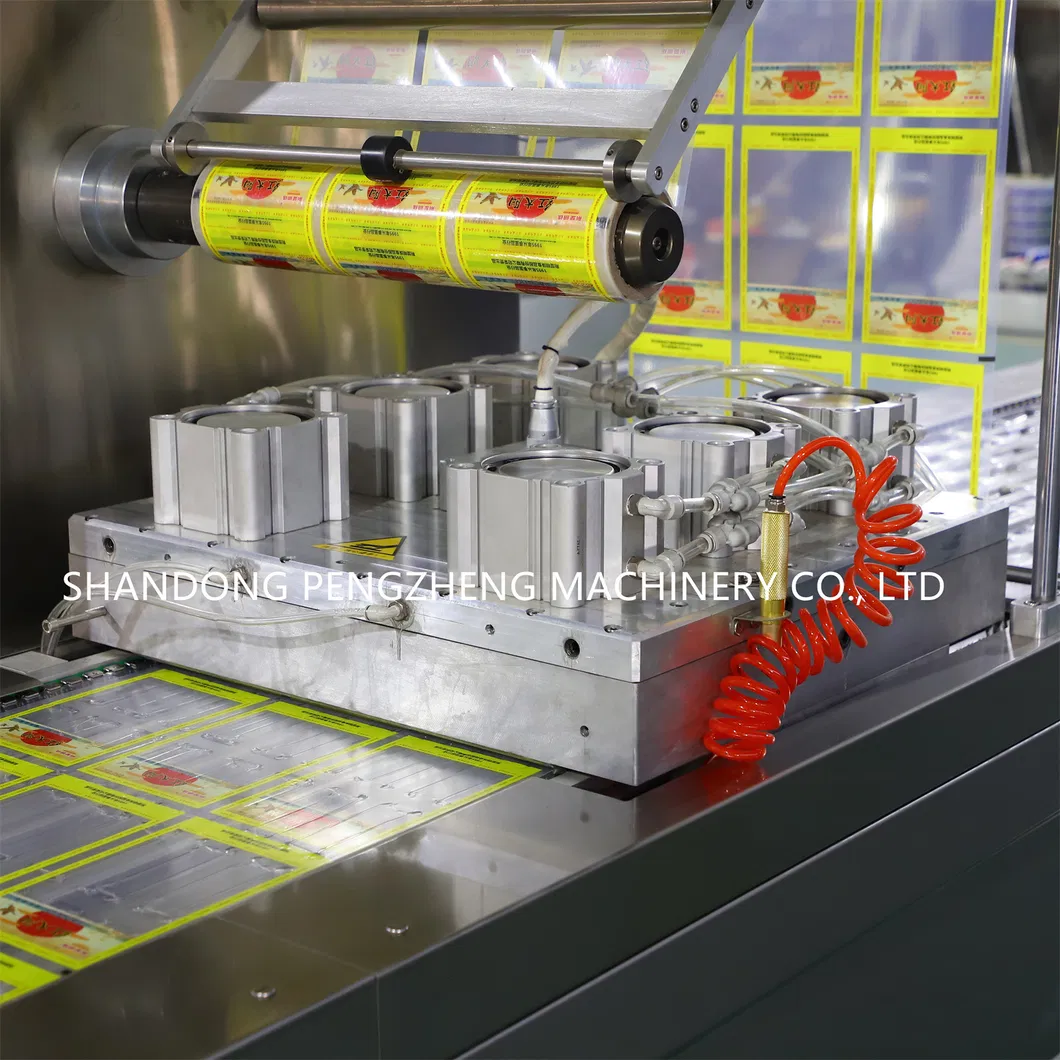

The process begins with heating and stretching a bottom film to conform to a mold. Materials (like eggs or food items) are placed into the formed film. A top film covers the bottom film, and both are vacuum-sealed perfectly. Finally, the materials are cut into individual packaging bags.

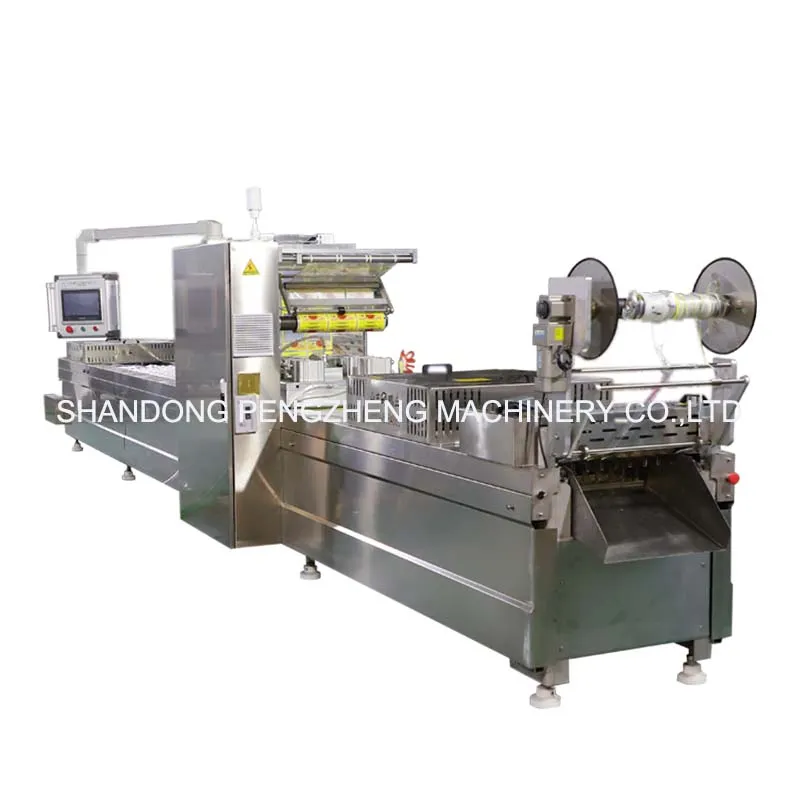

Key Features & Components

Automation & Intelligence

⚙️

"No Film No Working" Feature: The machine automatically shuts down when film runs out, reducing waste and improving efficiency.

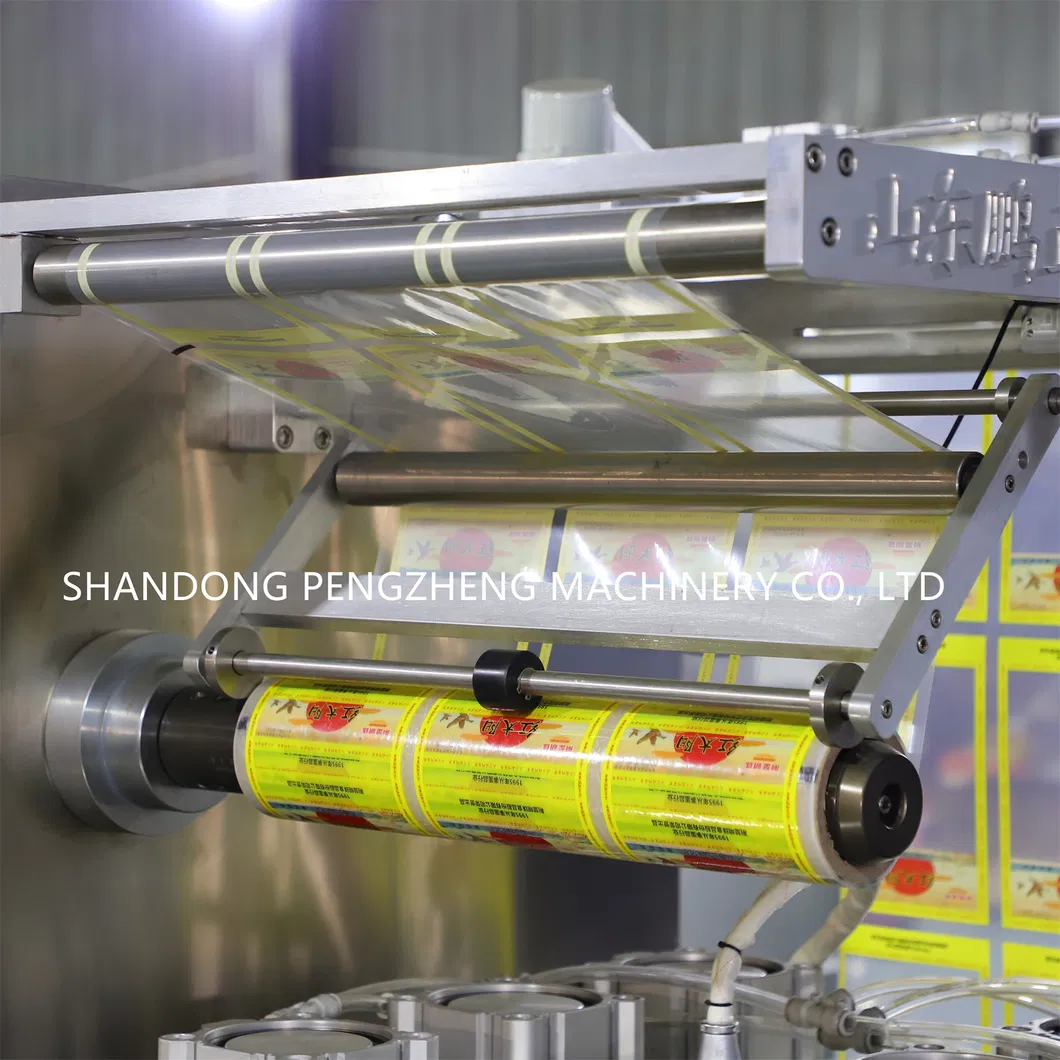

Automatic Correction Device: Incorporates intelligent calibration for top and bottom films to prevent deviation and falling off.

Comparison of Packaging Methods

Details	Traditional Bag	Single Side Stretch	Double Side Stretch
Efficiency	Low	High	Middle
Cost	High	Low	Middle
Appearance	Beautiful printing on both sides	Uniformly stretched, beautiful single side	Most beautiful, mimics traditional bags
Max Forming Depth	N/A	120mm	120mm x 2

Product Parameters

Main Components
Vacuum Pump	RIETSCHLE (Germany)
Electrical Components	Schneider (France)
Servo Motor	Schneider (France)
Chain	TYC (Taiwan)
Machine Specification (PZ-420)
Dimensions	6600mm × 1000mm × 1800mm
Main Structure Material	Stainless Steel 304
Available Film Width	384mm
Vacuum Degree	≤200 Pa
Sealing Time	1.5 s - 2.5 s

Packaging & Shipping

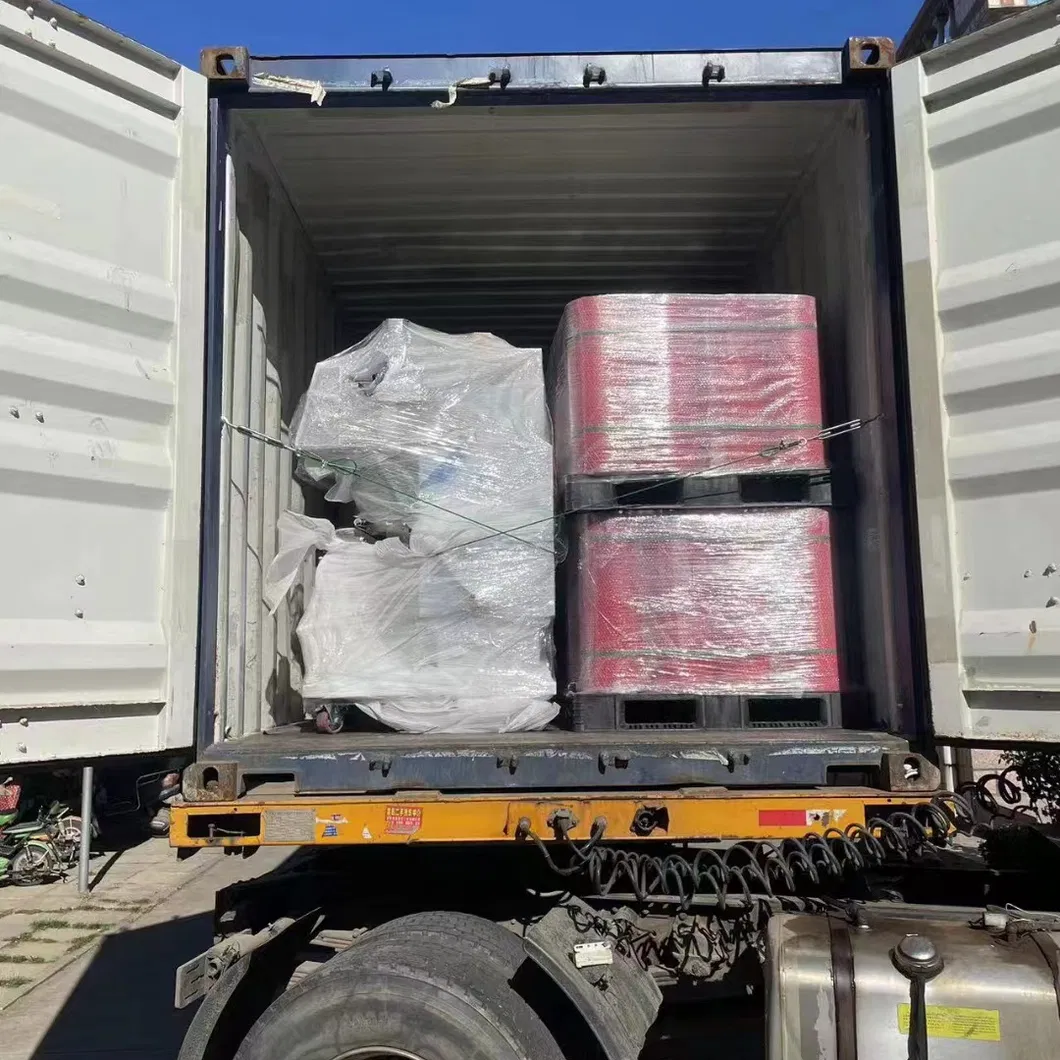

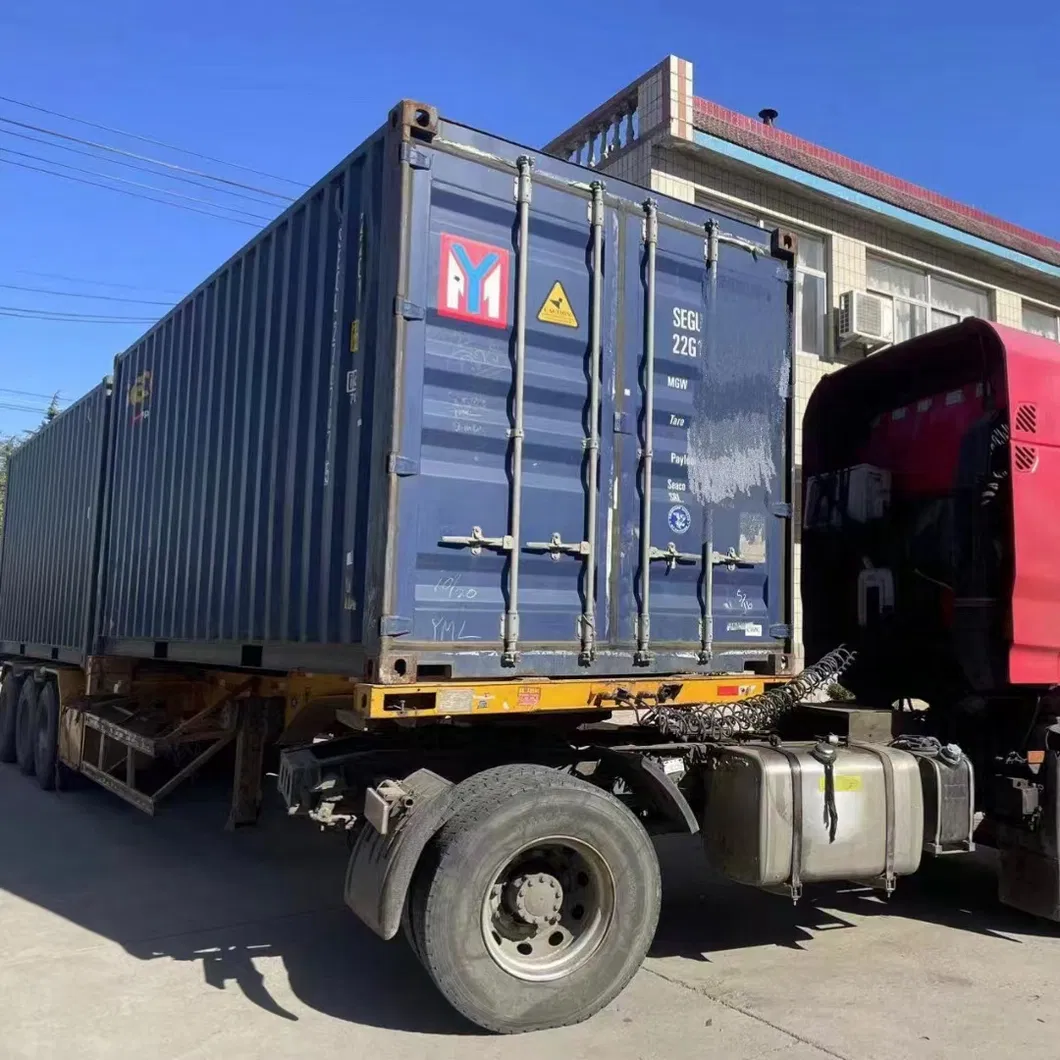

Package Size: 870cm * 95cm * 210cm. Gross Weight: 2200kg. Transport via container.

After-Sales & Maintenance

🛠️

Warranty: 12-month warranty for the whole machine (excluding wearable parts).

Support: 24-hour technical hotline, online guidance, and engineering support for installation and debugging.

Maintenance: Lifelong maintenance service and genuine spare parts supply through global centers.

Frequently Asked Questions

Q1: How long is the delivery time for the machine? A: It typically takes 45 working days, which includes 10 days for technical drawing, 15 days for parts manufacturing, and 20 days for assembly and tuning.

Q2: What information is needed for a specific offer? A: We require the dimensions of your packaging and the required daily production volume to provide a tailored proposal.

Q3: Do you provide overseas installation services? A: Yes, we offer overseas service. Engineers can visit your facility for setup and debugging after initial online troubleshooting.

Q4: How does the vacuum sealing extend product shelf life? A: Our vacuum technology ensures a tight seal that prevents air and moisture entry, extending shelf life by 2-3 times compared to traditional packaging.

Q5: Is the machine cost-effective in terms of material usage? A: Yes, it uses only the necessary amount of film for each seal, resulting in approximately 40% less material usage compared to traditional wrapping methods.

Q6: What happens if the film runs out during operation? A: The machine features a "No film no working" sensor that automatically shuts down the system to prevent loss and maintain efficiency.
