High-Speed Thermoformer for PP PS Pet PLA PVC Container and Clamshell Packaging/Plastic Thermoforming Machine

Customization:	Available
After-sales Service:	on-Site Service Available
Warranty:	1 Year

Basic Information

Model NO.

JN-650-450-3

Certification

CE

Column number

Four Column

Molding Method

Pressing

Automatic Grade

Automatic

Max Speed

45moulds/Min

Material

PP/PS/Pet/PLA/PE/Cpet

Forming Area

650*450mm

Heating Power

90kw

Weight

8500kg

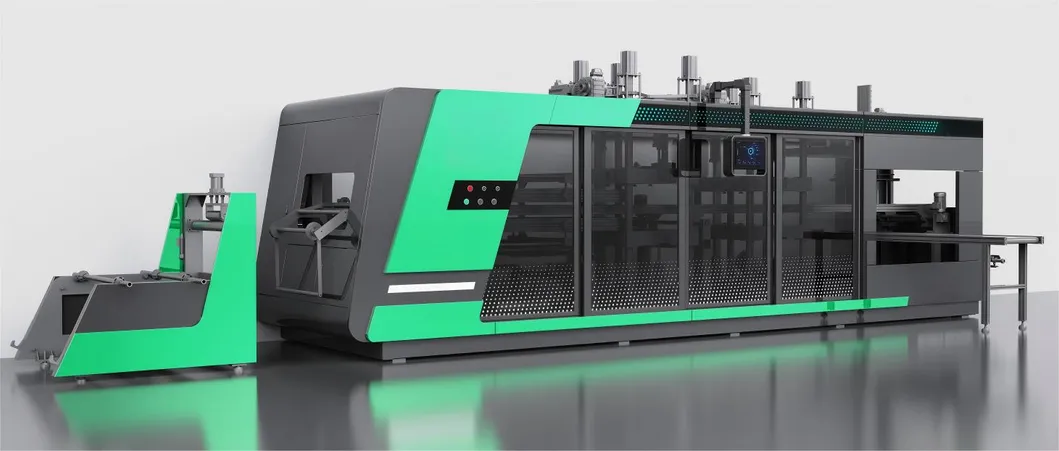

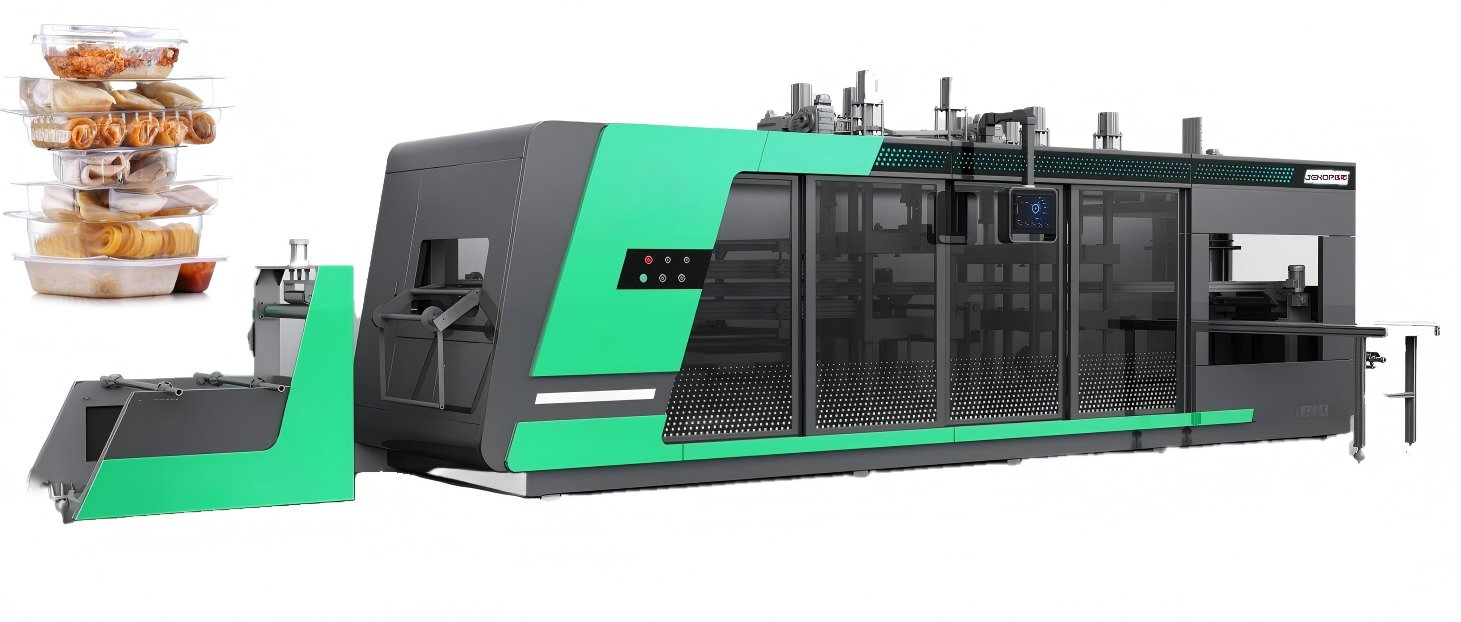

All Servo Motor Multi-Stations Thermoforming Machine

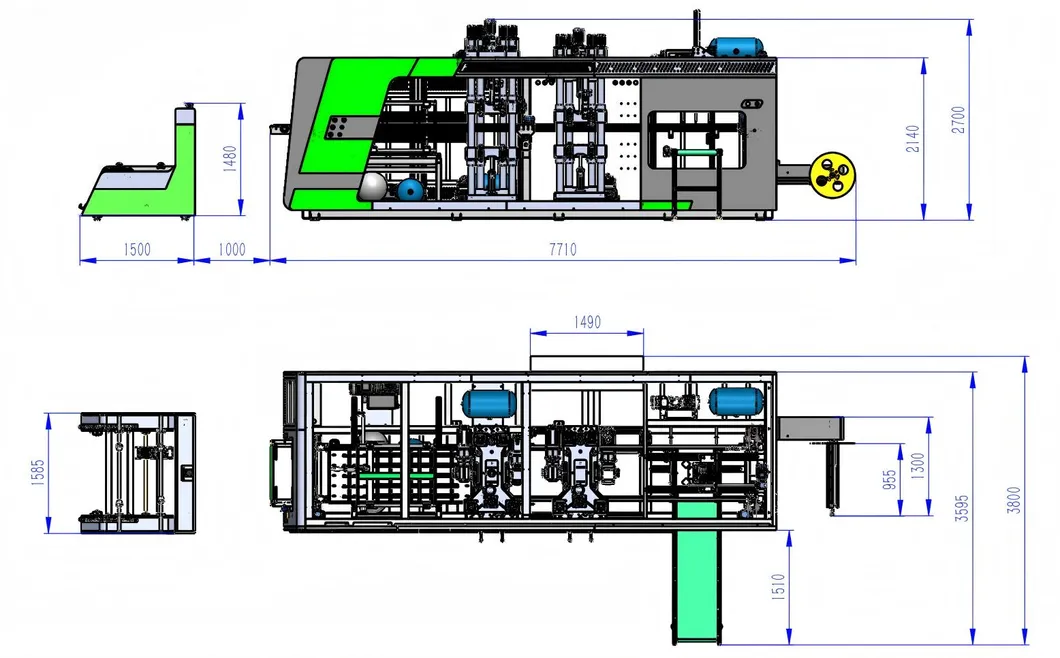

Model JN-650-450-3 with Double Moving System

Product Parameters

Sheet Materials	PP/PS/PET/PLA/PE/CPET	Air Consumption	3m³/min (0.5-0.8bar)
Sheet Thickness	0.2-1.5mm	Weight	8500kg
Forming Area	650*450mm	Total Power	116Kw
Width Of Sheet	370-700mm	Heating Power	90kw
Max Speed	45moulds/min	Forming Motor	4.4kw*2

Features and Advantages

High degree of standardization, safe, efficient, energy-saving and hygienic.
Integrated mechanical, pneumatic and electrical systems controlled by PLC.

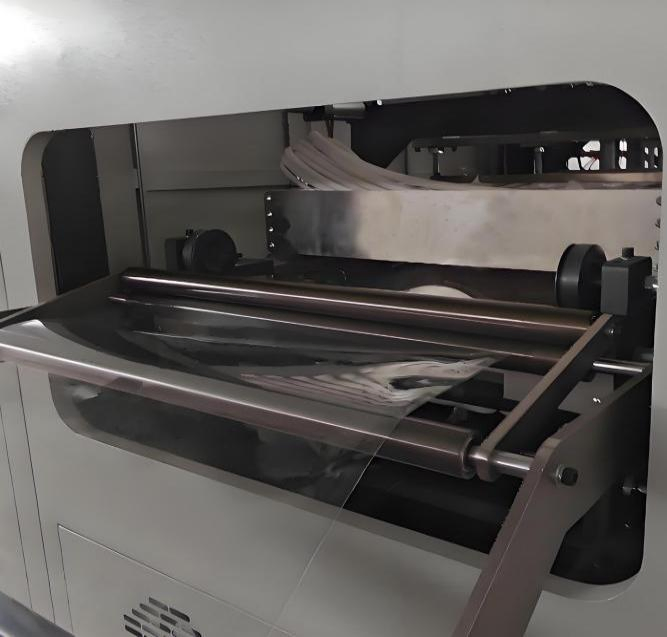

Double-station large-diameter unwinding, allows loading coils up to 600KG.
Servo feeding with stepless adjustment of sheet length for high accuracy.
Four-stage heating furnaces reach 0-400 degrees in just 3 minutes.
Digital dynamic hot forming temperature control system with accuracy of ±1ºC.
Quick mold change system reduces downtime and improves efficiency.
Vertical stacking concept ensures continuous and organized product output.
Automatic counting and memory function for up to 90 sets of operating data.

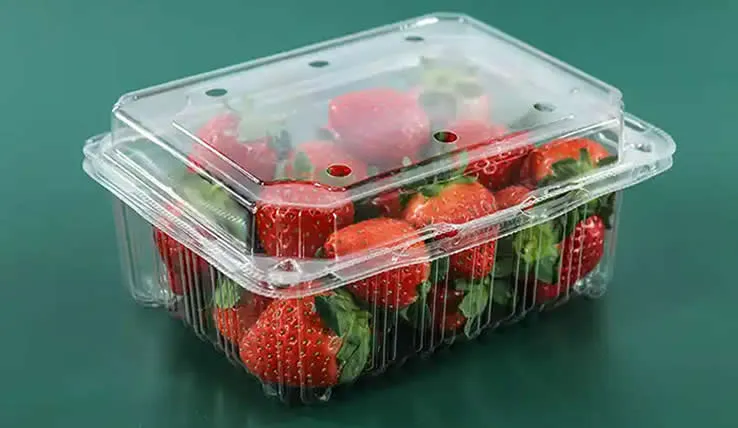

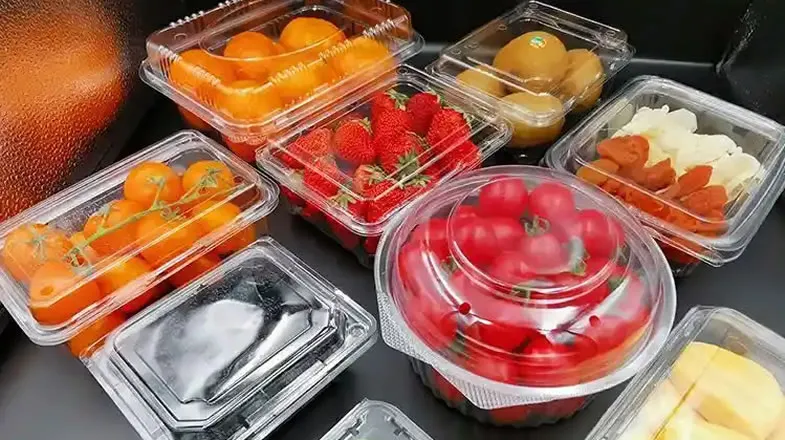

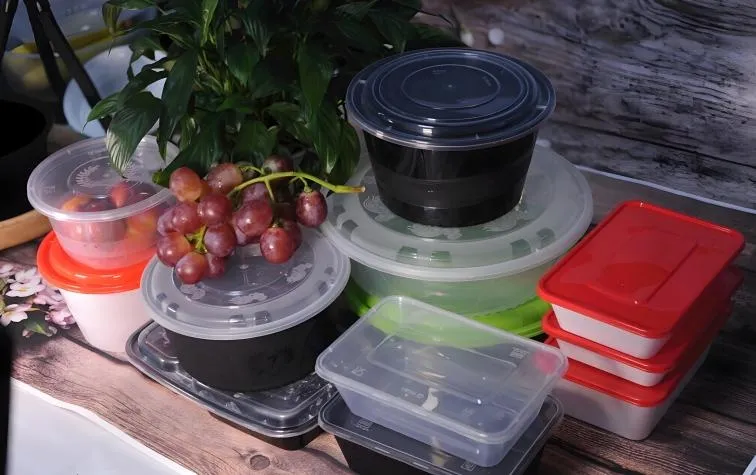

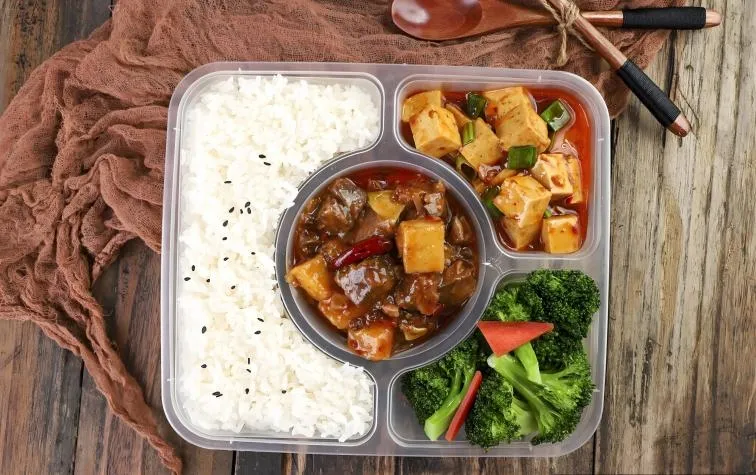

Product Samples

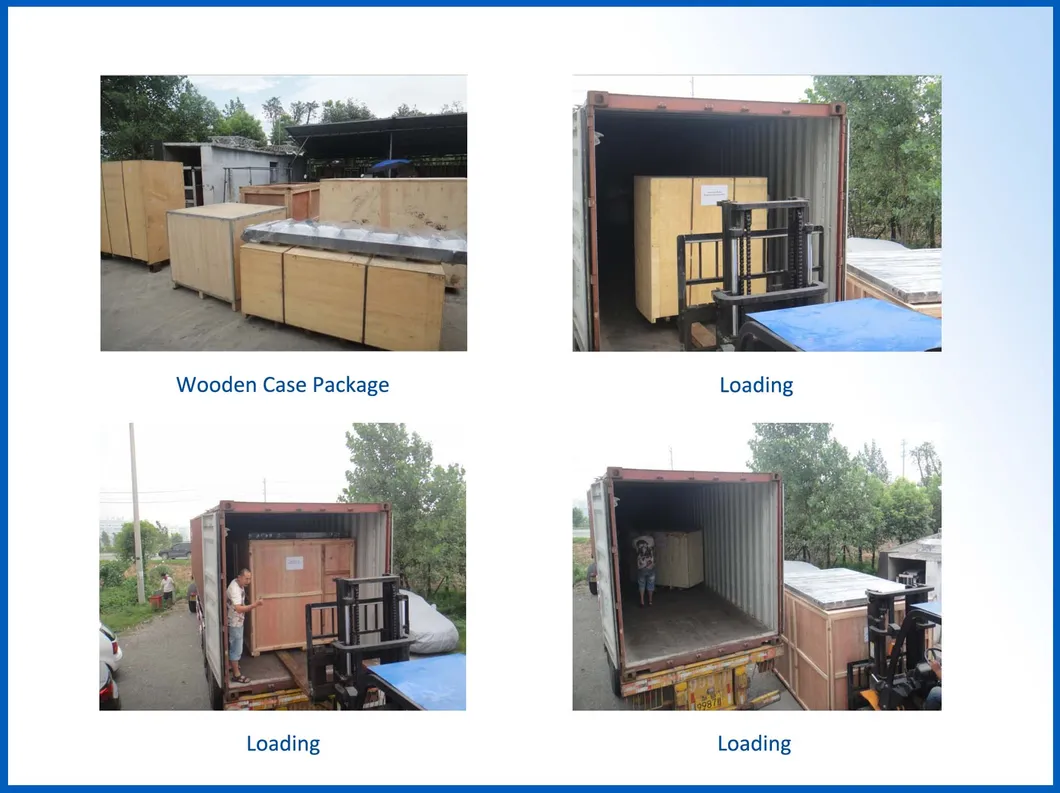

Packaging & Shipping

Service Support

Pre-sale

Customized project design, specialized product manufacturing, and comprehensive technical training.

During Sale

Strict pre-check and acceptance protocols before delivery with solution planning assistance.

After-sale

24/7 technical email support, spare parts replacement, and overseas engineer dispatch as required.

Frequently Asked Questions

1. Is the machine easy for a single person to operate?

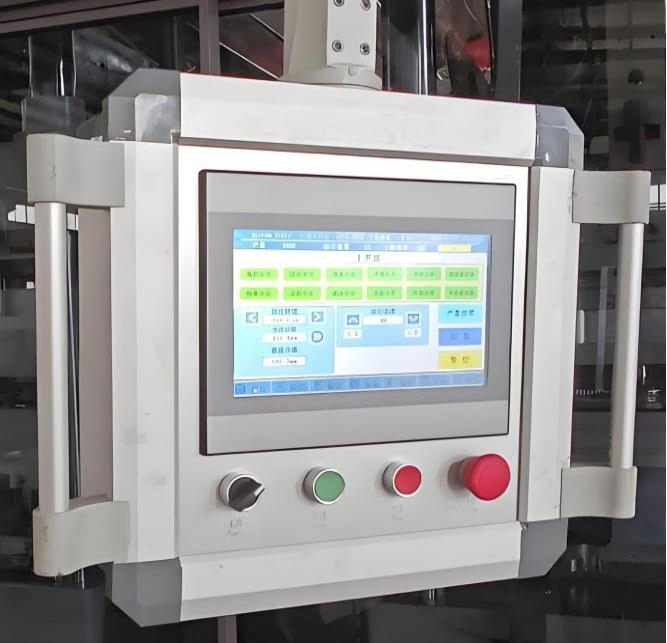

Yes, our machines are designed for stability and simplicity. A single operator can manage the process via the PLC interface. We provide manuals and videos for quick learning.

2. What materials are compatible with this thermoforming machine?

The machine is versatile and can process a wide range of sheet materials including PP, PS, PET, PLA, PE, and CPET with thicknesses ranging from 0.2mm to 1.5mm.

3. What are the standard payment and trade terms?

We typically require a 30% T/T deposit, with the remaining 70% balance paid before shipment. Standard trade terms are FOB, but we also accept L/C and other arrangements.

4. How do you handle technical failures or repairs?

We provide solutions within 36 hours via video chat, email, or phone. If necessary, our engineers can be dispatched overseas to perform repairs or maintenance.

5. Why is the servo motor system superior to traditional systems?

The all-servo motor system provides higher precision, lower wear on components, faster production speeds, and significantly quieter operation compared to pneumatic systems.

6. Does the machine include energy-saving features?

Yes, our new digital dynamic hot forming temperature control system allows for single-point accuracy, which can save approximately 15% in energy consumption compared to standard models.
