| 1- Max. Forming Area | 710× 600mm |
| 2- Max. Down Forming Stroke | 150mm |
| 3- Max. Up Forming Stroke | 150mm |
| 4- Sheet Thickness | 0.20-2.5mm |
| 5- Max. Forming Height | 120mm |
| 6- Max. Roller Diameter | Φ 1200mm |
| 7- Air Pressure | 0.6-0.80mpa |
| 8- Air Consumption | 3000L/min |
| 9- Max. Speed | 35 Cycles/min |
| 10- Power Supply | 380V/440V 50/60HZ |
| 11- Heating Power | 120kw |
| 12- Main Motor Power | 16kw |
| 13- Machine Weight | 11000kgs |
| 14- Dimension | 8500× 2200× 2700mm |

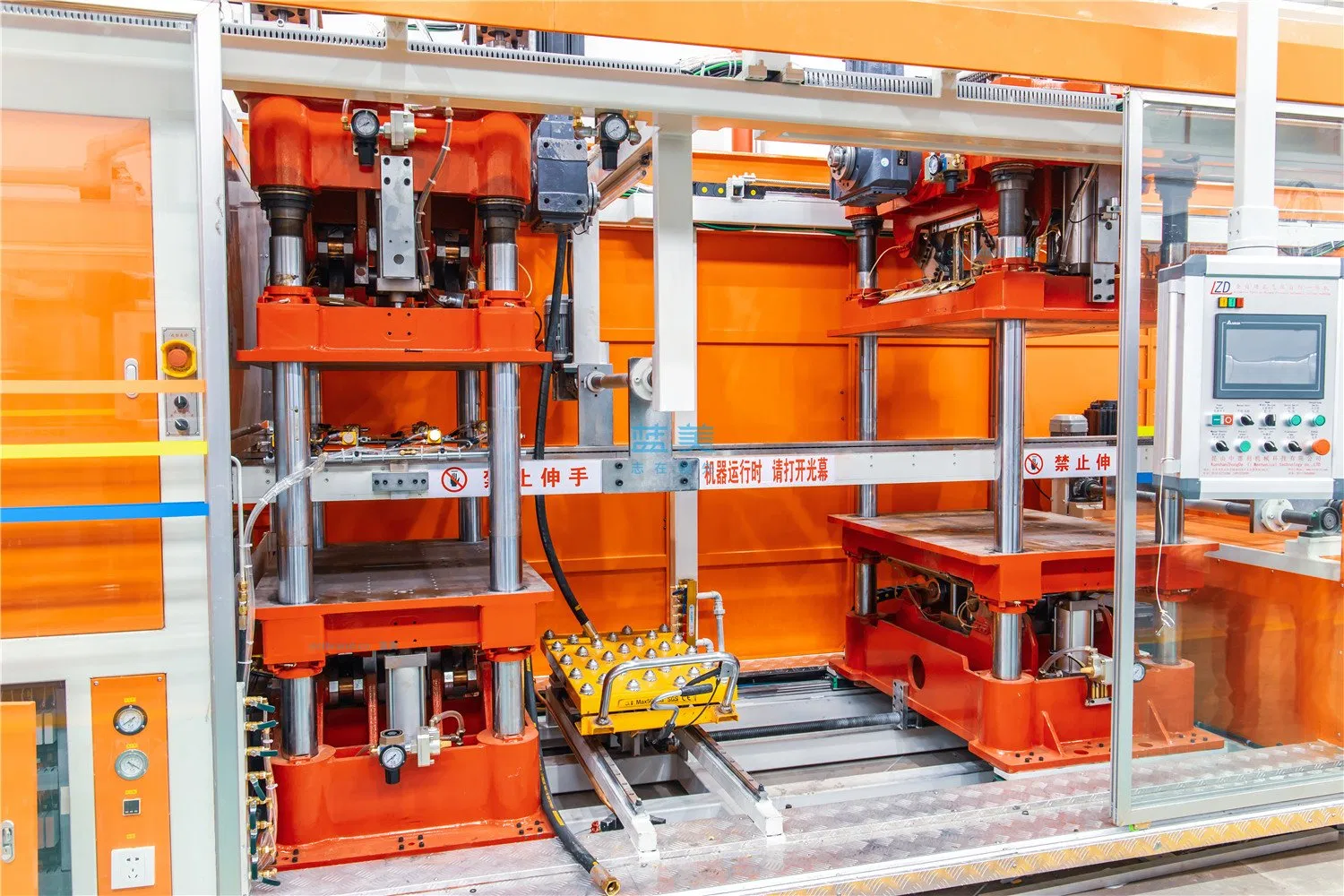

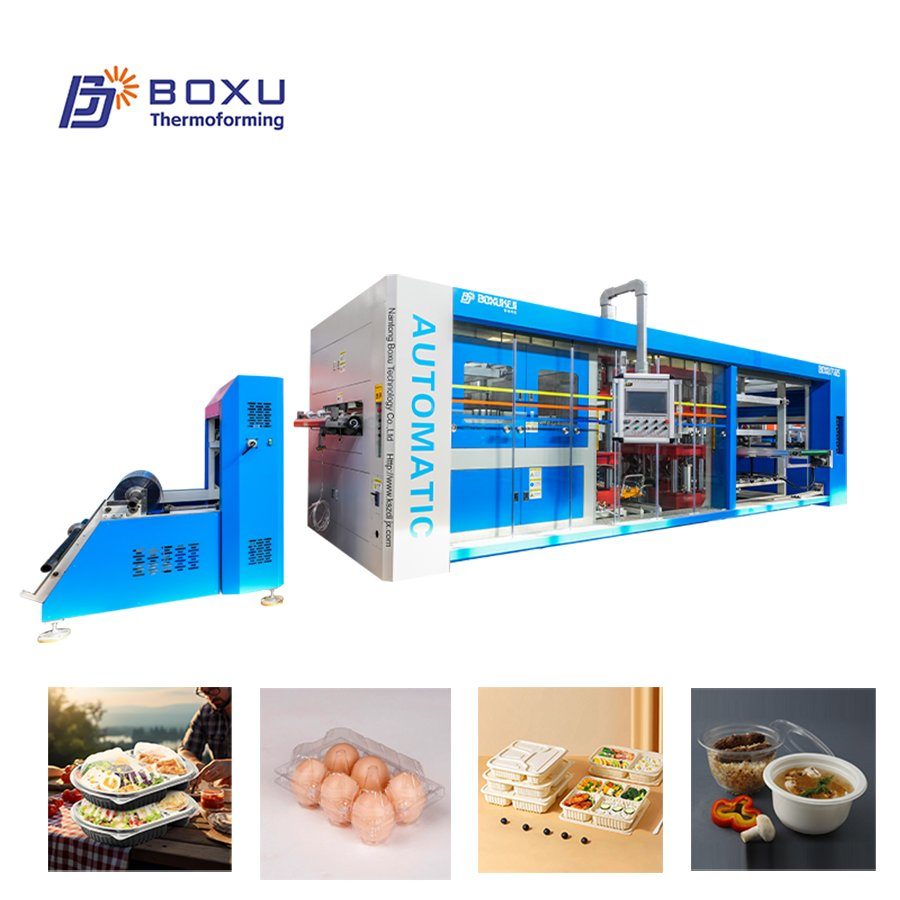

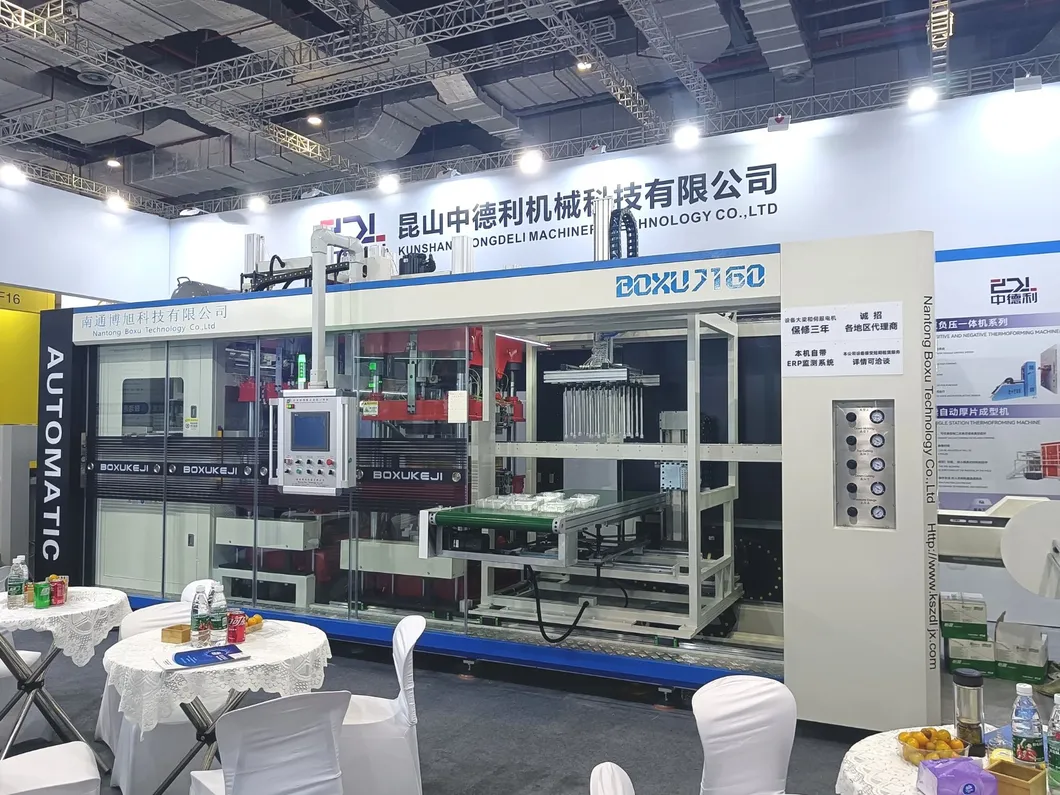

The BOXU-7160 Plastic forming Machine is suitable for processing high-quality PP, PET, HDPE, CPLA, PS, and other thermoplastic sheets to produce various high-grade thermoforming products.

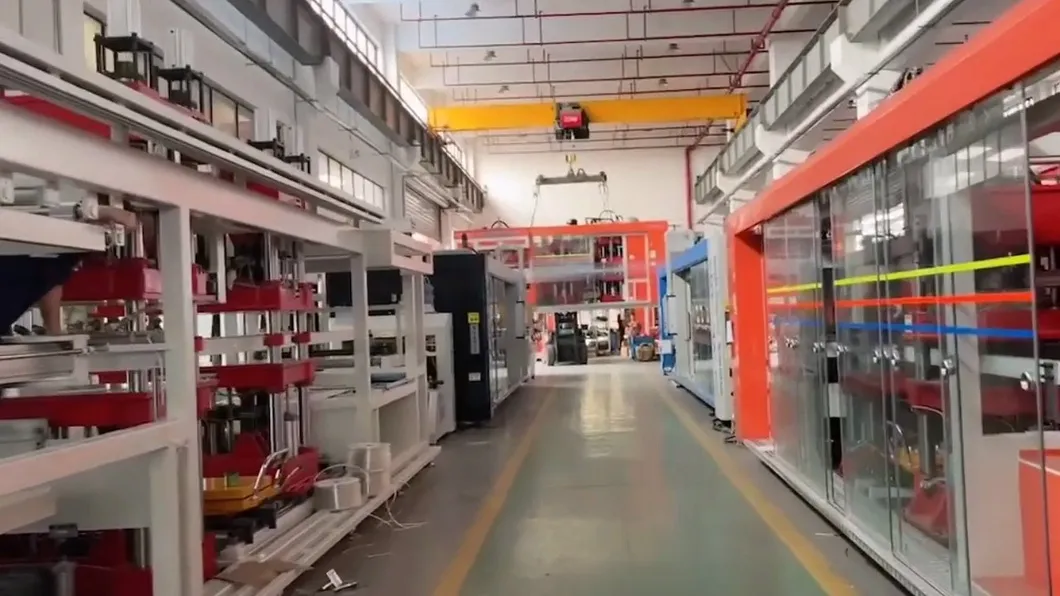

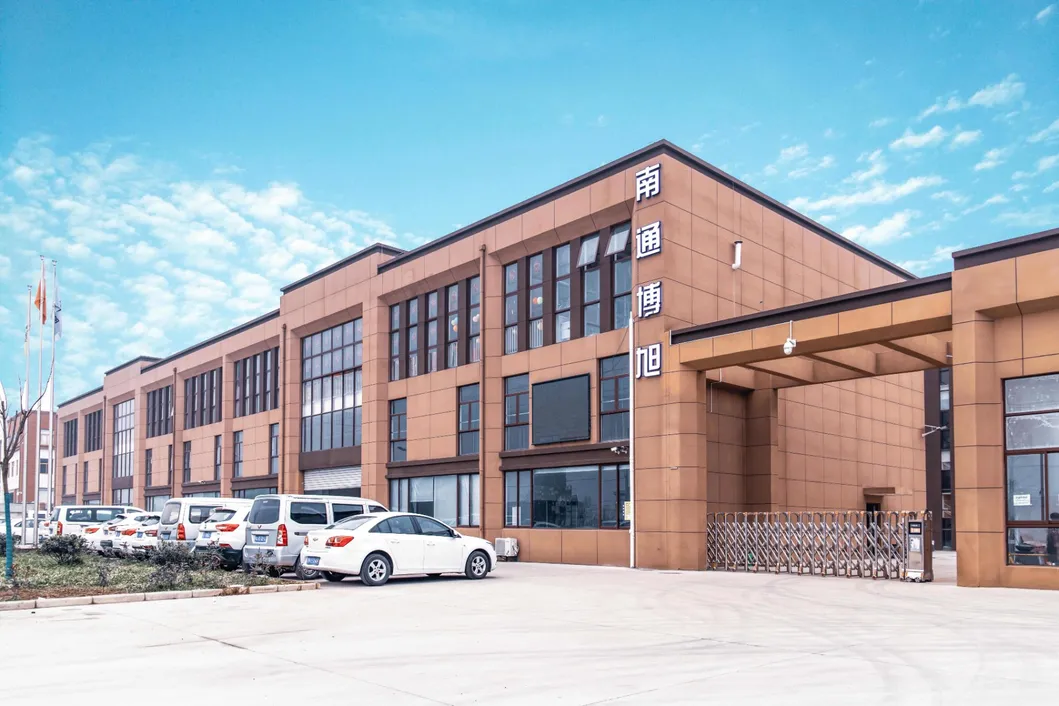

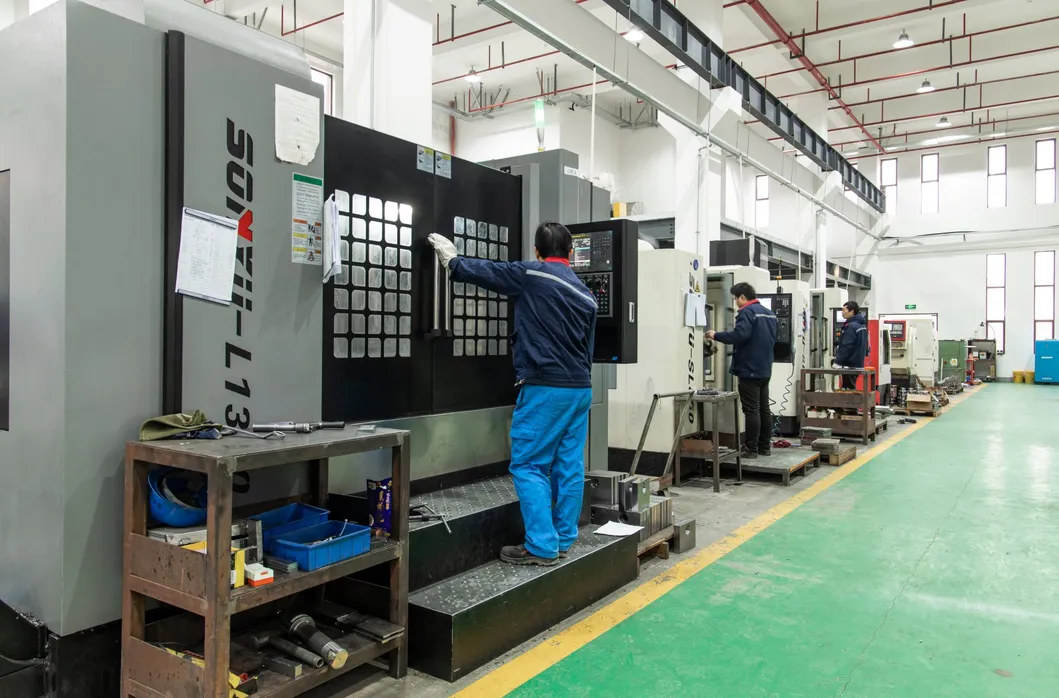

Specializing in manufacturing thermoforming machines for 15 years, the facility serves pharmaceutical packaging, food packaging, electronic, automobile, and home appliance industries. Cooperating with numerous professional suppliers, the equipment is widely recognized in South-East Asia, East Europe, and Latin America.
