Hinged Box Clamshell Packaging Container Egg Tray Making Machine
Hinged Box Clamshell Packaging Container Egg Tray Making Machine
Hinged Box Clamshell Packaging Container Egg Tray Making Machine
Hinged Box Clamshell Packaging Container Egg Tray Making Machine
Hinged Box Clamshell Packaging Container Egg Tray Making Machine
1 / 5
Hinged Box Clamshell Packaging Container Egg Tray Making Machine
Hinged Box Clamshell Packaging Container Egg Tray Making Machine
Hinged Box Clamshell Packaging Container Egg Tray Making Machine
Hinged Box Clamshell Packaging Container Egg Tray Making Machine
Hinged Box Clamshell Packaging Container Egg Tray Making Machine

Hinged Box Clamshell Packaging Container Egg Tray Making Machine

Customization: Available
Certification: CE, ISO
Column number: Four Column
Send Inquiry

Product Description

Basic Specifications

Model NO.
PPBG-650
Molding Method
Pressing
Automatic Grade
Automatic
Working Speed
10-40 Cycles/Min
Stroke Range
30-340mm
Max. Forming Depth
80mm
Max. Forming Area
620×420mm
Total Power
28kw
Power Consumption
8 Kw/H
Transport Package
Wooden Pallet
Specification
CE; SGS
HS Code
84774090
Production Capacity
1200PCS/Hr

Products Description

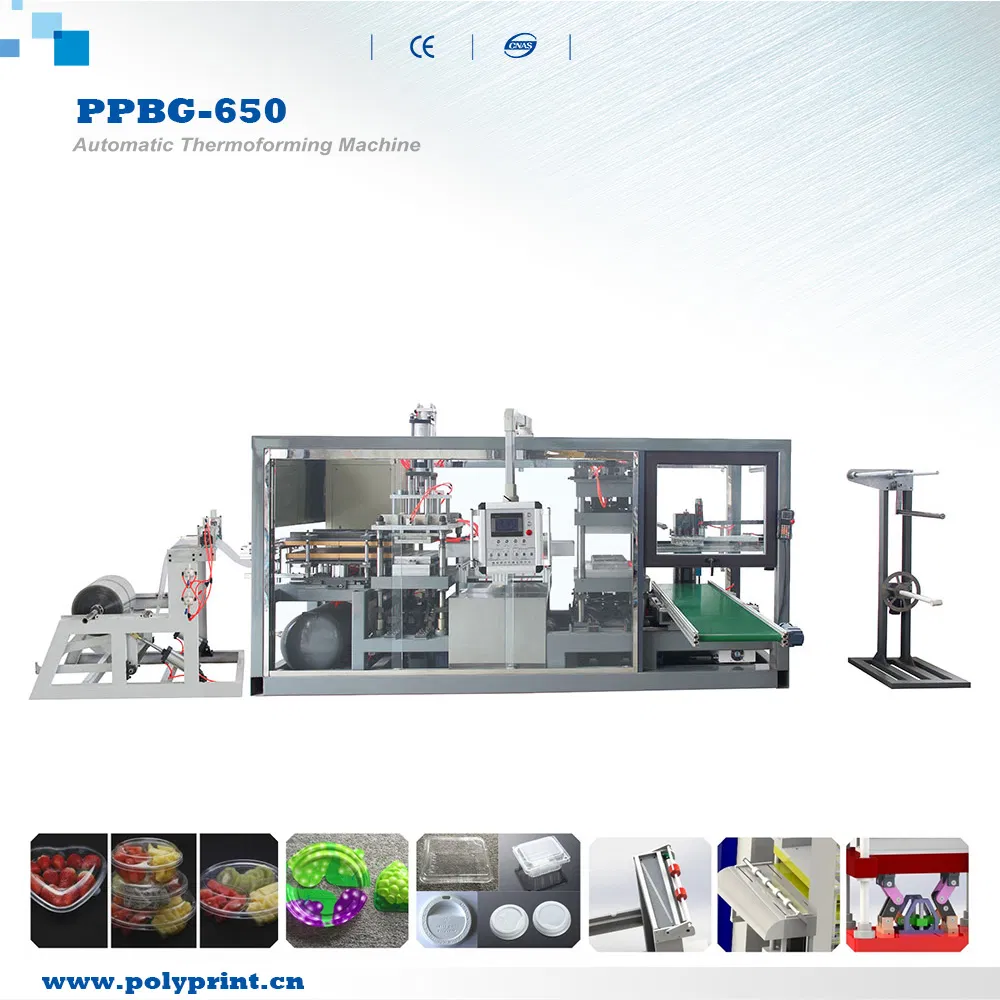

1. PPBG-650 automatic positive and negative pressure molding machine is a fully functional automatic model, combining advanced technology for a major innovation in the plastic industry, serving as the traditional plastic machine update model.

2. This machine adopts laminating heating and moving film punching technology, ensuring no secondary pollution, high sanitary levels, and safety. The equipment integrates positive/negative pressure molding, punching, cutting, and manipulator stack counting in one continuous production line. This eliminates manual subsequent processing, reducing labor costs and quality issues while saving space.

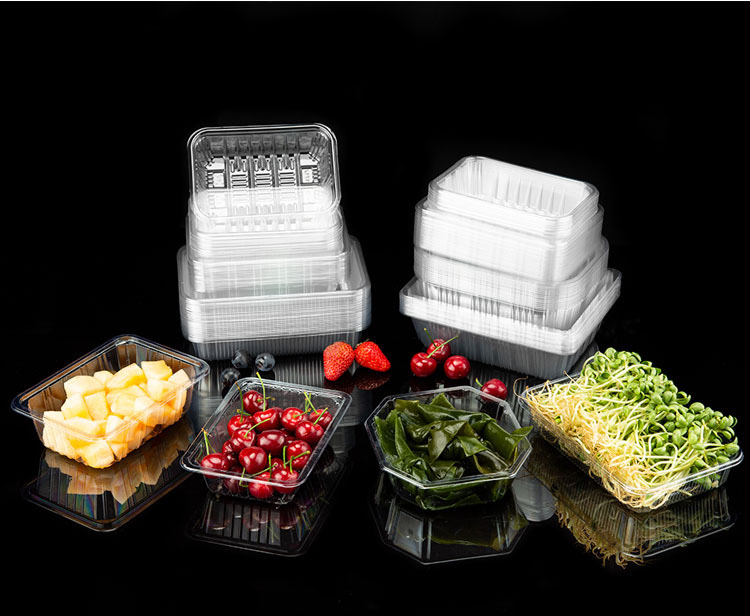

3. Suitable for high-demand blister products: blueberry boxes, fruit box lids, fresh food trays, moon cake trays, disposable fast-food containers, noodle bowl covers, tea/coffee lids, ice cream cups, jelly cups, medicines packaging, and electric equipment blister packaging.

Detail Components

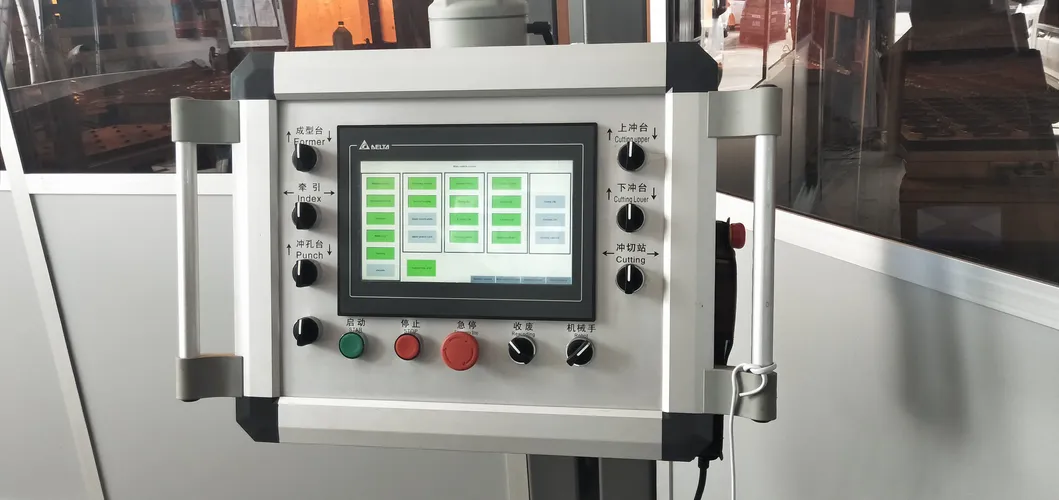

Touch Screen

Touch Screen

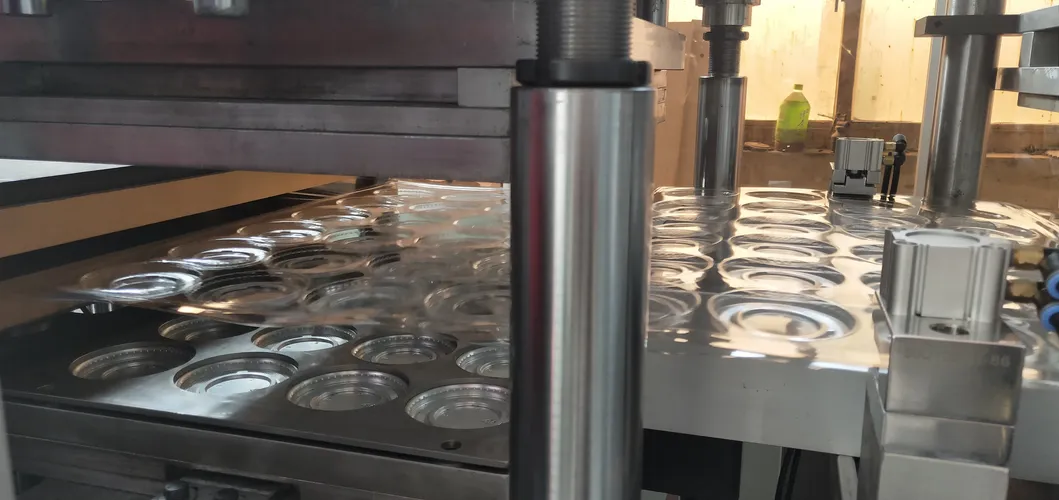

Forming Mould

Forming Mould

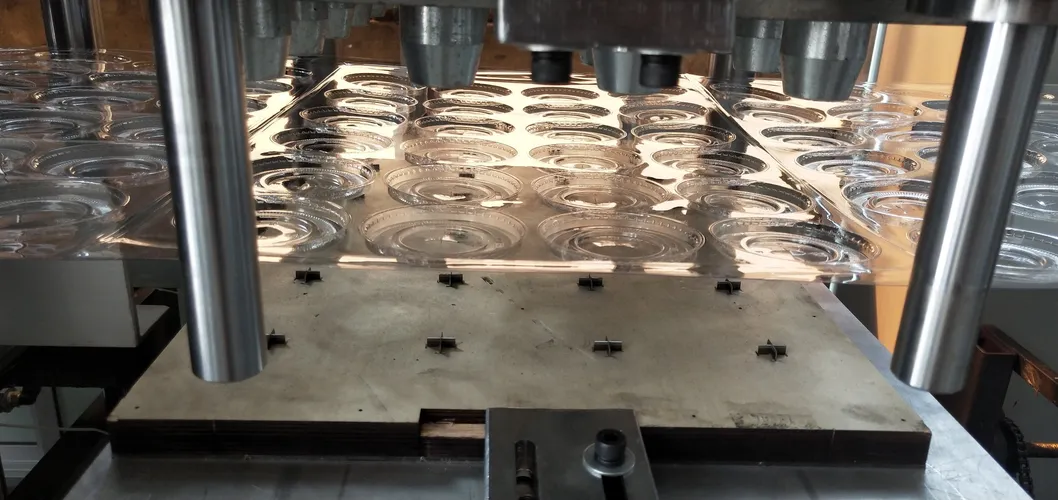

Punching Station

Punching Station

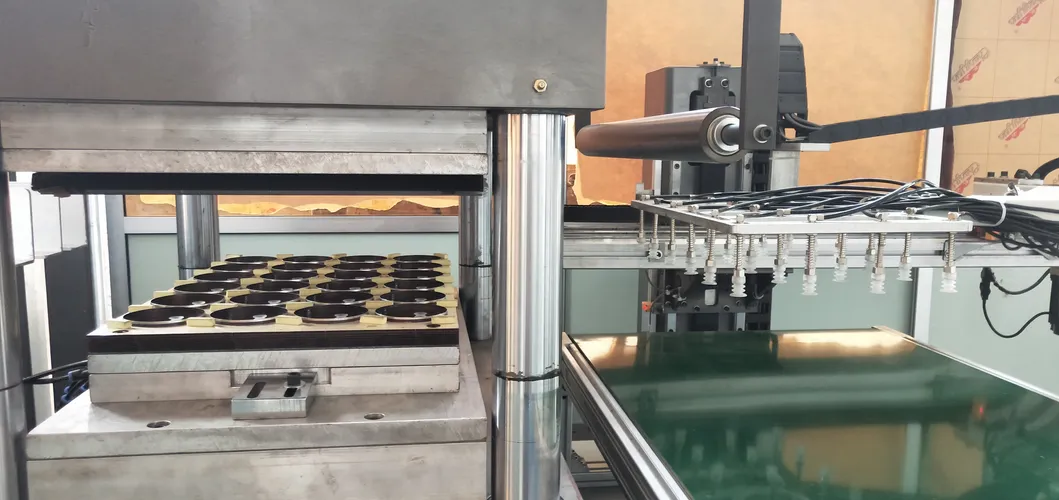

Cutting Mould and Stacking Robot

Cutting Mould and Stacking Robot

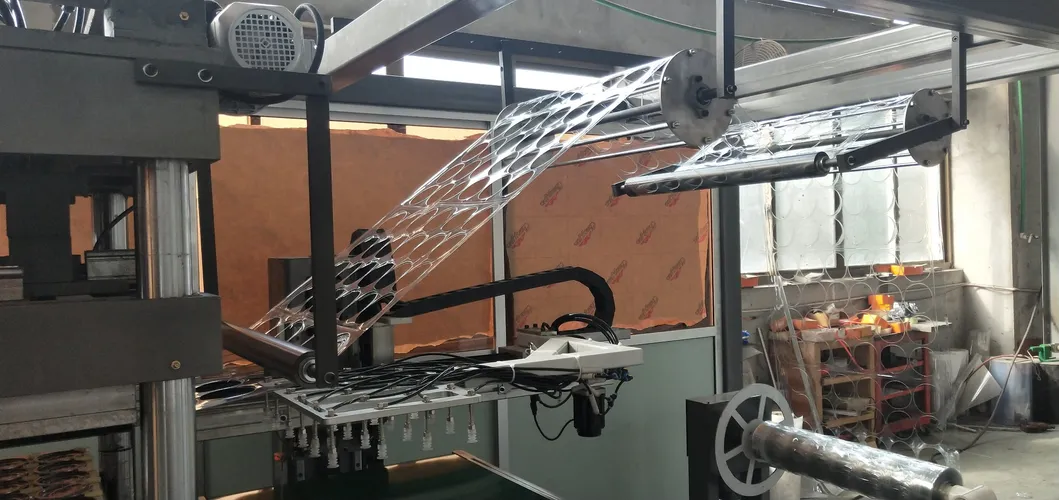

Waste Rewinding Unit

Waste Rewinding Unit

Key Features

  • Ultra-Low Energy: Maximum power consumption is only 8 kW/h.
  • Material Saving: Servo drive clamping feed, edge material only 10mm wider than sealing ring.
  • Automated Handling: Mechanical hand for grasping and sending products to conveyor with accumulative counting.
  • Compact Design: Small floor space requirement with efficient structure.
  • Continuous Operation: Automatic feeding with fast platform; no need to stop.
  • Stable Operation: X-shaped curved arm structure with horizontal stabilizer bar.
  • Smart Lubrication: Unique oil circuit design for automatic continuous recycling.
  • Material Versatility: Suitable for PLA, PVC, PS, PET, PP, and all types of covers.

Technical Parameters

ItemDescriptionSpecification
1Suitable ProductsDisposable lids, egg trays, clamshell boxes, plates etc.
2Suitable MaterialsPLA, PVC, PS, PET, PP sheet
3Thickness Range0.1-1.5mm
4Stroke Range30-440mm
5Max. Forming Depth80mm
6Max. Forming Area620×420mm
7Industry Voltage380V/50Hz (Three Phase)
8Total Power28kW
9Max. Speed10-40 Cycles/Min (Robot max. 25)
10Max. Cutting Force30Ton/0.8Mpa
11Air Pressure0.5-0.7MPa
12Air Consumption≥ 0.3 m3/h
13Cooling WaterNormal Tap Water Recycle Cooling
14Noise<75Db
15Dimension7300×1500×1820mm
16Weight4300kg

Our Services

  • Warranty: 1-year warranty after installation with free spare parts replacement for quality issues.
  • Installation & Training: 1-2 engineers available for setup and training on-site.
  • Quotation Validity: Valid for 60 days.

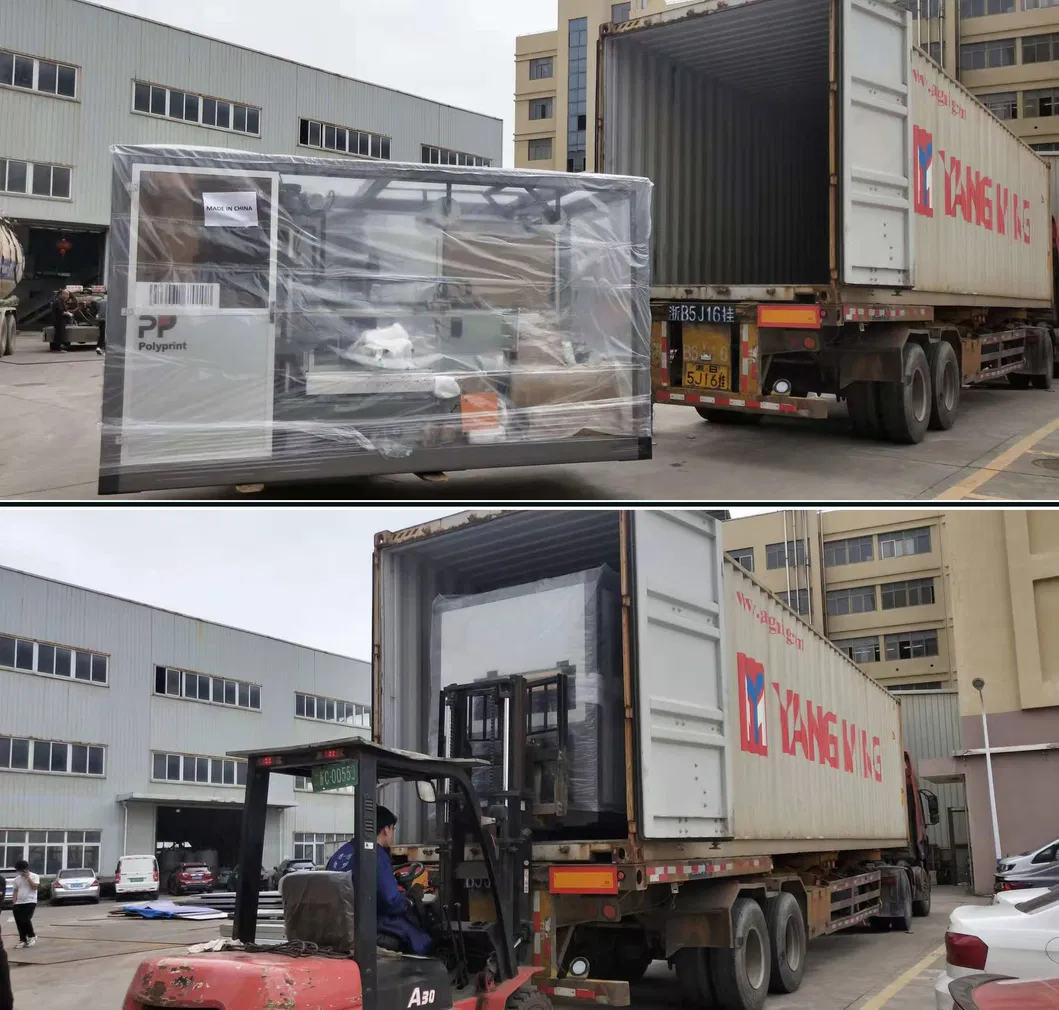

Packaging & Shipping

Packaging and Shipping

Frequently Asked Questions

What materials can this machine process?
The PPBG-650 is designed to handle a wide variety of plastic sheets including PLA, PVC, PS, PET, and PP with a thickness range of 0.1mm to 1.5mm.
What is the production speed of the automatic molding machine?
The machine operates at a working speed of 10 to 40 cycles per minute. When using the robot stacking arm, the maximum speed is 25 cycles per minute.
Is the machine energy-efficient?
Yes, it features ultra-low energy consumption due to its laminated heating method. The average power consumption is approximately 8 Kw/H despite a total installed power of 28kW.
Does the machine support multiple production steps in one line?
Absolutely. It integrates positive and negative pressure molding, punching, cutting, and robotic stacking/counting into a single continuous automated production line.
What kind of products is this machine best suited for?
It is ideal for high-quality blister products such as coffee lids, fruit boxes, egg trays, disposable food containers, and medicine packaging where clean cutting edges are required.
What is included in the after-sales service?
We provide a 1-year warranty including free parts replacement for defects. We also offer on-site installation and staff training by sending experienced engineers to your facility.
