Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine
Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine
Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine
Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine
Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine
1 / 5
Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine
Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine
Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine
Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine
Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine

Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information

Model NO.
FSCT-600/400
Certification
CE, ISO
Column number
Four Column
Molding Method
Pultrusion / Thermoforming
Automatic Grade
Automatic
Power Supply
380V, 50Hz
Applicable Sheet
PP, HIPS, PS, PET, PVC, etc.
Production Capacity
10 Sets/Month

Product Description

Hinged Lid Vegetable Clamshell Plastic Blister Packaging Forming Machine

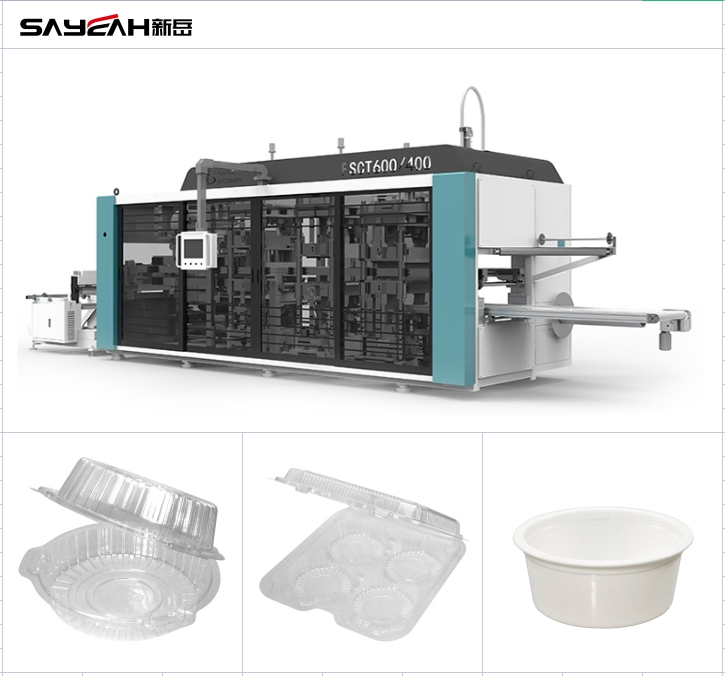

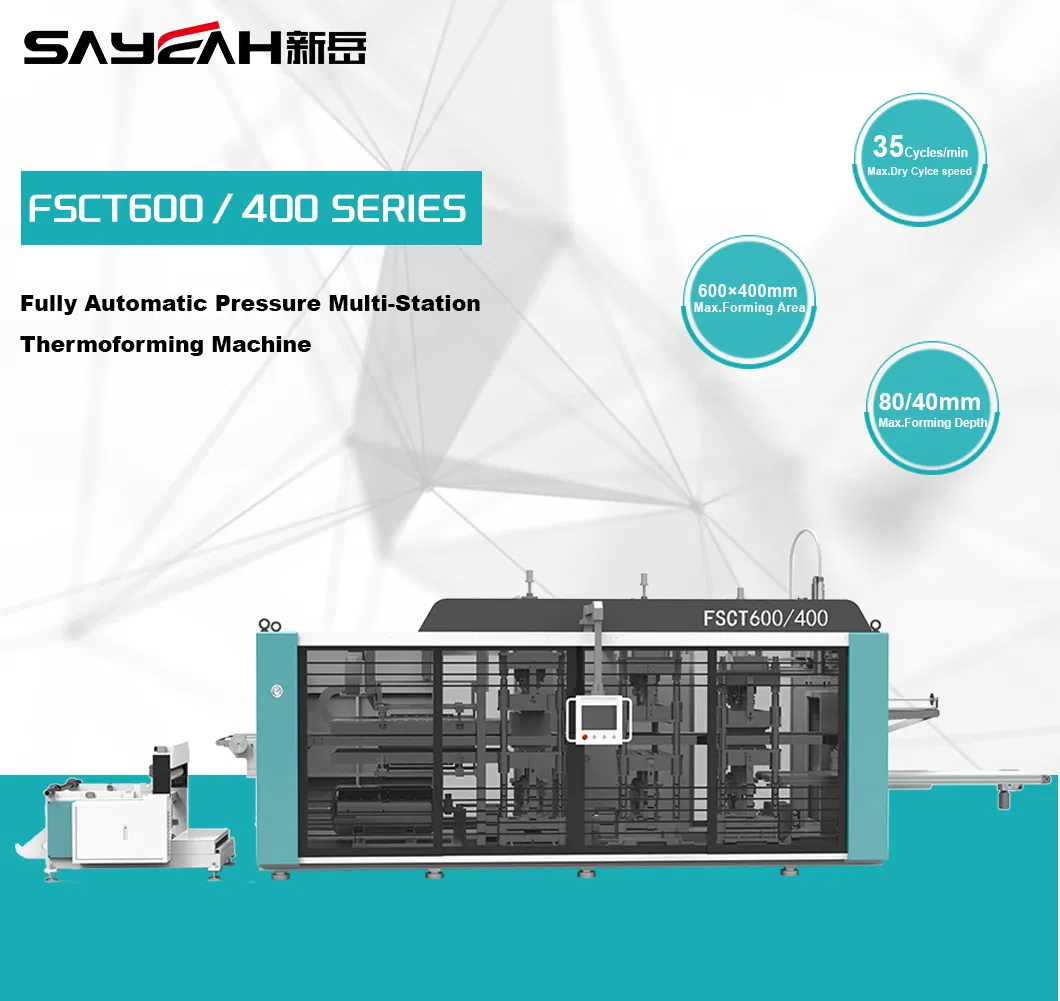

Forming Machine Main View

Multi-station thermoforming machine is a full automatic machine use PP, PET, PS to form plastic trays, lids, containers, boxes. It combines forming, cutting, and stacking into one seamless process. This machine is widely used and suitable for high-demand production requirements, completely driven by servo motor for stable operation, low noise, high efficiency, and high quality.

Technical Parameters

Model FSCT600/400-2 FSCT600/400-3 FSCT600/400-4
Max Forming area600x400mm
Max Forming Depth/Height80/40mm
Max Sheet Width640mm
Power85kw90kw95kw
Dimension (mm)7600x2100x26008200x2100x26009000x2100x2600
Weight4T5.5T7T
Sheet Thickness0.15-2mm
Max No-load Speed35 Cycles/min

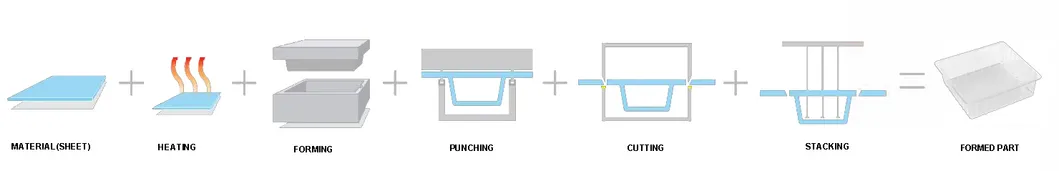

Machine Detail 1

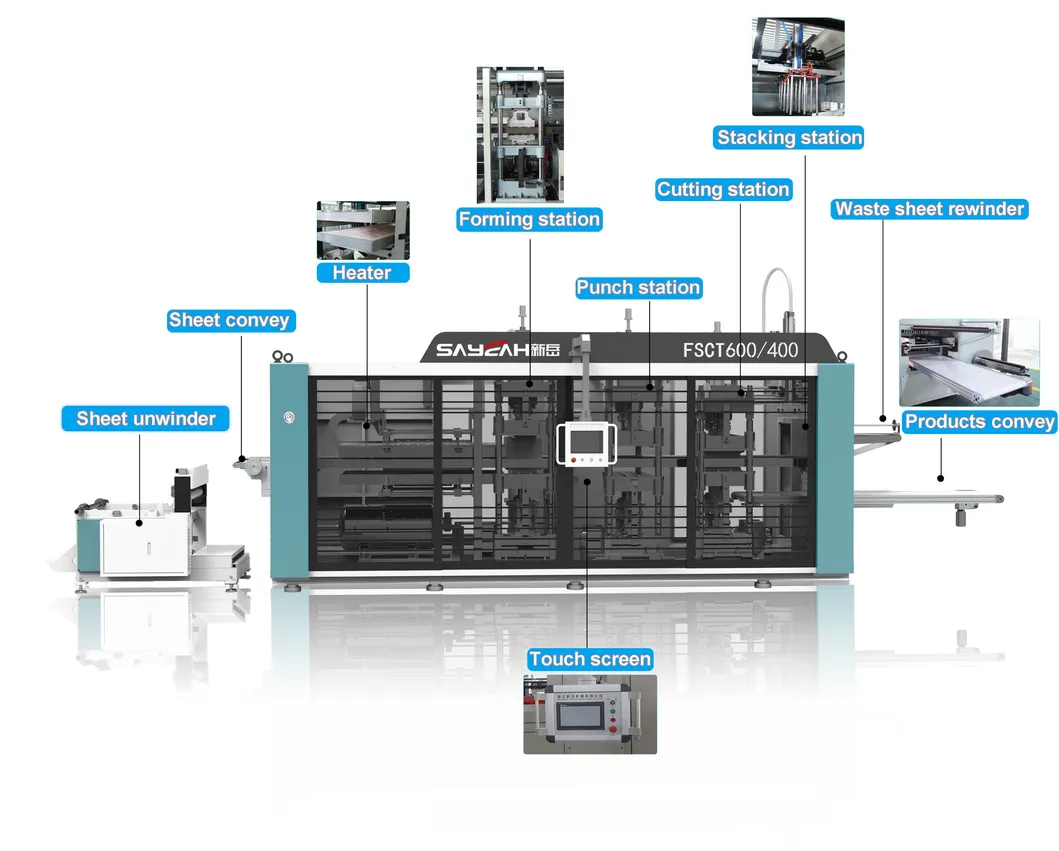

Machine Detail 2

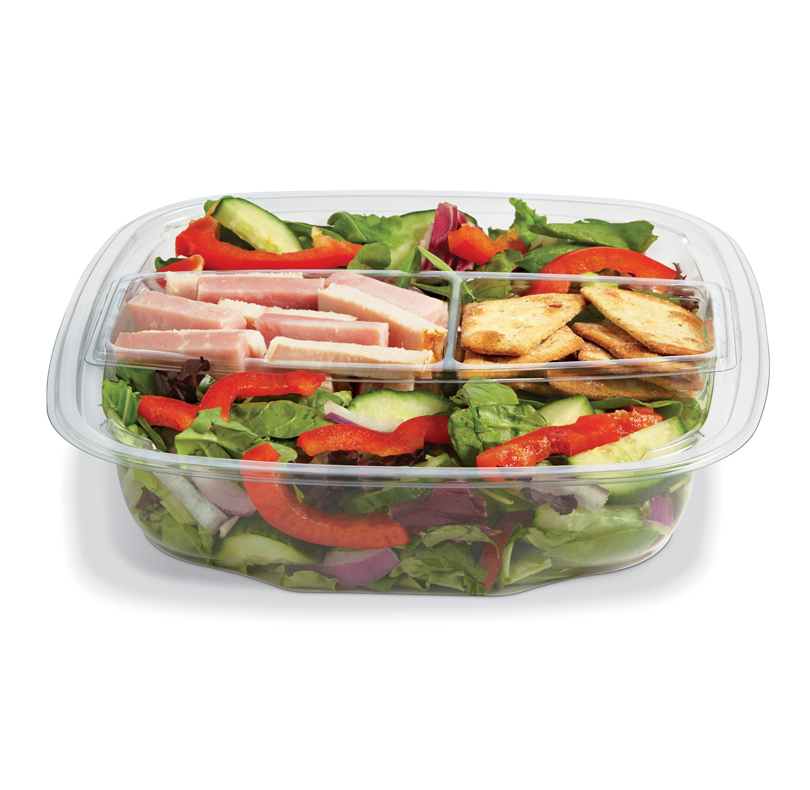

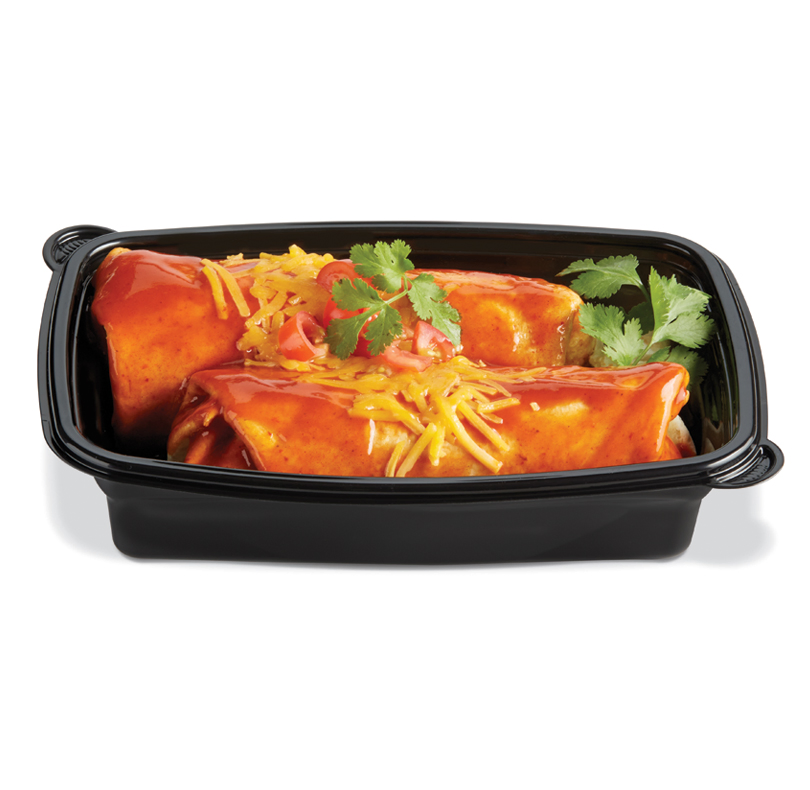

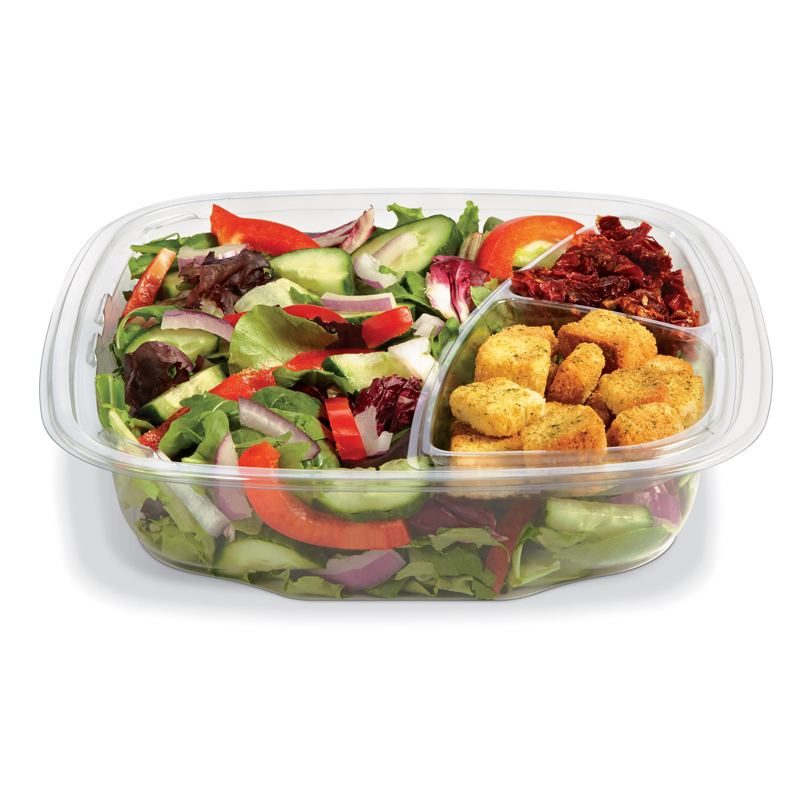

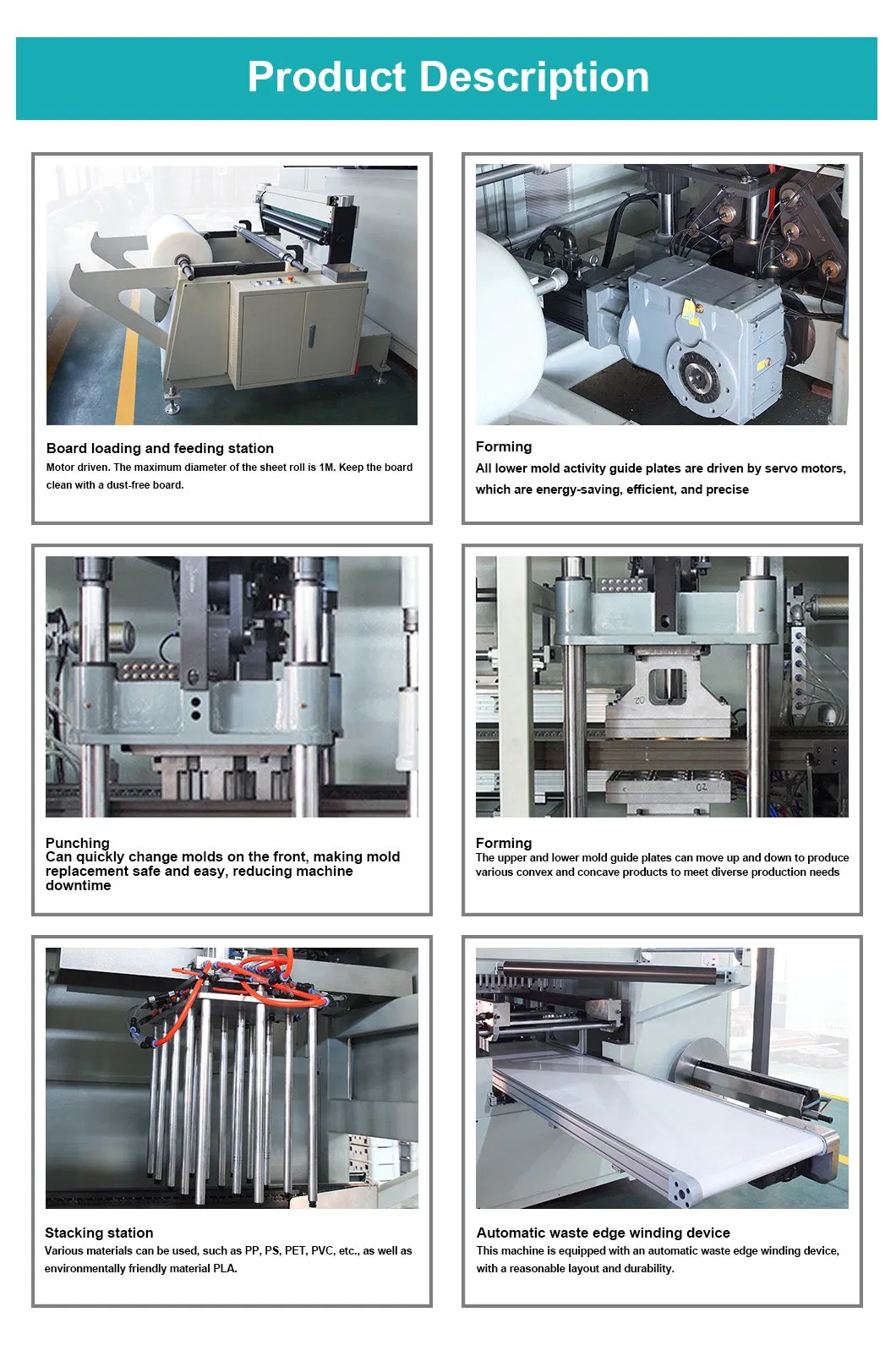

Product Samples

Key Features

  • 1Unwinding station electric lifting with double roll holder; allows single operator loading for rolls up to 1T.
  • 2Fast and accurate temperature control system (error ± 1 degree), reaching set temperature in ten minutes.
  • 3Quick front mold change system; safe and simple die change reducing machine downtime.
  • 4High cost performance, low failure rate, and abnormal alarm response mode for rapid troubleshooting.
  • 5Remote maintenance capability for instant judgment of obstacle messages and rapid correction.
  • 6Integrated electric cabinet design to simplify machine assembly and wiring installation.

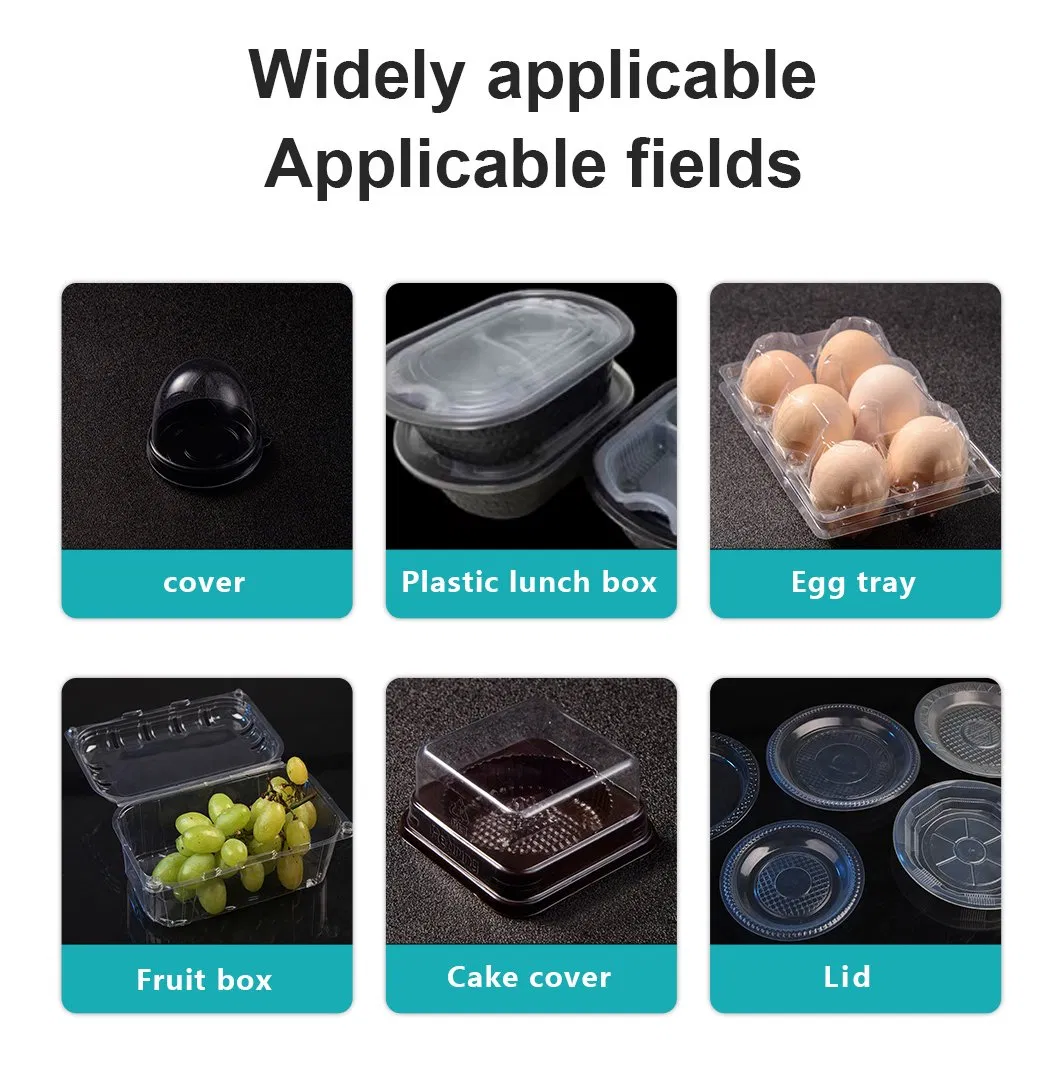

Feature View 1
Feature View 2
Feature View 3
Component View 1
Component View 2

Frequently Asked Questions

Are you a factory or trading company?
We are a professional factory with over 20 years of manufacturing experience in the industry.
How long is the warranty period for this machine?
We provide a 12-month warranty starting from the date of the bill of loading.
How do you handle machine installation?
We dispatch technicians to your facility to install the machine and provide comprehensive training for your operators. Costs like visas, airfare, and accommodation are handled per agreement.
What plastic materials are compatible with this equipment?
The machine is designed to process a wide range of sheets including PP, PET, PS, HIPS, and PVC.
What is the monthly production capacity for these sets?
Our current production capacity is approximately 10 sets per month for this specific series.
Is the machine fully automated?
Yes, it is a fully automatic multi-station thermoforming machine that integrates forming, cutting, and stacking for maximum efficiency.
