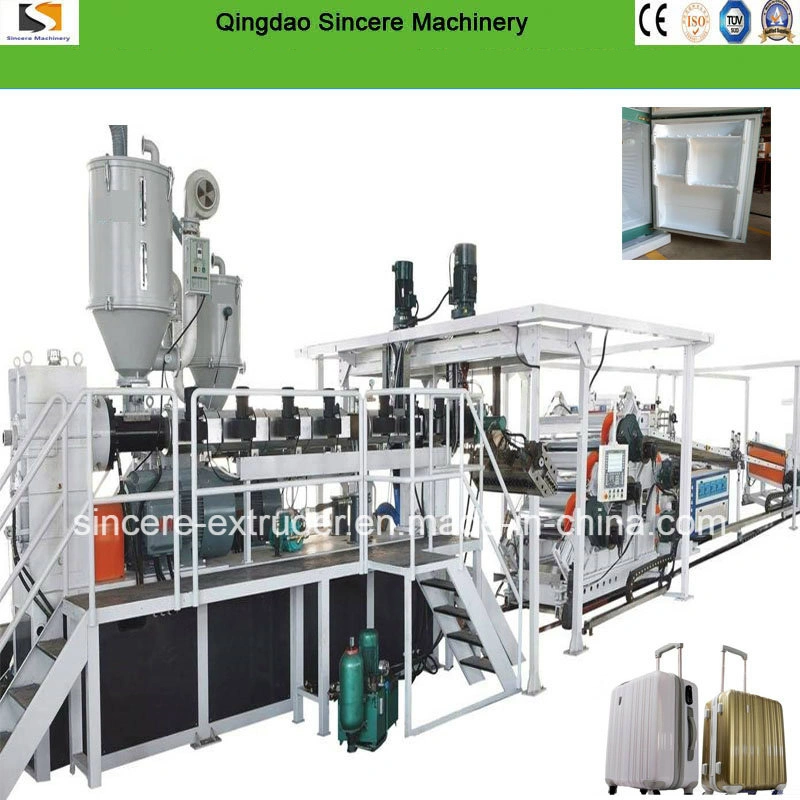

HIPS PC ABS Suitcase Plate Extrusion Manufacturing Equipment

1 / 5

HIPS PC ABS Suitcase Plate Extrusion Manufacturing Equipment

Warranty:	1year
Product Type:	Plastic Thermoforming Sheets
Screw No.:	Single-screw

Send Inquiry

Product Description

Basic Specifications

Model NO.

SJ90, SJ120, SJ150, SJ180

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008, TUV

Customized

Condition

New, Under The Order

After-sales Service

Send Engineers Install and Test Machine

Sheet Types

Sheet Surface Matte or Smooth, Vacuum Forming Sheet

Processing Period

60 Days

Technical Support

Permanent

Output

150-800kg/H

HS Code

8477209000

Product Description

PMMA PC Monolithic Endurance Plate/Panel Manufacturing Extrusion Line

PP/PE/PS/PC/PMMA/PET/PETG/TPU/ABS/EVA/EVOH Plastic Sheet Production Line Equipment (Single-layer or Multi-layer sheet line).

1. Sheet Applications

Product sheets are widely used in optical, home appliances, construction, decoration, furniture, advertising, handicrafts, and other industrial and civilian industries. Multi-layer co-extruding sheet & plate lines can produce various material compound sheets such as PP/EVA/EVOH/PP, PP/PE/PS, PMMA/ABS, and more. These are ideal for food packaging, drink containers, jelly, cosmetics, and other household products.

2. Sheet Extrusion Line Components

PP/PE/PS/PC/PMMA/PET/PETG/TPU/ABS/EVA/EVOH Production Line Parts		Quantity
1	Single Screw Extruder	1 - 3 Sets
2	Duplex hydraulic screen changer and Melt pump	1 set
3	Extrusion Die Head T-die Head	1 set
4	Three Roller Calendar	1 set

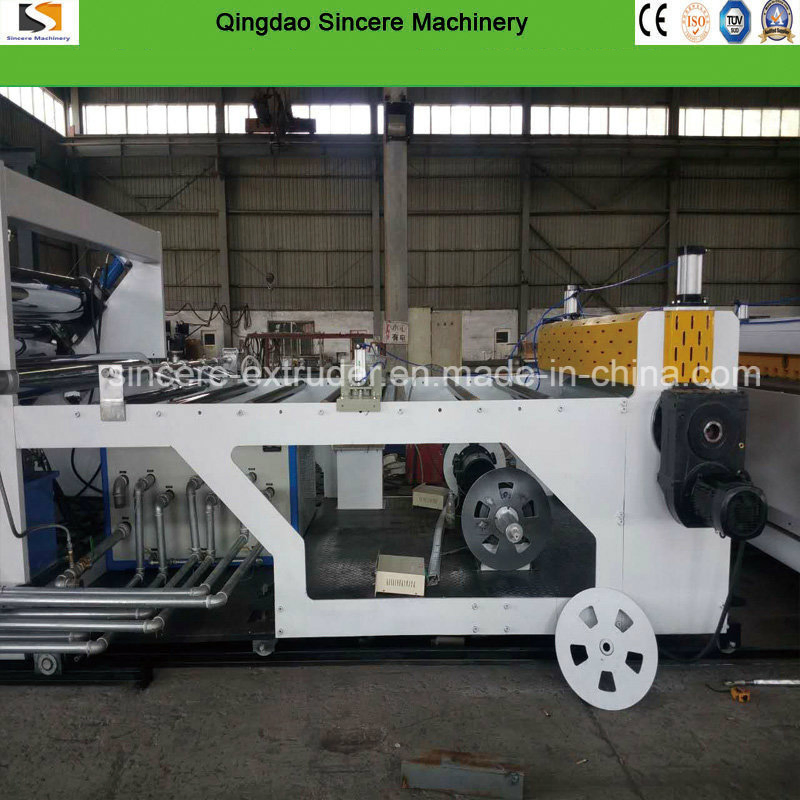

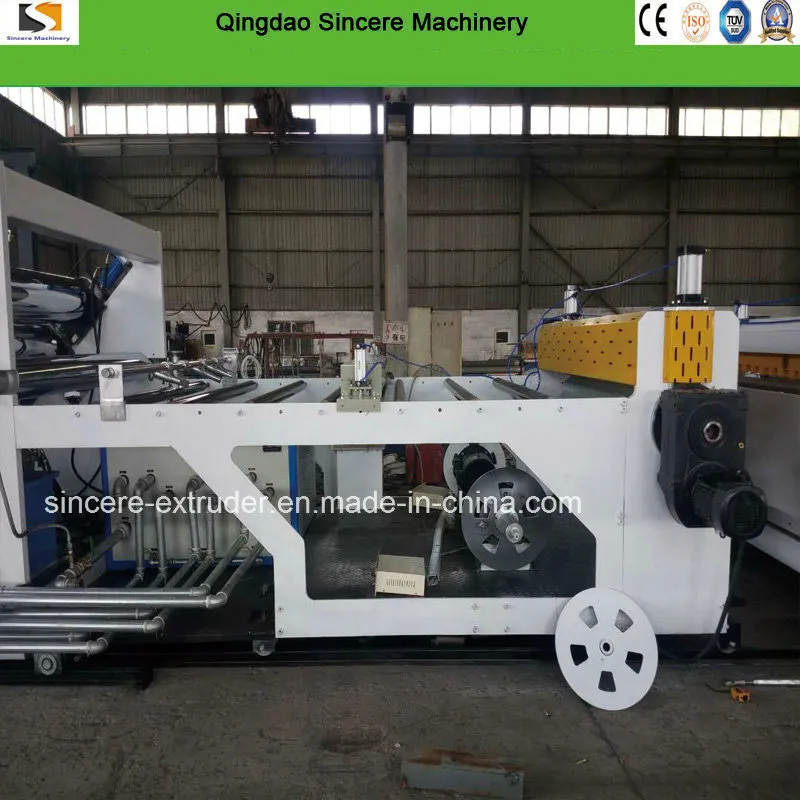

5	Cooling Frame	1 set
6	Edge Trimming Unit	1 set
7	Edge Material Crushing Unit	1 set
8	Double Roller Hauling off Machine	1 set
9	Cutting off Machine or Double Station Winding Machine	1 set

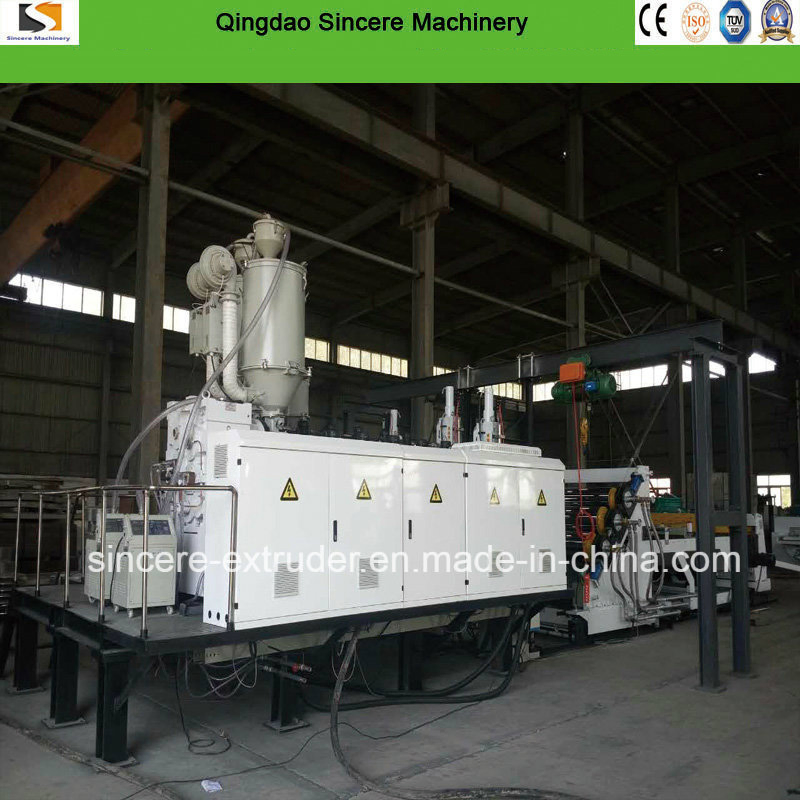

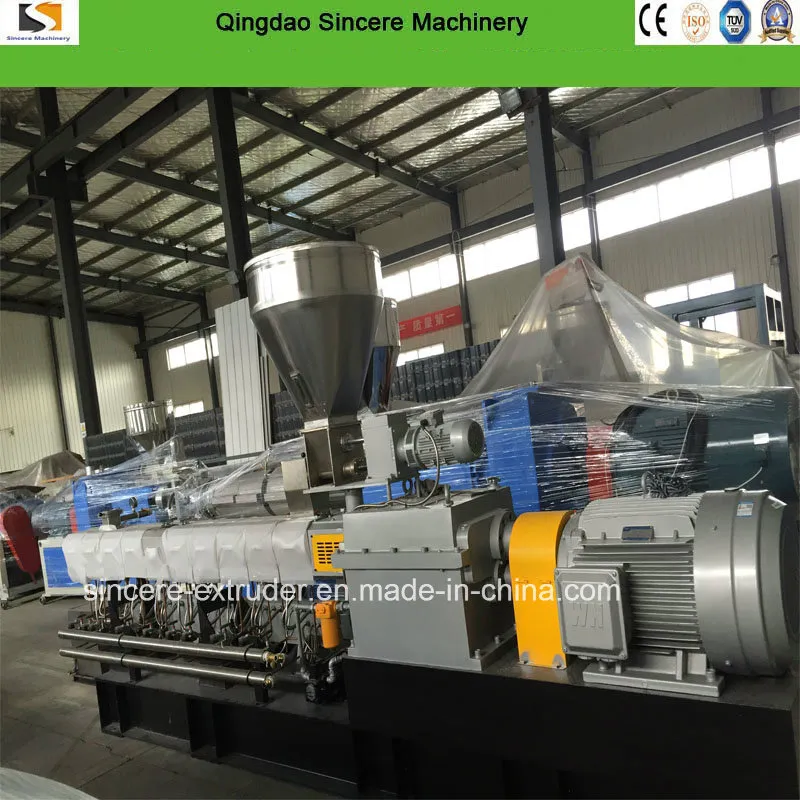

Extruder Detail: Appropriate single-screw extruders (exhaust or non-exhaust) are selected based on material requirements. The specially designed screw and advanced temperature control system ensure superior plasticization, high output, and stable extrusion.

3. Extrusion Line Characteristics

Adopting advanced international technology for optimized design with large screw L/D ratios and high production capacity.
Full-automatic hydraulic screen changing system for easy and fast operation.

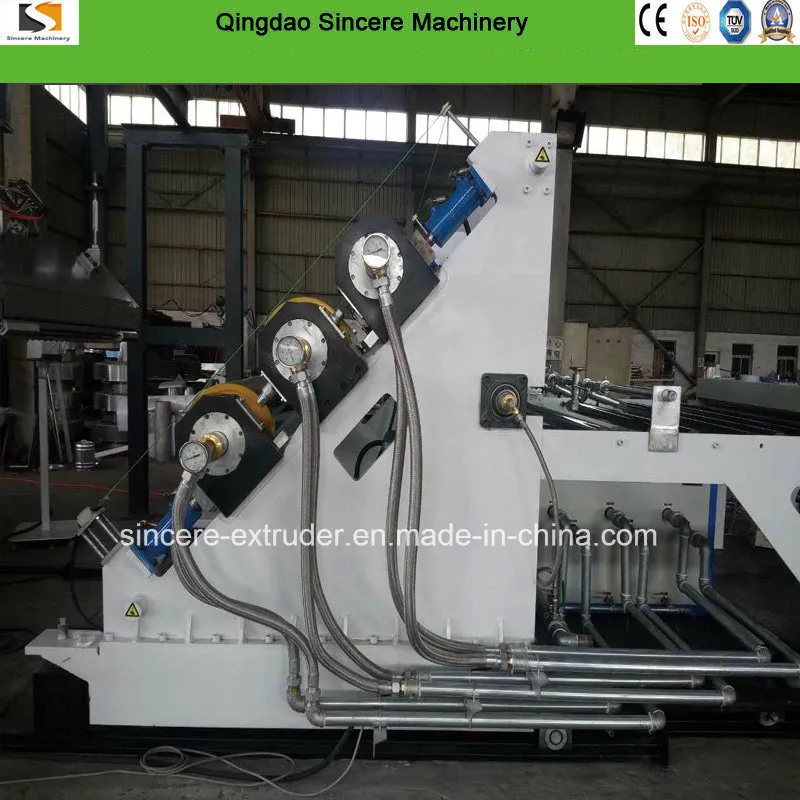

Hydraulic adjustment for the 3-roll calendar rollers, allowing precise pressure control for different materials.

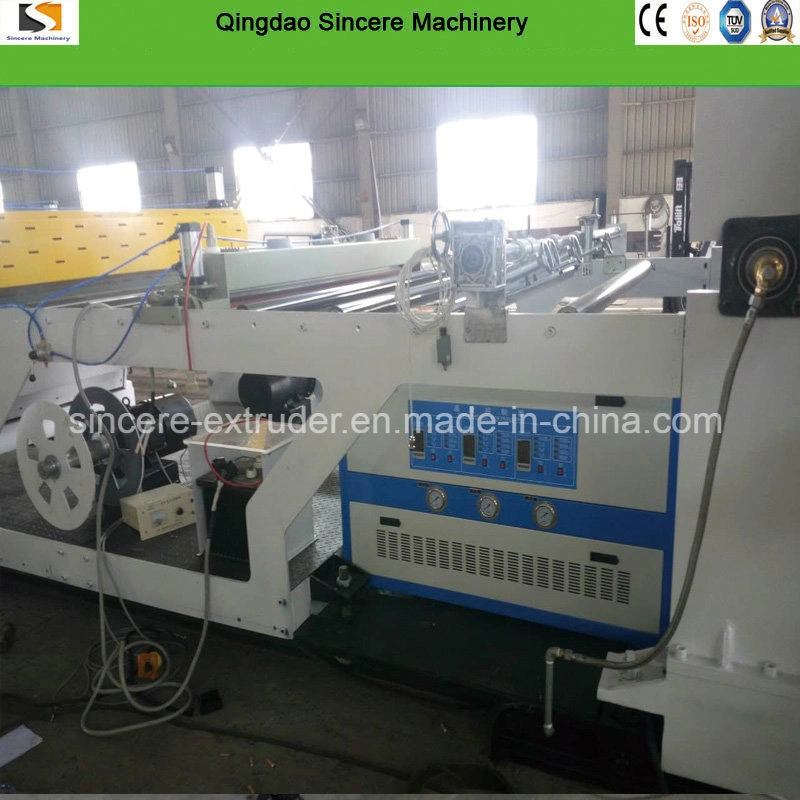

Double station center winding device matched with magnetic powder tension control.

4. Technical Parameters

Screw Diameter	Ф65, Ф75, Ф90, Ф100, Ф110, Ф120, Ф150mm
L/D Ratio	33:1, 34:1, 35:1, 38:1
Main Engine Power	37-350kw
Sheet Thickness	0.2 - 30mm (Variable by model)
Sheet Width	400-2100mm
Productivity	150-1000kg/h
Materials Supported	Raw or Recycled PP/PE/PS/PC/PMMA/PET/PETG/TPU/ABS/EVA/EVOH
Sheet Structure	Single layer, double-layer or multi-layer; micro-foaming or non-foaming

5. Related Production Solutions

PET sheet extrusion line (0.1-1.5mm thickness)
PP PS thermoforming sheet production line
ABS PS refrigerator and suitcase plate extrusion line
PC PMMA plate extrusion production line (1-6mm)
PP PVC chemical thick plate extrusion line (3-30mm)
PVC foam sheet and decorative plate production lines
PC, PE, PP multilayer hollow grid plate extrusion lines
Waterproof geomembrane and carpet extrusion lines

Frequently Asked Questions

What types of plastic materials can this extrusion line process?

The production line is highly versatile and can process raw or recycled materials including PP, PE, PS, PC, PMMA, PET, PETG, TPU, ABS, EVA, and EVOH.

What is the production capacity of these machines?

Depending on the specific model and material used, the output capacity ranges from 150kg/h to 1000kg/h.

Can this equipment produce multi-layer composite sheets?

Yes, the line supports single-layer, double-layer, and multi-layer co-extrusion, allowing for compound structures like PP/EVA/EVOH/PP for specialized packaging.

What are the typical applications for the finished sheets?

The sheets are widely used in construction, decoration, advertising, food packaging (containers/jelly cups), home appliances (refrigerators), and travel goods (suitcases).

Does the company provide technical support and installation?

Yes, technical support is permanent. We also provide professional after-sales service, including sending engineers for machine installation and testing.

What is the range of sheet thickness and width available?

The equipment can produce sheets with widths ranging from 400mm to 2100mm and thicknesses from 0.2mm up to 30mm depending on the configuration.
