Customization: Available
After-sales Service: Lifetime Maintenance (Except Man-Made Damage and N
Warranty: 1 Year
Send Inquiry

Product Description

📊
Basic Information
Model NO.
TZ-7695
Certification
CE, ISO
Automatic Grade
Automatic
Molding Method
Negative Pressure Forming
Workstations
Forming, Punching and Stacking
Max. Forming Size
760X950mm
Max. Forming Depth
120mm
Sheet Thickness
0.2-2.0mm
Cooling System
3HP Chiller
HS Code
84774090
Fully Automatic Three Stations Negative Pressure Thermoforming Machine
⚙️
Product Description

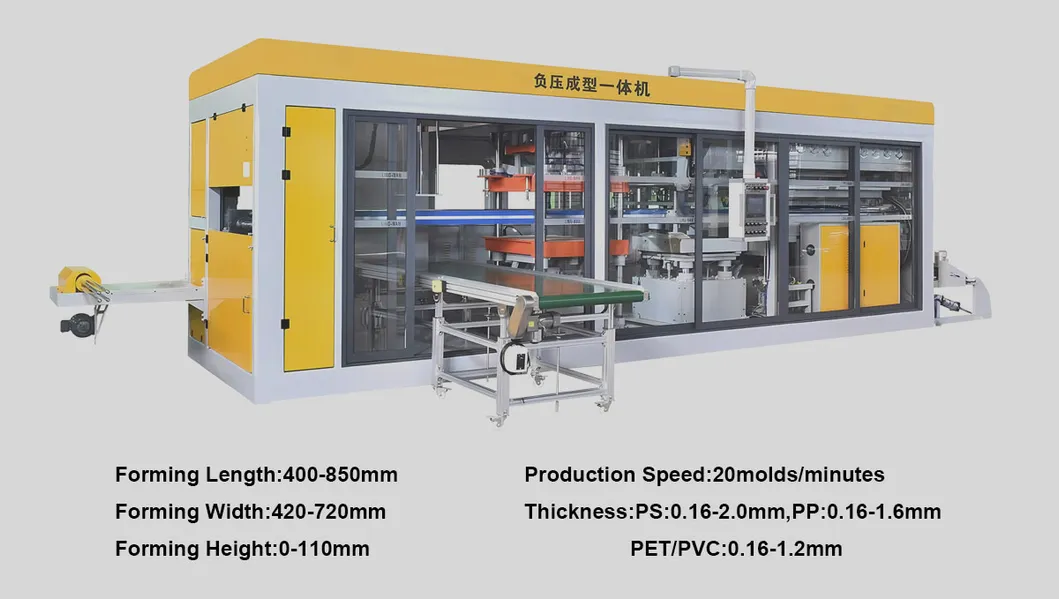

Thermoforming Machine Process
✔️
Fully servo-driven system, noiseless and vibration-free, ensuring excellent thermoforming and high production speeds.
✔️
Automatic discharge device prevents board breakage and minimizes material waste during production.
✔️

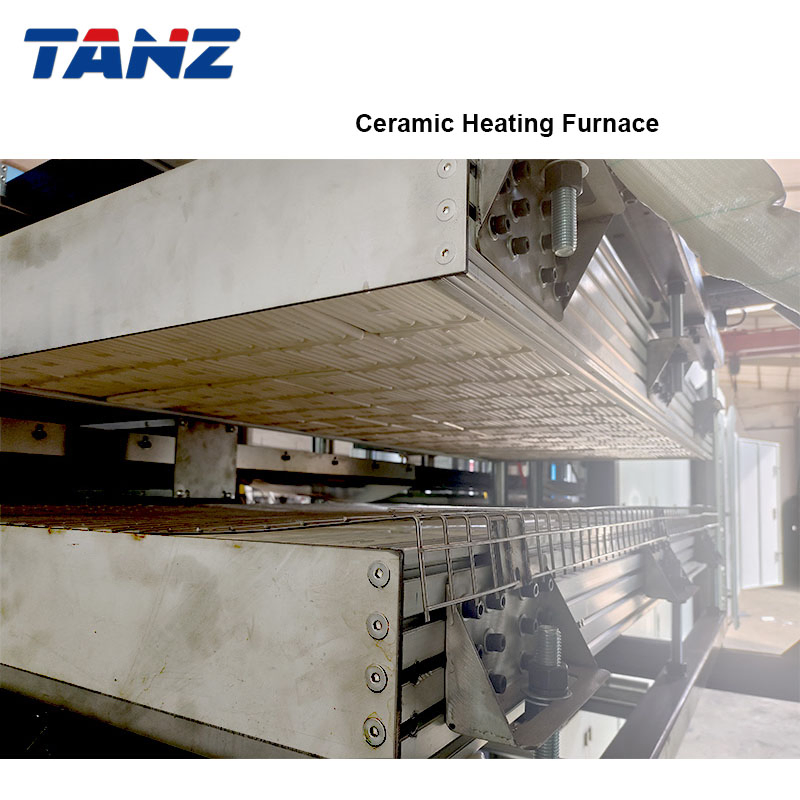

Intelligent electric furnace with automatic compensation control for uniform temperature adjustments and fast heating.
✔️

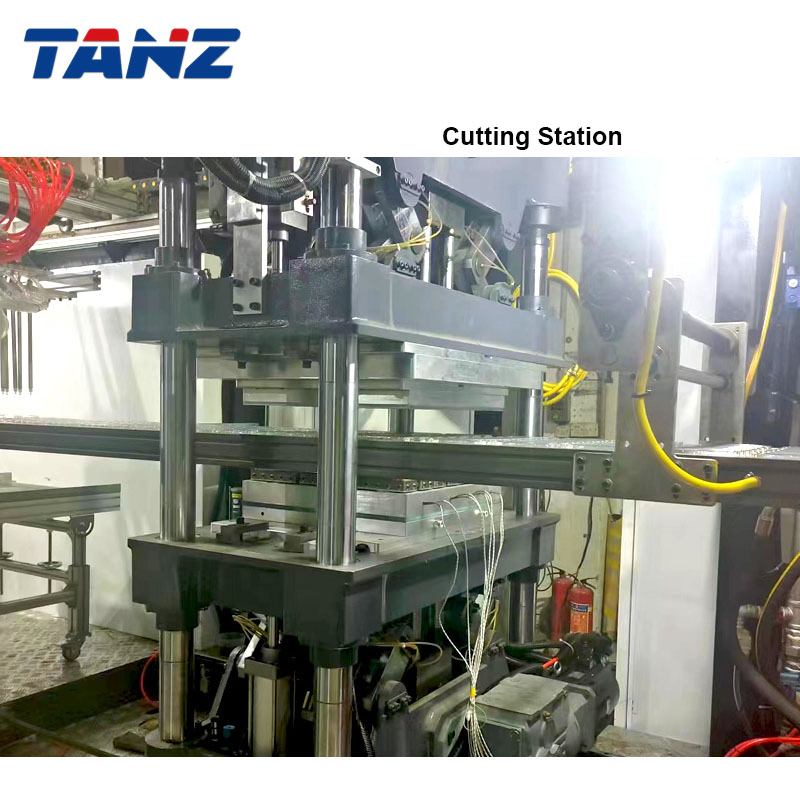

Servo-driven forming and cutting die with adjustable dual-direction strokes for precise mold positioning.
✔️
PLC-controlled automatic cutting, counting, and conveying, requiring only 1-2 operators.

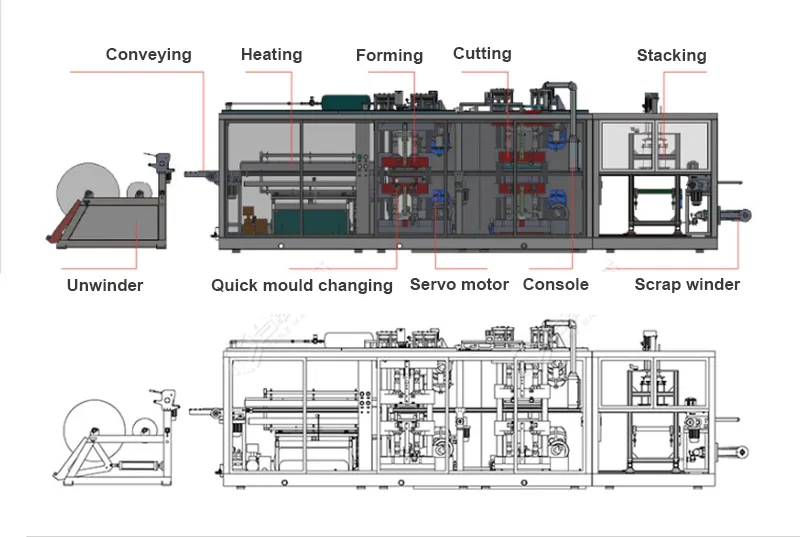

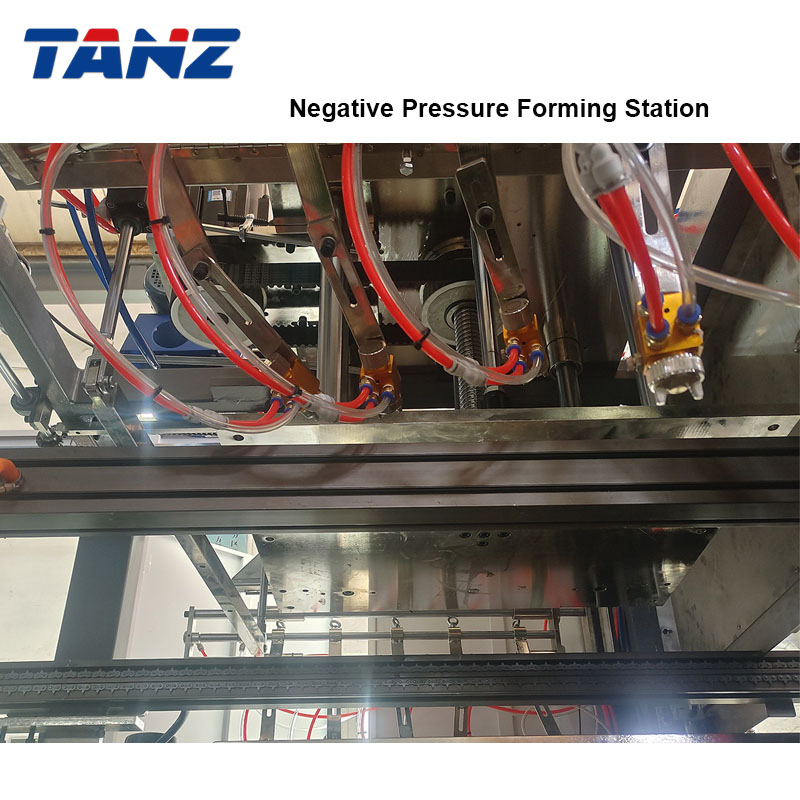

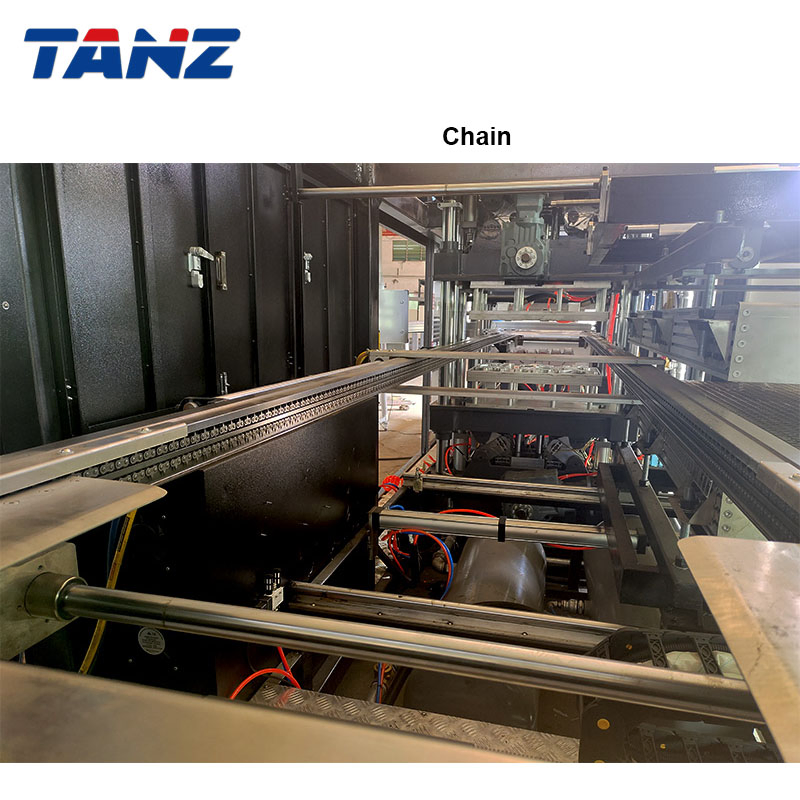

Equipment Detail
📋
Product Parameters
ParameterSpecification
Forming MethodNegative Pressure Forming
Max Mould Size760*950mm
Max Forming Depth120mm (Customizable up to 150mm)
Sheet Thickness Range0.16-2.0mm
Max Forming Speed20 times/min
Suitable SheetsPP, PS, HIPS, PET, PVC, PLA
Rated Power120Kw
WeightApprox. 11T
Main PLCSiemens
Servo MotorInovance
HeaterELSTEIN (Germany)
🔄
Production Process

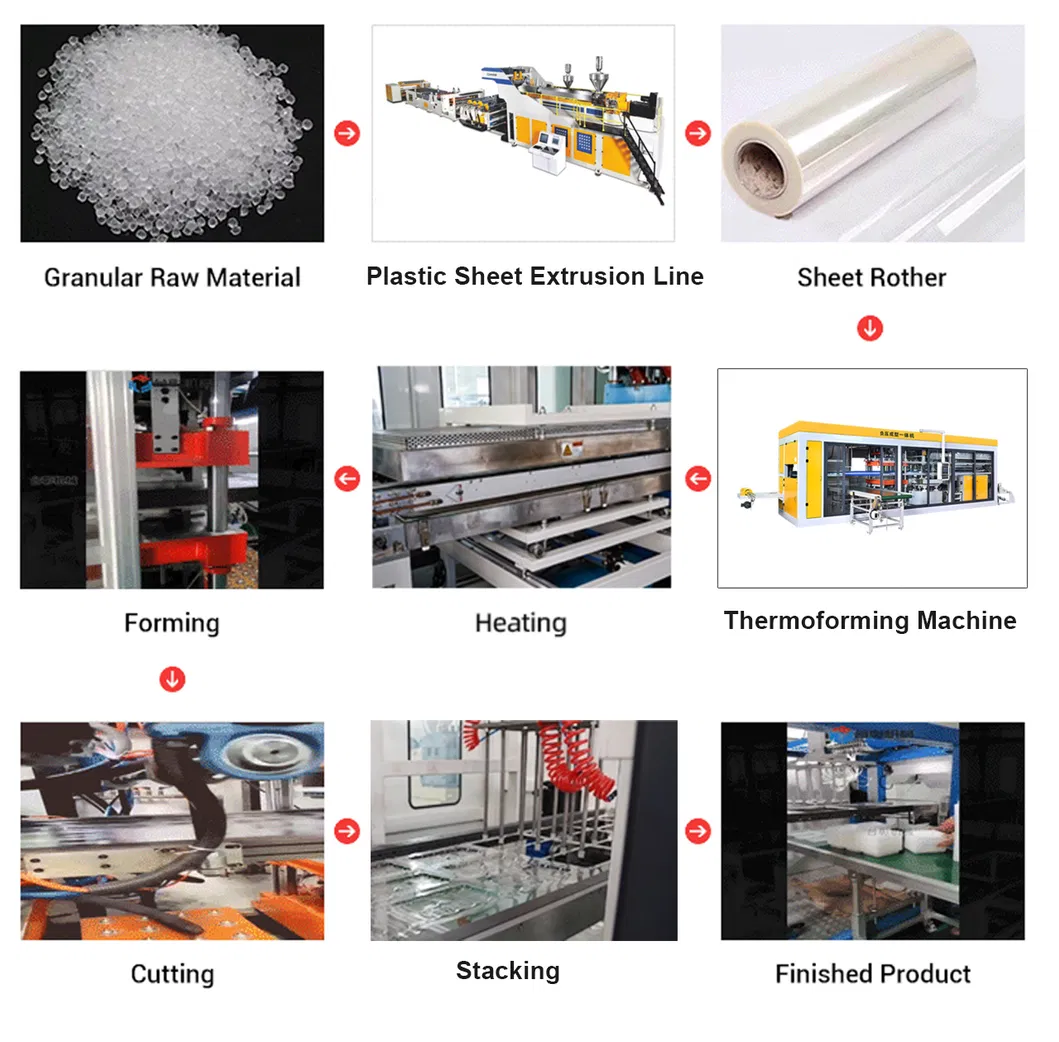

Production Flowchart
🚀
Scope of Application

Suitable for processing thermoplastic materials (0.15 to 2.0 mm thickness) into circular, square, and irregular shapes. Common applications include:

🔹 Plastic Food Containers
🔹 Electronic & Medical Trays
🔹 Disposable Bowls, Lids, & Plates
🔹 Tool Packaging & Seedling Trays
Application Examples
🛠️
Relative Machines

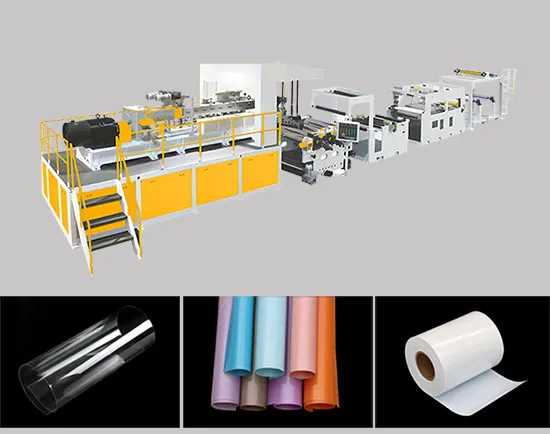

Plastic Sheet Extrusion Machines

Sheet Extrusion Machines

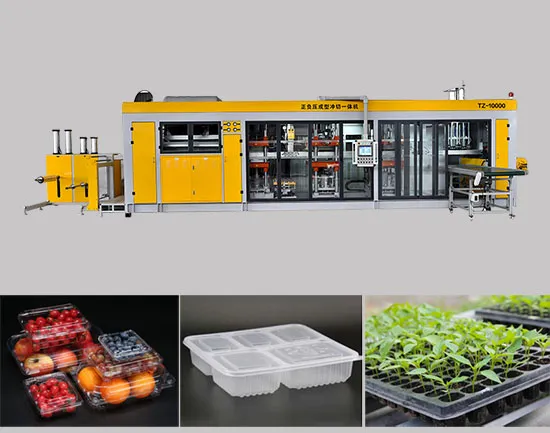

Thermoforming Machines

Multi-Station Thermoforming

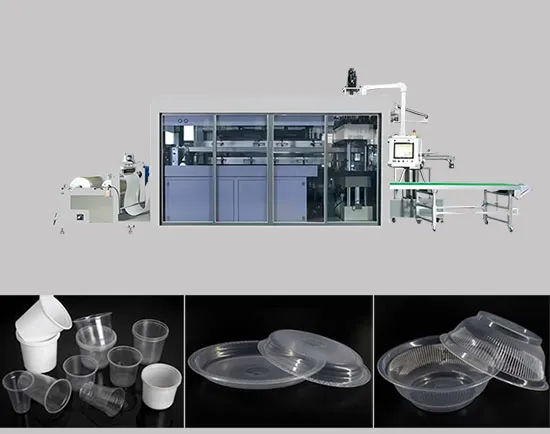

Cup Making Machine

Cup Making Machines

🛡️
Certifications & Service
Certifications
Pre-sales: Professional suggestions for the entire production setup for new users.
Installation: Technicians available for on-site installation and machine preparation.
Training: Comprehensive hand-to-hand training for operators until self-sufficiency.
After-sales: One-year machine guarantee with lifetime affordable technical support.
Frequently Asked Questions
What is the standard delivery timeframe?
Production is typically finished within 45 days after receiving the advanced payment, depending on the current stock and production plan.
What materials can be used with this machine?
The machine is compatible with a wide range of thermoplastic materials including PP, PS, HIPS, PET, PVC, and PLA.
How long does installation and training take?
On-site installation and operator training are usually completed within 15 days.
What is the warranty period for the equipment?
All machines come with a one-year guarantee starting from the date of finished installation.
How many operators are required to run the machine?
The fully automatic system is highly efficient and typically requires only 1 to 2 operators.
Can you assist with raw material sourcing?
Yes, in addition to machinery, we can help arrange raw material orders or provide sheet extrusion machines for in-house production.

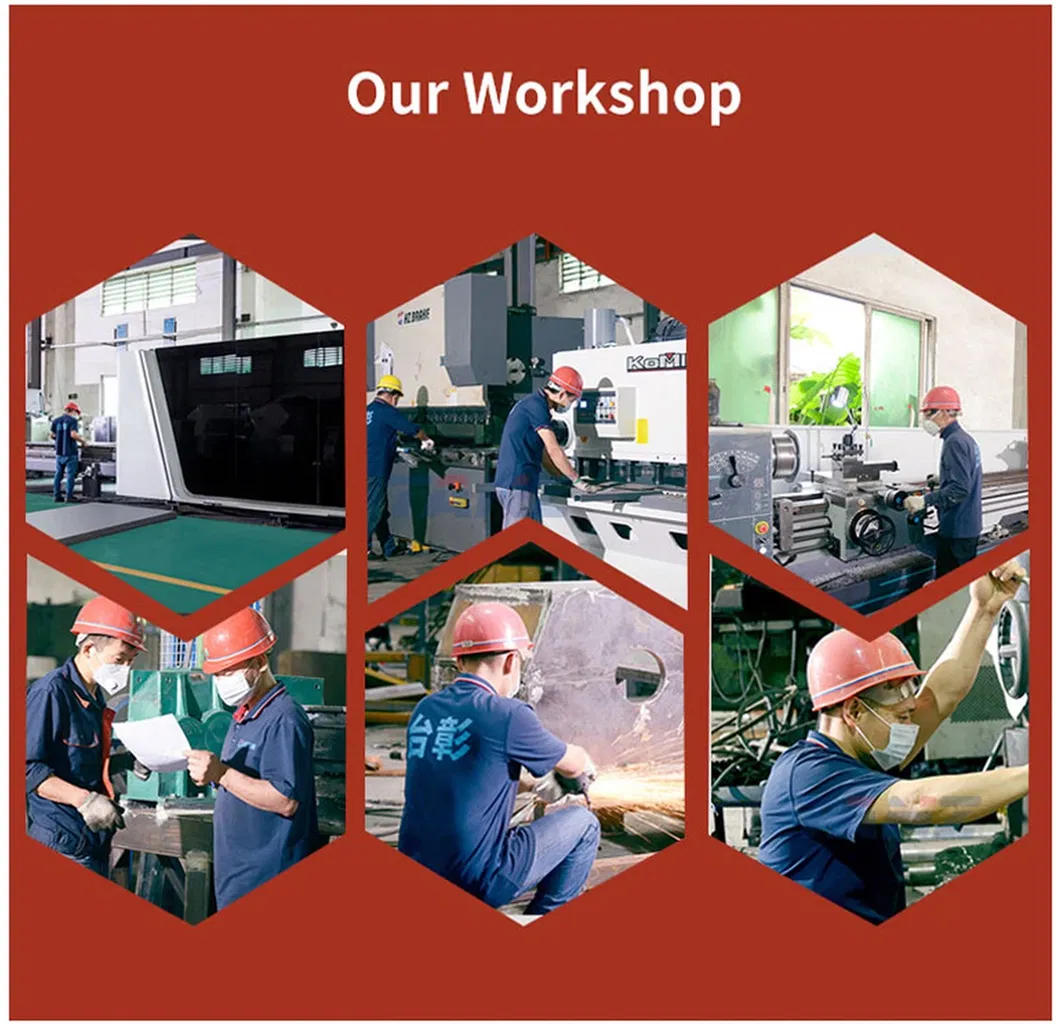

Facility Detail 1

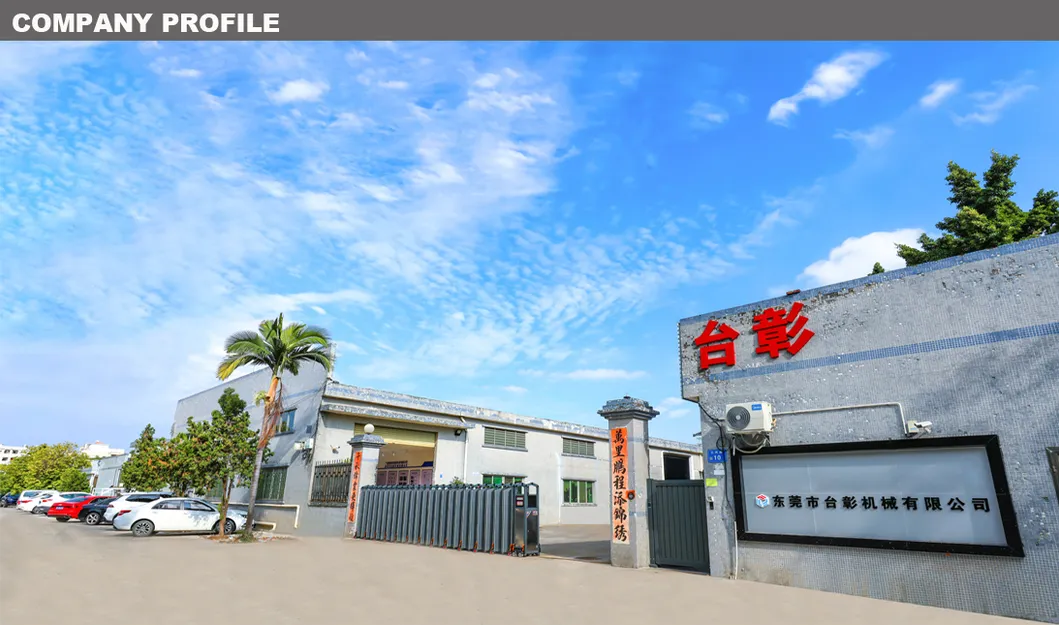

Facility Detail 2
Facility Detail 3
