| Model NO. | MF240II |
| Power Source | Electric |
| Process | Forming |
| Automatic Grade | Automatic |
| Type | Mix Filling Machines |
| Voltage | 380V |
| Power | 0.12kw |
| Machine Material | Stainless Steel 304 |
| Core Components | Bearing, Motor |
| Used in | Meat Factory, Meat Shop, Restaurant, Kitchen etc. |
| Transport Package | Plywood Case |
| Specification | 2100*620*1600mm |
| Origin | China |
| HS Code | 8438500000 |
| Production Capacity | 500 Set/Sets Per Year |
| Package Size | 1600.00cm * 650.00cm * 2050.00cm |
| Package Gross Weight | 385.000kg |

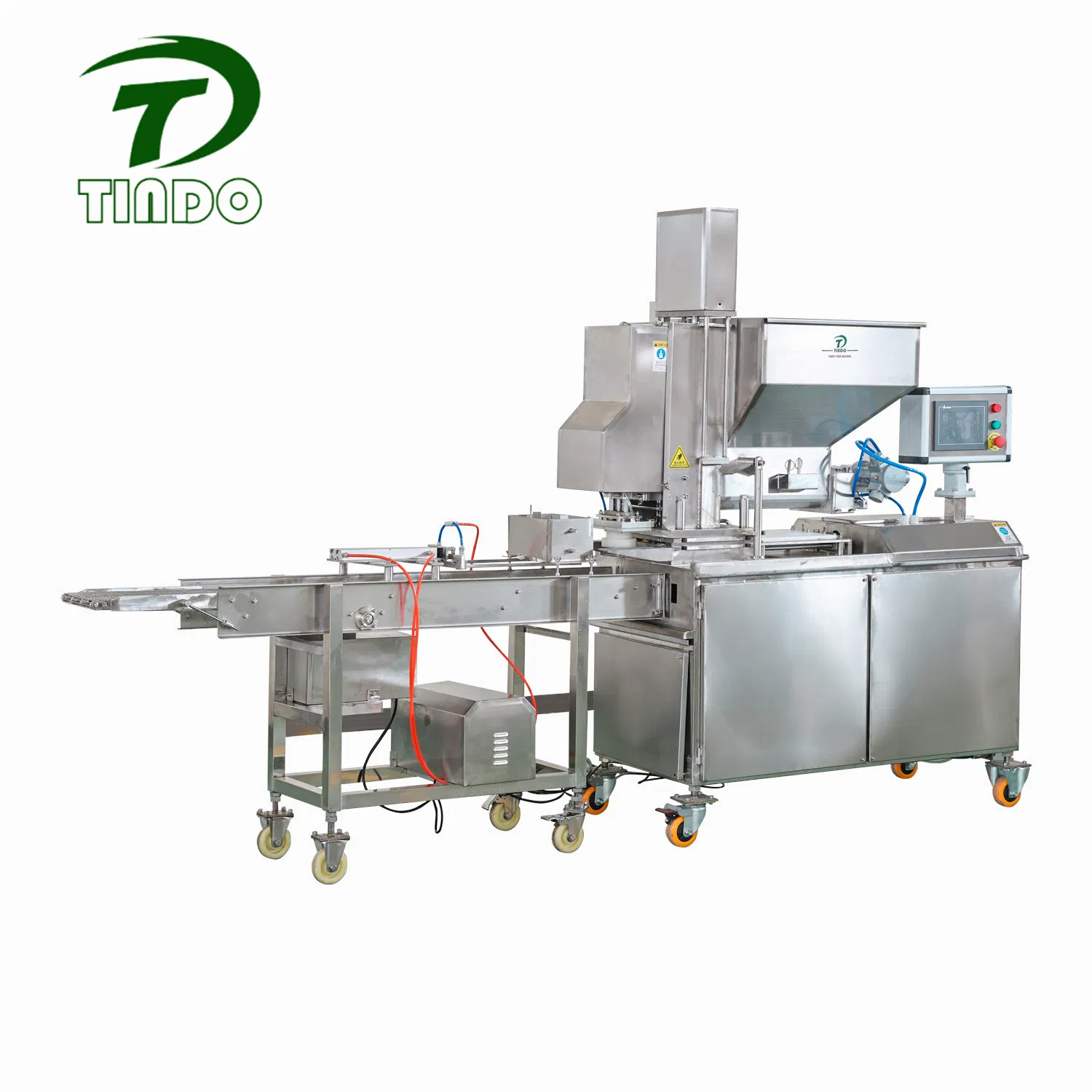

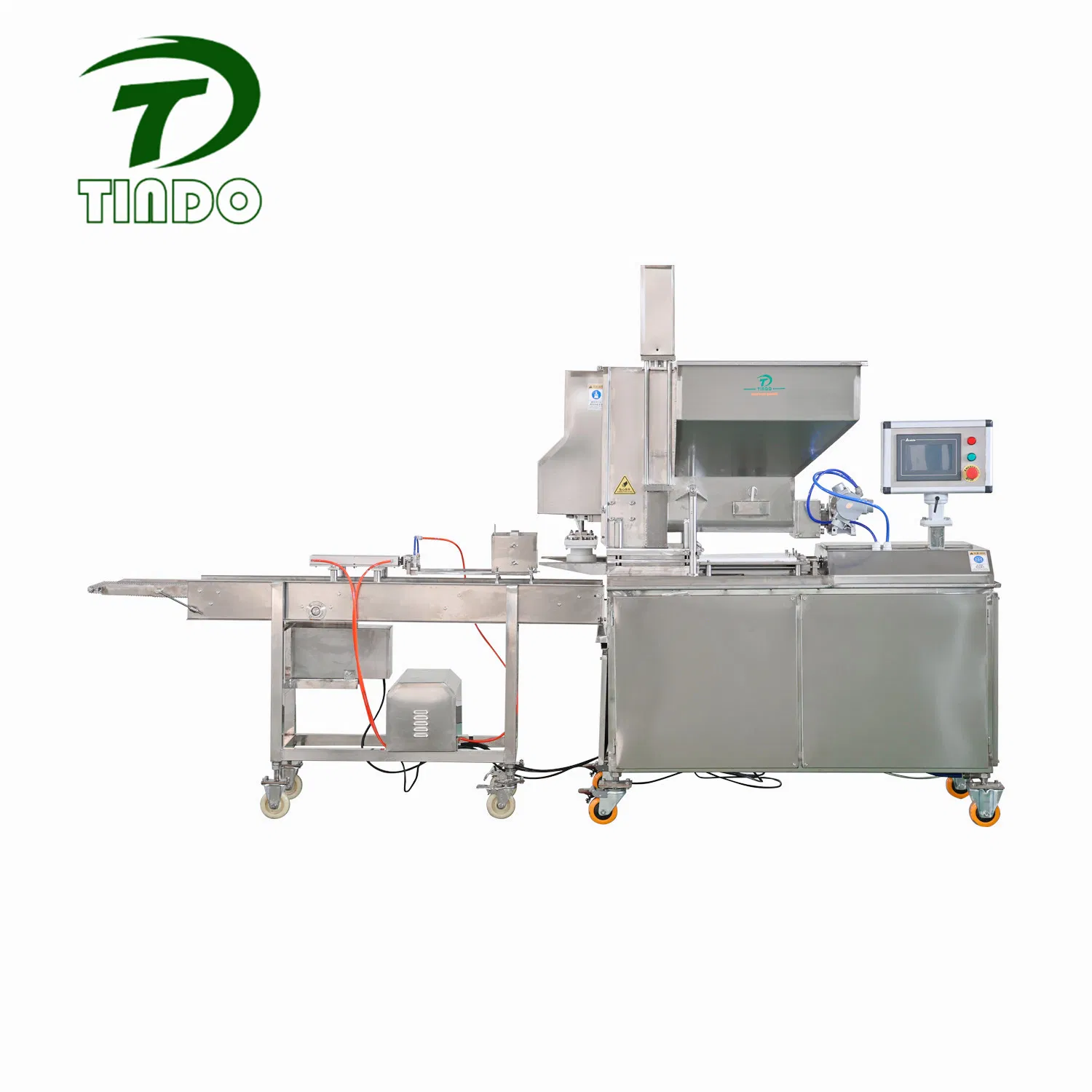

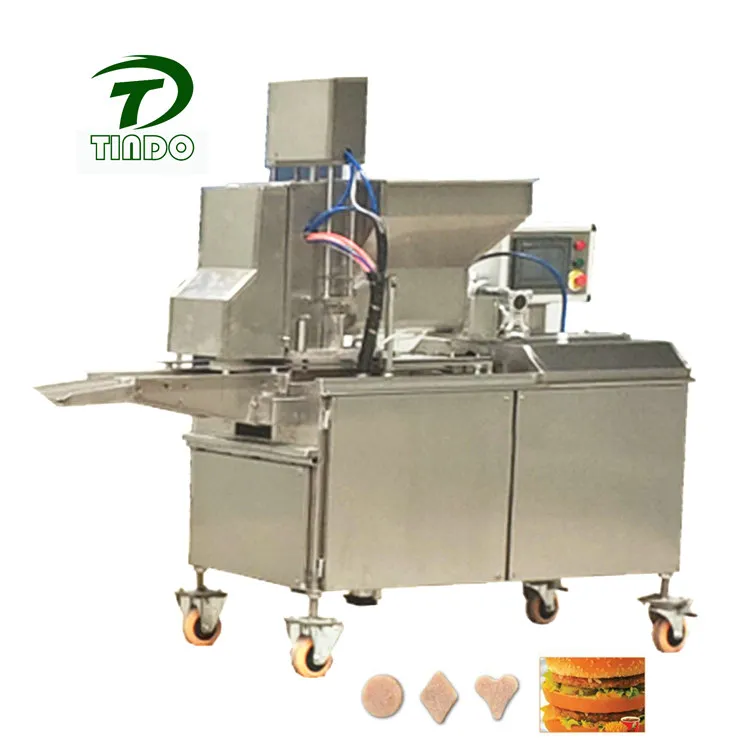

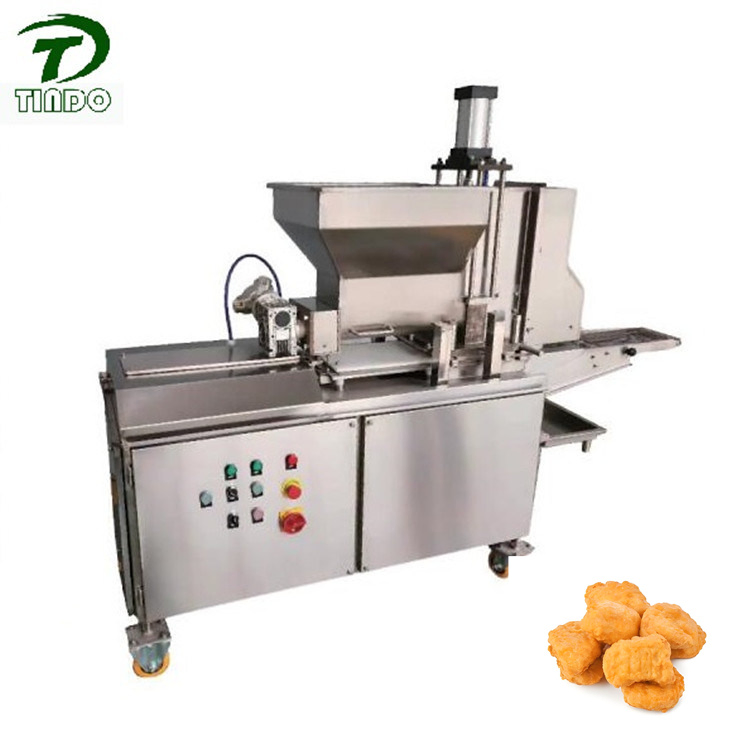

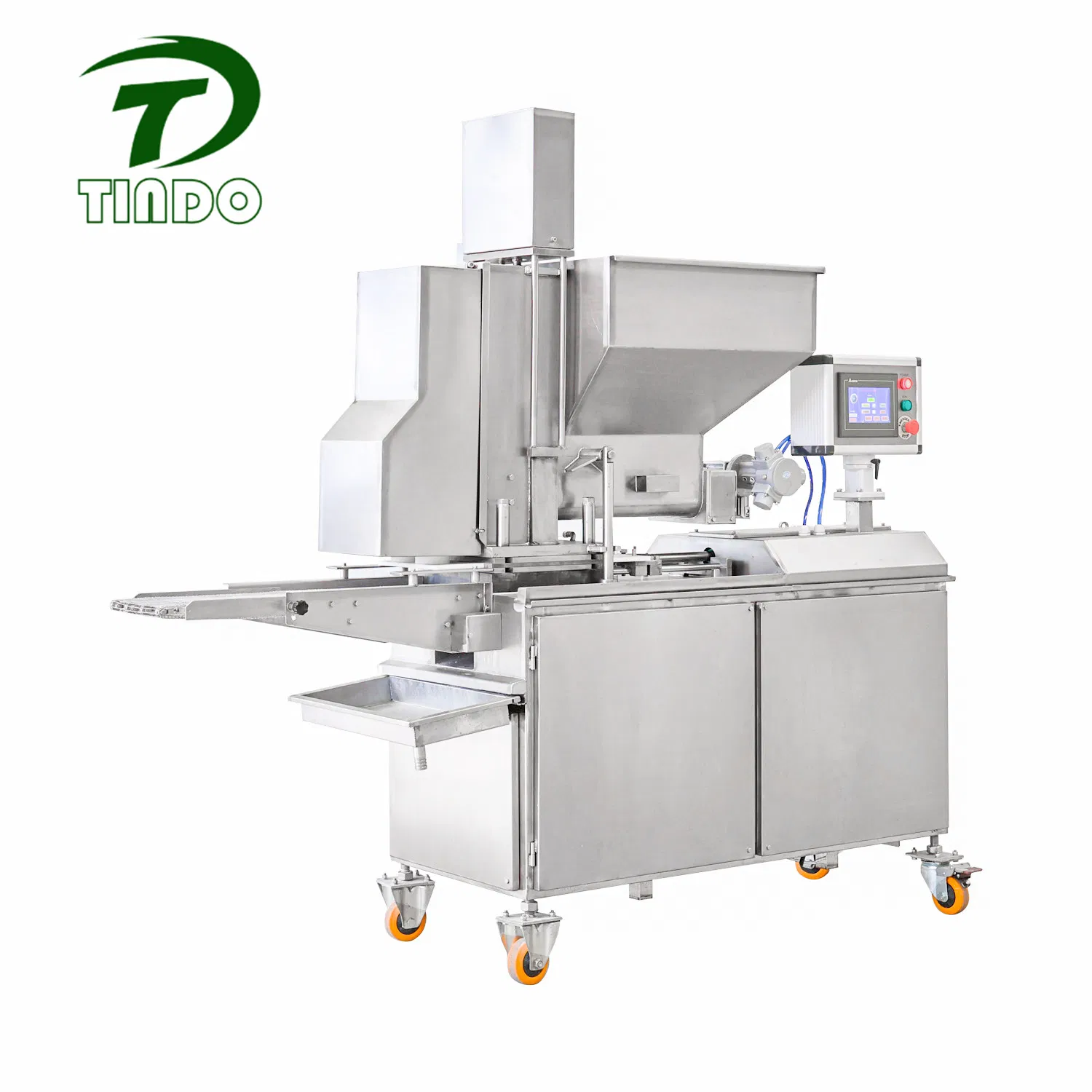

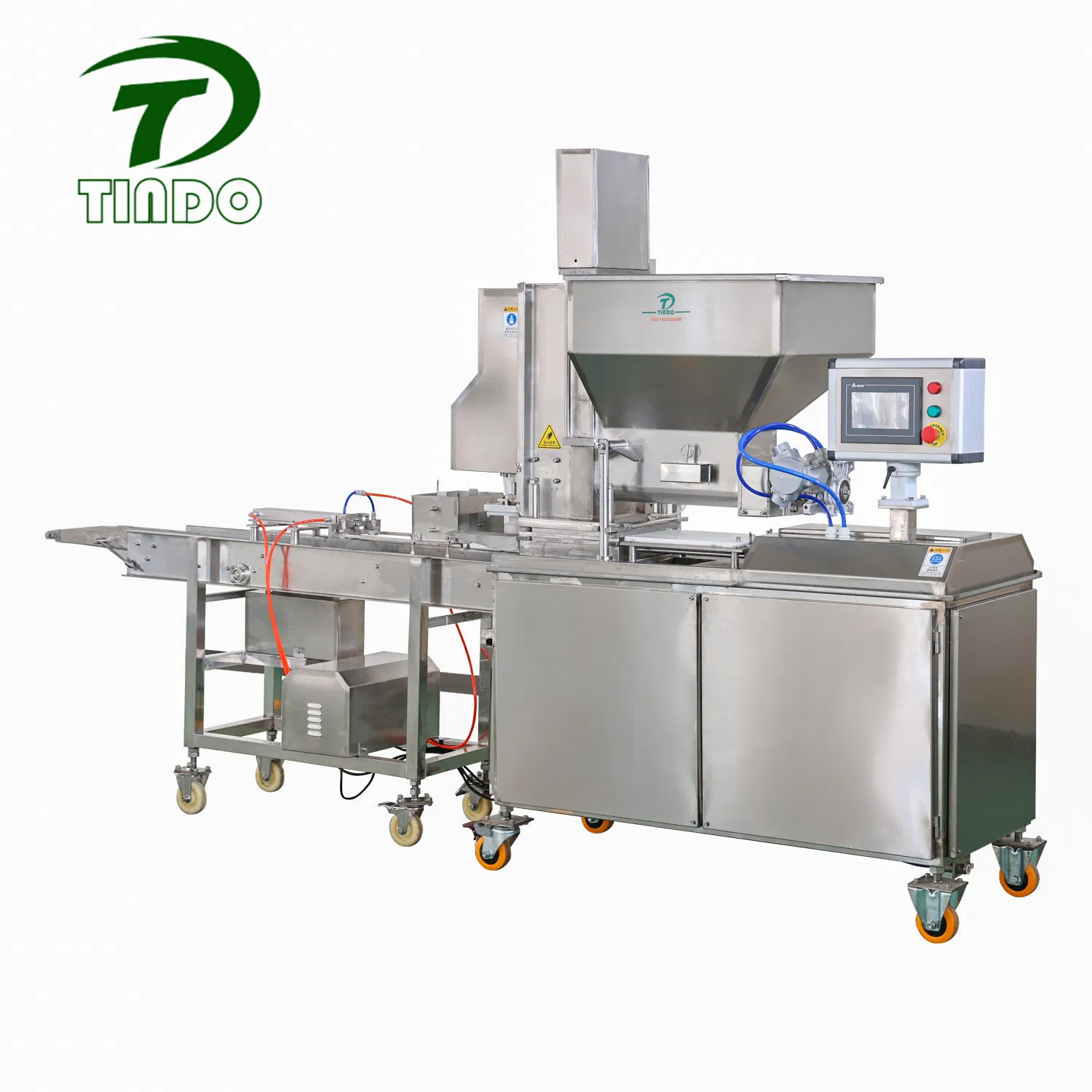

The Industrial Automatic Hydraulic Chicken Nuggets Forming Machine with Tray Loader is a high-efficiency hydraulic plate-type forming solution. By utilizing hydraulic cylinder pressure, the template is pushed forward and contracted precisely, ensuring that formed burgers or patties are output with exceptional uniformity.

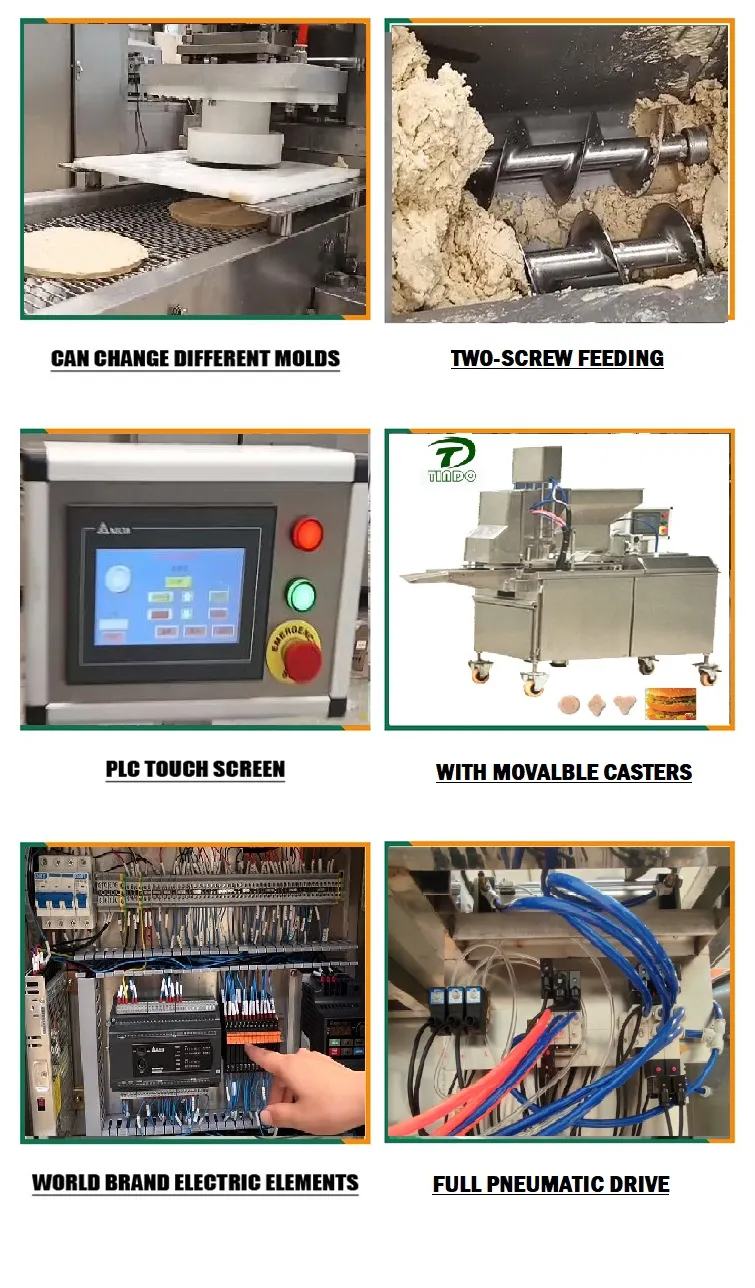

The integrated push screw design minimizes damage to raw material meat filling, maintaining consistent weight, size, and shape. It is capable of automatically performing meat filling, forming, and outputting processes. This unit can be seamlessly integrated into a full production line including battering, predusting, frying, cooking, freezing, and packaging machines.
| Model | MF240-II |
|---|---|
| Belt Width | 300mm |
| Mold Size | 180*150mm |
| Max. Product Diameter | 140mm (for round hamburger) |
| Production Thickness | 6-35mm |
| Hopper Volume | 60L |
| Stroke Times | 15-40 times/minute |
| Production Capacity | 100-350kg/h |
| Power | 4.2KW |
| Air Consumption | 0.4m³/minute |
| Knock-out Drive | Pneumatic |
| Mold Plate Drive | Hydraulic cylinder |
| Dimensions | 2200x720×1940mm |
| Weight | 330Kgs |
