Basic Info & Overview
Model NO.ZHD-750/850
CertificationCE
Column numberFour Column
Molding MethodPressing
Automatic GradeAutomatic
Plastic TypePP, Pet, PVC, PS, PLA
Forming Area750/850mm
Production Speed10-35 Mould/Min
Sheet Thickness0.2-2 mm
Weight20ton
⚙️
Essential Technical Details

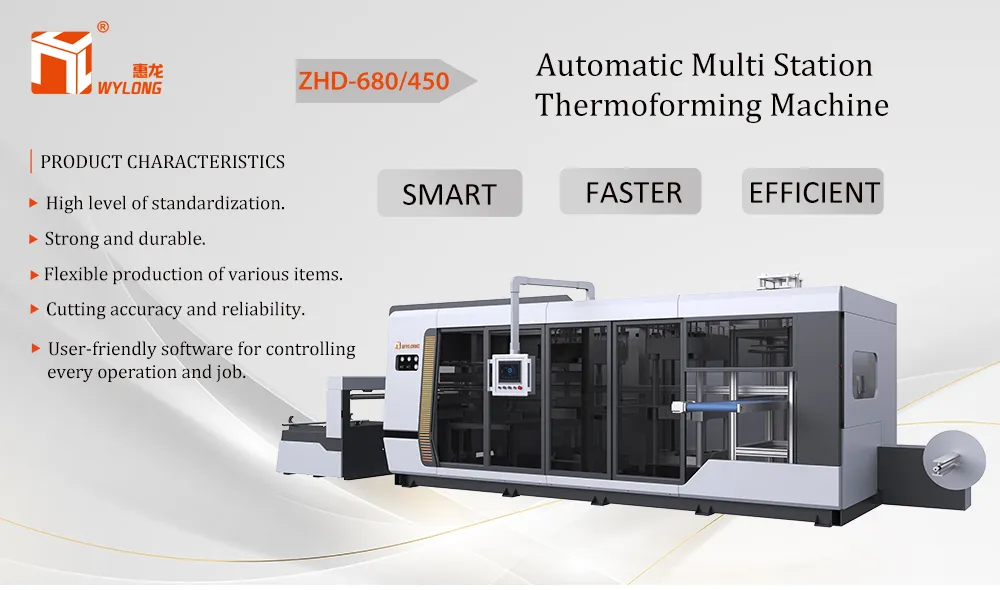

| Model |
ZHD-680/450 |
ZHD-750/650 |
ZHD-750/850 |
| Sheet Thickness | 0.2-2mm | 0.2-2mm | 0.2-2mm |
| Materials | PP PET PVC PS PLA | PP PET PVC PS PLA | PP PET PVC PS PLA |
| Max Forming Area | 680x450mm | 750x650mm | 750x850mm |
| Speed | 15-30/min | 15-40/min | 15-40/min |
| Heating Power | 80kw | 165kw | 200kw |
| Weight | 9ton | 15ton | 20ton |
🛠️
Configuration List
| Parts Name |
Origin / Brand |
| Forming/Cutting Servo Motor | ESTUN & TRIO |
| Magnetic Valve of Forming | Japan (SMC) |
| Cylinder | Airtac |
| PLC | TRIO |
| Encoder | Japan (Omron) |
| Electrical Components | France Brand |
🔍

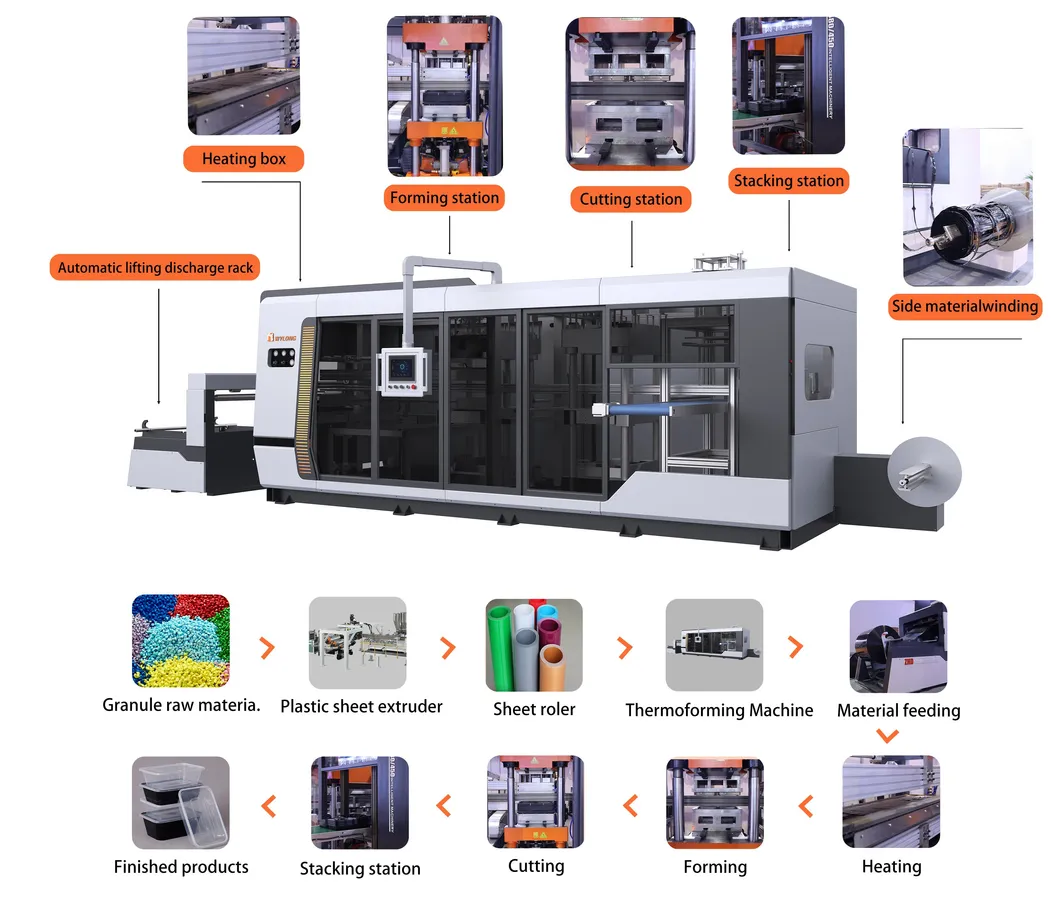

Machine Station Details

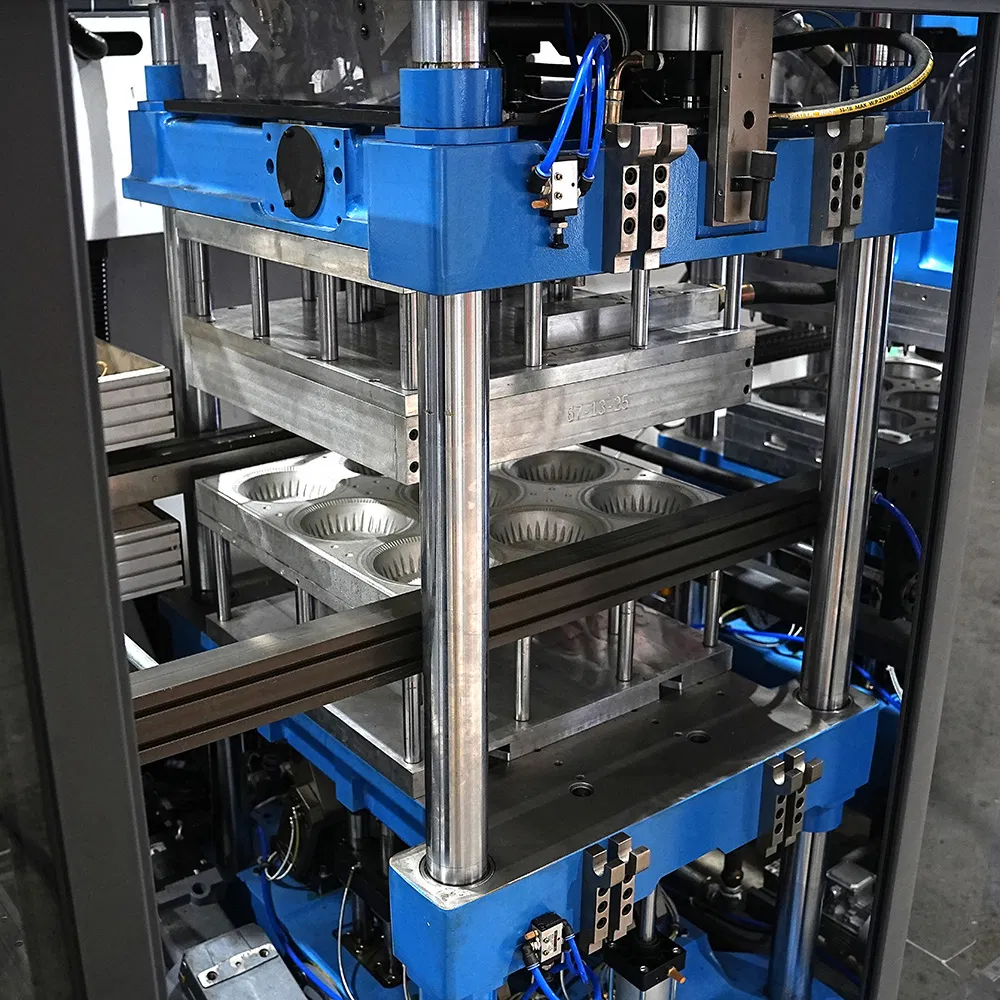

Forming Station: The heated sheet is expertly formed into the mold impression through precise stretch and air compression, ensuring high-quality product shaping.
Cutting Station: Ensures high accuracy and speed in cutting the molded sheet, enhancing production efficiency.
📦
Product Applications

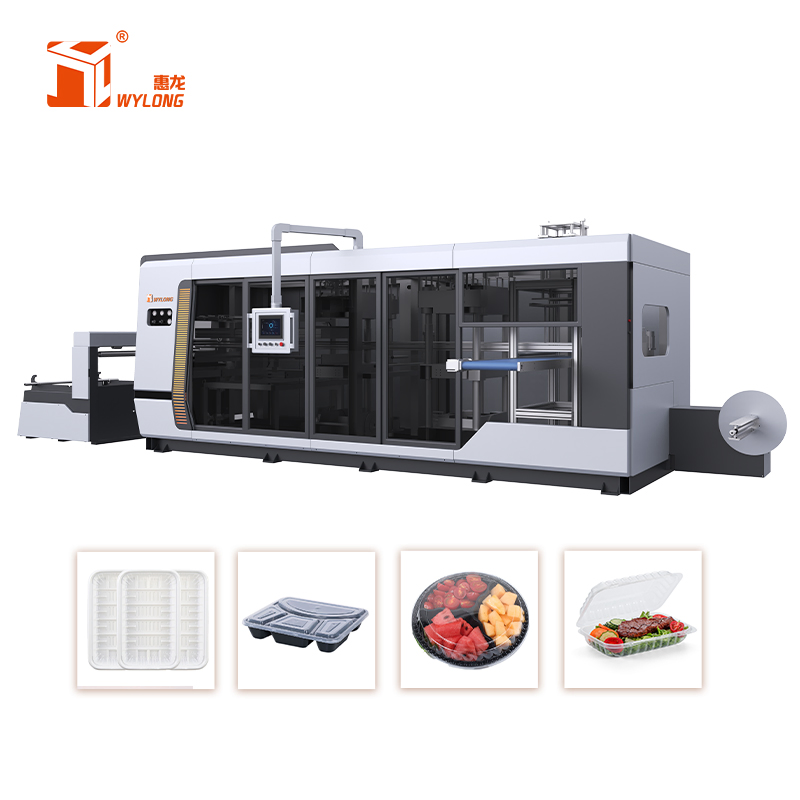

Suitable for handling various materials: A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC. Perfect for producing trays, lids, fruit boxes, flower pots, clamshells, and plates.
🏢
Exhibitions & Profile

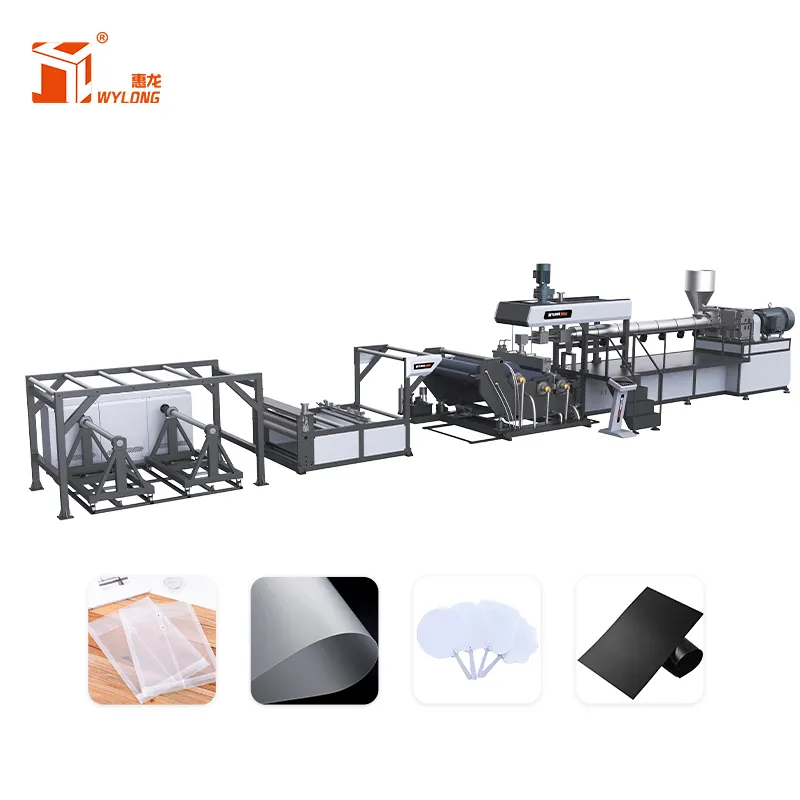

With 20 years of machinery manufacturing and selling experience in plastic sheet extruders and multi-station thermoforming machines. Holding ISO 9001 Certification, we utilize advanced technology and strong R&D ability to provide high-quality products and services to global customers.
❓
Common Questions
Are there different models for the machines?
Yes, we offer various models and can customize the machine according to your specific production requirements.
What is the typical production lead time?
Normally, the production time for a standard machine is approximately 40 to 45 days.
What kind of after-sales service is provided?
We provide experienced technicians for overseas installation and test running, along with dedicated export personnel for ongoing technical support.
What is the daily capacity of the thermoforming machine?
Based on 20 working hours per day, the capacity ranges from 300,000 to 500,000 pcs, depending on the product size and material.
What materials can be processed?
The machine handles PP, PS, PVC, and PET materials with a thickness range of 0.3mm to 2mm.
What are the power and air requirements?
It requires a three-phase four-wire power supply. Compressed air output should be higher than 2.4 m³/min with pressure above 6 kgs.
