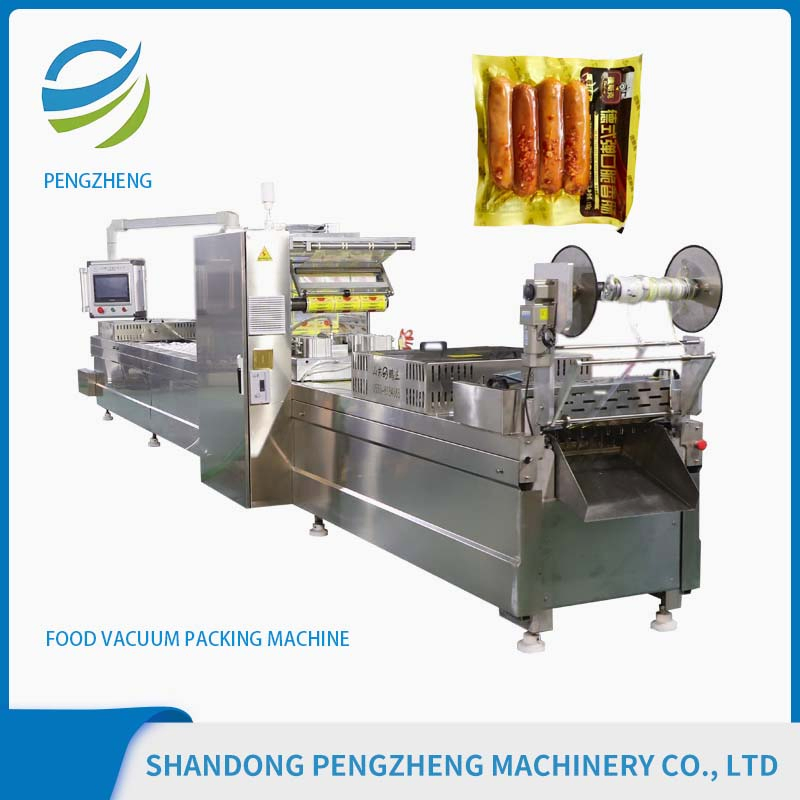

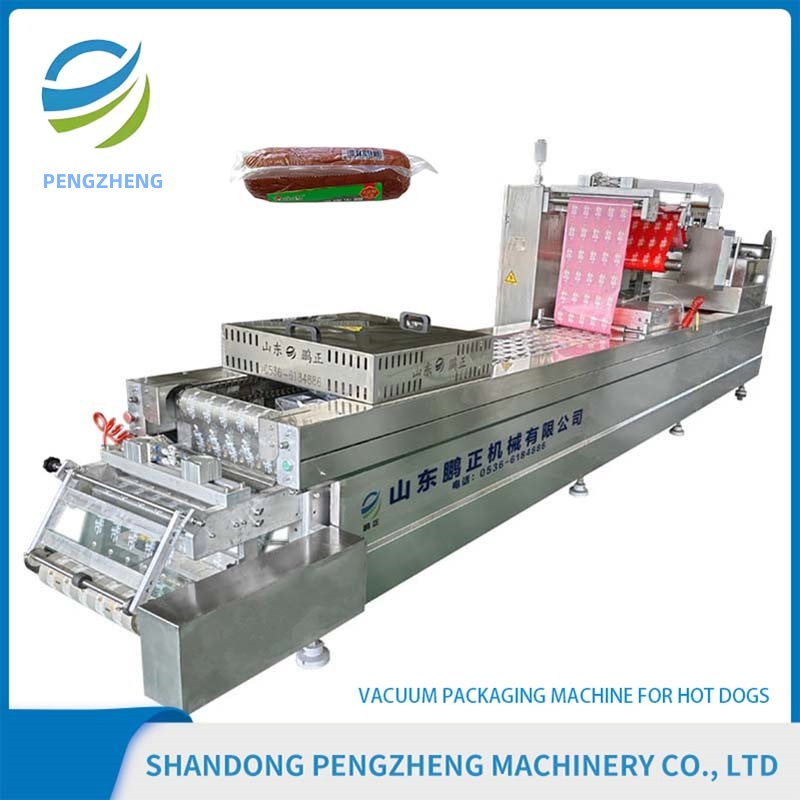

Industrial Grade Thermoforming Vacuum Packaging Equipment

1 / 5

Industrial Grade Thermoforming Vacuum Packaging Equipment

Customization:	Available
After-sales Service:	Free(on Line) and Other Service
Warranty:	12 Months

Send Inquiry

Product Description

Overview

Model NO.

PZ-420

Application

Electronic Component, Drug, Food, Medicine, Hardware etc.

Power

Electric

Automation

Automatic

Type

Stretch Film Vacuum Packing Machine

Object State

Paste, Powdery, Liquid, Solid, Particle

Packing Speed

6-8 Cycles / Min

Packing Capacity

4600-5000 Pieces / Hour

Specification

6600*1000*1800mm

Production Capacity

200 Sets Per Year

Product Description

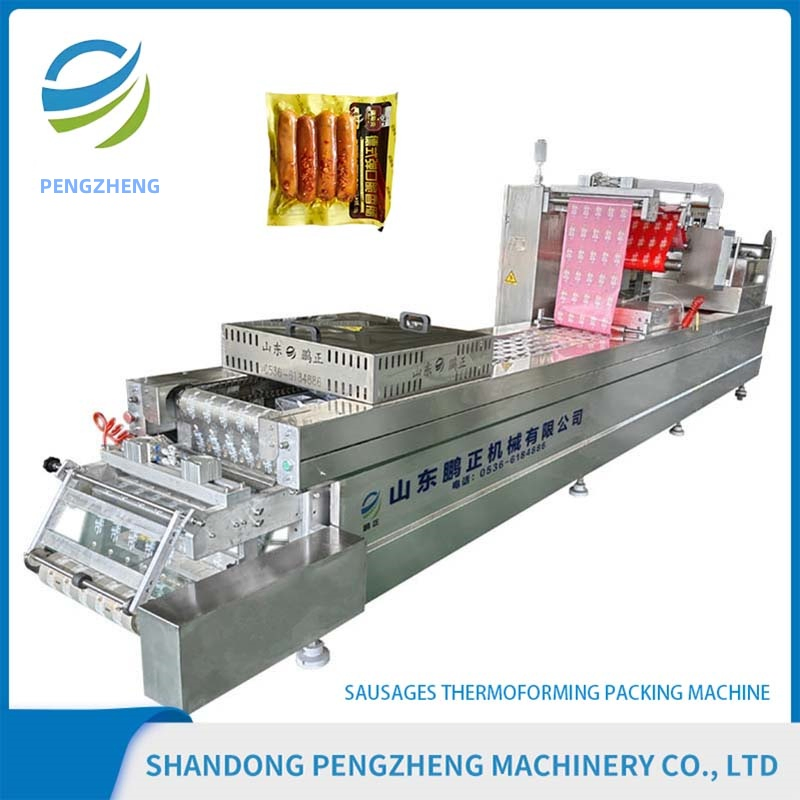

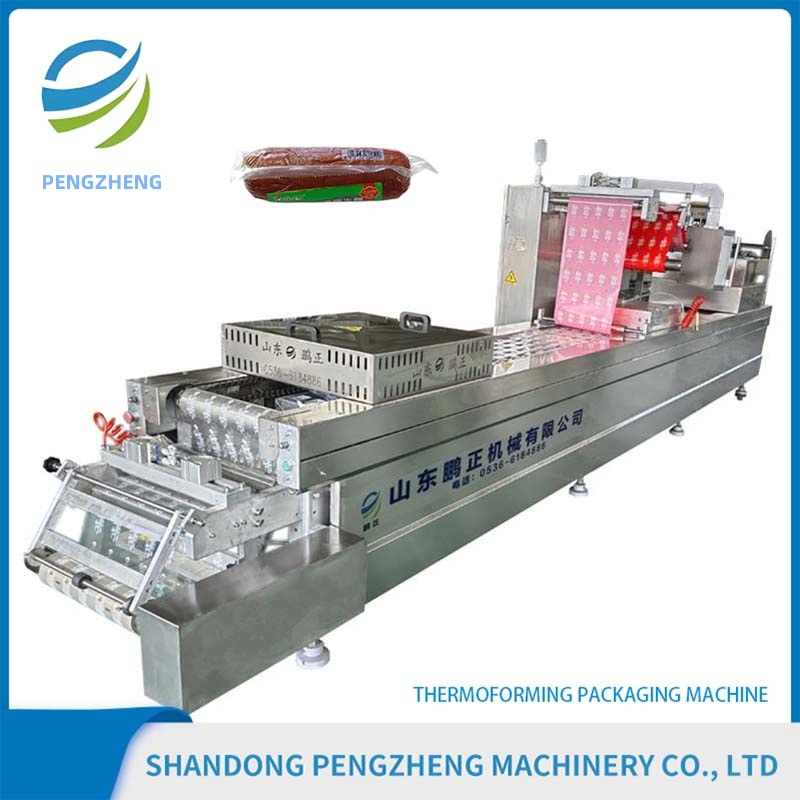

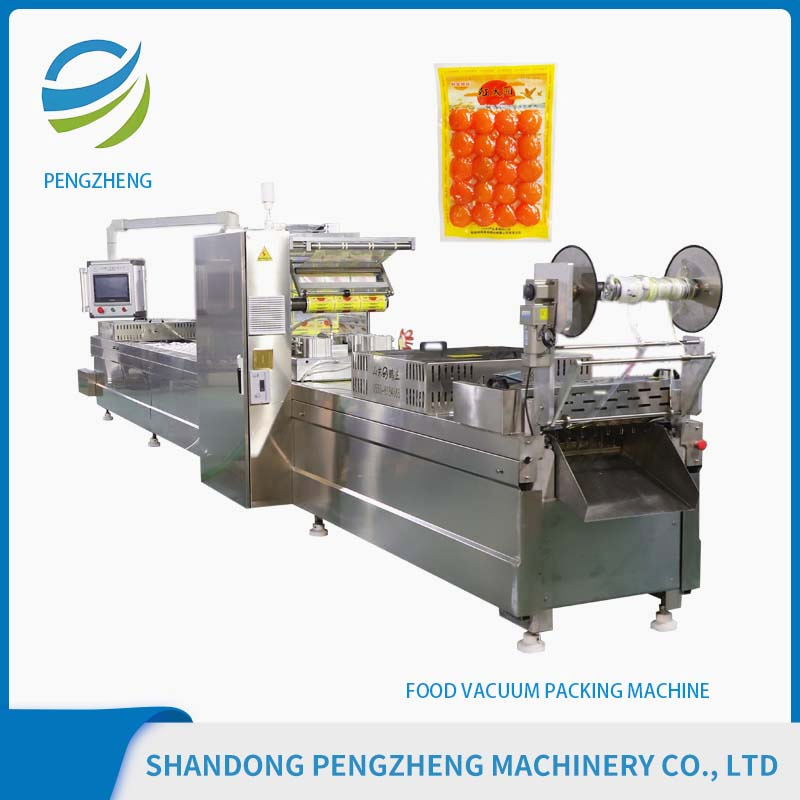

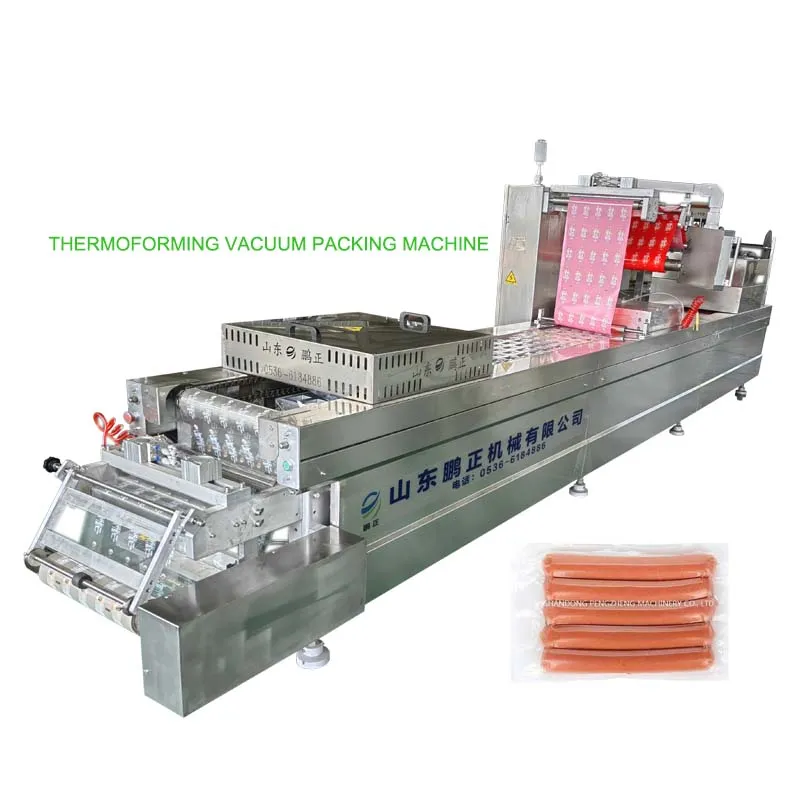

The Innovative Automatic Thermoforming Vacuum Packaging Machine is designed for packaging a variety of food items such as sausages, fish, shrimp, steak, beef, beef jerky, dried bean curd, goat, mutton, and chicken. It can also be used for packaging toys, making it a versatile solution for various industries.

Why Choose This Equipment

PROFESSIONAL CUSTOMIZATION
HIGH EFFICIENCY: 6-8 CYCLES / MINUTE
OVER 10 DESIGN PATENTS
ADVANCED TECHNIQUE
STABLE PRODUCTION QUALITY
OPERATION SAFETY SECURITY

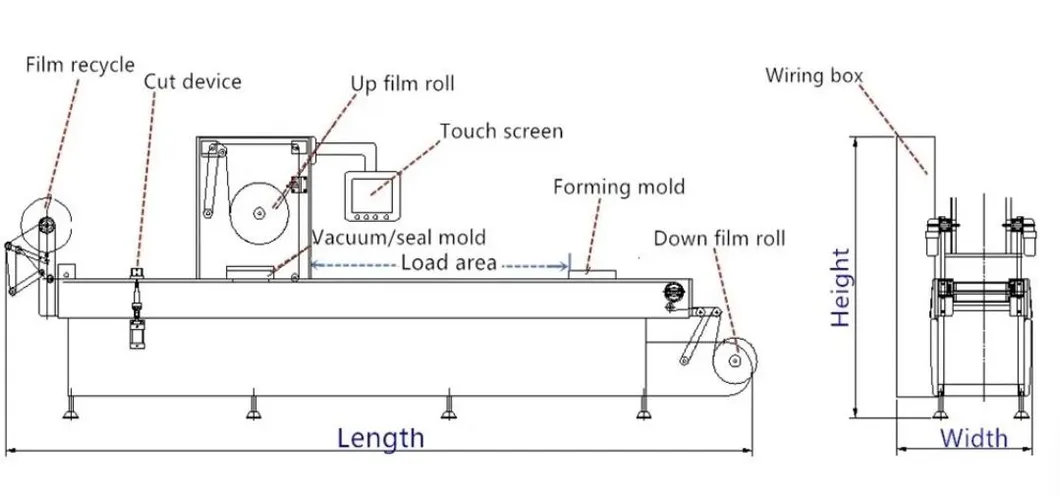

Working Process

The machine excels in single-side stretching and forming of film, ensuring efficient and precise packaging through the following steps:

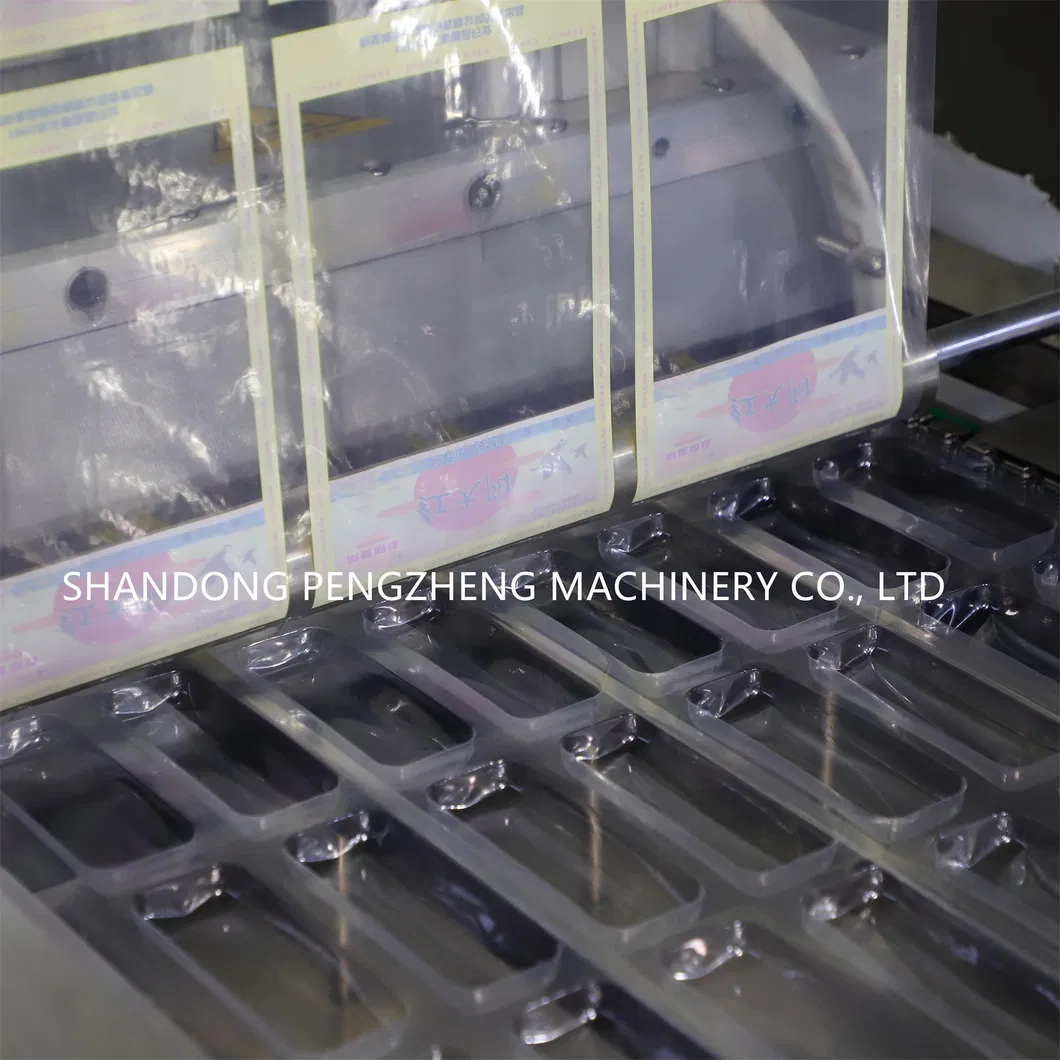

Bottom film is heated and stretched to conform to the shape of a mold.
Materials (e.g., eggs) are placed into the formed bottom film.

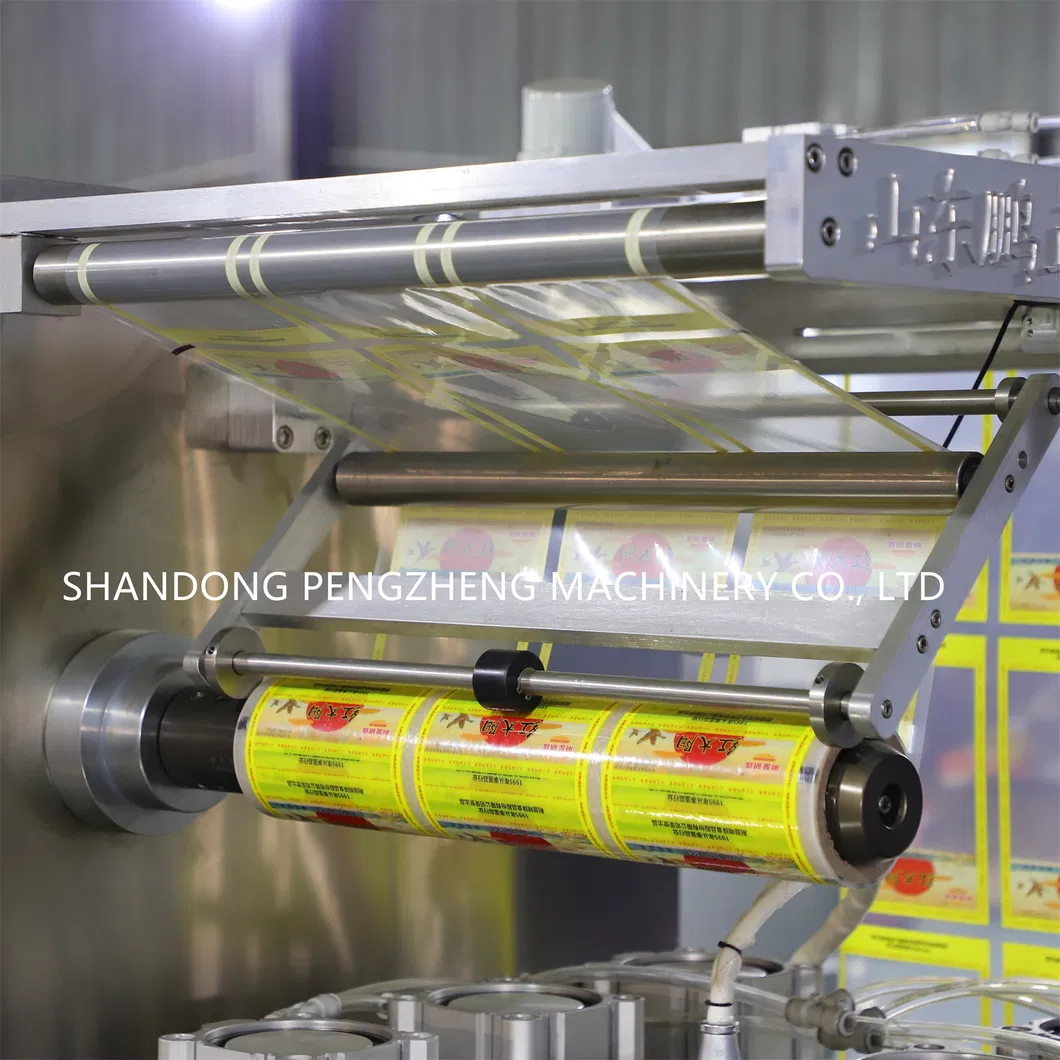

Top film covers the bottom, and both are vacuum-sealed in the chamber.
Finished packages are transported and cut into individual bags.

Key Components

Main Structure: Stainless Steel 304 (6mm thickness)
Electronic Magnetic Preload Device
Double-side Film Vacuum Sealing Device

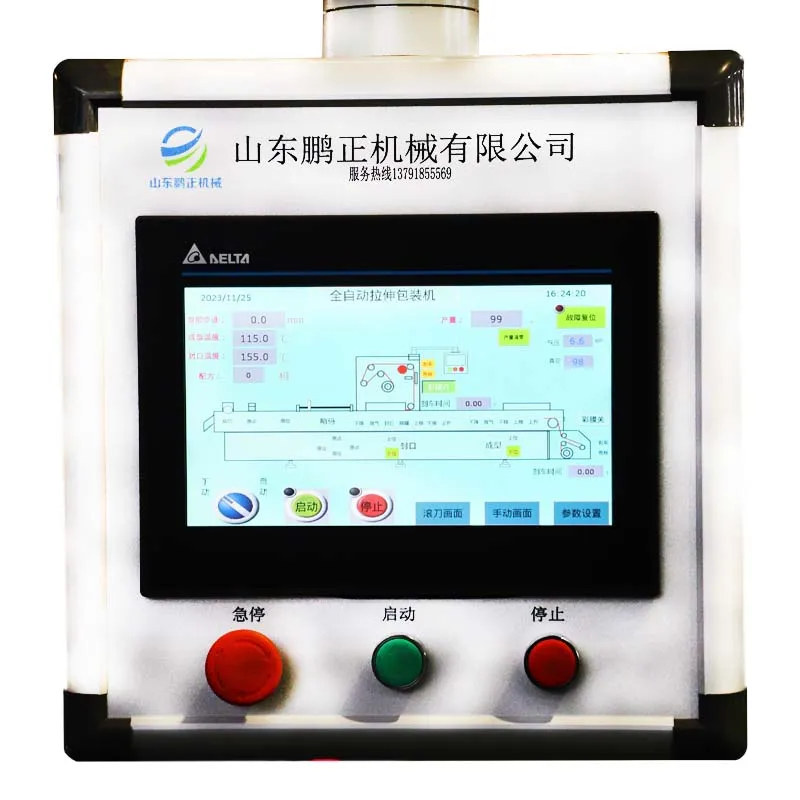

PLC Touch Screen Interface
Waste Film Collection System
Precision Cutting Device

Packaging Comparison

Details	Traditional Bag	Single Side Stretch	Double Side Stretch
Quantity of Stretch Film	None	Single Side	Double Side
Efficiency	Low	High	Middle
Cost	High	Low	Middle
Appearance	Beautiful	More Beautiful	Most Beautiful

Product Parameters

Main Configuration
Vacuum Pump	RIETSCHLE (Germany)
Electrical Components	Schneider (France)
Servo Motor	Schneider (France)
Chain	TYC (Taiwan)
Working Data
Model	PZ-420
Dimensions	6600mm × 1000mm × 1800mm
Thermoforming Temperature	70-120 °C
Sealing Time	1.5 s - 2.5 s
Packing Speed	6-8 cycles / min

Our Advantages

Extended Shelf Life: Increases product life by 2-3 times.
Material Savings: Uses 40% less film than traditional methods.
Safety First: Multiple sensors for auto-stop when covers are open.
Humanized Design: Emergency stop buttons at front, middle, and back.

Service & Support

Installation & Training

We provide expert guidance on unloading and workshop placement. Senior engineers offer step-by-step instructional videos for installation and debugging. On-site installation is also available for customized requirements.

After-Sales Service

12-month full machine warranty.
Lifelong maintenance and responsive remote support.
Global spare parts supply network.
24-hour technical support hotline.

Frequently Asked Questions

Q1: How long is the delivery time for the machine? A: The machine is typically ready for delivery within 45 working days, covering technical drawing, manufacturing, assembly, and tuning.

Q2: What information is needed for a specific offer? A: We require your package dimensions and the expected daily production volume to provide a tailored solution.

Q3: Do you provide overseas technical support? A: Yes, we offer initial online troubleshooting and can dispatch engineers to your factory if local resolution is required.

Q4: What is the benefit of the "No film no working" function? A: This function ensures the machine automatically shuts down if the film runs out, preventing material waste and machine wear.

Q5: Can the machine handle different mold sizes? A: Yes, the equipment can be equipped with multiple sets of molds, which are simple and convenient to replace for different product sizes.
