Inexpensive PP PC PVC PE ABS Plastic Food Packaging Boxes Cup Lids Negative Pressure Vacuum Forming Machine
Inexpensive PP PC PVC PE ABS Plastic Food Packaging Boxes Cup Lids Negative Pressure Vacuum Forming Machine
Inexpensive PP PC PVC PE ABS Plastic Food Packaging Boxes Cup Lids Negative Pressure Vacuum Forming Machine
Inexpensive PP PC PVC PE ABS Plastic Food Packaging Boxes Cup Lids Negative Pressure Vacuum Forming Machine
Inexpensive PP PC PVC PE ABS Plastic Food Packaging Boxes Cup Lids Negative Pressure Vacuum Forming Machine
1 / 5
Inexpensive PP PC PVC PE ABS Plastic Food Packaging Boxes Cup Lids Negative Pressure Vacuum Forming Machine
Inexpensive PP PC PVC PE ABS Plastic Food Packaging Boxes Cup Lids Negative Pressure Vacuum Forming Machine
Inexpensive PP PC PVC PE ABS Plastic Food Packaging Boxes Cup Lids Negative Pressure Vacuum Forming Machine
Inexpensive PP PC PVC PE ABS Plastic Food Packaging Boxes Cup Lids Negative Pressure Vacuum Forming Machine
Inexpensive PP PC PVC PE ABS Plastic Food Packaging Boxes Cup Lids Negative Pressure Vacuum Forming Machine

Inexpensive PP PC PVC PE ABS Plastic Food Packaging Boxes Cup Lids Negative Pressure Vacuum Forming Machine

Warranty: 1 Year
Automation: Automatic
Raw Material: ABS
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
PDVF-FY600
Shaping Mode
Die Molding
Driven Type
Electric
Computerized
Computerized
After-sales Service
1 Year
Color
Blue
Output
200PCS/Year
Package Size
1200.00cm * 250.00cm * 320.00cm
Gross Weight
15000.000kg
Forming Area
900mm*710mm
★

Product Overview

The PDVF-FY600 vacuum forming machine is an efficient and multi-functional plastic forming equipment, specially designed for the production of disposable packaging boxes, coffee cup lids, plastic trays and other products. Advanced vacuum forming technology is used to ensure product quality and consistency.

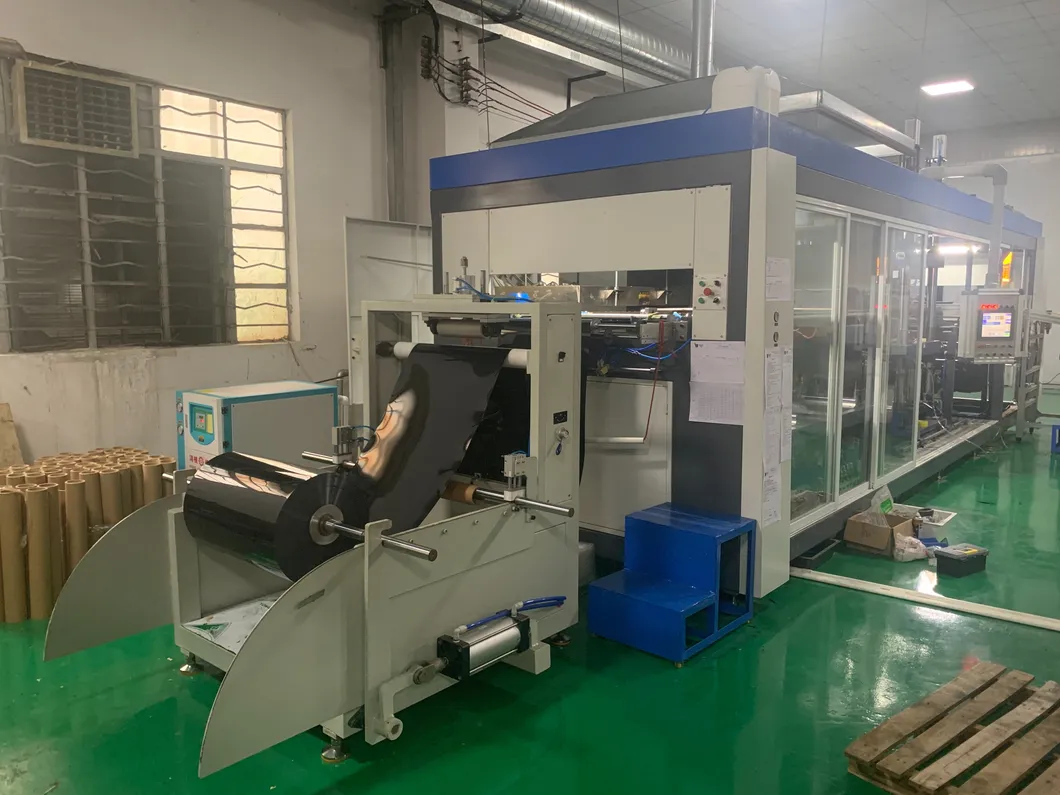

Vacuum Forming Machine Main View

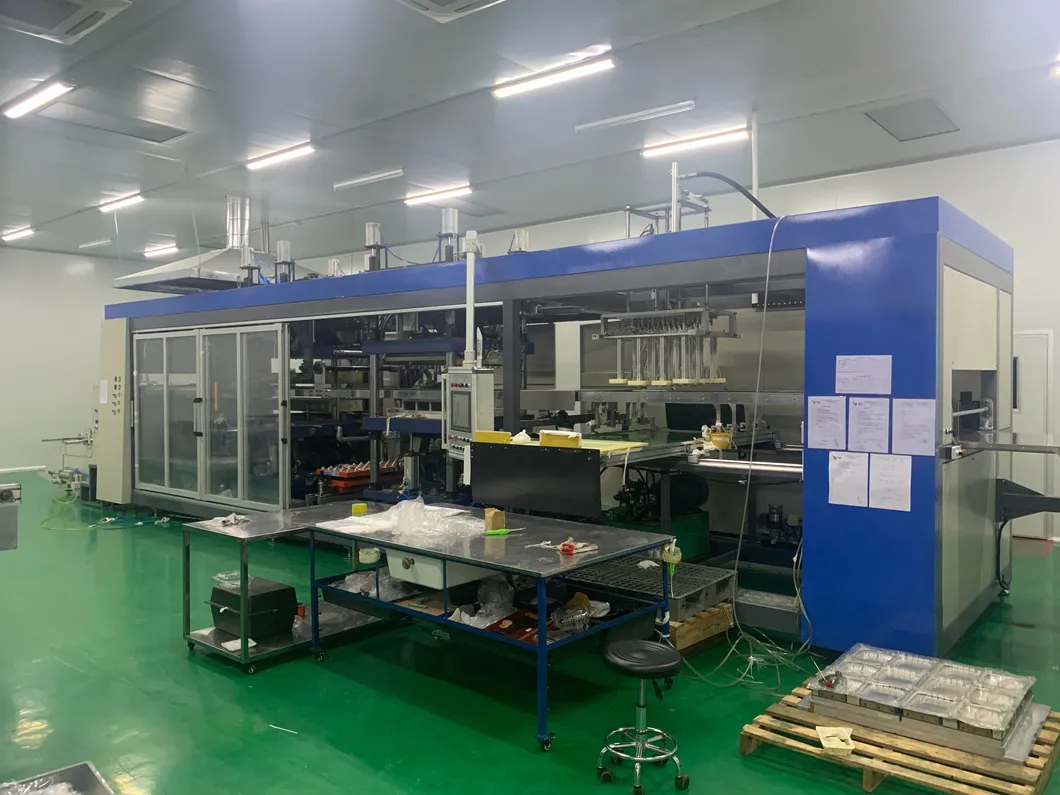

Vacuum Forming Machine Side View
⚙

Main Configurations

No. Component Name Brand & Description
1Punching pressureServo system
2TrackIron girder
3Tab ChainTAIWAN KMC (08B-2R-SA1 cusp)
4Controller (PLC)Delta (Taiwan)
6TouchscreenKunlun Tongtai 15 inch color touch screen
7Sheet Pulling MotorDelta (Taiwan) 5.5KW
11Beam adjustment motorSiemens
13Low-voltage electricsSchneider (France)
14RelayOMRON (Japan)
28Vacuum pumpsVC160m3/h
📊

Technical Parameters

Technical Specification Parameters
Maximum molding area900mm × 710mm
Molding thickness0.2 - 2.0mm
Molding height120mm
Maximum cutting force80T
Total equipment power80KW (40%-70% for normal use)
Vacuum volume160m3/h
Gas supply0.8Mpa
Power supply380V/50HZ (Three-phase)
Machine WeightApprox. 10T
✔

Machine Features & Uses

Key Features

This high-efficiency program-controlled plastic air pressure thermoforming machine integrates mechanical, electrical, and gas systems. It utilizes programmable PLC control and a user-friendly HMI.

  • Three-station synchronization: heating, molding, punching, and stacking.
  • Square tunnel-type imported radiant heater for uniform temperature.
  • Laser blade punching for high precision and efficiency.
  • Automatic product stacking and waste edge material self-rolling.
  • Reduces labor intensity and improves production reliability.

Compatible Materials & Applications

Suitable for processing HIPS, PS, PP, PVC, PET, ABS and other plastic sheets. Ideal for:

  • Food packaging: boxes, bowls, lids, coffee cup lids.
  • Industrial packaging: trays, irregular containers.
  • High stretch and transparent plastic products.
🖼

Detailed Component Display

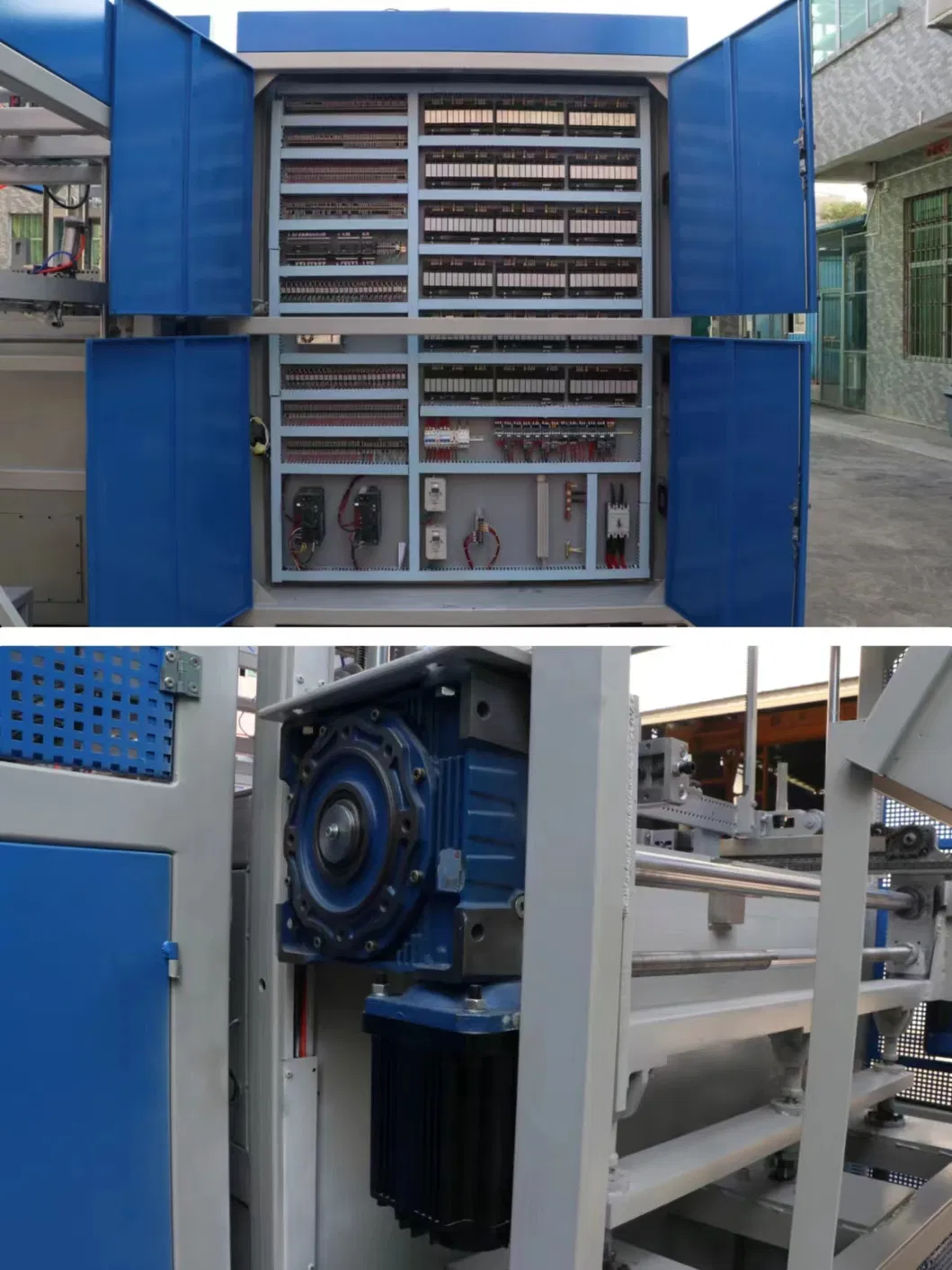

Machine Detail 1

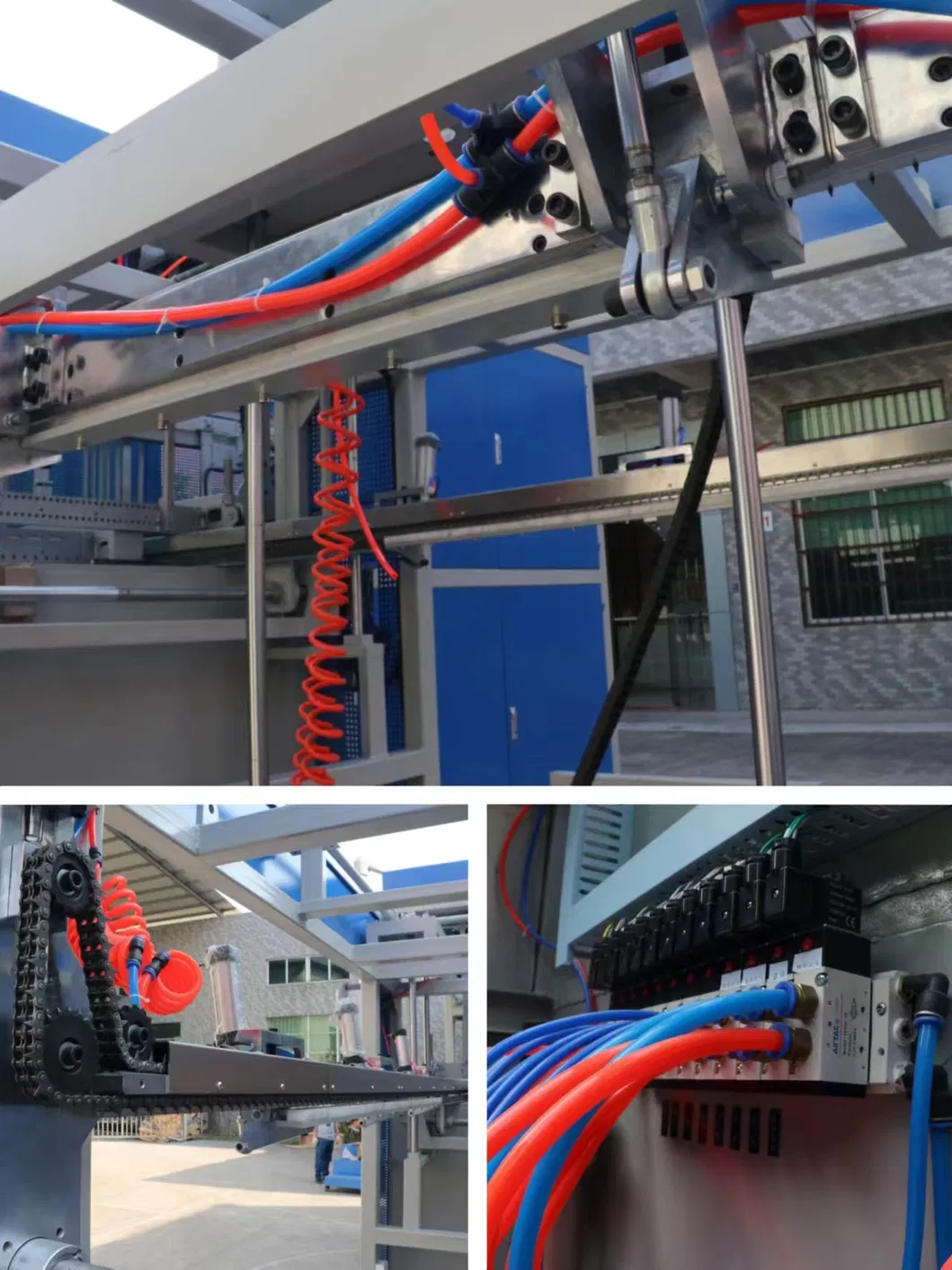

Machine Detail 2

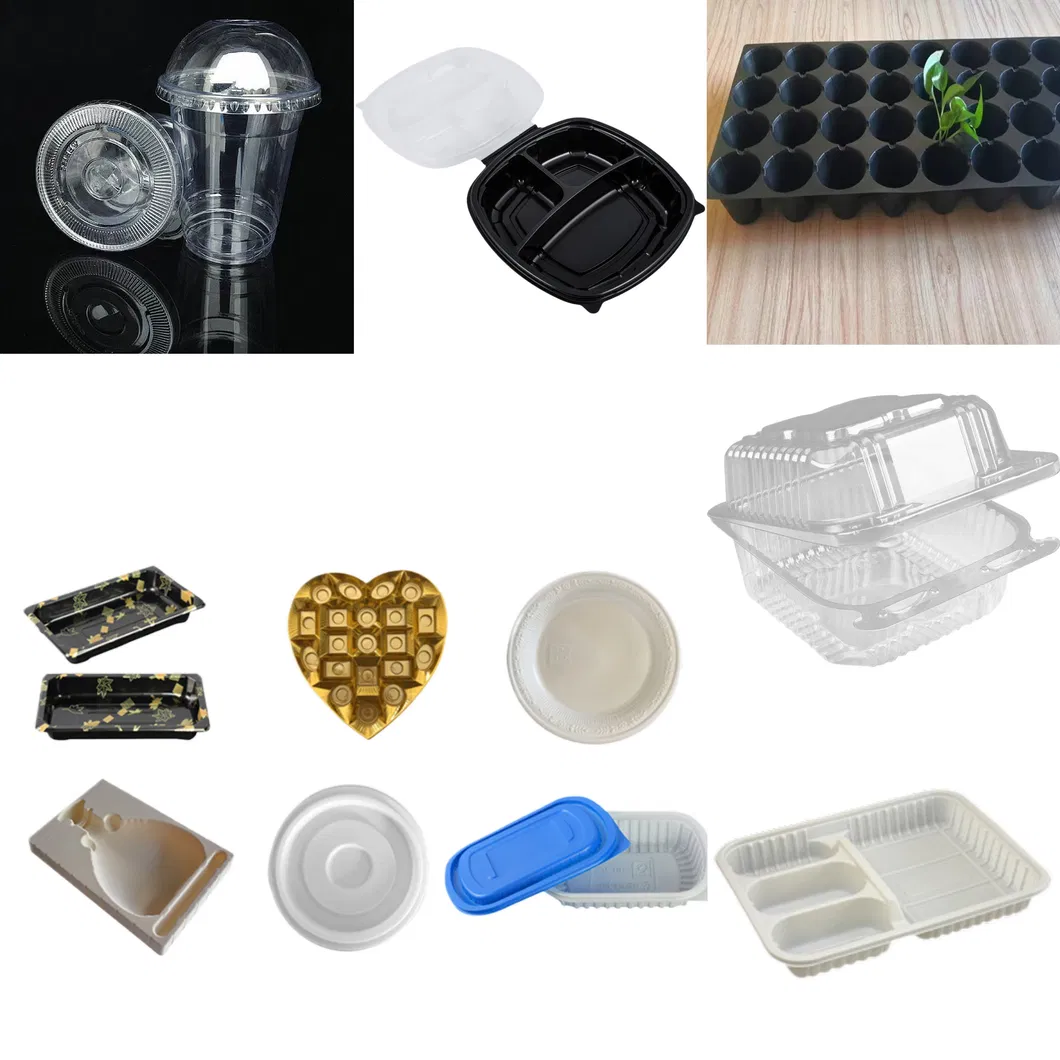

Application Examples
Certificate 1
Certificate 2
Logistics 1
Logistics 2
🛠

Expertise & Service Standards

Pre-Sales

  • Customized investment ratio programs.
  • Workshop utility requirement analysis (Water/Power/Gas).
  • Professional workshop planning.

After-Sales

  • One-year full equipment warranty.
  • Lifetime maintenance support.
  • On-site installation and operator training.
?

Frequently Asked Questions

What materials can the PDVF-FY600 process?
The machine is compatible with a wide range of plastic sheets including HIPS, PS, PP, PVC, PET, and ABS, with a molding thickness ranging from 0.2mm to 2.0mm.
What is the maximum production capacity?
The standard output is approximately 200 units per year, depending on the product complexity and material type.
How is the machine controlled?
It uses a high-precision Delta PLC integrated module control system combined with a 15-inch color industrial touch screen (HMI) for easy operation and parameter adjustment.
Does the machine include a cutting system?
Yes, it features an integrated punching and cutting station that can utilize laser wood knife molds or hardware stamping knives with a maximum cutting force of 80T.
What kind of maintenance support is provided?
We provide a 1-year warranty for the entire equipment (excluding wearing parts) and lifetime maintenance. We also offer installation, commissioning, and staff training services.
Is the machine suitable for food packaging?
Absolutely. It is specifically designed for high-efficiency production of food-grade items like coffee lids, trays, bowls, and disposable containers.
