Innovative Thermoforming Food Packing Equipment

Customization:	Available
After-sales Service:	Free(on Line) and Other Service
Warranty:	12 Months

Product Overview

Model NO.

PZ-420

Application

Electronic Component, Drug, Food, Medicine, Hardware etc.

Power

Electric

Automation

Automatic

Type

Stretch Film Vacuum Packing Machine

Packing Speed

6-8 Cycles / Min

Packing Capacity

4600-5000 Pieces / Hour

Weight

About 1800 Kgs

Main Structure

Stainless Steel 304

Specification

6600*1000*1800mm

Product Description

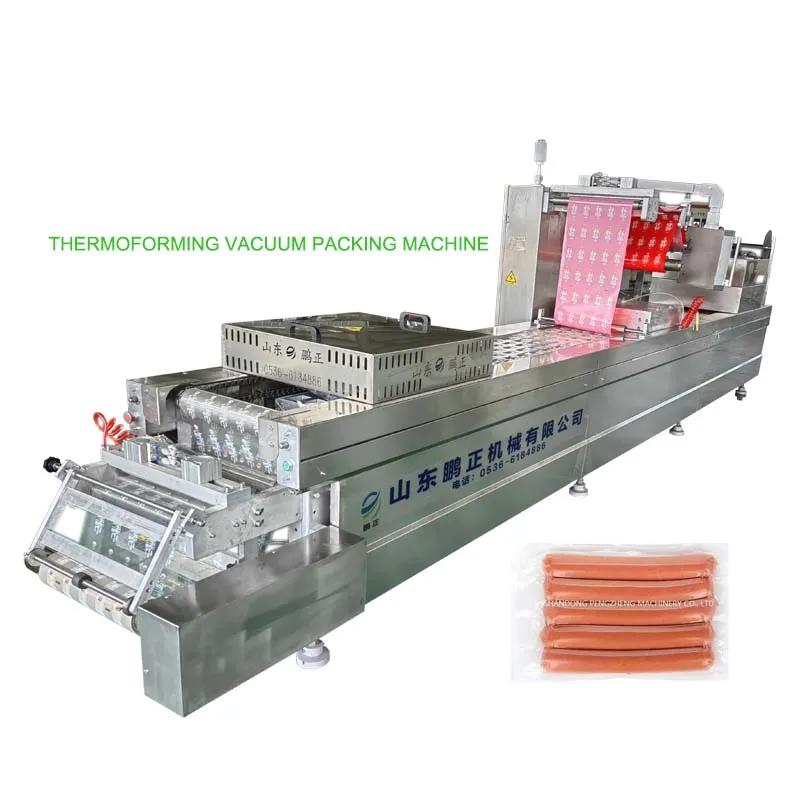

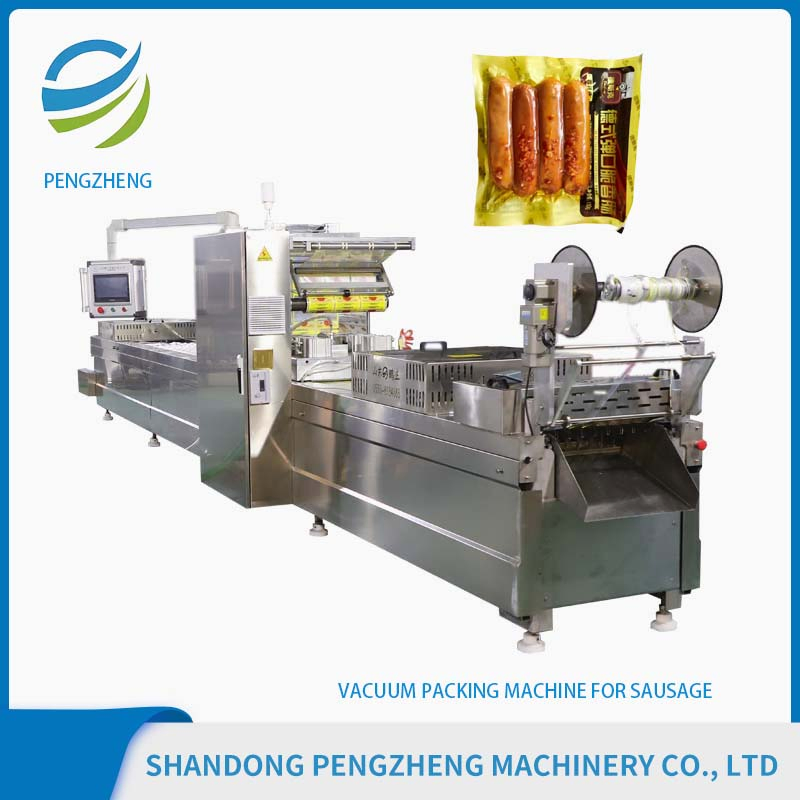

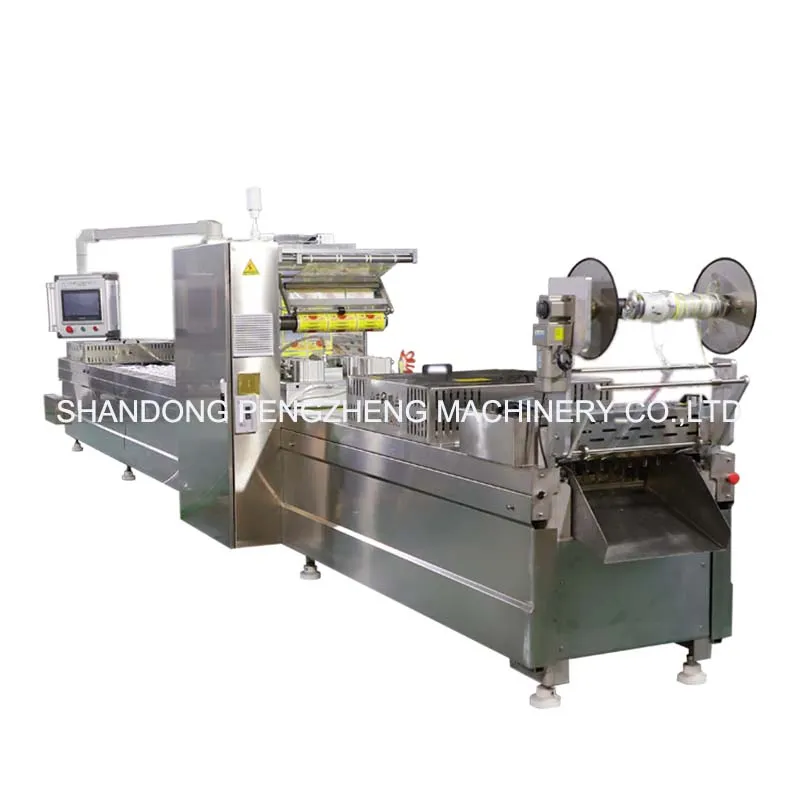

The Innovative Automatic Thermoforming Vacuum Packaging Machine is a cutting-edge solution designed for packaging a variety of items including sausages, fish, shrimp, steak, beef, beef jerky, dried bean curd, goat, mutton, chicken, and even toys.

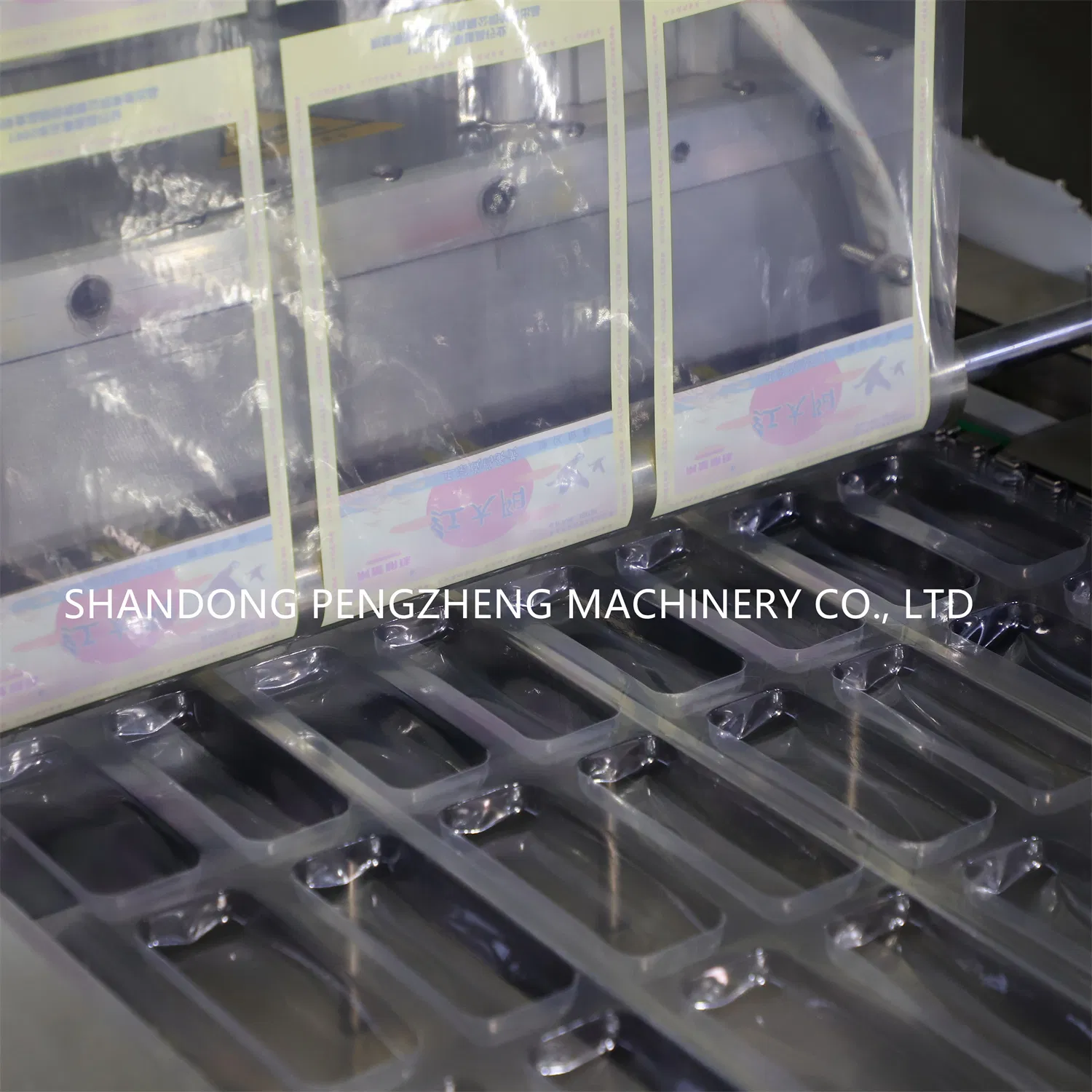

This equipment excels in single-side stretching and forming, ensuring efficient and precise packaging. With automatic thermoforming and vacuum capabilities, it ensures hygienic processing, increased productivity, and consistency across all batches.

⚙️ Customization

Professional customization for specific product sizes and production needs.

⚡ Efficiency

High-speed operation reaching 6-8 cycles per minute.

🛡️ Security

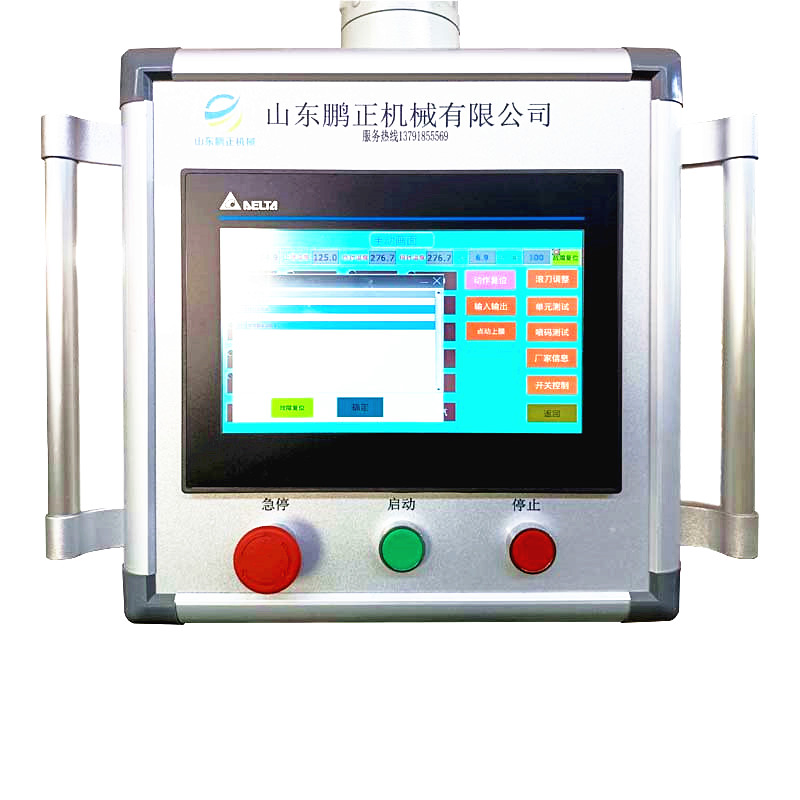

Multiple sensors and emergency stop buttons for maximum operator safety.

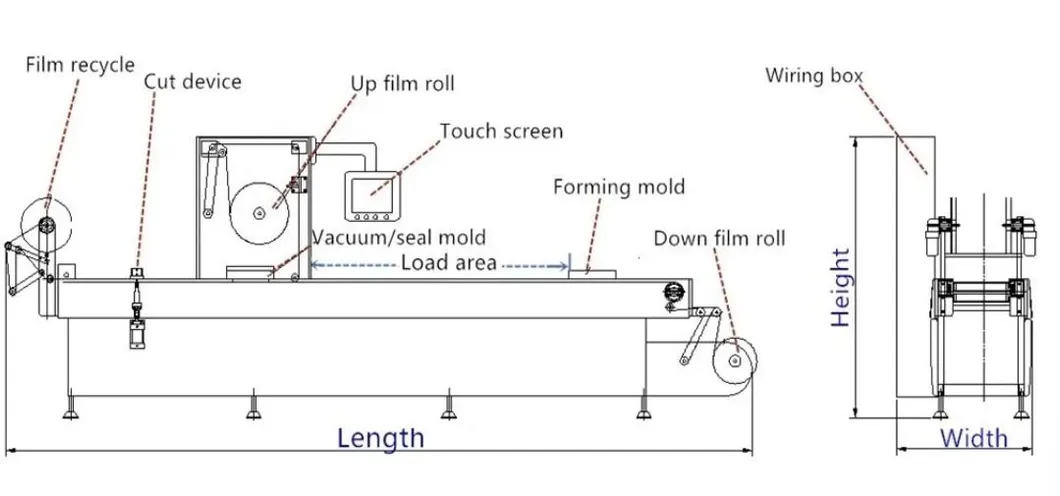

Key Components & Functions

📍 Main Structure: Constructed with 6mm thick Stainless Steel 304.

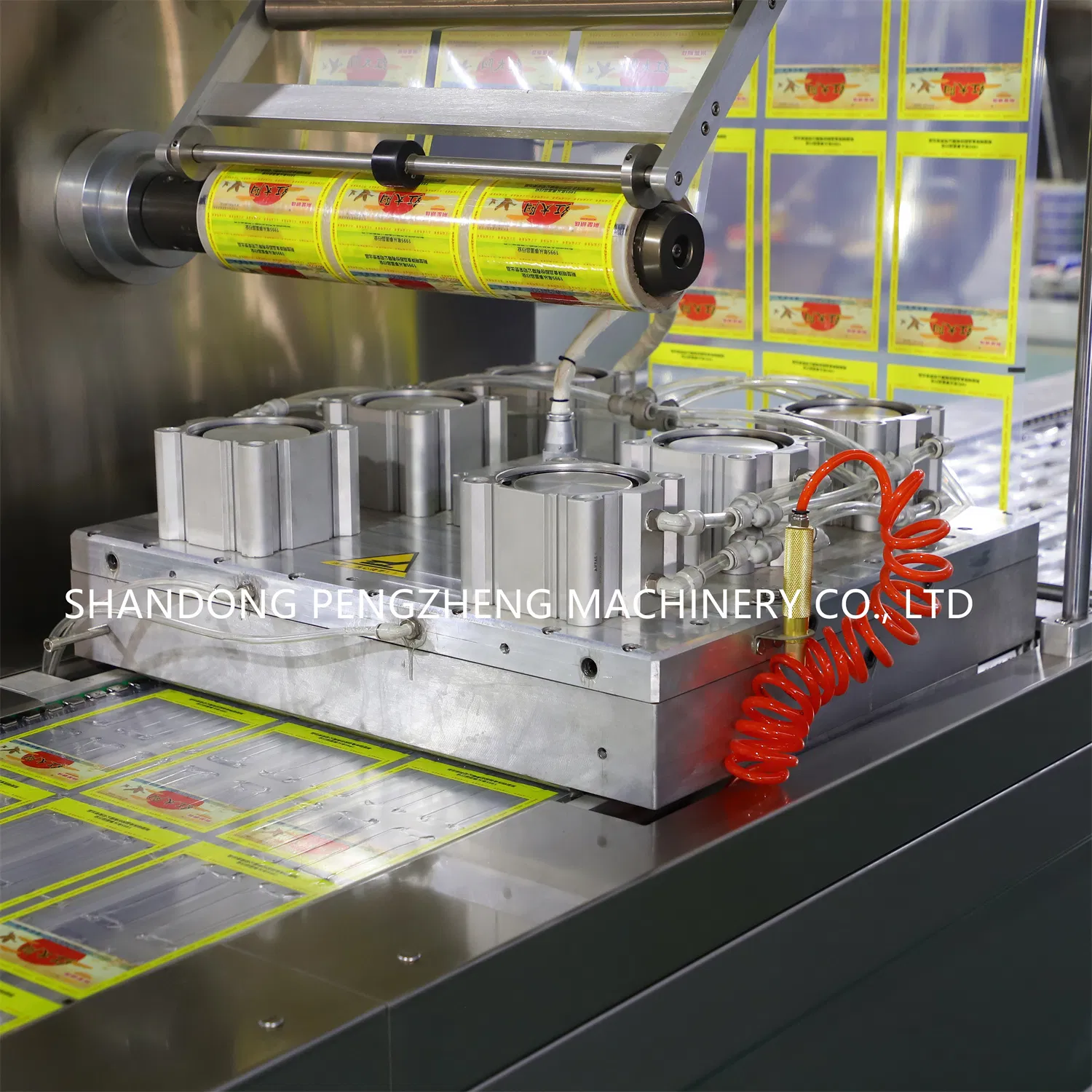

📍 Vacuum Chamber: Precision-engineered for perfect vacuum forming.
📍 Intelligent Calibration: Includes automatic left-right correction and cursor conditioning.
📍 No Film Auto-Stop: Machine automatically shuts down when film runs out to minimize loss.

Technical Parameters

Main Components
Vacuum Pump	RIETSCHLE (Germany)
Electrical Components	Schneider (France)
Servo Motor	Schneider (France)
Chain	TYC (Taiwan)

Working Parameters
Available Film Width	384mm
Thermoforming Temperature	70-120 °C
Thermoforming Time	1 s - 5 s
Vacuum Degree	≤200 Pa
Sealing Time	1.5 s - 2.5 s

After-Sales & Support

Warranty Service

12-month warranty for the whole machine. Includes online guiding and installation support.

Maintenance

Lifelong maintenance support via phone, mail, or on-site assistance if required.

Technical Support

24-hour technical support hotline and professional training courses for operators.

Frequently Asked Questions

How long is the typical delivery time?

It usually takes 45 working days to manufacture and prepare the machine, including drawing, parts manufacturing, assembly, and tuning.

What information is needed for a specific quote?

We require the dimensions of your product package and your target daily production volume to provide a tailored offer.

Do you offer overseas technical service?

Yes, we provide overseas service including online troubleshooting and sending engineers to your facility if required.

What is the material of the machine structure?

The main structure is built with high-quality Stainless Steel 304, ensuring durability and hygiene for food and medical applications.

What is the warranty period for this equipment?

The entire machine comes with a 12-month warranty, excluding wearable parts, along with lifelong technical maintenance support.

Can the machine handle different product sizes?

Yes, the equipment features mould diversification, allowing it to be equipped with multiple sets of moulds that are simple to replace for different product weights and shapes.
