Large Film Thermoforming Packaging Equipment

Customization:	Available
After-sales Service:	Free(on Line) and Other Service
Warranty:	12 Months

Send Inquiry

Product Description

Overview & Basic Info

Model NO.	PZ-420	Application	Electronic Component, Drug, Food, Medicine, Hardware etc.
Power	Electric	Automation	Automatic
Type	Stretch Film Vacuum Packing Machine	Object State	Paste, Powdery, Liquid, Solid, Particle
Condition	New	Weight	About 1800 Kgs
Packing Speed	6-8 Cycles / Min	Packing Capacity	4600-5000 Pieces / Hour
Specification	660010001800mm	Origin	China

Product Description

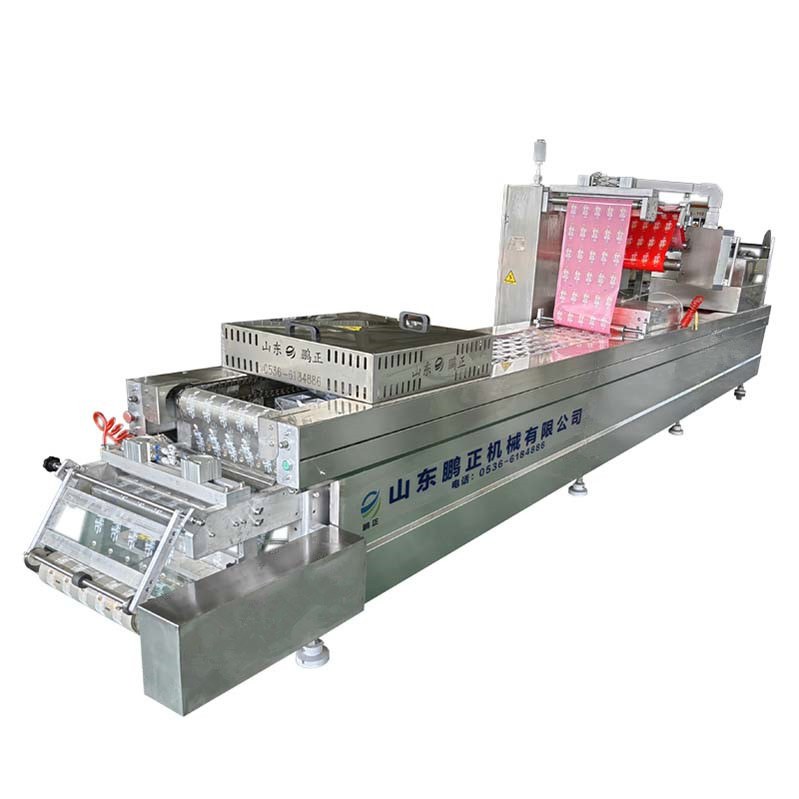

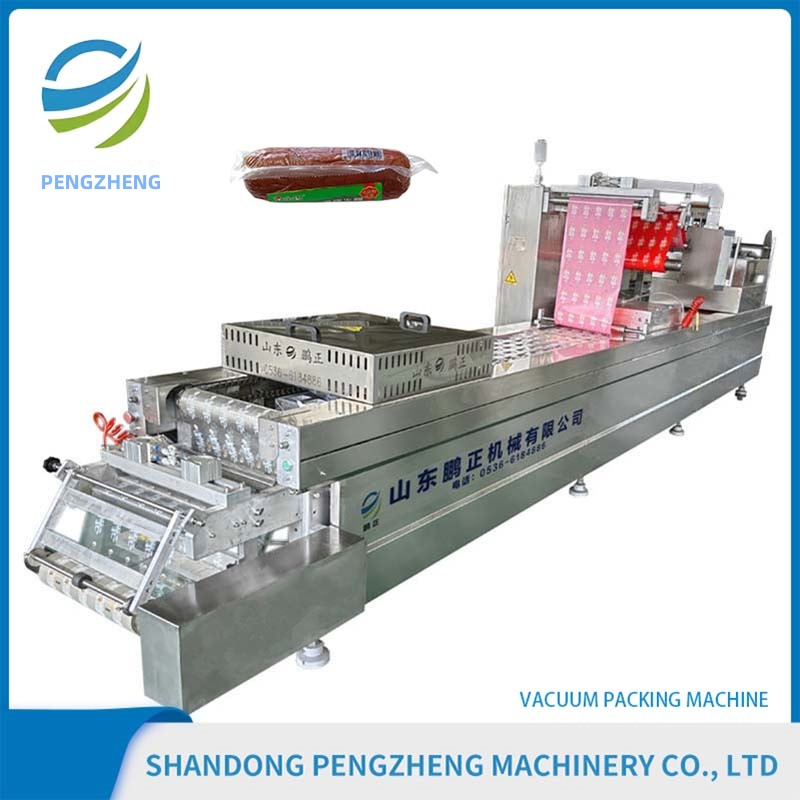

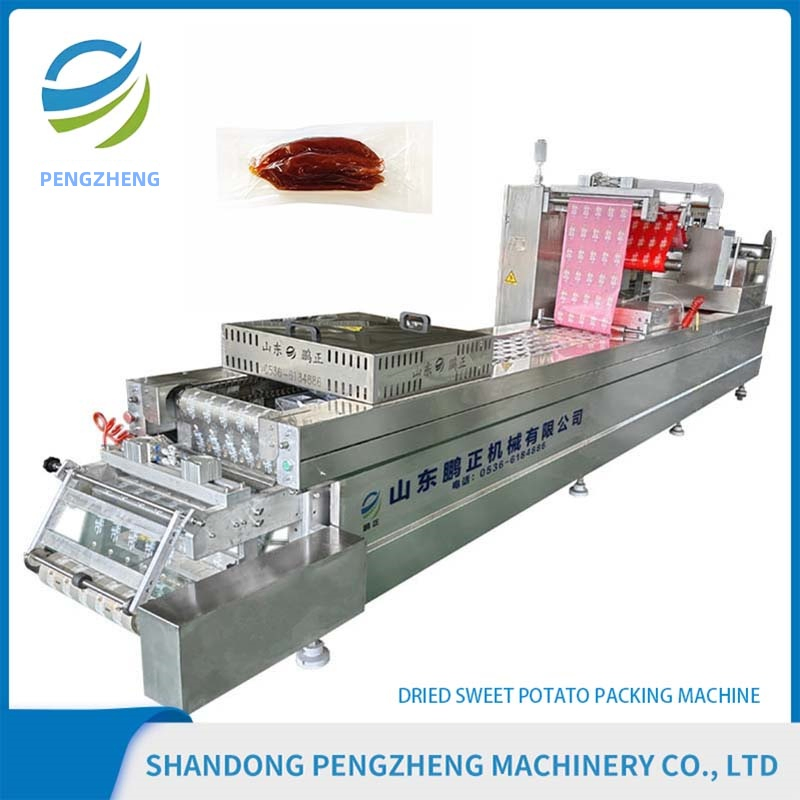

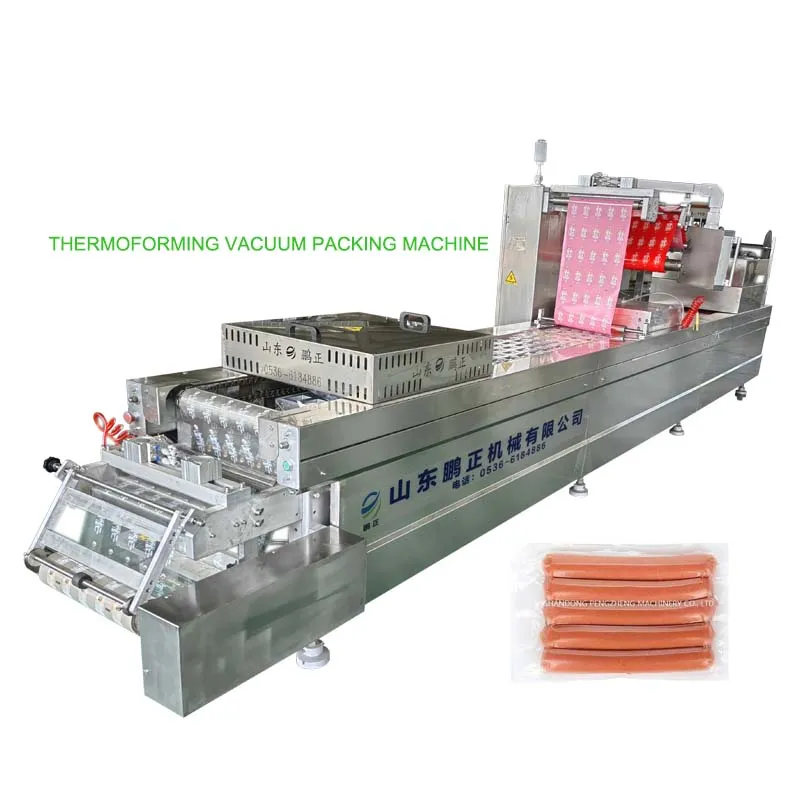

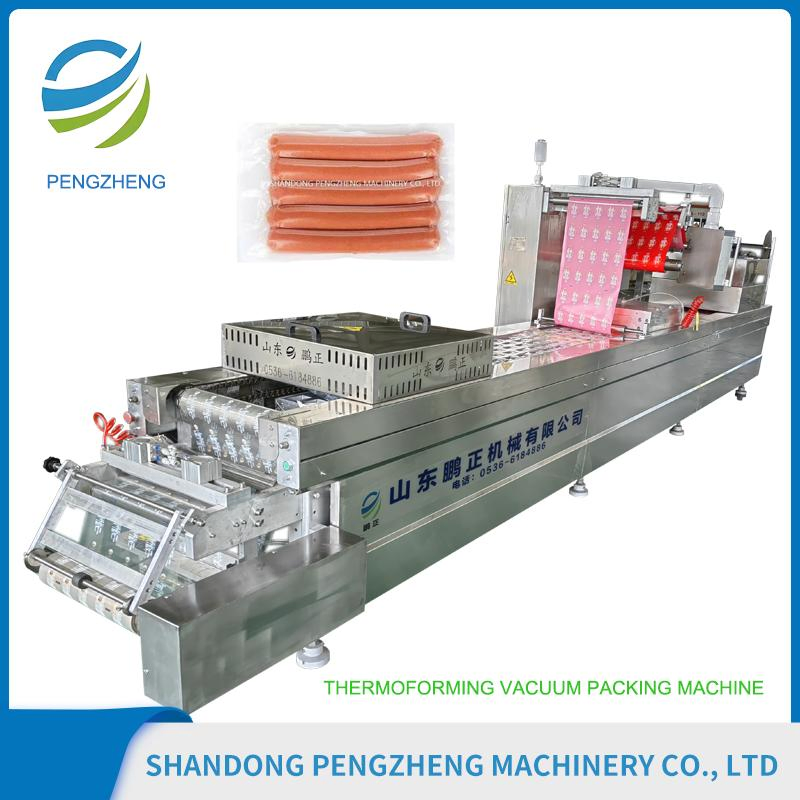

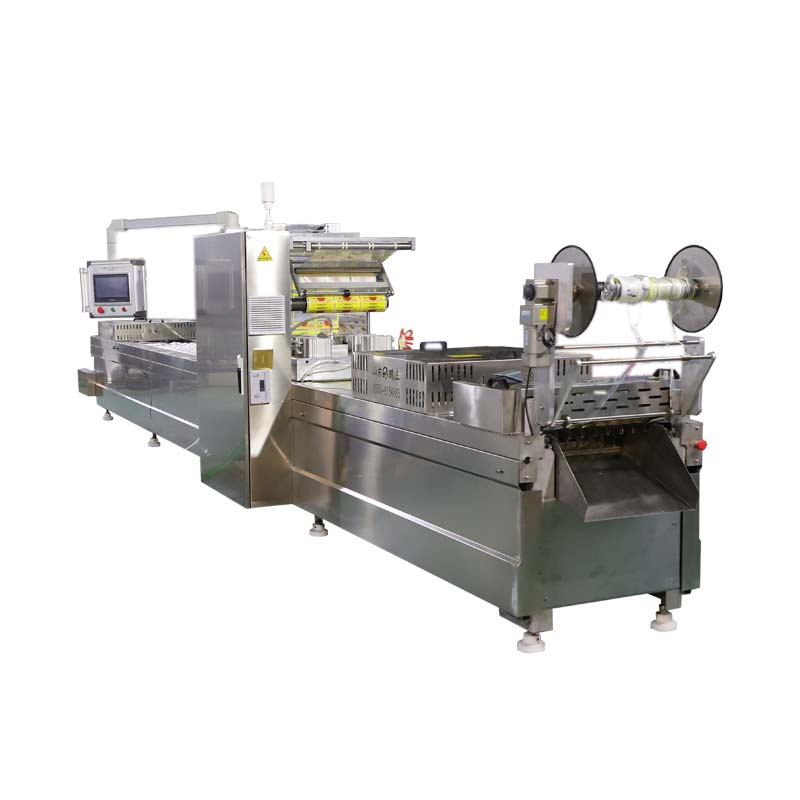

Innovative Automatic Thermoforming Vacuum Packaging Machine for food such as sausages, fish, shrimp, steak, beef, beef jerky, dried bean curd, goat, mutton, chicken, and toys. This machine is designed to efficiently package a variety of food items and toys, ensuring freshness and extending shelf life.

Key Features

Automatically thermoforms and vacuums packages
Suitable for a wide range of food items and toys
Precision packaging to maintain freshness
Enhances food preservation and extends shelf life
Efficient and user-friendly design

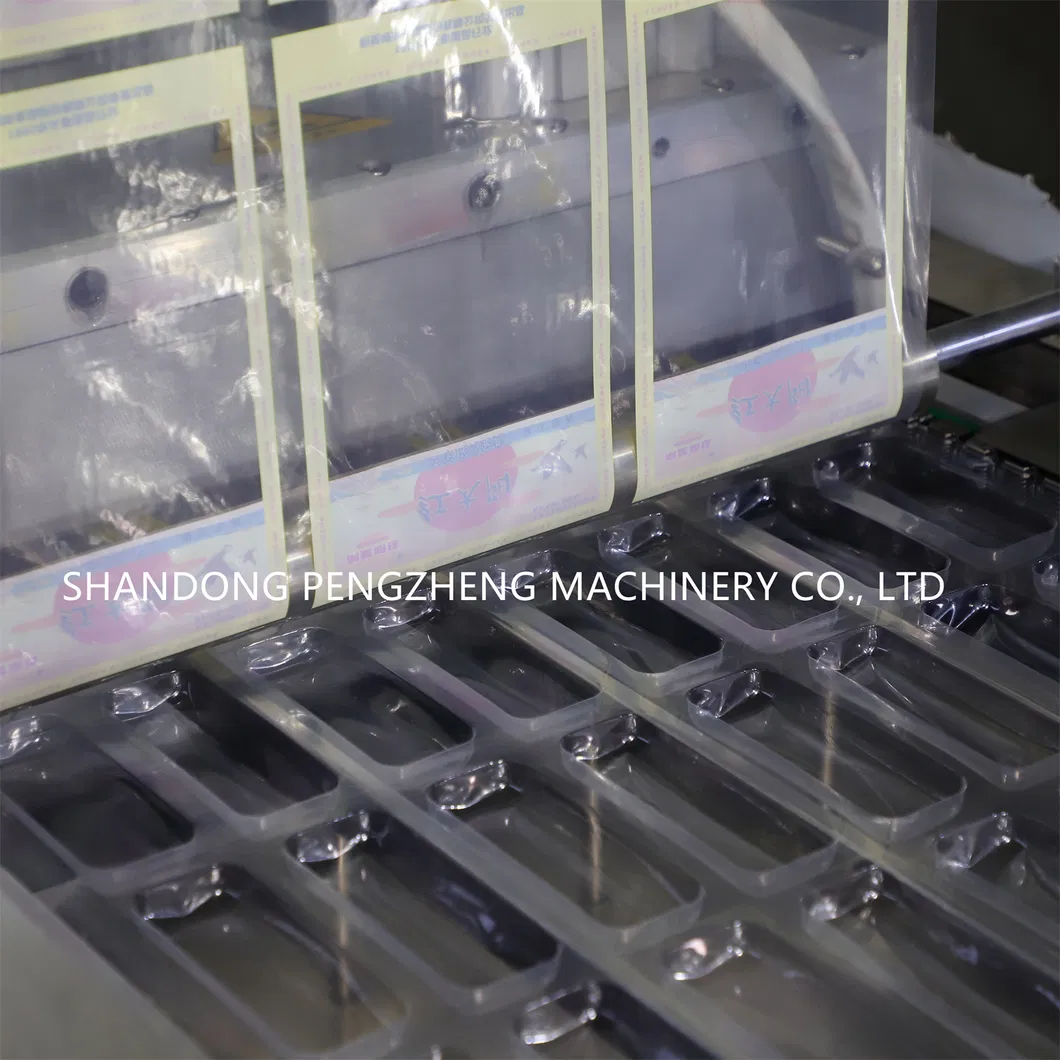

Bottom film heating and stretching to match mould shape

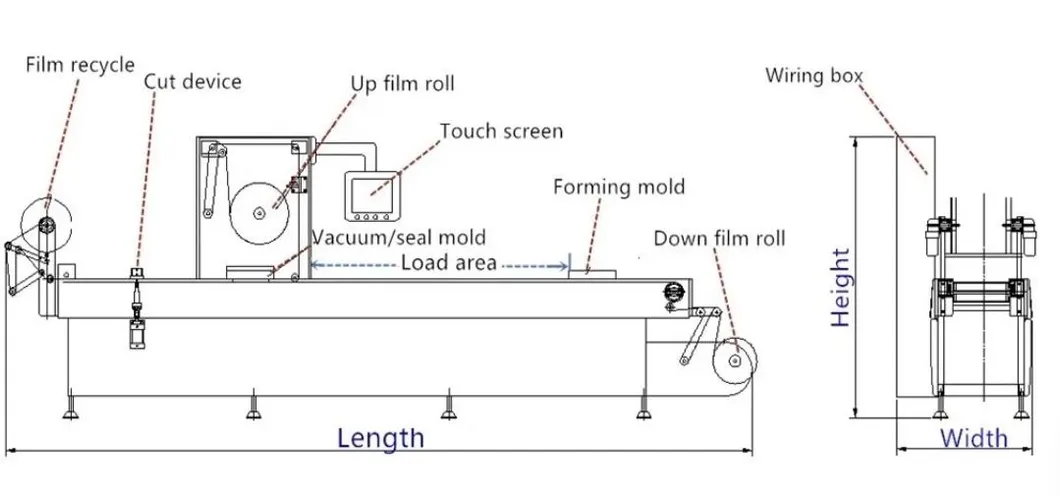

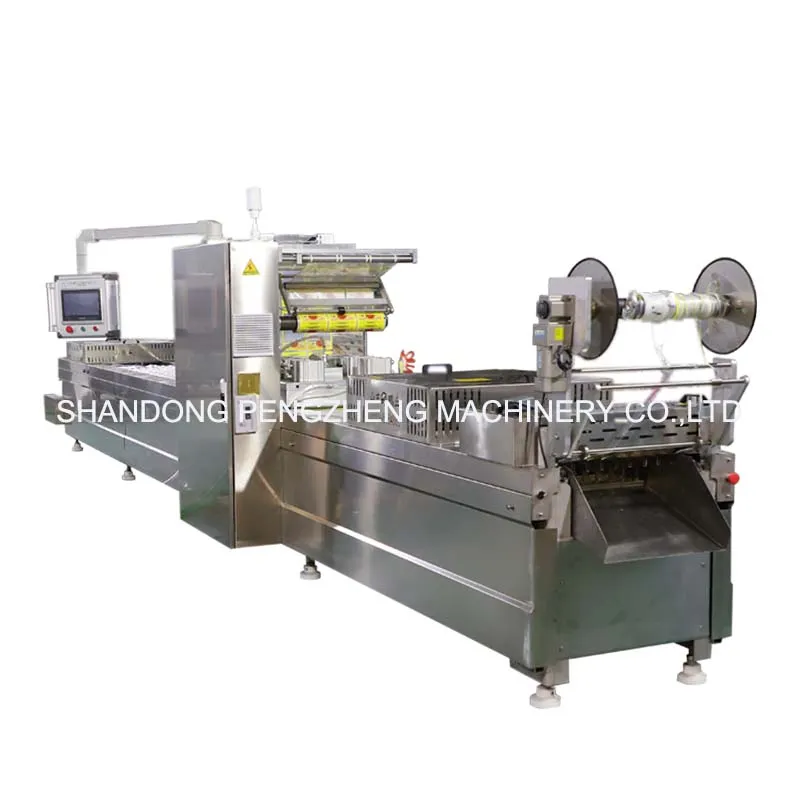

Main Components & Design

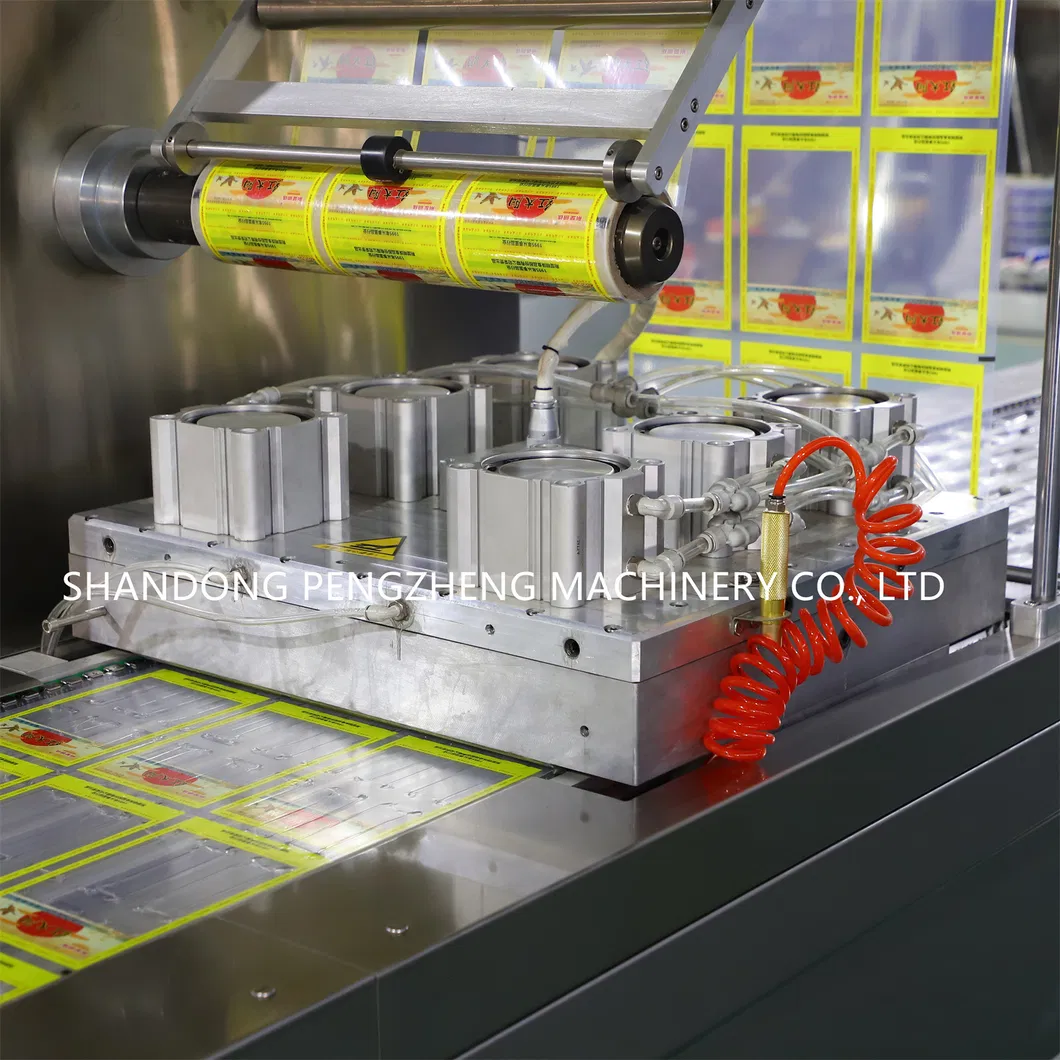

The equipment features a robust structure made of Stainless Steel 304 (6mm thickness). It integrates advanced technology to ensure precision in forming and sealing.

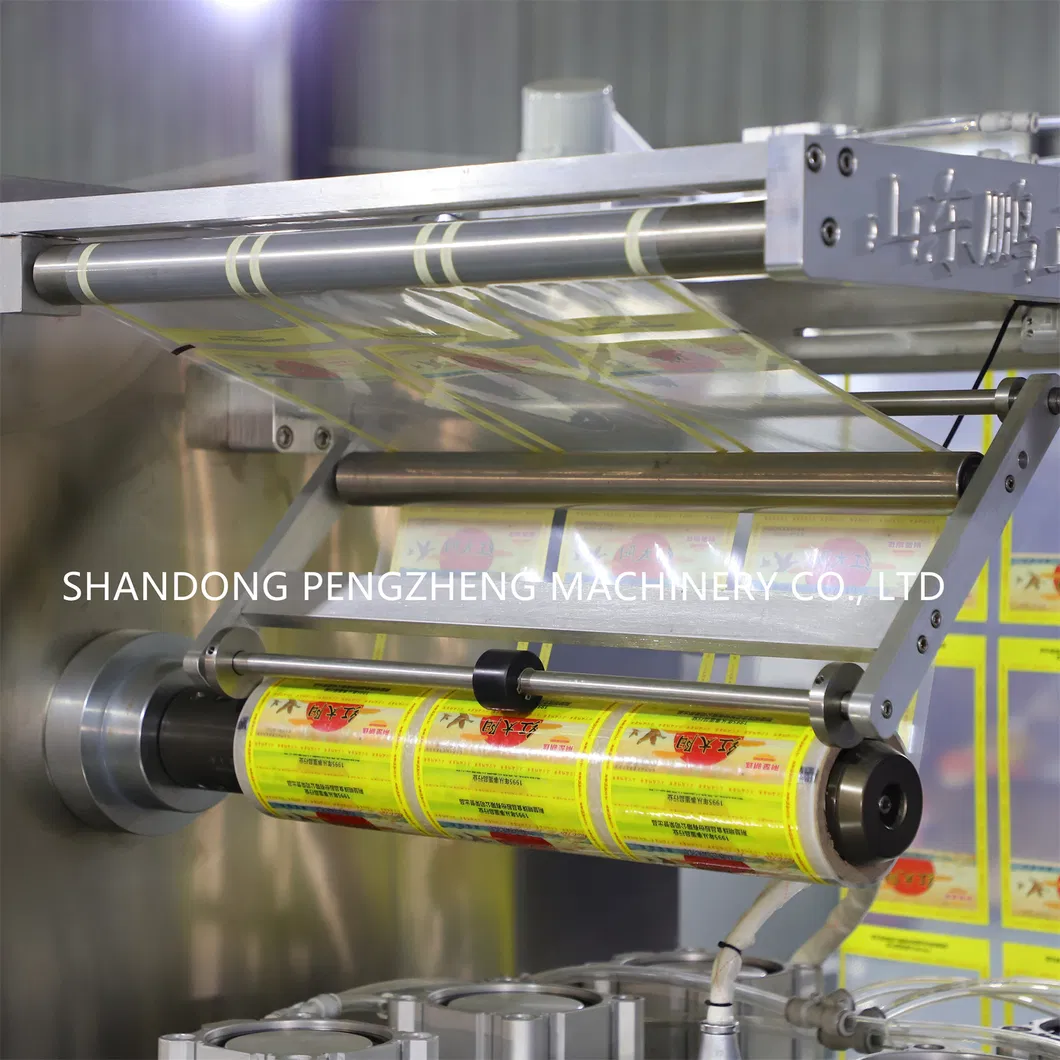

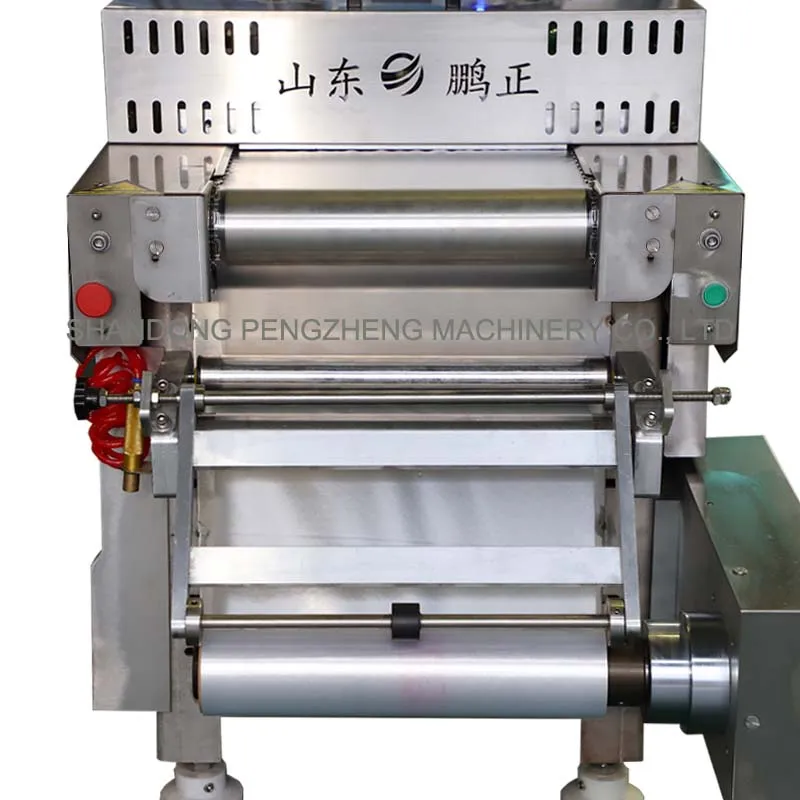

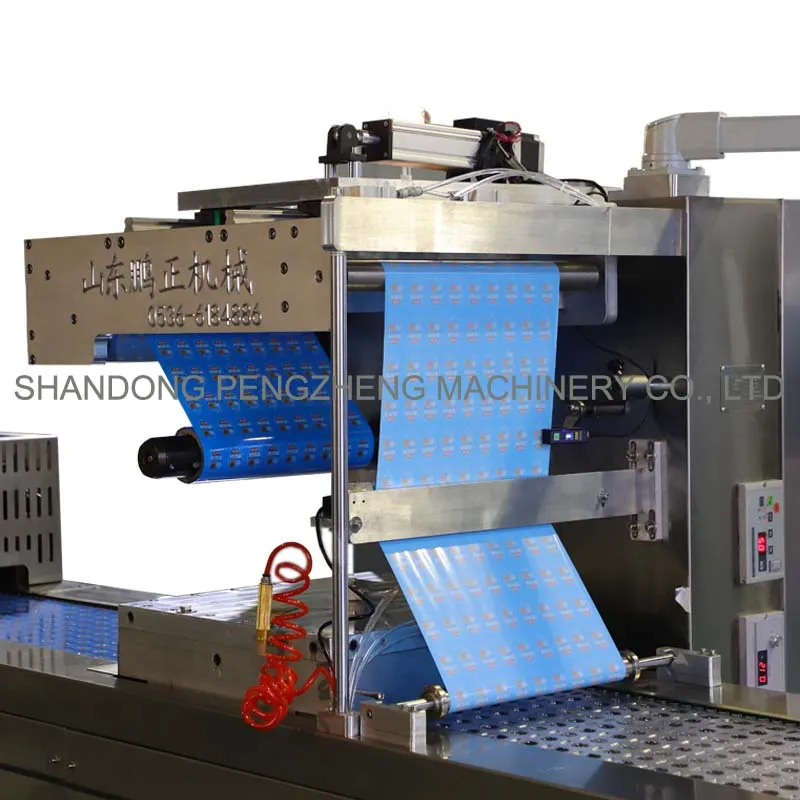

Automatic Correction Device: Includes intelligent calibration for top and bottom films to prevent deviation.

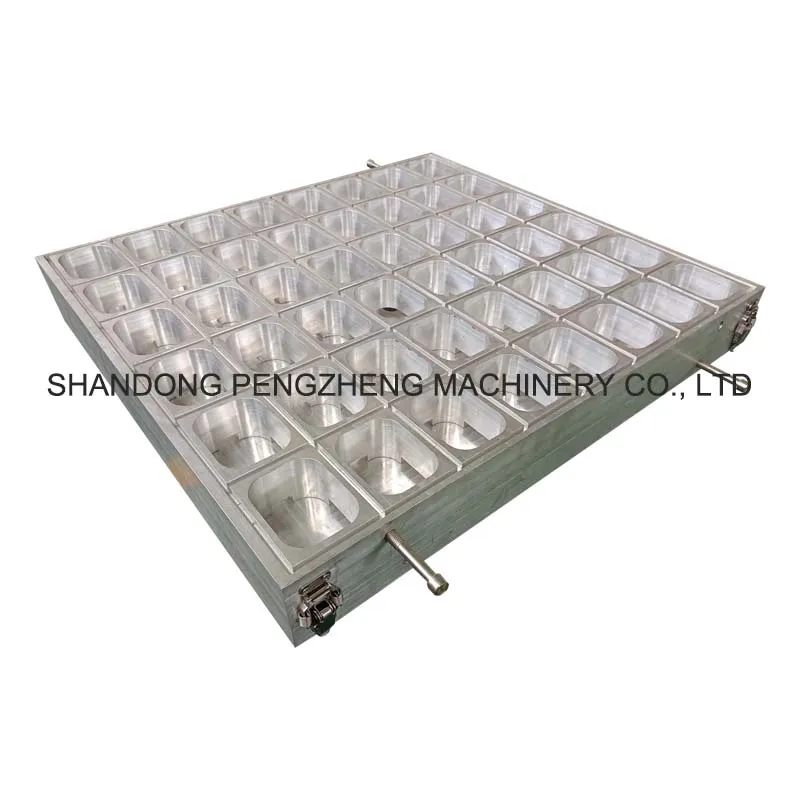

Mould Diversification: Suitable for packing items from 40g to 100g with easy-to-replace moulds.
Top Safety: Equipped with multiple sensors and auto-stop functions when covers are opened.
Humanization Design: Features control stations at both ends for convenient operation.

Comparison of Packaging Types

Feature	Traditional Bag	Single Side Stretch	Double Side Stretch
Stretch Film	None	Single Side	Double Side
Max Forming Depth	N/A	120mm	120mm*2
Efficiency	Low	High	Middle
Cost	High	Low	Middle

Product Parameters

Main Brand Components
Vacuum Pump	RIETSCHLE (Germany)
Electrical / Servo Motor	Schneider (France)
Chain	TYC (Taiwan)
Working Specifications
Thermoforming Temperature	70-120 °C
Sealing Temperature	125-150 °C
Vacuum Degree	≤200 Pa
Available Film Width	384mm

Service & Maintenance

Warranty: 12 months warranty on the whole machine.
Maintenance: Lifelong maintenance offered with timely response for repairs.
Technical Support: 24-hour technical support hotline and online training.
Installation: Professional engineering guidance for setup and debugging.

Frequently Asked Questions

Q1: How long is the delivery time for the machine? A1: It typically takes 45 working days to manufacture and prepare the machine, which includes technical drawing, parts manufacturing, assembly, and fine-tuning.

Q2: What information is needed for a specific offer? A2: We require the dimensions of your packaging and your expected daily production volume to provide a tailored quote.

Q3: Do you provide overseas technical services? A3: Yes, we offer overseas service upon request, including online troubleshooting and the option to send engineers to your facility if necessary.

Q4: What is the warranty period for this vacuum packaging machine? A4: The machine comes with a standard 12-month warranty, and we offer extended maintenance agreements up to 48 months.

Q5: Is the machine made of food-grade materials? A5: Yes, the main structure is built with high-quality Stainless Steel 304, ensuring durability and compliance with hygiene standards.

Q6: Can the machine handle different product sizes? A6: Absolutely. The equipment supports mould diversification and is suitable for various materials like eggs, meat, and hardware ranging from different sizes and weights.
