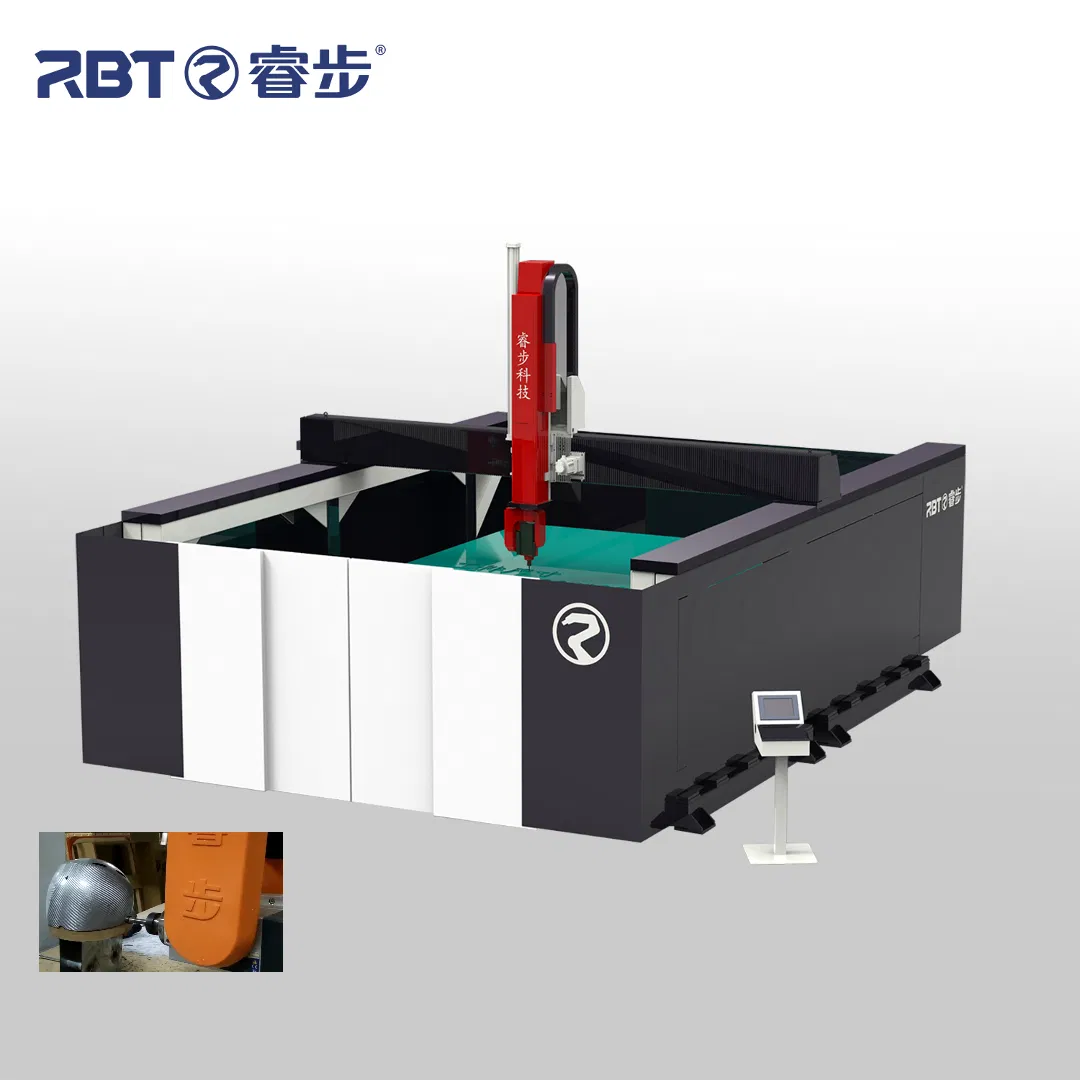

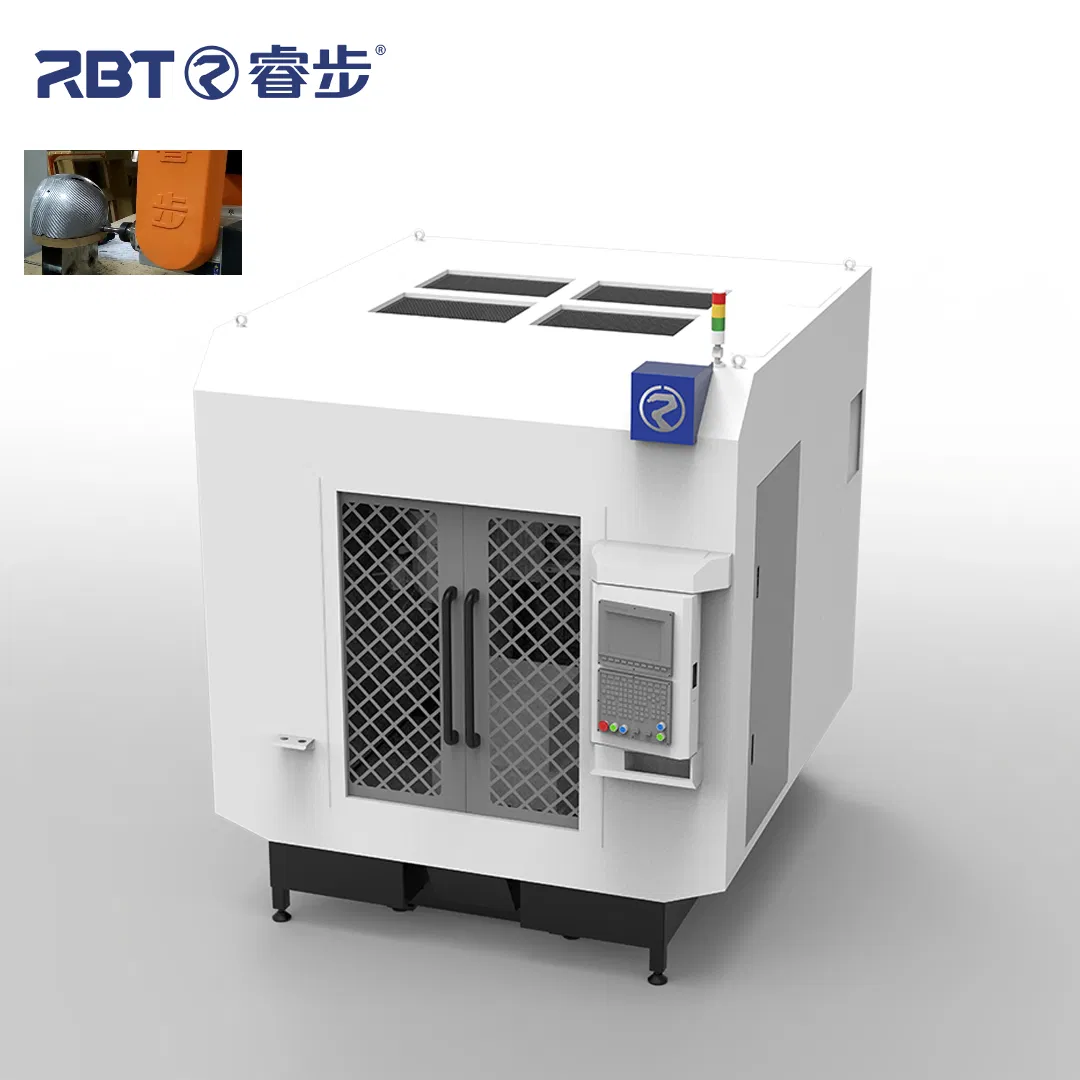

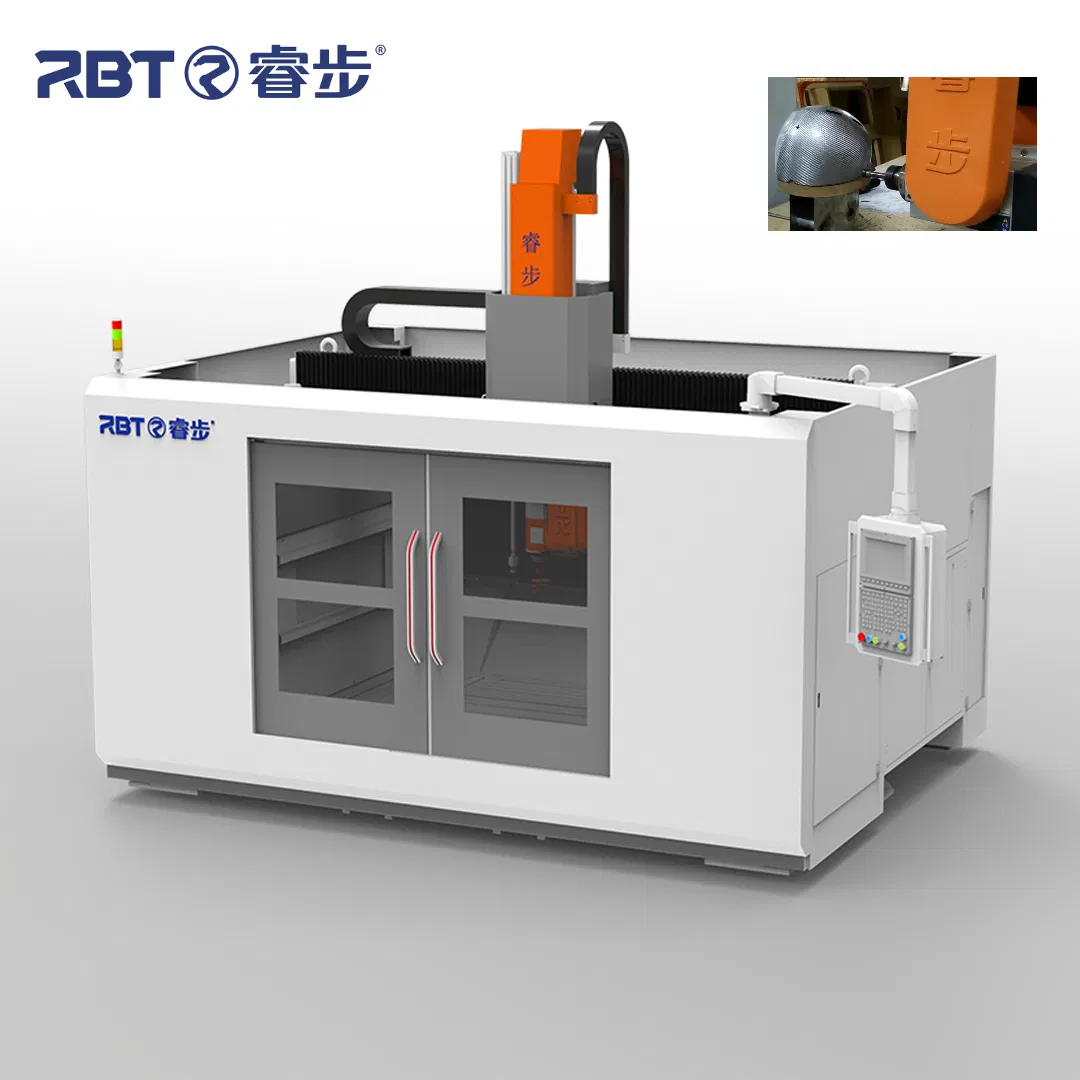

Mold Making Machine 5 Axis CNC Machine Cutting Drilling Trimming

1 / 5

Mold Making Machine 5 Axis CNC Machine Cutting Drilling Trimming

Customization:	Available
After-sales Service:	Technical Support, Online Support, Spare Parts
Warranty:	One Year

Send Inquiry

Product Description

⚙️

Basic Specifications

Model NO.

RB-F5-2535-Z08

X Axis Effective Stroke

2500mm

Y Axis Effective Stroke

3500mm

Z Axis Effective Stroke

800mm

B-Axis Rotation Angle

+/- 130 Degree

C-Axis Rotation Angle

+/- 540 Degree

X/Y Axis Maximum Speed

50m/Min

Z Axis Maximum Speed

20m/Min

Repeat Accuracy

+/-0.05mm

Voltage

380V

Total Power

13.95kw

Spindle Power

3kw (Customizable)

Weight

3.9t

HS Code

8465990000

💎

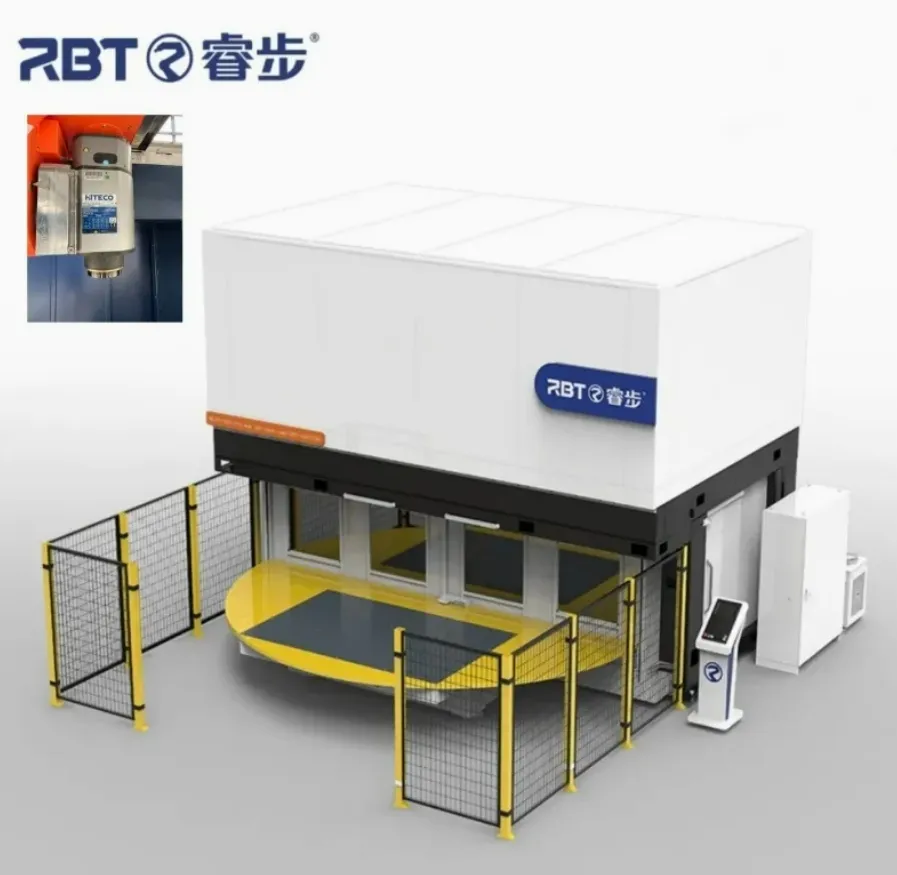

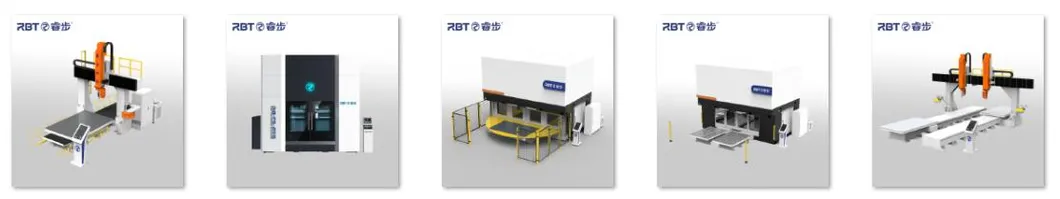

5 Axis CNC Machine For Non-Metal Parts

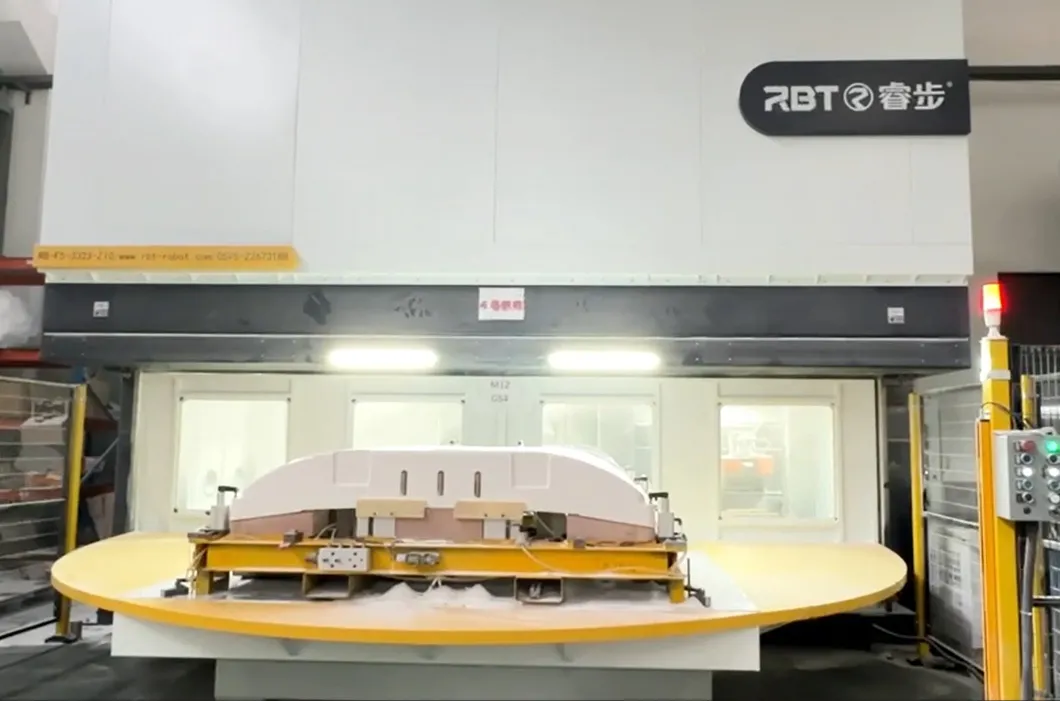

The non-metal five-axis machining center utilizes five coordinate axes to drive tools around the workpiece, achieving complex three-dimensional movements. It is designed to meet high-precision requirements for pentahedron processing and arbitrary curved surfaces.

Content	Parameter	Content	Parameter
Name	Truss Type 5 axis CNC	Voltage	3-380V
Model	RB-H5-2535-Z10	Rated Power	18.95KW~33.45KW
X/Y/Z Axis Travel	25003500800	Weight	19500KG
C/B Axis Travel	±540°/±130°	Dimension	L7100W6615H4896mm
Control System	SYNTEC	Spindle Power	3~20KW

🚀

Machine Function & Features

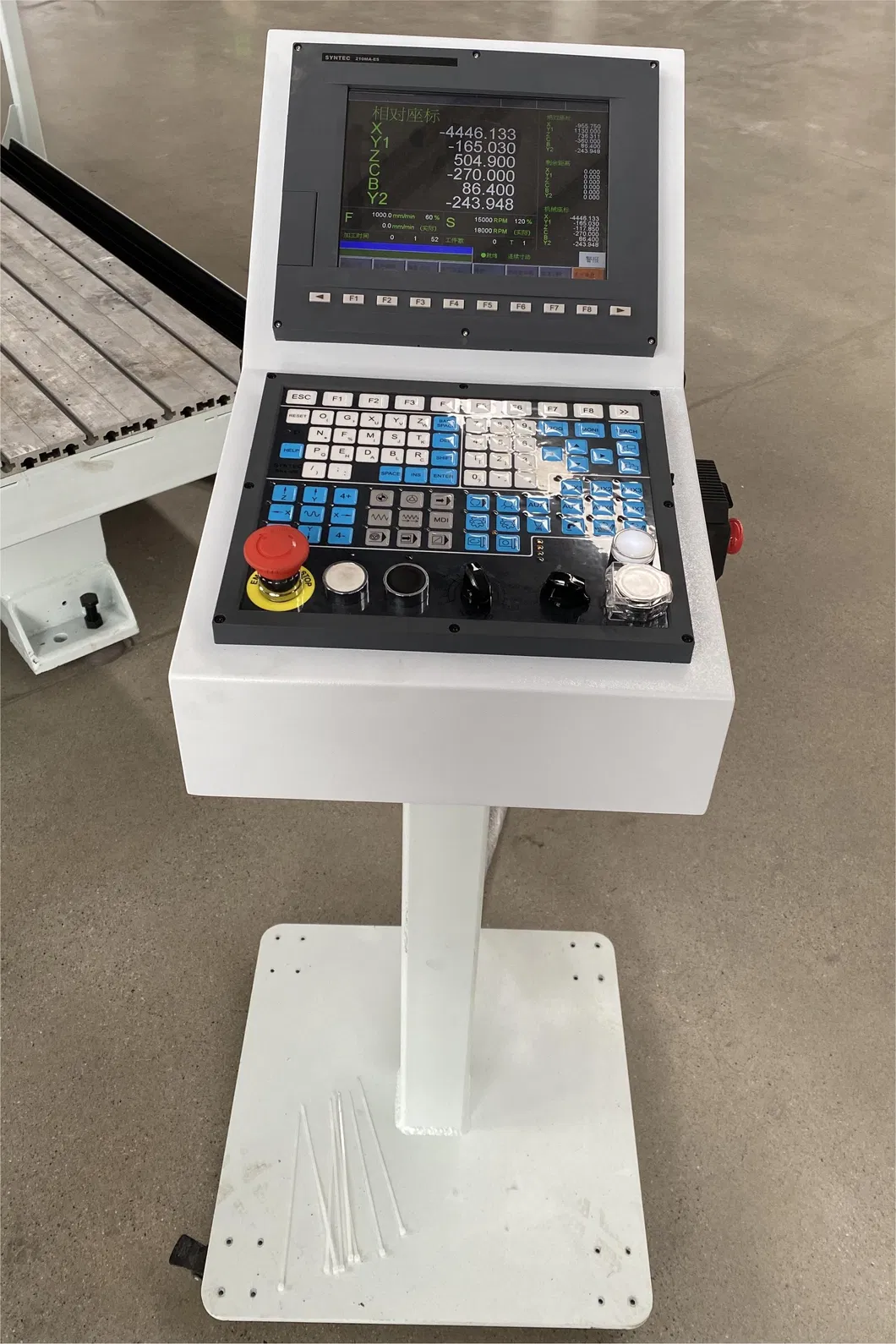

Advanced Control: Adopts SYNTEC five-axis linkage CNC system for power, speed, and precision.
Multi-Functional: Equipped with dust collection, automatic tool change, and RTCP support.

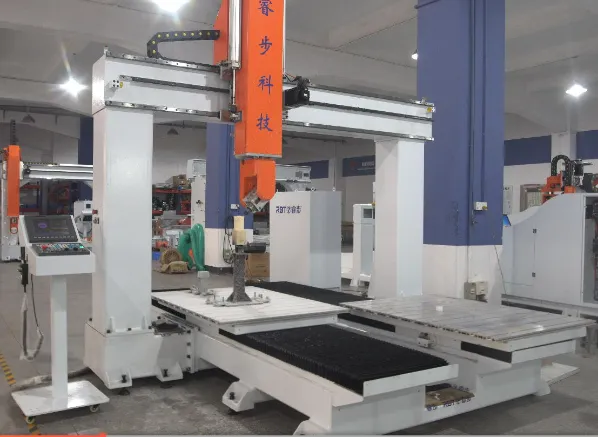

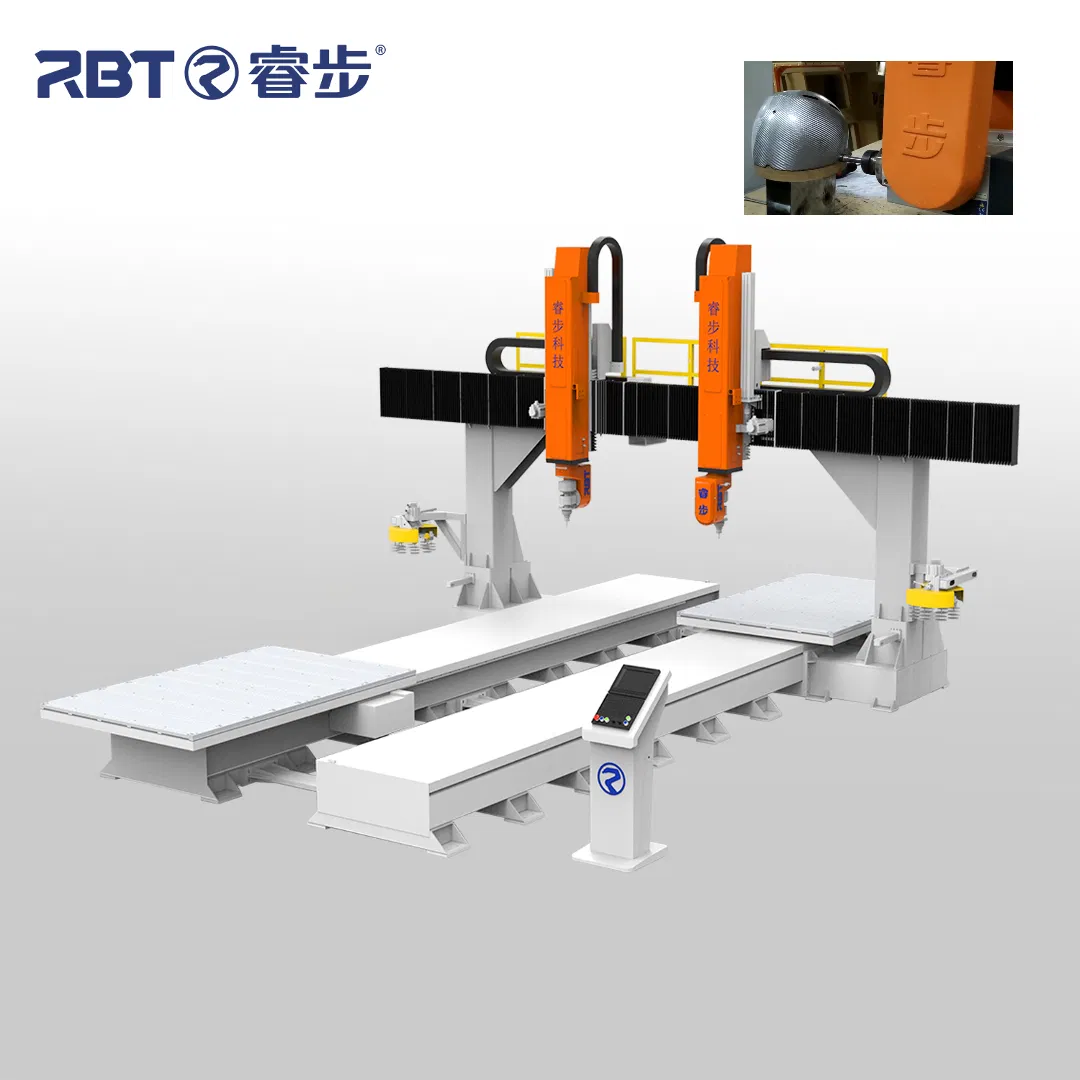

Efficiency: Dual independent cutting platforms allow simultaneous loading/unloading while the other platform works.

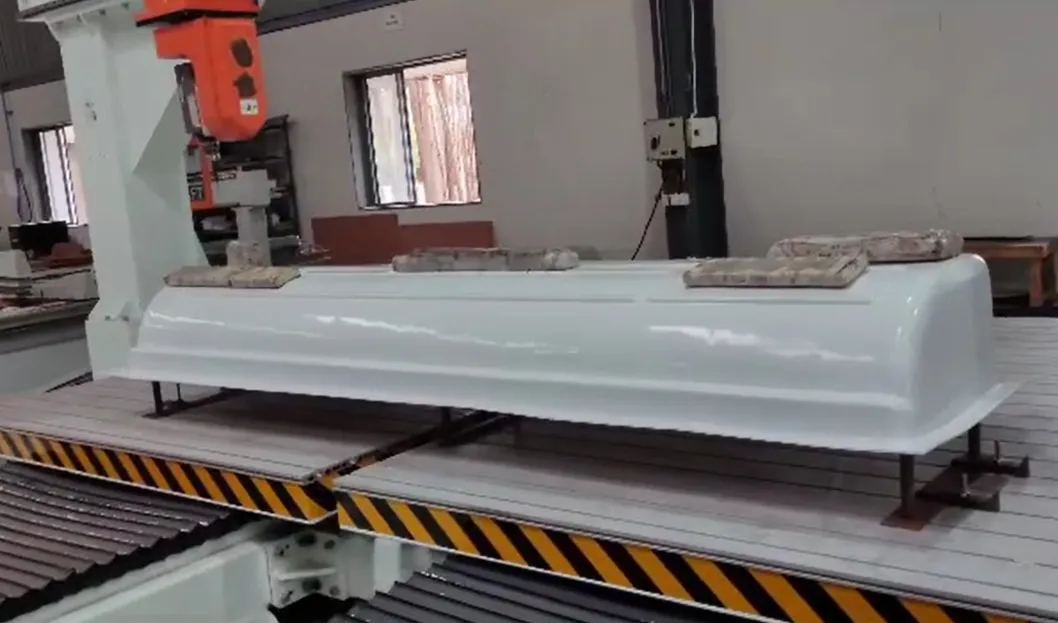

Versatile Processing: Ideal for thermoformed plastic or composite materials for 3D special-shaped cutting and trimming.

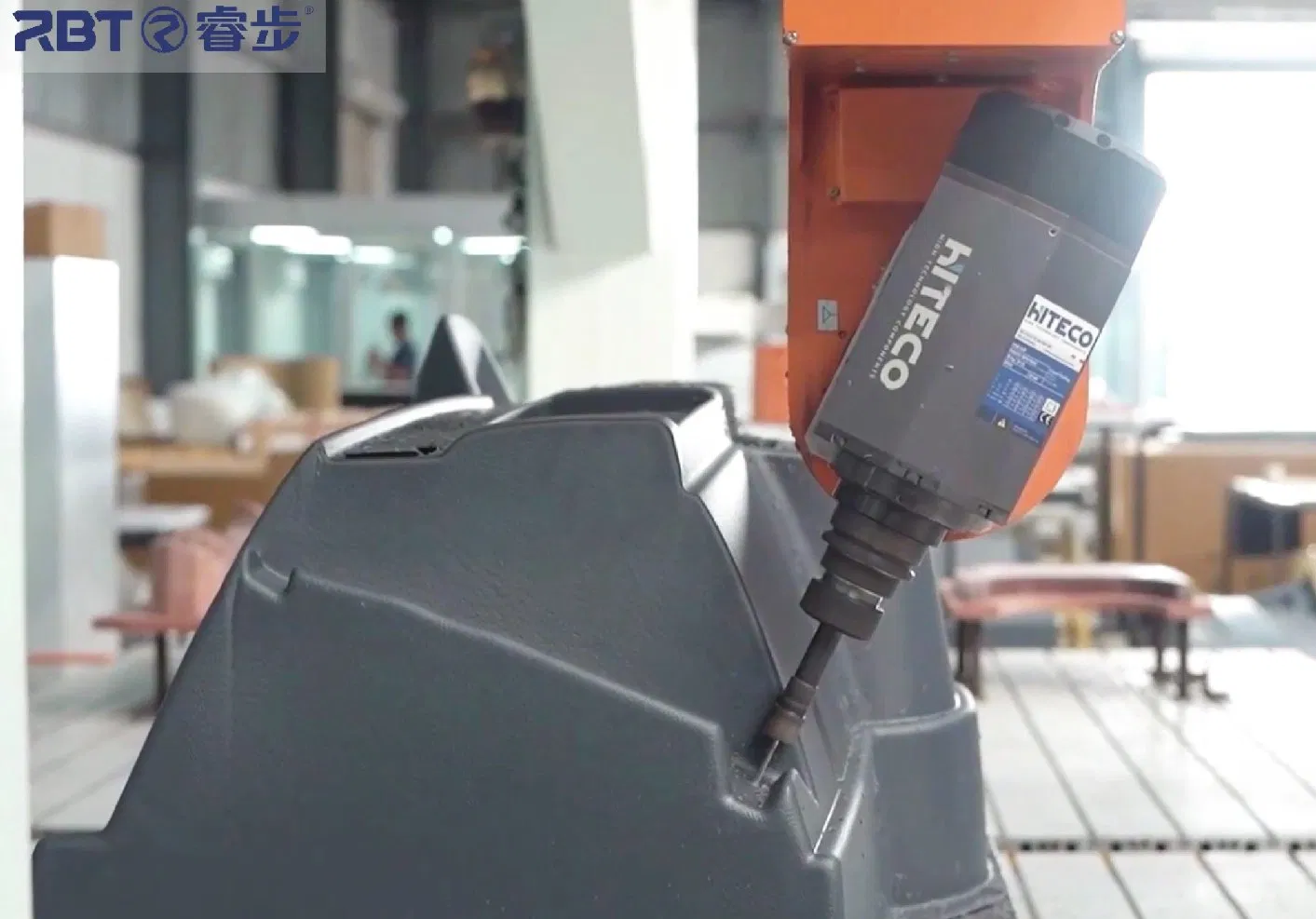

High-Speed Spindle: Features imported high-precision spindle with double swing head for 360° processing angles.

🛠️

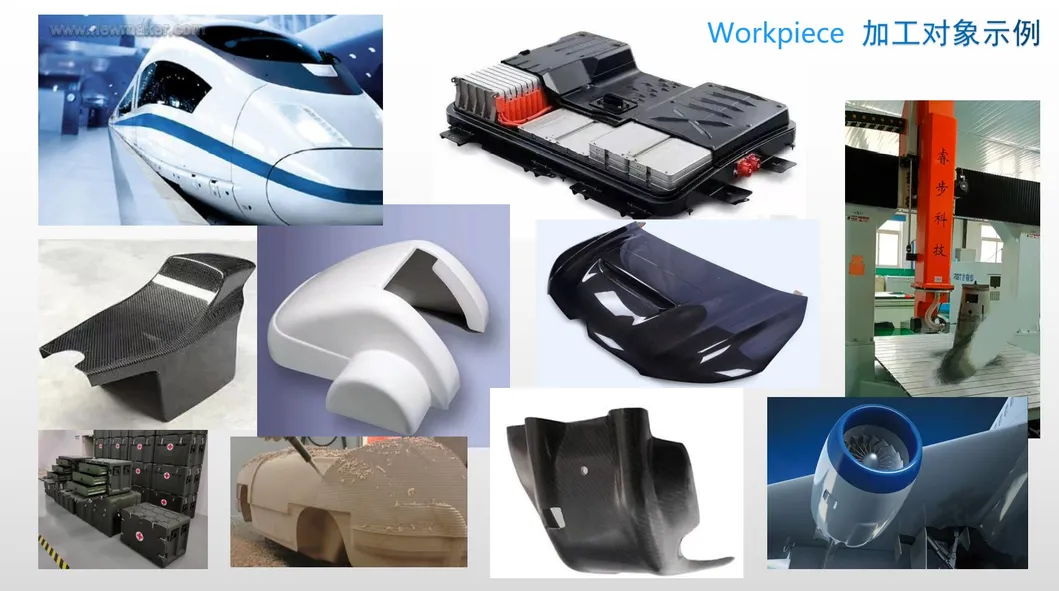

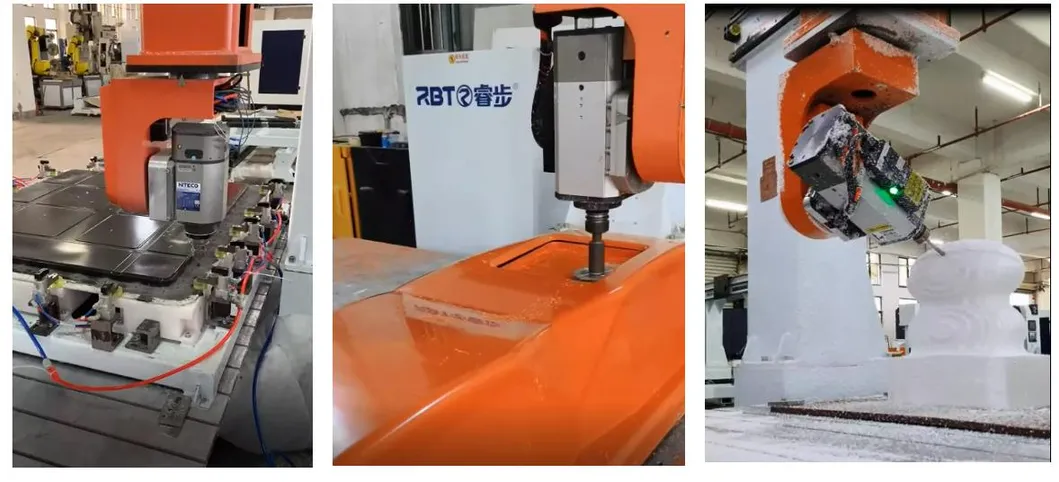

Applications & Materials

Composite materials: Carbon fiber (PCM/RTM/SMC/LFT), glass fiber, carbon/carbon, etc.

Plastics: ABS, PVC, PC, PP, PS, PE, PET, HDPE, Acrylic, etc.

Other materials: High-density sponge, Styrofoam foam, wood, substitute wood, stone, plaster.

🏅

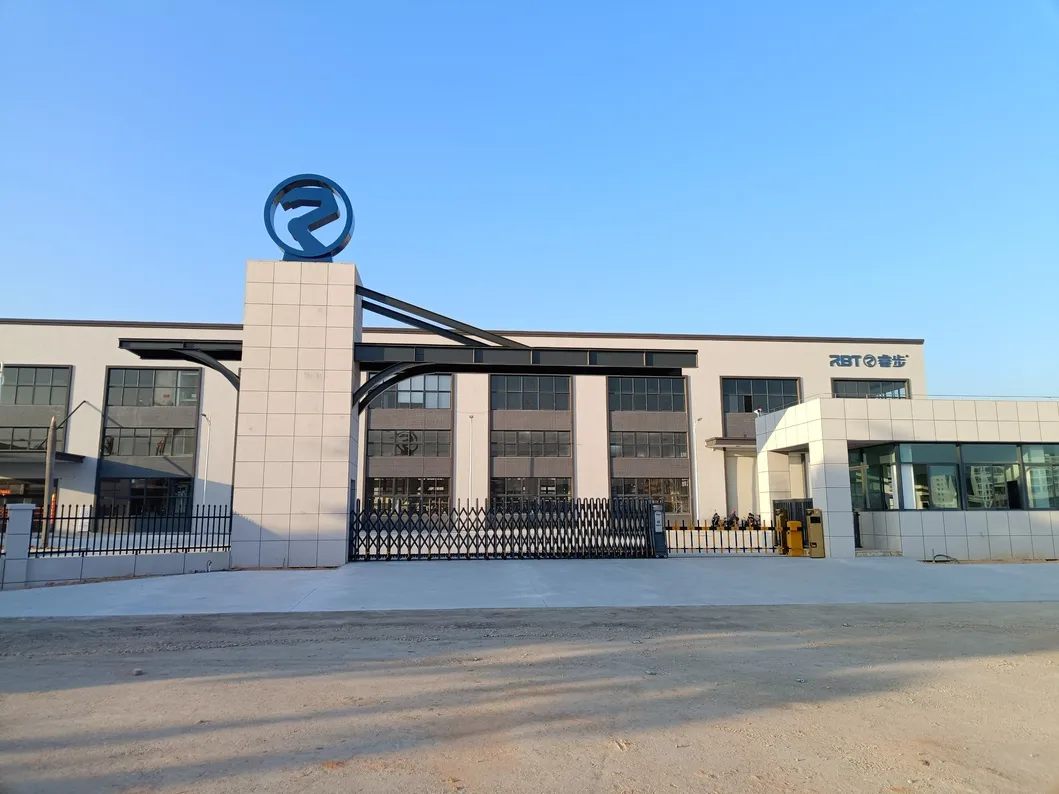

Quality Control & Workshop

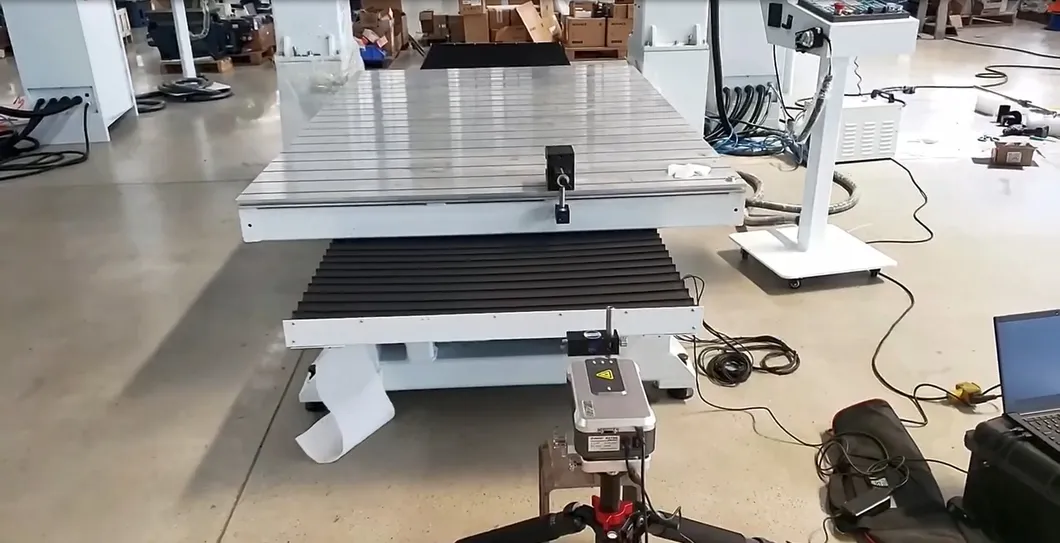

Every machine undergoes 100% testing and position measurement using laser interferometers to ensure accuracy before delivery.

📦

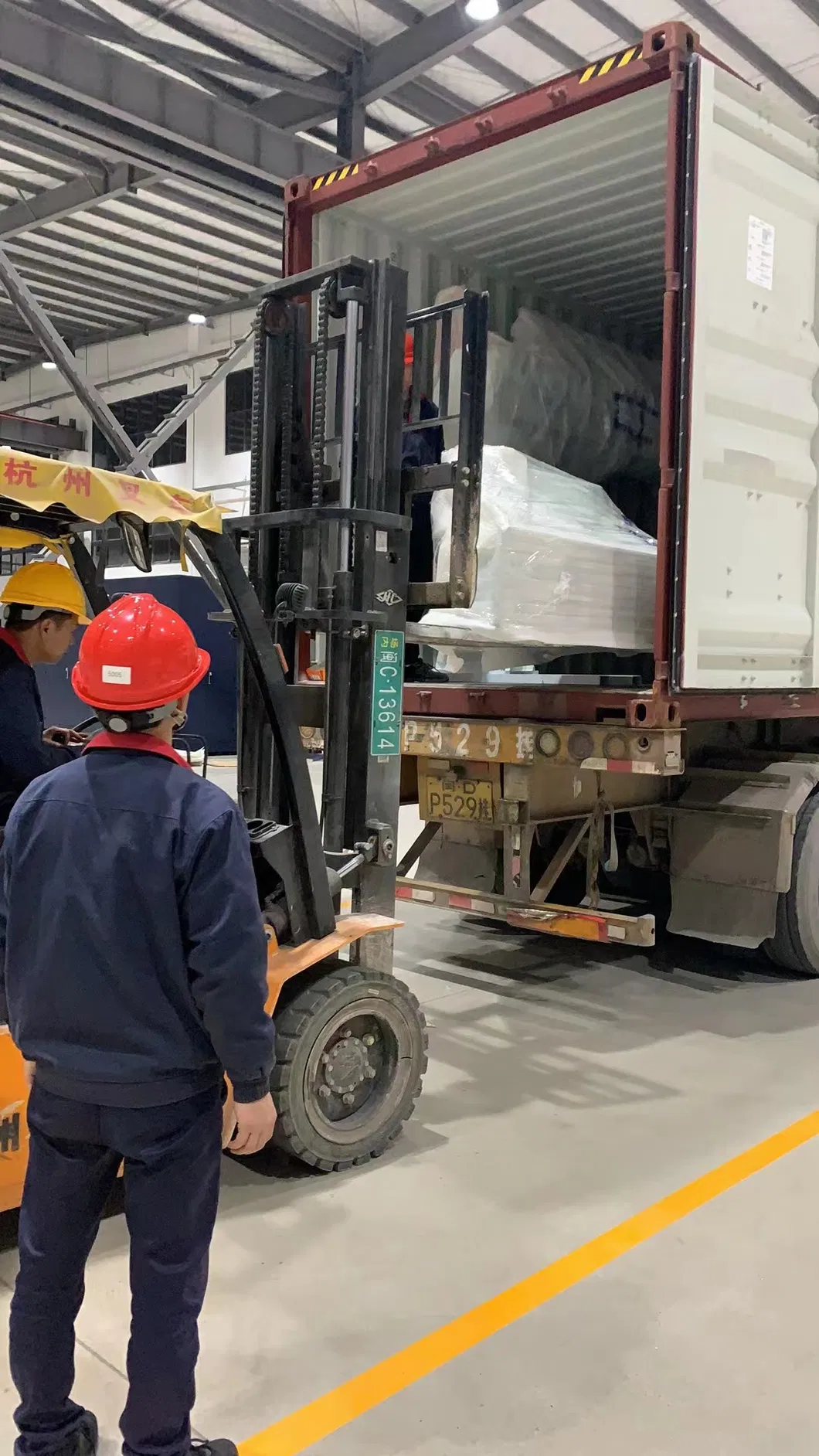

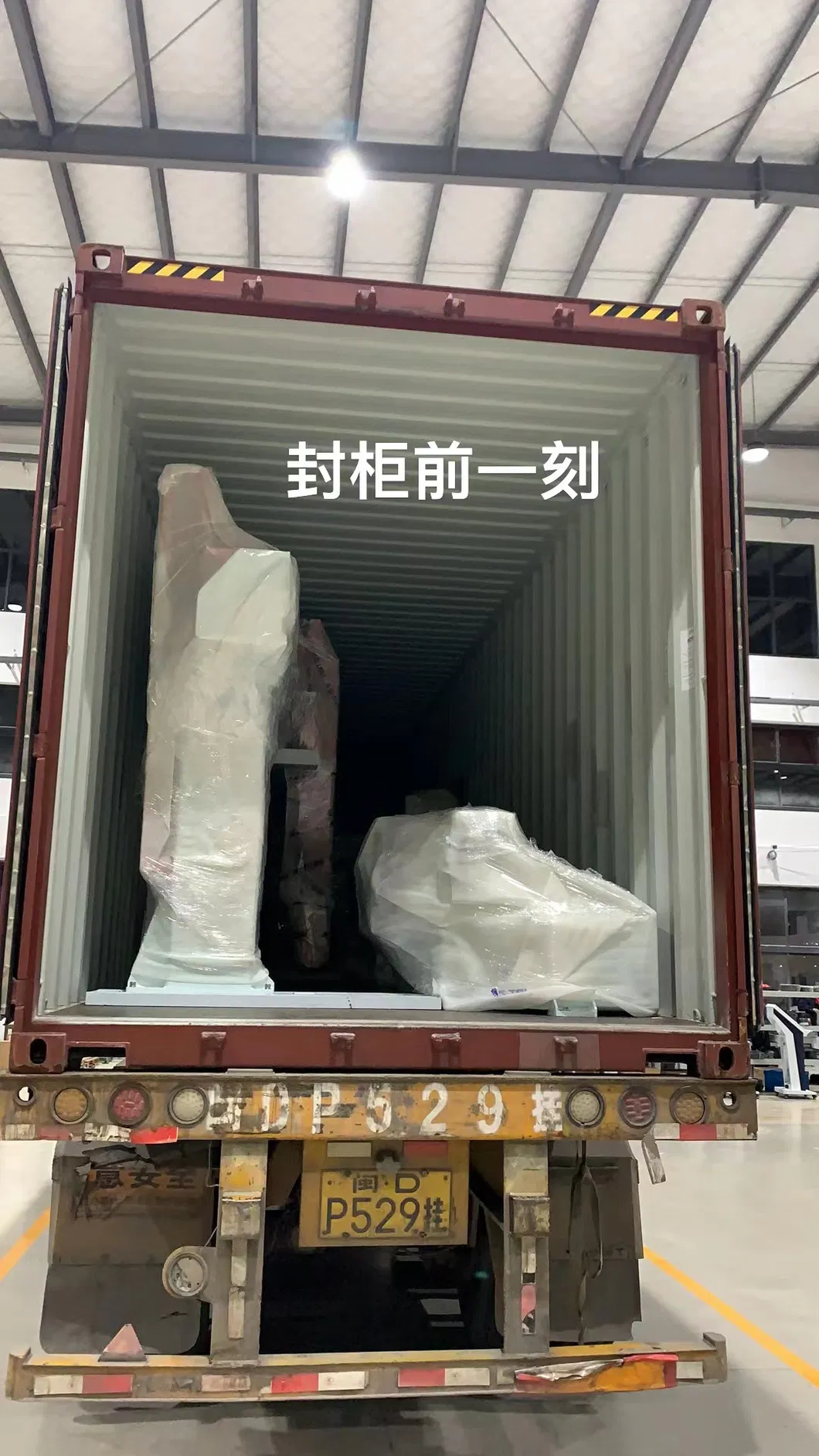

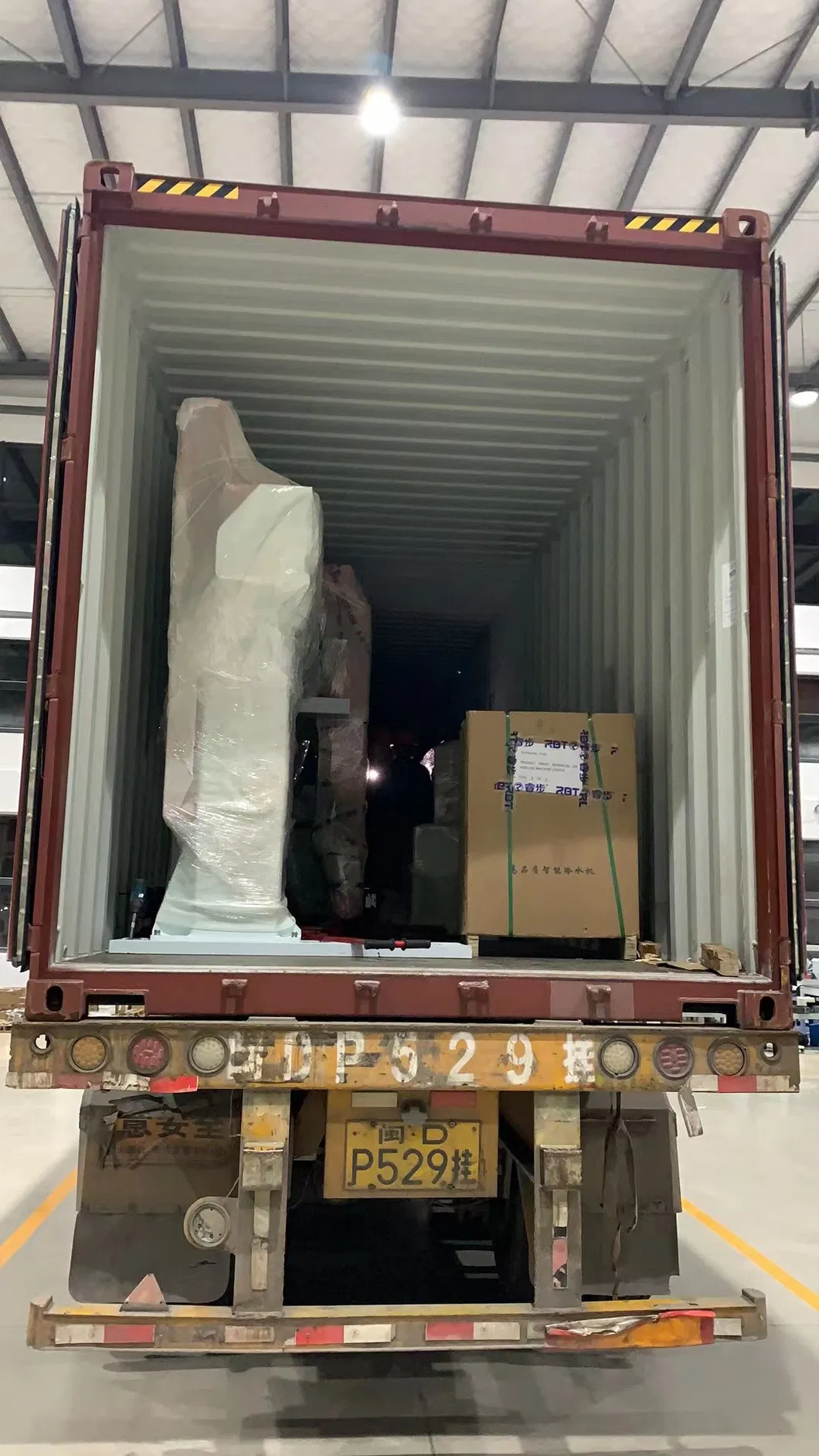

Packing & Delivery

Standard export safety packing including plastic film and plywood wooden cases or customized according to requirements. Shipped via container transport.

❓

Frequently Asked Questions

Q1: Can the machine be customized to my specific requirements? Yes, we have a professional R&D team. The machine can be fully customized based on your products, samples, or technical drawings.

Q2: Do you provide sample testing services? Yes, we can perform sample testing based on your technical drawings and materials to verify the machine's performance.

Q3: What is the Minimum Order Quantity (MOQ)? Normally, our Minimum Order Quantity is 1 set.

Q4: Are the machines tested before they are shipped? Yes, all machines undergo a 100% test and rigorous calibration before delivery.

Q5: What kind of after-sales service do you offer? We provide online video guidance and conferencing. If on-site support is required, technicians can be dispatched for installation and training.

Q6: What industries are these machines typically used in? They are widely used in aerospace, automotive, medical, sports goods, and mold manufacturing for composite and plastic parts.
