| Model NO. | TZ-7695 | Certification | CE, ISO |
| Automatic Grade | Automatic | Molding Method | Negative Pressure Forming |
| Max. Forming Size | 760X950mm | Max. Forming Depth | 120mm |

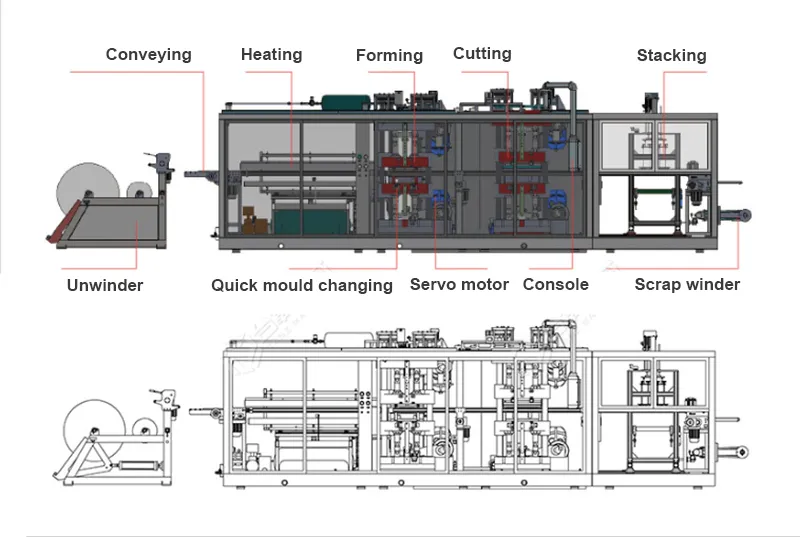

| Workstations | Forming, Punching and Stacking | Cooling System | 3HP Chiller |

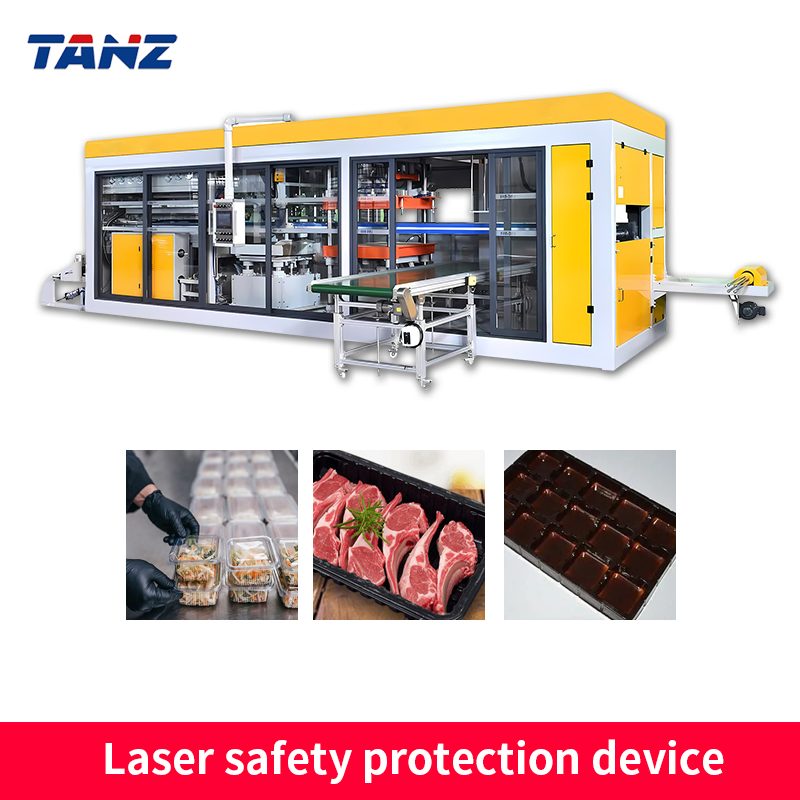

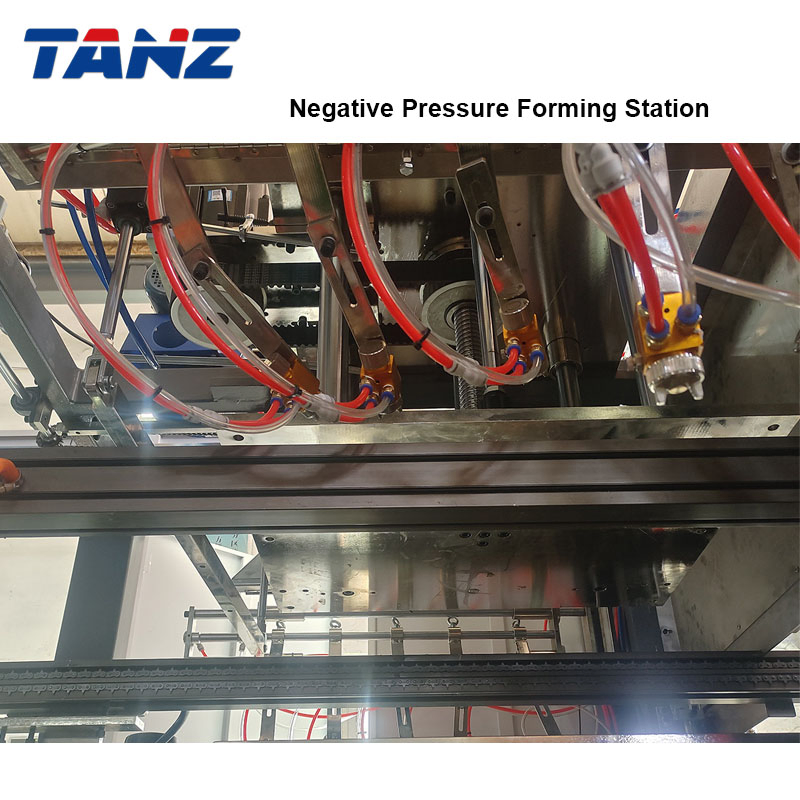

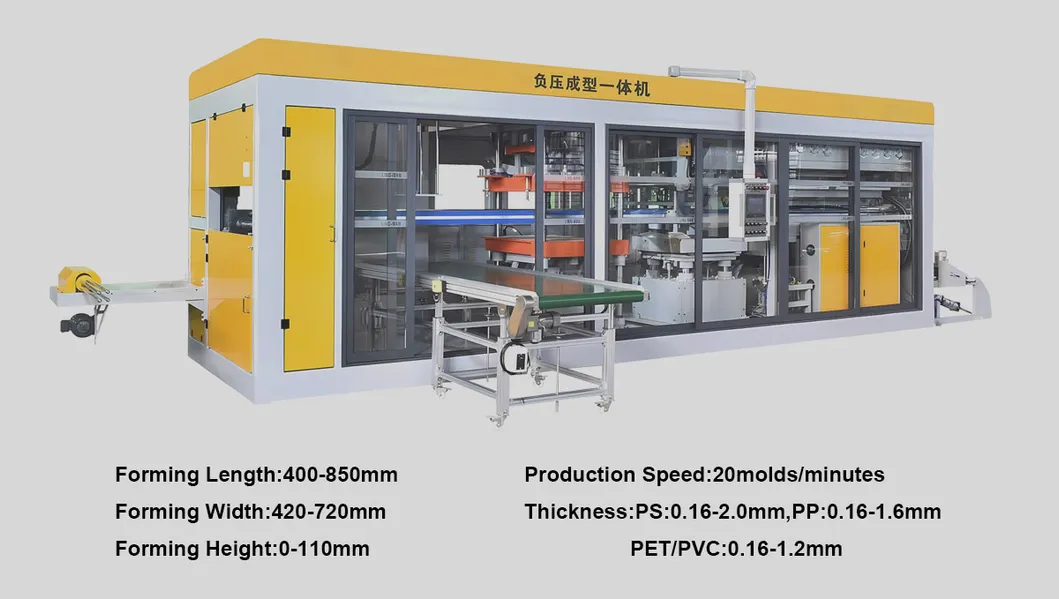

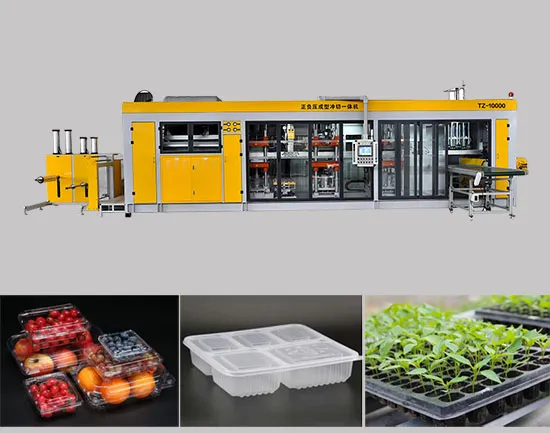

Fully Automatic Three Stations Negative Pressure Thermoforming Machine
| Specification | Details |
|---|---|
| Mould Size (Max.) | 760*950mm |
| Forming Depth (Max.) | Height <= 120mm; Depth <= 110mm (Customizable to 150mm) |
| Sheet Thickness | 0.16-2.0mm |
| Forming Speed (Max.) | 20 times/min |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA |
| Heating Power | 90KW |
| Dimension | 10.5 x 2.15 x 2.8 m |
| Weight | About 11T |

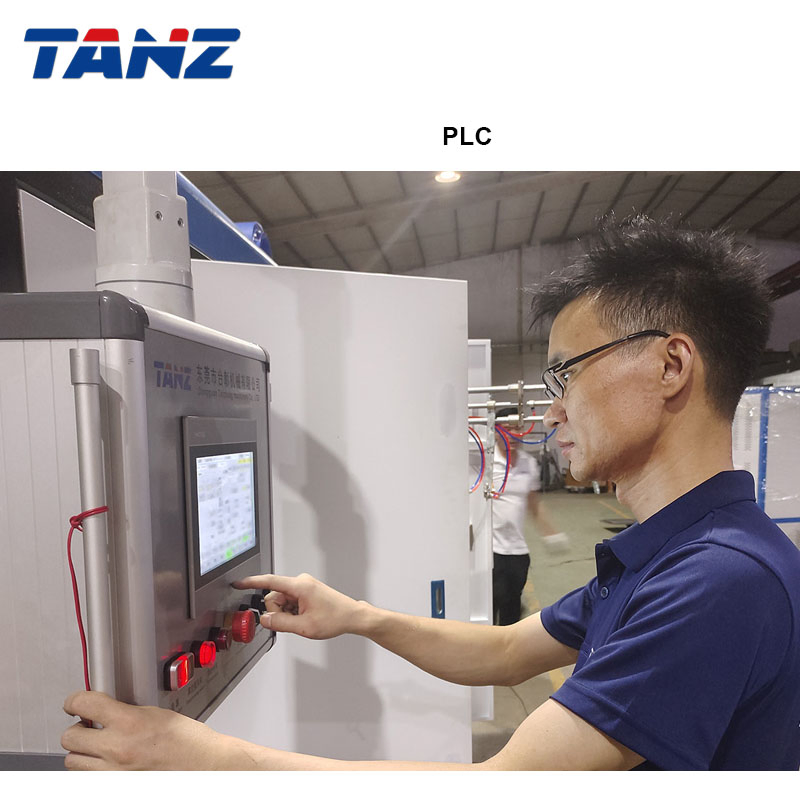

| PLC | Siemens | Touch Screen | KUNLUN TONGTAI |

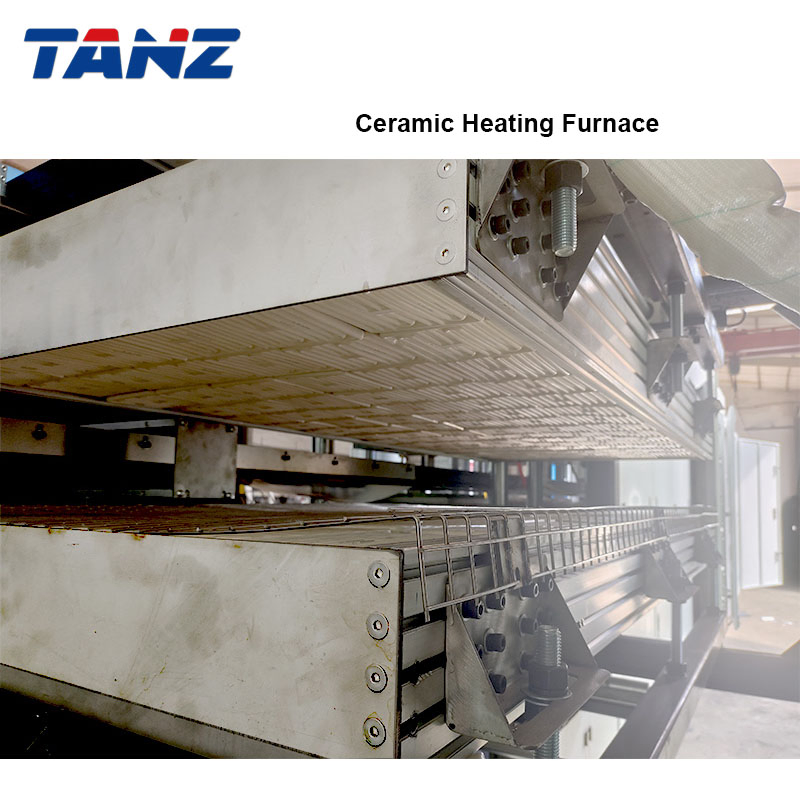

| Servo Motor/Pack | Inovance | Heater | ELSTEIN (Germany) |
| Temp Control | Yamatake (Japan) | Solenoid Valve | CKD (Japan) |
| Solid State Relay | OMRON (Japan) | Power Switch | Fuji (Japan) |
Suitable for processing thermoplastic materials with thicknesses ranging from 0.15 to 2.0 mm. Ideal for:

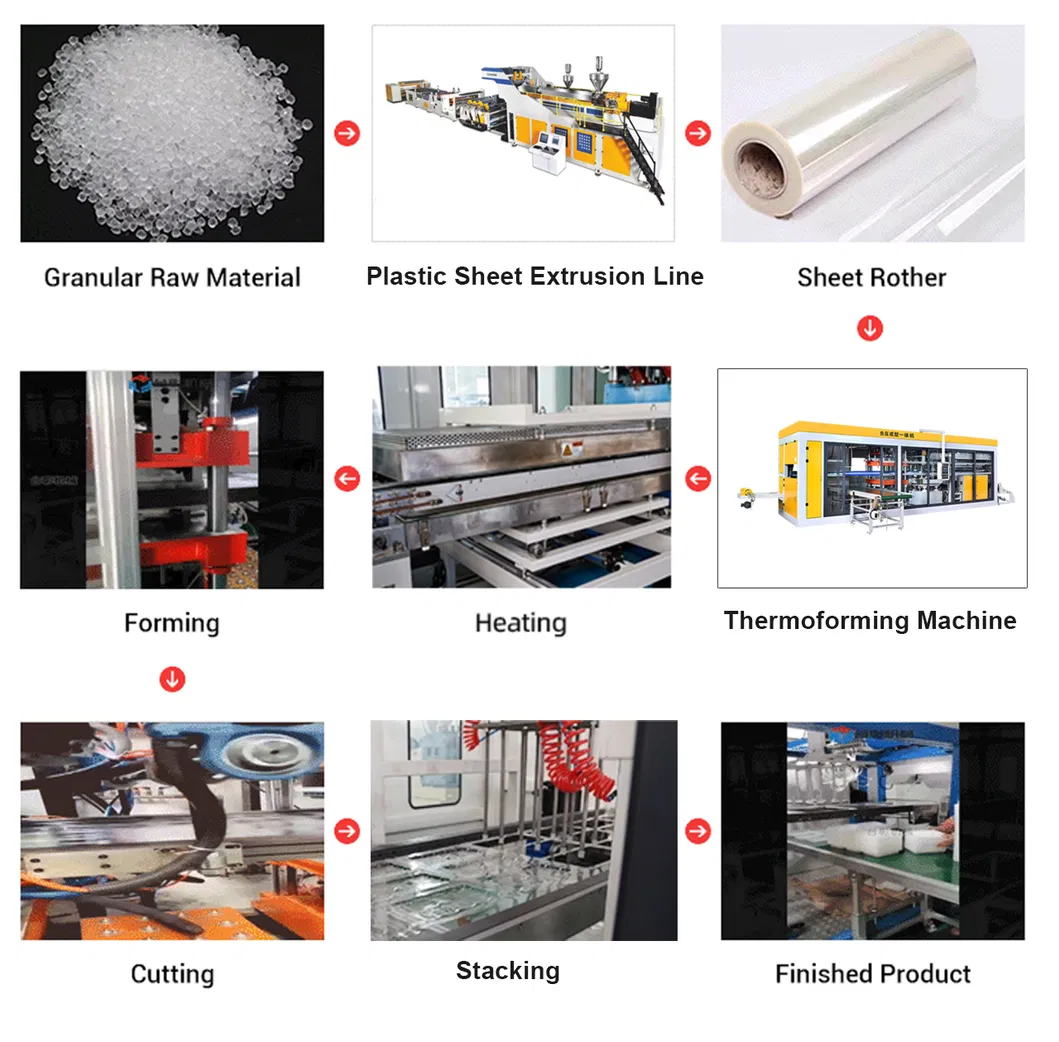

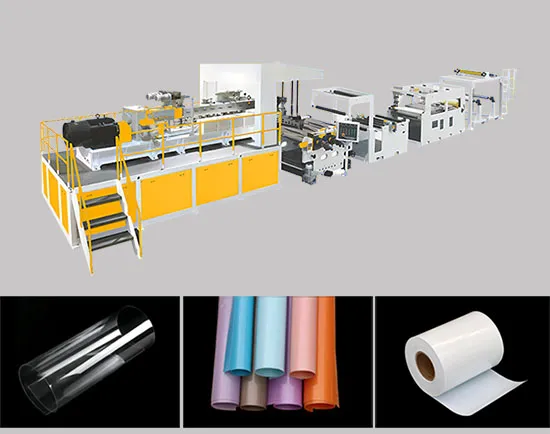

Solutions for PET, PP, PE, PS, ABS, PC, PMMA, PLA extrusion, widely used in thermoforming industry.
Professional solutions for food containers, fruit trays, seedling trays, lids, and plates.

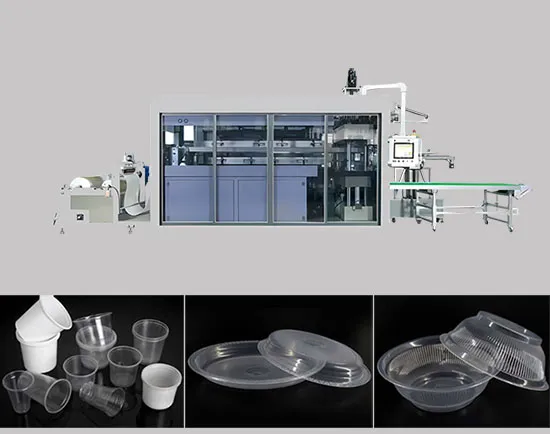

Designed for milk tea cups, coffee cups, water cups, and fast food boxes.
| Pre-sales Service Specialized suggestions for new users in the plastic forming area. |
Shipping Service Arrangement of necessary documents and cooperation with leading shipping companies. |
| Installation Services Technicians can be dispatched to factories for setup and preparation. |
Client Training Hands-on training for operators at our factory or your site. |
| After Sales Service One-year guarantee for all machines and lifetime technical support. |
|
