| Driving power supply | 380V/3phase/50HZ or 380V/3phase/60HZ |

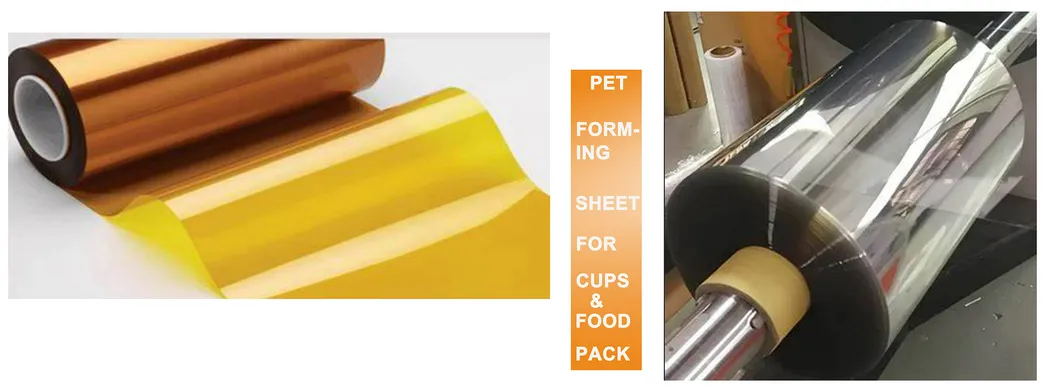

| Suitable for raw material: | PET |
| Speed | 40m/min |
| Compressed air capacity | 2M3 / h, 0.5-0.7Mpa |
| Cooling water recycling | 8M3 / h; 20ºC |

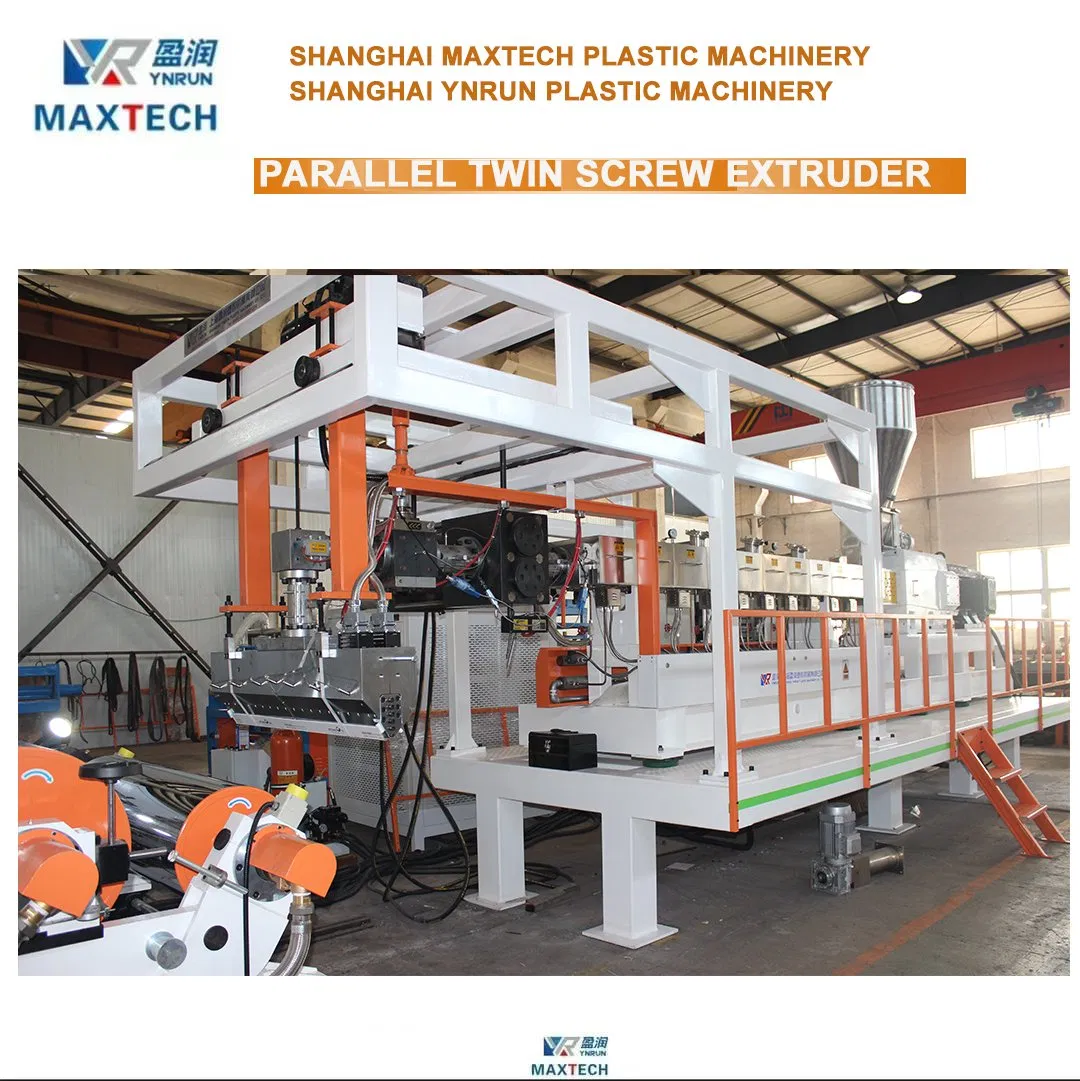

| Parallel twin screw extruder model | YR 55/ YR65/ YR 75/ YR85 / YR95 |
| Capacity | more than 1000kg/h |
| Loading system | Raw materials system/ Spiral feeder/ masterbatch feeder |

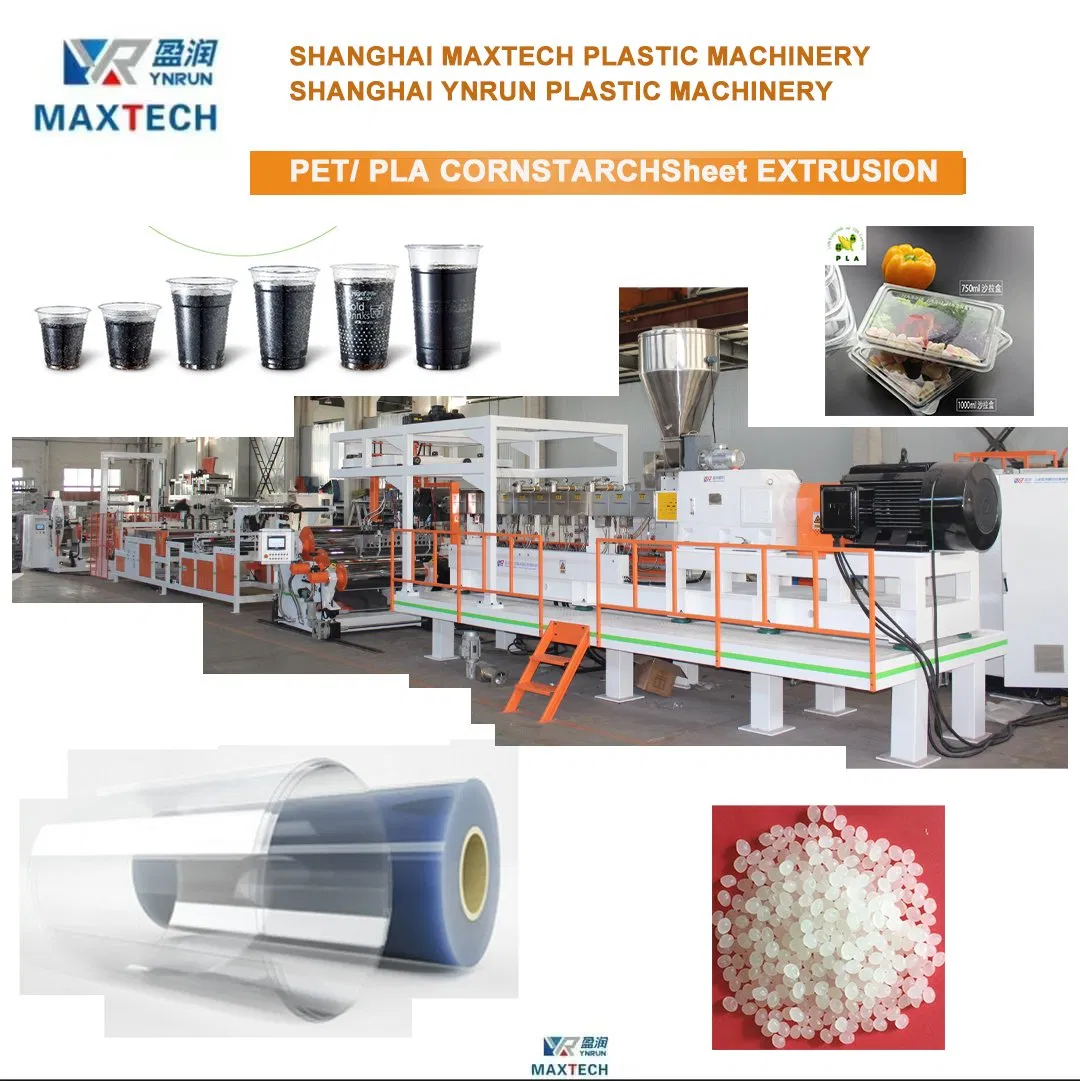

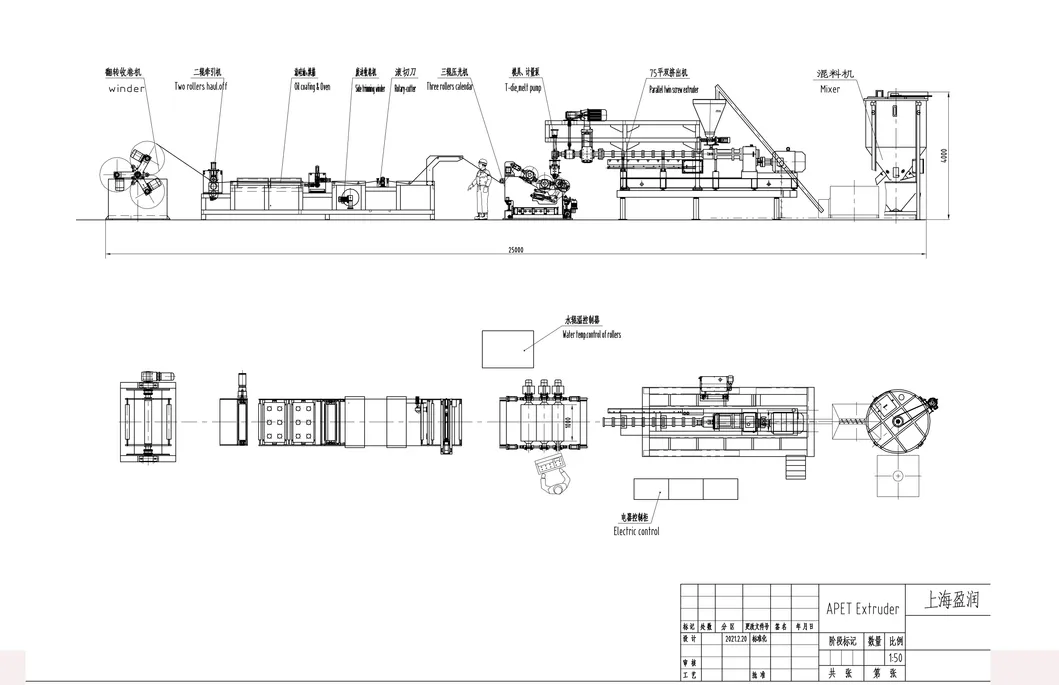

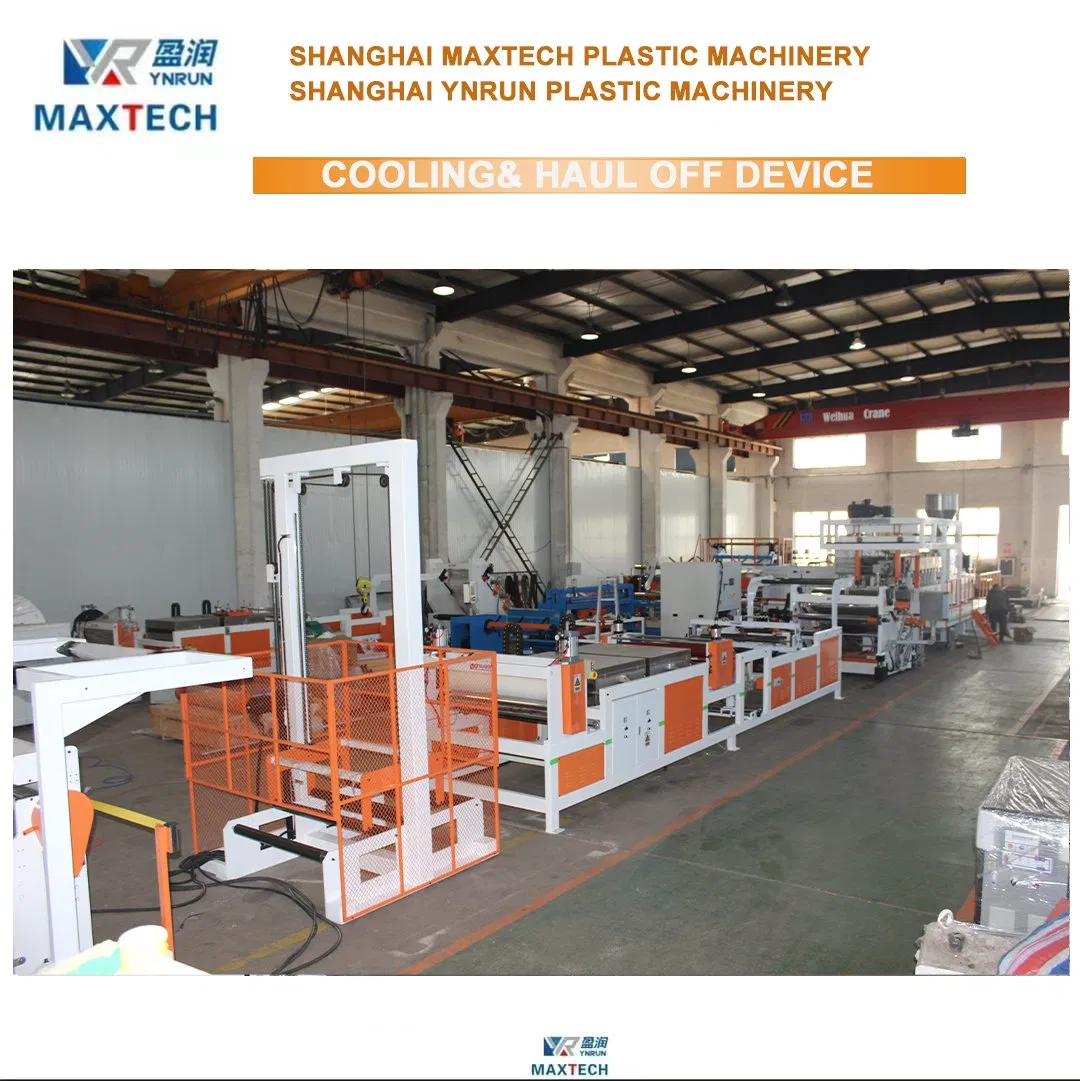

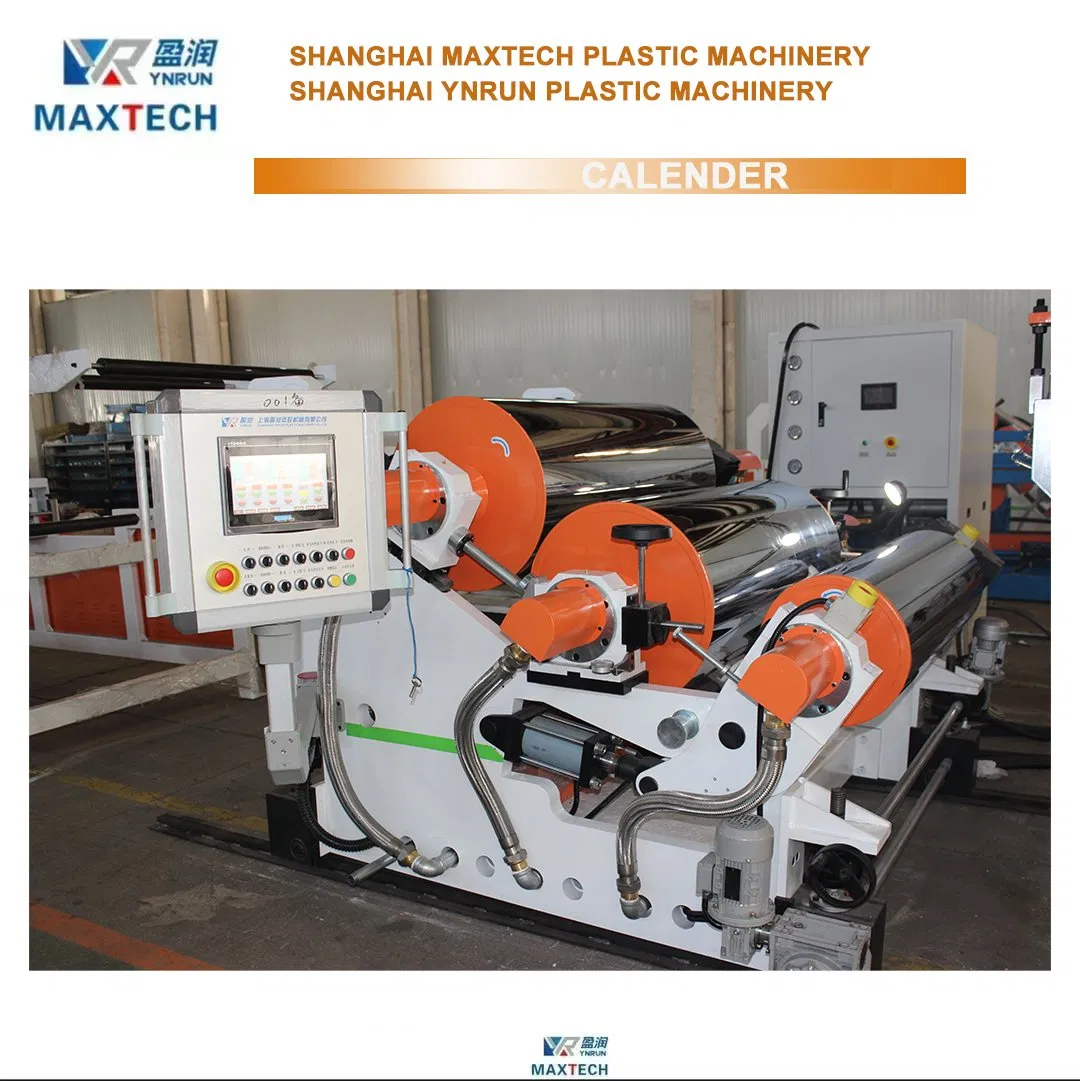

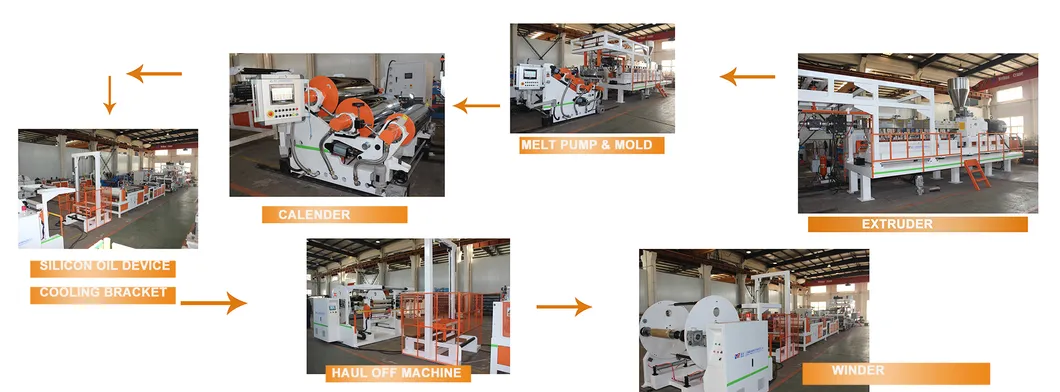

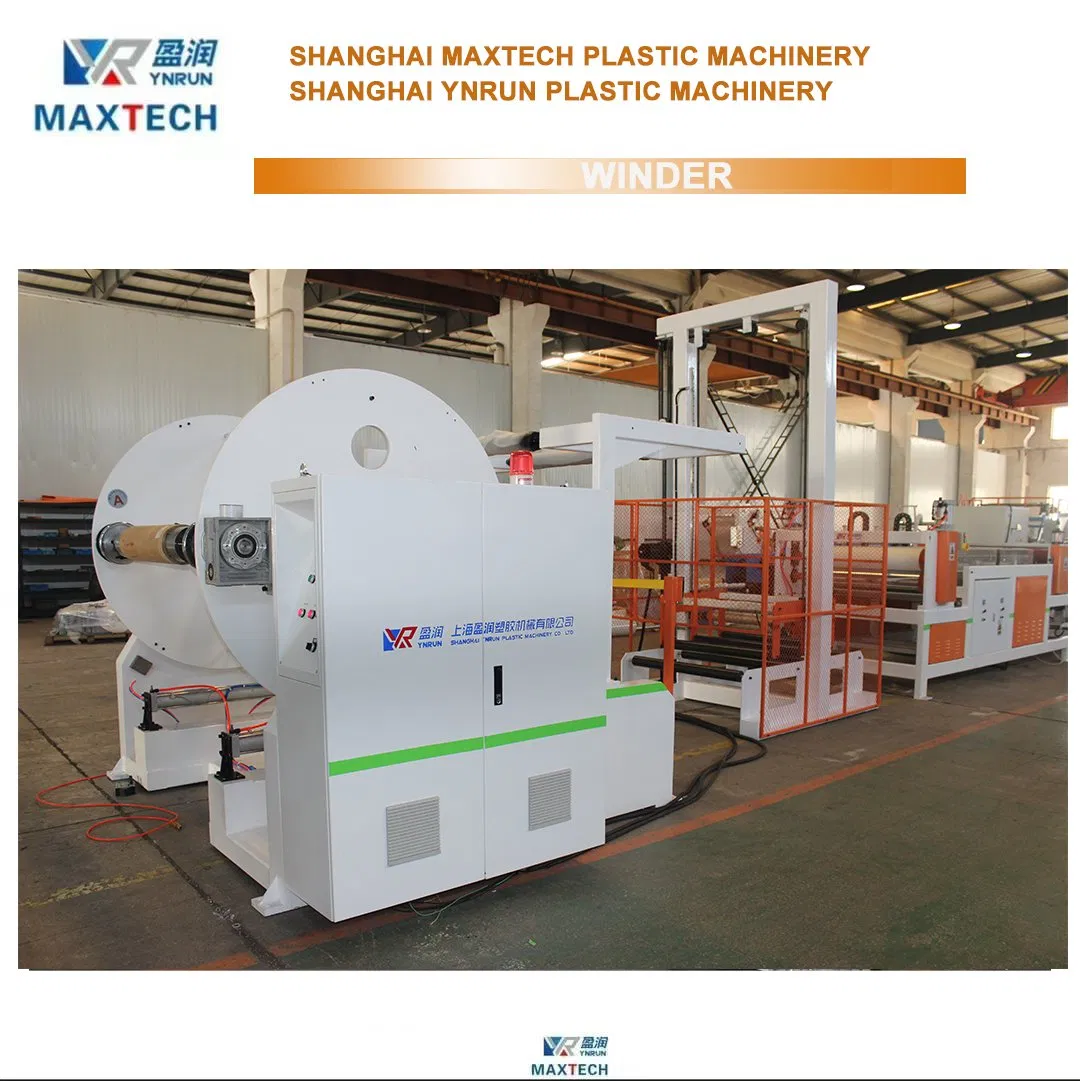

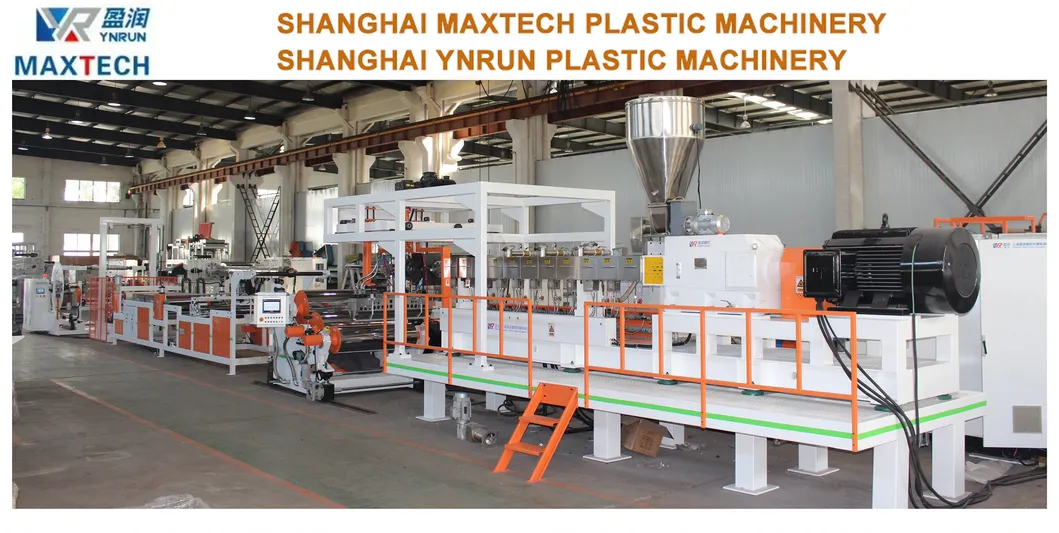

| Parallel twin screw extruder--Column screen changer--Melt pump--Mold (JC TIMES)--L type Three roller calender Three roller temperature controller(water)--Cooling bracket--Waste longitudinal trimming winder--Side trimming blade Two side silicone oil coating/ dryer device--Haul off machine--Winder | |
MONOLAYER, CO-EXTRUDER UP TO 7 LAYERS AND MORE

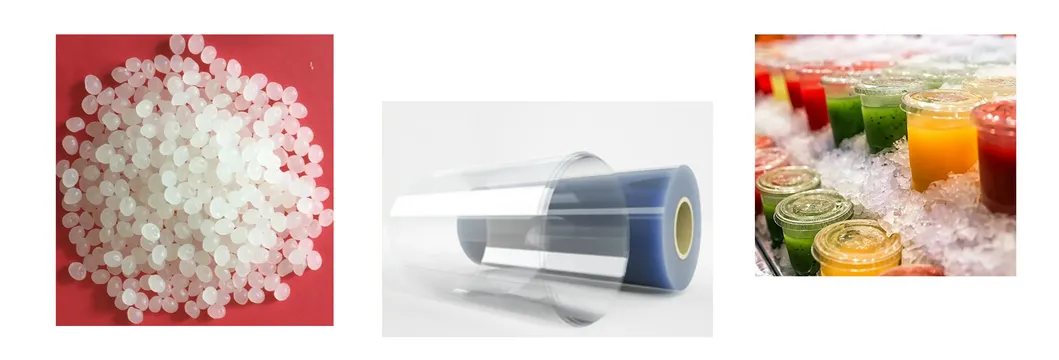

The fields of application of thermoformed plastics are practically infinite: from food packaging to the automotive industry, from packaging to gifts and fancy goods. By combining different materials, it is possible to obtain characteristics never achieved before, opening new frontiers for traditional materials.
The abilities and overall qualities of thermoplastics make them irreplaceable in applications requiring high hygienic standards. ABS, HIPS, GPPS, PET, ABS/PMMA, ABS/PC, SAN, PP, HDPE properties have increased considerably the applications for plastic materials.
