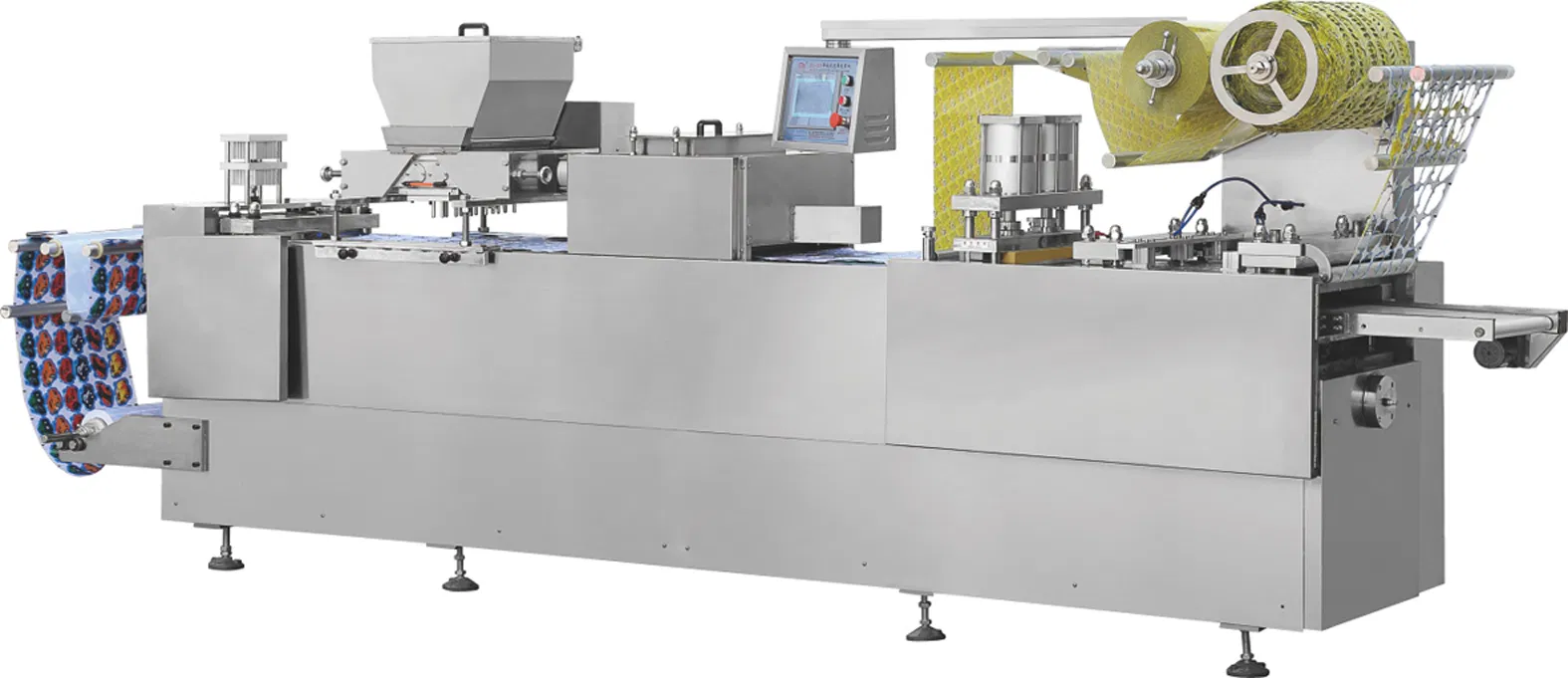

Plastic Thermoforming Blister Machine Semi Automatic Mini Candy Blister Packaging Sealing Machine

1 / 5

Plastic Thermoforming Blister Machine Semi Automatic Mini Candy Blister Packaging Sealing Machine

Customization:	Available
After-sales Service:	12 Month
Warranty:	12 Month

Send Inquiry

Product Description

📊 Basic Information

Model NO.

BC-320/420/550

Certification

Power Source

Electric

Process

Thermal Processing

Automatic Grade

Automatic

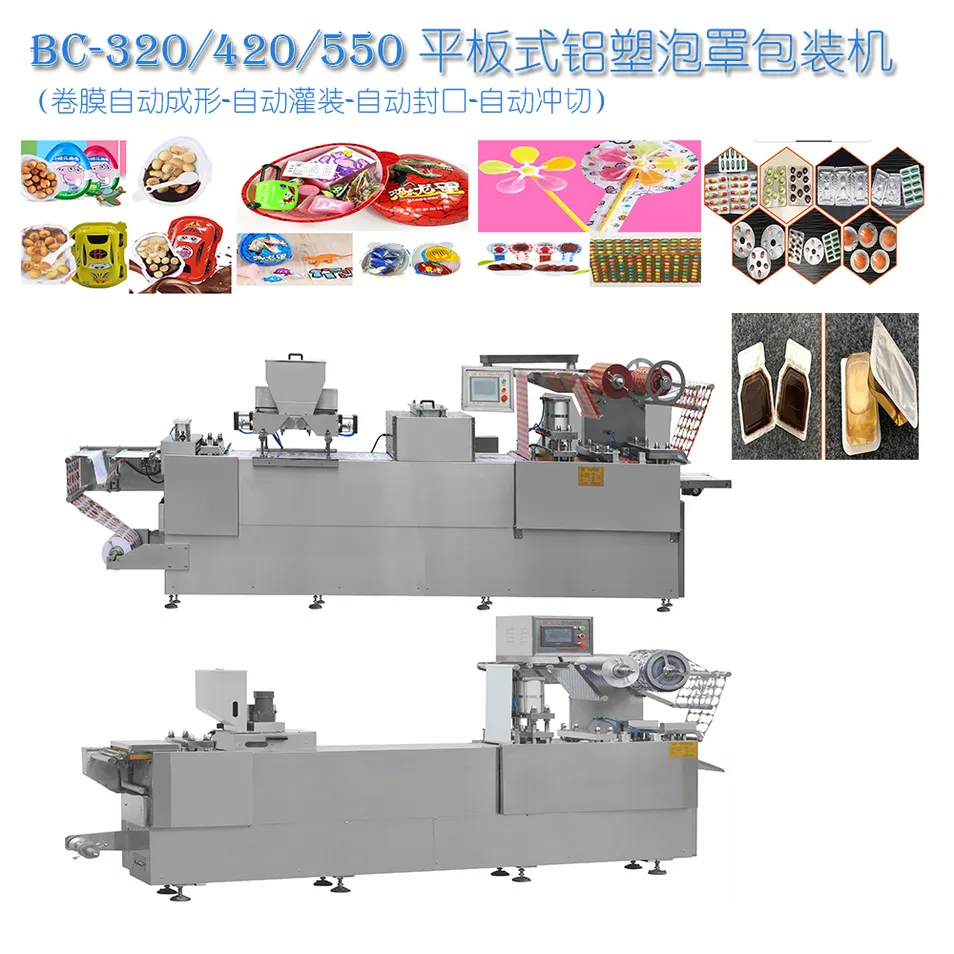

Application

Candy, Chocolate, Biscuit

Customized

Available

Operation

Simple

Capacity

3600-12000 PCS/H

HS Code

8438

🛠️ Product Description

PVC Alu Thermoforming Machine Small Automatic Plastic Blister Card Packing Machinery

This full automatic aluminum plastic packaging blister packing machine is ideal for packaging food products such as tablets, capsules, children's candies, sugar gums, and more. It is perfectly suited for food factories and health product facilities.

Working Process:

Forming (up and down heating)
Heating Sealing (up heating)
Embossing
Impression
Cutter
Finished product output

The machine adopts a PLC system control with a touch screen panel, stepless frequency conversion speed regulation, and pneumatic joint control. It meets national GMP requirements and can handle blister packaging for aluminum-plastic, aluminum-aluminum, and paper-plastic materials.

💡 Key Features & Applications

1. Newest type high-power transmission mechanism for noise-free chain drive.
2. Imported control system with optional rejection function for medicine counts.
3. Photoelectrical control system for automatic feeding of PVC and PTP materials.
4. Suitable for foodstuff, medicine, hardware, and electronics industries.

🎬 Operation Showcase

📋 Technical Specifications

Model	BC-320	BC-420	BC-550
Cutting Frequency (time/min)	16-20	16-20	16-20
Capacity	6000-8000pcs/h	10000-12000pcs/h	12000-15000pcs/h
Feed Distance Range (mm)	40-160	40-160	40-160
Forming Area & Depth (Max)	32016024mm	42016024mm	42016024mm
Power Supply	8.5kw	10kw	12kw
Gross Weight (kg)	1500kg	1800kg	2000kg

📐 Elevation Views

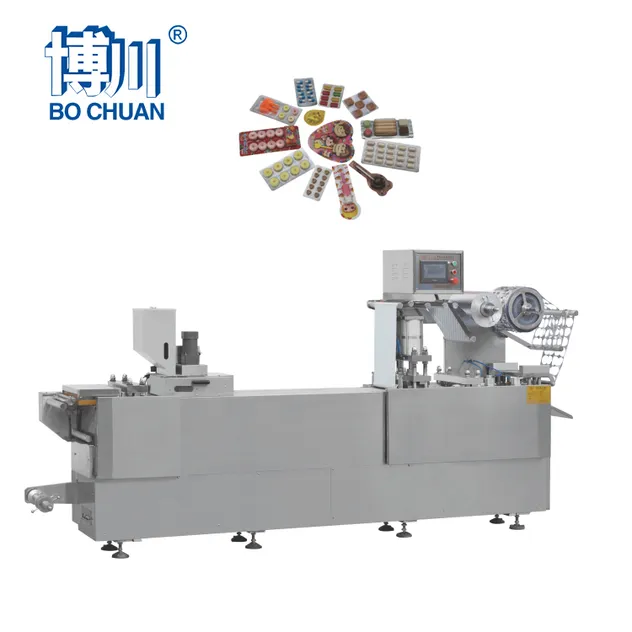

Right Elevation

Left Elevation

Front Elevation

🤝 After Sales Service

Standard Warranty

12 months or 2,000 operating hours.

Extended Warranty

Optional coverage up to 36 months.

Global Support

24/7 technical assistance and parts supply.

Training

On-site or remote operation training.

🏭 Production Capabilities

We specialize in manufacturing candy production lines and food packaging machines. Our equipment is exported to more than 20 countries. We offer customized capabilities to adjust machine specifications according to customer requirements.

❓ Frequently Asked Questions

What's the lead time for orders?

Standard models typically ship in 15–30 days, while customized units require 30–45 days depending on the specifications.

Can I request a customized size or mold?

Absolutely! We offer tailored attachments and molds specifically designed for your unique product shapes and sizes.

What documents do you provide for export?

We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and COC (Certificate of Conformity).

How is the machine installed?

We provide comprehensive installation guidance, remote debugging support, and can arrange on-site training if required.

Does the machine meet international standards?

Yes, our machines are CE certified and designed to meet national GMP requirements for food and pharmaceutical packaging.

How do I place an order?

Please contact us via our official communication channels for a formal quote. Once details are confirmed, you can issue a Purchase Order (PO).
