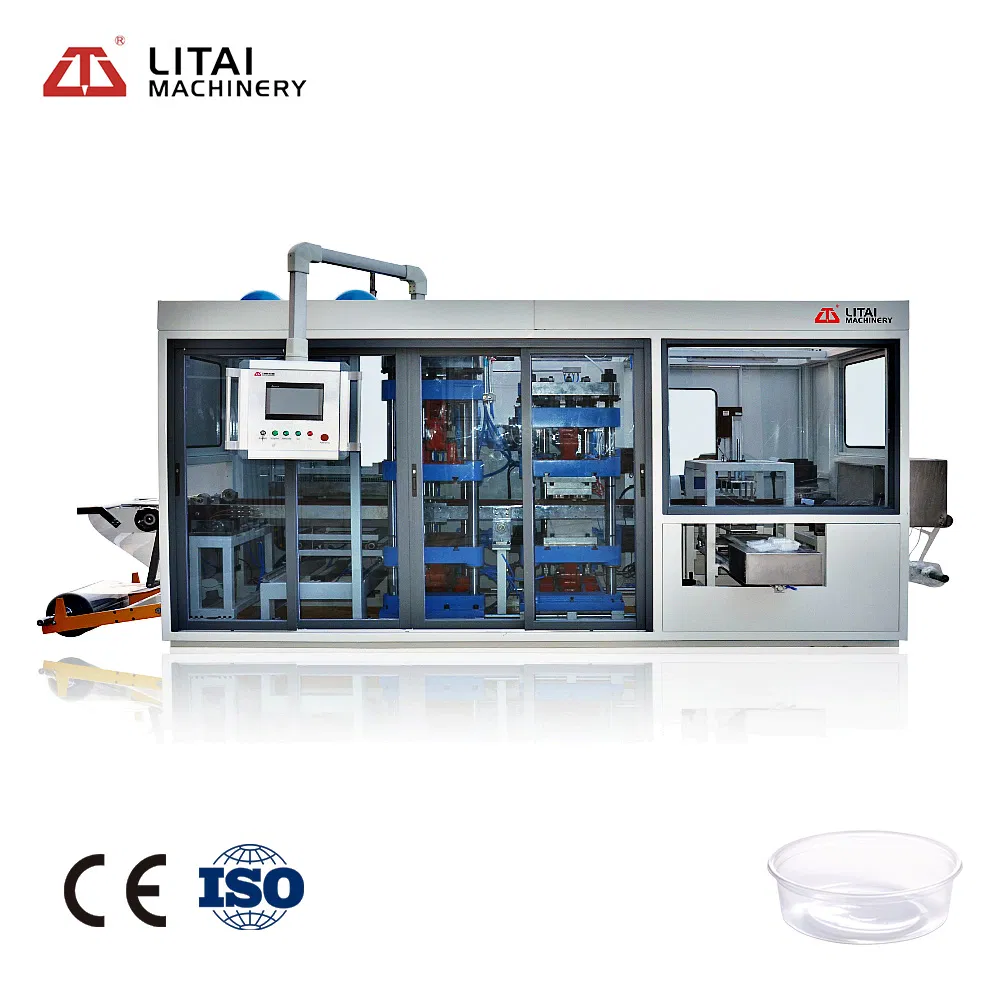

Export Trade Small Plastic Food Packaging Trays Semi Automatic Thermoforming Machine with CE and ISO Certification
Export Trade Small Plastic Food Packaging Trays Semi Automatic Thermoforming Machine with CE and ISO Certification
Export Trade Small Plastic Food Packaging Trays Semi Automatic Thermoforming Machine with CE and ISO Certification
Export Trade Small Plastic Food Packaging Trays Semi Automatic Thermoforming Machine with CE and ISO Certification
Export Trade Small Plastic Food Packaging Trays Semi Automatic Thermoforming Machine with CE and ISO Certification
1 / 5
Export Trade Small Plastic Food Packaging Trays Semi Automatic Thermoforming Machine with CE and ISO Certification
Export Trade Small Plastic Food Packaging Trays Semi Automatic Thermoforming Machine with CE and ISO Certification
Export Trade Small Plastic Food Packaging Trays Semi Automatic Thermoforming Machine with CE and ISO Certification
Export Trade Small Plastic Food Packaging Trays Semi Automatic Thermoforming Machine with CE and ISO Certification
Export Trade Small Plastic Food Packaging Trays Semi Automatic Thermoforming Machine with CE and ISO Certification

Export Trade Small Plastic Food Packaging Trays Semi Automatic Thermoforming Machine with CE and ISO Certification

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Info
Thermoforming Machine
Model NO.
TTF-520A
Certification
CE, ISO
Column number
Four Column
Molding Method
Pultrusion
Automatic Grade
Automatic
Maximum Forming Area
520mm*400mm
Product Name
Fully Automatic Plastic Thermoforming Machine
Suitable Sheet
PP/PS/Pet/PVC/HIPS/Corn Starch
Procedure
Forming-Cutting-Stacking
Plug
Servo Motor
Applicable Sheet
PP, HIPS, PS, Pet, PVC, etc.
PLC
Touch Screen Control
Specification
L9700xW4600xH2700mm
HS Code
8477409000
Technical Parameters
Model TTF-700AF TTF-700A TTF-520AF TTF-520A
StationFour stationsThree stationFour stationsThree station
Forming Area700mm x 550 mm520mm x 400 mm
Forming Depth (Max.)120mm110mm
Sheet Thickness0.2-2.0mm
Forming Speed (Max.)35 times/min30 times/min
Air Pressure0.6-0.8mpa
Suitable SheetPP, PS, HIPS, PET, PVC, PLA etc.
Power SupplyAC 380V, 50Hz, Three-phase, Four-wire
Main Electrical Components
Parts Brand / Origin
FilterCKD (Japan)
Forming ValveNORGREN (UK)
Touch ScreenDELTA / KUNLUN TONGTAI
Proximity SwitchROCKWELL (USA)
Temperature ModuleWEST (UK)
AC Contactor/BreakerSCHNEIDER (France)
Intermediate RelayIDEC (Japan) / OMRON (Japan)
PLC / Servo MotorDELTA (Taiwan)
Product Display & Application

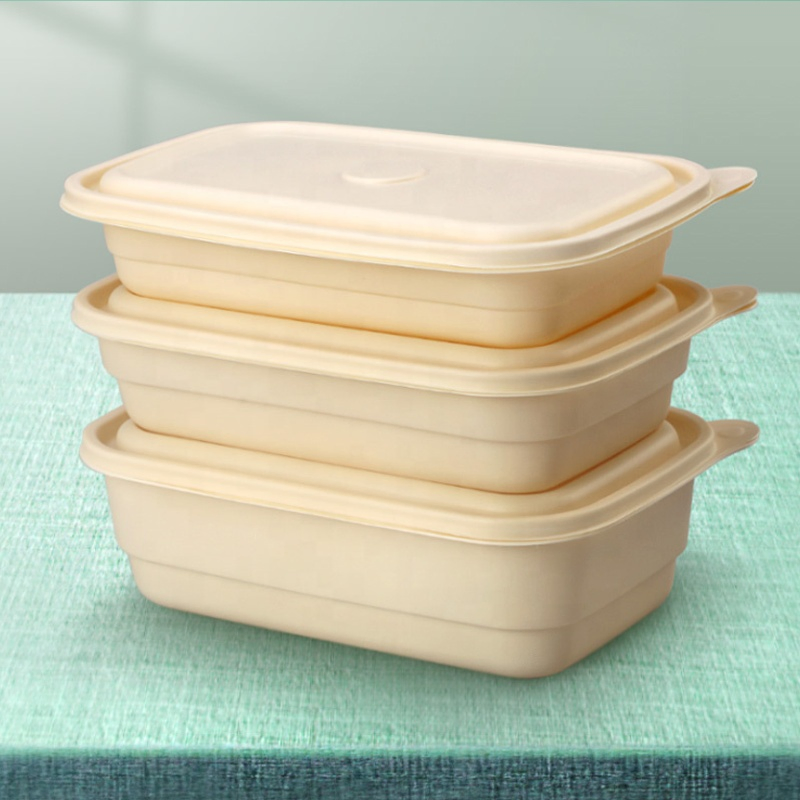

Application: TTF series full-automatic thermoforming machine combines forming, punching, cutting, and stacking into one process. It is widely used for producing plastic trays, containers, boxes, lids, etc. The machine is fully driven by servo motors ensuring stable operation, low noise, and high efficiency.

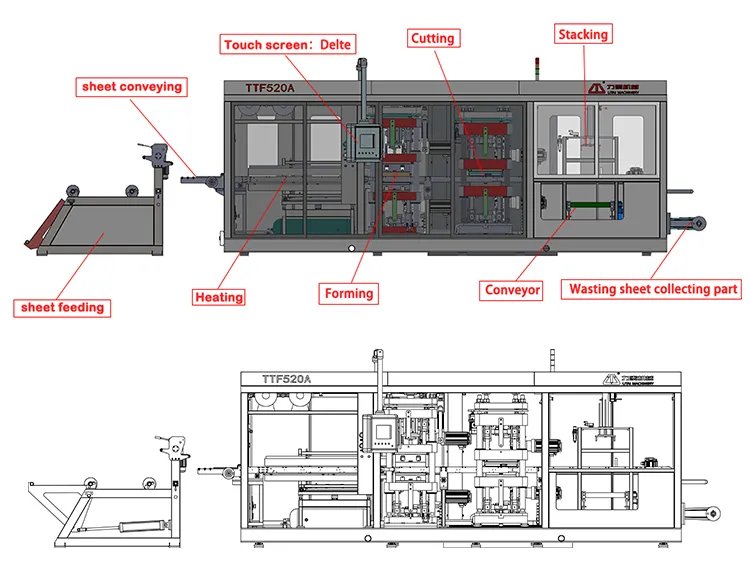

Application 1

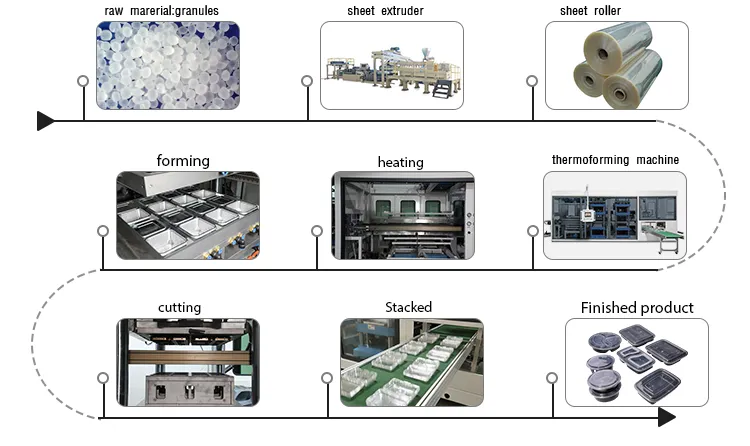

Application 2
Main Functions:
  • ✔ Positive and negative pressure forming device.
  • ✔ Vacuum forming device.
  • ✔ Touch screen computer temperature module point to point control.

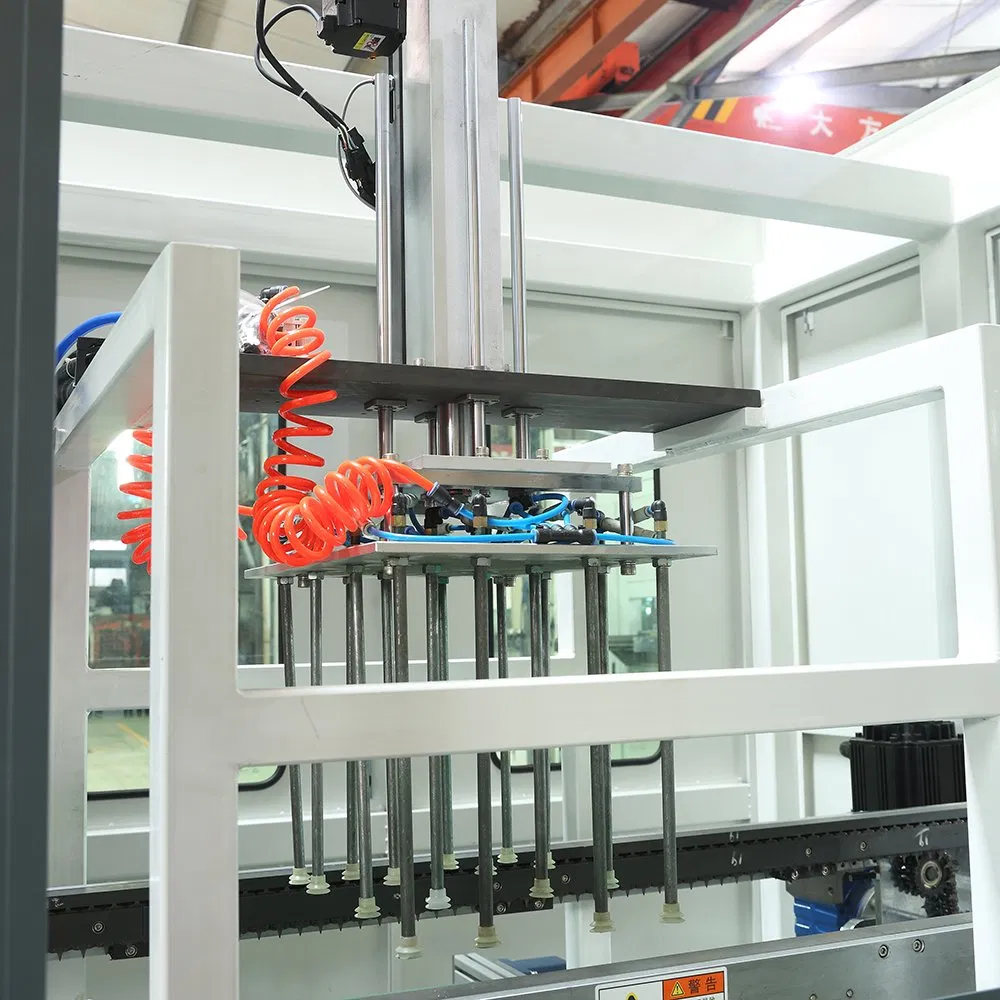

  • ✔ Automatic punching, cutting and stack counting function.
  • ✔ Edge automatic rewinding and safety protection devices.

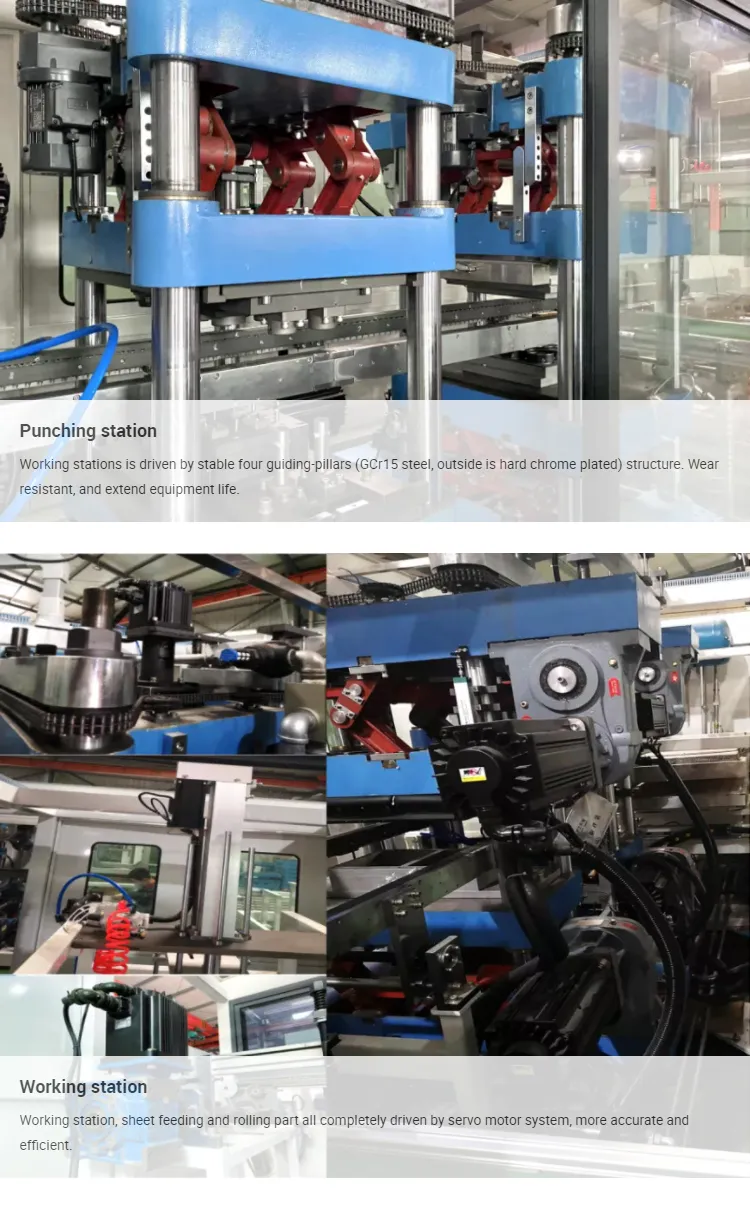

Process Display 1

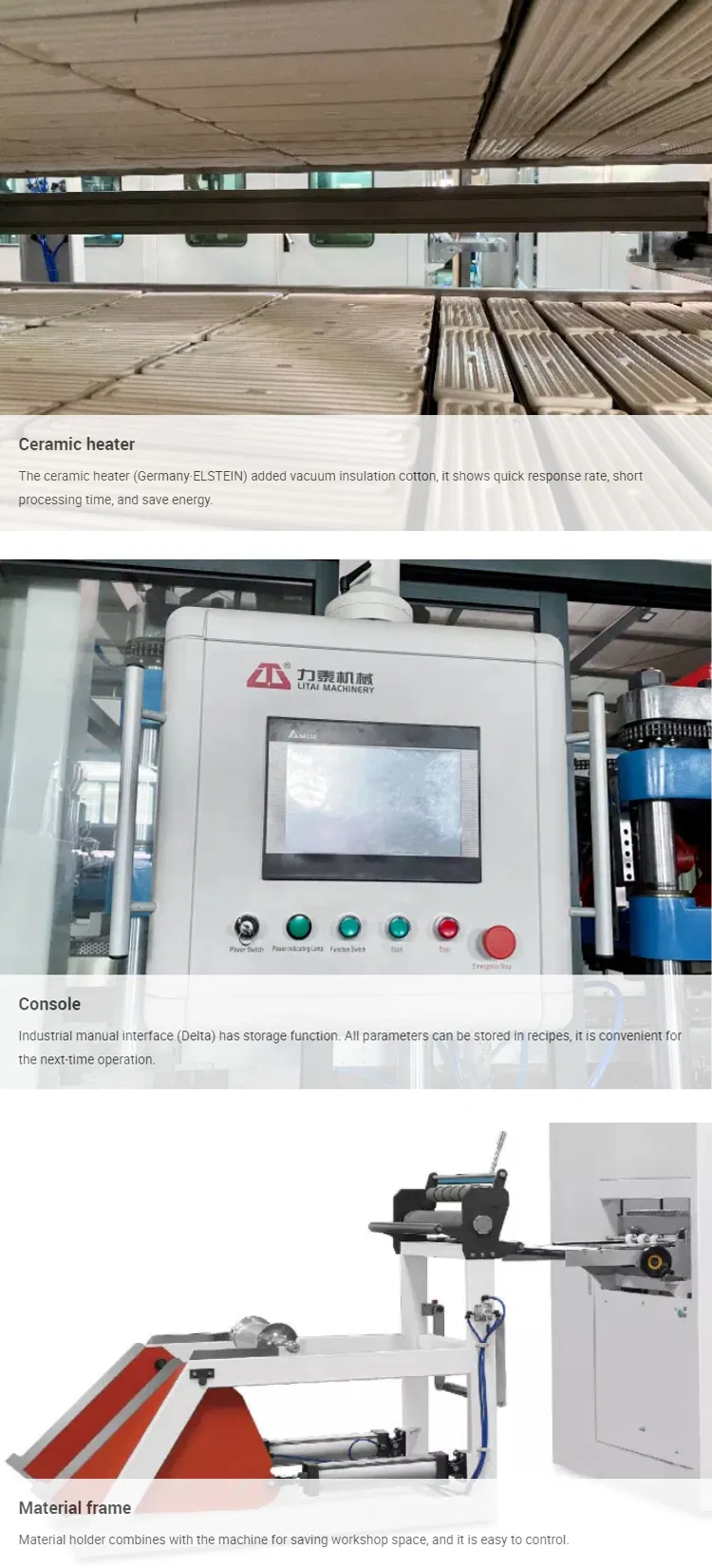

Process Display 2
Process Display 3
Summary of Features & Advantages

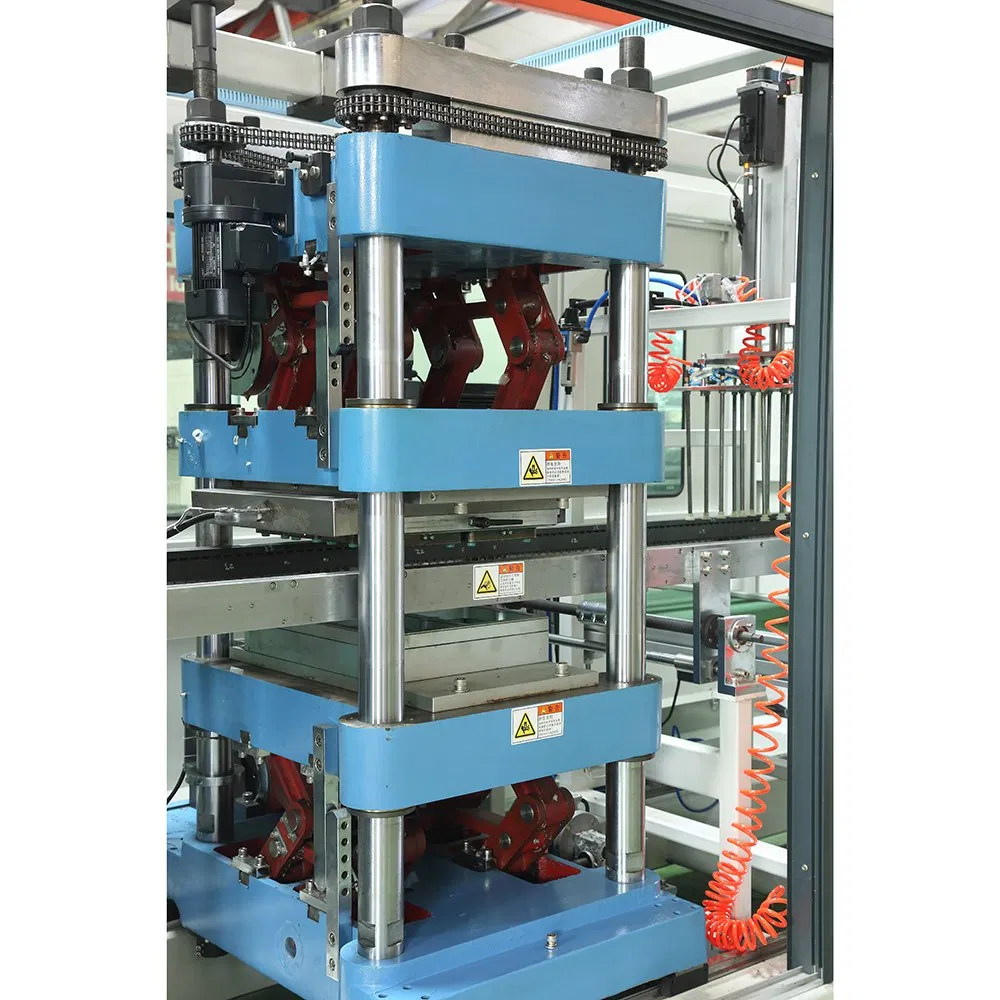

01 Station driven by eccentric crank linkage structure.

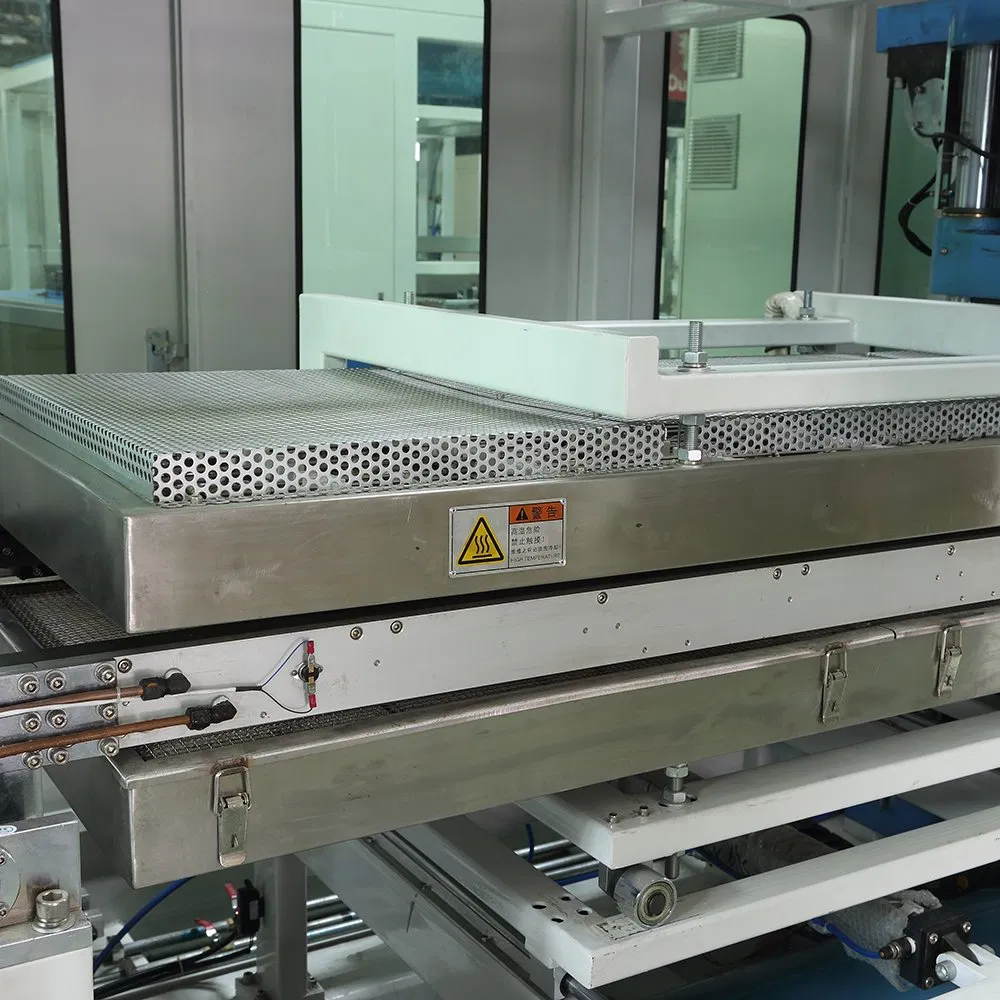

02 Feeding/heating part with optoelectronic safety switches.
03 PID temperature system with tolerance <1ºC.
04 Rapid mould change device for extreme efficiency.
05 Fully servo driven - no noise, no vibration.
06 Compact structure taking small floor space.
07 Labor saving: only 1-2 workers required for packing.
08 Automatic removal device for furnace safety.
Certificate & Exhibition
Certificate
Exhibition
Transport Packaging
Transport Packaging
Frequently Asked Questions
Are you a factory or trading company?
We are a factory and have been exporting our machines to more than 80 countries since 2001.
How long is the warranty period?
The warranty is 13 months calculated from the date of shipment from our factory. During this period, spare parts are free for maintenance (excluding artificial damage).
How do you handle machine installation?
We can send technicians to your factory for installation and worker training. Related costs such as visas, tickets, meals, and salary are covered by the buyer.
What materials are suitable for this thermoforming machine?
The machine is compatible with a wide range of materials including PP, PS, HIPS, PET, PVC, and PLA.
What is the maximum forming speed?
Depending on the specific model and material, the maximum forming speed reaches up to 30-35 times per minute.
Does the machine support automatic stacking?
Yes, the TTF series includes automatic punching, cutting, and stack counting functions to minimize labor costs.
