Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine
Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine
Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine
Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine
Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine
1 / 5
Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine
Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine
Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine
Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine
Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine

Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Information

Model NO.:FSCT680/450 Series
Certification:CE
Column number:Double Column
Molding Method:Thermoforming
Automatic Grade:Full Automatic
Forming Area:680X450mm
Max.Forming Depth:140/140mm
Max.Sheet Width:720mm
Applicable Sheet:PP, HIPS, PS, PET, etc.
Sheet Thickness:0.15-2mm
Overall Power:130kw
Process:Forming-Punching-Cutting-Stacking
P

Product Description

Plastic Packaging Round Lid Clamshell Box Deli Tray Making Machine

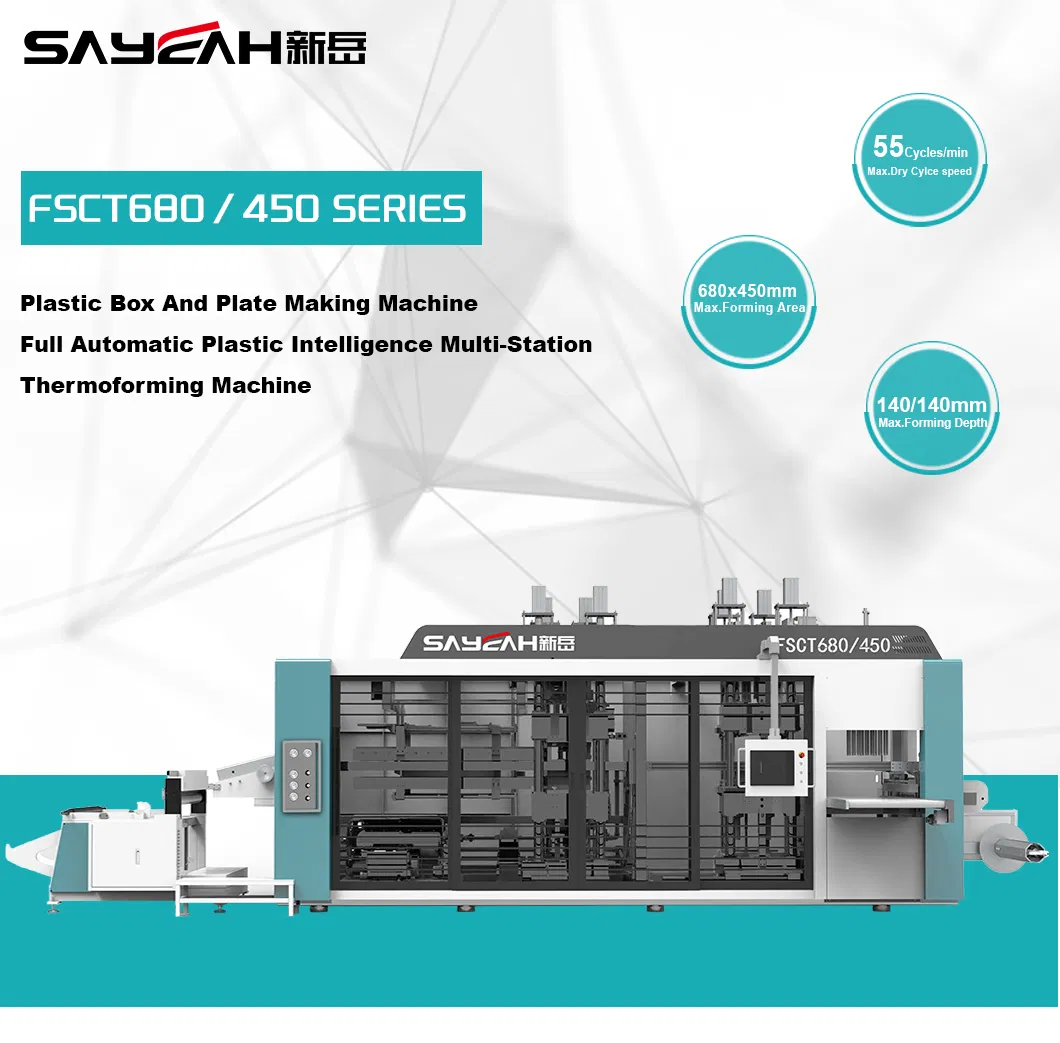

Plastic Packaging Making Machine

The model of FSCT-680/450 thermoforming machine is our latest developed product, combining forming, punching, cutting, and stacking in one continuous process. This machine is specialized for forming PP, PS, HIPS, PVC, PET, OPS, EPS, C-PET, PLA, C-PLA, ABS, or other material sheets. It is widely used to produce all kinds of food and non-food packaging products like plastic trays, containers, boxes, lids, and more.

F

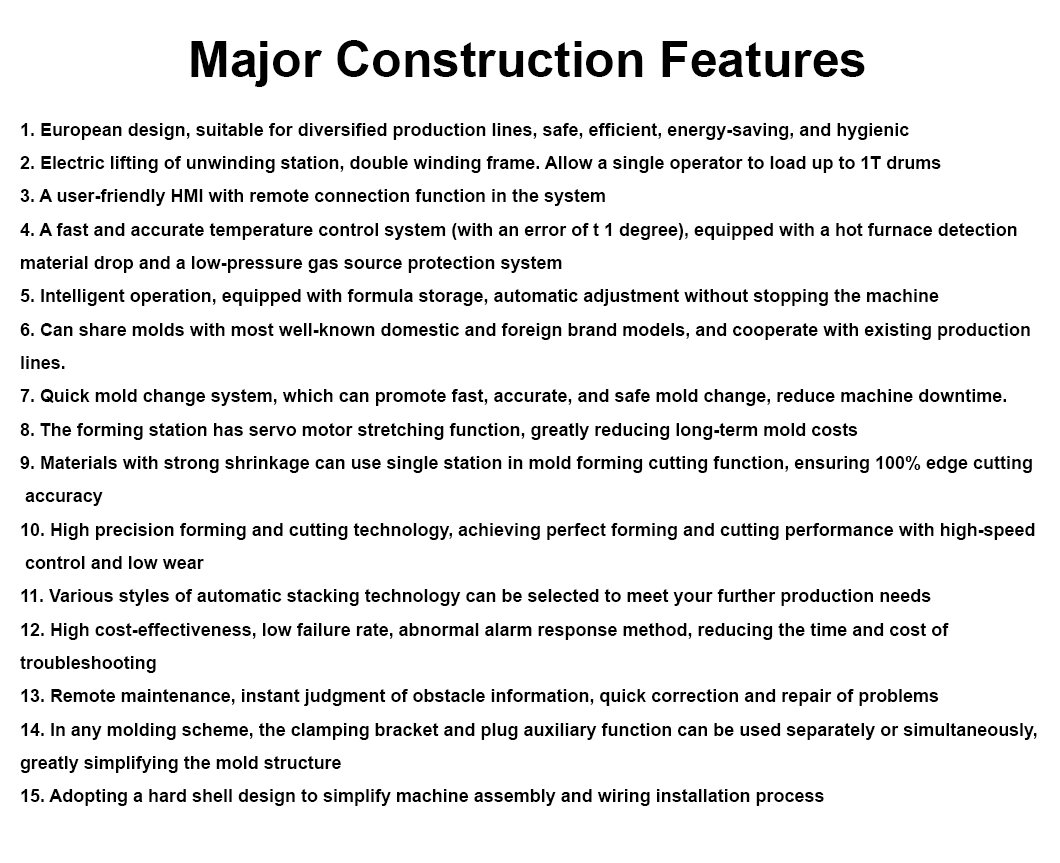

Key Features

  • European design, suitable for diversified production lines, safe, efficient, and energy-saving.
  • Unwinding station electric lifting with double roll holder, allowing single operator loading up to 1T.
  • Operator-friendly HMI with remote connection functionality.
  • Fast and accurate temperature control system (error ± 1 degree) with safety protection systems.
  • Intelligent operation with formula storage and automatic adjustment without shutdown.
  • Compatible with molds from most well-known global brands.
  • Fast mold change system to reduce machine downtime and ensure safety.
S

Product Parameters

Model Parameter FSCT680/450-3 FSCT680/450-4
Qty of Stations34
Max. Forming Area680x450mm680x450mm
Max. Forming Depth140/140mm140/140mm
Max. Sheet Width720mm720mm
Max. Sheet Roll Dia1100mm, 1T1100mm, 1T
Sheet Thickness Range0.15-2mm0.15-2mm
Max. Dry Cycle Speed55 Cycles/min55 Cycles/min
Overall Power120kw130kw
Machine Weight13T17T

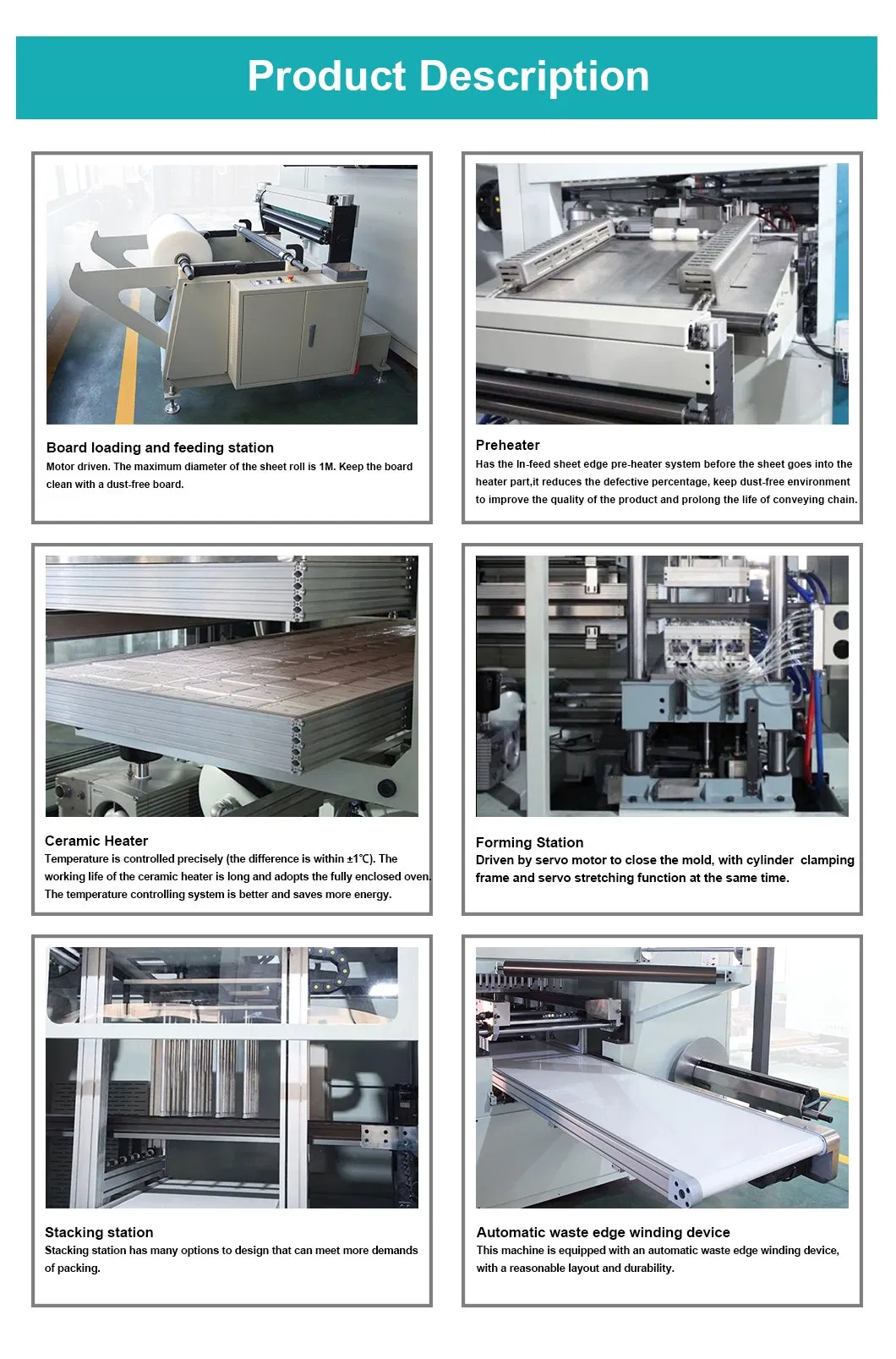

Machine Technical Drawing
E

Main Electrical Components

Industrial control systemDELTA TAIWAN / Inovance
PLCDELTA TAIWAN / Inovance
Touch screen interfaceDELTA TAIWAN / Inovance
Servo-motors and drivesDELTA TAIWAN / Inovance
Vacuum pumpRUFUS
Infrared ceramic heaterTianbao (3 years Warranty)
Pneumatic componentsMAC (USA) / SMC (Japan)

* Lenze system available upon customer requirement.

A

Our Advantages & Certifications

Advantage 1 Advantage 2 Advantage 3
Certification 1 Certification 2
R

Related Products

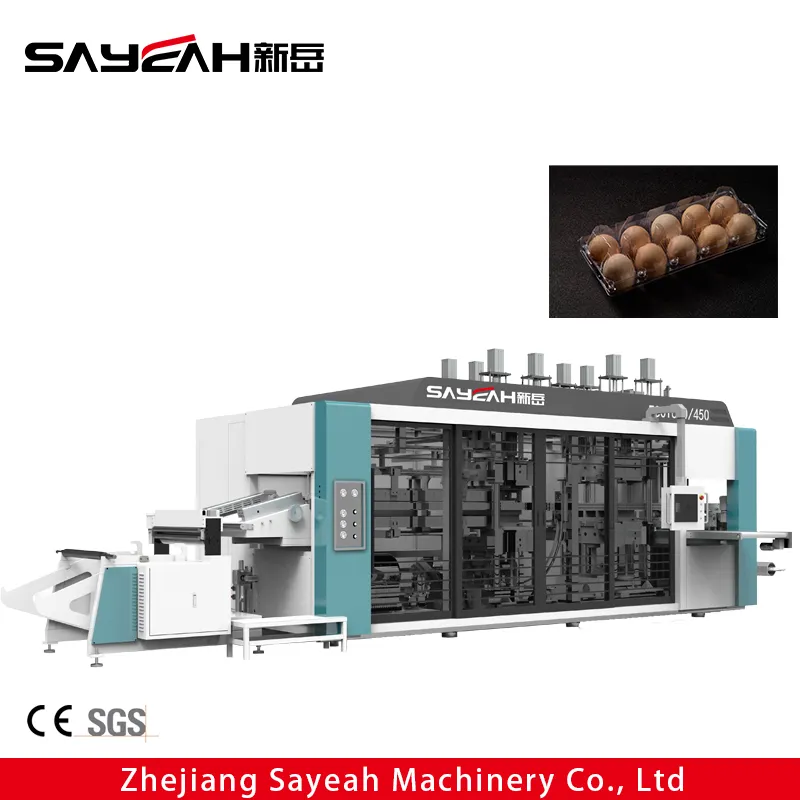

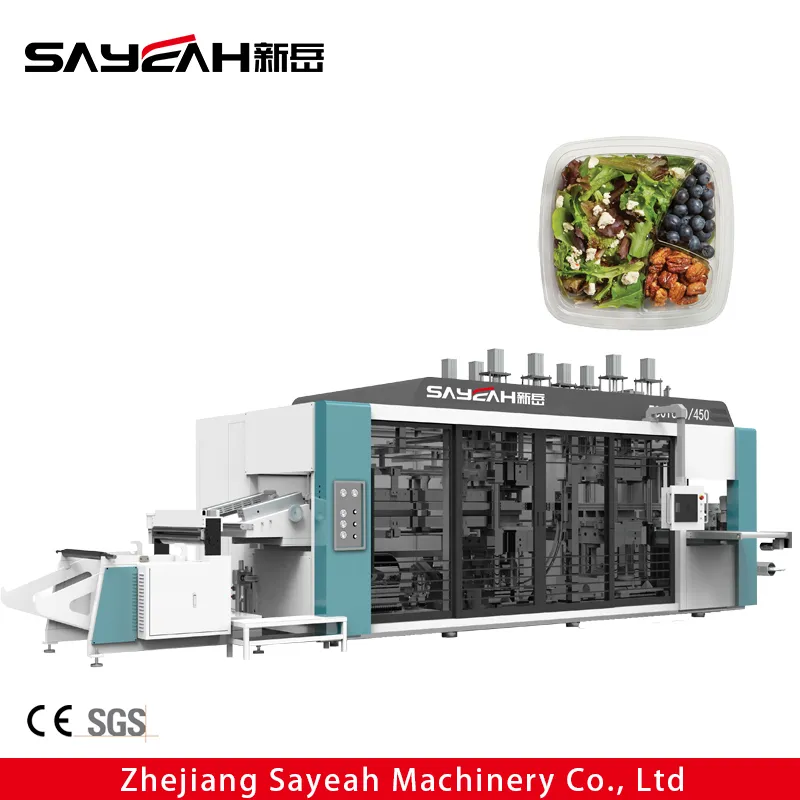

Sample Product 1 Sample Product 2
Q

Frequently Asked Questions

Q1: Are you a factory or trading company? A1: We are a professional factory, and we export our machines to more than 80 countries worldwide.
Q2: How long is the warranty period? A2: 12 months from the date of shipment. During the warranty period, spare parts are free for maintenance (excluding artificial damage).
Q3: Which materials can this machine process? A3: It is designed for PP, PS, HIPS, PVC, PET, OPS, EPS, C-PET, PLA, C-PLA, and ABS sheets.

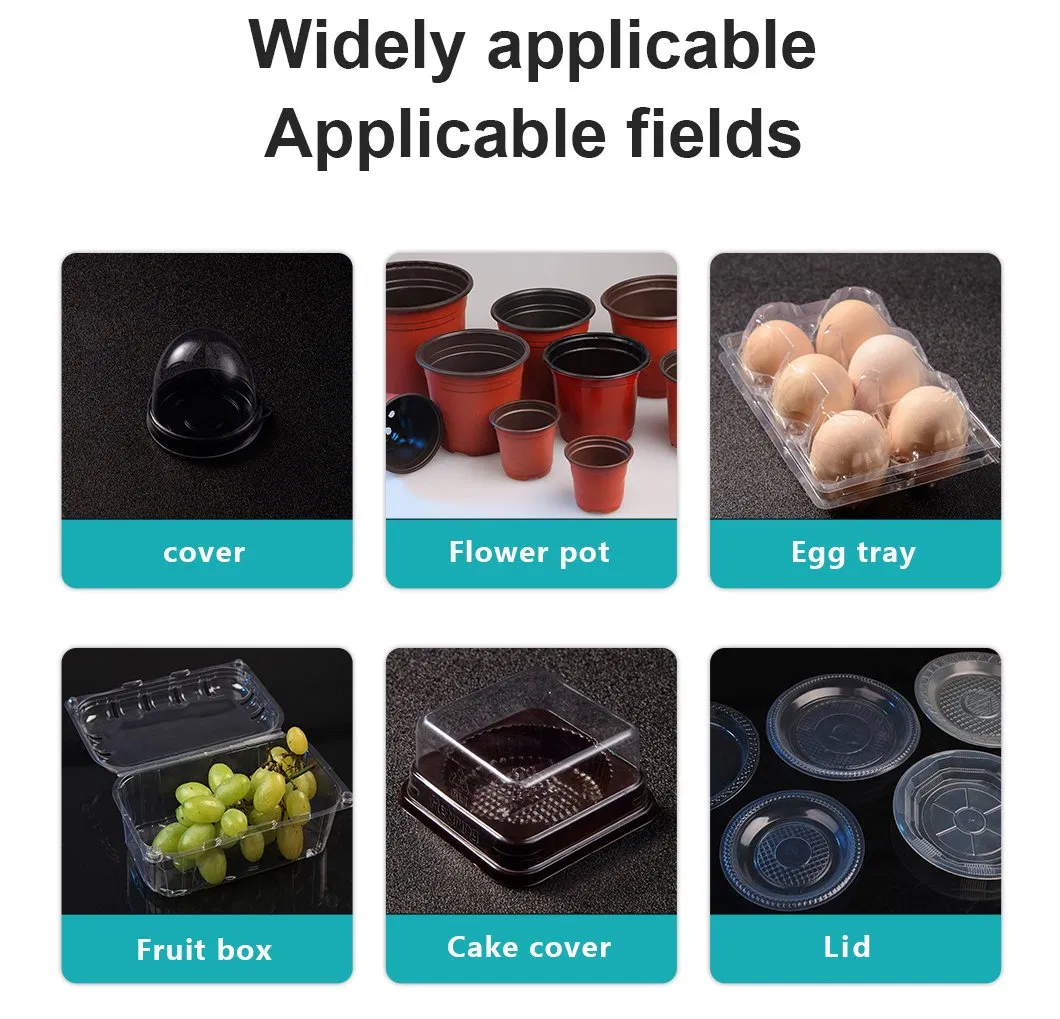

Q4: What kind of products can be made with this machine? A4: It can produce a wide range of plastic packaging including lids, clamshell boxes, deli trays, food containers, and more.
Q5: Can the machine be customized with specific control systems? A5: Yes, while we standardly use Delta or Inovance, we can integrate the Lenze system based on your specific requirements.
Q6: What is the production capacity of your factory? A6: Our current production capacity is approximately 10 full sets of thermoforming machines per month.
