Plastic Thermoforming PE Bottle Filling and Sealing Machine
Plastic Thermoforming PE Bottle Filling and Sealing Machine
Plastic Thermoforming PE Bottle Filling and Sealing Machine
Plastic Thermoforming PE Bottle Filling and Sealing Machine
Plastic Thermoforming PE Bottle Filling and Sealing Machine
1 / 5
Plastic Thermoforming PE Bottle Filling and Sealing Machine
Plastic Thermoforming PE Bottle Filling and Sealing Machine
Plastic Thermoforming PE Bottle Filling and Sealing Machine
Plastic Thermoforming PE Bottle Filling and Sealing Machine
Plastic Thermoforming PE Bottle Filling and Sealing Machine

Plastic Thermoforming PE Bottle Filling and Sealing Machine

Customization: Available
After-sales Service: Support
Warranty: 12 Months
Send Inquiry

Product Description

📋

Basic Specifications

ModelKM SeriesTypeVolumetric Filling Machine
Automatic GradeAutomaticMaterial TypeLiquid
Filling Valve HeadMulti-HeadStructureRotary
Capacity1000-30000bphMaterialSUS 304 Stainless Steel
ApplicationBottled Drinking WaterContainerPET Plastic Bottle
Voltage3 Phase / 380VHS Code8422
💧

Full Automatic Pure Mineral Water Filling Solution

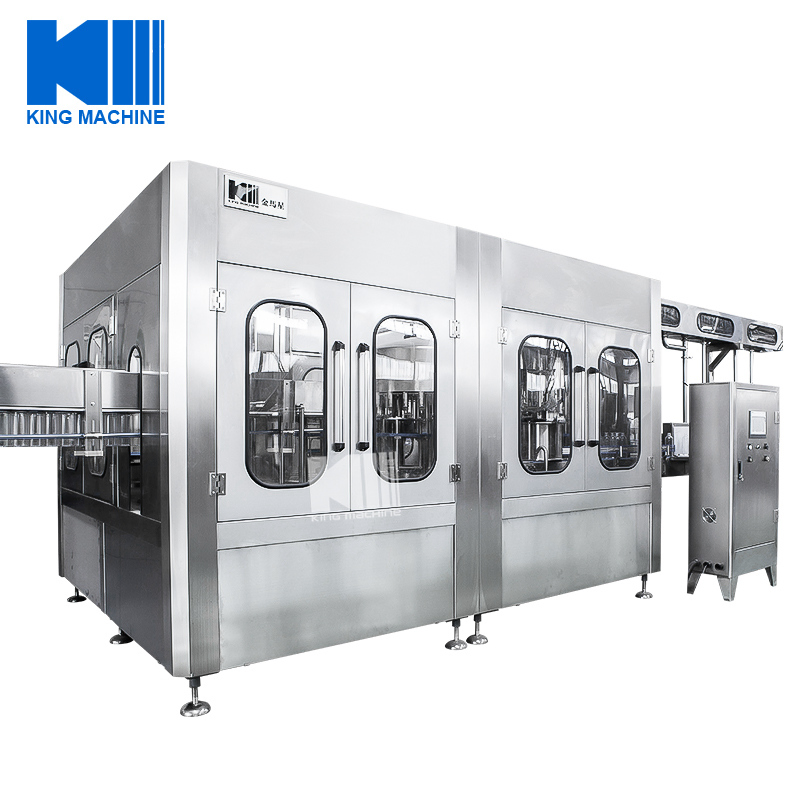

Water Bottle Filling Machine

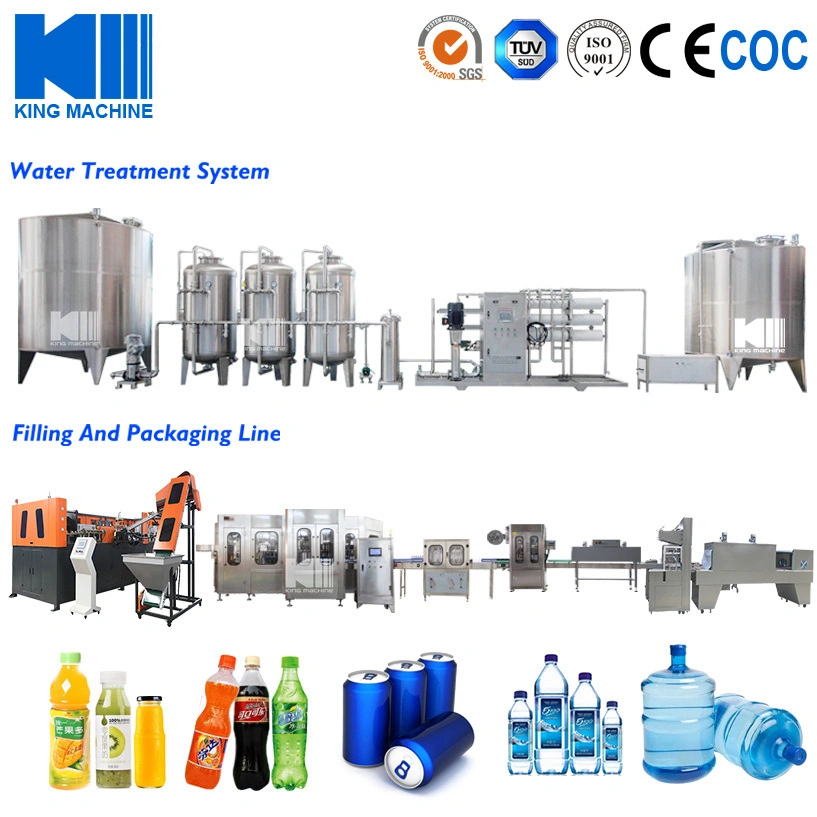

This integrated solution for water filling plants includes water treatment, washing, filling, capping, coding, labeling, and automatic packing systems. The 3-in-1 unit (Wash-fill-cap) is designed for non-gas beverages such as purified and mineral water in polyester bottles. It streamlines the process to reduce contact time, ensuring high sanitary conditions and economic efficiency.

Technical Parameters
Model CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12
Capacity (500ml)6000-8000 bph8000-12000 bph13000-15000 bph16000-18000 bph
Bottle Diameter50mm - 115mm
Bottle Height160mm - 320mm
Air Pressure0.3 - 0.7 MPa
Washing MediumAseptic Water
📸

Detailed Components

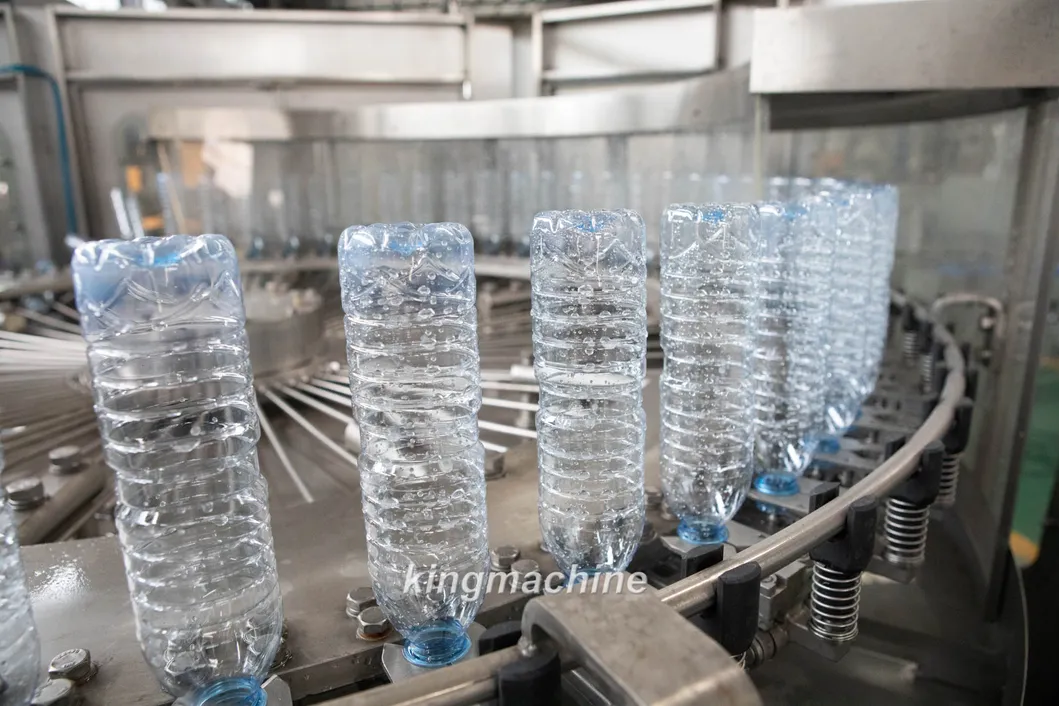

Washing Heads
Washing System

SUS304 stainless steel rotary disk with efficient spray nozzles for thorough internal rinsing.

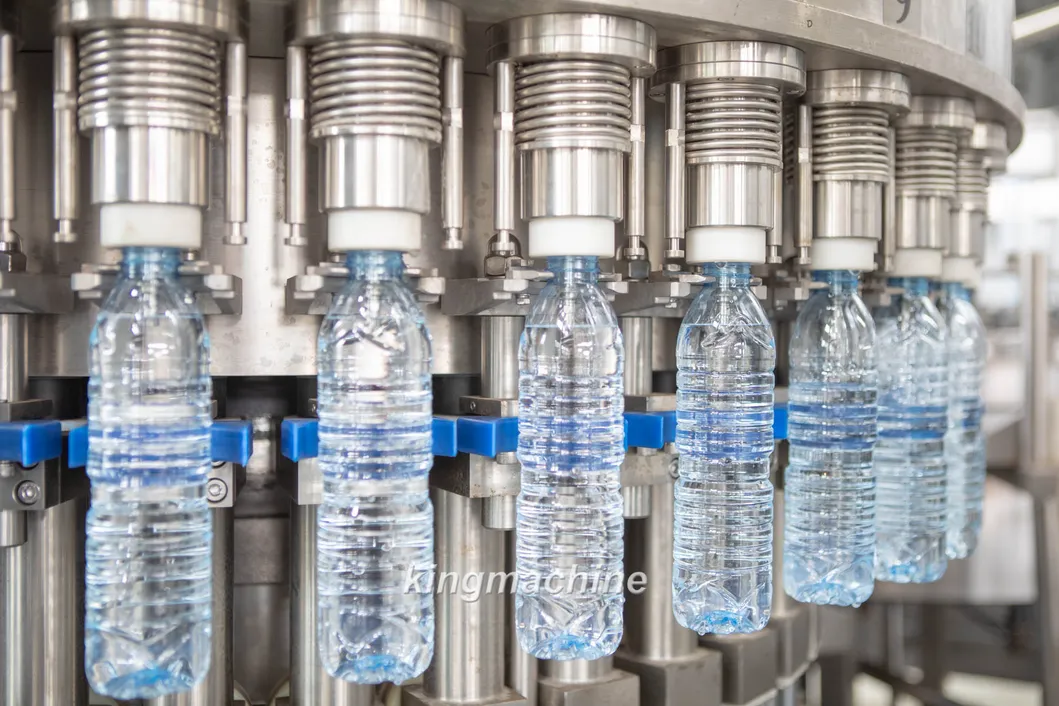

Filling Heads
Filling System

Gravity filling method using high-precision SUS304 valves for accurate volume control.

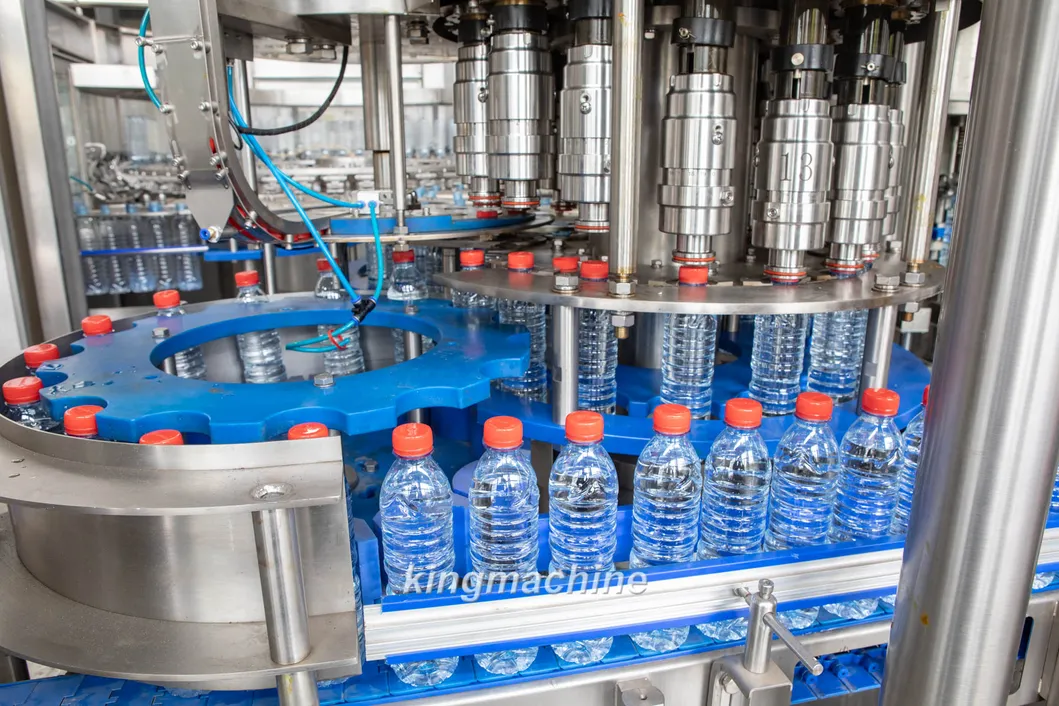

Capping Heads
Capping System

Advanced technology ensuring high reliability and low defective rates during the sealing process.

⚙️

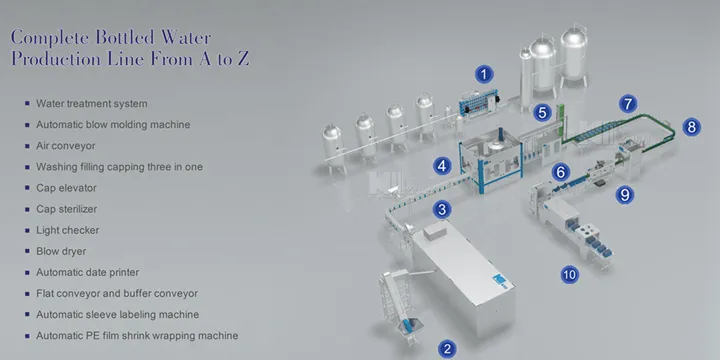

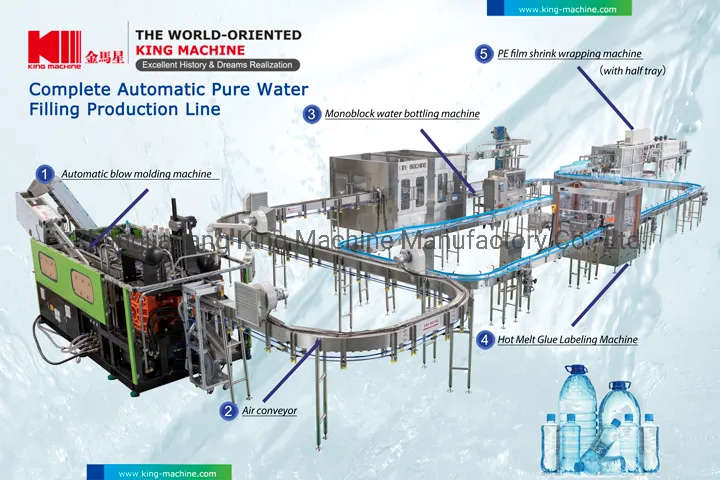

Production Flow Chart

Production Flow Chart

Sequence: Automatic Blowing → Air Conveyor → 3-in-1 Filling → Sleeve Labeling → Film Shrink Packing.

🌟

Main Features

🚀 High Speed: Large gravity flow valves ensure fast filling without liquid loss.
🛡️ Hygienic Design: Stainless steel bottle clips prevent secondary pollution at the bottle mouth.
🧠 PLC Control: Advanced automatic control using top-tier international electrical components.
🔄 Easy Changeover: Clip bottleneck technology allows for rapid switching between bottle shapes.
🛠️

Auxiliary Systems

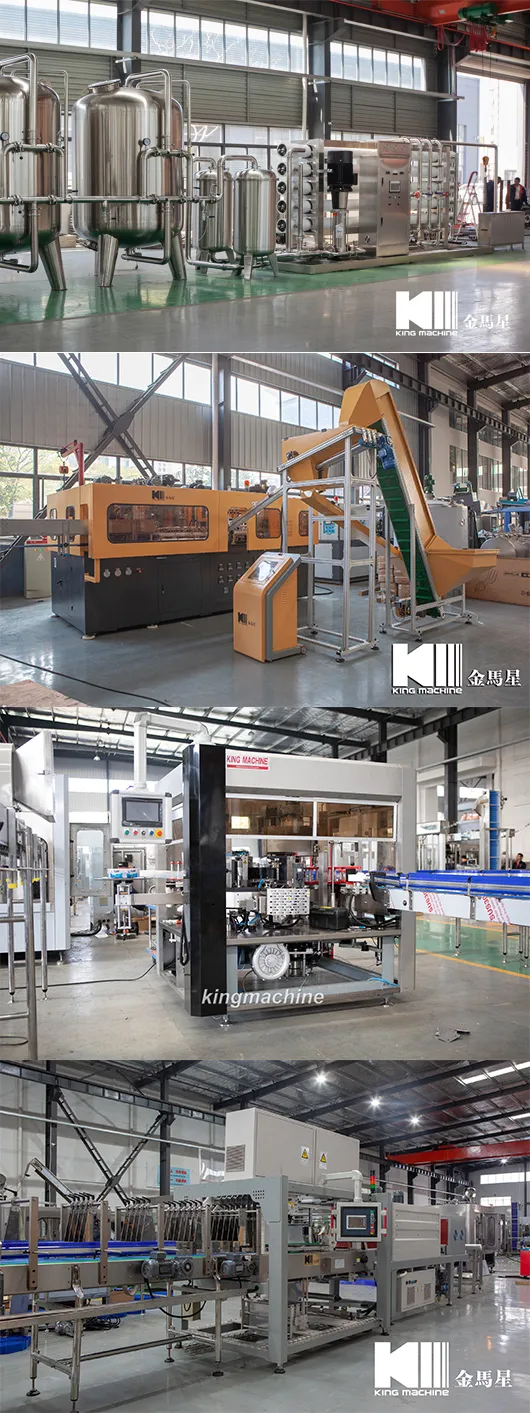

RO System
Water Treatment & Packaging
  • RO Water System: Includes silica sand, active carbon, and reverse osmosis for pure water quality.
  • Blow Molding: Precise measurements for bottle mouths and excellent mechanical strength.
  • Labeling Machine: Economical hot melt glue or shrink sleeve options for various containers.
  • Shrink Wrapping: Automatic PE film heat wrapping for efficient transport packaging.
🔧

Support & Service

Installation & Debugging

Seasoned technicians arrange equipment layout, testing, and ensure reaching rated capacity.

Technical Training

Comprehensive training on maintenance, operation, and troubleshooting for your staff.

Quality Guarantee

12-month warranty with free replacement of wearing parts and lifelong technical support.

❓

Frequently Asked Questions

Do you have reference projects available?
Yes, we have reference projects in most countries. We can provide video demonstrations or arrange visits to existing customer plants upon permission.
Do you provide customized services?
Absolutely. We design machines according to your specific requirements, including material type, power specifications, filling types, and bottle shapes.
What is the quality guarantee?
We provide high-quality machinery with a 1-year guarantee and lifelong technical support. All components are sourced from reputable international brands.
How long does the installation take?
Depending on the order complexity, installation and commissioning typically take between 10 to 25 days with our engineers on-site.
Do you provide staff training?
Yes, we offer technical training covering equipment structure, maintenance, and operation to ensure your team can handle daily production independently.

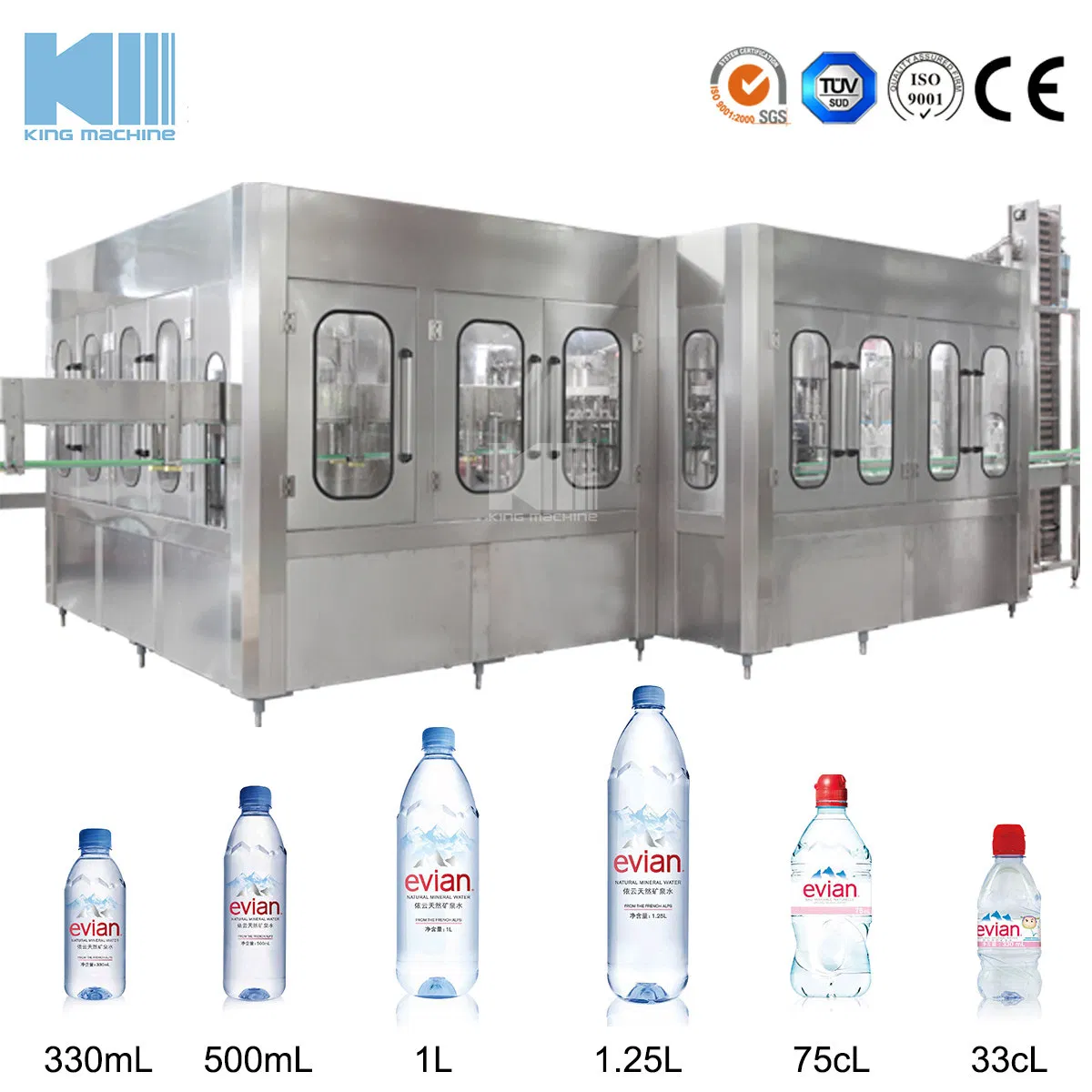

What bottle sizes can the machine handle?
Our standard machines are suitable for PET bottles ranging from 250ml to 2000ml, supporting both round and square shapes.
