Customization: Available
After-sales Service: Support
Warranty: 12 Months
Send Inquiry

Product Description

iBasic Information

Model NO.KM
TypeVolumetric Filling Machine
Automatic GradeAutomatic
Material TypeLiquid
Filling Valve HeadMulti-Head
Filling PrincipleVacuum
StructureRotary
PackagingBottle (Plastic)
Capacity2000 to 24000 bottles/Hour
HS Code8422309090

★Product Description

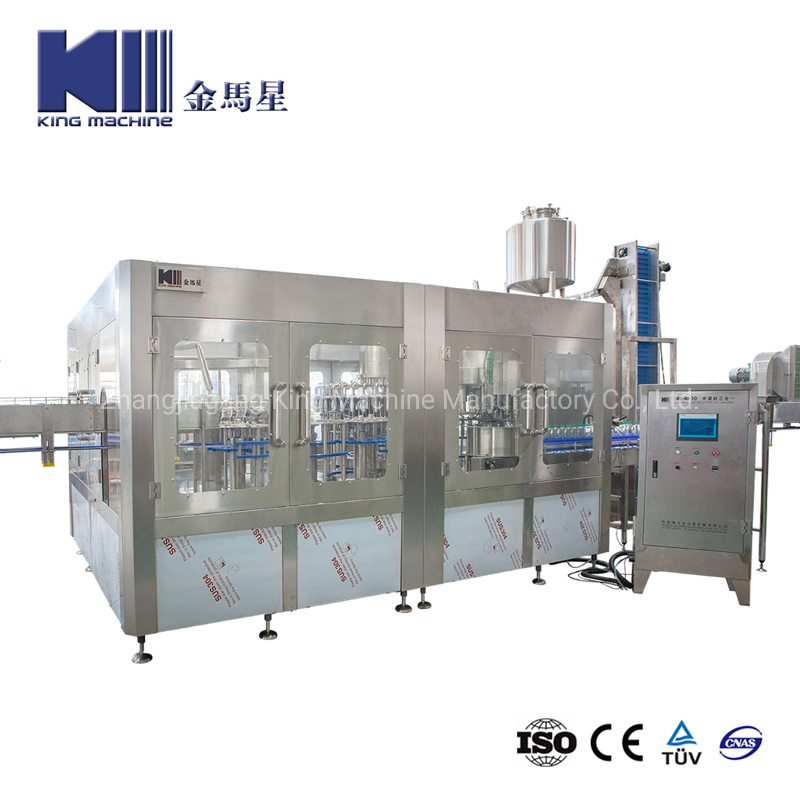

Full Automatic Juice Bottle Filling Machine

Juice Bottle Filling Machine

Complete Solution for Juice Filling Line Includes:

  • Water Treatment System
  • Juice Processing System
  • Automatic Bottle Unscrambler
  • Air Conveyor

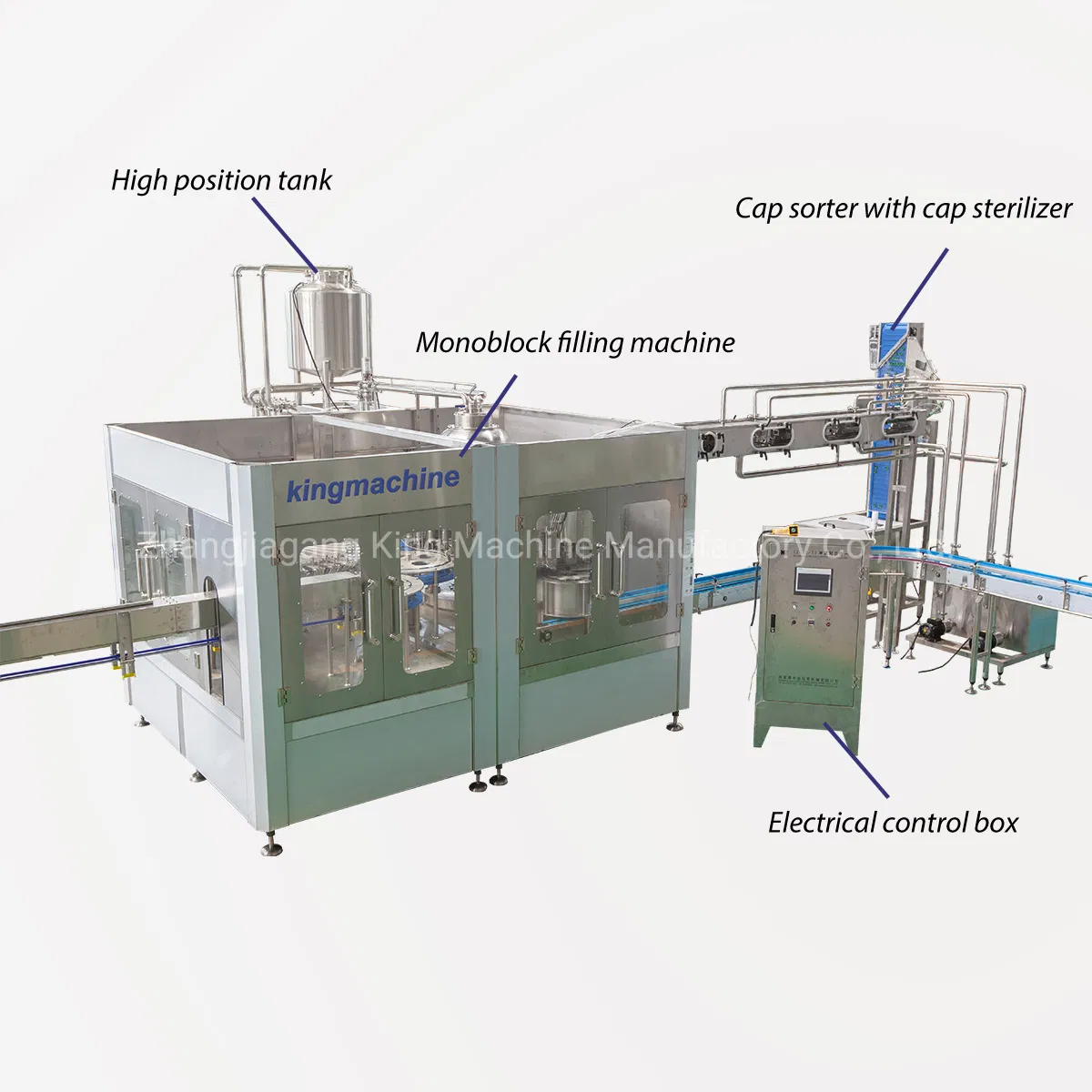

  • Monoblock Juice Filling Machine
  • Bottle Cooling System
  • PVC Shrink Sleeve Label Machine
  • Bottle Shrink Wrapping Machine

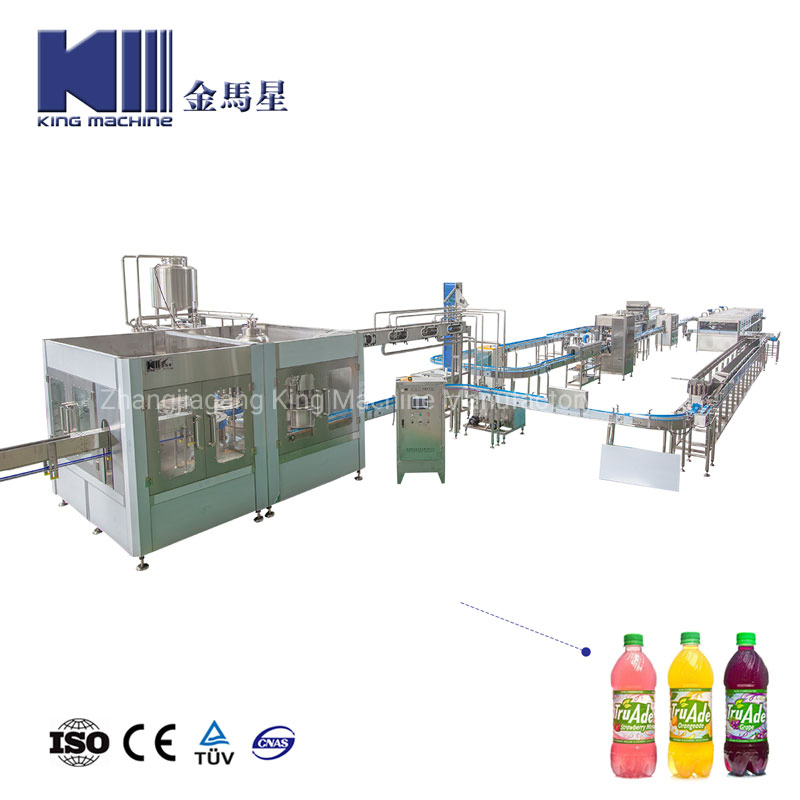

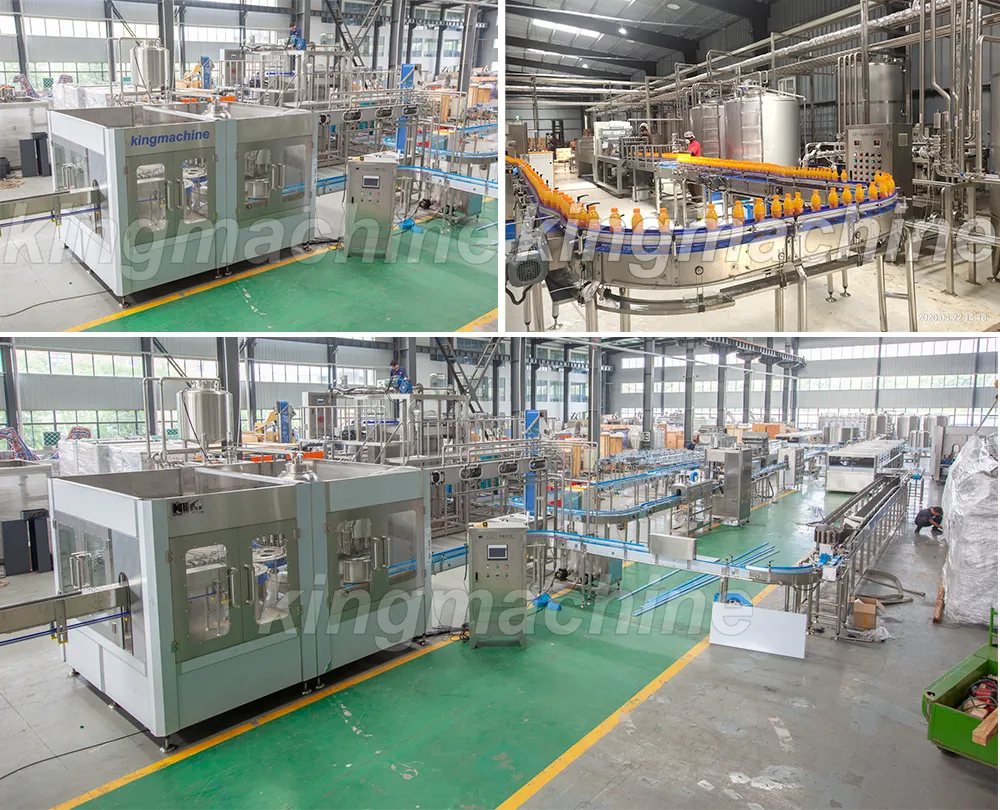

Production Line
Processing Products

Main Features:

  • Valve with magnetic flow meter for precise product dosing.
  • Entirely stainless steel (grade 304) draining base.
  • Reduced changeover down-times.
  • User friendly touch screen HMI with menu-based interface.
  • PET bottle neck-handling transfer - no height adjustment needed.

⚙Technical Specifications

Material Shape Volume Neck Type
PET Bottle Square or Round 100-2000ml As requested
Operating Conditions: Temperature: 10~40ºC; Humidity: No dew
Electrical: Voltage: 380V±5%, 3phase; Frequency: 50HZ±1%

📷Detailed Components

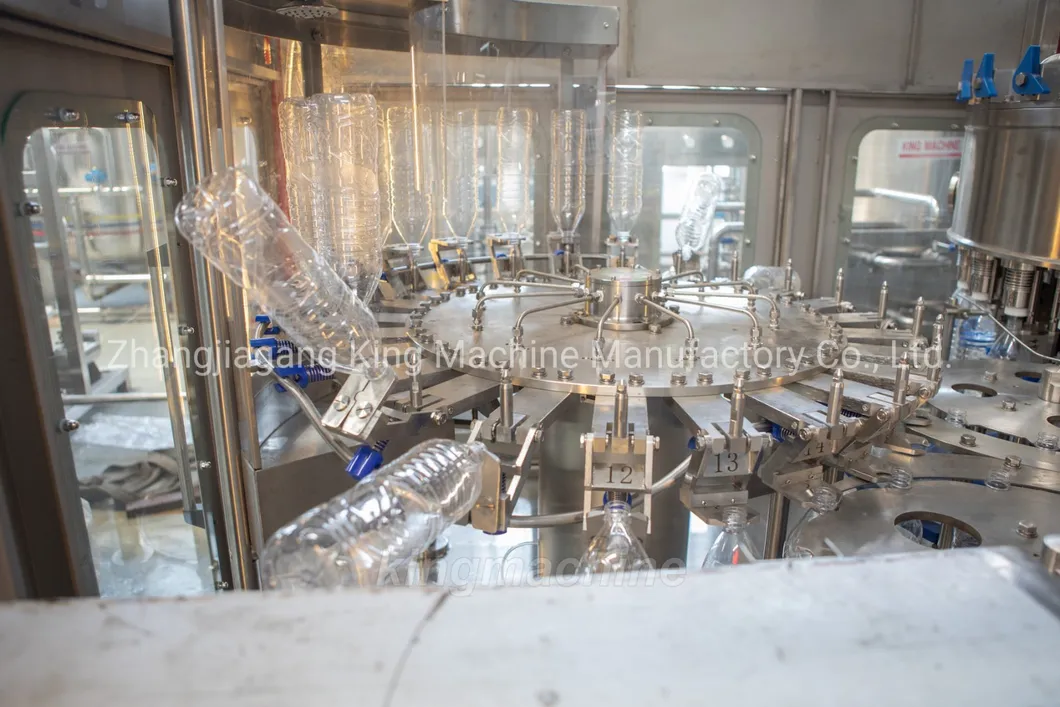

Washing heads

Washing Heads

Stainless steel SUS304 rotary disk with efficient spray nozzles to clean all inner walls.

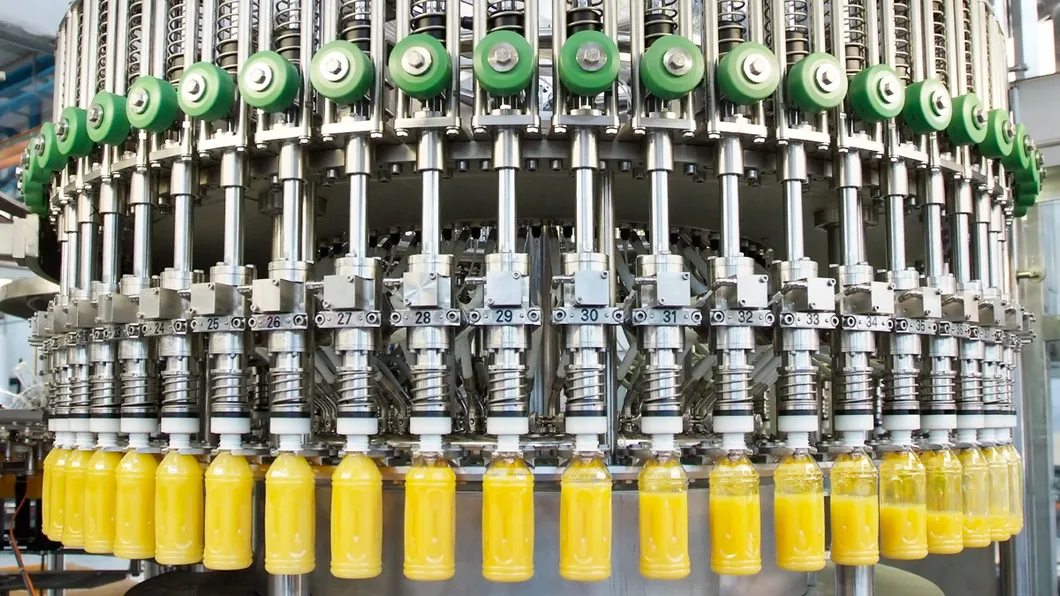

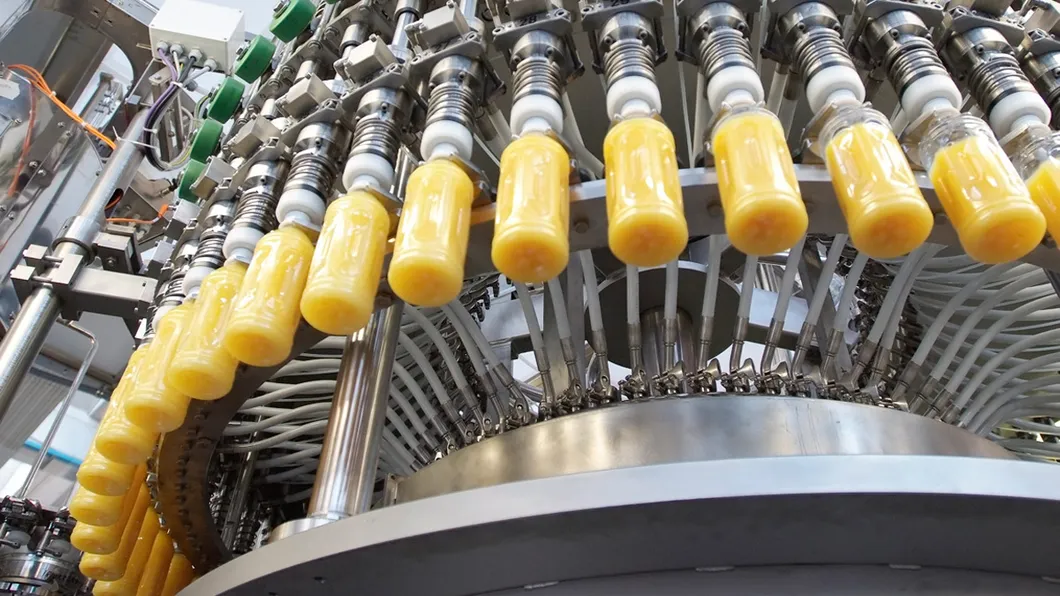

Filling heads

Filling Heads

Flexible platform utilizing modular filling valves for high precision bottling needs.

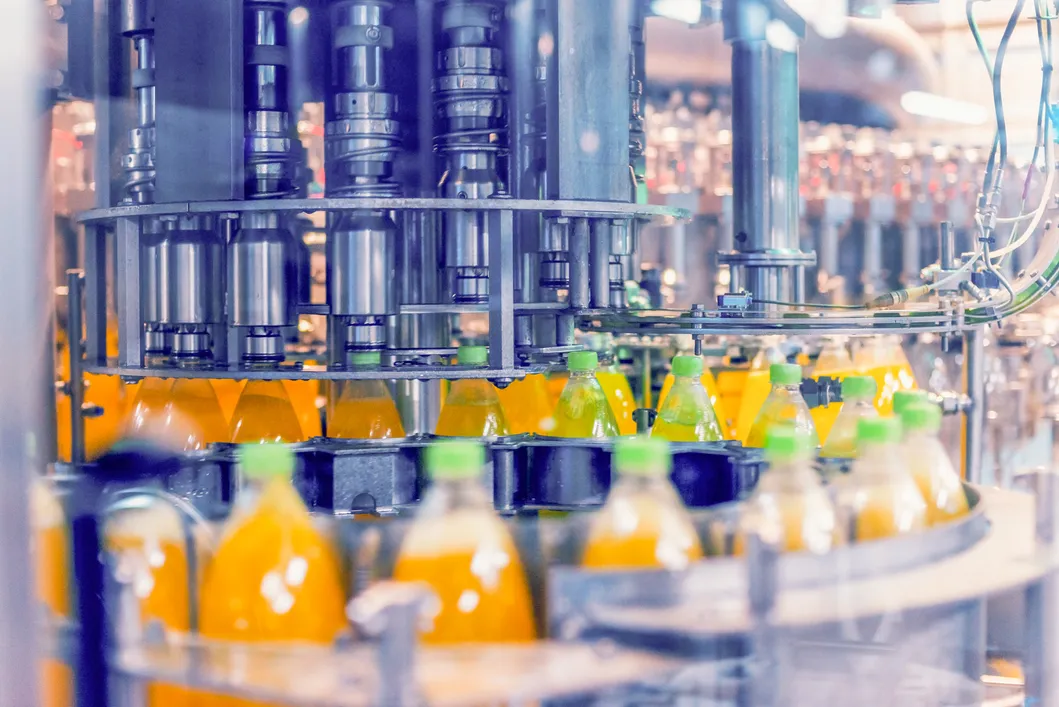

Capping heads

Capping Heads

High precision capping technology ensuring lowest defective rates in production.

✔Production Flow & Systems

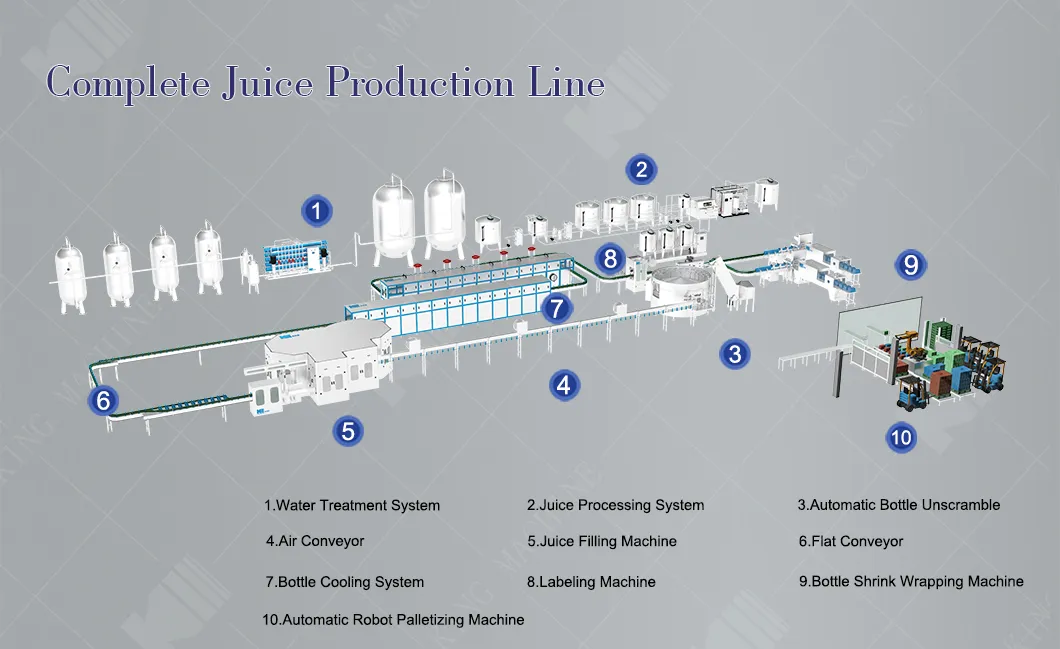

Flow Chart: Automatic blowing → Air conveyor → Washing/filling/capping 3in1 → Sleeve labeling → Film shrink packing

Flow Chart

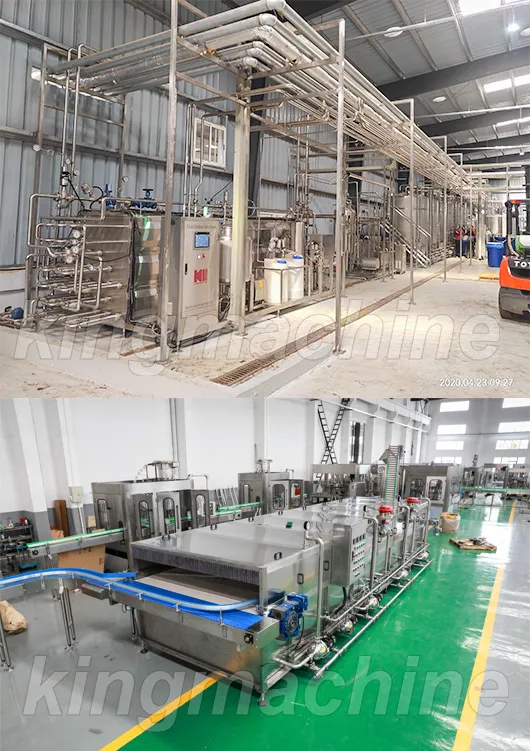

Juice Processing

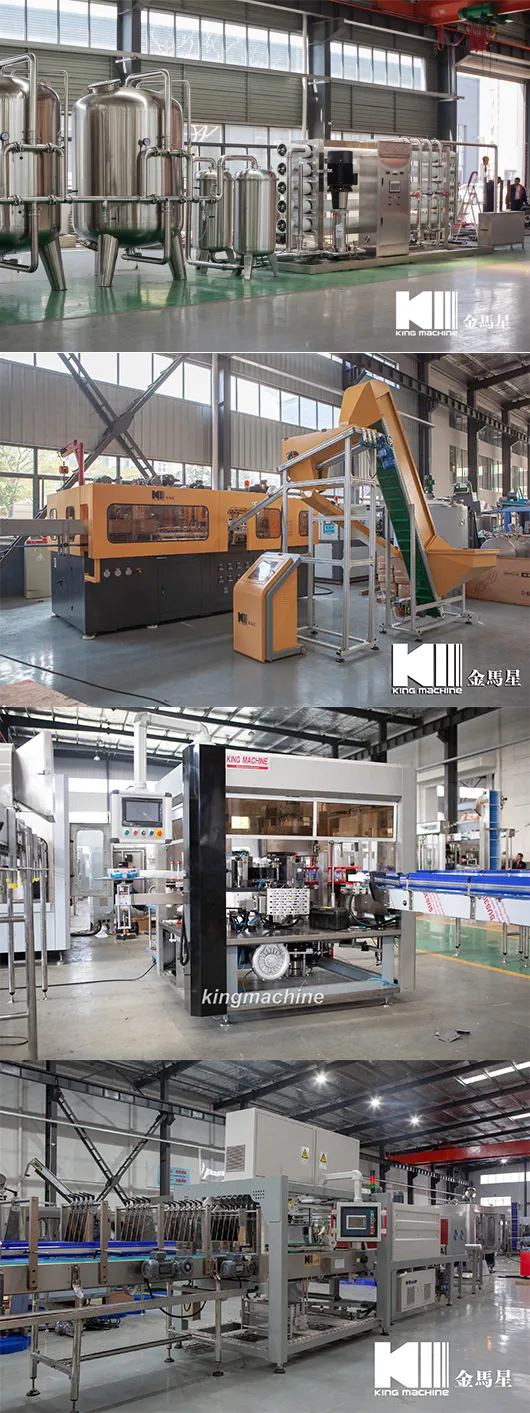

RO Water System

🛠Support & Quality Assurance

  • Installation & Debugging: Seasoned technicians arranged for site setup and test production.
  • Professional Training: Content includes equipment structure, maintenance, and operational control.
  • Quality Guarantee: 12 months warranty on all new components and life-long technical support.
  • Spare Parts: Wearing parts provided at favorable prices after the guarantee period.
Service Support

?Frequently Asked Questions

Q1: Can I visit a reference project to see the machines in action?
Yes, we have reference projects in many countries. With the permission of existing customers, we can share contact information or invite you to visit our facility to see the machines running.
Q2: Do you provide customized machine designs?
Absolutely. We design machines according to your specific requirements, including materials, power, filling type, and bottle shapes, combined with professional industry suggestions.
Q3: What is the warranty and technical support provided?
We offer a 1-year quality guarantee and provide life-long technical support for all our equipment.
Q4: How long does the installation process typically take?
Depending on the order complexity, we send engineers to your plant for a duration of approximately 10 to 25 days.
Q5: Do you offer training for our operators?
Yes, we provide comprehensive technology training covering structure, maintenance, and operation to ensure your team can handle the equipment and troubleshoot basic failures.
Q6: What if we encounter technical problems we cannot solve ourselves?
We provide remote guidance by phone. If the problem persists, we will arrange for a technician to visit your factory to solve the issue.
